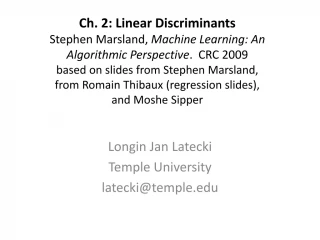

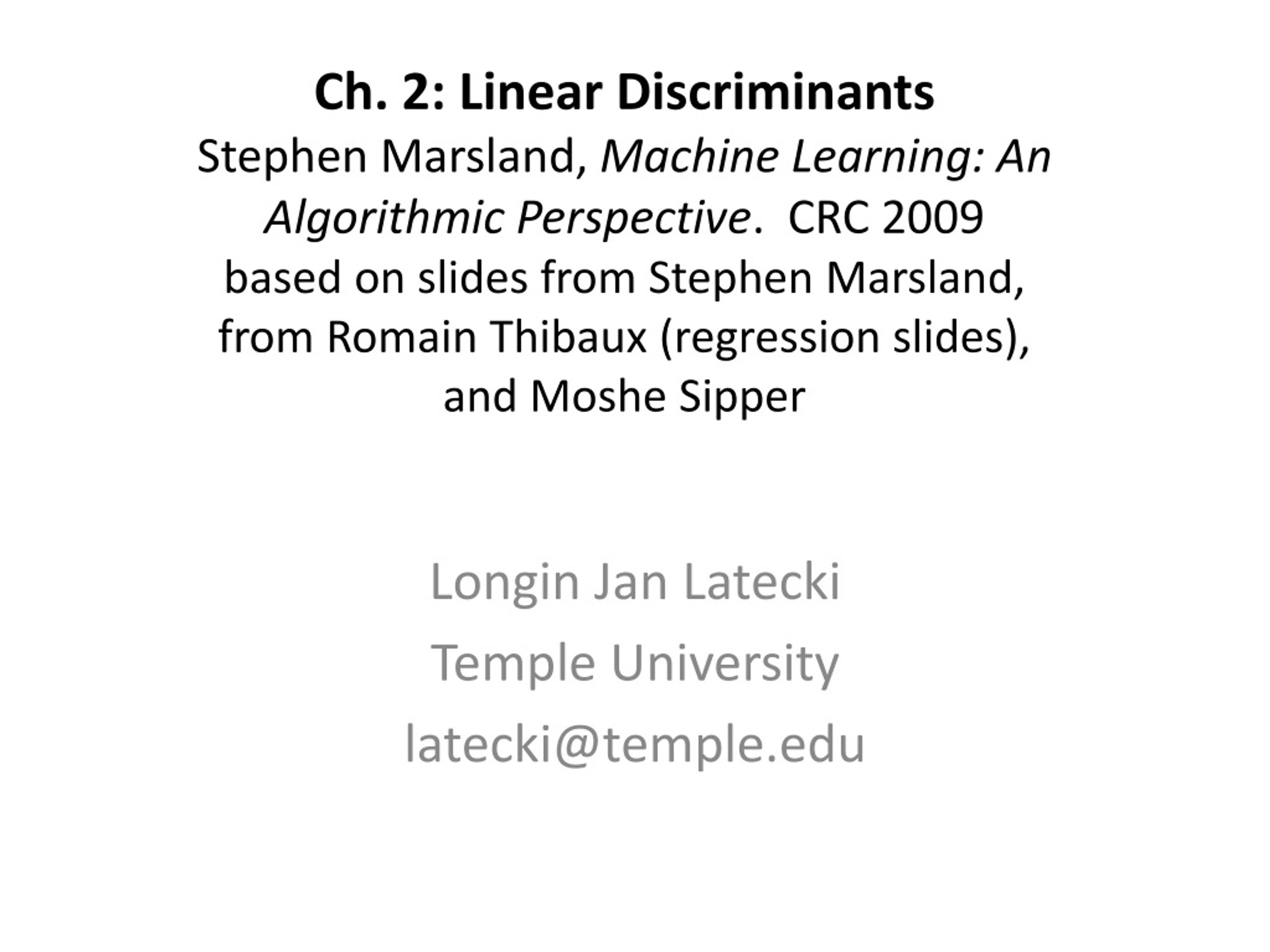

1. Ch. 2: Linear DiscriminantsStephen Marsland, Machine Learning: An Algorithmic Perspective.  CRC 2009based on slides from Stephen Marsland,from RomainThibaux (regression slides),and Moshe Sipper Longin Jan Latecki Temple University latecki@temple.edu

2. w1 w2 wm McCulloch and Pitts Neurons • Greatly simplified biological neurons • Sum the inputs • If total is less than some threshold, neuron fires • Otherwise does not x1 h x2 o  xm Stephen Marsland

3. McCulloch and Pitts Neurons • The weight wj can be positive or negative • Inhibitory or exitatory • Use only a linear sum of inputs • Use a simple output instead of a pulse (spike train) for some threshold  Stephen Marsland

4. Neural Networks • Can put lots of McCulloch & Pitts neurons together • Connect them up in any way we like • In fact, assemblies of the neurons are capable of universal computation • Can perform any computation that a normal computer can • Just have to solve for all the weights wij Stephen Marsland

5. Training Neurons • Adapting the weights is learning • How does the network know it is right? • How do we adapt the weights to make the network right more often? • Training set with target outputs • Learning rule Stephen Marsland

6. 2.2 The Perceptron The perceptron is considered the simplest kind of feed-forward neural network. Definition from Wikipedia: The perceptron is a binary classifier which maps its input x (a real-valued vector) to an output value f(x) (a single binary value) across the matrix: In order to not explicitly write b, we extend the input vector x by one more dimension that is always set to -1, e.g., x=(-1,x_1, …, x_7) with x_0=-1, and extend the weight vector to w=(w_0,w_1, …, w_7). Then adjusting w_0 corresponds to adjusting b.

7. Bias Replaces Threshold -1 Inputs Outputs Stephen Marsland

9. Perceptron Decision = Recall • Outputs are: For example, y=(y_1, …, y_5)=(1, 0, 0, 1, 1) is a possible output. We may have a different function g in the place of sign, as in (2.4) in the book. Stephen Marsland

10. Perceptron Learning = Updating the Weights • We want to change the values of the weights • Aim: minimise the error at the output • If E = t-y, want E to be 0 • Use: Input Learning rate Error Stephen Marsland

11. Example 1: The Logical OR -1 W_0 W_1 W_2 Initial values: w_0(0)=-0.05, w_1(0) =-0.02, w_2(0)=0.02, and =0.25 Take first row of our training table: y_1= sign( -0.05×-1 + -0.02×0 + 0.02×0 ) = 1 w_0(1) = -0.05 + 0.25×(0-1)×-1=0.2 w_1(1) = -0.02 + 0.25×(0-1)×0=-0.02 w_2(1) = 0.02 + 0.25×(0-1)×0=0.02 We continue with the new weights and the second row, and so on We make several passes over the training data.

12. Decision boundary for OR perceptron Stephen Marsland

13. Perceptron Learning Applet • http://lcn.epfl.ch/tutorial/english/perceptron/html/index.html

14. RS LS w1 w2 w4 w3  = 0.3  = -0.01 LM RM Example 2: Obstacle Avoidance with the Perceptron LS RS LM RM Stephen Marsland

15. Obstacle Avoidance with the Perceptron Stephen Marsland

16. Obstacle Avoidance with the Perceptron RS LS w1 w2 w4 w1=0+0.3 * (1-1) * 0 = 0 w3 LM RM Stephen Marsland

17. Obstacle Avoidance with the Perceptron RS LS w2=0+0.3 * (1-1) * 0 = 0 w1 w2 w4 And the same for w3, w4 w3 LM RM Stephen Marsland

18. Obstacle Avoidance with the Perceptron Stephen Marsland

19. Example 1: Obstacle Avoidance with the Perceptron RS LS w1=0+0.3 * (-1-1) * 0 = 0 w1 w2 w4 w3 LM RM Stephen Marsland

20. Obstacle Avoidance with the Perceptron RS LS w1=0+0.3 * (-1-1) * 0 = 0 w2=0+0.3 * ( 1-1) * 0 = 0 w1 w2 w4 w3 LM RM Stephen Marsland

21. Obstacle Avoidance with the Perceptron RS LS w1=0+0.3 * (-1-1) * 0 = 0 w2=0+0.3 * ( 1-1) * 0 = 0 w3=0+0.3 * (-1-1) * 1 = -0.6 w1 w2 w4 w3 LM RM Stephen Marsland

22. Obstacle Avoidance with the Perceptron RS LS w1=0+0.3 * (-1-1) * 0 = 0 w2=0+0.3 * ( 1-1) * 0 = 0 w3=0+0.3 * (-1-1) * 1 = -0.6 w4=0+0.3 * ( 1-1) * 1 = 0 w1 w2 w4 w3 LM RM Stephen Marsland

23. Obstacle Avoidance with the Perceptron Stephen Marsland

24. Obstacle Avoidance with the Perceptron RS LS w1=0+0.3 * ( 1-1) * 1 = 0 w2=0+0.3 * (-1-1) * 1 = -0.6 w3=-0.6+0.3 * ( 1-1) * 0 = -0.6 w4=0+0.3 * (-1-1) * 0 = 0 w1 w2 w4 w3 LM RM Stephen Marsland

25. Obstacle Avoidance with the Perceptron RS LS 0 0 -0.6 -0.6 -0.01 -0.01 LM RM Stephen Marsland

26. 2.3 Linear Separability • Outputs are: where and  is the angle between vectors x and w. Stephen Marsland

27. w Geometry of linear Separability The equation of a line is w_0 + w_1*x + w_2*y=0 It also means that point (x,y) is on the line This equation is equivalent to wx = (w_0, w_1,w_2) (1,x,y) = 0 If wx > 0, then the angle between w and x is less than 90 degree, which means that w and x lie on the same side of the line. Each output node of perceptron tries to separate the training data Into two classes (fire or no-fire) with a linear decision boundary, i.e., straight line in 2D, plane in 3D, and hyperplane in higher dim. Stephen Marsland

28. Linear Separability The Binary AND Function Stephen Marsland

29. Gradient Descent Learning Rule • Consider linear unit without threshold and continuous output o (not just –1,1) • y=w0 + w1 x1 + … + wn xn • Train the wi’s such that they minimize the squared error • E[w1,…,wn] = ½ dD (td-yd)2 where D is the set of training examples

30. Supervised Learning • Training and test data sets • Training set; input & target

31. (w1,w2) Gradient: E[w]=[E/w0,… E/wn] (w1+w1,w2 +w2) Gradient Descent D={<(1,1),1>,<(-1,-1),1>, <(1,-1),-1>,<(-1,1),-1>} w=- E[w] wi=- E/wi /wi 1/2d(td-yd)2 = d /wi 1/2(td-i wi xi)2 = d(td- yd)(-xi)

32. Gradient Descent Error wi=- E/wi Stephen Marsland

33. Incremental Stochastic Gradient Descent • Batch mode : gradient descent w=w -  ED[w] over the entire data D ED[w]=1/2d(td-yd)2 • Incremental mode: gradient descent w=w -  Ed[w] over individual training examples d Ed[w]=1/2 (td-yd)2 Incremental Gradient Descent can approximate Batch Gradient Descent arbitrarily closely if  is small enough

34. Gradient Descent Perceptron Learning Gradient-Descent(training_examples, ) Each training example is a pair of the form <(x1,…xn),t> where (x1,…,xn) is the vector of input values, and t is the target output value,  is the learning rate (e.g. 0.1) • Initialize each wi to some small random value • Until the termination condition is met, Do • For each <(x1,…xn),t> in training_examples Do • Input the instance (x1,…,xn) to the linear unit and compute the output y • For each linear unit weight wi Do • wi=  (t-y) xi • For each linear unit weight wi Do • wi=wi+wi

35. Limitations of the Perceptron The Exclusive Or (XOR) function. Linear Separability Stephen Marsland

36. Limitations of the Perceptron W1 > 0 W2 > 0 W1 + W2 < 0 ? Stephen Marsland

37. Limitations of the Perceptron? In2 In1 In3 Stephen Marsland

38. 2.4 Linear regression 40 26 24 Temperature 22 20 20 30 40 20 30 20 10 0 10 0 10 20 0 0 Given examples given a new point Predict

39. 26 24 22 20 30 40 20 30 Prediction 20 10 Prediction 10 0 0 Linear regression 40 Temperature 20 0 0 20

40. Sum squared error Ordinary Least Squares (OLS) Error or “residual” Observation Prediction 0 0 20

41. Minimize the sum squared error Sum squared error Linear equation Linear system

42. Alternative derivation n d Solve the system (it’s better not to invert the matrix)

43. 40 20 0 0 10 20 Beyond lines and planes still linear in everything is the same with

44. Geometric interpretation 20 10 400 0 300 200 -10 100 0 10 20 0 [Matlab demo]

45. Ordinary Least Squares [summary] Given examples Let For example Let n d Minimize by solving Predict

46. Probabilistic interpretation 0 0 20 Likelihood

47. Summery • Perceptron and regression optimize the same target function • In both cases we compute the gradient (vector of partial derivatives) • In the case of regression, we set the gradient to zero and solve for vector w. As the solution we have a closed formula for w such that the target function obtains the global minimum. • In the case of perceptron, we iteratively go in the direction of the minimum by going in the direction of minus the gradient. We do this incrementally making small steps for each data point.

48. Homework 1 • (Ch. 2.3.3) Implement perceptron in Matlab and test it on the Pmia Indian Dataset from UCI Machine Learning Repository:http://archive.ics.uci.edu/ml/ • (Ch. 2.4.1) Implementing linear regression in Matlab and apply it to auto-mpg dataset.

49. From Ch. 3: Testing • How do we evaluate our trained network? • Can’t just compute the error on the training data - unfair, can’t see overfitting • Keep a separate testing set • After training, evaluate on this test set • How do we check for overfitting? • Can’t use training or testing sets Stephen Marsland

50. Validation • Keep a third set of data for this • Train the network on training data • Periodically, stop and evaluate on validation set • After training has finished, test on test set • This is coming expensive on data! Stephen Marsland
