  1. Lab #2:- variable transformations- LISA statistics - Getis-Ord statistics- constructing spider diagrams Spatial statistics in practice Center for Tropical Ecology and Biodiversity, Tunghai University & Fushan Botanical Garden

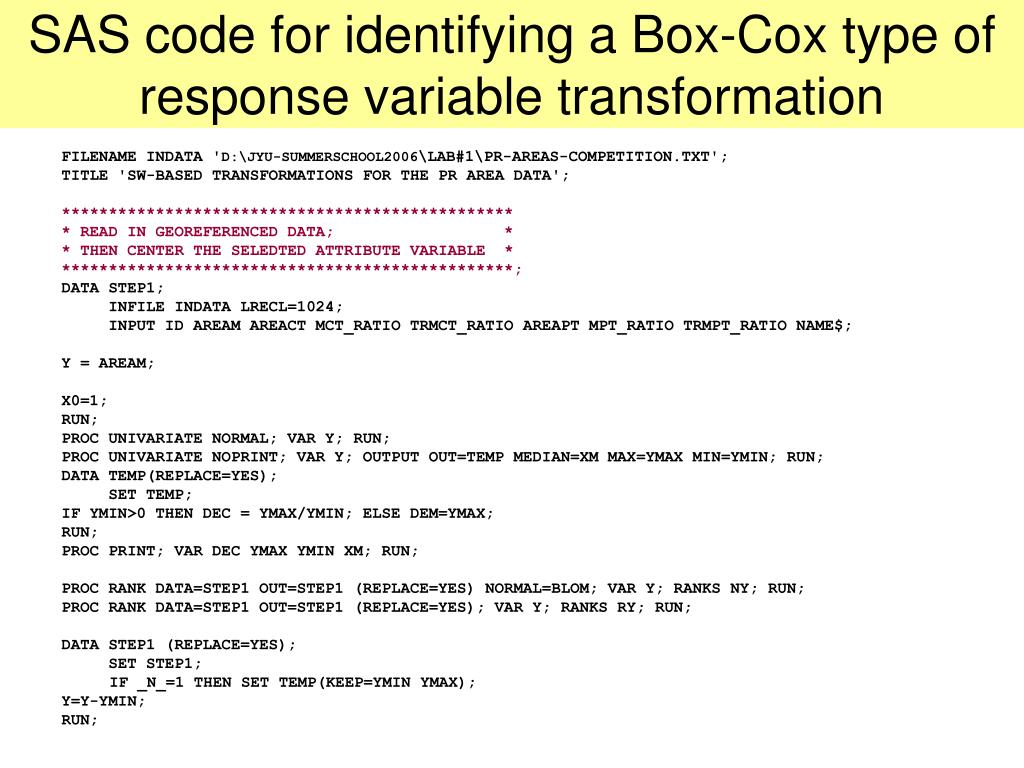

  2. SAS code for identifying a Box-Cox type of response variable transformation FILENAME INDATA 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-AREAS-COMPETITION.TXT'; TITLE 'SW-BASED TRANSFORMATIONS FOR THE PR AREA DATA'; ************************************************ * READ IN GEOREFERENCED DATA; * * THEN CENTER THE SELEDTED ATTRIBUTE VARIABLE * ************************************************; DATA STEP1; INFILE INDATA LRECL=1024; INPUT ID AREAM AREACT MCT_RATIO TRMCT_RATIO AREAPT MPT_RATIO TRMPT_RATIO NAME$; Y = AREAM; X0=1; RUN; PROC UNIVARIATE NORMAL; VAR Y; RUN; PROC UNIVARIATE NOPRINT; VAR Y; OUTPUT OUT=TEMP MEDIAN=XM MAX=YMAX MIN=YMIN; RUN; DATA TEMP(REPLACE=YES); SET TEMP; IF YMIN>0 THEN DEC = YMAX/YMIN; ELSE DEM=YMAX; RUN; PROC PRINT; VAR DEC YMAX YMIN XM; RUN; PROC RANK DATA=STEP1 OUT=STEP1 (REPLACE=YES) NORMAL=BLOM; VAR Y; RANKS NY; RUN; PROC RANK DATA=STEP1 OUT=STEP1 (REPLACE=YES); VAR Y; RANKS RY; RUN; DATA STEP1 (REPLACE=YES); SET STEP1; IF _N_=1 THEN SET TEMP(KEEP=YMIN YMAX); Y=Y-YMIN; RUN;

  3. exponent of 0 **************************************************** * A JACOBIAN TERM MAY BE NEEDED HERE IF N IS SMALL * **************************************************** * LOG TRANSFORMATION (POWER OF 0) WITH TRANSLATION * ****************************************************; PROC NLIN DATA=STEP1 NOITPRINT MAXITER=5000 METHOD=MARQUARDT; PARMS A=0 B=1 D=0.01; BOUNDS 0<D; MODEL NY = A + B*LOG(Y+D); OUTPUT OUT=TEMP1 PARMS=A B D; RUN; DATA TEMP1(REPLACE=YES); SET TEMP1; D=D-YMIN; RUN; PROC MEANS; VAR D; RUN; ****************************************************** * POWER TRANSFORMATION (POWER <> 0) WITH TRANSLATION * ******************************************************; PROC NLIN DATA=STEP1 NOITPRINT MAXITER=1000 METHOD=MARQUARDT; PARMS A=0 B=1 C=0.5; D=1.0E-10; BOUNDS 0<D; MODEL NY = A + B*((Y + D)**C - 1)/C; OUTPUT OUT=TEMP2 PARMS=A B D; RUN; DATA TEMP2(REPLACE=YES); SET TEMP2; D=D-YMIN; RUN; PROC MEANS; VAR C D; RUN; ****************************** * EXPONENTIAL TRANSFORMATION * ******************************; PROC NLIN DATA=STEP1 NOITPRINT MAXITER=5000 METHOD=MARQUARDT; PARMS A=0 B=1 C=0.01; MODEL NY = A + B*EXP(-C*(Y+YMIN) ); OUTPUT OUT=TEMP PARMS=A B C; RUN; PROC MEANS; VAR C; RUN; exponent of < 0, > 0 exponentiation (Manley transformation)

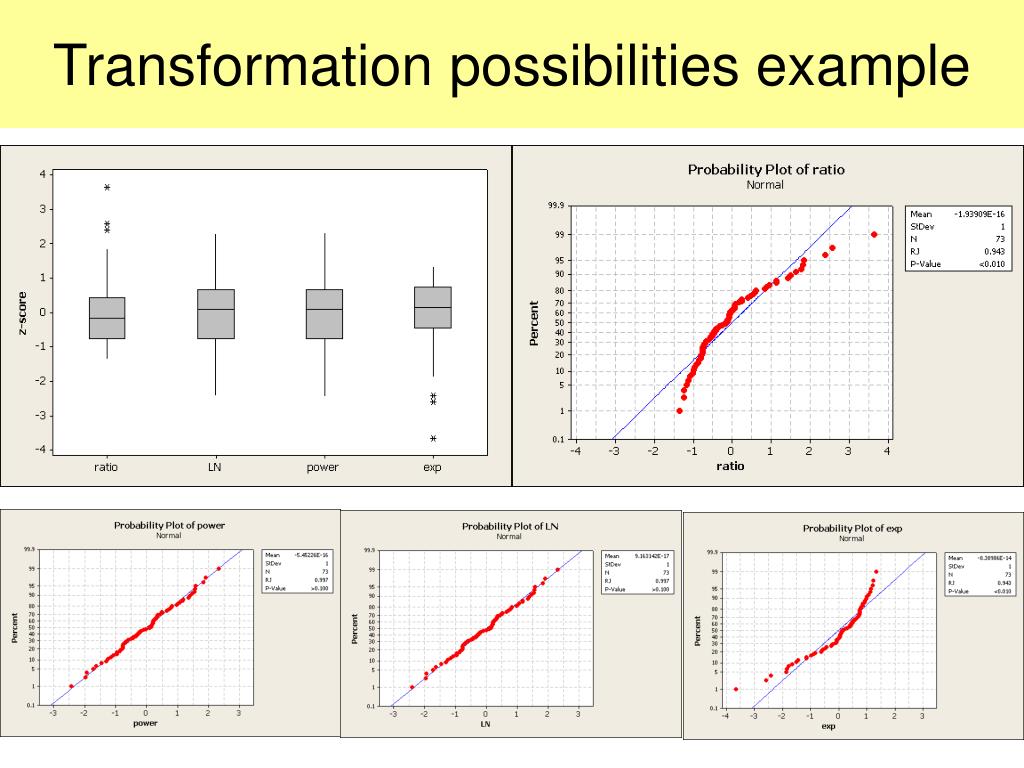

  4. Transformation possibilities example

  5. SAS code for normality & variance equality tests FILENAME INDATA 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-AREAS-COMPETITION.TXT'; OPTIONS LINESIZE=72; TITLE 'SW-BASED TRANSFORMATIONS FOR THE PR AREA DATA'; ************************************************ * READ IN GEOREFERENCED DATA; * * THEN CENTER THE SELEDTED ATTRIBUTE VARIABLE * ************************************************; DATA STEP1; INFILE INDATA LRECL=1024; INPUT ID AREAM AREACT MCT_RATIO TRMCT_RATIO AREAPT MPT_RATIO TRMPT_RATIO NAME$; Y = MCT_RATIO; TRY = LOG(Y – 0.20); X0=1; RUN; PROC UNIVARIATE NORMAL; VAR Y TRY; RUN; PROC MEANS DATA=STEP1 NOPRINT; VAR Y; OUTPUT OUT=YMEAN MEAN=YMEAN; RUN; DATA STEP1(REPLACE=YES); SET STEP1; IF _N_=1 THEN SET YMEAN(KEEP=YMEAN); IF Y>YMEAN THEN IYMEAN=1; ELSE IYMEAN=0; RUN; PROC GLM; CLASS IYMEAN; MODEL Y=IYMEAN; MEANS IYMEAN/HOVTEST=BARTLETT; RUN; PROC GLM; CLASS IYMEAN; MODEL Y=IYMEAN; MEANS IYMEAN/HOVTEST=LEVENE; RUN; PROC MEANS DATA=STEP1 NOPRINT; VAR TRY; OUTPUT OUT=TRYMEAN MEAN=TRYMEAN; RUN; DATA STEP1(REPLACE=YES); SET STEP1; IF _N_=1 THEN SET TRYMEAN(KEEP=TRYMEAN); IF TRY>TRYMEAN THEN ITRYMEAN=1; ELSE ITRYMEAN=0; RUN; PROC GLM; CLASS ITRYMEAN; MODEL TRY=ITRYMEAN; MEANS ITRYMEAN/HOVTEST=BARTLETT; RUN; PROC GLM; CLASS ITRYMEAN; MODEL TRY=ITRYMEAN; MEANS ITRYMEAN/HOVTEST=LEVENE; RUN;

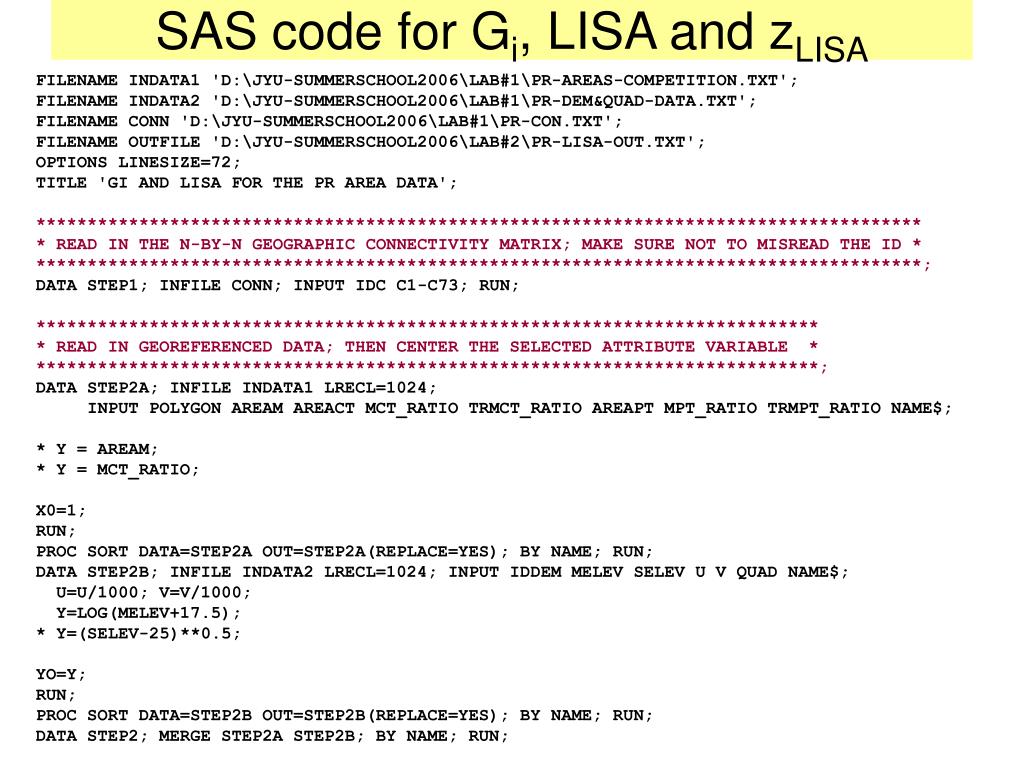

  6. SAS code for Gi, LISA and zLISA FILENAME INDATA1 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-AREAS-COMPETITION.TXT'; FILENAME INDATA2 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-DEM&QUAD-DATA.TXT'; FILENAME CONN 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-CON.TXT'; FILENAME OUTFILE 'D:\JYU-SUMMERSCHOOL2006\LAB#2\PR-LISA-OUT.TXT'; OPTIONS LINESIZE=72; TITLE 'GI AND LISA FOR THE PR AREA DATA'; ************************************************************************************** * READ IN THE N-BY-N GEOGRAPHIC CONNECTIVITY MATRIX; MAKE SURE NOT TO MISREAD THE ID * **************************************************************************************; DATA STEP1; INFILE CONN; INPUT IDC C1-C73; RUN; **************************************************************************** * READ IN GEOREFERENCED DATA; THEN CENTER THE SELECTED ATTRIBUTE VARIABLE * ****************************************************************************; DATA STEP2A; INFILE INDATA1 LRECL=1024; INPUT POLYGON AREAM AREACT MCT_RATIO TRMCT_RATIO AREAPT MPT_RATIO TRMPT_RATIO NAME$; * Y = AREAM; * Y = MCT_RATIO; X0=1; RUN; PROC SORT DATA=STEP2A OUT=STEP2A(REPLACE=YES); BY NAME; RUN; DATA STEP2B; INFILE INDATA2 LRECL=1024; INPUT IDDEM MELEV SELEV U V QUAD NAME$; U=U/1000; V=V/1000; Y=LOG(MELEV+17.5); * Y=(SELEV-25)**0.5; YO=Y; RUN; PROC SORT DATA=STEP2B OUT=STEP2B(REPLACE=YES); BY NAME; RUN; DATA STEP2; MERGE STEP2A STEP2B; BY NAME; RUN;

  7. PROC STANDARD MEAN=0 STD=1 OUT=STEP2(REPLACE=YES); VAR Y; RUN; PROC MEANS DATA=STEP2 NOPRINT; VAR X0; OUTPUT OUT=NOUT SUM=N; RUN; PROC MEANS DATA=STEP2 NOPRINT; VAR YO; OUTPUT OUT=YOOUT MEAN=YOBAR USS=YOUSS; RUN; DATA STEP2(REPLACE=YES); SET STEP2; SET STEP1; ARRAY CONN{73} C1-C73; ARRAY YCONN{73} CY1-CY73; ARRAY YOCONN{73} CYO1-CYO73; CSUM = 0; DO I=1 TO 73; CSUM = CSUM + CONN{I}; IF _N_=I THEN CONN{I}=0; YCONN{I} = Y*CONN{I}; YOCONN{I} = YO*CONN{I}; END; RUN; PROC MEANS DATA=STEP2 NOPRINT; VAR CY1-CY73; OUTPUT OUT=CYOUT1 SUM=CY1-CY73; RUN; PROC TRANSPOSE DATA=CYOUT1 PREFIX=CY OUT=CYOUT2; VAR CY1-CY73; RUN; PROC MEANS DATA=STEP2 NOPRINT; VAR CYO1-CYO73; OUTPUT OUT=CYOOUT1 SUM=CYO1-CYO73; RUN; PROC TRANSPOSE DATA=CYOOUT1 PREFIX=CYO OUT=CYOOUT2; VAR CYO1-CYO73; RUN; DATA STEP3; SET STEP2(KEEP=POLYGON Y YO CSUM); SET CYOUT2(KEEP=CY1); SET CYOOUT2(KEEP=CYO1); IF _N_=1 THEN SET NOUT(KEEP=N); IF _N_=1 THEN SET YOOUT(KEEP=YOBAR YOUSS); LISA=Y*CY1/((N-1)/N); ELISA=-CSUM/(N-1); GI=(CYO1-((N*YOBAR-YO)/(N-1))*CSUM)/ ( SQRT((YOUSS-YO**2-((N*YOBAR-YO)**2)/(N-1))/(N-1))*SQRT(((N-1)*CSUM-CSUM**2)/(N-2)) ); DROP CY1; RUN; PROC PRINT; VAR LISA GI; RUN; would be (n-2) for an unbiased estimate

  8. ***************************** * * * CONDITIONAL RANDOMIZATION * * * *****************************; PROC TRANSPOSE DATA=STEP3 PREFIX=N OUT=SAMPLE1; VAR CSUM; RUN; PROC TRANSPOSE DATA=STEP3 PREFIX=Y OUT=SAMPLE2; VAR Y; RUN; DATA SAMPLE3; SET SAMPLE1; SET SAMPLE2; ARRAY TY{73} Y1-Y73; ARRAY NI{73} N1-N73; DO I=1 TO 73; DO J=1 TO 10000; DO K=1 TO 73; YI=TY{I}; YJ=TY{K}; PROB = RANUNI(0); IF K=I THEN PROB=0; NUMI=NI{I}; OUTPUT; END; END; END; DROP K Y1-Y73 N1-N73; RUN; PROC RANK DATA=SAMPLE3 OUT=SAMPLE3 (REPLACE=YES) DESCENDING; VAR PROB; RANKS RPROB; BY I J; RUN; DATA SAMPLE3(REPLACE=YES); SET SAMPLE3; IF _N_=1 THEN SET NOUT(KEEP=N); IF RPROB > NUMI THEN DELETE; YIYJ=YI*YJ/((N-1)/N); RUN; PROC MEANS NOPRINT; VAR YIYJ; BY I J; OUTPUT OUT=SAMPLE4 SUM=CYIYJ; RUN; PROC MEANS NOPRINT; VAR CYIYJ; BY I; OUTPUT OUT=SAMPLE5 MEAN=MCYIYJ STD=SCYIYJ; RUN; reduce to 100 for class purposes

  9. DATA FINAL; SET STEP3(KEEP=POLYGON LISA ELISA N); SET SAMPLE5(KEEP=MCYIYJ SCYIYJ); ZLISA = (LISA-MCYIYJ)/SCYIYJ; IF ZLISA> 0 THEN PROBLISA = 1 - PROBNORM(ZLISA); ELSE PROBLISA = PROBNORM(ZLISA); BON1 = 0.05/N; BON2 = 1 - 0.01/N; SIDAK1 = 1 - (1 - 0.05)**(1/N); SIDAK2 = (1 - 0.05)**(1/N); IF PROBLISA < BON1 OR PROBLISA < SIDAK1 OR PROBLISA > BON2 OR PROBLISA > SIDAK2 THEN IEXTREME=1; ELSE IEXTREME=0; RUN; PROC PRINT; VAR POLYGON LISA ZLISA PROBLISA IEXTREME BON1 BON2 SIDAK1 SIDAK2; RUN; DATA EXTREMES; SET FINAL; IF IEXTREME=0 THEN DELETE; RUN; PROC PRINT; VAR POLYGON LISA ZLISA PROBLISA IEXTREME BON1 BON2 SIDAK1 SIDAK2; RUN; PROC CLUSTER DATA=FINAL NOPRINT SIMPLE METHOD=COMPLETE NOEIGEN OUTTREE=LISATREE; VAR ZLISA; ID POLYGON; RUN; **************************** * SET THE NUMBER OF GROUPS * ****************************; PROC TREE DATA=LISATREE OUT=TREEOUT NCLUSTERS=5; ID POLYGON; RUN; PROC SORT OUT=TREEOUT; BY POLYGON; RUN; DATA FINAL(REPLACE=YES); MERGE FINAL TREEOUT; BY POLYGON; RUN; PROC SORT OUT=FINAL(REPLACE=YES); BY CLUSTER ZLISA; RUN; PROC ANOVA; CLASS CLUSTER; MODEL ZLISA=CLUSTER; RUN; PROC MEANS DATA=FINAL NOPRINT; VAR ZLISA; BY CLUSTER; OUTPUT OUT=TEMP MIN=ZMIN MAX=ZMAX; RUN; PROC PRINT; RUN; PROC UNIVARIATE DATA=FINAL NOPRINT; VAR ZLISA; BY CLUSTER; OUTPUT OUT=TEMP2 PROBN=SW; RUN; PROC PRINT; RUN; PROC DISCRIM DATA=FINAL POOL=TEST; CLASS CLUSTER; VAR ZLISA; RUN; DATA _NULL_; SET FINAL; FILE OUTFILE; PUT CLUSTER POLYGON ZLISA; RUN;

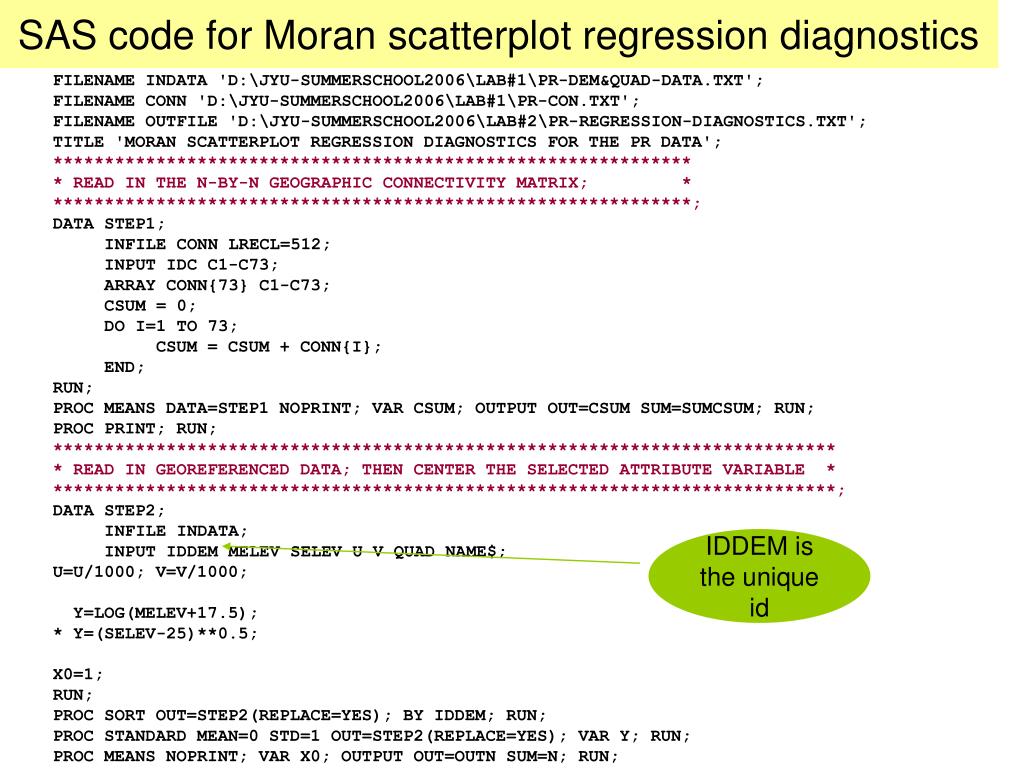

  10. SAS code for Moran scatterplot regression diagnostics FILENAME INDATA 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-DEM&QUAD-DATA.TXT'; FILENAME CONN 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-CON.TXT'; FILENAME OUTFILE 'D:\JYU-SUMMERSCHOOL2006\LAB#2\PR-REGRESSION-DIAGNOSTICS.TXT'; TITLE 'MORAN SCATTERPLOT REGRESSION DIAGNOSTICS FOR THE PR DATA'; ************************************************************** * READ IN THE N-BY-N GEOGRAPHIC CONNECTIVITY MATRIX; * **************************************************************; DATA STEP1; INFILE CONN LRECL=512; INPUT IDC C1-C73; ARRAY CONN{73} C1-C73; CSUM = 0; DO I=1 TO 73; CSUM = CSUM + CONN{I}; END; RUN; PROC MEANS DATA=STEP1 NOPRINT; VAR CSUM; OUTPUT OUT=CSUM SUM=SUMCSUM; RUN; PROC PRINT; RUN; **************************************************************************** * READ IN GEOREFERENCED DATA; THEN CENTER THE SELECTED ATTRIBUTE VARIABLE * ****************************************************************************; DATA STEP2; INFILE INDATA; INPUT IDDEM MELEV SELEV U V QUAD NAME$; U=U/1000; V=V/1000; Y=LOG(MELEV+17.5); * Y=(SELEV-25)**0.5; X0=1; RUN; PROC SORT OUT=STEP2(REPLACE=YES); BY IDDEM; RUN; PROC STANDARD MEAN=0 STD=1 OUT=STEP2(REPLACE=YES); VAR Y; RUN; PROC MEANS NOPRINT; VAR X0; OUTPUT OUT=OUTN SUM=N; RUN; IDDEM is the unique id

  11. DATA STEP2(REPLACE=YES); SET STEP2; SET STEP1; ARRAY CONN{73} C1-C73; ARRAY YCONN{73} CY1-CY73; DO I=1 TO 73; YCONN{I} = Y*CONN{I}; END; RUN; PROC MEANS NOPRINT; VAR CY1-CY73; OUTPUT OUT=CYOUT1 SUM=CY1-CY73; RUN; PROC TRANSPOSE DATA=CYOUT1 PREFIX=CY OUT=CYOUT2; VAR CY1-CY73; RUN; DATA STEP3; SET STEP2(KEEP=X0 Y CSUM); SET CYOUT2(KEEP=CY1); CZY=CY1; ZY=Y; RUN; PROC REG OUTEST=OUTREG; MODEL CZY=ZY/NOINT PRESS; OUTPUT OUT=MCPRED P=CZYHAT H=HI RSTUDENT=RSTUDENTI DFFITS=DFFITSI; RUN; DATA OUTREG(REPLACE=YES); SET OUTREG; SET OUTN(KEEP=N); RMSEPRESS=SQRT(_PRESS_/N); RUN; PROC PRINT DATA=OUTREG; VAR _RMSE_ RMSEPRESS; RUN; DATA _NULL_; SET MCPRED; SET STEP2(KEEP=IDDEM NAME); FILE OUTFILE; PUT IDDEM HI RSTUDENTI DFFITSI NAME; RUN; DATA MCPRED(REPLACE=YES); SET MCPRED; IF _N_=1 THEN SET OUTN(KEEP=N); IF HI<2*1/N THEN HI='.'; IF ABS(RSTUDENTI) < 2 THEN RSTUDENTI='.'; IF DFFITSI < 2/SQRT(1/N) THEN DFFITSI='.'; RUN; DATA CHECK; SET MCPRED; SET STEP2(KEEP=IDDEM NAME); IF HI='.' AND RSTUDENTI='.' AND DFFITSI='.' THEN DELETE; RUN; PROC PRINT DATA=CHECK; VAR IDDEM HI RSTUDENTI DFFITSI NAME; RUN;

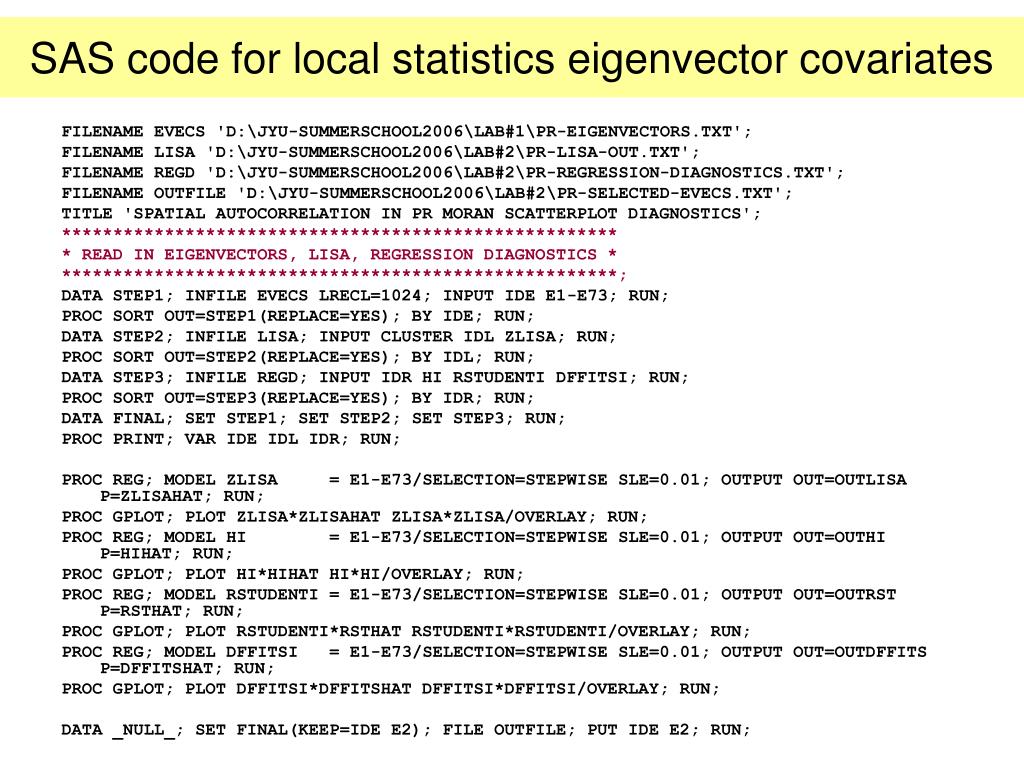

  12. SAS code for local statistics eigenvector covariates FILENAME EVECS 'D:\JYU-SUMMERSCHOOL2006\LAB#1\PR-EIGENVECTORS.TXT'; FILENAME LISA 'D:\JYU-SUMMERSCHOOL2006\LAB#2\PR-LISA-OUT.TXT'; FILENAME REGD 'D:\JYU-SUMMERSCHOOL2006\LAB#2\PR-REGRESSION-DIAGNOSTICS.TXT'; FILENAME OUTFILE 'D:\JYU-SUMMERSCHOOL2006\LAB#2\PR-SELECTED-EVECS.TXT'; TITLE 'SPATIAL AUTOCORRELATION IN PR MORAN SCATTERPLOT DIAGNOSTICS'; ****************************************************** * READ IN EIGENVECTORS, LISA, REGRESSION DIAGNOSTICS * ******************************************************; DATA STEP1; INFILE EVECS LRECL=1024; INPUT IDE E1-E73; RUN; PROC SORT OUT=STEP1(REPLACE=YES); BY IDE; RUN; DATA STEP2; INFILE LISA; INPUT CLUSTER IDL ZLISA; RUN; PROC SORT OUT=STEP2(REPLACE=YES); BY IDL; RUN; DATA STEP3; INFILE REGD; INPUT IDR HI RSTUDENTI DFFITSI; RUN; PROC SORT OUT=STEP3(REPLACE=YES); BY IDR; RUN; DATA FINAL; SET STEP1; SET STEP2; SET STEP3; RUN; PROC PRINT; VAR IDE IDL IDR; RUN; PROC REG; MODEL ZLISA = E1-E73/SELECTION=STEPWISE SLE=0.01; OUTPUT OUT=OUTLISA P=ZLISAHAT; RUN; PROC GPLOT; PLOT ZLISA*ZLISAHAT ZLISA*ZLISA/OVERLAY; RUN; PROC REG; MODEL HI = E1-E73/SELECTION=STEPWISE SLE=0.01; OUTPUT OUT=OUTHI P=HIHAT; RUN; PROC GPLOT; PLOT HI*HIHAT HI*HI/OVERLAY; RUN; PROC REG; MODEL RSTUDENTI = E1-E73/SELECTION=STEPWISE SLE=0.01; OUTPUT OUT=OUTRST P=RSTHAT; RUN; PROC GPLOT; PLOT RSTUDENTI*RSTHAT RSTUDENTI*RSTUDENTI/OVERLAY; RUN; PROC REG; MODEL DFFITSI = E1-E73/SELECTION=STEPWISE SLE=0.01; OUTPUT OUT=OUTDFFITS P=DFFITSHAT; RUN; PROC GPLOT; PLOT DFFITSI*DFFITSHAT DFFITSI*DFFITSI/OVERLAY; RUN; DATA _NULL_; SET FINAL(KEEP=IDE E2); FILE OUTFILE; PUT IDE E2; RUN;

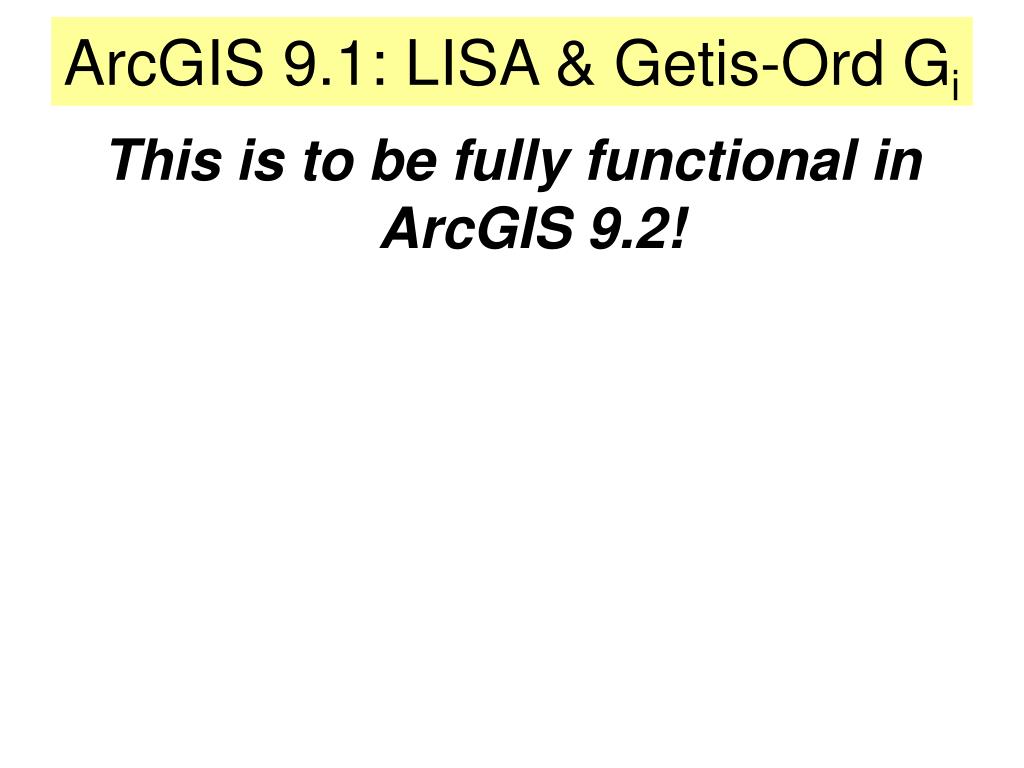

  13. ArcGIS 9.1: LISA & Getis-Ord Gi This is to be fully functional in ArcGIS 9.2!

  14. Constructing spider diagrams in ArcView • Enable Geoprocessing extension • Use Geoprocessing Wizard to disolve areal units on the basis of some grouping • Enable “Add true X,Y Centroid” extension • Compute centroids of disolved *.shp map • RUN spider diagram script to add “event themes” from original map (centers) and disolved map (points)

  15. What you should have learned in today’s lab: • Identify power transformation for variables • Calculate normality and variance equality (attribute and geographic) diagnostics • Reconstruct the Moran scatterplots and the semivariogram plots • Calculate and map Gi, LISA and regression diagnostic statistics • The ability to construct spider diagrams
