Star Properties studied so far…

1. Star Properties studied so far… • Period • Mass • Eccentricity • Red shift • Velocity • Temperature (Wiens Law) • Composition • which elements and how much of each • Color • Age

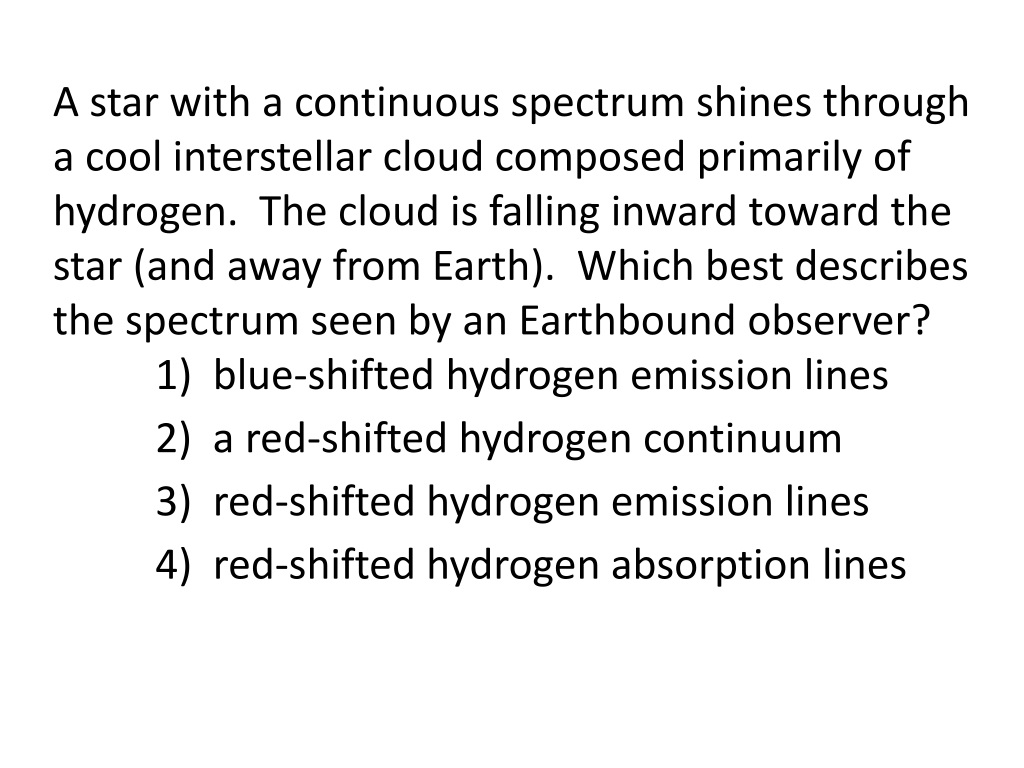

2. A star with a continuous spectrum shines through a cool interstellar cloud composed primarily of hydrogen. The cloud is falling inward toward the star (and away from Earth). Which best describes the spectrum seen by an Earthbound observer? 1) blue-shifted hydrogen emission lines 2) a red-shifted hydrogen continuum 3) red-shifted hydrogen emission lines 4) red-shifted hydrogen absorption lines

3. Velocity = distance / time

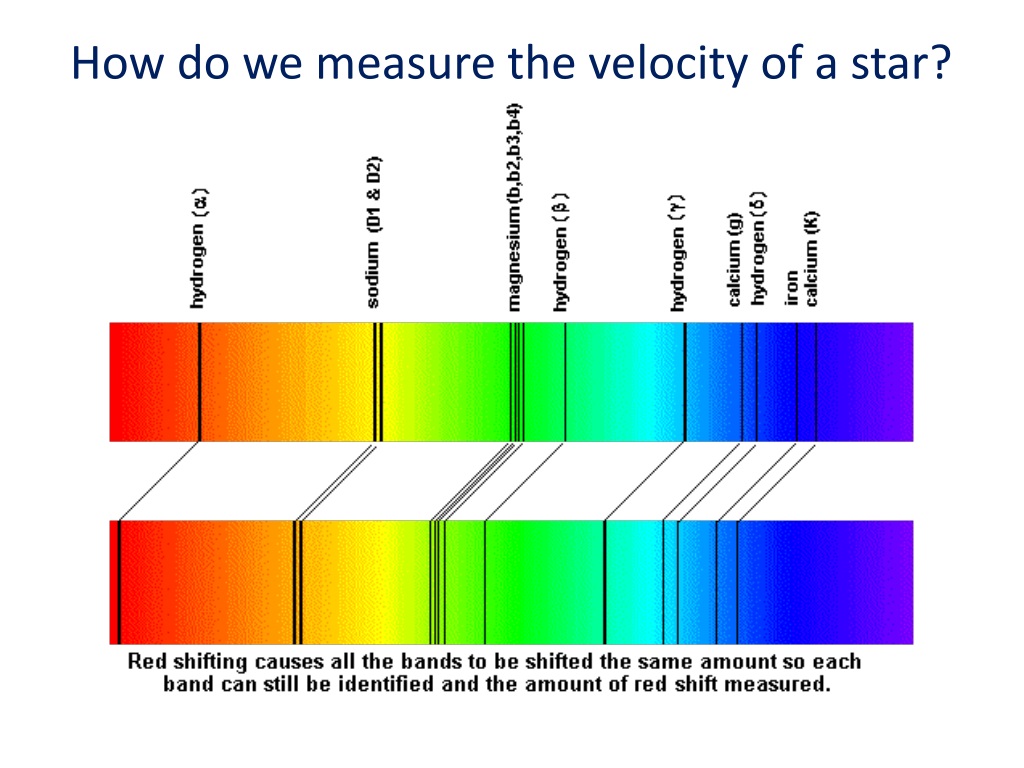

4. How do we measure the velocity of a star?

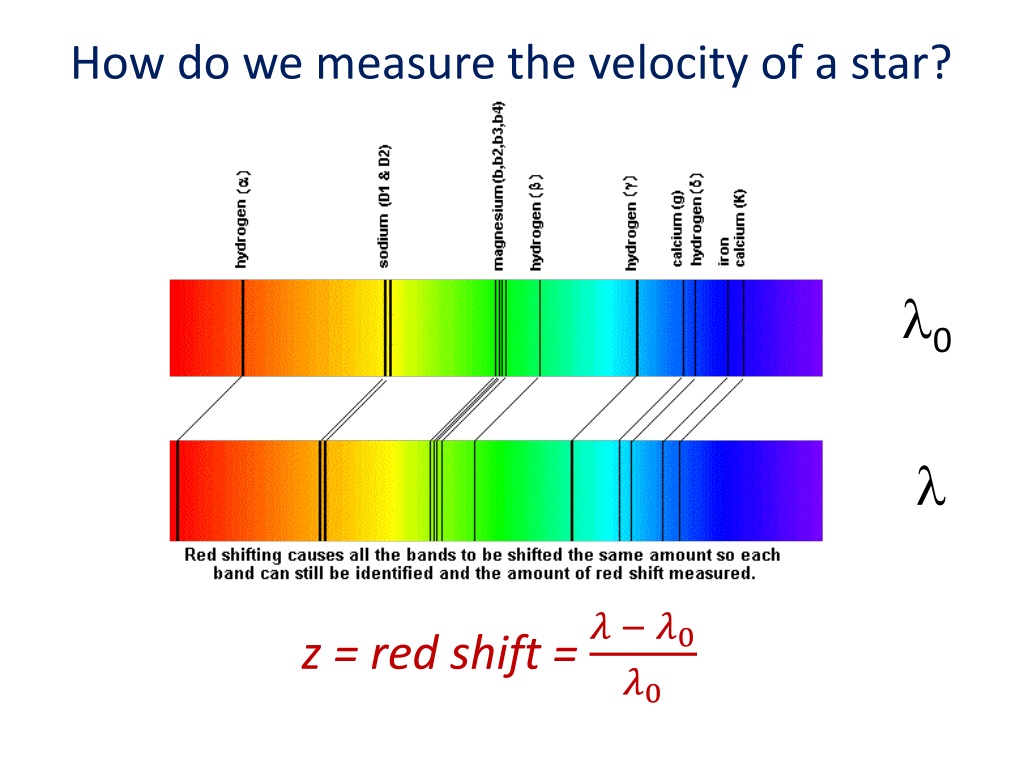

5. How do we measure the velocity of a star? z = red shift = l0 l

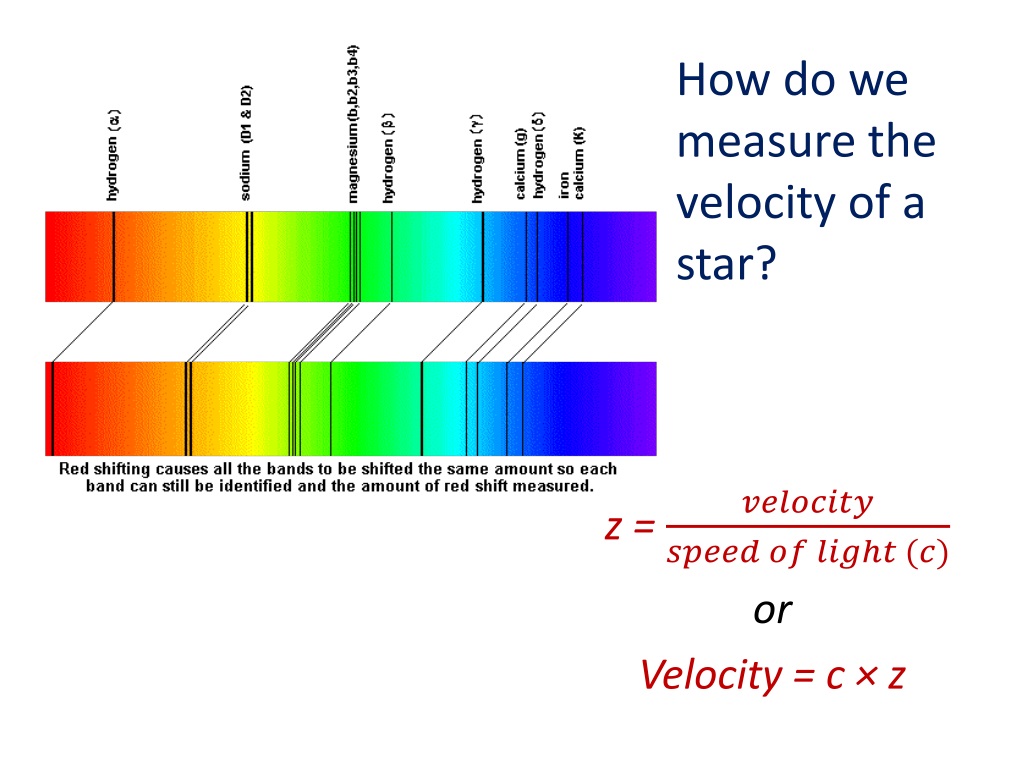

6. How do we measure the velocity of a star? z = or Velocity = c × z

7. How do we measure the velocity of a star? What do you get if your l0Ca line at 393.3 nm in the lab appears at 401.8 nm in the sky? red shift = = 0.0216 Velocity = cz and the speed of light is 3 x 105 km/s So the star is receding at a speed of V = (3 x 105 km/s) x 0.0216 = 6,480 km/s!

8. How do we measure the velocity of a star? What do you get if your l0Ca line in the lab at 393.3 nm appears at 786.6 nm in the sky? red shift = ____ Velocity = c x z, and the speed of light is 3 x 105 km/s So the star is receding at a speed of: V = (3 x 105 km/s) x __ = ______ km/s

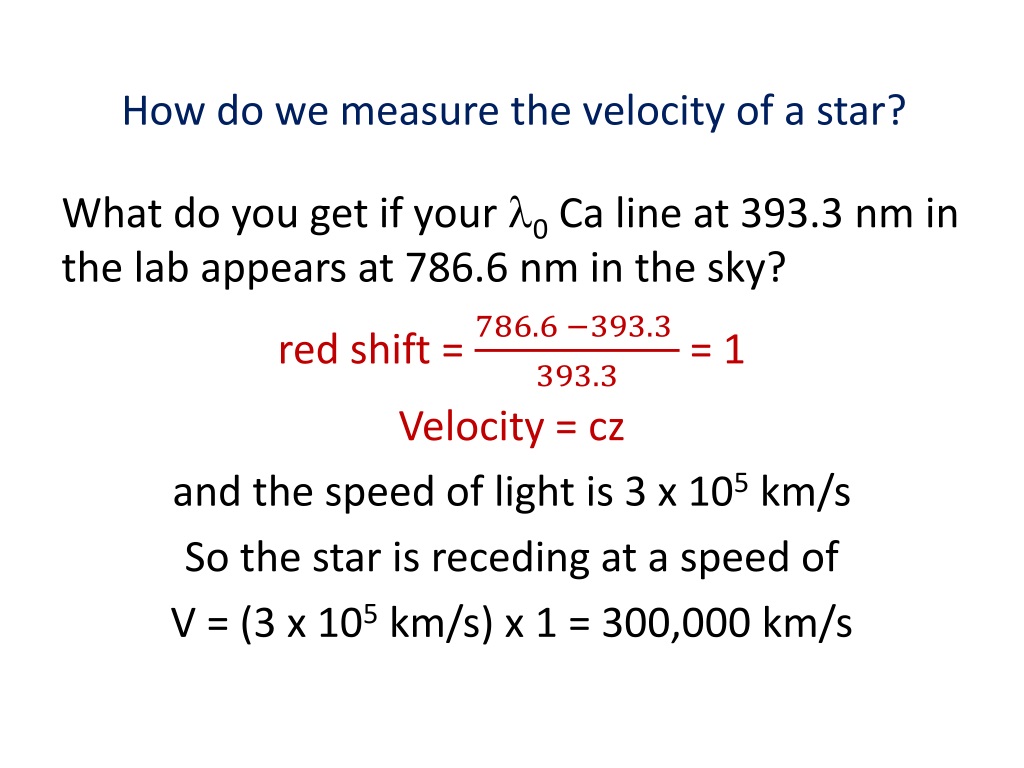

9. How do we measure the velocity of a star? What do you get if your l0Ca line at 393.3 nm in the lab appears at 786.6 nm in the sky? red shift = = 1 Velocity = cz and the speed of light is 3 x 105 km/s So the star is receding at a speed of V = (3 x 105 km/s) x 1 = 300,000 km/s

10. How do we measure the age of the universe? We can measure velocity We can measure distance red shift = = 1 Velocity = cz and the speed of light is 3 x 105 km/s So the star is receding at a speed of V = (3 x 105 km/s) x 1 = 300,000 km/s

11. Star Properties studied so far… • Period • Mass • Eccentricity • Red shift • Velocity • Distance • Temperature (Wiens Law) • Composition • which elements and how much of each • Color

12. How do you measure the distance to a star? Use 2 measurements of a star’s exact position in the sky, taken exactly 6 months apart.

13. Hubble found the relationship between a galaxy's velocity (the radial component, in a straight line) away from us (v) and its distance from us (d) approaches a fairly linear one, which is known as Hubble's Law:   v = H0 x d So H0 is the slope of that line, which he found to be 73.3 km/s/Mpc Or about 3.26 million light years

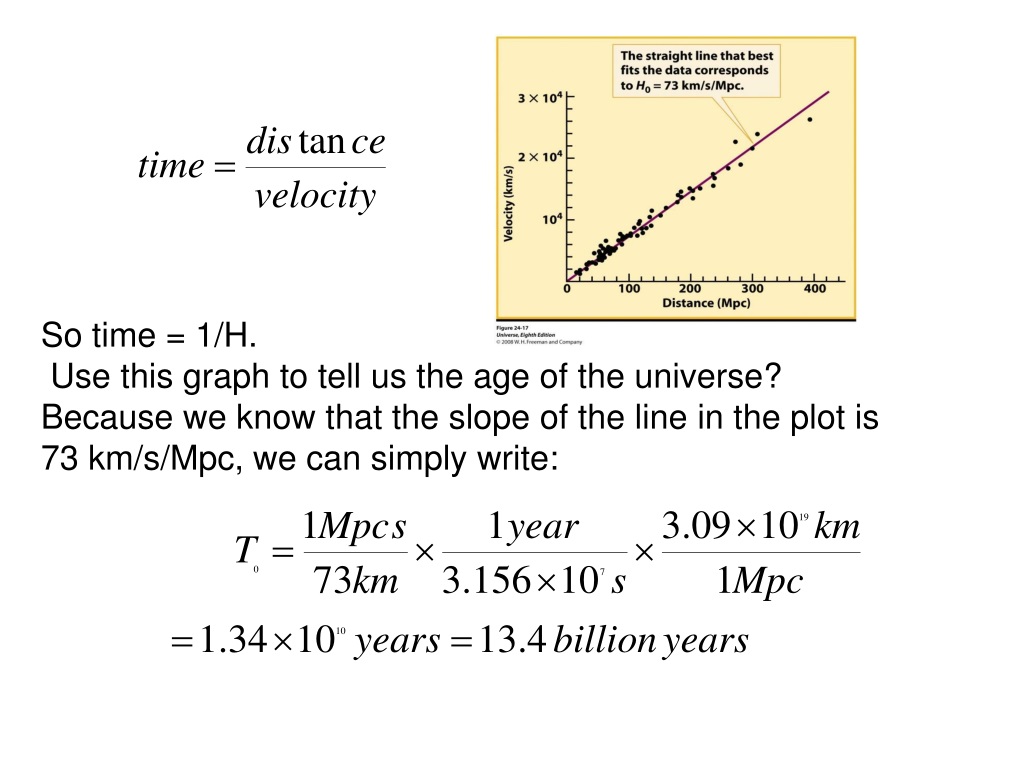

14. So time = 1/H. Use this graph to tell us the age of the universe? Because we know that the slope of the line in the plot is 73 km/s/Mpc, we can simply write:

17. Life Cyclye of a Star

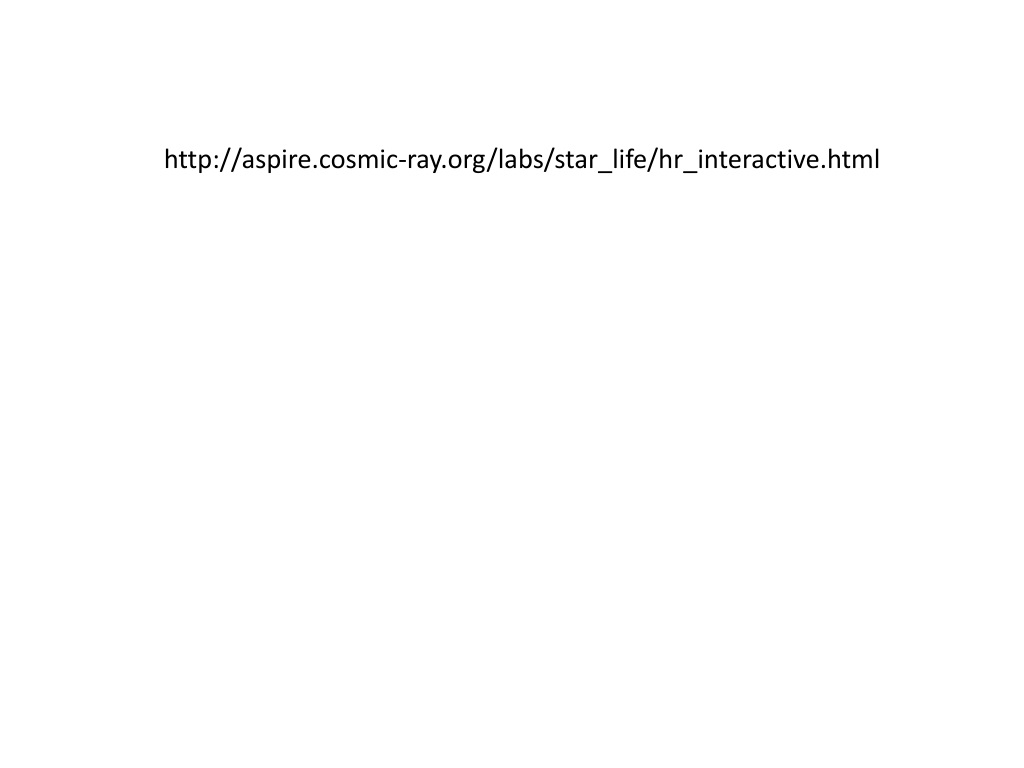

19. http://aspire.cosmic-ray.org/labs/star_life/hr_interactive.htmlhttp://aspire.cosmic-ray.org/labs/star_life/hr_interactive.html

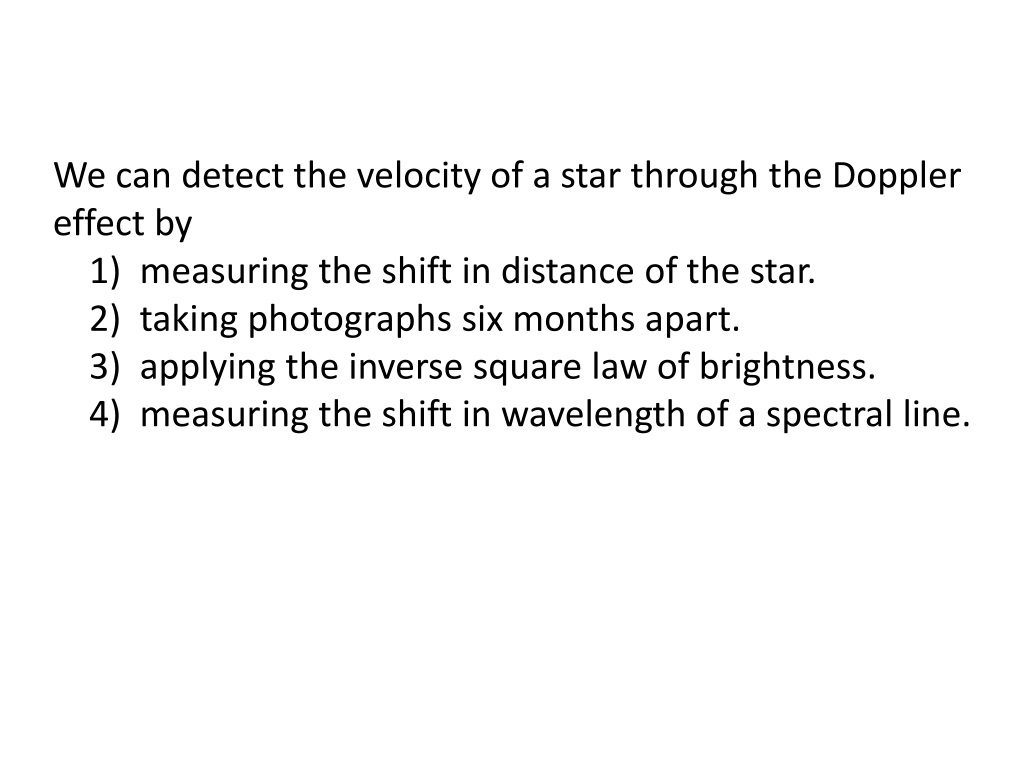

20. We can detect the velocity of a star through the Doppler effect by 1) measuring the shift in distance of the star. 2) taking photographs six months apart. 3) applying the inverse square law of brightness. 4) measuring the shift in wavelength of a spectral line.

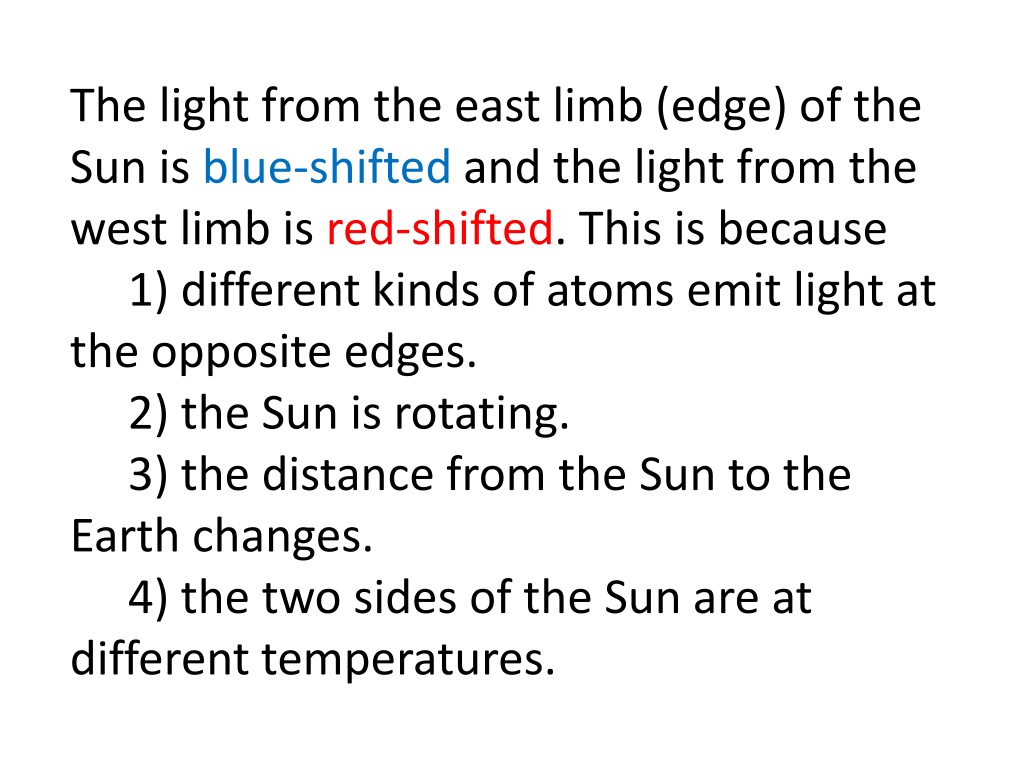

21. The light from the east limb (edge) of the Sun is blue-shiftedand the light from the west limb is red-shifted. This is because 1) different kinds of atoms emit light at the opposite edges. 2) the Sun is rotating. 3) the distance from the Sun to the Earth changes. 4) the two sides of the Sun are at different temperatures.

22. Most of the brightest stars in the sky are 1) relatively hot main-sequence stars that are relatively close to the Sun. 2) relatively cool main-sequence stars that are relatively far from the Sun. 3) relatively cool main-sequence stars that are relatively close to the Sun. 4) giant stars and relatively hot main sequence stars.
