  1. K-DEMOProject MeetingConfiguration and blanket issues T. Brown 26 June 2013 K-DEMO May project Mtg

  2. K-DEMO device core general arrangement (vertical maintenance approach)

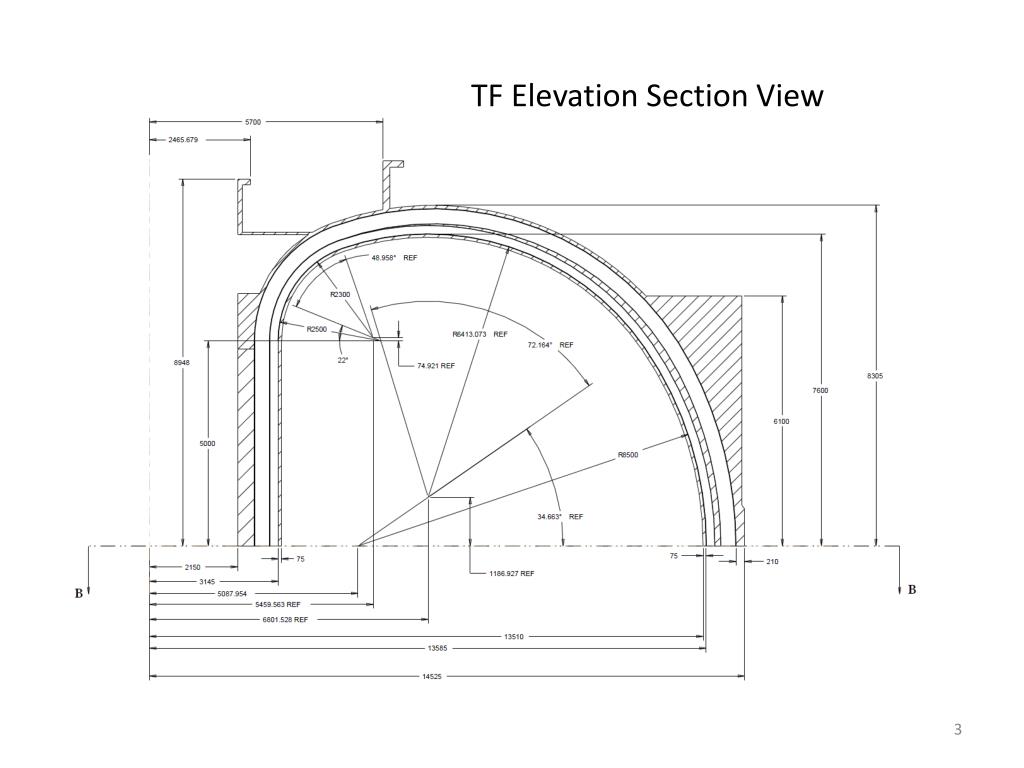

  3. TF Elevation Section View

  4. TF Midplane Section View

  5. K-DEMO device core general arrangement (vertical maintenance approach) Opening to independently remove divertor modules Outboard blanket module

  6. Inboard blanket Semi-permanent inner shell Divertor module outboard blanket – port sector outboard blanket – TF sector Plasma components Plasma component segmentation Forms outer shell structure

  7. Back plate used to support individual blanket sub-modules outer shell structure Not yet shown is the top and bottom passive plate Local saddle coil located between back plate and outer shell structure Outboard blanket module

  8. Solid breeding blanket module

  9. The concept shown previously will follow a service supply arrangement similar to ITER. Is this practical if the device goal is high availability? Local ITER service connections to shield modules ITER service routing
