Constructing Huffman Code for Text Compression

Learn to construct Huffman codes for efficient text compression from character and frequency data. Practice creating fixed Huffman code based on character frequencies.

mackenzie-gibbs
Télécharger la présentation

Constructing Huffman Code for Text Compression

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

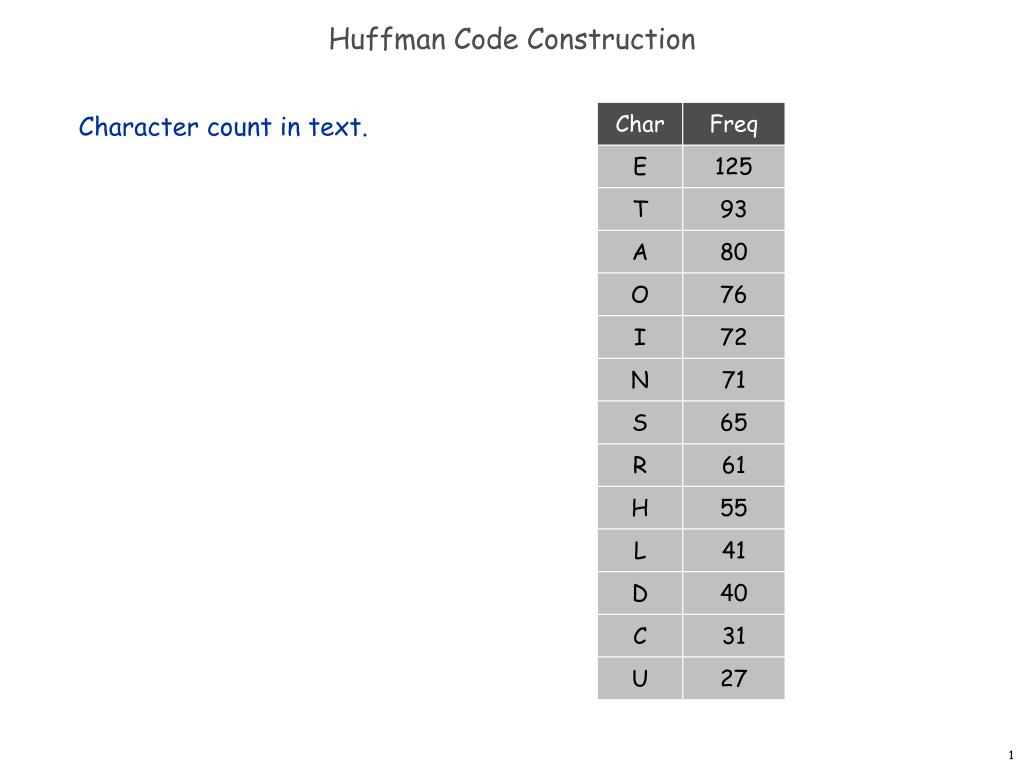

  1. Huffman Code Construction • Character count in text. Char Freq E 125 T 93 A 80 O 76 I 72 N 71 S 65 R 61 H 55 L 41 D 40 C 31 U 27

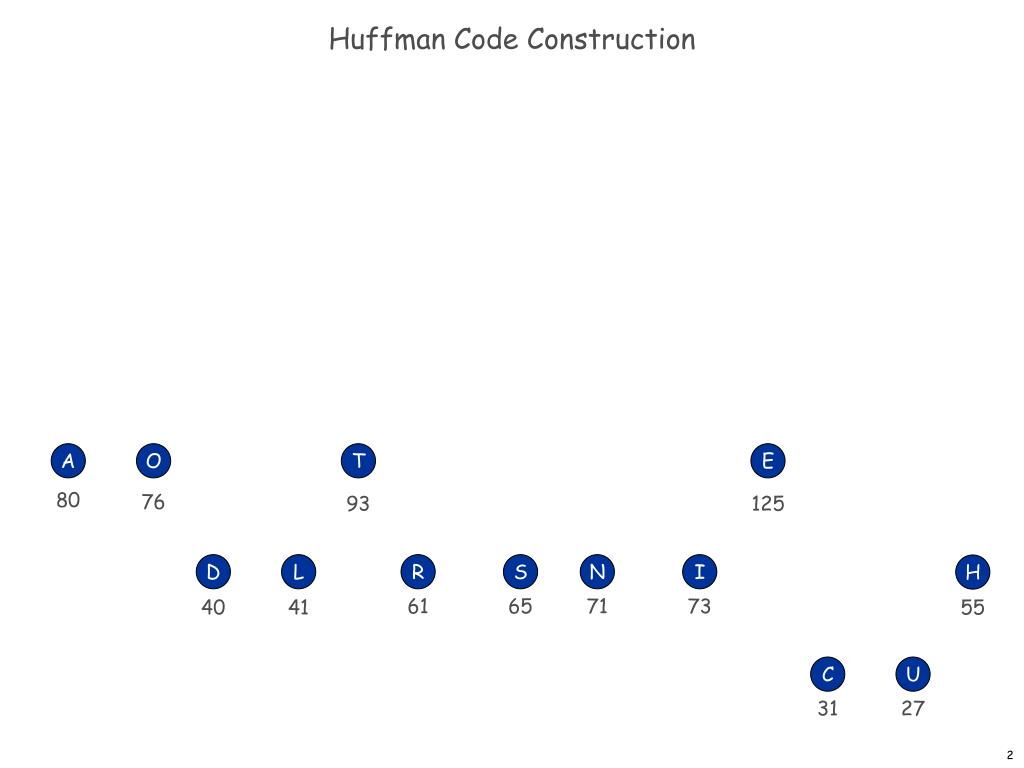

  2. Huffman Code Construction A O T E 80 76 93 125 D L R S N I H 61 65 71 73 40 41 55 C U 31 27

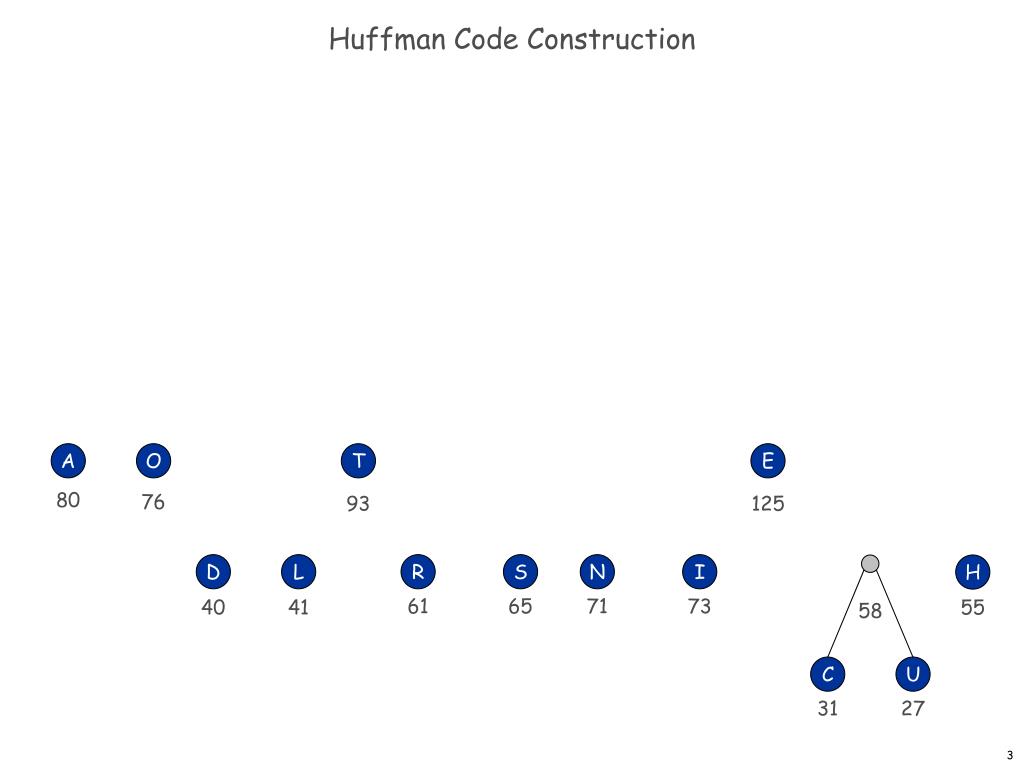

  3. Huffman Code Construction A O T E 80 76 93 125 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

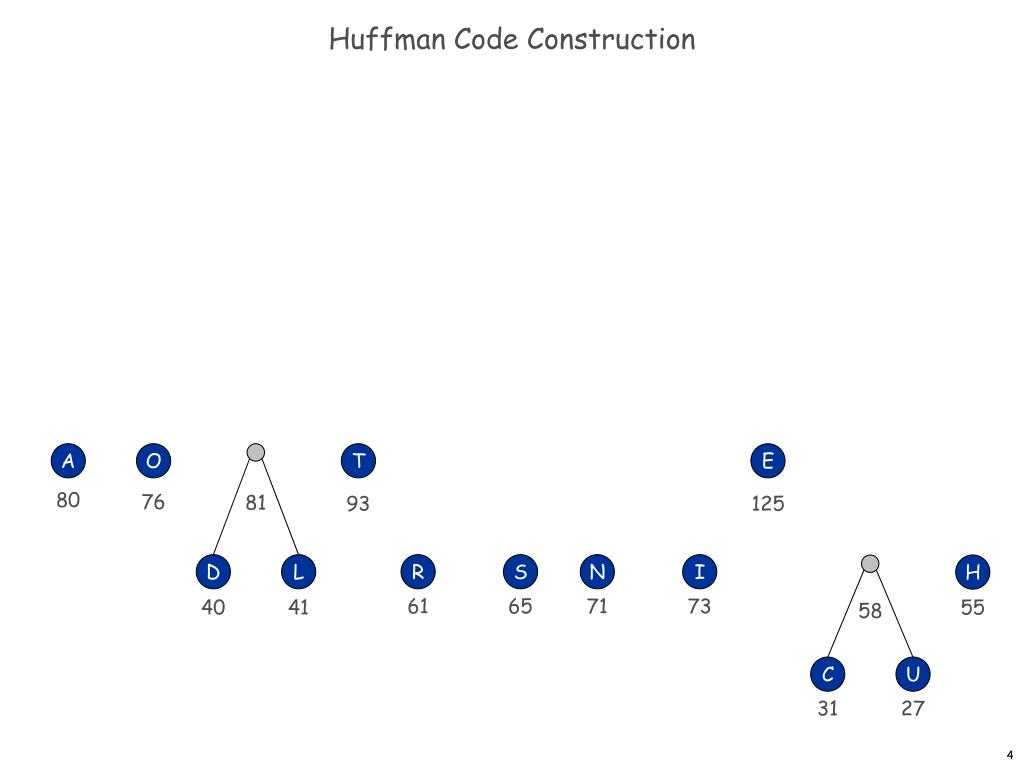

  4. Huffman Code Construction A O T E 80 76 81 93 125 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

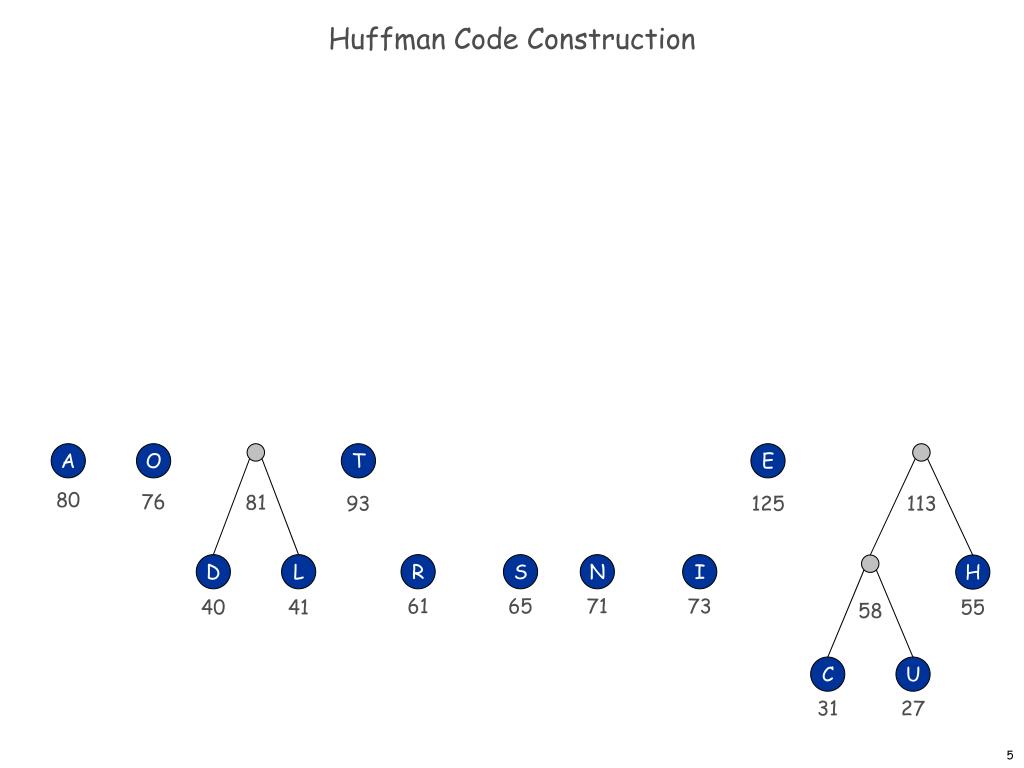

  5. Huffman Code Construction A O T E 80 76 81 93 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

  6. Huffman Code Construction A O T E 80 76 81 93 126 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

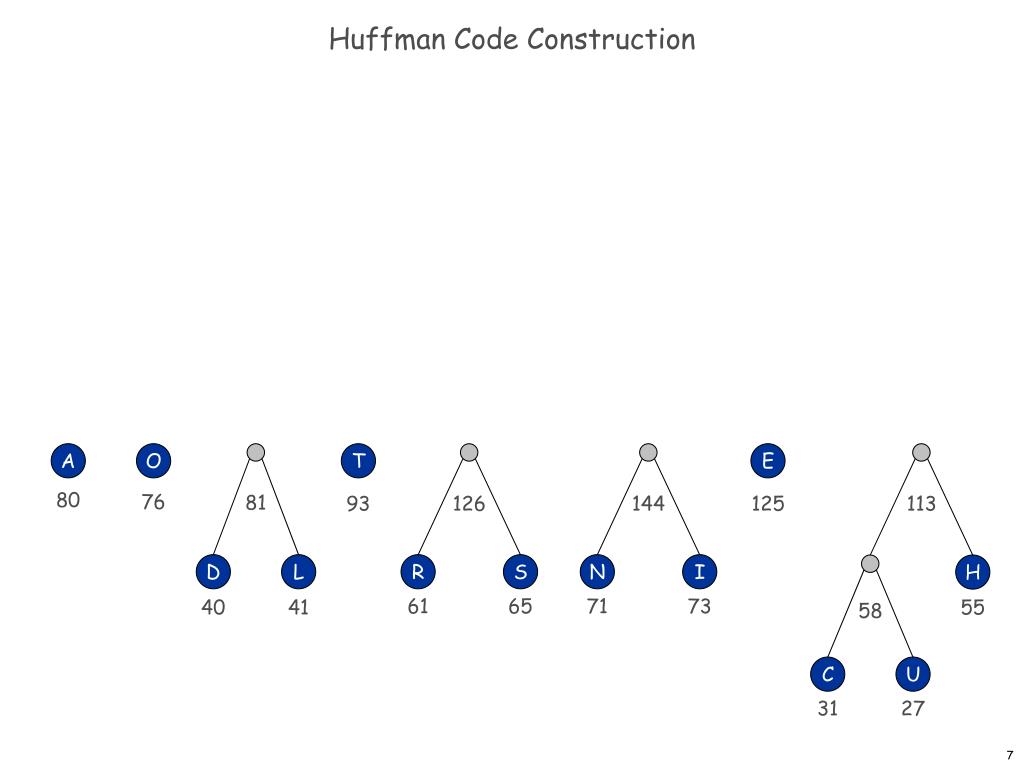

  7. Huffman Code Construction A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

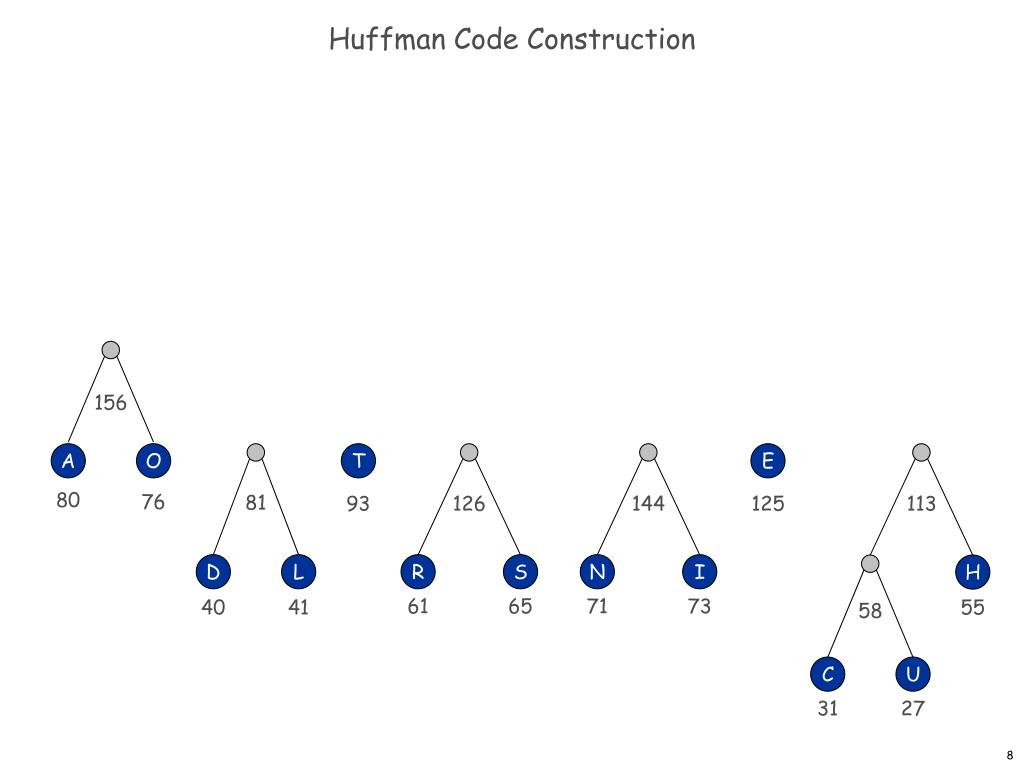

  8. Huffman Code Construction 156 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

  9. Huffman Code Construction 156 174 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

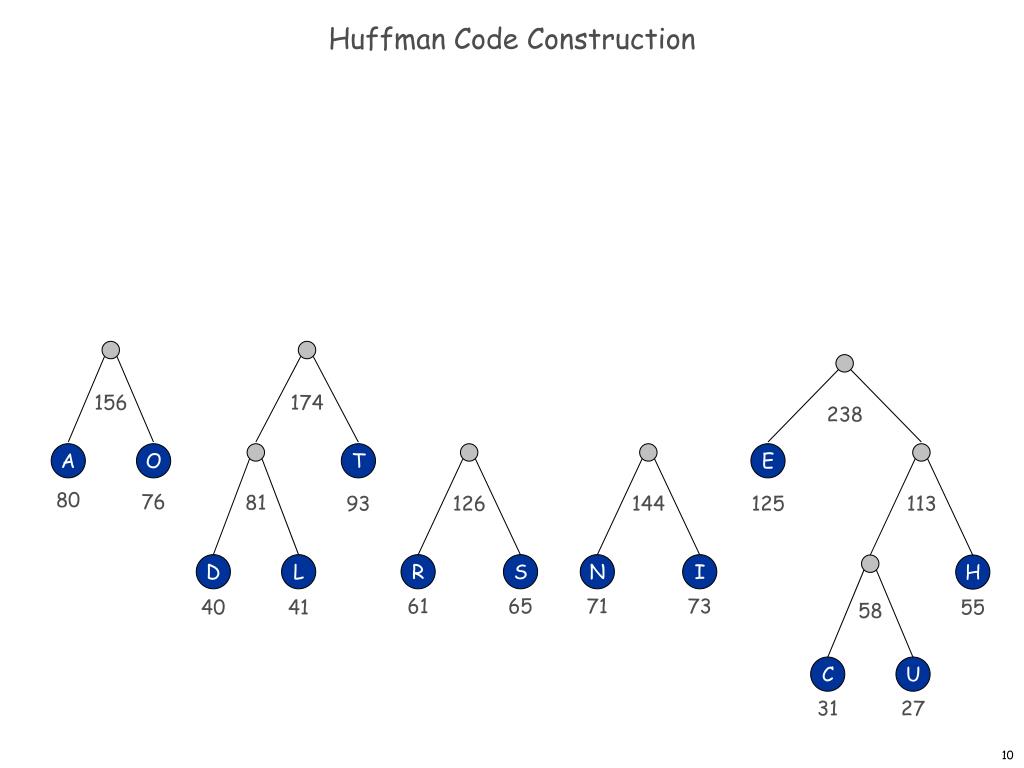

  10. Huffman Code Construction 156 174 238 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

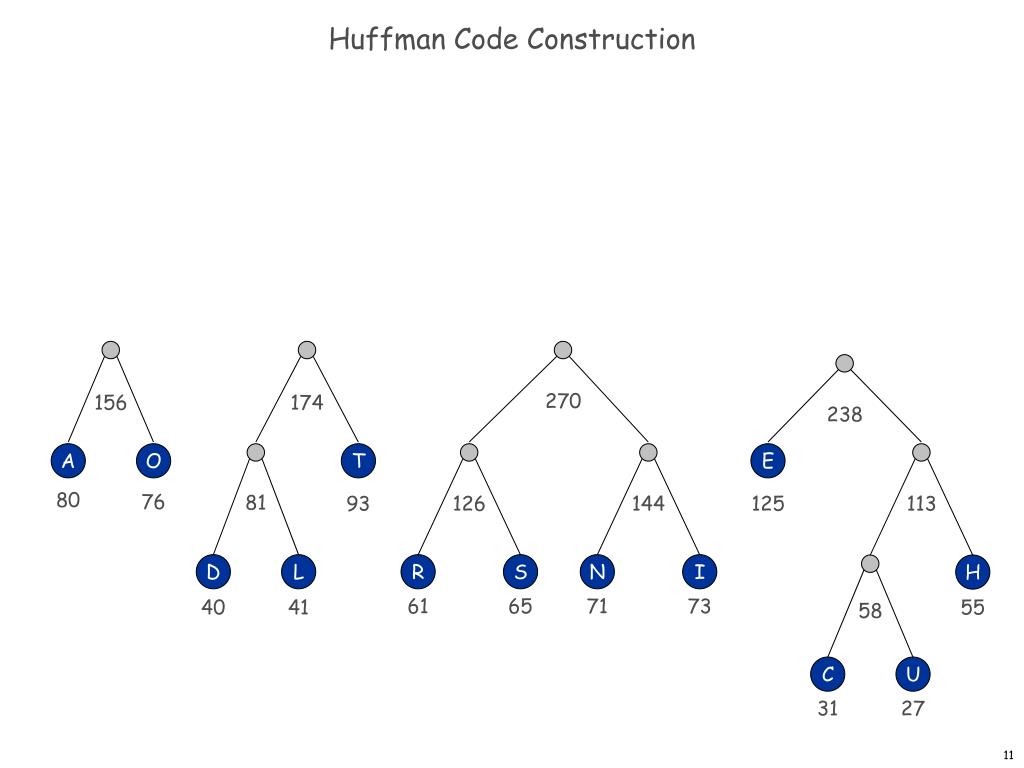

  11. Huffman Code Construction 270 156 174 238 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

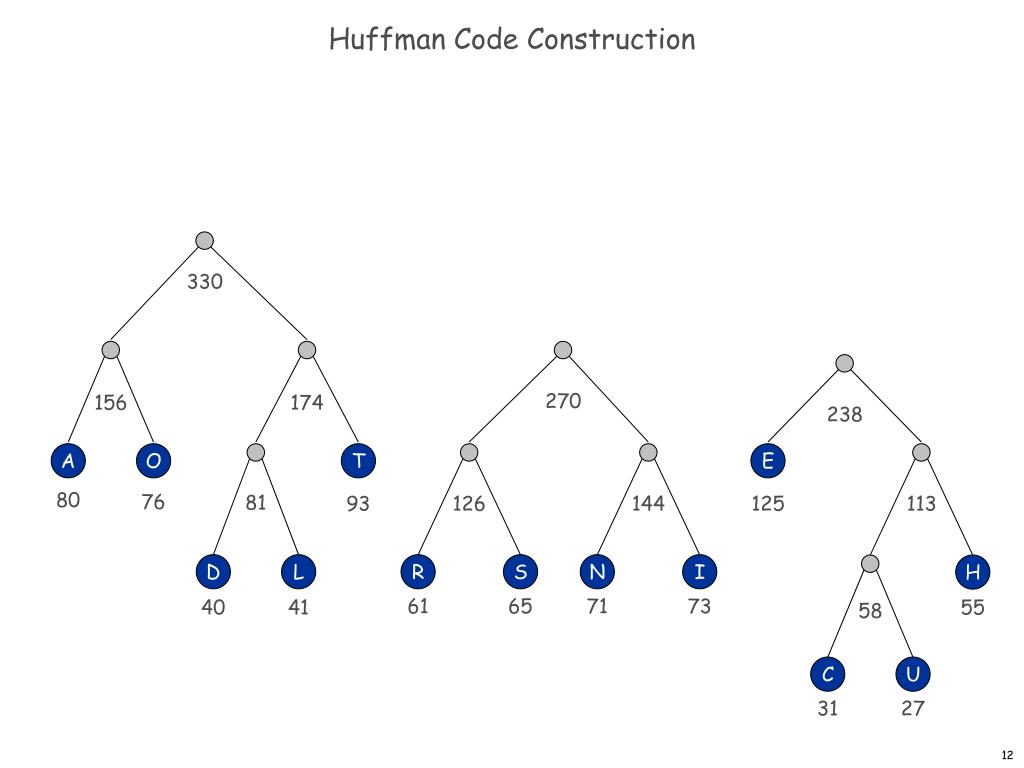

  12. Huffman Code Construction 330 270 156 174 238 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

  13. Huffman Code Construction 330 508 270 156 174 238 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27

  14. 838 330 508 270 156 174 238 A O T E 80 76 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C U 31 27 Huffman Code Construction 81

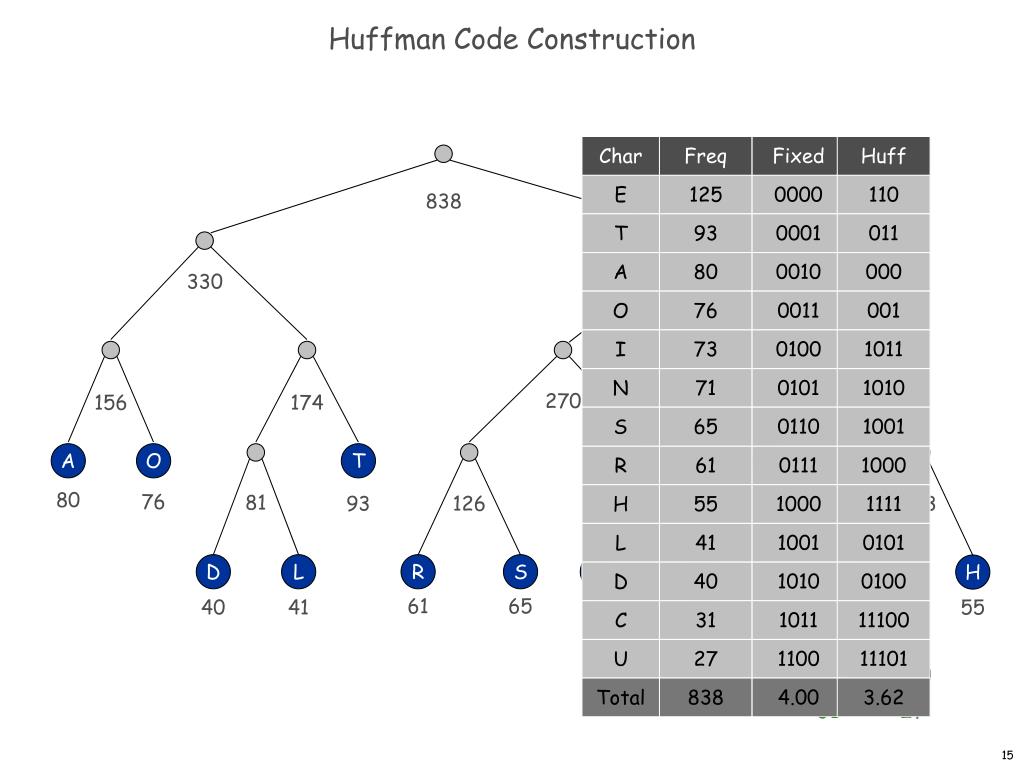

  15. Char Freq Fixed Huff E 125 0000 110 T 93 0001 011 A 80 0010 000 O 76 0011 001 I 73 0100 1011 N 71 0101 1010 S 65 0110 1001 R 61 0111 1000 H 55 1000 1111 L 41 1001 0101 D 40 1010 0100 C 31 1011 11100 U 27 1100 11101 Total 838 4.00 3.62 Huffman Code Construction 838 330 508 270 156 174 238 A O T E 80 76 81 93 126 144 125 113 D L R S N I H 61 65 71 73 40 41 55 58 C C U U 31 31 27 27
