  1. INFS 795 PROJECT:Clustering Time Series presented by Rafal Ladysz

  2. AGENDA • INTRODUCTION • theoretical background • project objectives • other works • EXPERIMENTAL SETUP • data description • data preprocessing • tools and procedures • RESULTS AND CONCLUSIONS (so far) • NEXT STEPS • REFERENCES

  3. INTRODUCTION: theoretical background • clustering: unsupervised ML technique of grouping similar, unlabeled objects without prior knowledge about them • clustering techniques can be divided and compared in many ways, e.g.: • exclusive vs. overlapping • deterministic vs. probabilistic • incremental vs. batch learning • hierarchical vs. flat or: • partitioning (e.g. k-means, EM) • hierarchical (agglomerative, divisive) • density-based • model-based: a model is hypothesized for each of the clusters to find the best fit of that model to each other

  4. INTRODUCTION : theoretical background • example of partitioning algorithms: • k-means • EM: probabilistic generalization of k-means • k-meanscharacteristics: • suboptimal (susceptible to local minima) • sensitive to initial conditions and... outliers • requires number of clusters (k) as part of the input • Euclidean distance is its most natural dissimilarity metrics (spherical) • we remember how it works: re-partitioning until no changes • EMcharacteristics: • generalization of k-means to probabilistic setting (maintains probability of membership of all clusters rather than assign elements to initial clusters) • works iteratively: • initialize means and covariance matrix • while the convergence criteria is not met compute the probability of each data belonging to each cluster • recompute the cluster distributions using the current membership probabilities • cluster probabilities are stored as instance weights using means and standard deviations of the attributes • procedure stops when likelihood saturates

  5. INTRODUCTION: theoretical background • distance / (dis)similarity measures • Euclidean: root square of sum of squares • main limitation: very sensitive to outliers! • Keogh claims that • Euclidean distance error rate: about 30% • DTW error rate: 3% • but there is cost for accuracy: • time to classify an instance using Euclidean distance 1 sec • time to classify an instance using DTW4,320 sec • by the way: DTW stands forDynamic Time Warping (illustration and formula follow)

  6. INTRODUCTION: project objectives • in general: clustering of “evolving”time series data • issues to be taken into consideration: • dimensionality • outliers • similarity measure(s) • number of elements (subsequences) • overall evaluation measure(s) • context: recognition-based support for another algorithm • in particular: comparing and/or evaluating • efficiency and accuracy of k-means and EM • effect of initial cluster position for k-means accuracy • efficiency* and accuracy** of Euclidean and DTW distance measures ininitializing cluster seeds for k-means

  7. INTRODUCTION: other works • E. Keogh et al.: inspired to use DTW as alternative for Euclidean (DTW origins from experiments in 1970s with voice recognition) • D. Barbara: outlined prerequisites for clustering data streams • H. Wanng et al.: described techniques used in detecting pattern similarity • similarity is “buried” deeply in subspaces; not direct relevance to my experiments since arbitrarily selected attributes (time series require temporal order)

  8. PROJECT OBJECTIVES: summary • challenges • data: evolving time series (?!) • k-means: initialization of seeds position and k (attempt of automatic optimization for the evolving data) • similarity measure: Euclidean - error-prone, DTW - costly • real time requirement (as target solution, not in the project) • tools: necessity to create (some of them) from scratch • not encountered in the literature • motivation • support for already designed and implemented software • comparing k-means vs. EM and Euclidean vs. DTW • the challenges listed above

  9. EXPERIMENTAL DESIGN: data description • three sources of data for more general results • medical: EEG* and EKG* http: • financial: NYSE* and currency exchange http: • climatological: temperature and SOI* http: • all the data are temporal (time series), generated in their natural (not simulated) environments • some knowledge available (for experimentator, not the machine) • brief characteristics:

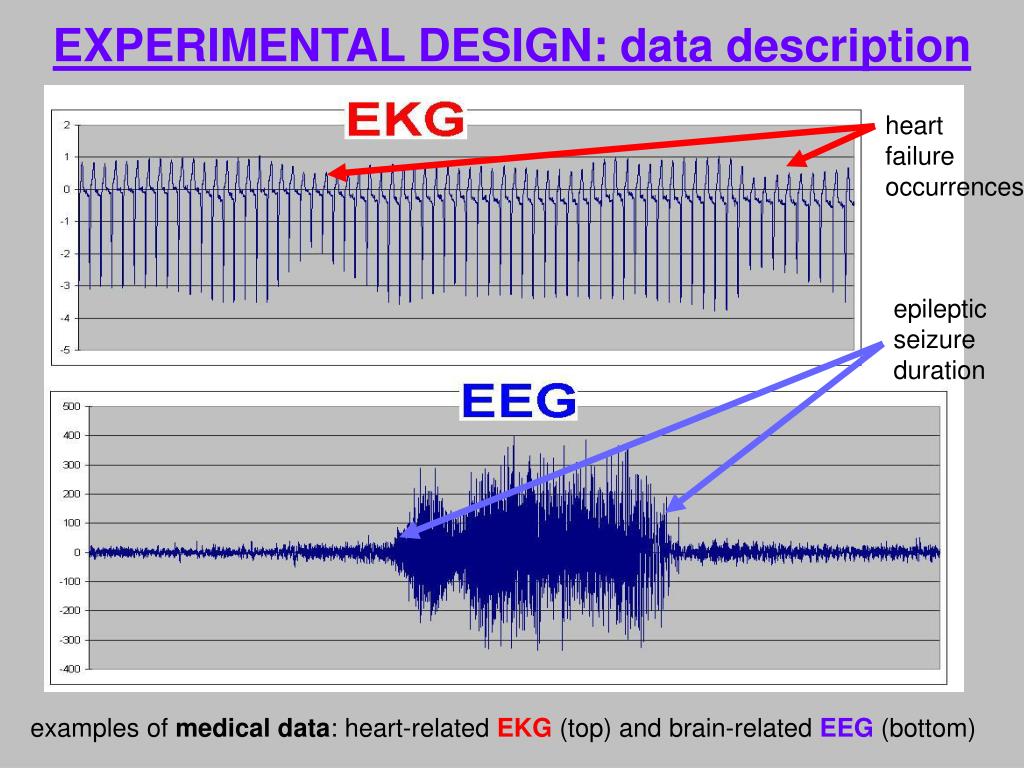

  10. EXPERIMENTAL DESIGN: data description heart failure occurrences epileptic seizure duration examples of medical data: heart-related EKG (top) and brain-related EEG (bottom)

  11. EXPERIMENTAL DESIGN: data description seasonality (annual cycle) periodicity or chaos? examples of medical data: temperature in Virginia (top) Southern Oscillation Index (bottom)

  12. EXPERIMENTAL DESIGN: data description do we see any patterns in either of these two? examples of financial data: New York Stock Exchange (top) and currency exchange rate (bottom) notice: both time series originates from “cultural” rather than “natural” environment

  13. (i-1, j) (i, j) (i-1, j-1) (i, j-1) Dynamic Time Warping Euclidean one-to-one Dynamic Time Warping many-to-many where γ(i, j) is the cumulative distance of the distance d(i, j) and its minimum cumulative distance among the adjacent cells

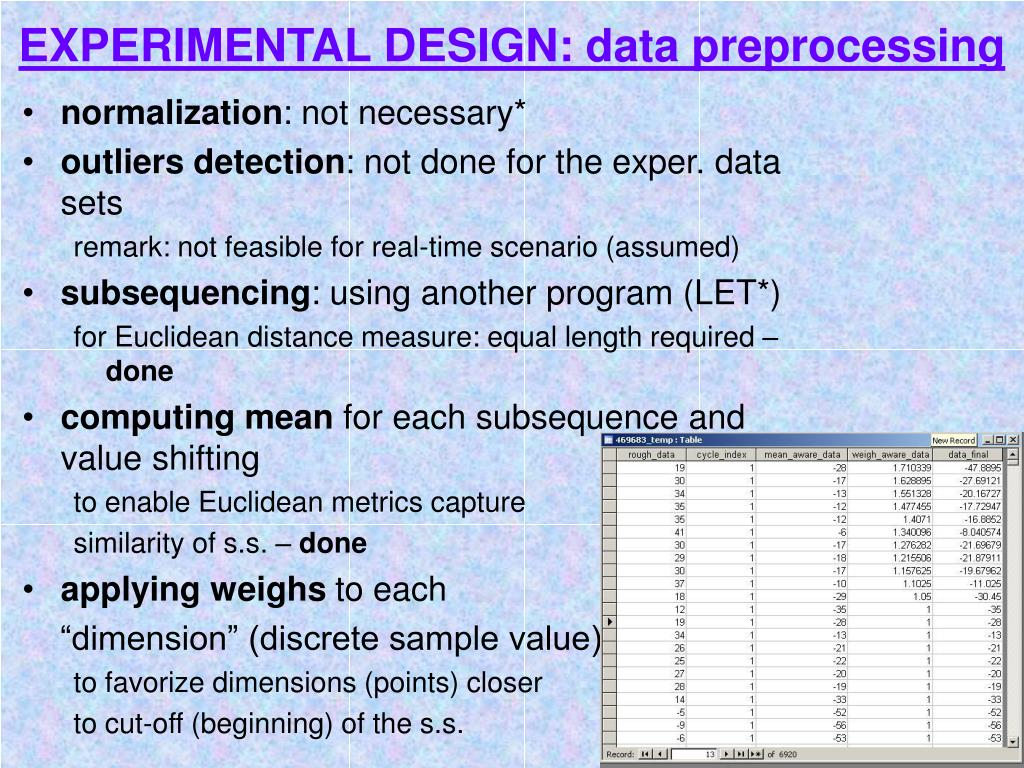

  14. EXPERIMENTAL DESIGN: data preprocessing • normalization: not necessary* • outliers detection: not done for the exper. data sets remark: not feasible for real-time scenario (assumed) • subsequencing: using another program (LET*) for Euclidean distance measure: equal length required – done • computing mean for each subsequence and value shifting to enable Euclidean metrics capture similarity of s.s. – done • applying weighs to each “dimension” (discrete sample value) to favorize dimensions (points) closer to cut-off (beginning) of the s.s.

  15. EXPERIMENTAL DESIGN: big picture • the general experimental proceeding regarding initialization: FOR all (six) time series data FOR dimensionalities D = 30, 100 FOR subsequence weights w(1)*, w(1.05)* FOR  = 5%, 10% FOR both (E, DTW) distance measures FOR both constraints (Kmax, Ŝ) • capture and remember cluster seeds • apply to “real” clustering • evaluate final goodness 6x2x2x2x2x2 = 192 seed sets

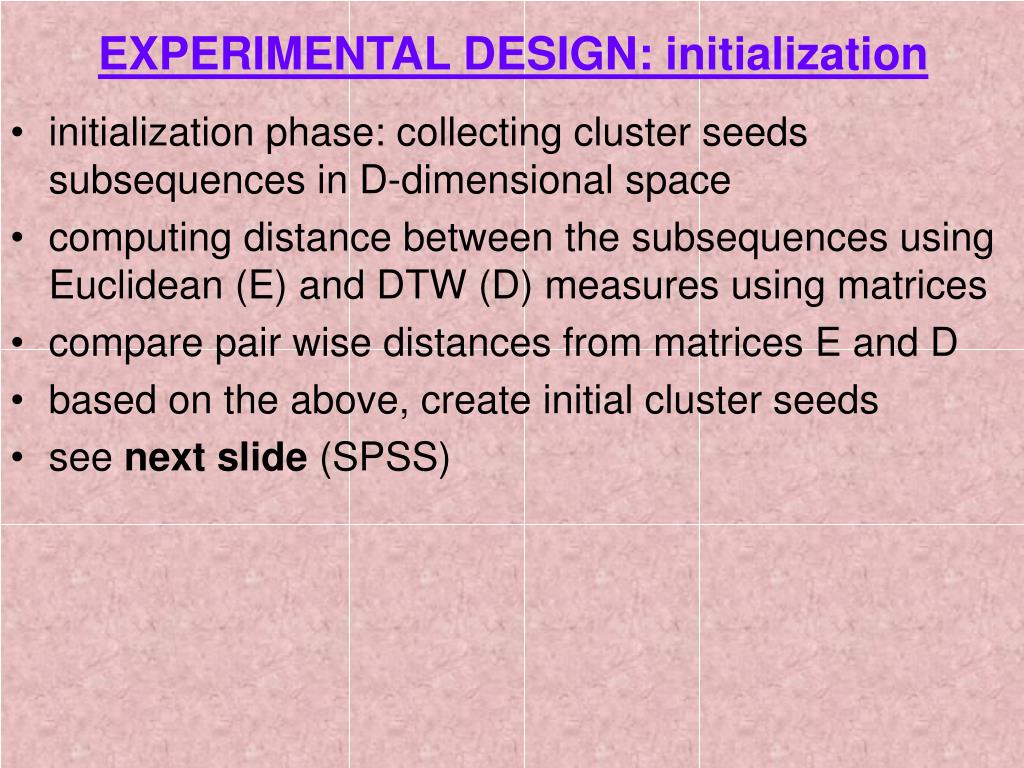

  16. EXPERIMENTAL DESIGN: initialization • initialization phase: collecting cluster seeds subsequences in D-dimensional space • computing distance between the subsequences using Euclidean (E) and DTW (D) measures using matrices • compare pair wise distances from matrices E and D • based on the above, create initial cluster seeds • see next slide (SPSS)

  17. EXPERIMENTAL DESIGN:tools and procedures • the core for the experiment is generating initial k cluster seeds (to be further used by k-means) • that is done using 2 distance measures: E. and DTW • once the k seeds are generated (either way), their positions are remembered and: • each seed is assigned a class for final evaluation • the initial cluster positions and/or classes are passed on to the clustering program (SPSS and/or Weka) • effective that moment, the algorithms are working unattended • the objective is to evaluate impact of initial clusters optimization (in terms of their positions and number)

  18. EXPERIMENTAL DESIGN:tools and procedures • initial cluster seeds – algorithmic approach • define constraints: Kmin, Kmax, k = 0,, S, Ŝ • start capturing time series subsequences (s.s.) • assign first seed to first s.s., increment k • do while either condition is fulfilled: k = Kmax OR S = Ŝ OR no more subsequences if new s.s. is farther than from any seeds, create new seed assigned to that s.s., increment k otherwisemerge the s.s. to existing seed not farther than  compute S • stop capturing s.s., label all generated seeds

  19. EXPERIMENTAL DESIGN:tools and procedures • how the number of clusters (seeds) is computed? • as we know, a “good” k-means algorithm minimizes intra- while maximizing inter- distances (thus grouping similar objects in separate clusters, not too many, not too few) • the objective function used in the project is S = <intracl. dist.>/<intercl. dist.>

  20. illustration of S S = <intra>/<inter> Kmin k: number of clusters this plot shows the idea of when to stop capturing new cluster seeds; the measure is the slope between two neigboring points to avoid “too early” termination, constrain of Kmin should be imposed

  21. illustration of  whenever newly captured seed candidate falls within existing seed’s orb, it is being fused with the latter; otherwise, its own orb is being created during this processing phase we “optimize” the number k of clusters for real clustering there is no guarantee the estimated number is in fact optimal merging seeds: within “original” orb  “original” seeds outside existing seed orbs : new orbs will be created ...but one can beliefe it is more suitable than just guessed; same refers to initial seed positions

  22. EXPERIMENTAL DESIGN:tools and procedures • computing Euclidean and DWT distances: • coding my own program; • temporarily: using a program downloaded from Internet • evaluating influence of initialization on clustering accuracy: SPSS for Windows, ver. 11 (Standard Edition)* • comparing performance (accuracy and runtime) of k-means and EM: Weka k-means, EM (SPSS) computing distances (Euclidean and DTW) time series subsequences

  23. RESULTS AND CONCLUSIONS (so far) • after running 12 k-means sessions over 6 preprocessed datasets, • the average improvement WITH INITIALIZATION over WITHOUT can be approximated as 39.4/112 vs. 77/110, i.e. 0.35 vs. 0.7 • “improvement” is computed as the ratio of intra/inter

  24. summarizing: RESULTS to be reported • performance measure of k-means WITH and WITHOUT initialization • goodness evaluation (S) • subjective evaluation of clustering • performance comparison of k-means and EM in same circumstances • performance comparison of Eucl. and DTW • error • runtime

  25. NEXT STEPS • since now to project deadline • finishing E/DTW distance computing program • finishing k-optimizing program • generating 192 initial cluster seeds • clustering using the above initial cluster seeds • comparing with no initialization • after deadline (continuation if time allows) • write own k-means program (to run the whole process in one batch, thus truly measuring performance) • if results promising, embedding into another program (LET*)

  26. REFERENCES Wang, H. et al.: Clustering by Pattern Similarity in Large Data Sets Perng, C-S. et al.: Landmarks:A New Model for Similarity-Based Pattern... Aggarwal, C. et al.: A Framework for Clustering Evolving Data Streams Barbara, D.: Requirements for Clustering Data Streams Keogh, E., Shruti, K.: On the Need for Time Series Data Mining... Gunopulas, D., Das, G.: Finding Similar Time Series Keogh, E. et al.: Clustering of Time Series Subsequences is Meaningless... Lin, J. et al.: Iterative Incremental Clustering of Time Series Keogh, E., Pazzani, J.: An enhanced representation of rime series... Kahveci, T. et al.: Similarity Searching for Multi-attribute Sequences and other information and public software resources found over Internet.
