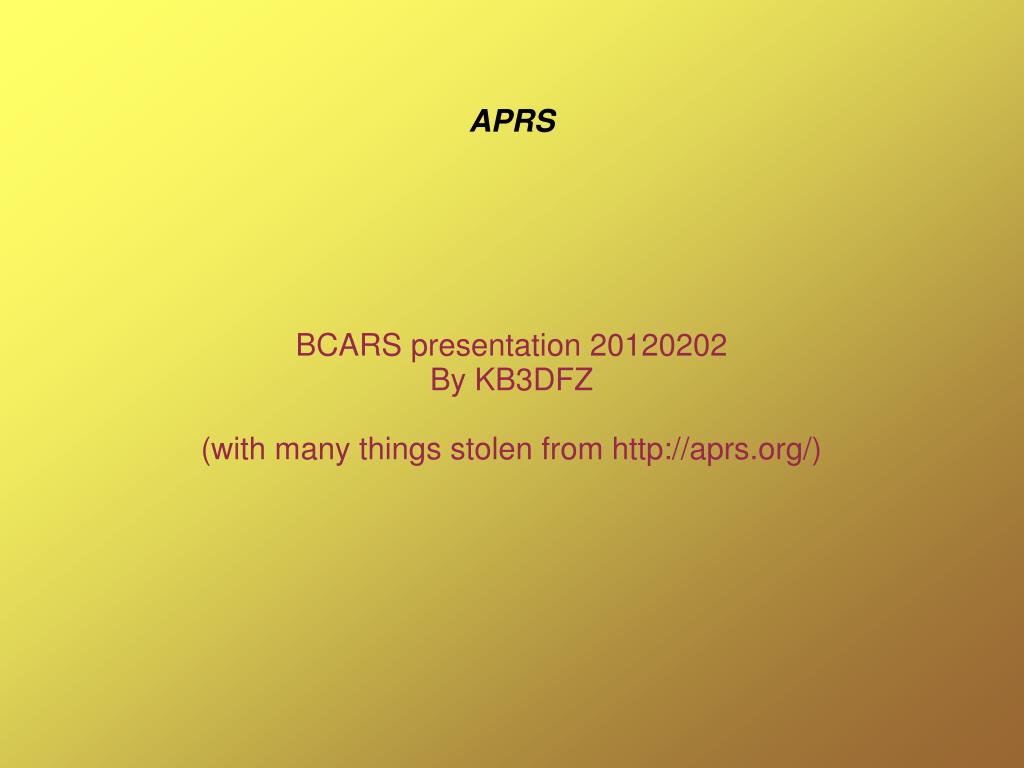

  1. APRS BCARS presentation 20120202 By KB3DFZ (with many things stolen from http://aprs.org/)

  2. Automatic Packet Reporting System Developed in early 80s by WB4APR/Bob Bruniga “It is a two-way tactical real-time digital communications system between all assets in a network sharing information about everything going on in the local area.” In plain English, this means if something is happening now, or there is information that could be valuable to you, then it should show up on your APRS radio in your mobile. 144.390 Mhz Nationwide Yes, there is aprs traffic in Bedford County

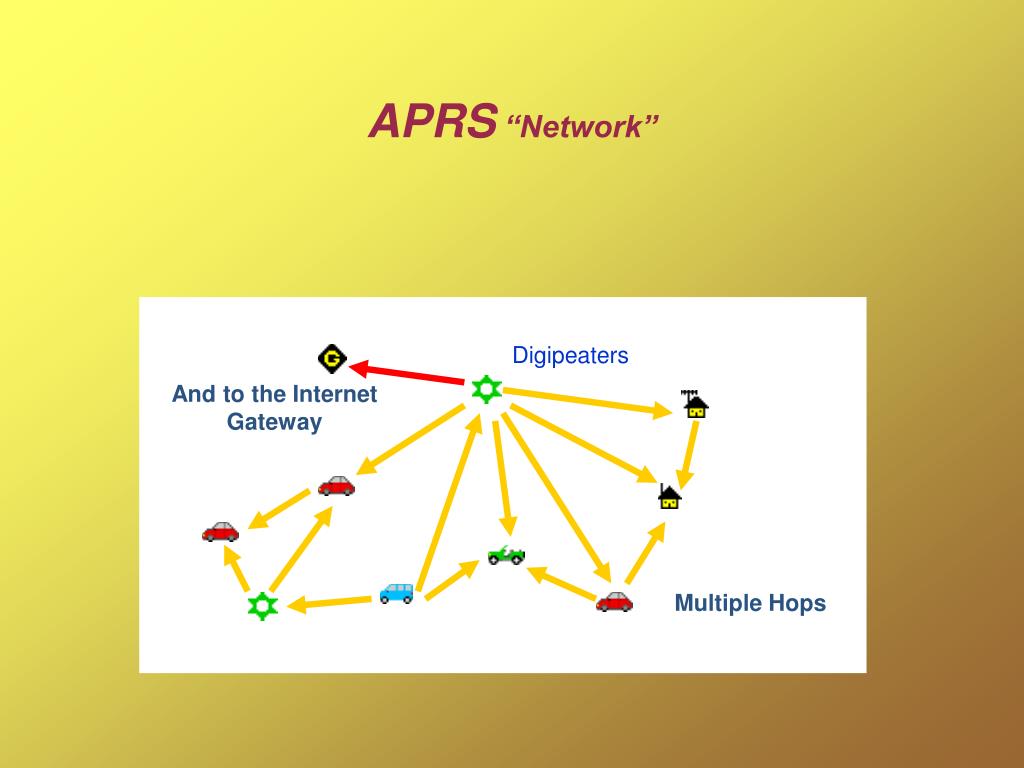

  3. APRS “Network” Aa Digipeaters And to the Internet Gateway Multiple Hops

  4. Mobile/Portable APRS Terminals Kenwood TM-D700A • Dual band 144/440 MHz 50/35 Watts • Built-in 1200/9600 bps TNC including digipeater • Built-in APRS Displays and messaging. • Other APRS stations show on attached GPS map TM-D710 Kenwood D7 Yaesu VX8R • Adds operation Freq to every posit ! • Auto tunes to others with Freq! • Shows local Voice Repeaters ! 5

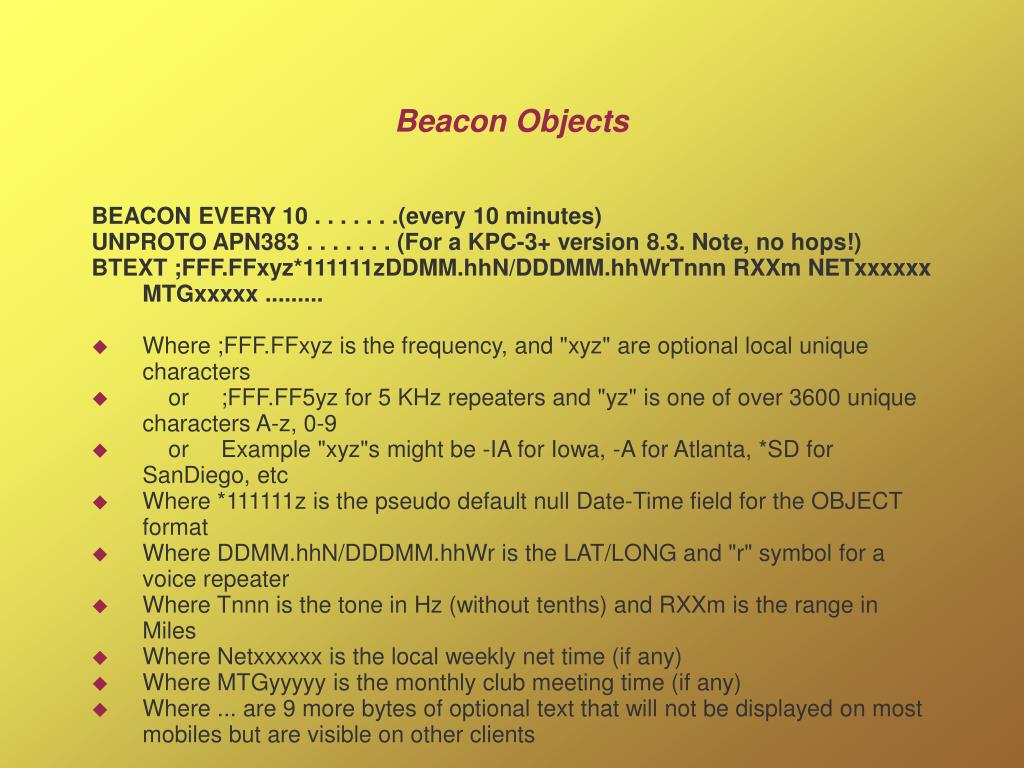

  5. Beacon Objects BEACON EVERY 10 . . . . . . .(every 10 minutes) UNPROTO APN383 . . . . . . . (For a KPC-3+ version 8.3. Note, no hops!) BTEXT ;FFF.FFxyz*111111zDDMM.hhN/DDDMM.hhWrTnnn RXXm NETxxxxxx MTGxxxxx ......... Where ;FFF.FFxyz is the frequency, and "xyz" are optional local unique characters or ;FFF.FF5yz for 5 KHz repeaters and "yz" is one of over 3600 unique characters A-z, 0-9 or Example "xyz"s might be -IA for Iowa, -A for Atlanta, *SD for SanDiego, etc Where *111111z is the pseudo default null Date-Time field for the OBJECT format Where DDMM.hhN/DDDMM.hhWr is the LAT/LONG and "r" symbol for a voice repeater Where Tnnn is the tone in Hz (without tenths) and RXXm is the range in Miles Where Netxxxxxx is the local weekly net time (if any) Where MTGyyyyy is the monthly club meeting time (if any) Where ... are 9 more bytes of optional text that will not be displayed on most mobiles but are visible on other clients

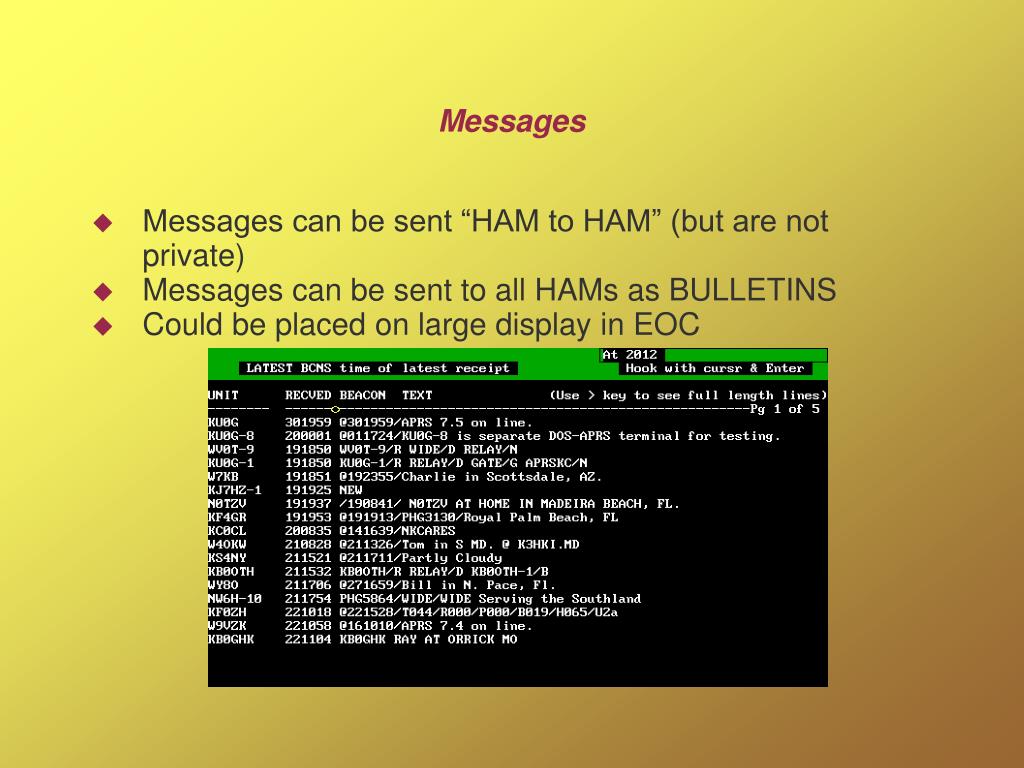

  6. Messages Messages can be sent “HAM to HAM” (but are not private) Messages can be sent to all HAMs as BULLETINS Could be placed on large display in EOC

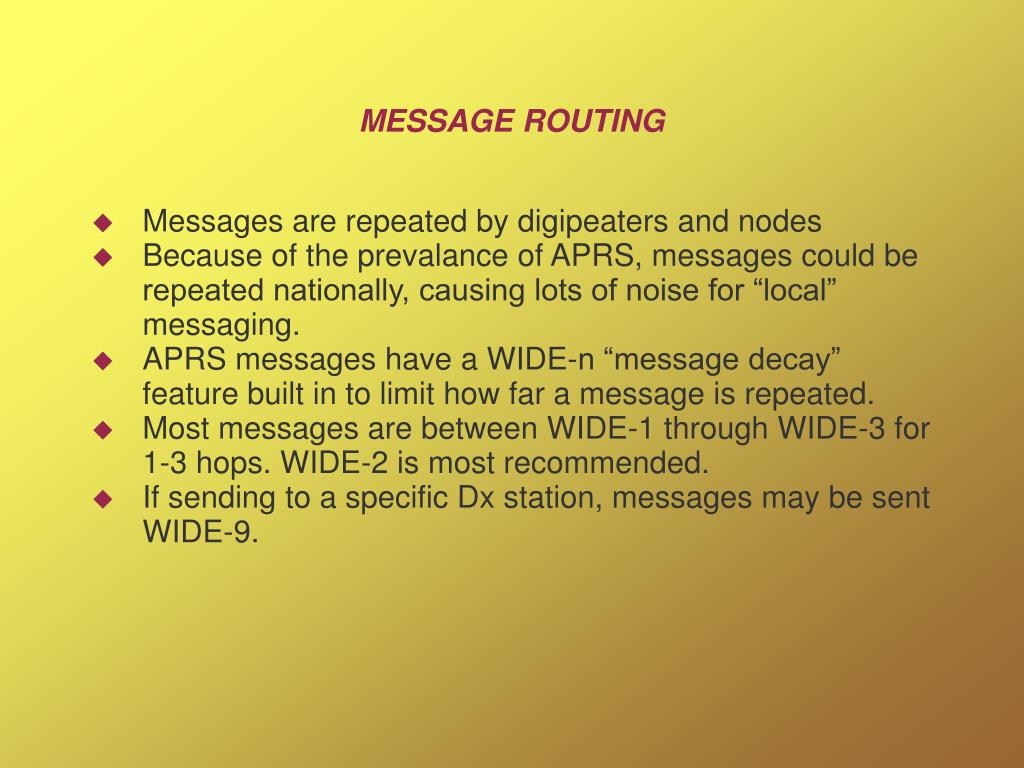

  7. MESSAGE ROUTING Messages are repeated by digipeaters and nodes Because of the prevalance of APRS, messages could be repeated nationally, causing lots of noise for “local” messaging. APRS messages have a WIDE-n “message decay” feature built in to limit how far a message is repeated. Most messages are between WIDE-1 through WIDE-3 for 1-3 hops. WIDE-2 is most recommended. If sending to a specific Dx station, messages may be sent WIDE-9.

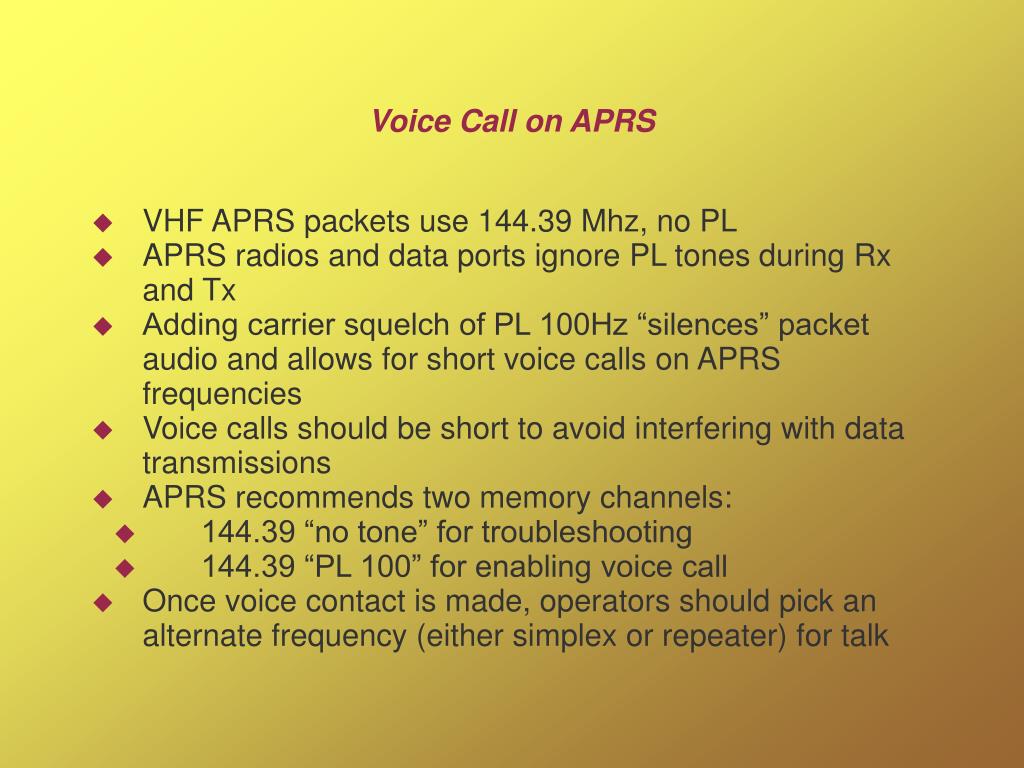

  8. Voice Call on APRS VHF APRS packets use 144.39 Mhz, no PL APRS radios and data ports ignore PL tones during Rx and Tx Adding carrier squelch of PL 100Hz “silences” packet audio and allows for short voice calls on APRS frequencies Voice calls should be short to avoid interfering with data transmissions APRS recommends two memory channels: 144.39 “no tone” for troubleshooting 144.39 “PL 100” for enabling voice call Once voice contact is made, operators should pick an alternate frequency (either simplex or repeater) for talk

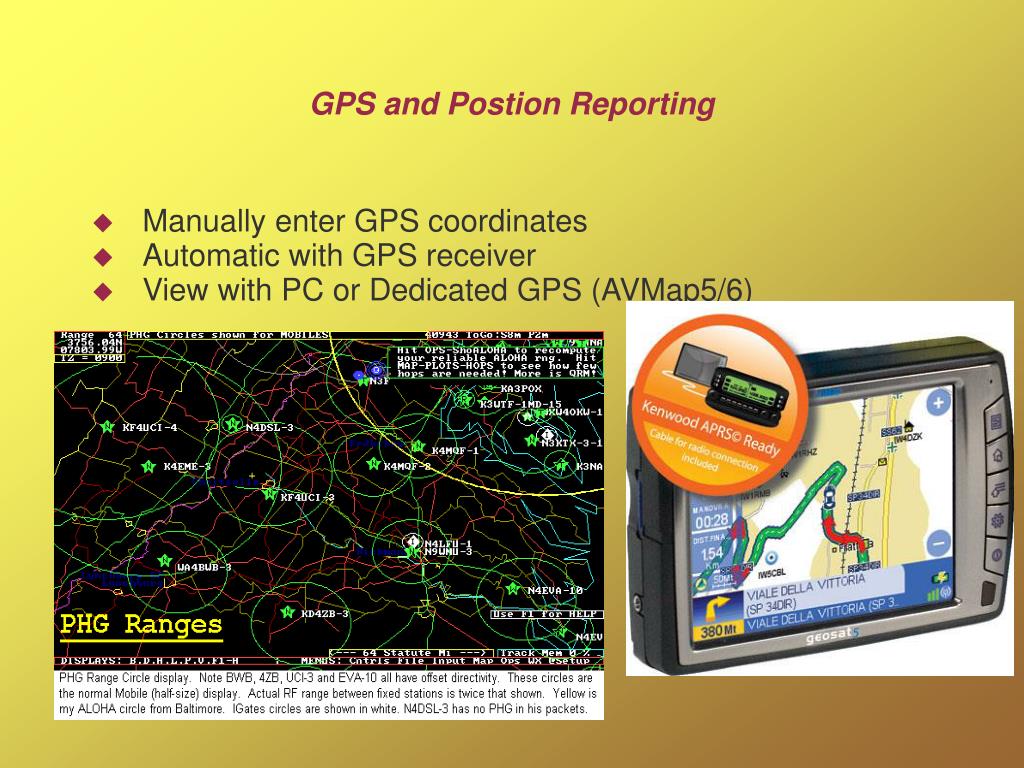

  9. GPS and Postion Reporting Manually enter GPS coordinates Automatic with GPS receiver View with PC or Dedicated GPS (AVMap5/6)

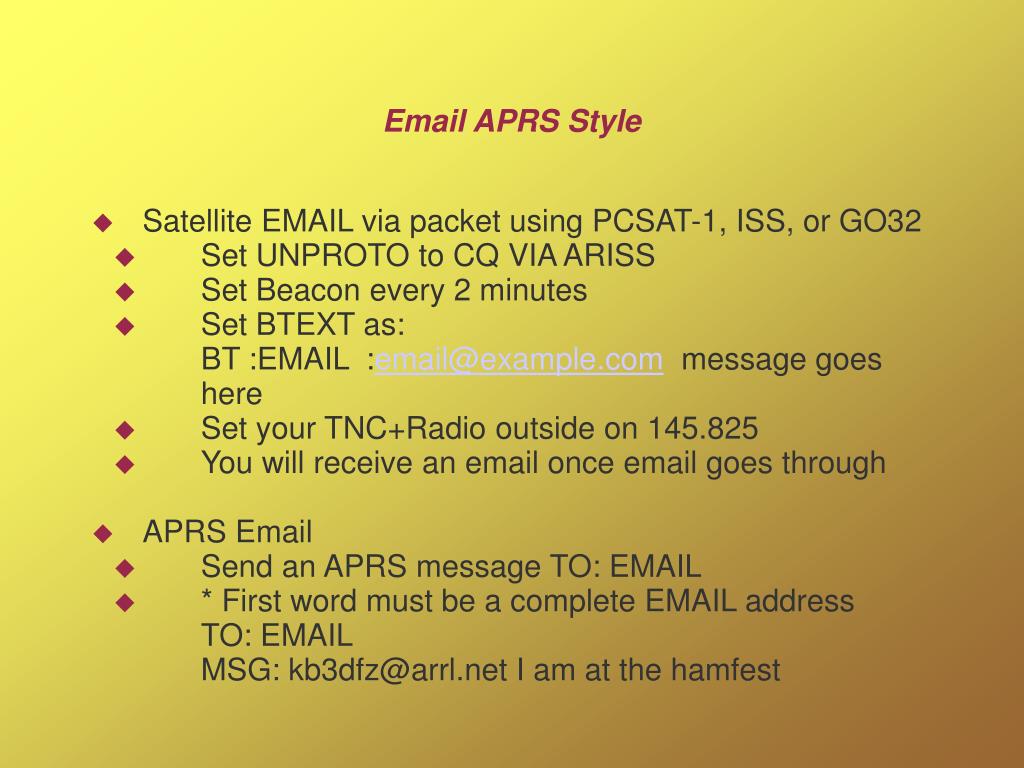

  10. Email APRS Style Satellite EMAIL via packet using PCSAT-1, ISS, or GO32 Set UNPROTO to CQ VIA ARISS Set Beacon every 2 minutes Set BTEXT as:BT :EMAIL :email@example.com message goes here Set your TNC+Radio outside on 145.825 You will receive an email once email goes through APRS Email Send an APRS message TO: EMAIL * First word must be a complete EMAIL addressTO: EMAILMSG: kb3dfz@arrl.net I am at the hamfest

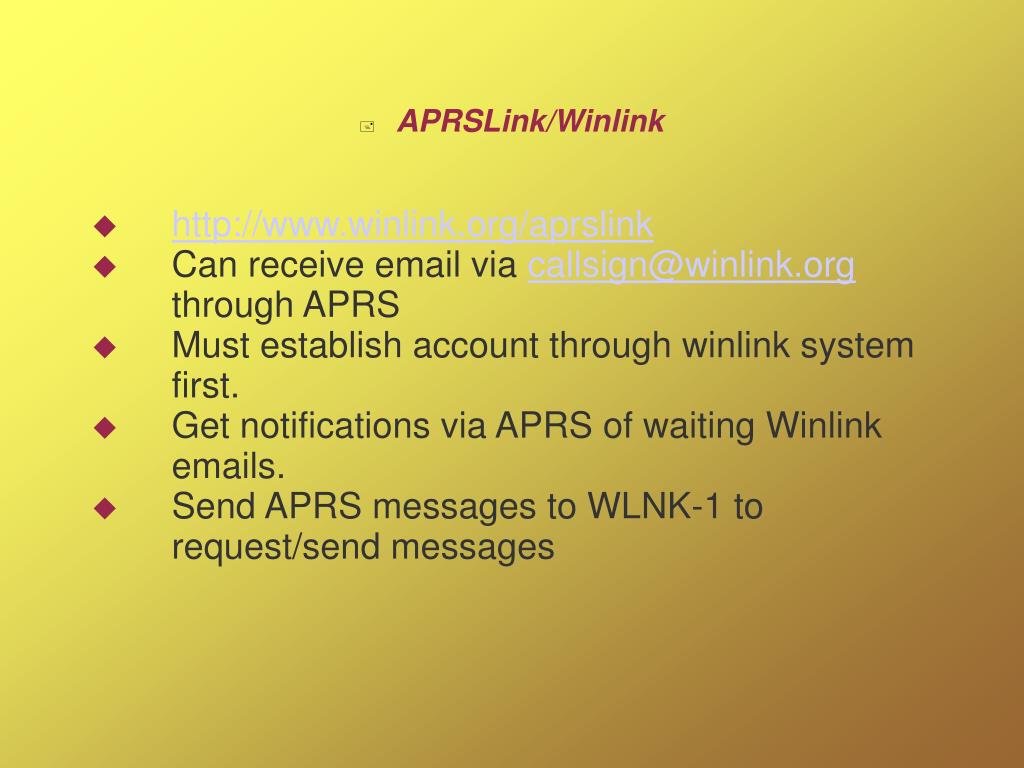

  11. APRSLink/Winlink http://www.winlink.org/aprslink Can receive email via callsign@winlink.org through APRS Must establish account through winlink system first. Get notifications via APRS of waiting Winlink emails. Send APRS messages to WLNK-1 to request/send messages

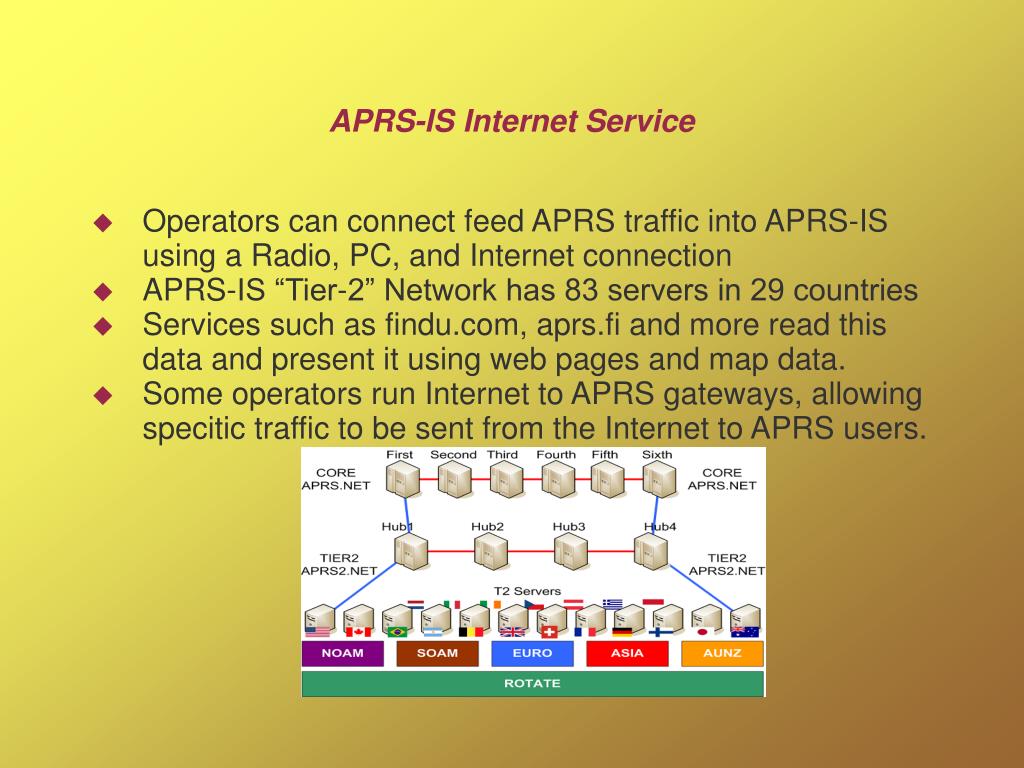

  12. APRS-IS Internet Service Operators can connect feed APRS traffic into APRS-IS using a Radio, PC, and Internet connection APRS-IS “Tier-2” Network has 83 servers in 29 countries Services such as findu.com, aprs.fi and more read this data and present it using web pages and map data. Some operators run Internet to APRS gateways, allowing specitic traffic to be sent from the Internet to APRS users.

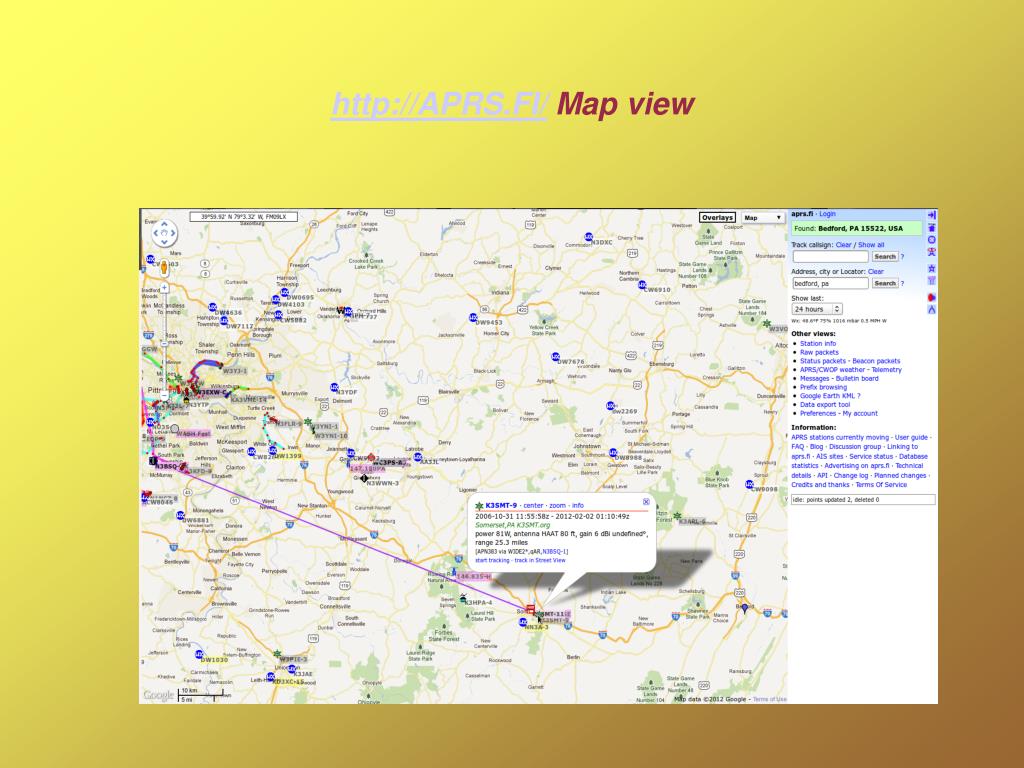

  13. http://APRS.FI/ Map view

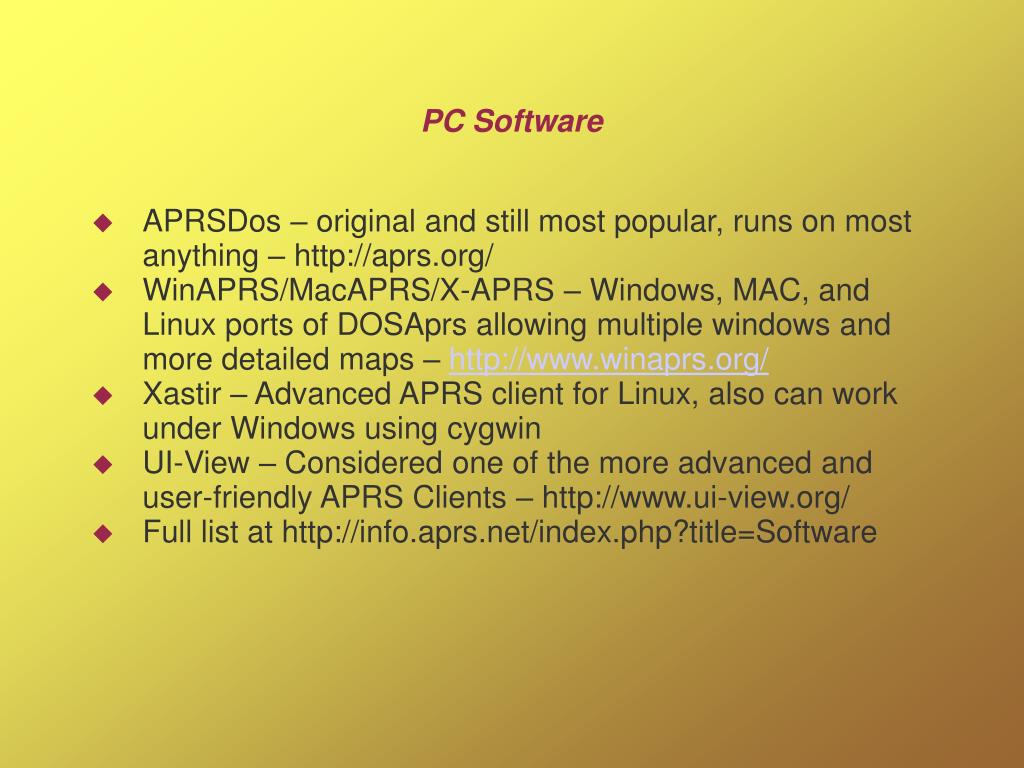

  14. PC Software APRSDos – original and still most popular, runs on most anything – http://aprs.org/ WinAPRS/MacAPRS/X-APRS – Windows, MAC, and Linux ports of DOSAprs allowing multiple windows and more detailed maps – http://www.winaprs.org/ Xastir – Advanced APRS client for Linux, also can work under Windows using cygwin UI-View – Considered one of the more advanced and user-friendly APRS Clients – http://www.ui-view.org/ Full list at http://info.aprs.net/index.php?title=Software

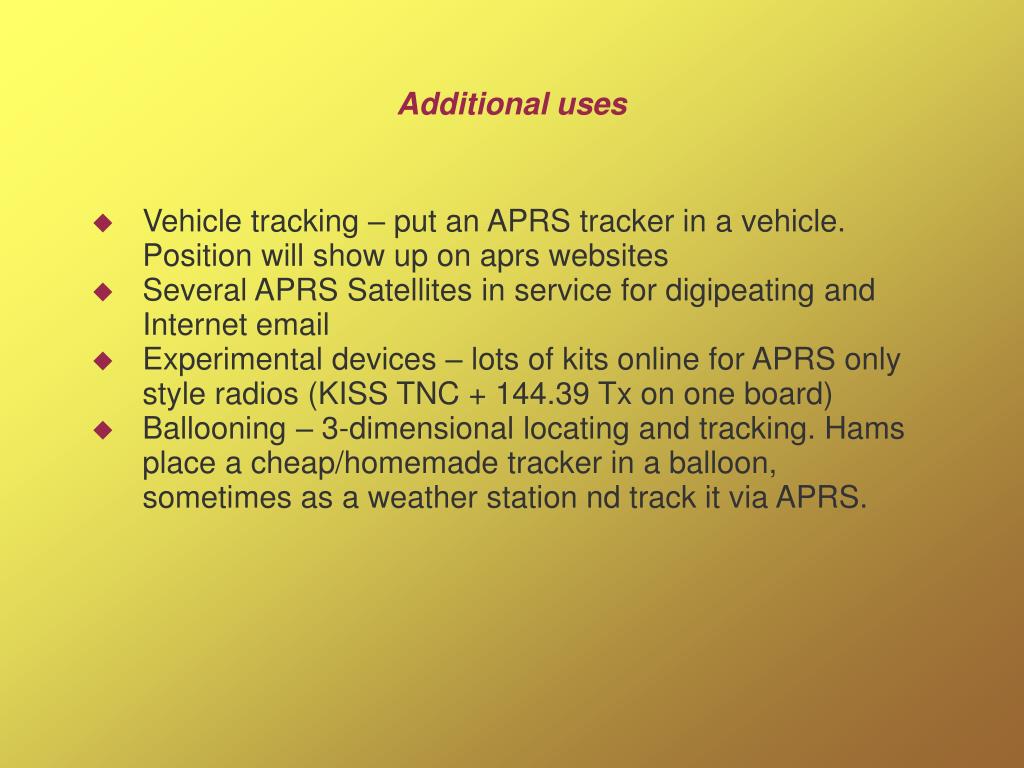

  15. Additional uses Vehicle tracking – put an APRS tracker in a vehicle. Position will show up on aprs websites Several APRS Satellites in service for digipeating and Internet email Experimental devices – lots of kits online for APRS only style radios (KISS TNC + 144.39 Tx on one board) Ballooning – 3-dimensional locating and tracking. Hams place a cheap/homemade tracker in a balloon, sometimes as a weather station nd track it via APRS.

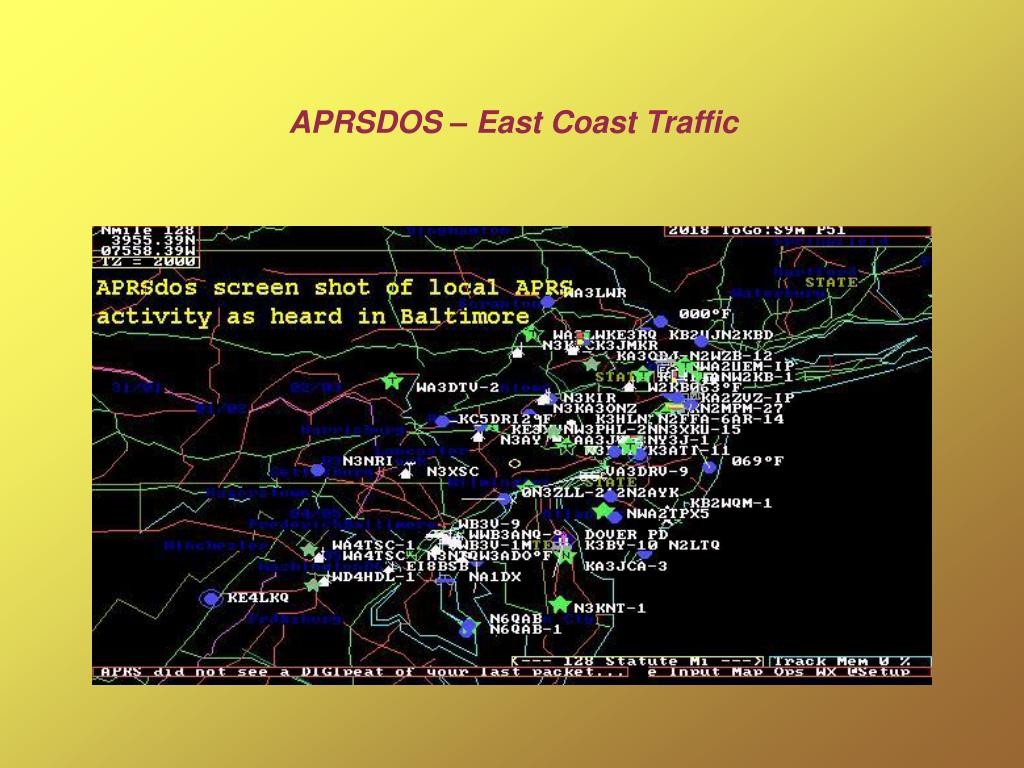

  16. APRSDOS – East Coast Traffic

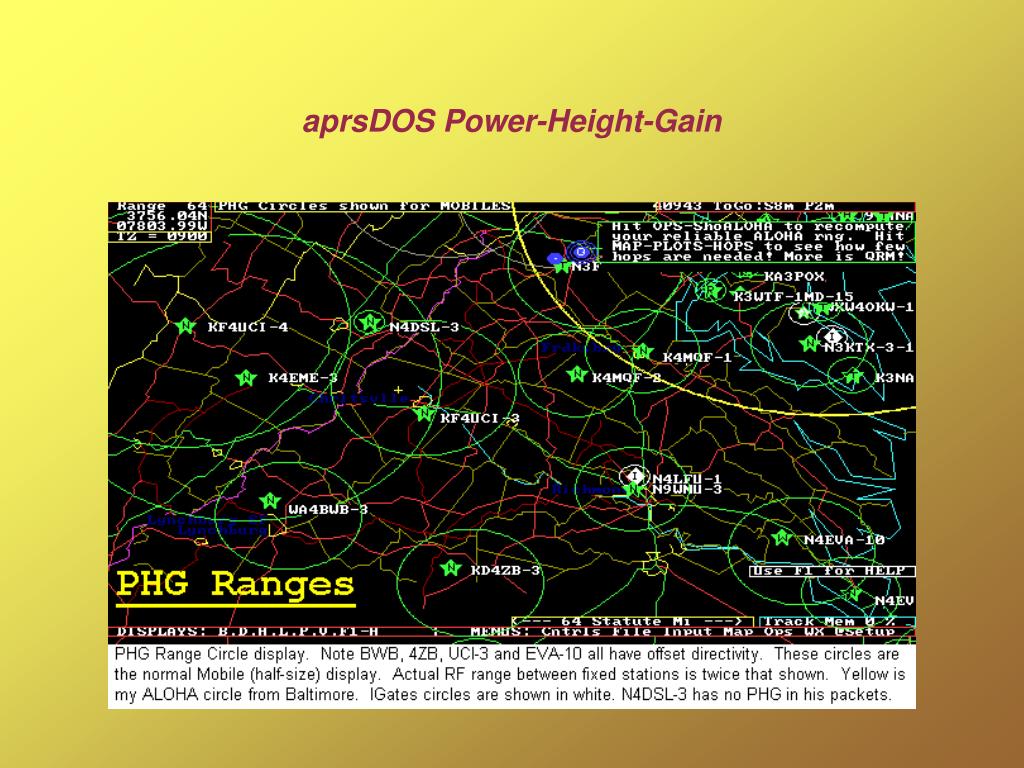

  17. aprsDOS Power-Height-Gain

  18. APRSDOS – Hops View

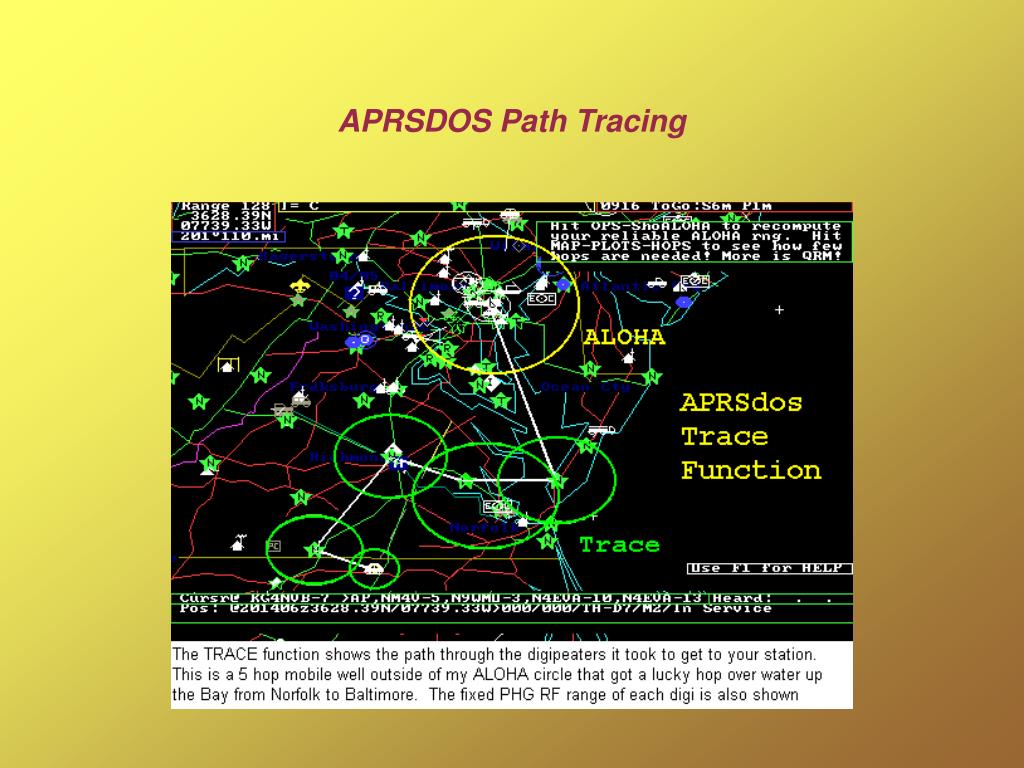

  19. APRSDOS Path Tracing

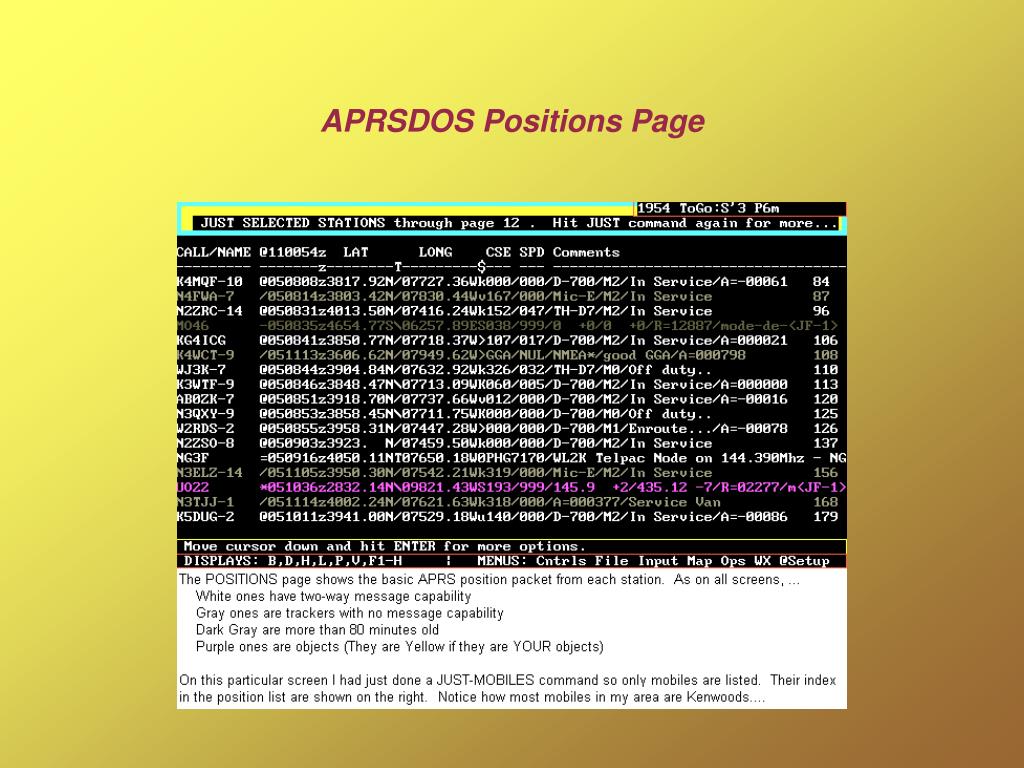

  20. APRSDOS Positions Page

  21. APRSDos Dead Reckoning Create mobile object without APRS and “dead reckon” their location automatically.
