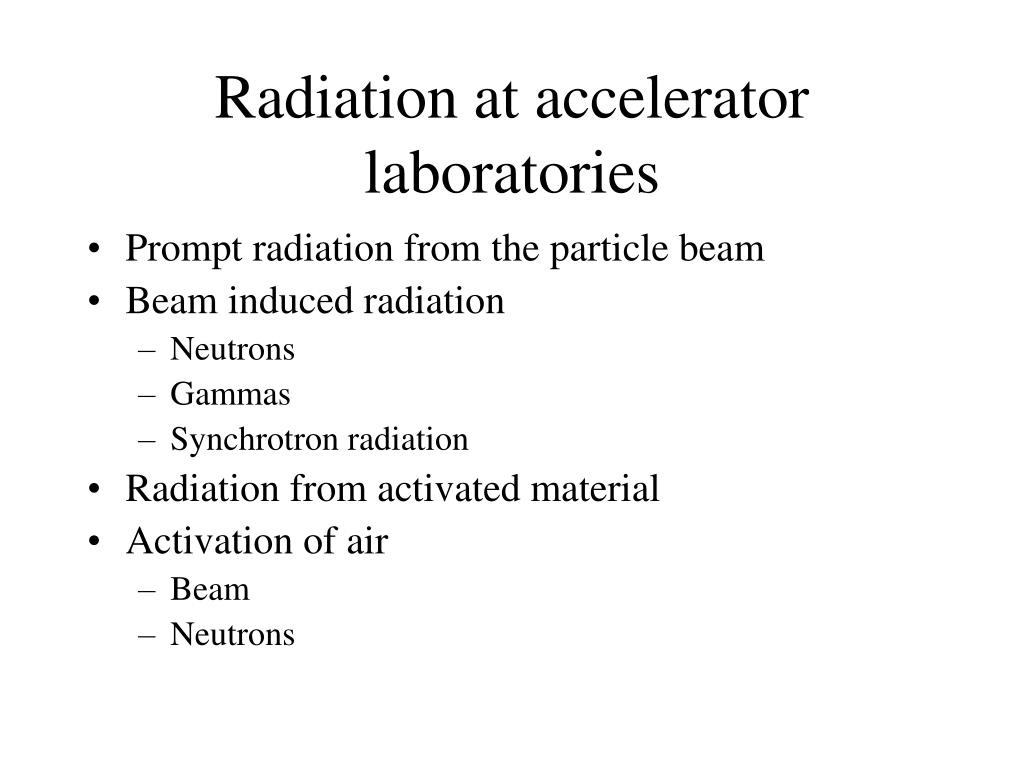

  1. Radiation at accelerator laboratories • Prompt radiation from the particle beam • Beam induced radiation • Neutrons • Gammas • Synchrotron radiation • Radiation from activated material • Activation of air • Beam • Neutrons

  2. Continued… • Activation of cooling water • Radiation protection • Shielding • … • Monitoring • Safety precautions • Access restrictions • Interlocks • …

  3. Regulations • Radiation workers (class A) • 20 mSv/a (5-year floating average) • 12.5 mSv/h (1600 h/a) • 50 mSv/a for one year • At JYFL: general limit is 0.5 mSv/h • Rooms with free access

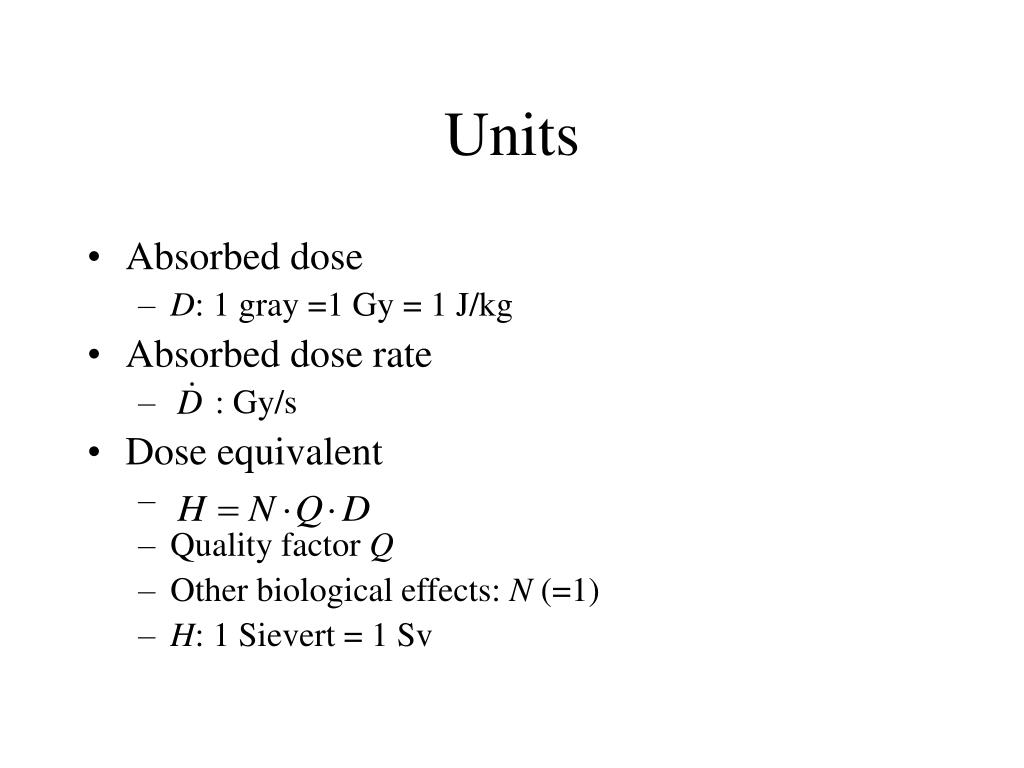

  4. Units • Absorbed dose • D: 1 gray =1 Gy = 1 J/kg • Absorbed dose rate • : Gy/s • Dose equivalent • Quality factor Q • Other biological effects: N (=1) • H: 1 Sievert = 1 Sv

  5. Dose equivalent rate • Effective dose equivalent • wT weight for a specific tissue

  6. Primary beam • Proton beam

  7. Helium

  8. Gamma dose Chinese hamster ovary (CHO) cells

  9. Primary beam • Never apply to living organisms • Except by purpose • Radiation therapy • Sterilization • …

  10. Secondary radiation • Neutrons and gammas from the beam hitting material • Dose rate decreases immediately when the beam is switched off

  11. Residual radiation • Beam hits the accelerator, beam tube or other devices • Protons produce most activities (p,xn) • Co-isotopes from Fe • Secondary neutrons activate material through neutron capture • E.g. 63Cu + n = 64Cu (12.7 h) • Fe isotopes from Fe

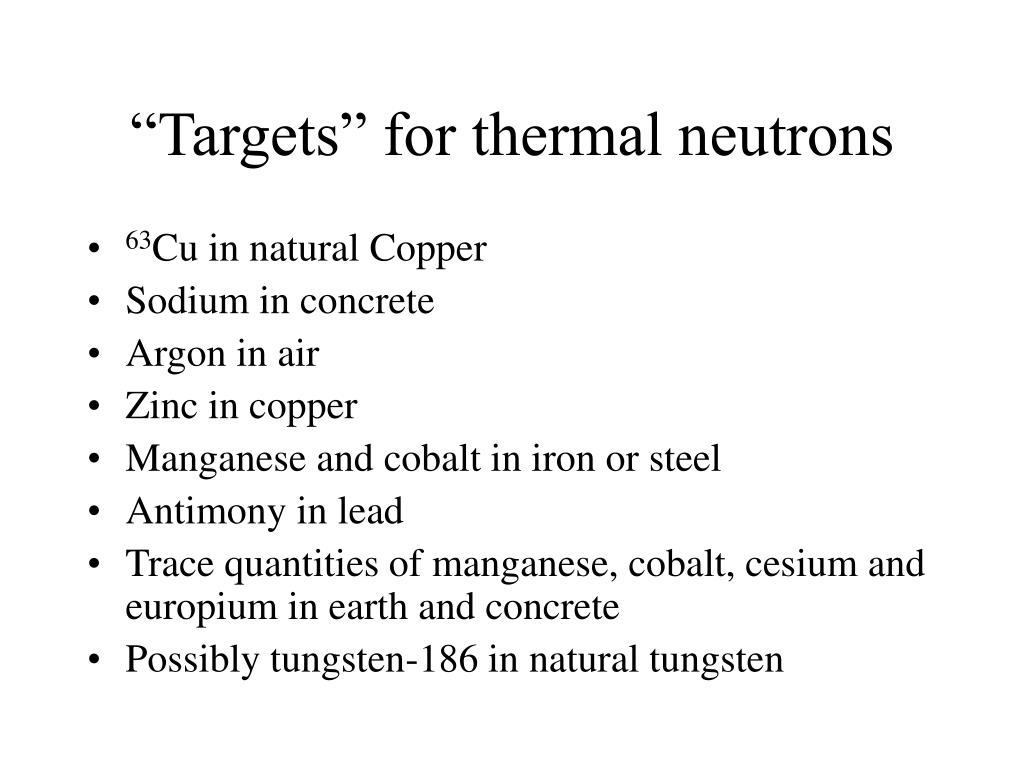

  12. “Targets” for thermal neutrons • 63Cu in natural Copper • Sodium in concrete • Argon in air • Zinc in copper • Manganese and cobalt in iron or steel • Antimony in lead • Trace quantities of manganese, cobalt, cesium and europium in earth and concrete • Possibly tungsten-186 in natural tungsten

  13. Other aspects • Minimize the amount of material that can be activated • E.g. inside the accelerator • Ta collimator in the spiral inflector (JYFL) • Proper choice of materials • Depends on accelerated ions and their energies • Cross-sections for nuclear reactions • E.g. 30 Mev (or more) protons induce 22Na from aluminum

  14. Shielding • As close to the source as possible • Distance helps: 1/r2 • Use chicanes (corridors with corners/bends) • Lower pressure in rooms where air may be activated (ventilation) • Use separate water cooling circuit for water that can be activated • Proper choice of materials and the order of materials • Thermalization of fast neutrons first • Material choice depends on neutron energy (10B, Fe, plastics,…)

  15. Shielding… • Assume the “worst” case for dimensioning the wall, floor and ceiling thickness/material • The whole beam is stopped • Which beam? • Light ion • High energy • High intensity • The allowed dose rate (mSv/h) outside the radiating room sets limits for the radiation attenuation

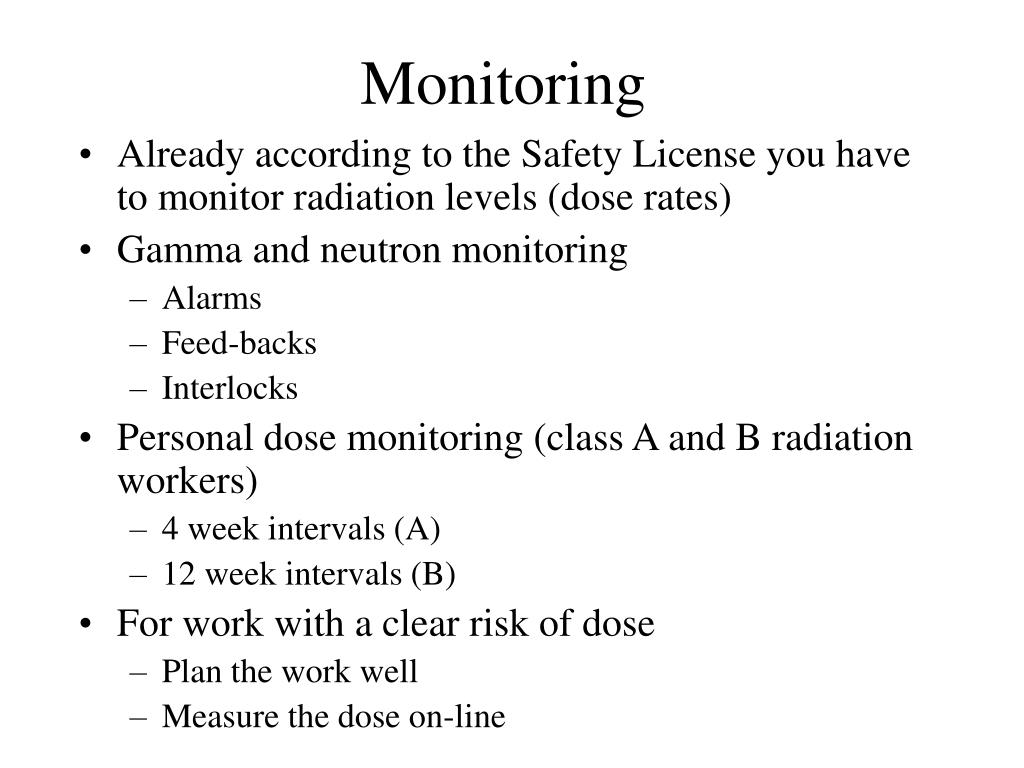

  16. Monitoring • Already according to the Safety License you have to monitor radiation levels (dose rates) • Gamma and neutron monitoring • Alarms • Feed-backs • Interlocks • Personal dose monitoring (class A and B radiation workers) • 4 week intervals (A) • 12 week intervals (B) • For work with a clear risk of dose • Plan the work well • Measure the dose on-line

  17. Permissions • You always need a Safety License by STUK/Radiation and Nuclear Safety Authority for your operation if it may produce radiation!
