  1. Multi Jet Modeling

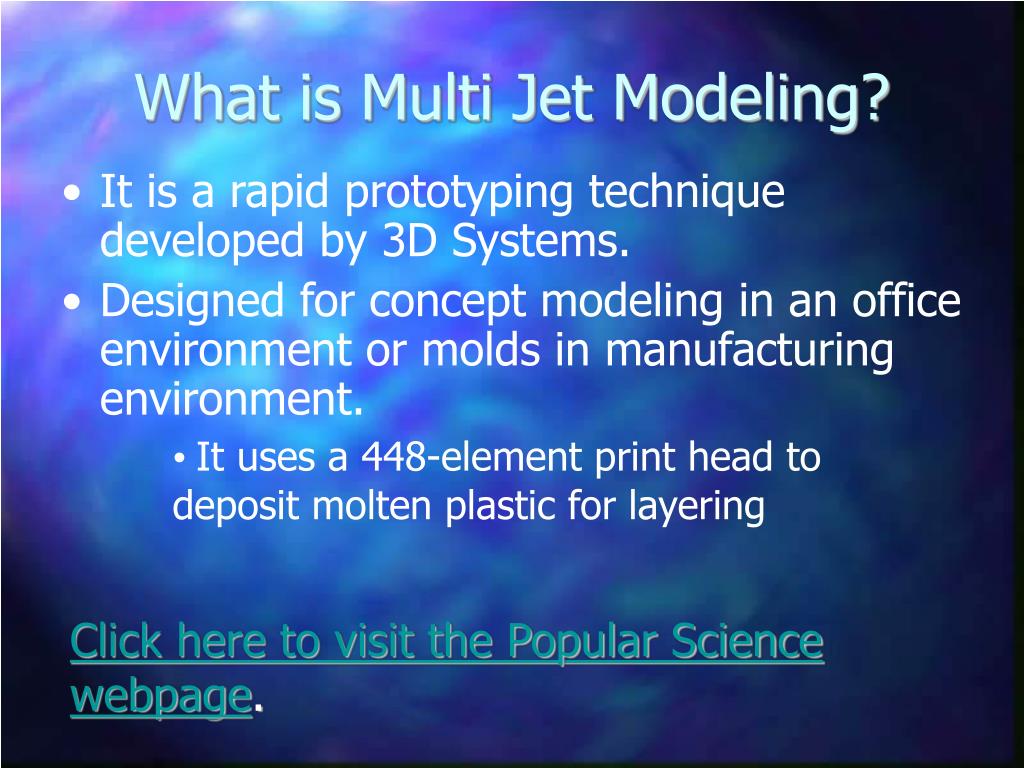

  2. What is Multi Jet Modeling? • It is a rapid prototyping technique developed by 3D Systems. • Designed for concept modeling in an office environment or molds in manufacturing environment. • It uses a 448-element print head to deposit molten plastic for layering Click here to visit the Popular Science webpage.

  3. Multi Jet Modeling “This system uses wide area inkjet technology based on the ThermoJetTM to deposit layers of photopolymer. Each layer is fully cured by a wide area lamp after deposition” • Molten plastic is deposited by print head onto platform in layers • Platform lowers as layers build up Click here for more quotes from Caste Island's Guide to Rapid Prototyping. Click here for a model of Multi-Jet Modeling from efunda.com.

  4. 3D Systems Multi Jet Printers • InVisionTMHR 3-D Printer High Resolution • Priced at $59,900 US • InVisionTMSR 3-D Printer • Standard Resolution • Priced at $39,900 US

  5. InVisionTM SR 3-D Printer FEATURE • Excellent part resolution and surface finish, 328 x 328 x 606 DPI (xyz) • Maximum Model Size W11.75 x D7.3 x H8 in (xyz) • Durable part material • Black, blue, gray, red and white • "Plug and play" operation Click here for a picture of the InVision SR 3-D Printer.

  6. InVisionTM SR 3-D Printer Benefits • Print physical models from 3-D digital data • Superior model and prototype quality • Durable acrylic photopolymer material • Easy to use - no training needed Click here to view the Inition website that contains information on the SR 3-D Printer. Click Products, then 3-D Printing, then scroll down to find the model SR 3-D Printer.

  7. InVisionTM SR 3-D Printer Applications Models for: • Concept development • Design validation • Presentation, marketing and selling aids • Bid packages • Prototypes for form and fit analysis • Identify design issues earlier

  8. InVisionTM HR 3-D Printer • Features • Resolution 656 x 656 x 800 DPI (xyz) • Material color blue Click here for a picture of the InVision HR 3-D Printer.

  9. From Design to Manufacturing Click here for more information, detailed example pictures and more of the InVision HR 3-D Printer.

  10. InVisionTM HR 3-D Printer Benefit • Print physical models from 3-D digital data • Superior model and prototype quality • Durable acrylic photopolymer material • Easy to use - no training needed Click to view the Inition website that contains information on the HR 3-D Printer. Click Products, then 3-D Printing, then scroll down to find the model HR 3-D Printer.

  11. InVisionTM HR 3-D Printer Applications • Rapid production of custom or short run jewelry patterns or models • Direct casting patterns • Patterns for room temperature (RTV) molding • Models for presentation, marketing and selling • Models for design evaluation Click here to view the Inition website that contains information on the HR 3-D Printer. Click Products, then 3-D Printing, then scroll down to find the model HR 3-D Printer.

  12. InVisionTM Finisher • Removes the supports from the model Click here to view a picture of the InVision Finisher on the 3-D Systems website.

  13. InVisionTM Finisher InVisionTM printer model with supports available below. InVisionTM printer model with support structures removed automatically available below. Click here to view more information on the InVision Finisher along with pictures of the described above.

  14. Resources • www.3dsystems.com • www.inition.co.uk • www.popsci.com • www.efunda.com • http://home.att.net/~castleisland/
