  1. DD* Lite: Efficient Incremental Search with State Dominance Paper by G. Ayorkor Mills-Tettey, Anthony Stentz, and M. Bernardine Dias Presented on 1 October 2007 in 16-735 Motion Planning by Ross A. Knepper and Sean Hyde

  2. 1 2 3 4 5 D* Lite • As we saw in class last week, D* Lite is an optimal, efficient algorithm for performing incremental search in a 2D grid. • It optimizes an objective function, g(s). • For example, D* Lite can be used to find the lowest time-cost path in a grid … total cost=19 S G

  3. 1 2 3 4 5 D* Lite • As we saw in class last week, D* Lite is an optimal, efficient algorithm for performing incremental search in a 2D grid. • It optimizes an objective function, g(s). • For example, D* Lite can be used to find the lowest time-cost path in a grid … total cost=20 … even when costs change. S G

  4. Preview: DD* Lite DD* Lite modifiesD* Lite in order to reason about additional “cost dimensions” such as energy expenditure. DD* Lite path D* Lite path

  5. Augmented States • D* Lite uses a state like (x, y). • Some problems have other information that is important to find the “best” path. • Augment the state with extra terms to indicate other factors. Example. Battery energy level: s=(x, y, e). • What are the implications of that extra dimension?

  6. Effect of State Augmentation • In normal D* Lite, two equal-cost paths to the same position constitute a tie, which is broken arbitrarily. • With an augmented state, there are more states to search, but the answer which optimizes the whole state will be found. • How to handle extra dimension(s) efficiently?

  7. State Dominance • Definition. State s1dominates another state s2 when no solution through s2 leads to a solution as good as the best solution that can be obtained through s1. • Note that dominance defines only a partial ordering on the set of all states, S. • In practical usage, selection of dominance neighbors is always problem-specific. Example. Suppose there are two ways for a Mars Rover to get to the same position in the same amount of time, but one of them uses less battery power.s1 = (xi, yi, e1) dominates s2 = (xi, yi, e2) when e1 < e2.

  8. Dominance Relations • Definition. A dominance relation exists between two states when one state dominates the other. • Properties: • Non-reflexivity: A state cannot dominate itself. • Non-symmetry: If a state u dominates a state v, then vdoes not dominate u. • Transitivity: If a state u dominates another state v, and v in turn dominates w, then u dominates w. • In general, it can be hard to know whether two states have a dominance relation or not.

  9. Why Use State Dominance? • A dominated state can never lead to a better solution than the best solution that can be obtained from the dominating state. • Can prune dominated states out of the search without loss of optimality. • Consequently, the path we’ll find from start to goal will be free of dominated states. • Speeds up the search • Breaks ties in the best cost path using a second meaningful metric.

  10. Time-cost map Energy-cost map S S G G 1 2 3 4 5 State Dominance Example • There are separate time- and energy- cost maps show the respective time and energy penalties for crossing each cell. • The shade of a 2D cell in the energy cost map represents the derivative of energy – the rate at which the battery level changes. • The 3D state contains position and an absolute energy level, which is the result of traversing the cost map.

  11. 1 2 3 4 5 State Dominance Example Time-cost map Energy-cost map • There are separate time- and energy- cost maps show the respective time and energy penalties for crossing each cell. • The shade of a 2D cell in the energy cost map represents the derivative of energy – the rate at which the battery level changes. • The 3D state contains position and an absolute energy level, which is the result of traversing the cost map. S S G G

  12. Energy-cost map S G 1 2 3 4 5 State Dominance Example Time-cost map • Goal is set to energy=0. • State (x,y,e)=(2,2,15) dominates (2,2,33). • Less energy expenditure leads to a better solution. S G

  13. From D* Lite to DD* Lite • Changes include tweaks to: • Objective function • Algorithm • Key change: • In addition to keeping track of one-step lookahead of the objective function, also keep track of one-step lookahead of whether or not a state is dominated.

  14. Dominance relation Solution cost DD* Lite: Extra Bookkeeping • The g and rhs values of a node are augmented to track dominance of the state. • The dominance component can take two values: NOT_DOMINATED or DOMINATED. • We define NOT_DOMINATED < DOMINATED.

  15. DD* Lite: Tracking Dominance • Definition of dominance requires us to define comparisons between objective functions, which are now ordered pairs. • Define less-than operator: • Note that gdom values only matter when gobjf values are equal.

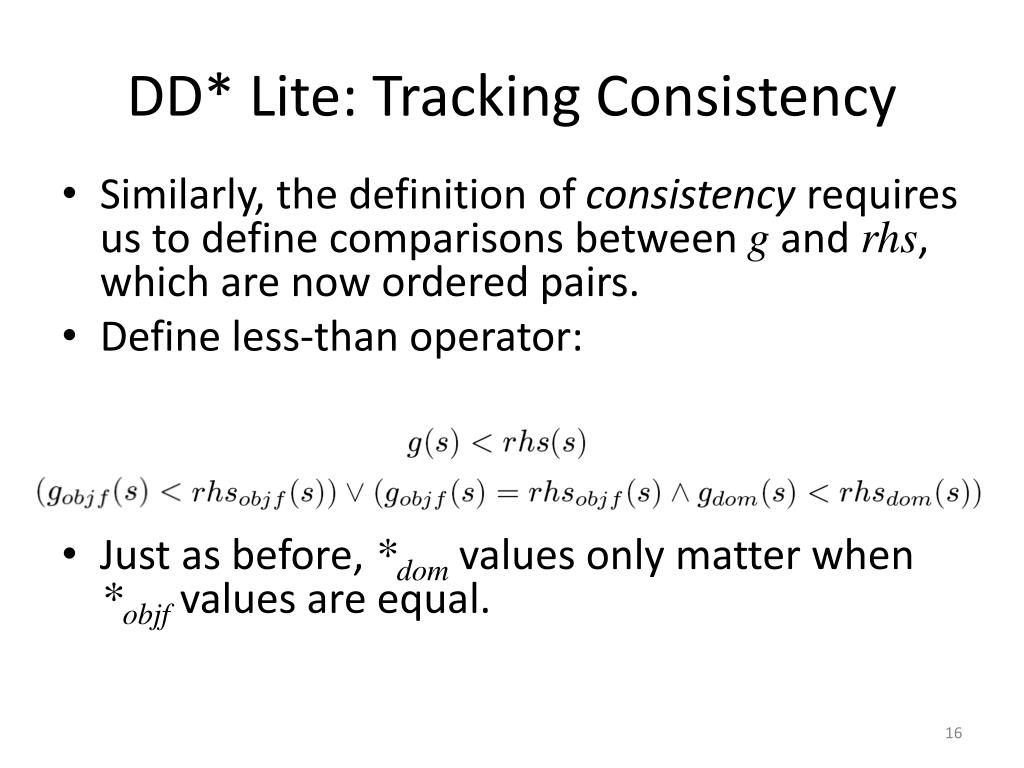

  16. DD* Lite: Tracking Consistency • Similarly, the definition of consistency requires us to define comparisons between g and rhs, which are now ordered pairs. • Define less-than operator: • Just as before, *dom values only matter when *objf values are equal.

  17. DD* Lite: New Update Rule for rhs • Update rule for rhs from D* Lite: • Update rule for rhs from DD* Lite:

  18. DD* Lite: New Update Rule for rhs

  19. DD* Lite: New Update Rule for rhs • F(s) is the family of all states which can potentially lower the objective function at s. • D(s) is the set of all states that can cause s to be dominated.

  20. Domain-Dependent Functions • Dominate(s’, s) returns TRUE iff the state s’ dominates the state s. • DominanceNeighbors(s) returns the set of all states s’ in S for which Dominate(s, s’) Dominate(s’, s) is TRUE. Note that the set of dominance neighbors need not intersect with the sets of predecessors and successors.

  21. DD* Lite Algorithm (1/3)

  22. DD* Lite Algorithm (2/3)

  23. DD* Lite Algorithm (3/3)

  24. 1 2 3 1 2 3 4 1 2 3

  25. 1 2 3 1 2 3 4 1 2 3 Initialize() U = Ø For all s rhs(s),g(s)  [∞,NOT_DOMINATED] rhs(sgoal)  [0,NOT_DOMINATED] U.insert(sgoal,CalculateKey(sgoal))

  26. 1 2 3 1 2 3 4 1 2 3 Initialize() U = Ø For all s rhs(s),g(s)  [∞,NOT_DOMINATED] rhs(sgoal)  [0,NOT_DOMINATED] U.insert(sgoal,CalculateKey(sgoal)) U = {}

  27. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 Initialize() U = Ø For all s rhs(s),g(s)  [∞,NOT_DOMINATED] rhs(sgoal)  [0,NOT_DOMINATED] U.insert(sgoal,CalculateKey(sgoal)) U = {}

  28. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 Initialize() U = Ø For all s rhs(s),g(s)  [∞,NOT_DOMINATED] rhs(sgoal)  [0,NOT_DOMINATED] U.insert(sgoal,CalculateKey(sgoal)) U = {}

  29. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { (1,2,0) – [0;0] } Initialize() U = Ø For all s rhs(s),g(s)  [∞,NOT_DOMINATED] rhs(sgoal)  [0,NOT_DOMINATED] U.insert(sgoal,CalculateKey(sgoal))

  30. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { (1,2,0) – [0;0] }

  31. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } S = (1,2,0) – [0;0]

  32. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } S = (1,2,0) – [0;0]

  33. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) S = (1,2,0) – [0;0]

  34. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,2,0) , (2,1,-1), (2,2,-1)

  35. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,2,0) , (2,1,-1), (2,2,-1) Tempobjf = 1 (1,2,0)

  36. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,2,0) , (2,1,-1), (2,2,-1) Temp = [(1,2,0), NOT_DOMINATED]

  37. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) s' = {} Temp = [(1,2,0), NOT_DOMINATED]

  38. 1 2 3 (rhs(s),D,g(s),D,e) 1 2 3 4 1 2 3 U = { } DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) Temp = [(1,2,0), NOT_DOMINATED]

  39. U = { (1,1,1) – [3;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1)

  40. U = { (1,1,1) – [3;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,1,0) , (1,2,0), (2,2,-1), (3,2,-1), (3,1,0)

  41. U = { (1,1,1) – [3;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,1,0) , (1,2,0), (2,2,-1), (3,2,-1), (3,1,0) Tempobjf = 1 (1,2,0)

  42. U = { (1,1,1) – [3;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,1,0) , (1,2,0), (2,2,-1), (3,2,-1), (3,1,0) Tempobjf = 1 (1,2,0)

  43. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1)

  44. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,1,0) , (1,2,0), (1,3,0), (2,3,-2), (3,3,0), (3,2,-1), (3,1,0), (2,1,-1)

  45. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,1,0) , (1,2,0), (1,3,0), (2,3,-2), (3,3,0), (3,2,-1), (3,1,0), (2,1,-1) Tempobjf = 1 (1,2,0)

  46. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,1,0) , (1,2,0), (1,3,0), (2,3,-2), (3,3,0), (3,2,-1), (3,1,0), (2,1,-1) Tempobjf = 1 (1,2,0)

  47. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] (2,2,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1)

  48. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] (2,2,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,2,0) , (2,1,-2), (2,2,-1)

  49. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] (2,2,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,2,1) (1,2,2) (1,2,3) (1,2,4) (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,2,0) , (2,1,-2), (2,2,-1) Tempobjf = 1 (1,2,0)

  50. U = { (1,1,1) – [3;1] (2,1,1) – [2;1] (2,2,1) – [2;1] } 1 2 3 1 2 3 4 1 2 3 (rhs(s),D,g(s),D,e) DominanceNeighbors(s) U Pred(s) = { (1,1,1) (2,1,1) (2,2,1) (1,3,1) (2,3,1) F = (1,2,0) , (2,1,-2), (2,2,-1) Tempobjf = 1 (1,2,0)
