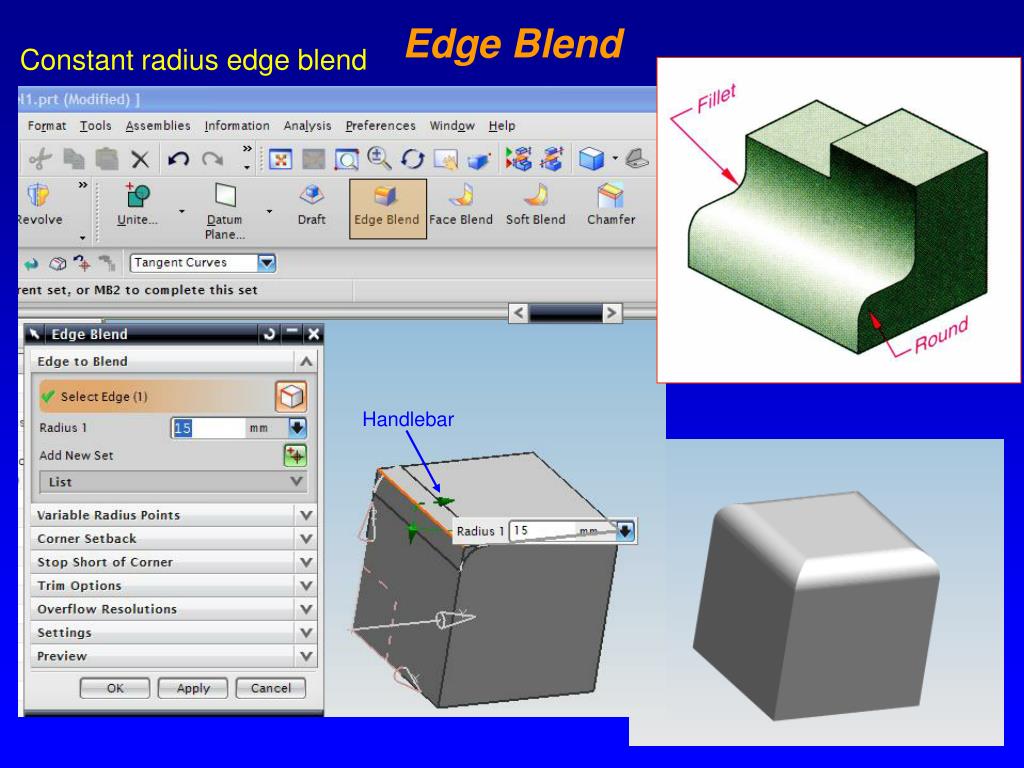

  1. Constant radius edge blend Handlebar Edge Blend

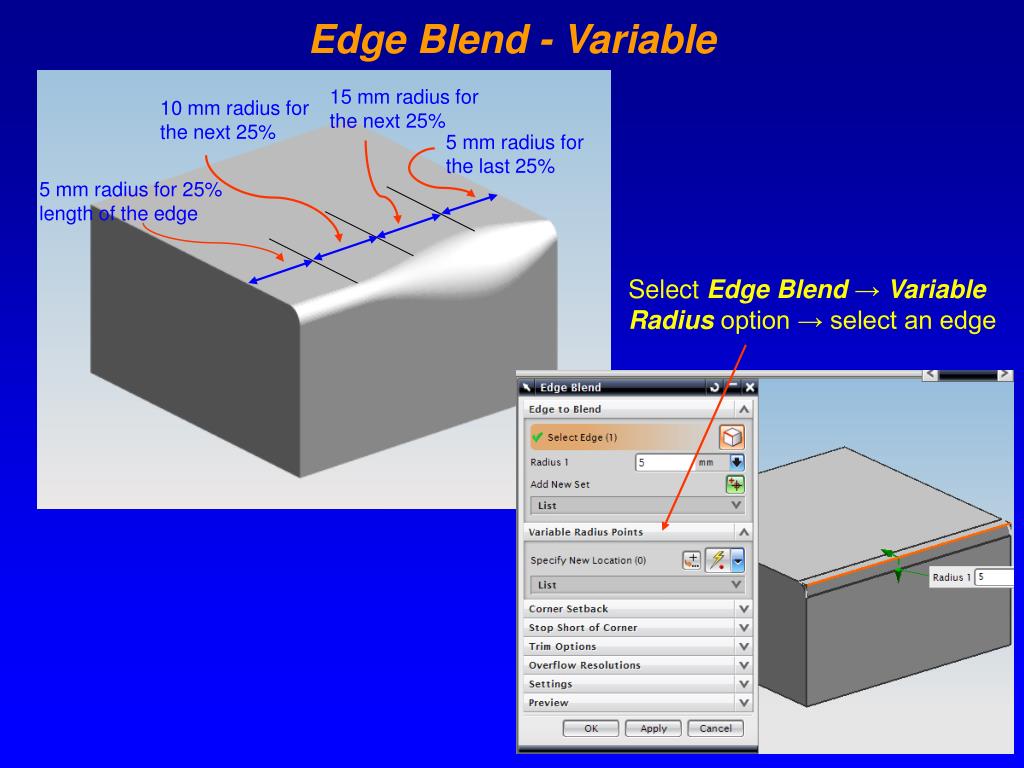

  2. 15 mm radius for the next 25% 10 mm radius for the next 25% 5 mm radius for the last 25% 5 mm radius for 25% length of the edge Select Edge Blend → Variable Radius option → select an edge Edge Blend - Variable

  3. Point 1 – specify 5 mm radius and 75% Arc Length Specify Radius and % length Edge Blend - Variable Select 4 points and specify the radius and the % length of the edge for each section Select Inferred icon and pick the end point of the edge Note: Arc length is counted down from 100%. So for section 1, 5 mm radius for the first 25% of length, you should specify 75% for Arc Length

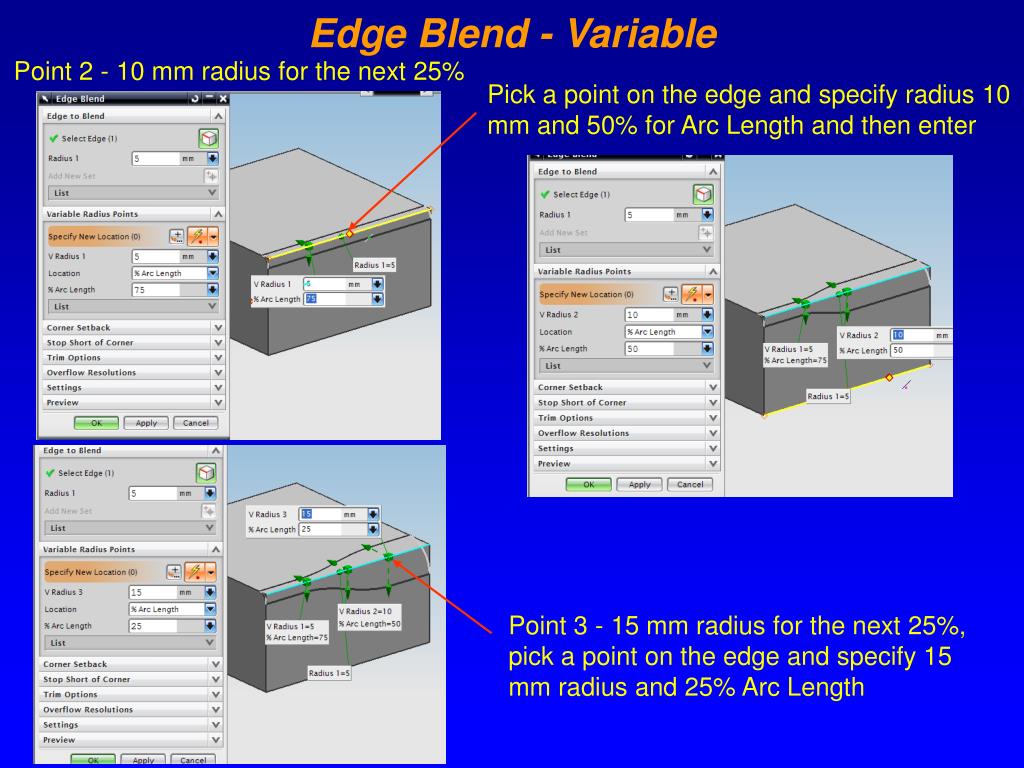

  4. Edge Blend - Variable Point 2 - 10 mm radius for the next 25% Pick a point on the edge and specify radius 10 mm and 50% for Arc Length and then enter Point 3 - 15 mm radius for the next 25%, pick a point on the edge and specify 15 mm radius and 25% Arc Length

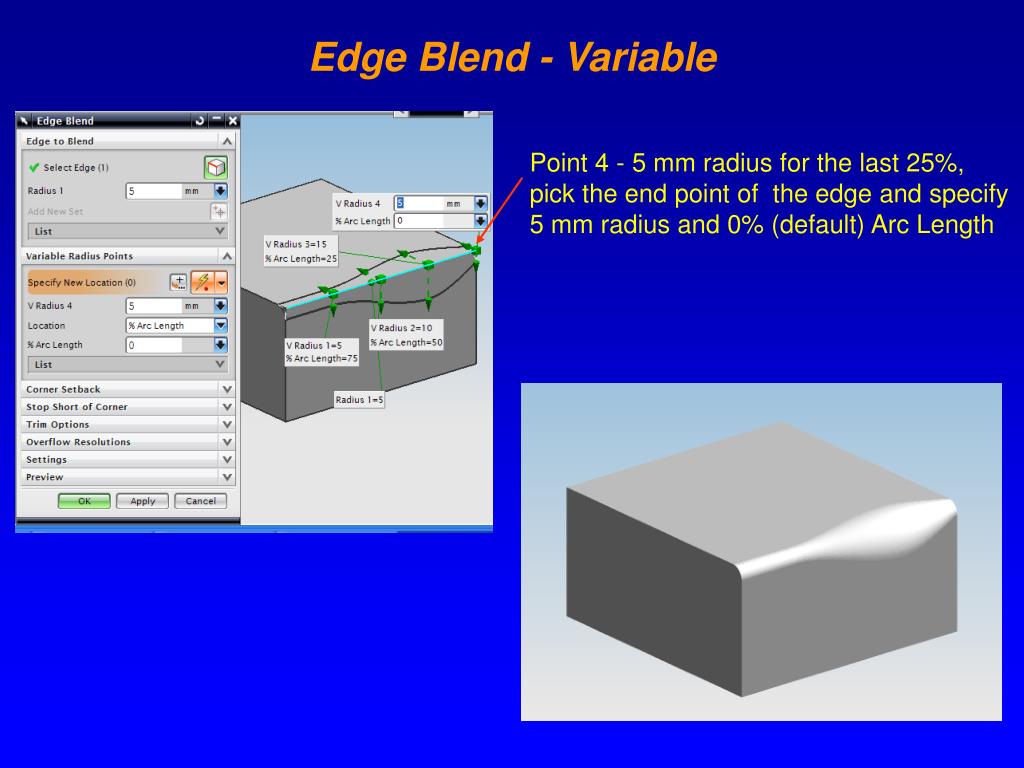

  5. Edge Blend - Variable Point 4 - 5 mm radius for the last 25%, pick the end point of the edge and specify 5 mm radius and 0% (default) Arc Length

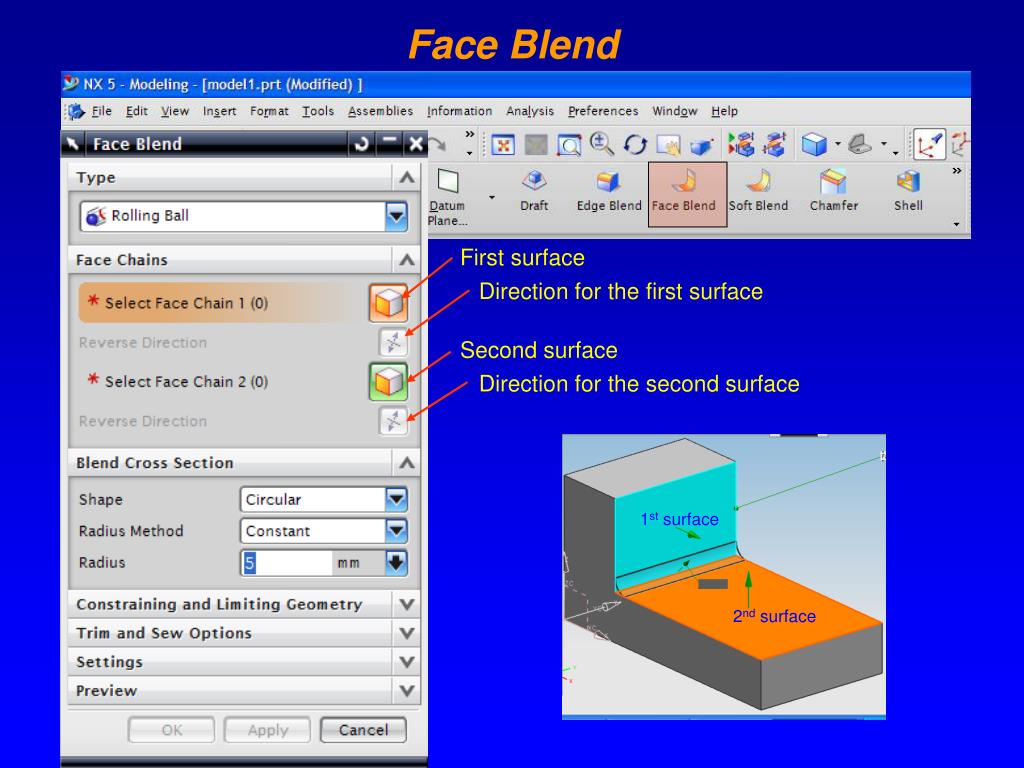

  6. First surface Direction for the first surface Second surface Direction for the second surface 1st surface 2nd surface Face Blend

  7. Face Blend Shape option Circular Conic

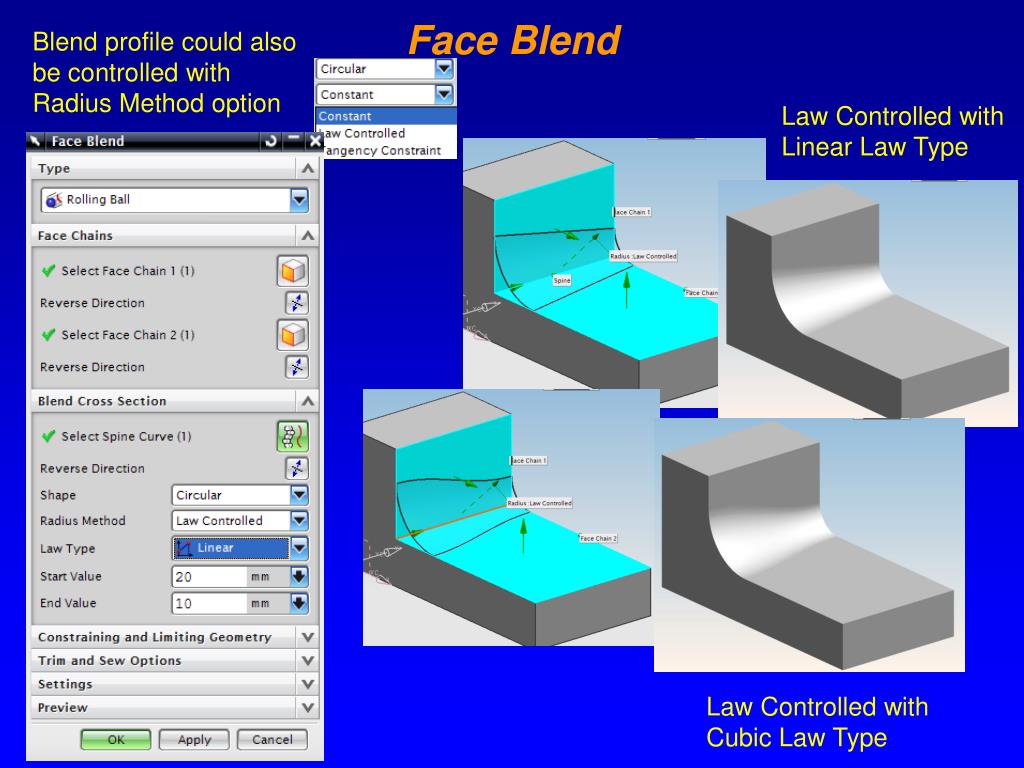

  8. Blend profile could also be controlled with Radius Method option Face Blend Law Controlled with Linear Law Type Law Controlled with Cubic Law Type

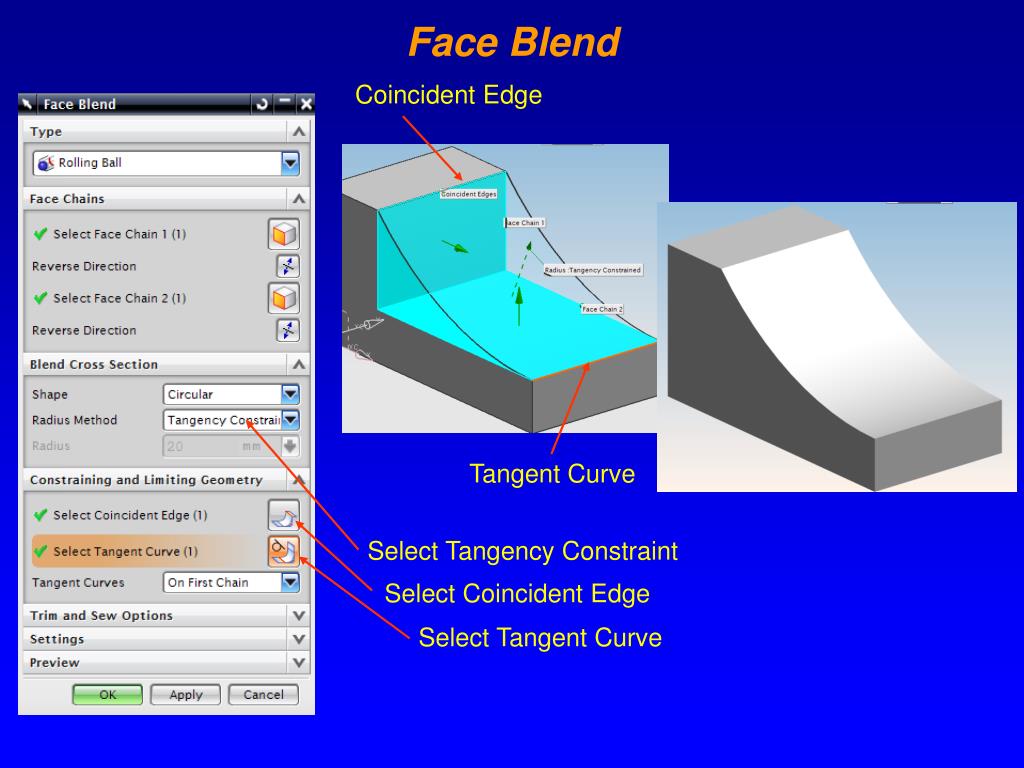

  9. Coincident Edge Tangent Curve Select Tangency Constraint Select Coincident Edge Select Tangent Curve Face Blend

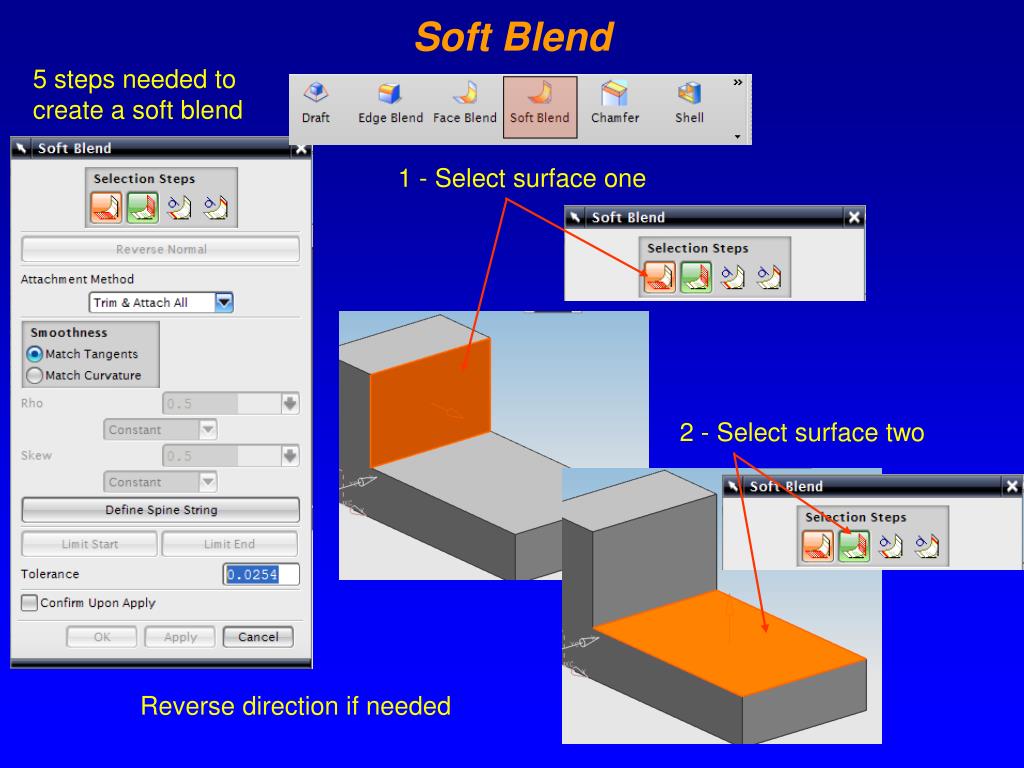

  10. 1 - Select surface one 2 - Select surface two Reverse direction if needed Soft Blend 5 steps needed to create a soft blend

  11. 5 - Select tangent curve 2 Soft Blend 4 - Select tangent curve 2 Face Blend Soft Blend 3 - Select tangent curve 1
