  1. Cell Probe Complexity - An Invitation Peter Bro Miltersen University of Aarhus

  2. The “Were-you-last?” Game • m players wait in separate cubicles. • One by one, they are taken to a game room. • When a player leaves the game room, he is asked if he was the last of the m players to go there and must answer correctly.

  3. Inside the Game Room 1 2 0 4 3 6 8 10 11 9

  4. Inside the Game Room, II • The player can open at most t boxes • He can put a pebble in an empty box or remove the pebble from a full box • He must close a box before opening the next one

  5. Winning the Game • The players win if all players answer correctly. • How small can t be as a function of m to ensure that the players have a winning strategy?

  6. A Counter • The players make boxes 0,1,..,t-1represent the number of players having already been in the room • The counter can be incremented and read opening at most t boxes

  7. Can we do much better?

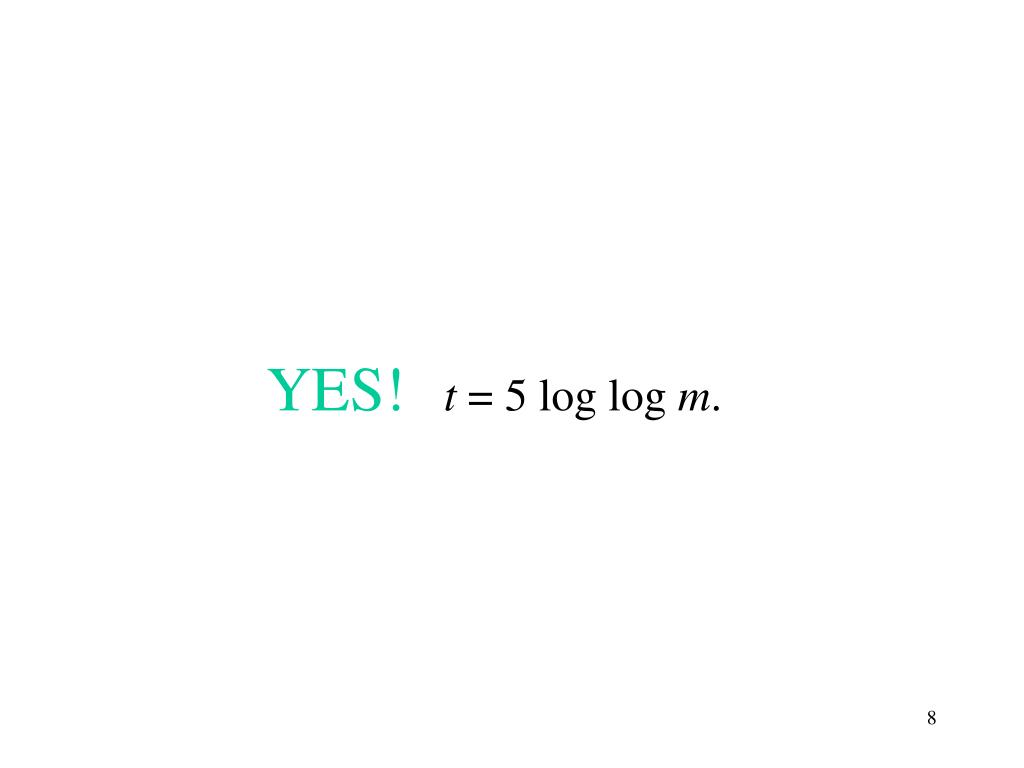

  8. YES! t = 5 log log m.

  9. Alternative Counter I Number of blocks Type of first block Size of each block

  10. Alternative Counter, II • Each entry in (1,5; 1,1,3,5,2) can be specified using ≈ log log m bits. • The Counter can be incremented touching only 4 entries ≈ 4 log log m bits.

  11. Problem: How can a player tell if the value m has been reached?

  12. Alternative Counter, III • Test for 0: The vector should start (0,1; …). • Start the counter at m – Each player decrements the counter.

  13. Problem: The players can’t make the counter start at m – initially, all boxes must be empty!

  14. Alternative Counter, IV • The players would have liked boxes to contain pebbles initially. • Patch: They follow their protocol, but maintain that boxes are in the opposite state of what they are supposed to. Thus, the players win!

  15. Can we do much better?

  16. NO! If t = 0.4 log log m, the players lose.

  17. Decision Assignment Tree Strategy for a player: Open box 7 7 If it contains a pebble, Remove it, and go here 0/1 1/0 5 0/0 1/0 yes no no yes

  18. Sunflower Sunflower center is the same for all i,j

  19. Every large set system contains a large sunflower. Erdös-Rado Sunflower Lemma

  20. Why the players lose: : The boxes appearing in the decision assignment tree of each player : A big sunflower. : The other sets

  21. Why the players lose, II Sequence: Center states: Pigeon hole principle: for some k, l, New sequence:

  22. The Game = A Dynamic Problem Maintain a subset S of {1,..,m} under Insert(x): Insert x into S. Full(): Is S={1,..,m}?

  23. The Room = Cell Probe Model • Boxes = memory cells. • Pebble or no pebble = 0 or 1 (word size w=1) • Opening a box = accessing a memory cell. • Decision assignment tree for a player = implementation of an operation.

  24. The Cell Probe Model • An information theoretic model for solutions to dynamic data structure problems • Only memory accesses are counted • Each operation in the solution is assigned a decision assignment tree – the worst case complexity is the depth of the tree.

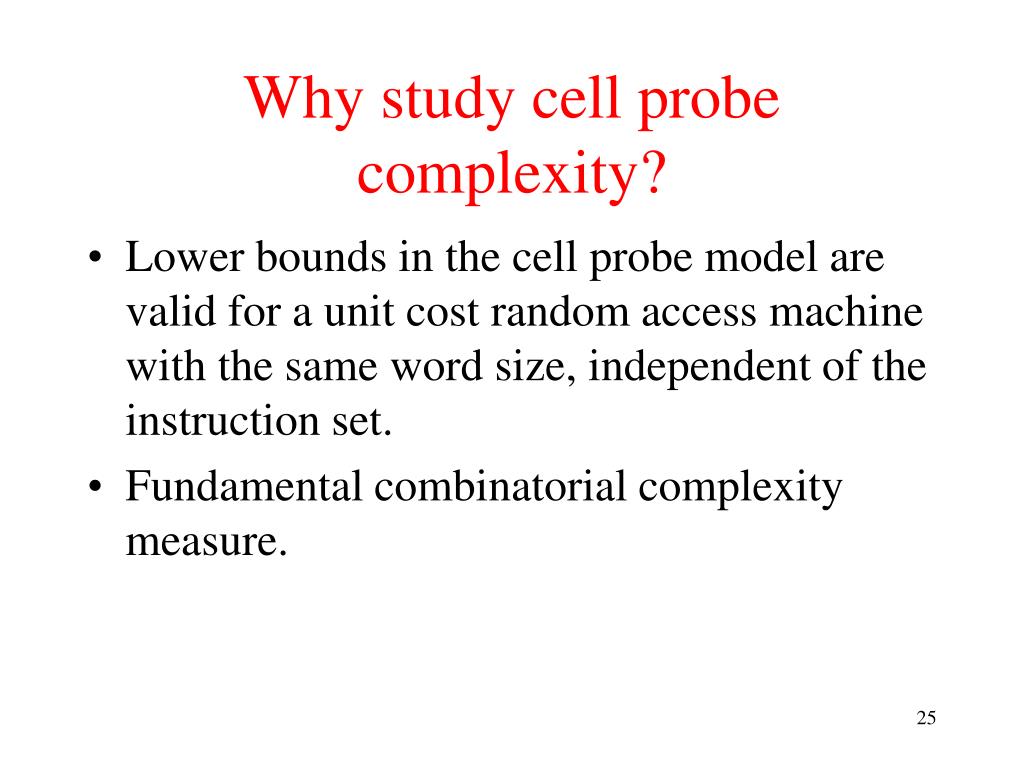

  25. Why study cell probe complexity? • Lower bounds in the cell probe model are valid for a unit cost random access machine with the same word size, independent of the instruction set. • Fundamental combinatorial complexity measure.

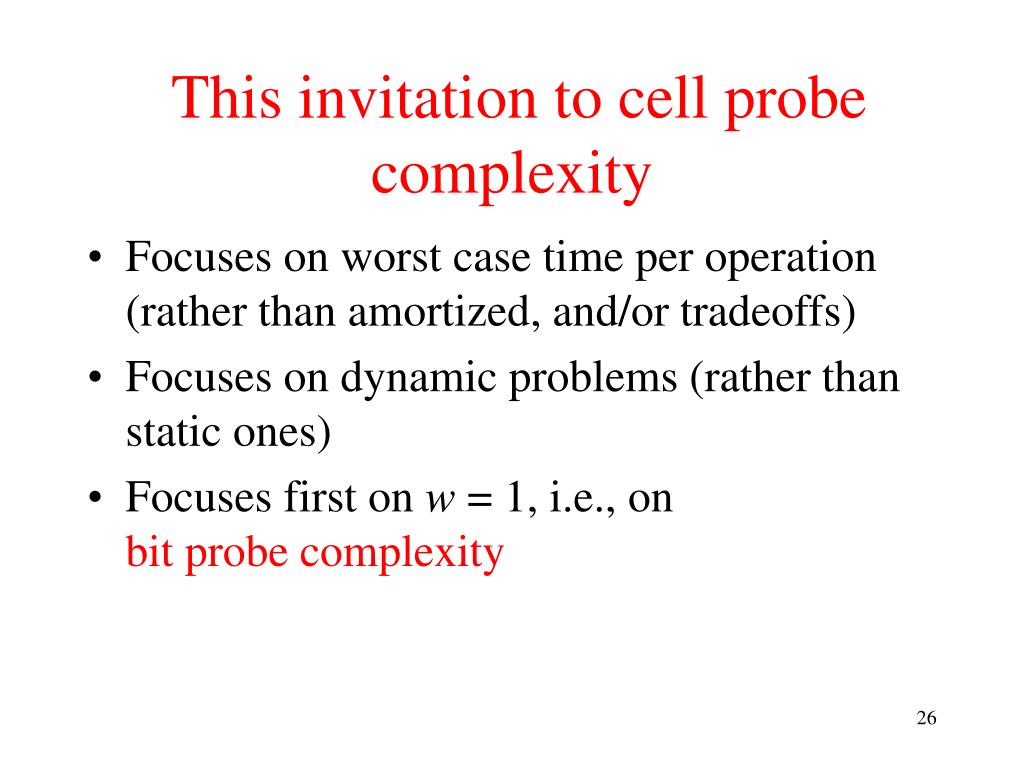

  26. This invitation to cell probe complexity • Focuses on worst case time per operation (rather than amortized, and/or tradeoffs) • Focuses on dynamic problems (rather than static ones) • Focuses first on w = 1, i.e., on bit probe complexity

  27. Why Study Bit Probe Complexity? • Log cost RAM. • Large lower bounds would be still be large if divided by w. • Coding theoretic interpretation: Locally decodable source codes. • All known results have easy proofs.

  28. Dynamic Graph Problems Dynamic Graph Connectivity: Maintain G =({1,..,n},E) under Insert(e):Insert e into E. Delete(e):Delete e from E. Connected(u,v):Are u and v connected?

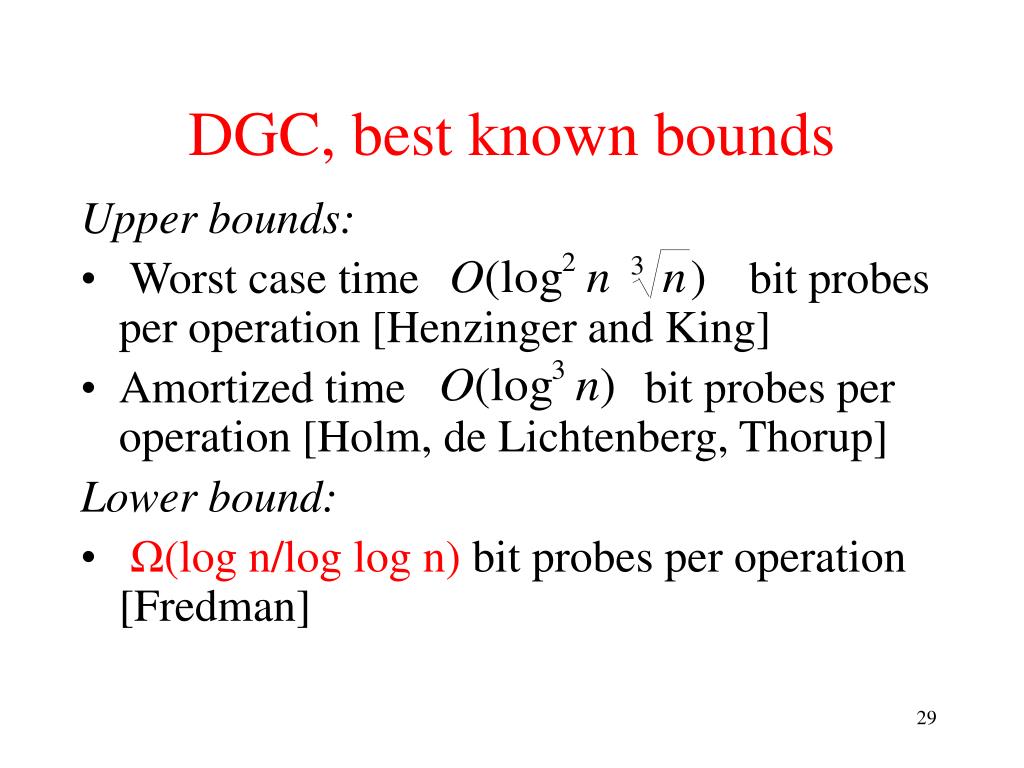

  29. DGC, best known bounds Upper bounds: • Worst case time bit probes per operation [Henzinger and King] • Amortized time bit probes per operation [Holm, de Lichtenberg, Thorup] Lower bound: • Ω(log n/log log n) bit probes per operation [Fredman]

  30. A lower bound for dynamic connectivity State 0=(0,0,0,…,0) State 3 State 1 State 2 State 4

  31. Lower Bound For DGC, II • State 1,2,..,n all have Hamming weight at most t. • We can distinguish between the states using a decision tree of depth d=O(t log n).

  32. Lower Bound For DGC, III 7 The sequence 001 is unique for State 3 and contains at most t zeros 0 1 5 0 1 0 1 State 3

  33. Lower bound for DGC, IV n≤ # ways to arrange at most t ones in a sequence of length at most d t = Ω(log n/log log n)

  34. Dynamic Circuit Value Maintain Boolean Circuit C under Insert(g,h):Insert wire from output of gate g to input of gate h Switch(g): Switch gate g between AND,OR Evaluate(): Return value of circuit

  35. Dynamic Circuit Value Best known algorithm for DCV: Reevaluate from scratch. Best known lower bound in bit probe model: Ω(log n) bits must be touched in some operation.

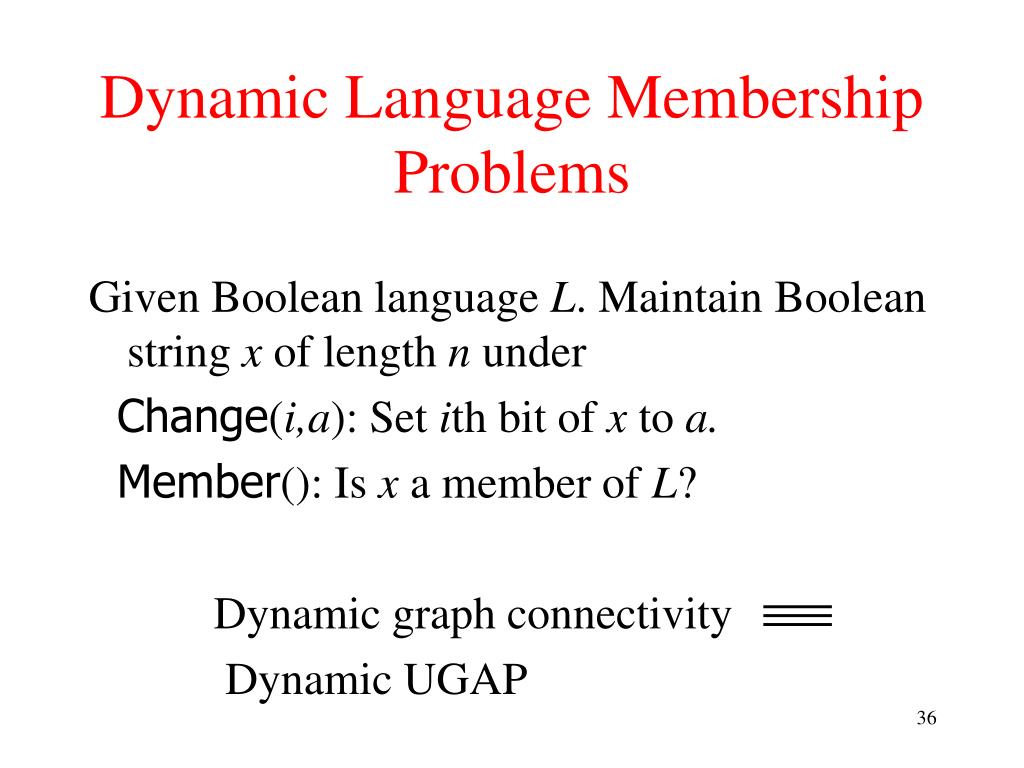

  36. Dynamic Language Membership Problems Given Boolean language L. Maintain Boolean string x of length n under Change(i,a): Set ith bit of x to a. Member(): Is x a member of L? Dynamic graph connectivity Dynamic UGAP

  37. Completeness of DCV Dynamic circuit value needs Ω(log n) bit probes per operation The dynamic language membership problem for some language in P needs Ω(log n) bit probes per operation.

  38. Element distinctness Element distinctness language: ED = binary strings x consisting of n blocks, each of length 2 log n, all different. Dynamic ED needs Ω(log n) bit probes per operation.

  39. Lower bound for dynamic ED By fixing all blocks, except the first, we create a solution to a subproblem. #decision assignment tree systems of depth t ≥ #subproblems Dynamic ED needs Ω(log n) bit probes per operation.

  40. A sad situation • We don’t know any lower bounds for DCV better than Ω(log n) bit probes. • Thus we don’t know any lower bound for any dynamic language membership problem in P better than Ω(log n) bit probes. • We suspect many problems in P needs Ω(n) bit probes.

  41. The transdichotomous model Problem: • Problem over universe of size m. • Problem instance of size (i.e., #elements of universe) n. Cell probe solution: • Word size w = log m. • Time bound should be a function ofn only.

  42. Dynamic Search Problems Maintain subset S of {1,..,m} under Insert(x): Insert x into S. Delete(x): Delete x from S. and queries like Member(x): Is x in S ? Predecessor(x): What is max{y| y≤x, y in S} ? HammingNeighbor(x): Return Hamming neighbor of x in S.

  43. Transdichotomous upper bounds Dynamic member and predecessor : • AVL trees: O(log n) cell probes per operation. • Andersson/Thorup’99: cell probes per operation. Dynamic Hamming neighbor: • Trivial bound: O(n) cell probes per operation.

  44. Dynamic algebraic problems Dynamic polynomial multiplication: Maintain two polynomials f,g of degree at most n over GF(m) under Change-f(i,a): Let ith coefficient of f be a. Change-g(i,a): Let ith coefficient of g be a. Query(j): What is the jth coefficient of fg?

  45. Transdichotomous upper bound Dynamic polynomial multiplication: • cell probes per operation [Reif and Tate]

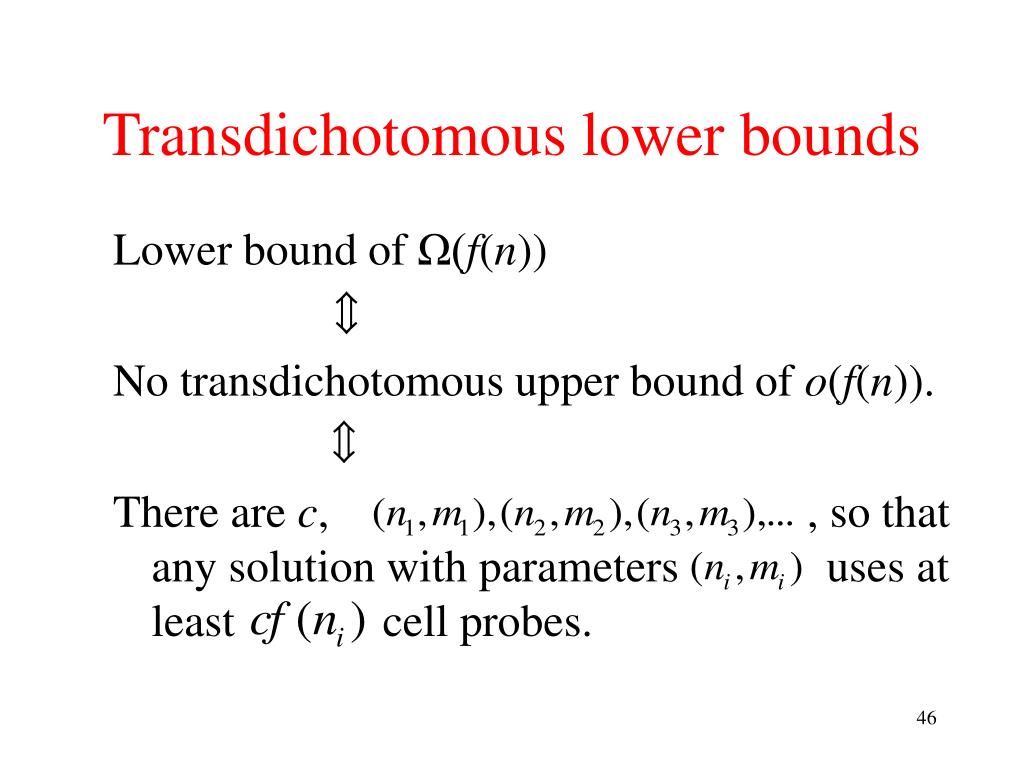

  46. Transdichotomous lower bounds Lower bound of Ω(f(n)) No transdichotomous upper bound of o(f(n)). There are c, , so that any solution with parameters uses at least cell probes.

  47. Transdichotomous lower bounds, II • We are free to choose the size of the universe as large as we want. • This makes large lower bounds possible using current techniques. • It also makes the lower bounds somewhat less interesting.

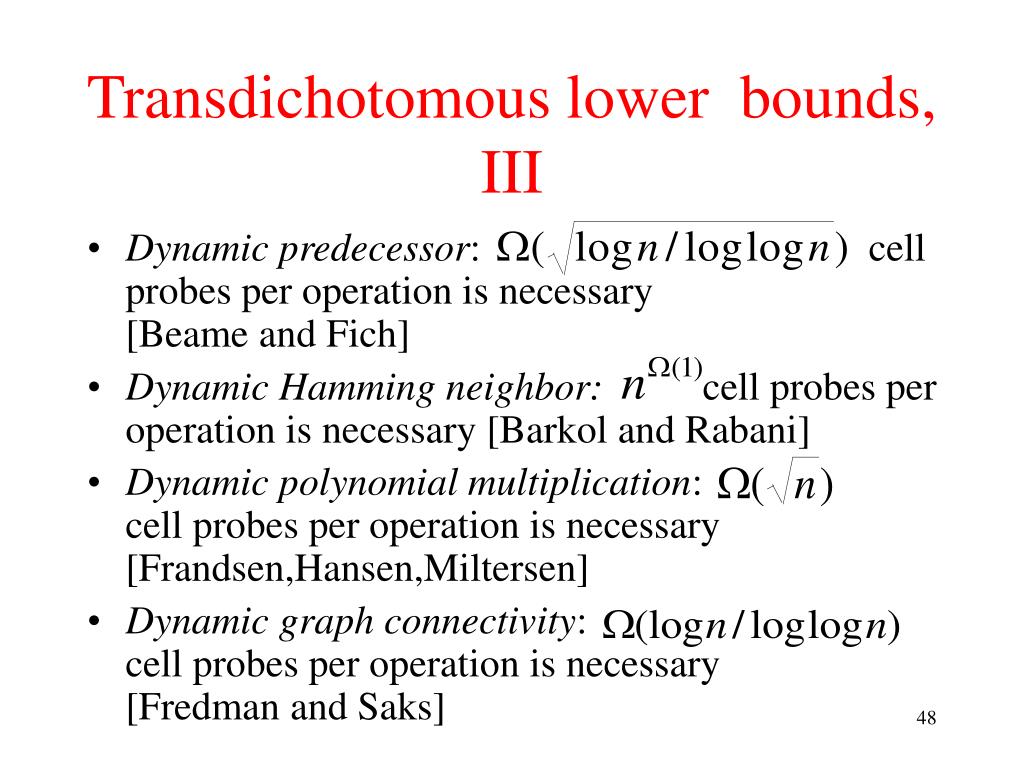

  48. Transdichotomous lower bounds, III • Dynamic predecessor: cell probes per operation is necessary [Beame and Fich] • Dynamic Hamming neighbor:cell probes per operation is necessary [Barkol and Rabani] • Dynamic polynomial multiplication: cell probes per operation is necessary [Frandsen,Hansen,Miltersen] • Dynamic graph connectivity: cell probes per operation is necessary [Fredman and Saks]

  49. Two main techniques • Communication complexity method [Ajtai] • Time stamp method [Fredman and Saks]

  50. Communication Complexity Technique Given dynamic problem, construct two-party communication problem: Alice gets state reachable within d operations from the initial state. Bob gets a query operation. Upper bound for dynamic problem implies upper bound for communication problem Hence, lower bound for communication problem implies lower bound for dynamic problem.
