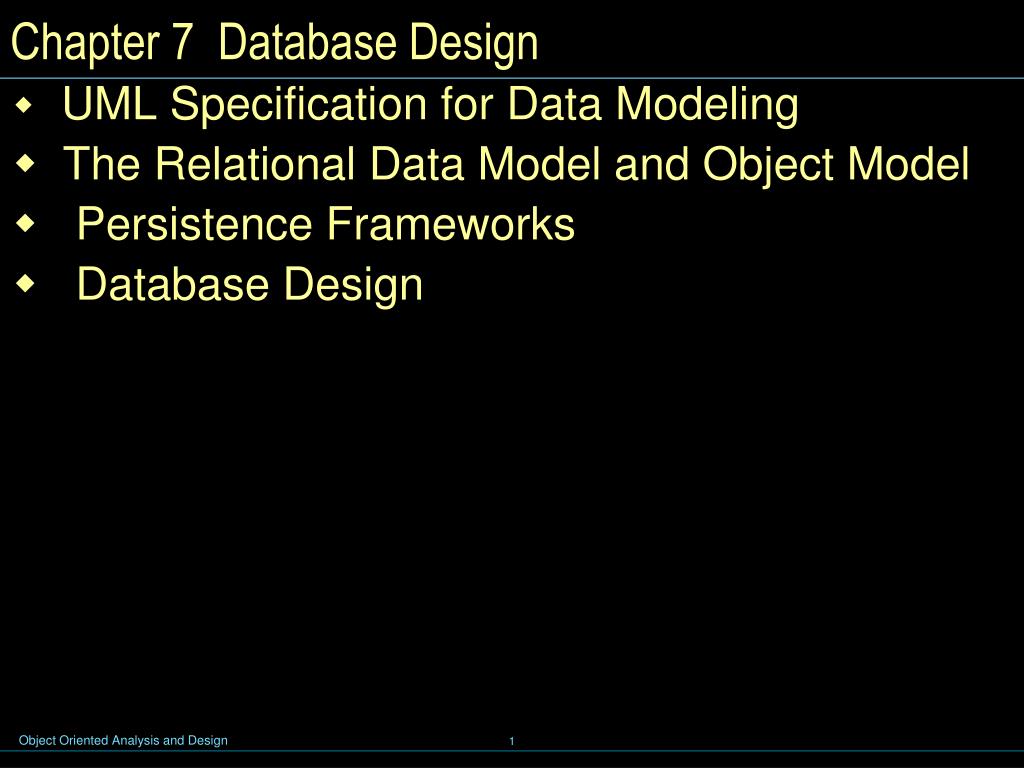

  1. Chapter 7 Database Design • UML Specification for Data Modeling • The Relational Data Model and Object Model • Persistence Frameworks • Database Design

  2. UML Specification for Data Modeling

  3. 7.1 UML Specification for Data Modeling • UML Notation for Data Modeling • Modeling Associations in the Data Model • Modeling Aggregation in the Data Model • Modeling Inheritance in the Data Model

  4. UML Notation for Data Modeling

  5. CourseOffering - number : String 0..* 0..* Course - name 1 - description - number Modeling Associations in the Data Model • Associations between two persistent objects are realized as foreign keys to the associated objects. • A foreign key is a column in one table which contains the primary key value of associated object Course Offering table Foreign Key Primary Key Course table

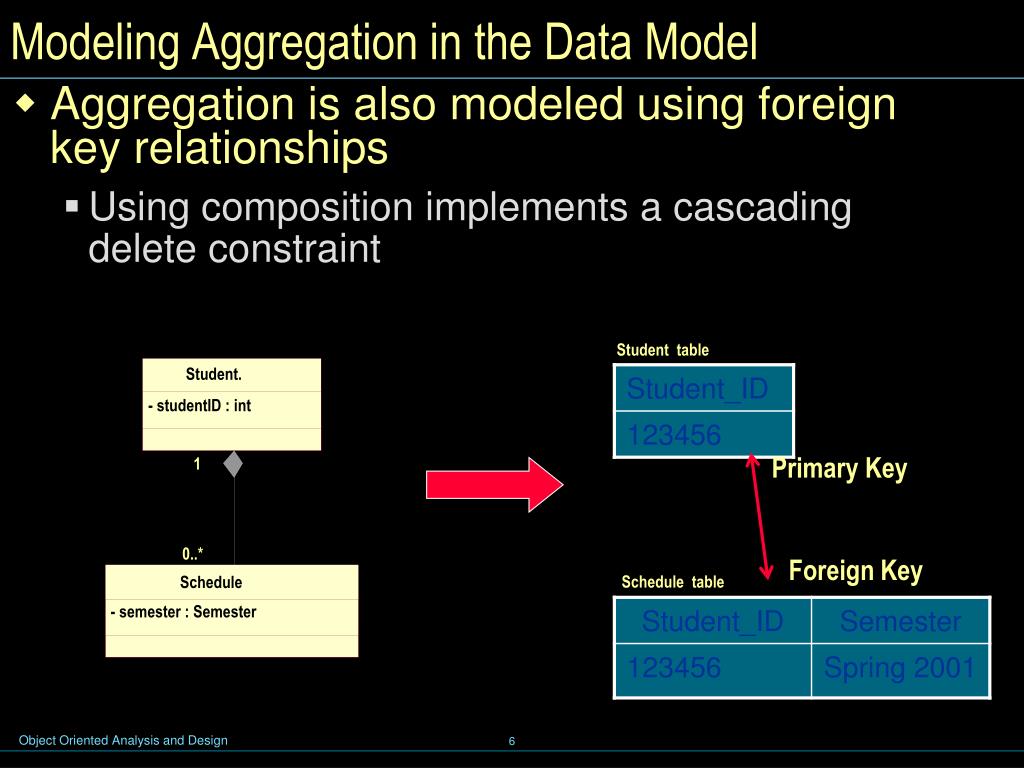

  6. Modeling Aggregation in the Data Model • Aggregation is also modeled using foreign key relationships • Using composition implements a cascading delete constraint Student table Student. - studentID : int Primary Key 1 1 0..* 0..* Foreign Key Schedule table Schedule - semester : Semester

  7. Modeling Inheritance in the Data Model • A data model does not support modeling inheritance in a direct way • Two options • Use separate tables (normalized data) • Duplicate all inherited associations and attributes (de-normalized data)

  8. Modeling Inheritance in the Data Model - Example

  9. Modeling Inheritance in the Data Model - Example

  10. Modeling Inheritance in the Data Model - Example

  11. Modeling Inheritance in the Data Model - Example

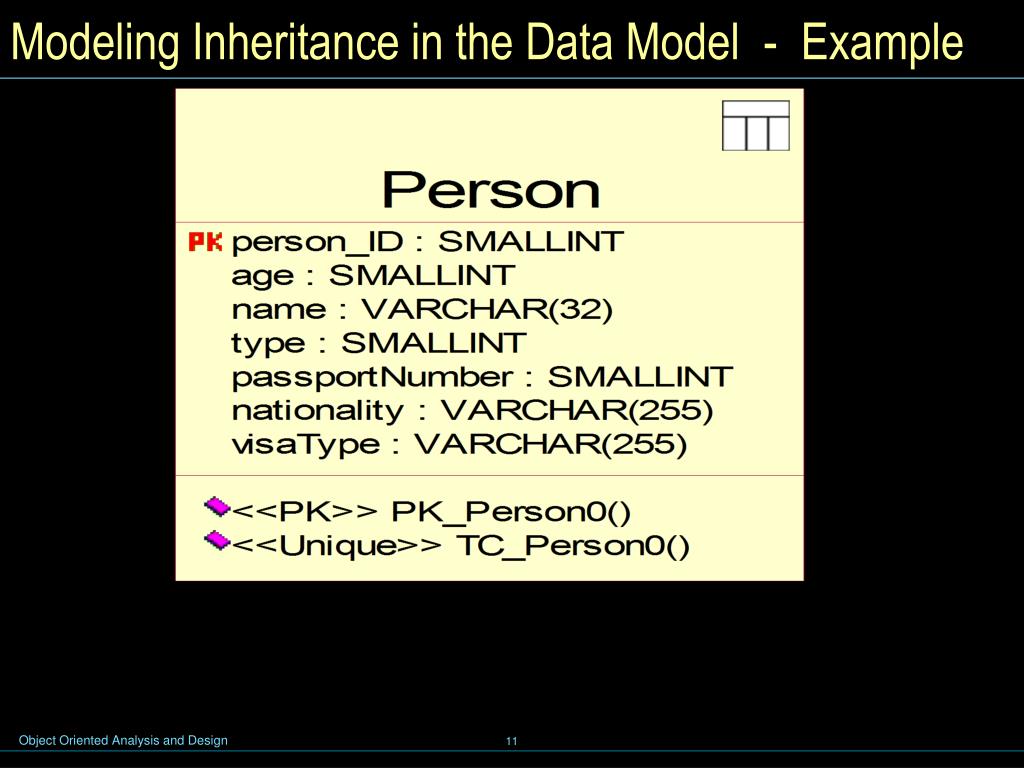

  12. Modeling Inheritance in the Data Model - Example

  13. The Relational Data Model and Object Model

  14. 7.2 The Relational Data Model and Object Model • The Relational Data Model • The Object Model

  15. The Relational Data Model • The relational model is composed of entities and relations. An entity may be a physical table or a logical projection of several tables also known as a view.

  16. The Object Model • An object model contains classes. Classes define the structure and behavior of a set of objects, sometimes called objects instances. The structure is represented as attributes (data values) and associations (relationships between classes).

  17. The Persistence Frameworks

  18. 7.3 Persistence Frameworks • The Purpose of a Persistence Framework • Hibernate

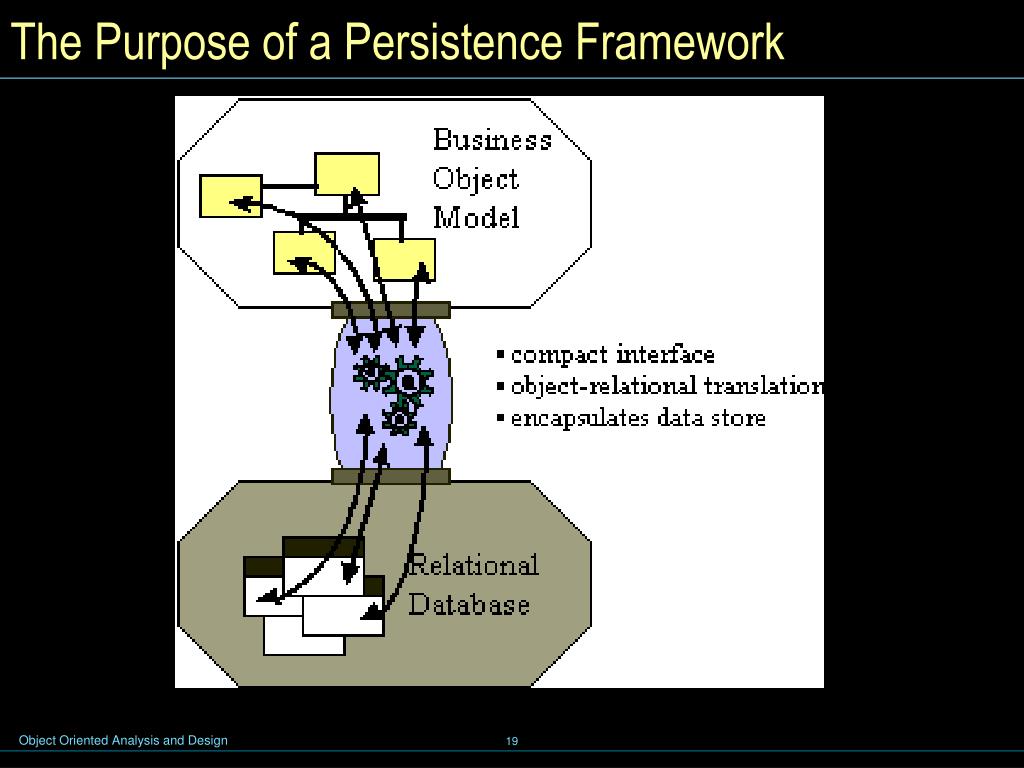

  19. The Purpose of a Persistence Framework

  20. Hibernate • Object / Relational mapping (ORM) and persistence / query framework • i.e. It does even more stuff for you! • Some features of Hibernate • HibernateDaoSupport – superclass, easy HibernateTemplate access • Database independence - sits between the database and your java code, easy database switch without changing any code • Object / Relational Mapping (ORM) - Allows a developer to treat a database like a collection of Java objects • Object oriented query language (HQL) - *Portable* query language, supports polymorphic queries etc. • You can also still issue native SQL, and also queries by “Criteria” (specified using “parse tree” of Java objects) • Hibernate Mapping - Uses HBM XML files to map value objects (POJOs) to database tables • Transparent persistence - Allows easy saves/delete/retrieve for simple value objects • Very high performance “in general” due to intelligent (2-level) caching, although in a few cases hand-written SQL might beat it

  21. Hibernate • Hibernate basically sits between the DB and your code • Can map persistent objects to tables

  22. Database Design

  23. 7.4 Database Design • Purpose • Overview • Steps • Map persistent design classes to tables • Distribute class behavior to the database

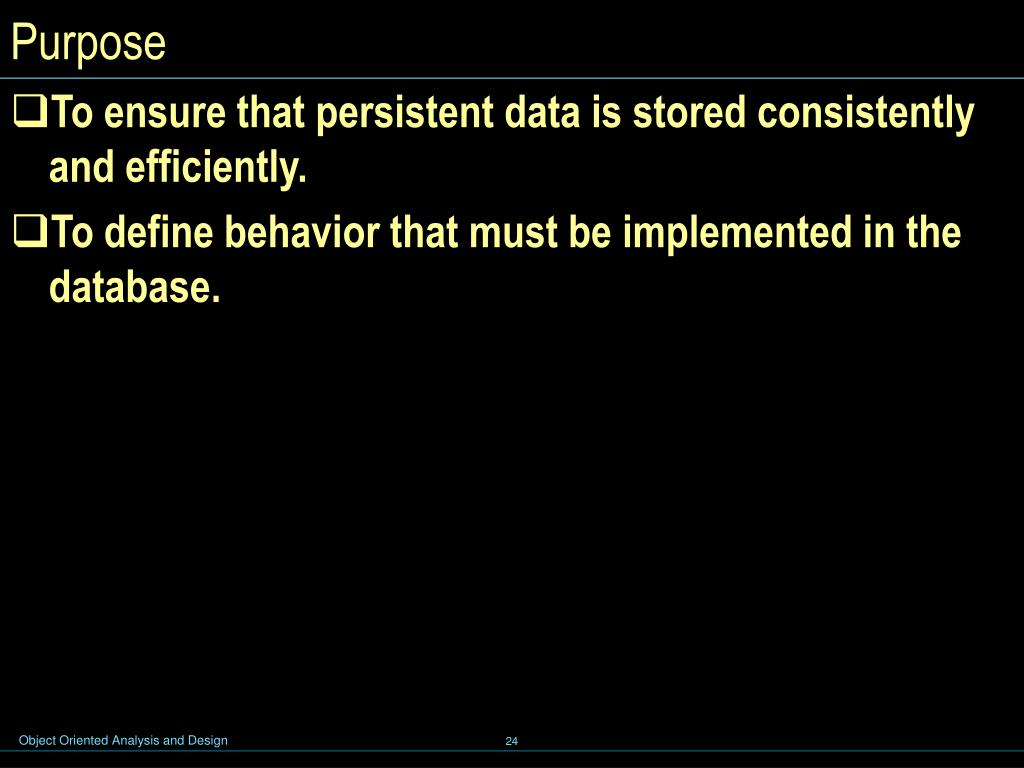

  24. Purpose • To ensure that persistent data is stored consistently and efficiently. • To define behavior that must be implemented in the database.

  25. Supplementary Specifications DesignGuidelines Data Model Design Classes Database Design Overview Use-Case Realization Database Design

  26. Steps • Map Persistent Design Classes to the Data Model • Optimize the Data Model for Performance • Optimize Data Access • Define Storage Characteristics • Define Reference Tables • Define Data and Referential Integrity Enforcement Rules • Distribute Class Behavior to the Database • Review the Results

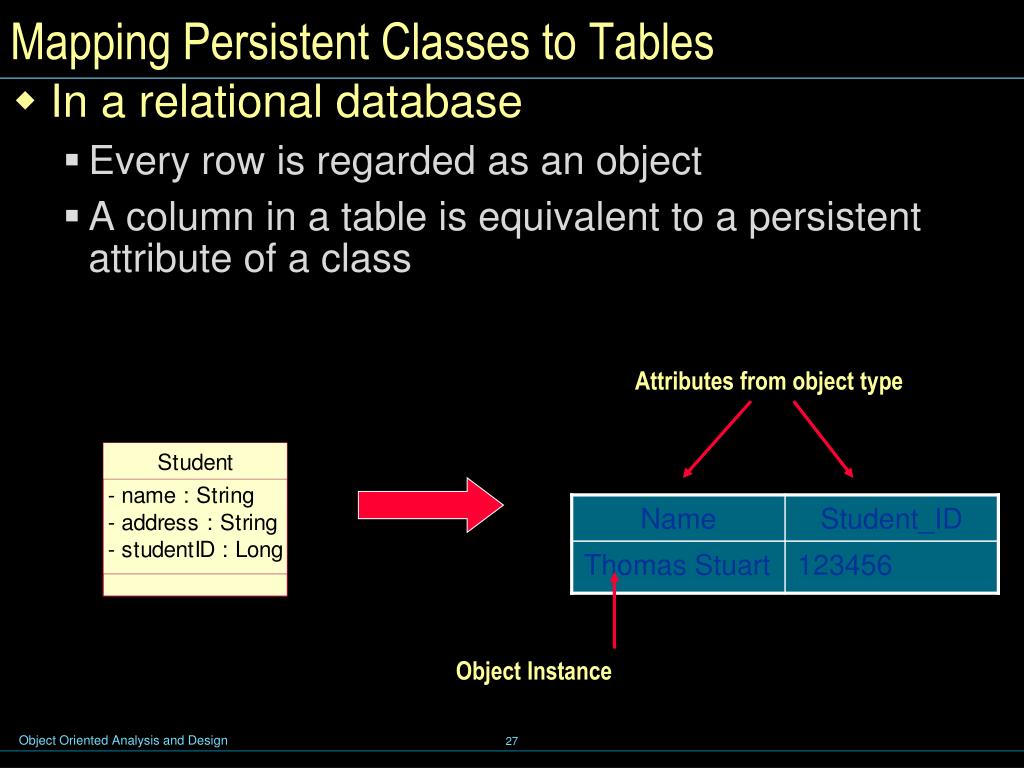

  27. Mapping Persistent Classes to Tables • In a relational database • Every row is regarded as an object • A column in a table is equivalent to a persistent attribute of a class Attributes from object type Object Instance

  28. Mapping Persistent Classes to Tables - Example

  29. Map Class Behavior to Stored Procedures • Determine if any operations can be implemented as a stored procedure • Candidate operations • Deal with persistent data • Any operations where a query is involved in a computation • Need to access the database to validate data

  30. What Are Stored Procedures? • A stored procedure is executable code which runs under the RDBMS • Two types of stored procedures • Procedures: Executed explicitly by an application • Triggers: Invoked implicitly when some database event occurs

  31. Example: Map Class Behavior to Stored Procedures Class Candidate Operations • getTuition • addSchedule • getSchedule • deleteSchedule • getStudentID • getName • getAddress

  32. Example: Map Class Behavior to Stored Procedures
