  1. SIP Routing Proxy Integrated Routing solution

  2. The Routing Proxy is based on Session Initial Protocol(SIP) and is acting as a SIP redirect server. A redirect server is a user agent server that generates 3xx responses to requests it receives, directing the client to contact an alternate set of URIs. Routing Proxy is generating SIP 302 responses, with multiple URI’s as routing choices. Routing Proxy works together with all NGN switches supporting SIP 302 messages. Based on customer requests Routing Proxy is able to send all SIP 3xx messages. Prefix based Routing General functionality

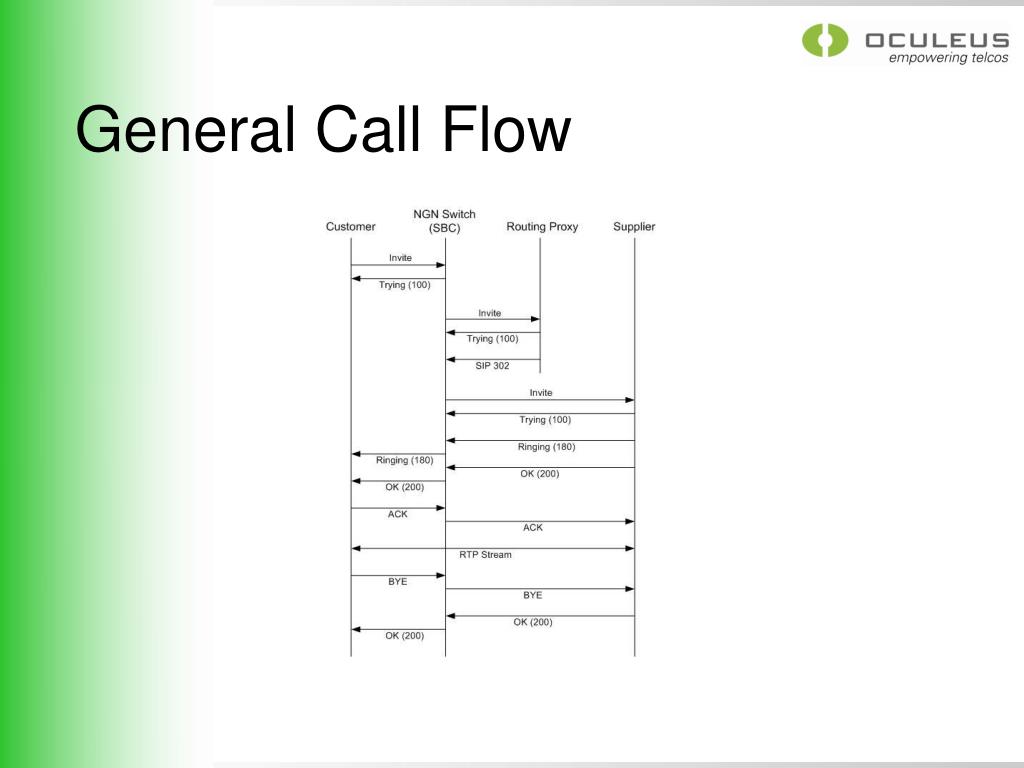

  3. General Call Flow

  4. Customers are identified on the Routing Proxy by an internal Customer Prefix which is send from the NGN Swich(SBC) to the Routing Proxy. Routing Proxy replies based on the Routing table the supplier Prefixes where the NGN Switch(SBC) can make the static routing decision. Routing Proxy Call Flow

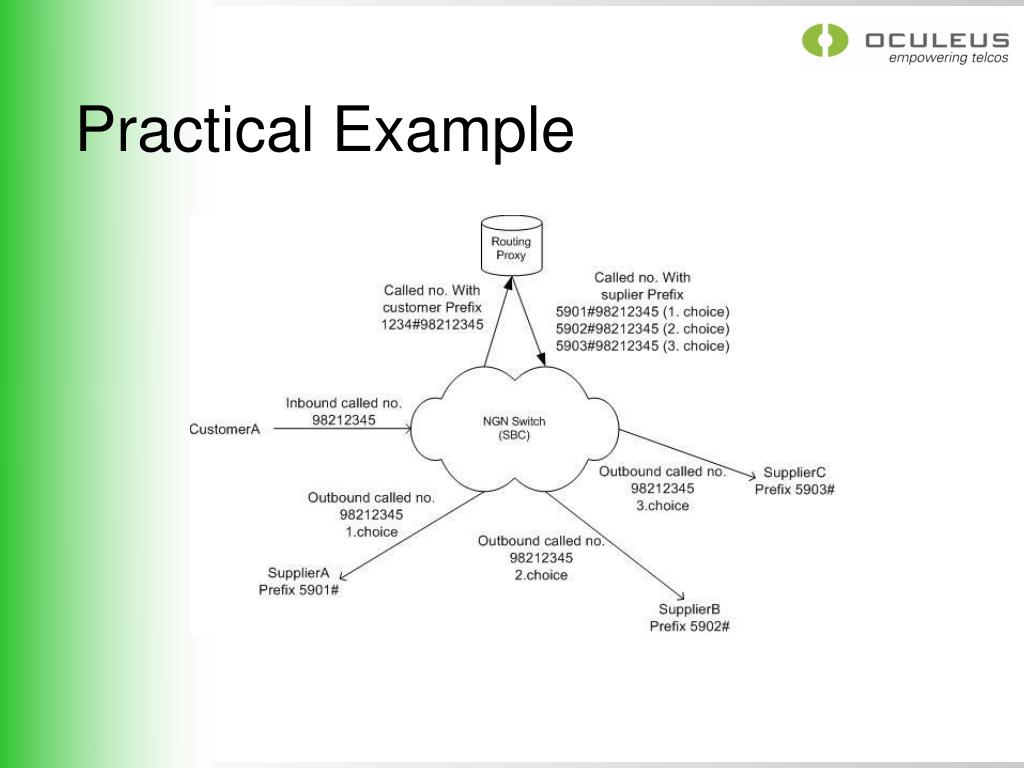

  5. Practical Example

  6. Fully maintainable through Captura Switch Export. Backdoor maintainance through Web Gui. Routing simulation over Web Gui. Automatic Routing updates controlled by cronjobs. Capable to handle all Captura Routing structures, like Special Routings, Wholesale, Premium etc. Ability to control Peak / Offpeak / Weekend Routing. Redundant Server architecture to provide the highest operational availability. Database replication to redundant Routing Proxy. Operation and Maintenance

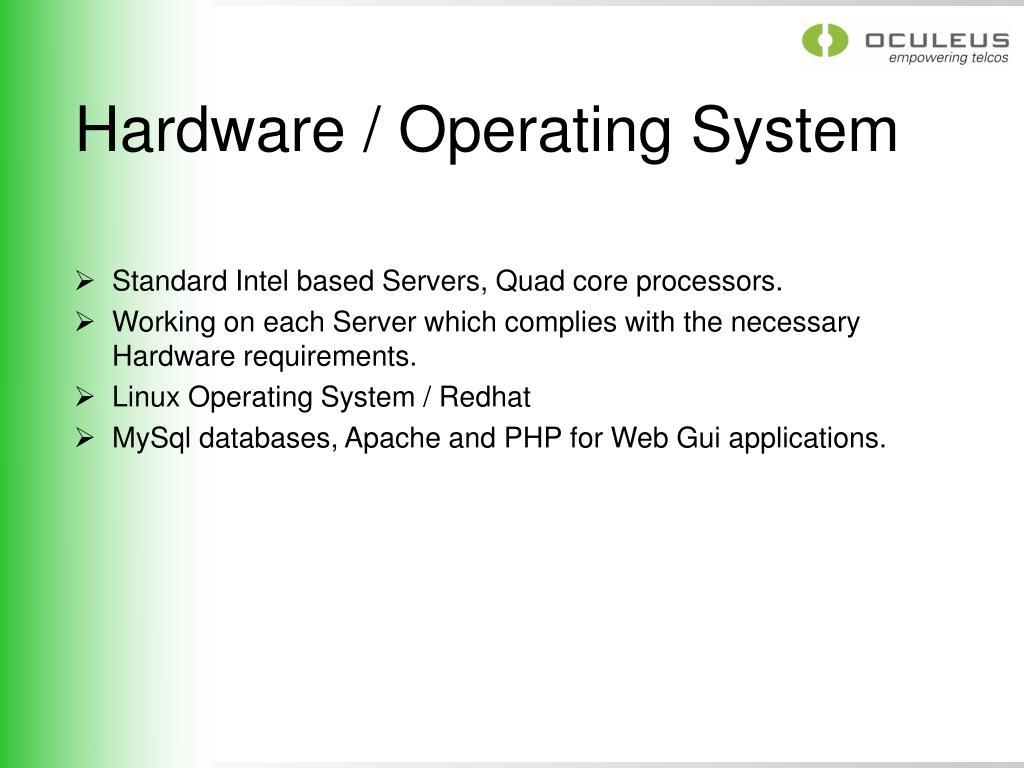

  7. Standard Intel based Servers, Quad core processors. Working on each Server which complies with the necessary Hardware requirements. Linux Operating System / Redhat MySql databases, Apache and PHP for Web Gui applications. Hardware / Operating System

  8. Thank you for your interest.
