  1. Schelling Anlagenbau GmbH Feb 2013

  2. Schelling in 1950

  3. Productportfolio1930 - 1950

  4. Schelling steelcastingfoundry(closed in 1996)

  5. Formatting- andtrimmingcircularsaw • First pressure beam saw in the 1960s

  6. Perfectsolutions in thecuttingsector • World leader in high-precisioncut-to-size sawsandplants • Tenlocations • 400 employees all overtheworld, with • 250 employees in Austria • Graduate engineers >25% • 30 apprentices-Electricalengineering -Mechanicalengineering-Machiningtechnology- Engineering and design

  7. Productportfolio • Board cut-to-size sawsandplantsfor • Wood-basedmaterials

  8. Productportfolio • Precision sawsandplantsfor • Plastics • Non-ferrousmetal • Ferrousmetal • PCB materials

  9. Productportfolio • Sortingandstacking • Labellingofthefinished material • Sortingoftheformats after thecut • Stacking • Packing

  10. Cut tosizesolutionforrollingmills

  11. Technical specification • Max. cuttinglenght: 15.300mm • Equaltothe max. FINISHED size; raw material canbemuchbigger • Max. cuttingwidth: 4.300mm • Max. platethickness: 250mm

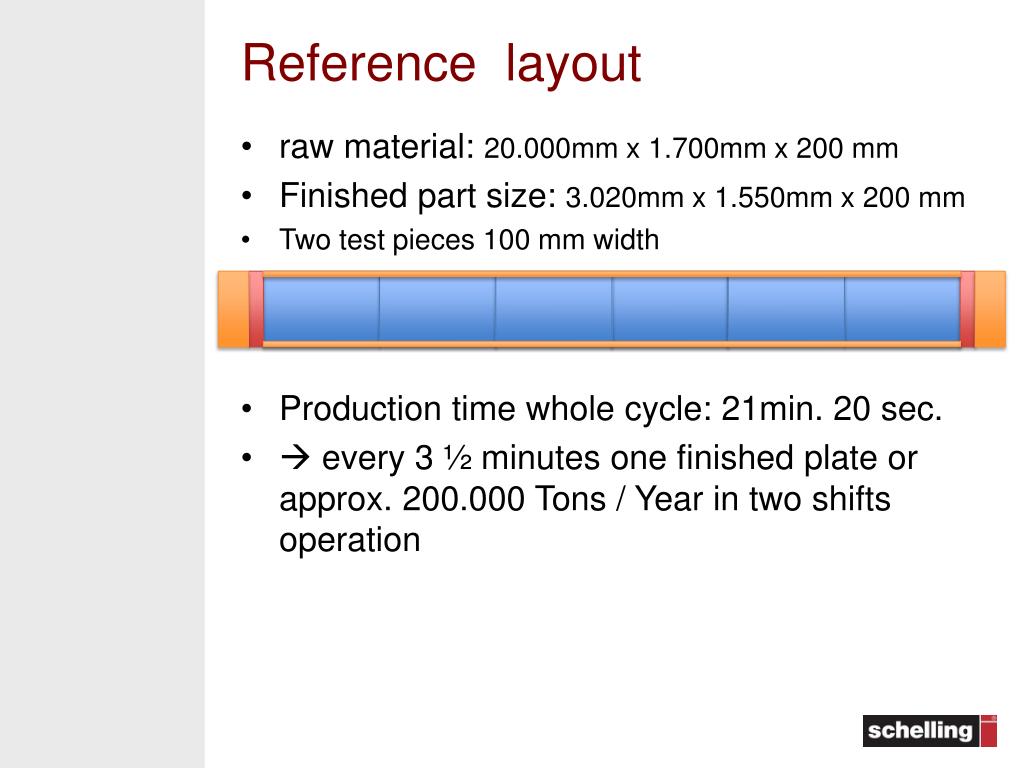

  12. Reference layout • raw material: 20.000mm x 1.700mm x 200 mm • Finishedpartsize: 3.020mm x 1.550mm x 200 mm • Twotestpieces 100 mm width • Production time wholecycle: 21min. 20 sec. •  every 3 ½ minutesonefinishedplateorapprox. 200.000 Tons / Year in twoshiftsoperation

  13. FullyAutomaticcutting

  14. Fullyautomaticscraphandling

  15. Fullyautomaticpackagingline

  16. Fullyautomaticstacking

  17. Fullyautomaticpackaging

  18. Key Points • Fullyautomaticoperationfromraw material infeedtilloutfeedofcompleatlypacked material • Fullyautomaticscraphandling; longstripsarecutintosmallsizes; automaticalloyseparation • 99,5% chipfreeprocess! Chips extractedandpressedtobriquettes; automaticalloyseparation

  19. Key Points

  20. Thanks!
