10.4 Trigonometric (Polar) Form of Complex Numbers

10.4 Trigonometric (Polar) Form of Complex Numbers. Call the horizontal axis the real axis and the vertical axis the imaginary axis . Now complex numbers can be graphed in this complex plane . The Complex Plane and Vector Representations.

makaio
Télécharger la présentation

10.4 Trigonometric (Polar) Form of Complex Numbers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 10.4 Trigonometric (Polar) Form of Complex Numbers Call the horizontal axis the real axis and the vertical axis the imaginary axis. Now complex numbers can be graphed in this complex plane. • The Complex Plane and Vector Representations The sum of two complex numbers can be represented graphically by the vector that is the resultant of the sum of vectors corresponding to the two numbers.

  2. 10.4 Expressing the Sum of Complex Numbers Graphically Example Find the sum of 6 – 2i and –4 – 3i. Graph both complex numbers and their resultant. Solution (6 – 2i) + (–4 – 3i) = 2 – 5i

  3. 10.4 Trigonometric (Polar) Form The graph shows the complex number x + yi that corresponds to the vector OP. Relationship Among x, y, r, and 

  4. 10.4 Trigonometric (Polar) Form • Substituting x = r cos  and y = r sin  into x + yi gives Trigonometric or Polar Form of a Complex Number The expression r(cos  + i sin  ) is called the trigonometric form (or polarform) of the complex number x + yi.

  5. 10.4 Trigonometric (Polar) Form • Notation: cos + i sin  is sometimes written cis  . Using this notation, r(cos + i sin  ) is written r cis . • The number r is called the modulus or absolute value of the complex number x + yi. • Angle  is called the argument of the complex number x + yi.

  6. 10.4 Converting from Trigonometric Form to Rectangular Form Example Express2(cos 300º + i sin 300º) in rectangular form. Analytic Solution Graphing Calculator Solution

  7. 10.4 Converting from Rectangular to Trigonometric Form • Converting from Rectangular to Trigonometric • Form • Sketch a graph of the number x + yi in the complex plane. • Find r by using the equation • Find  by using the equation tan  = y/x, x  0, choosing the quadrant indicated in Step 1.

  8. 10.4 Converting from Rectangular to Trigonometric Form Example Write each complex number in trigonometric form. Solution • Start by sketching the graph of in the complex plane. Then find r.

  9. 10.4 Converting from Rectangular to Trigonometric Form  is in quadrant II and tan  = the reference angle in quadrant II is Now find . Therefore, in polar form,

  10. 10.4 Converting from Rectangular to Trigonometric Form (b) From the graph,  = 270º. In trigonometric form, different way to determine .

  11. 10.4 Products of Complex Numbers in Trigonometric Form • Multiplyingcomplex numbers in rectangular form. • Multiplying complex numbers in trigonometric form.

  12. 10.4 Products of Complex Numbers in Trigonometric Form Product Theorem If are any two complex numbers, then In compact form, this is written

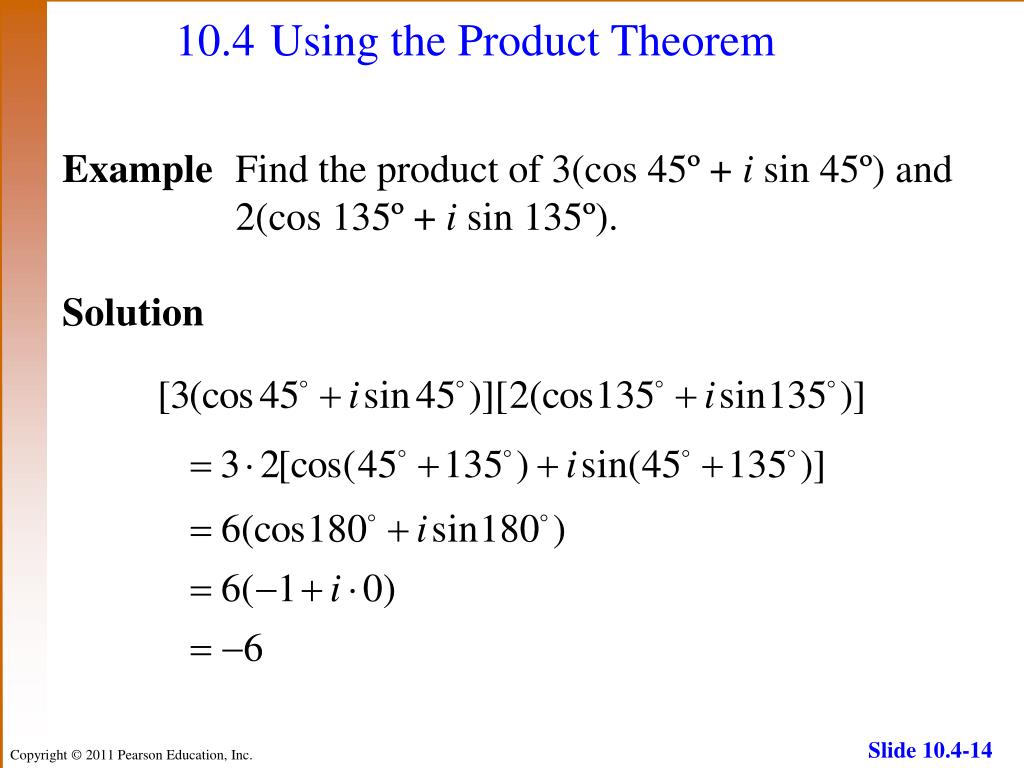

  13. 10.4 Using the Product Theorem Example Find the product of 3(cos 45º + i sin 45º) and 2(cos 135º + i sin 135º). Solution

  14. 10.4 Quotients of Complex Numbers in Trigonometric Form • The rectangular form of the quotient of two complex numbers. • The polar form of the quotient of two complex numbers.

  15. 10.4 Quotients of Complex Numbers in Trigonometric Form Quotient Theorem If r1(cos 1 + i sin 1) and r2(cos 2 + i sin 2) are complex numbers, where r2(cos 2 + i sin 2)  0, then In compact form, this is written

  16. 10.4 Using the Quotient Theorem Example Find the quotient Write the result in rectangular form. Solution
