  1. prachoom rangkasikorn presents

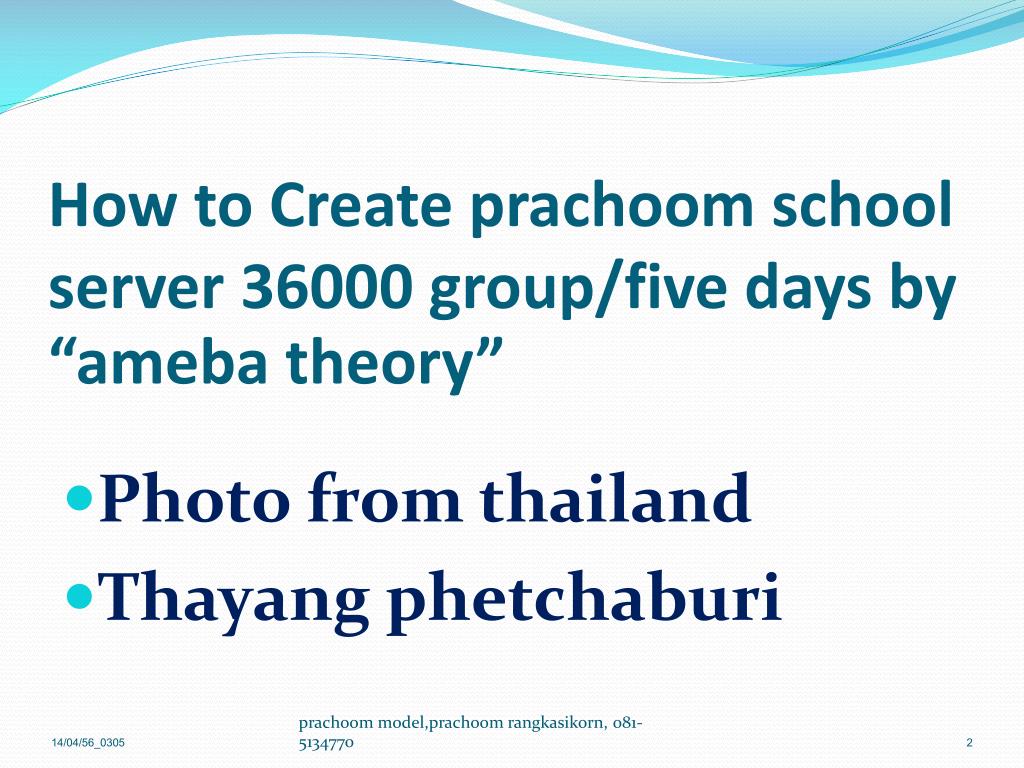

  2. How to Create prachoom school server 36000 group/five days by “ameba theory” • Photo from thailand • Thayangphetchaburi prachoom model,prachoom rangkasikorn, 081-5134770

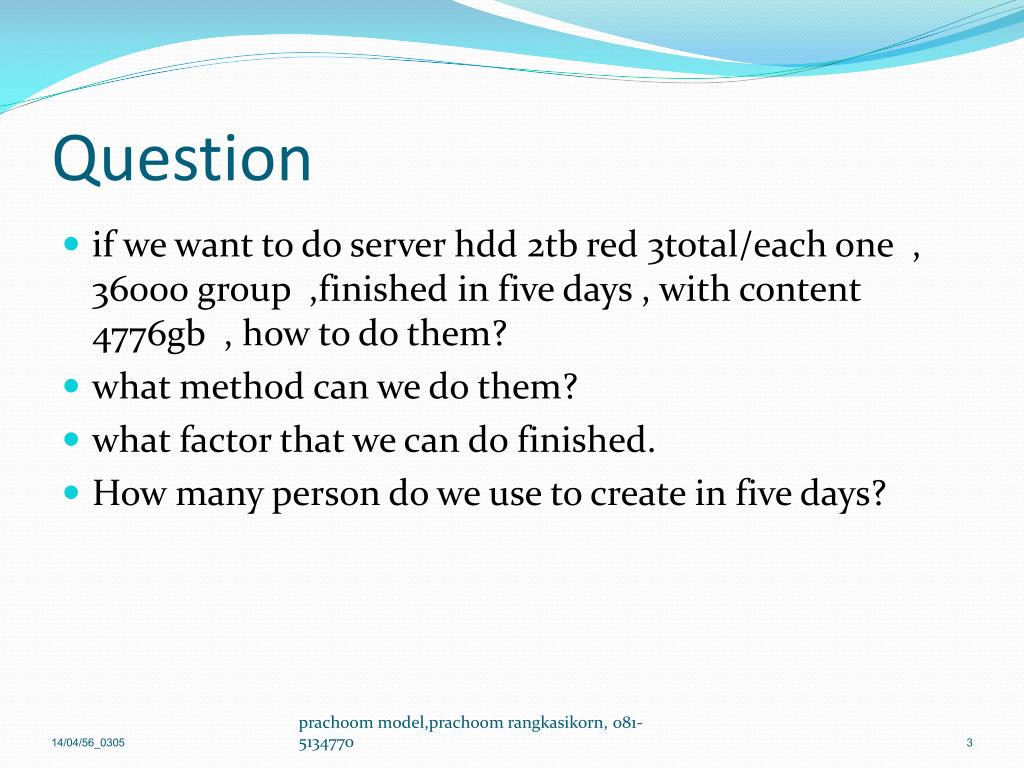

  3. Question • if we want to do server hdd 2tb red 3total/each one , 36000 group ,finished in five days , with content 4776gb , how to do them? • what method can we do them? • what factor that we can do finished. • How many person do we use to create in five days? prachoom model,prachoom rangkasikorn, 081-5134770

  4. objective • Show how to create prachoom school server with ameba theory 12000 group/five days • Can we do it? how to do them? • Show setup by hardcopy oker about 6000 total(2000+2000+2000) • For find the number of person to create server in five days prachoom model,prachoom rangkasikorn, 081-5134770

  5. Hardware 12000 group www.advicephet.com/14990/21890 • Set computer 12000 groups prachoom model,prachoom rangkasikorn, 081-5134770

  6. Docking station “oker” 6000 total/950x6000=5700000baht prachoom model,prachoom rangkasikorn, 081-5134770

  7. Harddisk master 3 total with content=4776gb, do before traing 6000 total with hdd from group Dltv52=831gb Edltv_sec=591gb Edltv_voc=188gb =1610gb General=600gb Preschool=41gb Primary=988gb =1629gb Dltv53p=1175gb Dltv53m=365gb =1537gb prachoom model,prachoom rangkasikorn, 081-5134770

  8. How to manage hdd 12000x3=36000total • Create Partition table type gpt • Create on partition sda1 • mkfs.ext4 /dev/sda1 • e2label -f /dev/sda1 • do same this way with 36000 total until finished • Using 200 computer to manage hdd 36000total prachoom model,prachoom rangkasikorn, 081-5134770

  9. how to hard copy 6000 oker 7 hours 6000total = 6000=2000group 7 hours 60total = 2000group 7 hours 60total = 2000group prachoom model,prachoom rangkasikorn, 081-5134770

  10. 7 hours 60total = 2000group7 hours 60total = 2000group7 hours 60total = 2000group2 days we can hardcopy 12000group finished.4 days we can hardcopy 24000group finished6 days we can hardcopy 36000group finished prachoom model,prachoom rangkasikorn, 081-5134770

  11. How long times do we setup prachoom model/each one About 30 minutes/one , 6hoursx2=12 group/one personx5days=60group/5days/one person 36000/60=600person/five days Therefore in five days we can do server 36000 group finished. prachoom model,prachoom rangkasikorn, 081-5134770

  12. what os do we setup • dvdfc11-64bit • scriptsetup setupfc11.4 • moodle154 • Moodle1912 prachoom model,prachoom rangkasikorn, 081-5134770

  13. what content there are in server • hdd 1=general 600gb, preschool=41gb, primary=988gb,=1629gb • hdd2 = dltv52=831gb, edltv_sec=591gb, edltv_voc=188gv=1610gb • hdd3= dltv53p+dltv53m=365gb=1537gb prachoom model,prachoom rangkasikorn, 081-5134770

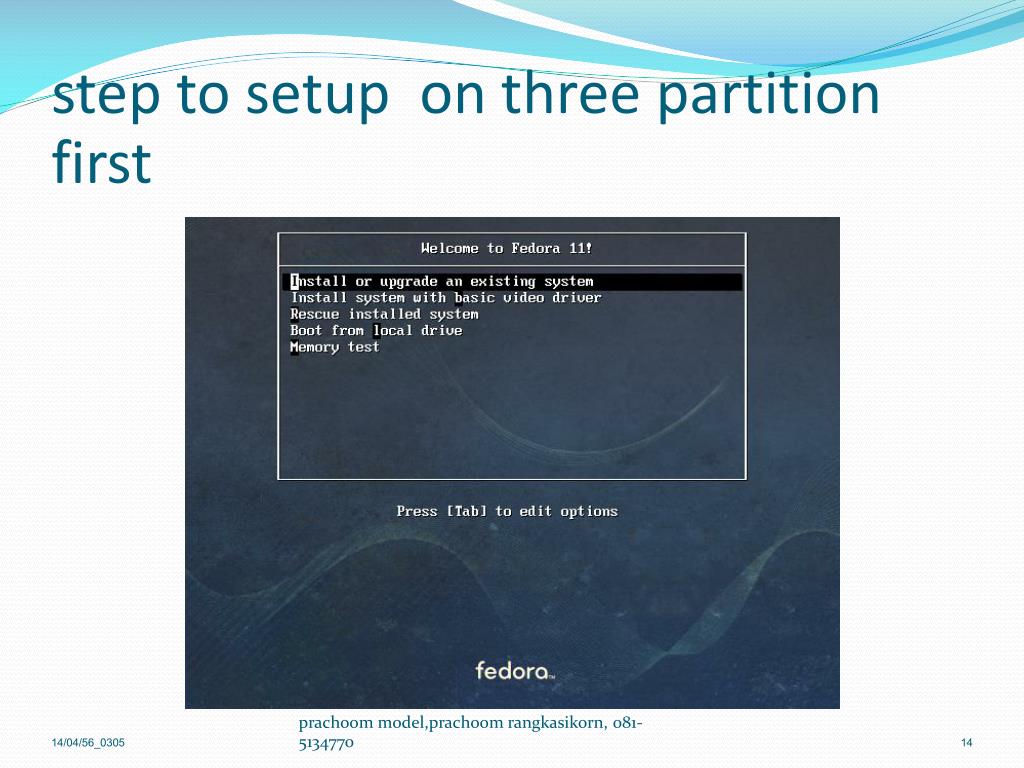

  14. step to setup on three partition first prachoom model,prachoom rangkasikorn, 081-5134770

  15. disc found skip prachoom model,prachoom rangkasikorn, 081-5134770

  16. next prachoom model,prachoom rangkasikorn, 081-5134770

  17. what language english(english) prachoom model,prachoom rangkasikorn, 081-5134770

  18. keyboard U.S.English prachoom model,prachoom rangkasikorn, 081-5134770

  19. mount point ,/dev/sda1 /boot ext3, /dev/sda2 / ext4 ,/dev/sda3 swap prachoom model,prachoom rangkasikorn, 081-5134770

  20. prachoom model,prachoom rangkasikorn, 081-5134770

  21. prachoom model,prachoom rangkasikorn, 081-5134770

  22. prachoom model,prachoom rangkasikorn, 081-5134770

  23. prachoom model,prachoom rangkasikorn, 081-5134770

  24. prachoom model,prachoom rangkasikorn, 081-5134770

  25. prachoom model,prachoom rangkasikorn, 081-5134770

  26. prachoom model,prachoom rangkasikorn, 081-5134770

  27. prachoom model,prachoom rangkasikorn, 081-5134770

  28. prachoom model,prachoom rangkasikorn, 081-5134770

  29. prachoom model,prachoom rangkasikorn, 081-5134770

  30. prachoom model,prachoom rangkasikorn, 081-5134770

  31. prachoom model,prachoom rangkasikorn, 081-5134770

  32. prachoom model,prachoom rangkasikorn, 081-5134770

  33. prachoom model,prachoom rangkasikorn, 081-5134770

  34. prachoom model,prachoom rangkasikorn, 081-5134770

  35. prachoom model,prachoom rangkasikorn, 081-5134770

  36. prachoom model,prachoom rangkasikorn, 081-5134770

  37. prachoom model,prachoom rangkasikorn, 081-5134770

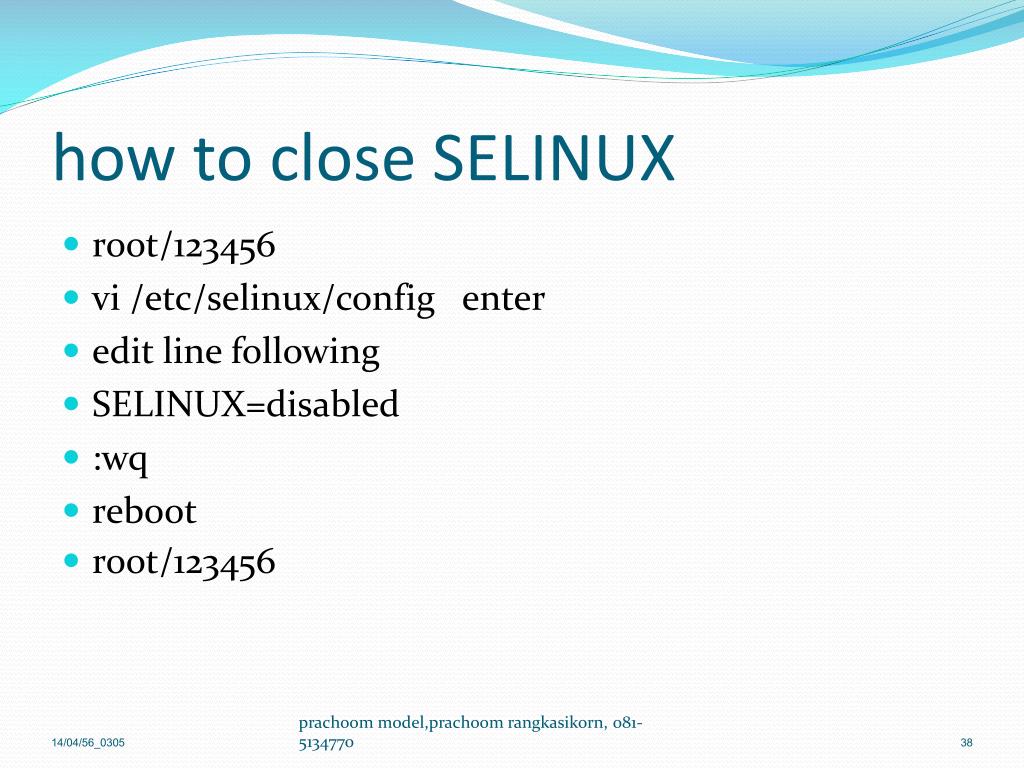

  38. how to close SELINUX • root/123456 • vi /etc/selinux/config enter • edit line following • SELINUX=disabled • :wq • reboot • root/123456 prachoom model,prachoom rangkasikorn, 081-5134770

  39. how to create folder for scripts • mkdir /a • mkdir /aa • mkdir /b • mkdir /bb • mkdir /school • mkdir /school/log • mkdir /school/webmaster • mkdir /schoolhd2 • mkdir /schoolhd3 prachoom model,prachoom rangkasikorn, 081-5134770

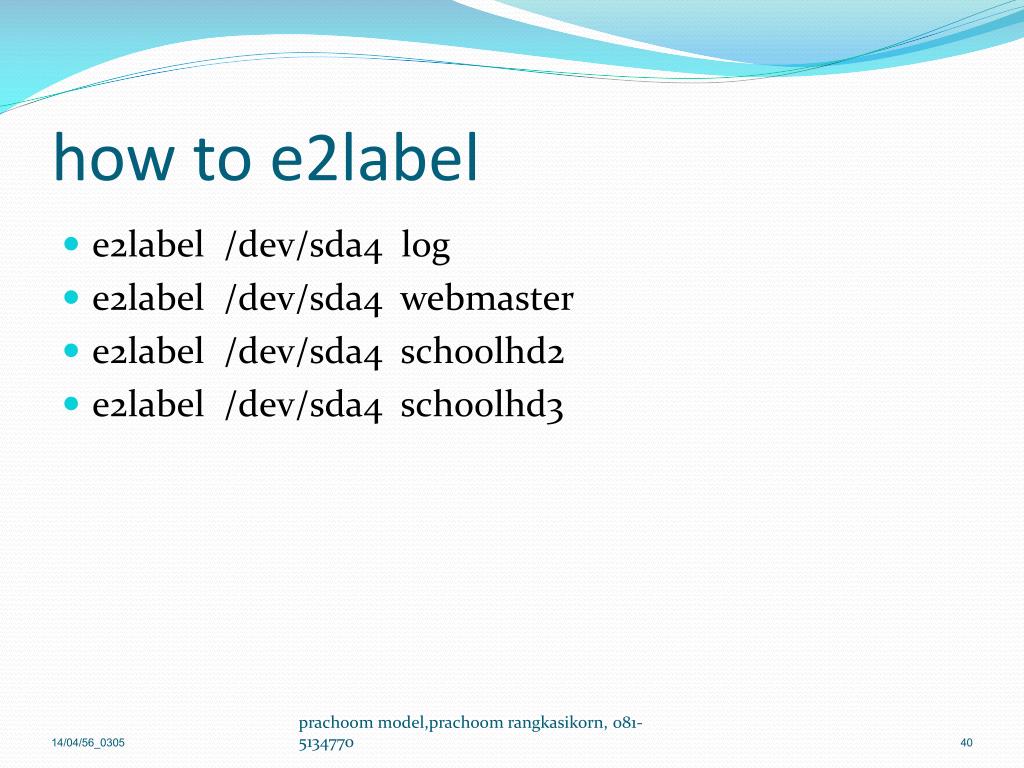

  40. how to e2label • e2label /dev/sda4 log • e2label /dev/sda4 webmaster • e2label /dev/sda4 schoolhd2 • e2label /dev/sda4 schoolhd3 prachoom model,prachoom rangkasikorn, 081-5134770

  41. how to fstab • vi /etc/fstab • plus line below • LABEL=log /school/log ext4 defaults 0 0 • LABEL=webmaster /school/webmaster ext4 defaults 0 0 • LABEL=schoolhd2 /schoolkhd2 ext4 defaults • LABEL=schoolhd3 /schoolhd3 ext4 defaults 0 0 • :wq • reboot • root/123456 • df <can see /school/log, /school/webmaster, /schoolhd2, schoolhd3> prachoom model,prachoom rangkasikorn, 081-5134770

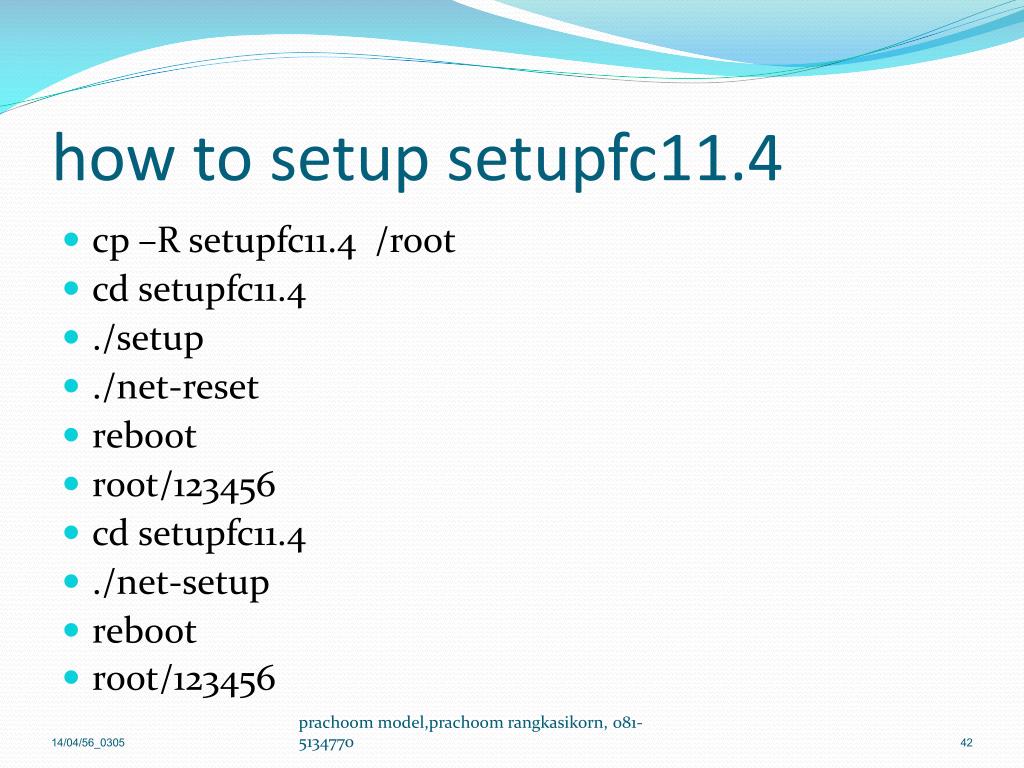

  42. how to setup setupfc11.4 • cp –R setupfc11.4 /root • cd setupfc11.4 • ./setup • ./net-reset • reboot • root/123456 • cd setupfc11.4 • ./net-setup • reboot • root/123456 prachoom model,prachoom rangkasikorn, 081-5134770

  43. how to check config • ifconfig enter • <can see eth0=192.168.10.1 , eth1=192.168.1.8> prachoom model,prachoom rangkasikorn, 081-5134770

  44. how to create passwdwebmasdter and smbwebmaster • root/1323456 • passwd webmaster • teacher789 • teacher789 • smbpasswd –a webmaster • teacher789 • teacher789 • ftp school • webmaster/teacher789 • ftp>ls <see ftp web ..> prachoom model,prachoom rangkasikorn, 081-5134770

  45. how to create grant user • root/123456 • service mysqld stop • /usr/libexec/mysqld –skip-grant-table & • mysql • use mysql • flush privileges; • select user, host, grant_priv from table; • delete from user where user=‘’; • delete from user where user=‘root’; prachoom model,prachoom rangkasikorn, 081-5134770

  46. how to create grant user • select user, host, grant_priv from user; <empty user> • grant all privileges on *.* to ‘phpadmin’@’localhost’ identified by ‘phpadmin123’ with grant option; • select user, host, grant_priv from user; <you can see > prachoom model,prachoom rangkasikorn, 081-5134770

  47. how to restore mysql prachoom model,prachoom rangkasikorn, 081-5134770

  48. prachoom model,prachoom rangkasikorn, 081-5134770

  49. prachoom model,prachoom rangkasikorn, 081-5134770

  50. prachoom model,prachoom rangkasikorn, 081-5134770
