  1. PRACHOOM RANGKASIKORN PRESENTS cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  2. How to create server “prachoom model” on asrock 880gb-lefx. CREATE SERVER SIZE 2TB cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  3. MY PHOTO FROM THAILAND THAYANG PHETCHABURI cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  4. How to setup cned school server 2tb Pc asrock 880gb-lefx +ram hyper 4gb ddr3 1600 +cpu amd athlon ll x3 455 3.3ghz Hdd sata 2tb 1 total cned school server prachoomrangkasikorn 081-5134770 prachum.sornor@gmail.com

  5. Hardware set • Case isonat strong put hdd sata 2 tb 1-6 total • Mainboard asrock 880gm-lefx k, le • Ram Kington hiyper 4gb ddr3 1600 2total • CPU amd athlon ll x3 455 rana 3.3ghz socket 95 w triple-core • Powersupply Winner 750 w full important • Hdd sata 2tb 1 total • Lan tp-link tg-3269 or tg-3468 1 total cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  6. Winner 750 w full 1950baht cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  7. Mainboard asrock 880gb-le fx cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  8. Strong case can put hdds 5-6 total cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

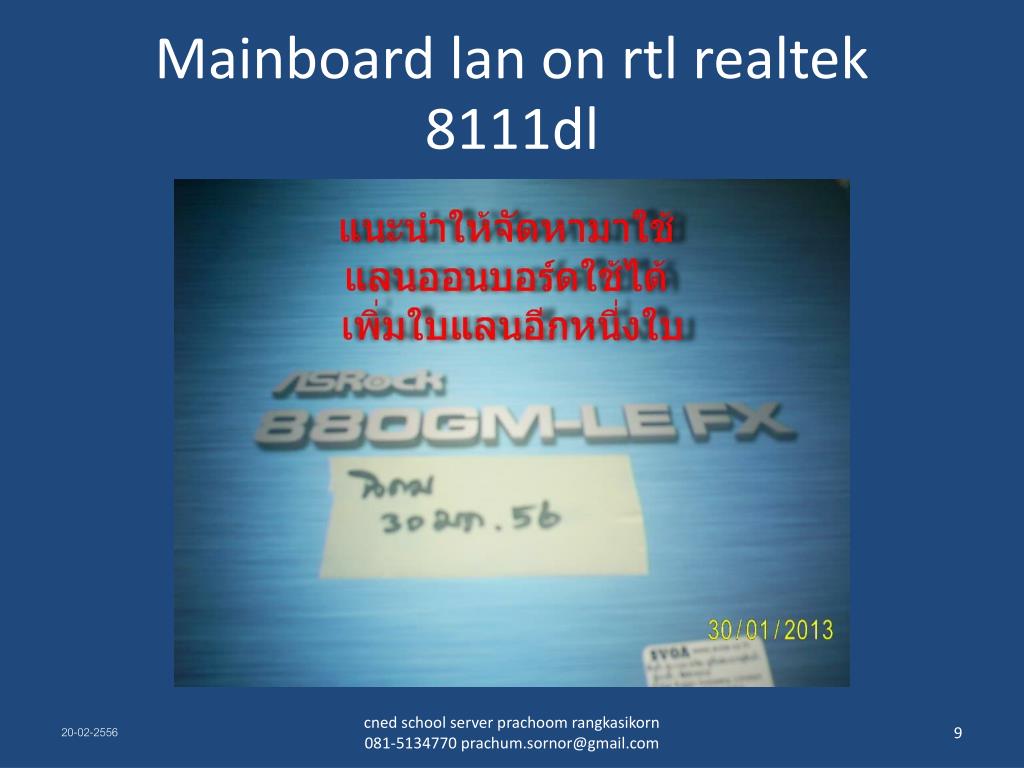

  9. Mainboard lan on rtl realtek 8111dl cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  10. Winner 750 w full importantintro use it 1950baht cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  11. CPU amd athlon ll x3 455 rana 3.3ghz socket 95 w triple-core cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  12. Cpu cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  13. Kingtonhiyper 4gb ddr3 1600 2total cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  14. Ram ddr3 4gb 2total cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  15. Plus lanpcitp-link tg-3269 or tg-3468 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  16. สายแพรซาต้า สายไฟซาต้า จัดหาให้พอกับจำนวนฮาร์ดดิสก์ cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  17. Hdd sata 2tb 1totalcontent data general 600gbpreschool = 41gbprimary=988 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  18. How much is cost? www.advicephet.com • Case 2200 baht • Powersupply winner 750full 1950 baht • Mainboard asrock 1850 baht • Ram hyper 1890 baht • Cpu amd 2200 baht • Harddisk green 2tb 2850 bahtx2=3700 baht • Lan tp-link tg3269=1050baht • Dvdrom rw 400 baht • Total 15240 baht/group cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  19. OS that we used • fedora11 64 bit • scriptsetupfc11.4 • hdd sata 2tb 1 total hardcopy ,ready to use cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  20. ขั้นตอนการติดตั้ง • เป็นการนำ hddที่มี content อยู่แล้วมาติดตั้งในร่างใหม่ • ใส่ dvdrom drive external pass usb • Open computer find that can run setup os fc11 three partition first until finish. • Close selinux • Root/123456 • Vi /etc/selinux/config enter • Edit SELINUX=enforeing to SELINUX=disabled • :wq cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  21. Creat folder for scriptsetupfc11.4 • reboot/123456 • mkdir a • Mkdiraa • Mkdir b • Mkdir bb • Mkdir /school • Mkdir /school/log • Mkdir /school/webmaster cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  22. e2label • e2label /dev/sda4 log • e2label /dev/sda5 webmaster cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  23. fstab • vi /etc/fstab enter • plus line below press I • LABEL=log /school/log ext4 defaults 0 0 • LABEL=wemaster /school/webmaster ext4 defaults 0 0 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  24. how to see partition hdd • reboot/123456 • df <can see /school/log, /school/webmaster, cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  25. copy scriptfc11.4 and setup • cd /school/webmaster • rm –rfmysql • cd • put dvdscriptfc11.4 to dvdromdrive • cp –R setupfc11.4 to /root • cd setupfc11.4 • Ll <see data> • ./setup • ./net-reset • reboot • root/123456 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  26. copy scriptfc11.4 and setup • cd setupfc11.4 • ./net-setup • reboot • root/123456 • cd /school/webmaster • test networking • #ifconfig enter • can see eth0=192.168.10.1 , eth1=192.168.1.8 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  27. What content did we have? • sda5 have gerneral=600 gb • Preschool=41gb • Primary=988gb cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  28. check chown chmod 755 • root/123456 • cd /school/webmaster/web/preschool • cd /school/webmaster/web/primary cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  29. create grant user • service mysqld stop • /usr/libexec/mysqld --skip-grant-tables & • mysql enter • use mysql enter • flush privileges; • select user, host, grant_priv from user: • delete for user where user=“”; • delete for user where user=“root”; cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  30. create grant user (2) • select user, host, grant_priv from user; • can see empty • grant all privileges on *.* to ‘phpadmin’@’localhost’ identified by ‘phpadmin123’ with grant option; • select user, host, grant_priv from user; • we can see user phpadmin ok finish • reboot enter cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  31. restore mysqlhttp://school.cned/ cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  32. http://school.cned/phpMyAdmin/ cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  33. phpadmin/phpadmin123 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  34. Restore databasepreschool, edltvp cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  35. add news user cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  36. moodle154 /moodle154 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  37. user moodle154 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  38. choose specifig privileges action moodle154db1 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  39. check all cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  40. show privileges that choose cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  41. successful cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  42. preshool/preschool123 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  43. preschool cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  44. specifig privileges cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  45. check all and click go cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  46. successful cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  47. edltvp/edltvp123 cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  48. edltvp/check all cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  49. http://school.cned/moodle154/ You can see first cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com

  50. http://school.cned/preschoolเว็บปฐมวัย http://school.cned/preschool/ cned school server prachoom rangkasikorn 081-5134770 prachum.sornor@gmail.com
