  1. Unit 3, Chapter 9 CPO Science Foundations of Physics Chapter 9

  2. Unit 3: Motion and Forces in 2 and 3 Dimensions • 9.1 Torque • 9.2 Center of Mass • 9.3 Rotational Inertia Chapter 9 Torque and Rotation

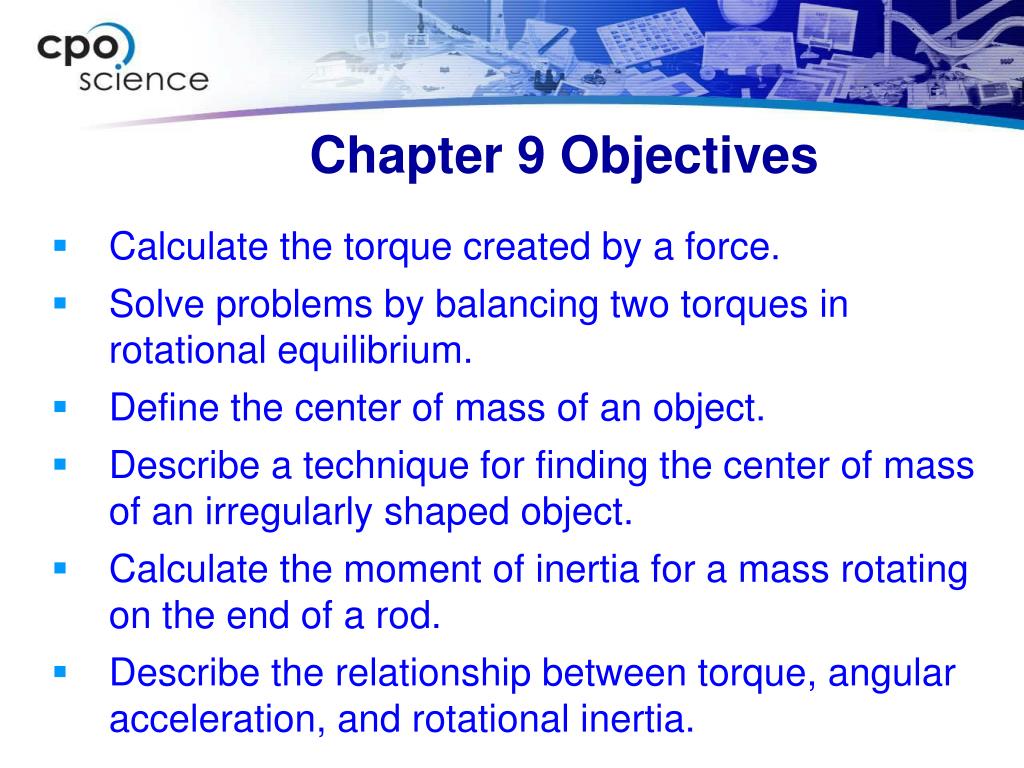

  3. Chapter 9 Objectives • Calculate the torque created by a force. • Solve problems by balancing two torques in rotational equilibrium. • Define the center of mass of an object. • Describe a technique for finding the center of mass of an irregularly shaped object. • Calculate the moment of inertia for a mass rotating on the end of a rod. • Describe the relationship between torque, angular acceleration, and rotational inertia.

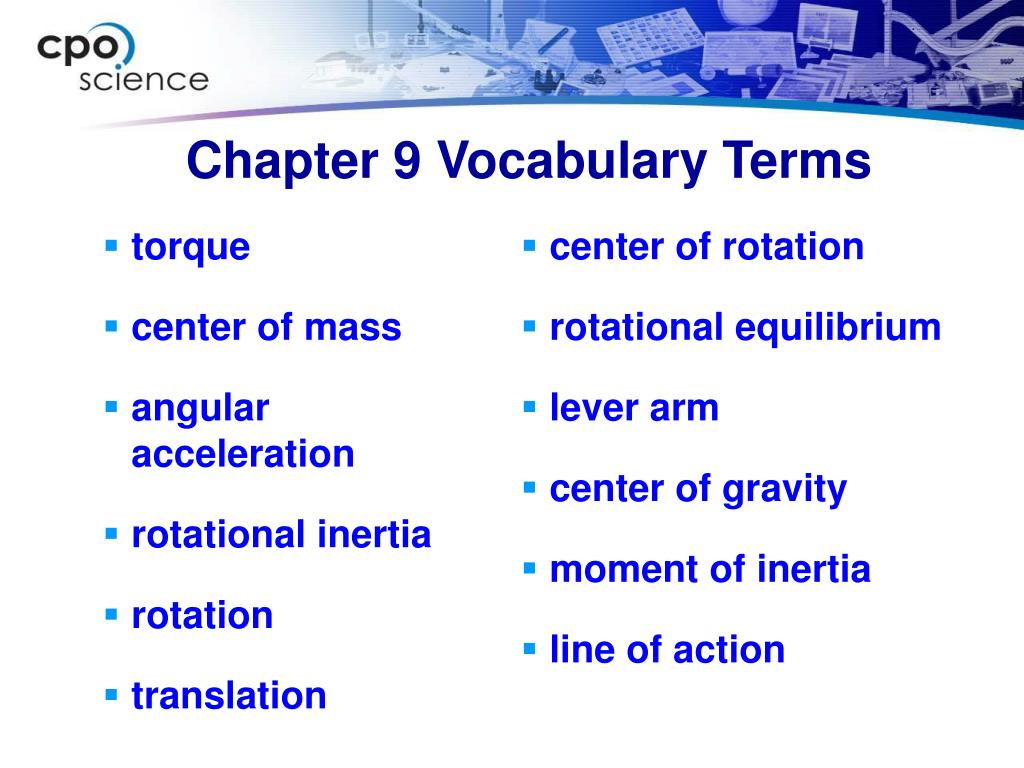

  4. Chapter 9 Vocabulary Terms • torque • center of mass • angular acceleration • rotational inertia • rotation • translation • center of rotation • rotational equilibrium • lever arm • center of gravity • moment of inertia • line of action

  5. Key Question: How does force create rotation? 9.1 Torque *Students read Section 9.1 AFTER Investigation 9.1

  6. 9.1 Torque • A torque is an action that causes objects to rotate. • Torque is notthe same thing as force. • For rotational motion, the torqueis what is most directly related to the motion, not the force.

  7. 9.1 Torque • Motion in which an entire object moves is called translation. • Motion in which an object spins is called rotation. • The point or line about which an object turns is its center of rotation. • An object can rotate and translate.

  8. 9.1 Torque • Torque is created when the line of action of a force does not pass through the center of rotation. • The line of action is an imaginary line that follows the direction of a force and passes though its point of application.

  9. 9.1 Torque • To get the maximum torque, the force should be applied in a direction that creates the greatest lever arm. • The lever arm is the perpendicular distance between the line of action of the force and the center of rotation

  10. 9.1 Torque Lever arm length (m) t = r x F Torque (N.m) Force (N)

  11. 9.1 Calculate a torque • A force of 50 newtons is applied to a wrench that is 30 centimeters long. • Calculate the torque if the force is applied perpendicular to the wrench so the lever arm is 30 cm.

  12. 9.1 Rotational Equilibrium • When an object is in rotational equilibrium, the net torque applied to it is zero. • Rotational equilibrium is often used to determine unknown forces. • What are the forces (FA, FB) holding the bridge up at either end?

  13. 9.1 Rotational Equilibrium

  14. 9.1 Calculate using equilibrium • A boy and his cat sit on a seesaw. • The cat has a mass of 4 kg and sits 2 m from the center of rotation. • If the boy has a mass of 50 kg, where should he sit so that the see-saw will balance?

  15. 9.1 When the force and lever arm are NOT perpendicular

  16. 9.1 Calculate a torque • It takes 50 newtons to loosen the bolt when the force is applied perpendicular to the wrench. • How much force would it take if the force was applied at a 30-degree angle from perpendicular? • A 20-centimeter wrench is used to loosen a bolt. • The force is applied 0.20 m from the bolt.

  17. Key Question: How do objects balance? 9.2 Center of Mass *Students read Section 9.2 AFTER Investigation 9.2

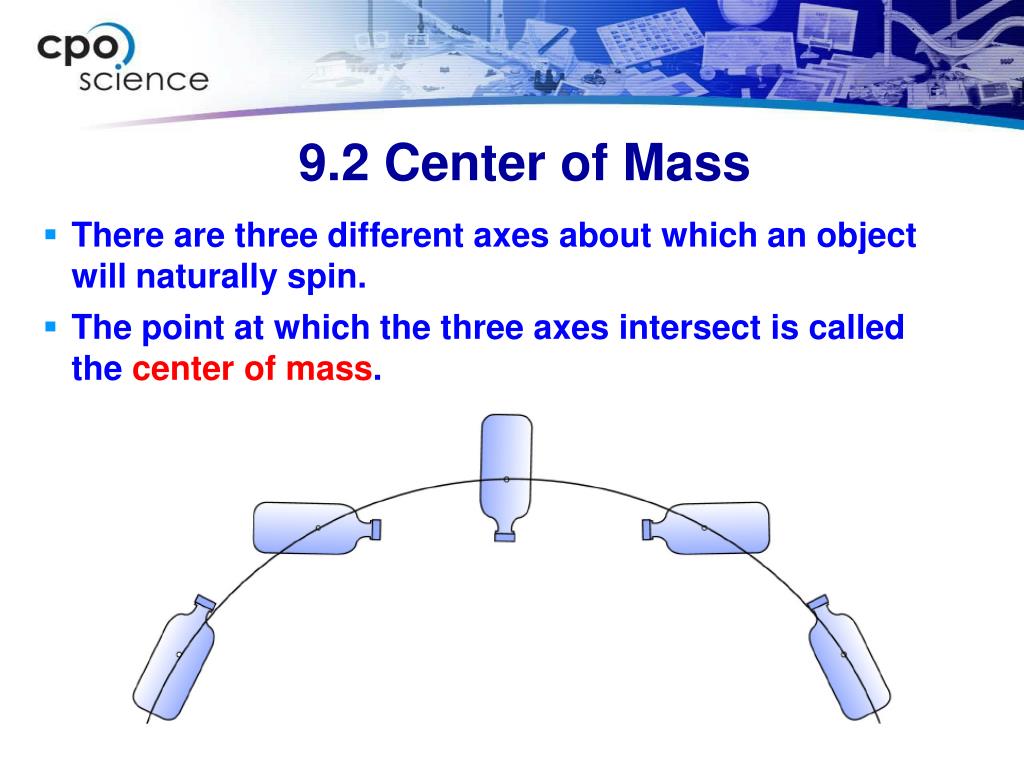

  18. 9.2 Center of Mass • There are three different axes about which an object will naturally spin. • The point at which the three axes intersect is called the center of mass.

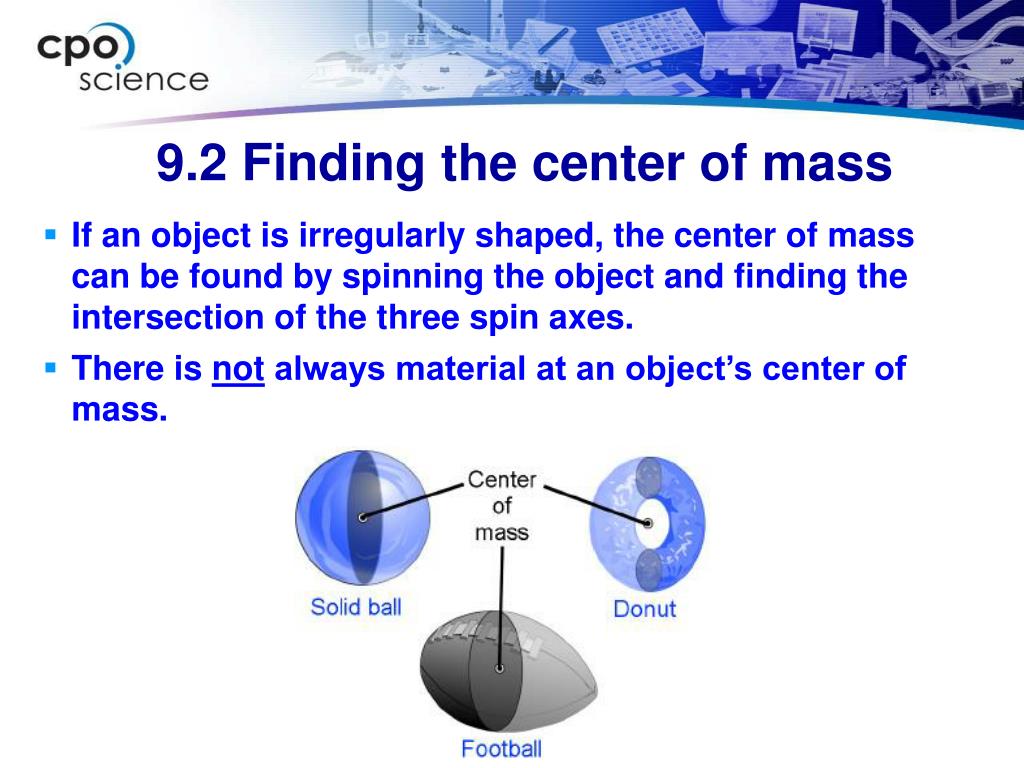

  19. 9.2 Finding the center of mass • If an object is irregularly shaped, the center of mass can be found by spinning the object and finding the intersection of the three spin axes. • There is not always material at an object’s center of mass.

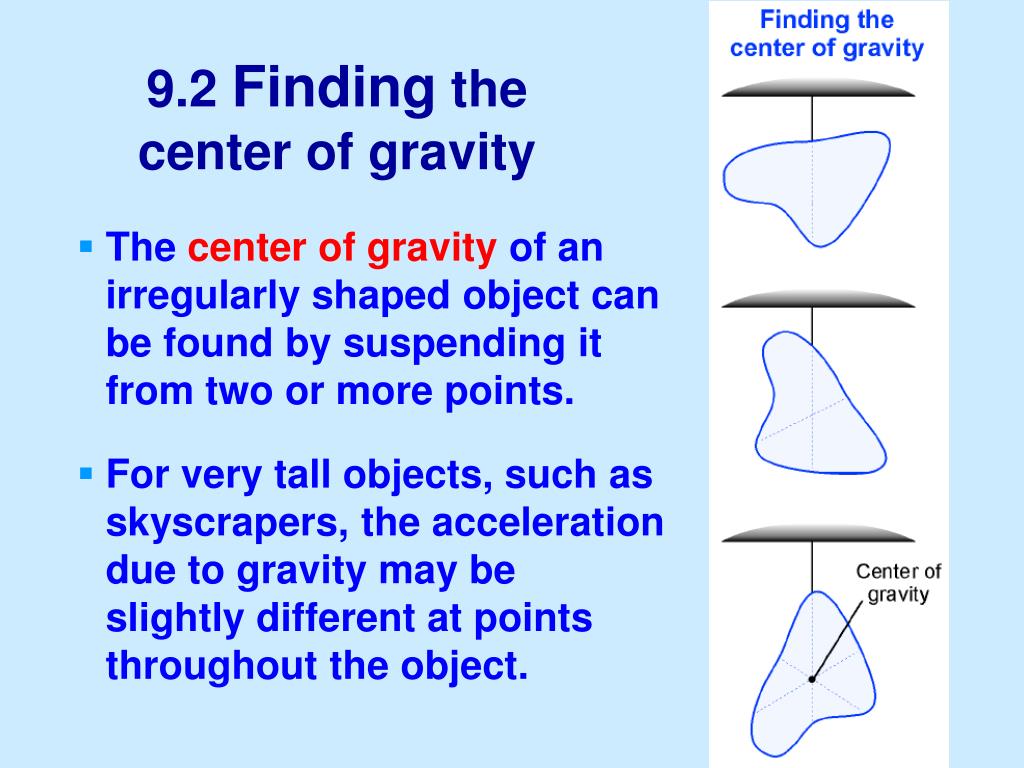

  20. 9.2 Finding the center of gravity • The center of gravity of an irregularly shaped object can be found by suspending it from two or more points. • For very tall objects, such as skyscrapers, the acceleration due to gravity may be slightly different at points throughout the object.

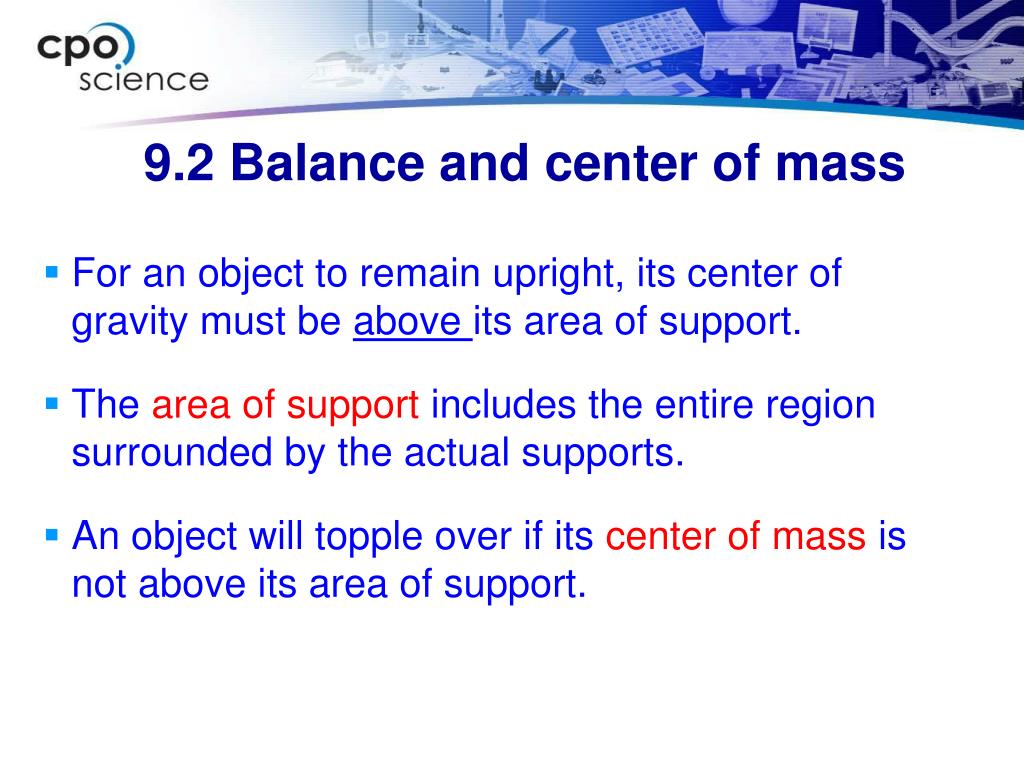

  21. 9.2 Balance and center of mass • For an object to remain upright, its center of gravity must be above its area of support. • The area of support includes the entire region surrounded by the actual supports. • An object will topple over if its center of mass is not above its area of support.

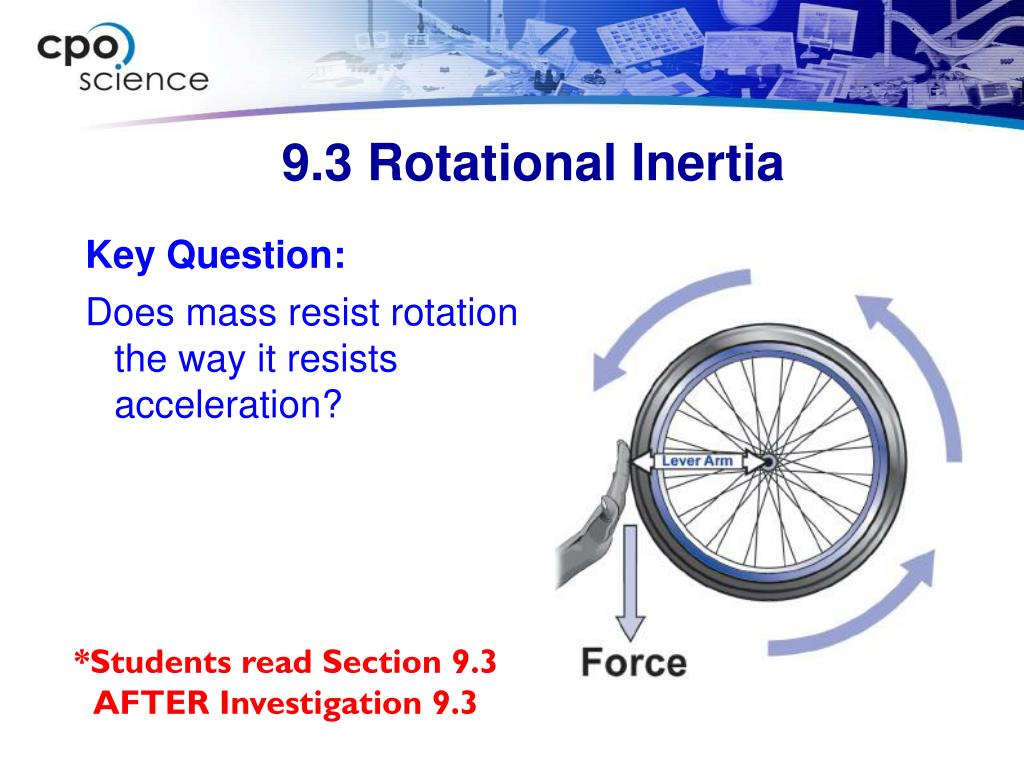

  22. Key Question: Does mass resist rotation the way it resists acceleration? 9.3 Rotational Inertia *Students read Section 9.3 AFTER Investigation 9.3

  23. 9.3 Rotational Inertia • Inertia is the name for an object’s resistance to a change in its motion (or lack of motion). • Rotational inertia is the term used to describe an object’s resistance to a change in its rotational motion. • An object’s rotational inertia depends not only on the total mass, but also on the way mass is distributed.

  24. 9.3 Linear and Angular Acceleration Angular acceleration (kg) a = a r Linear acceleration (m/sec2) Radius of motion (m)

  25. 9.3 Rotational Inertia • To put the equation into rotational motion variables, the force is replaced by the torque about the center of rotation. • The linear acceleration is replaced by the angular acceleration.

  26. A rotating mass on a rod can be described with variables from linear or rotational motion. 9.3 Rotational Inertia

  27. The product of mass × radius squared (mr2) is the rotational inertia for a point mass where r is measured from the axis of rotation. 9.3 Rotational Inertia

  28. The sum of mr2 for all the particles of mass in a solid is called the moment of inertia (I). A solid object contains mass distributed at different distances from the center of rotation. Because rotational inertia depends on the square of the radius, the distribution of mass makes a big difference for solid objects. 9.3 Moment of Inertia

  29. 9.3 Moment of Inertia The moment of inertia of some simple shapes rotated around axes that pass through their centers.

  30. If you apply a torque to a wheel, it will spin in the direction of the torque. The greater the torque, the greater the angular acceleration. 9.3 Rotation and Newton's 2nd Law

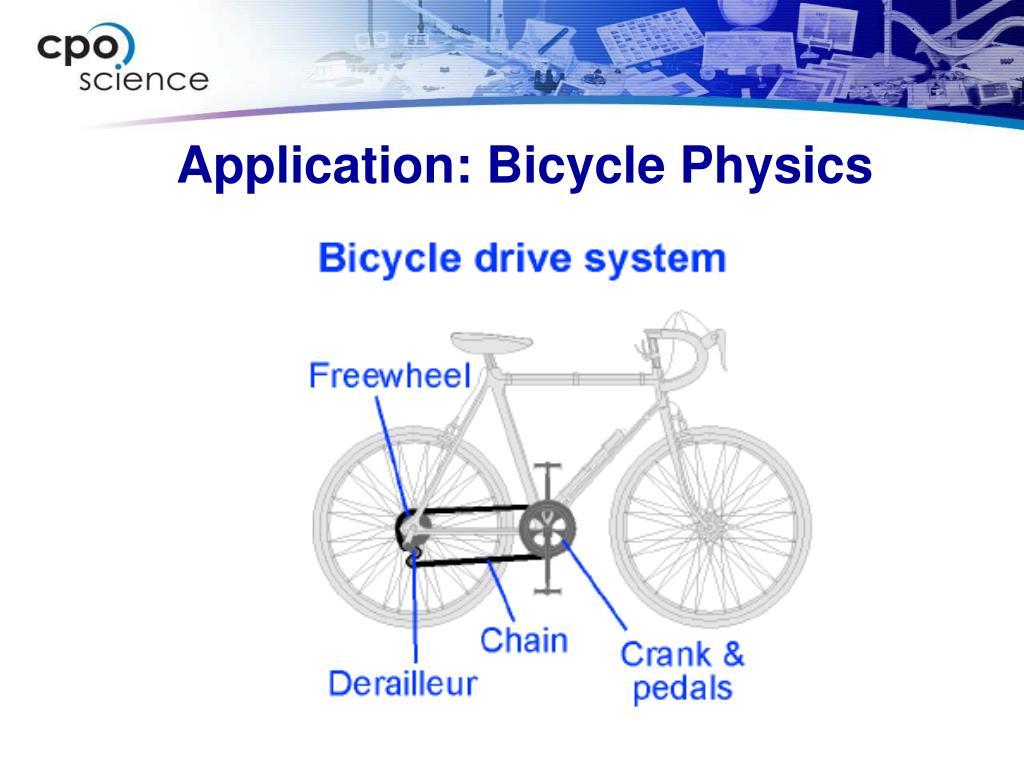

  31. Application: Bicycle Physics
