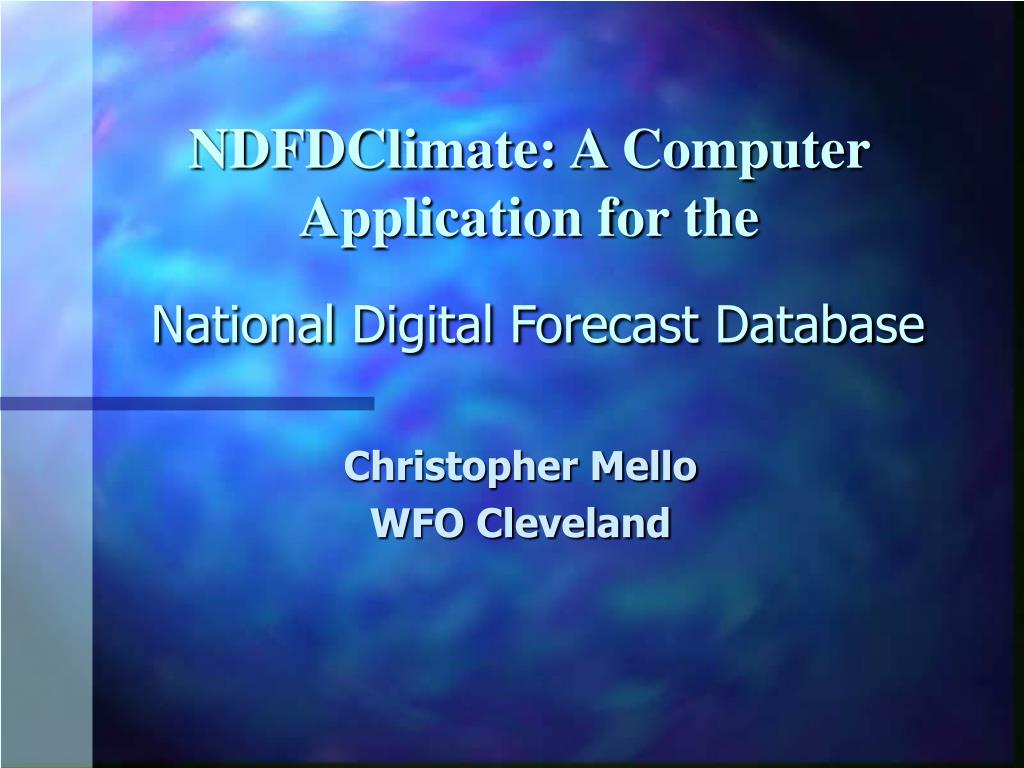

  1. NDFDClimate: A Computer Application for theNational Digital Forecast Database Christopher Mello WFO Cleveland

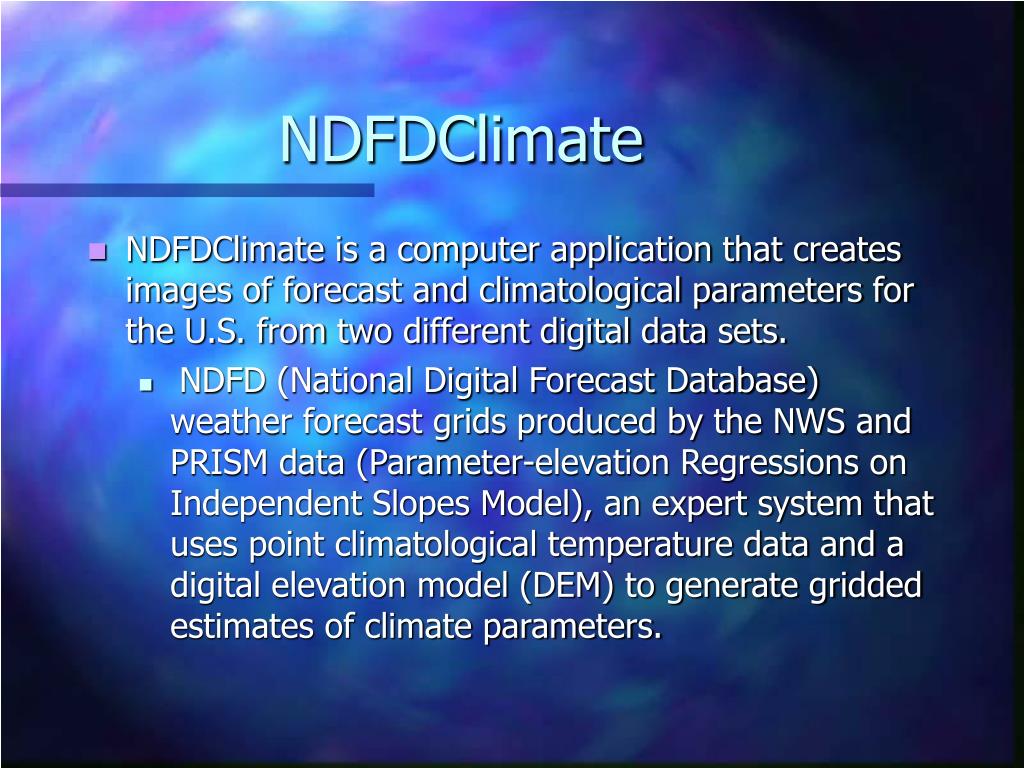

  2. NDFDClimate • NDFDClimate is a computer application that creates images of forecast and climatological parameters for the U.S. from two different digital data sets. • NDFD (National Digital Forecast Database) weather forecast grids produced by the NWS and PRISM data (Parameter-elevation Regressions on Independent Slopes Model), an expert system that uses point climatological temperature data and a digital elevation model (DEM) to generate gridded estimates of climate parameters.

  3. PRISM DataParameter-elevation Regressions on Independent Slopes Model • PRISM system determines climate elements (temp, or rainfall) values at grid cells by calculating linear regression relationships between the climate element and elevation • Each grid cell estimate is determined from a separate multiple linear regression using data from nearby climate stations • Each station in the regression is weighted based on five factors: distance, elevation, vertical layer (helps identify temp inversions in high mountain valleys), topographic orientation, coastal proximity

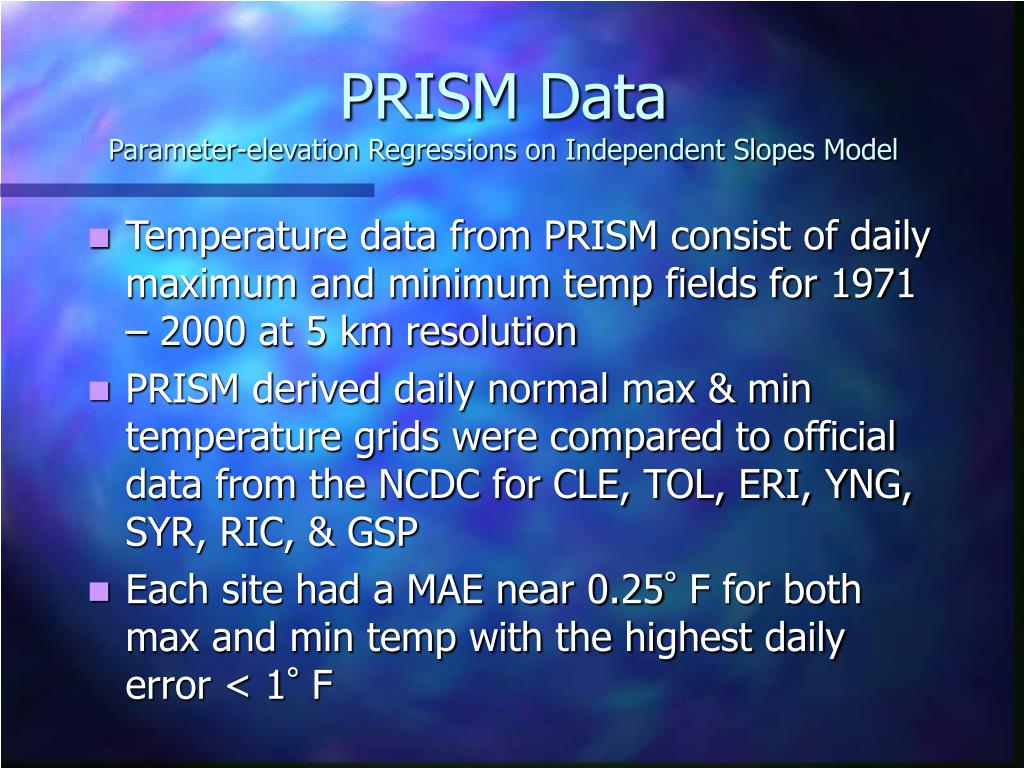

  4. PRISM DataParameter-elevation Regressions on Independent Slopes Model • Temperature data from PRISM consist of daily maximum and minimum temp fields for 1971 – 2000 at 5 km resolution • PRISM derived daily normal max & min temperature grids were compared to official data from the NCDC for CLE, TOL, ERI, YNG, SYR, RIC, & GSP • Each site had a MAE near 0.25° F for both max and min temp with the highest daily error < 1° F

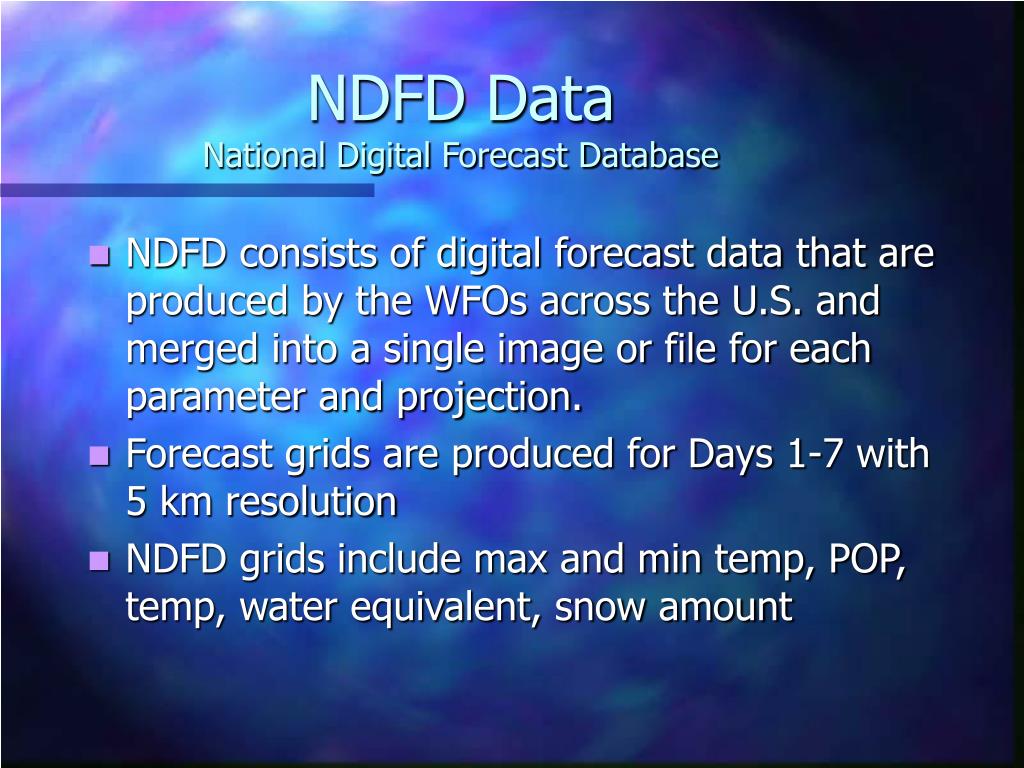

  5. NDFD DataNational Digital Forecast Database • NDFD consists of digital forecast data that are produced by the WFOs across the U.S. and merged into a single image or file for each parameter and projection. • Forecast grids are produced for Days 1-7 with 5 km resolution • NDFD grids include max and min temp, POP, temp, water equivalent, snow amount

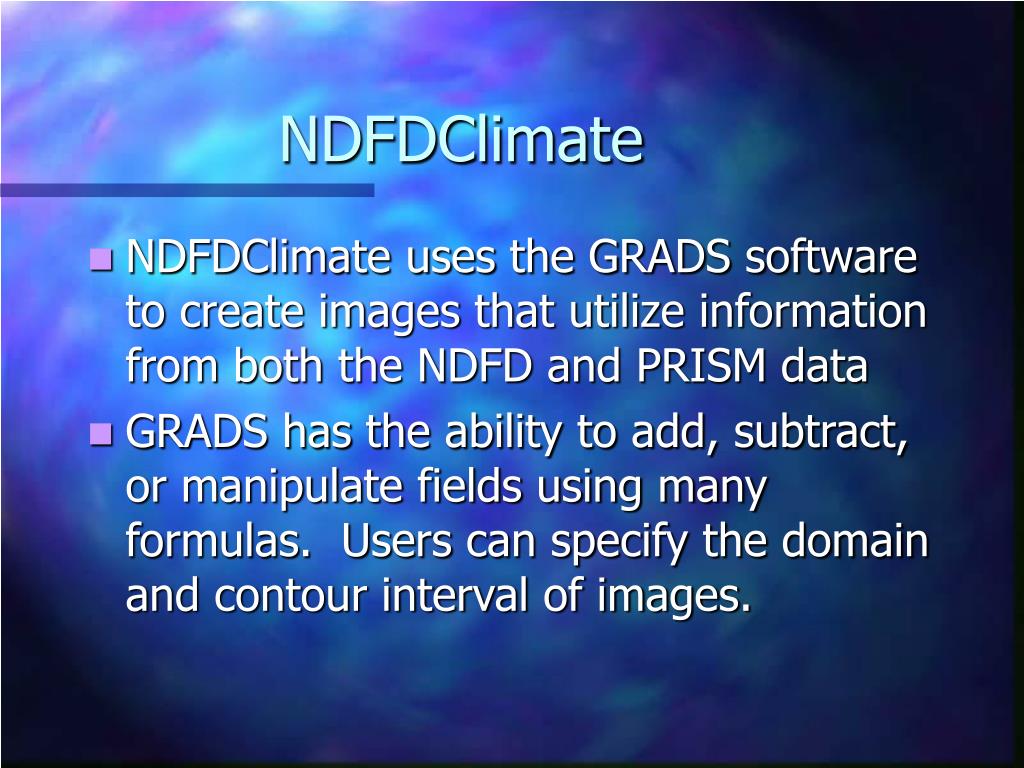

  6. NDFDClimate • NDFDClimate uses the GRADS software to create images that utilize information from both the NDFD and PRISM data • GRADS has the ability to add, subtract, or manipulate fields using many formulas. Users can specify the domain and contour interval of images.

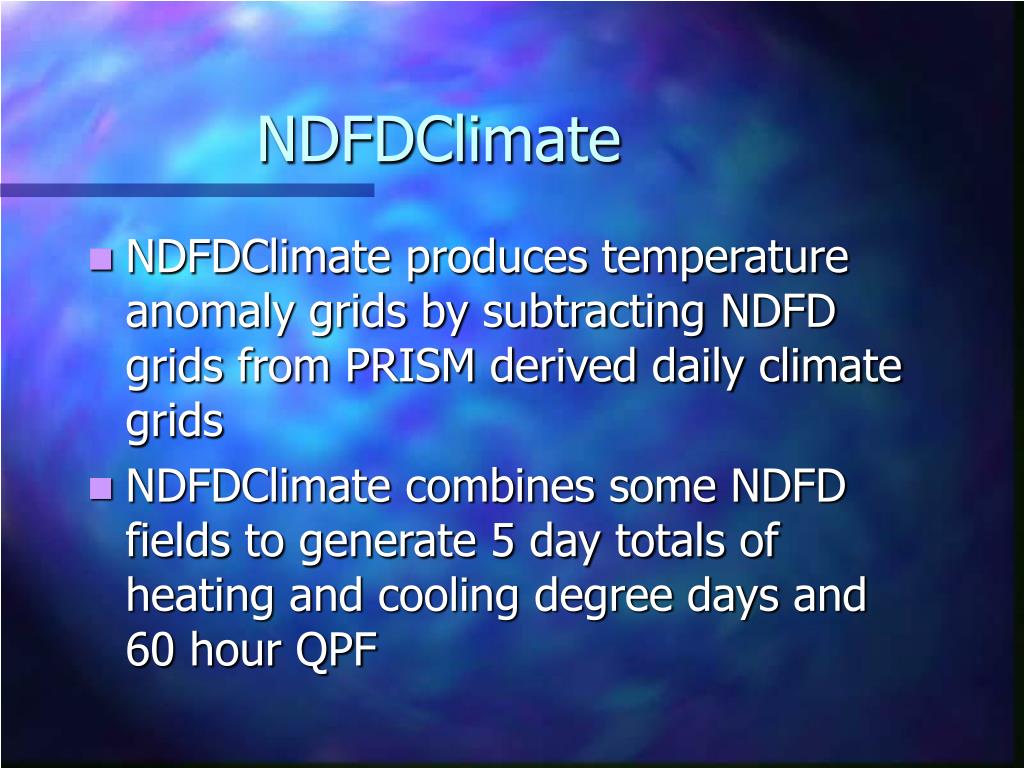

  7. NDFDClimate • NDFDClimate produces temperature anomaly grids by subtracting NDFD grids from PRISM derived daily climate grids • NDFDClimate combines some NDFD fields to generate 5 day totals of heating and cooling degree days and 60 hour QPF

  8. NDFD Low Temp Fcst

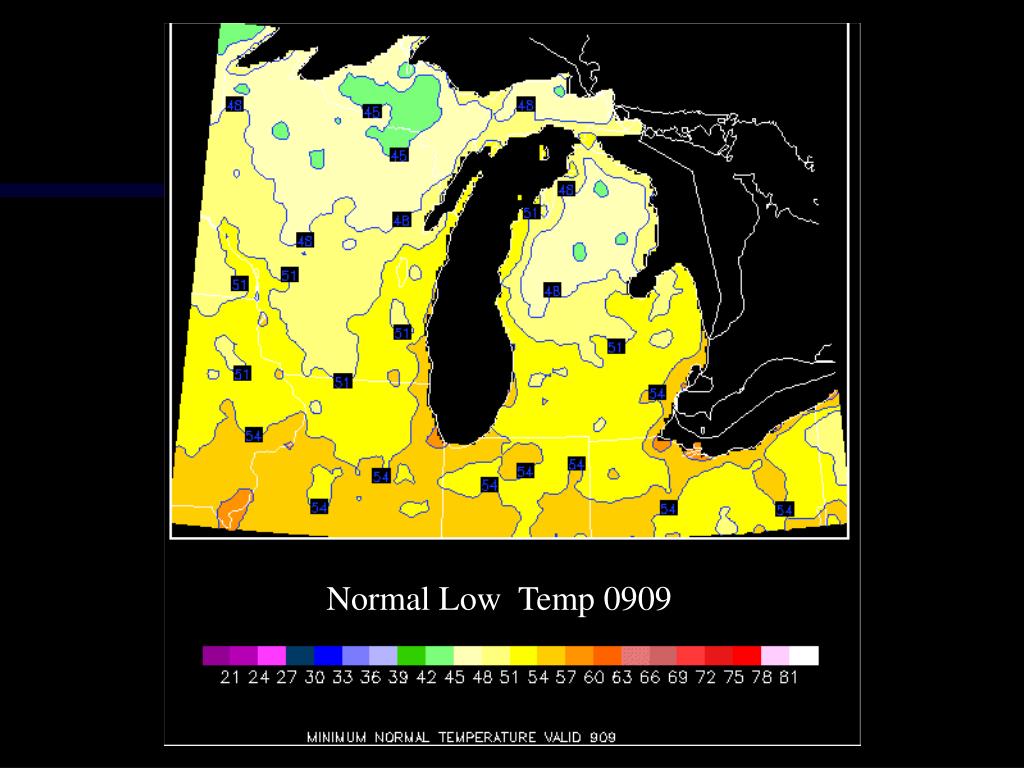

  9. Normal Low Temp 0909

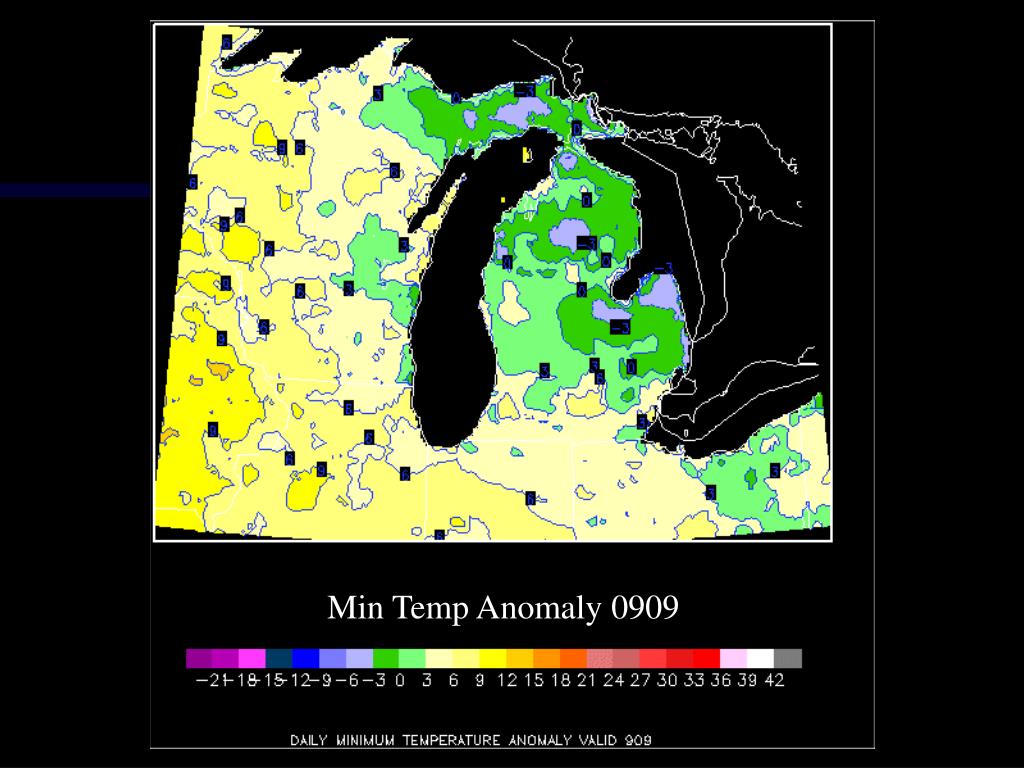

  10. Min Temp Anomaly 0909

  11. Max Temp Anomaly

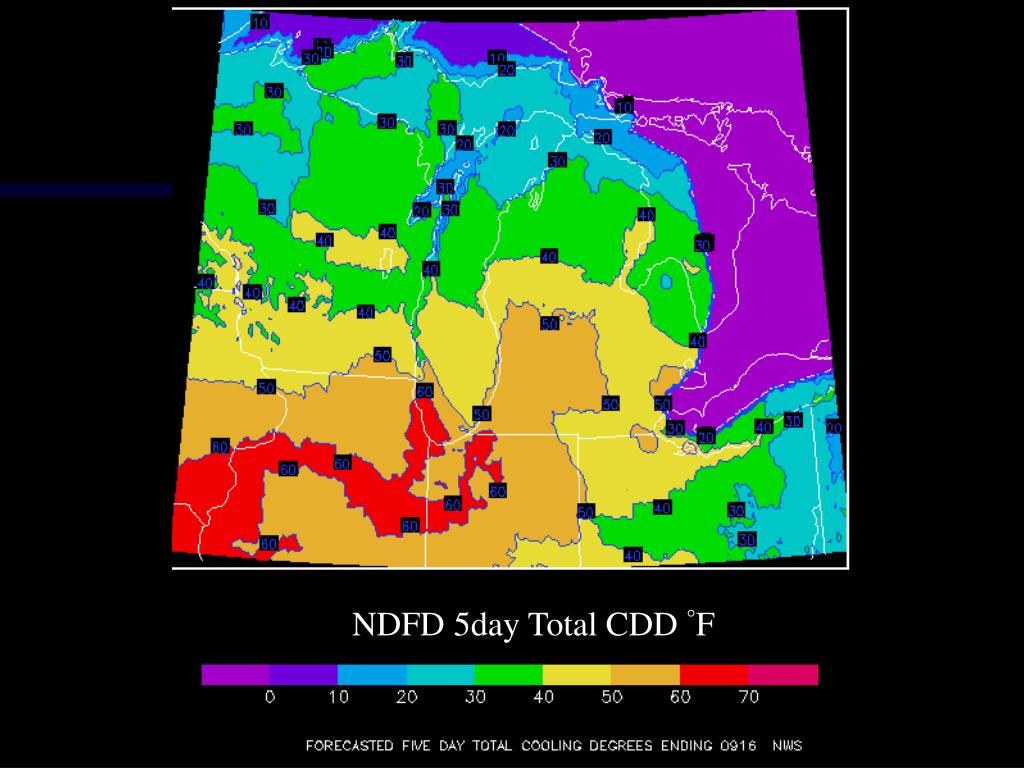

  12. NDFD 5day Total CDD °F

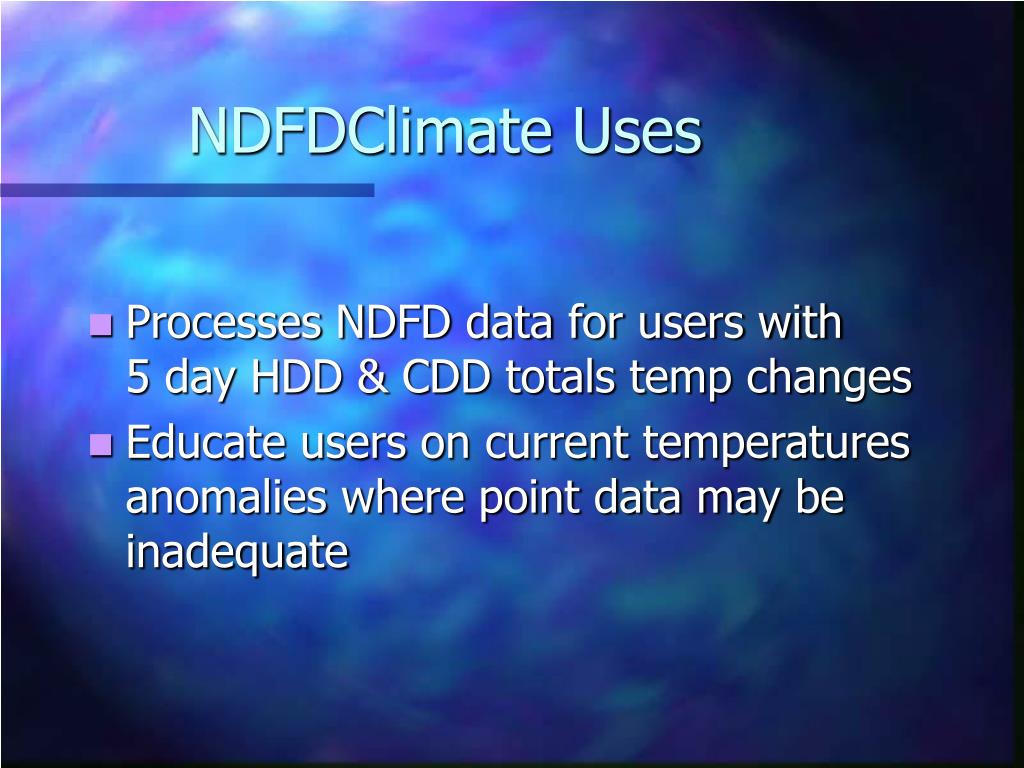

  13. NDFDClimate Uses • Processes NDFD data for users with 5 day HDD & CDD totals temp changes • Educate users on current temperatures anomalies where point data may be inadequate

  14. NDFDClimate • References Berman, F., A. Chien, K. Cooper, J. Dogarra, I. Foster, D. Gannon, L. Johnson, K. Kennedy, C. Kesselman, J. Mellor-Crummey, D. Reed, L. Torczon, and R. Wolski., 2002. The GRADS Project: Software Support for High-Level Grid Application Development. International Journal of High Performance Computing Applications, 15 327-344. Daly, C., R.P. Neilson, and D. L. Phillips, 1994. A Statistical-Topographic Model for Mapping Climatological Precipitation over Mountainous Terrain. J. Appl. Meteor., 33, 140-158
