Presentation Transcript

  1. PREC 2009 To10 dBor NotTo10dB Bob Surette Director of Sales Engineering Friday April 17, 2009

  2. Mt. Mansfield, VT October 2006

  3. Mt. Mansfield, VT October 2006

  4. Left Right Shively Labs®

  5. Shively Labs®

  6. Shively Labs®

  7. (√ T1 + √ T2 + √ T3 +√ Tn ) 2 (√ 30+ √ 30 + √ 30+√ 30) 2 (4√ 30 ) 2 Peak Power Calculation 16 X 30 = 480 KW

  8. (√ 30+ √ 0.3 + √ 30+√ 0.3) 2 =142 KW (√ 30+ √ 1.2 + √ 30+√ 1.2) 2 = 173 KW (√ 30+ √ 12 + √ 30+√ 12) 2 = 320 KW 20 dB Injection Average Digital Peak Digital 10 dB Injection Peak Digital

  9. (√ 30+ √ 12) 2 = 80 KW Shively Labs®

  10. 4 1/16 Coax (√ 30+ √ 12 + √ 12) 2 = 154 KW Shively Labs®

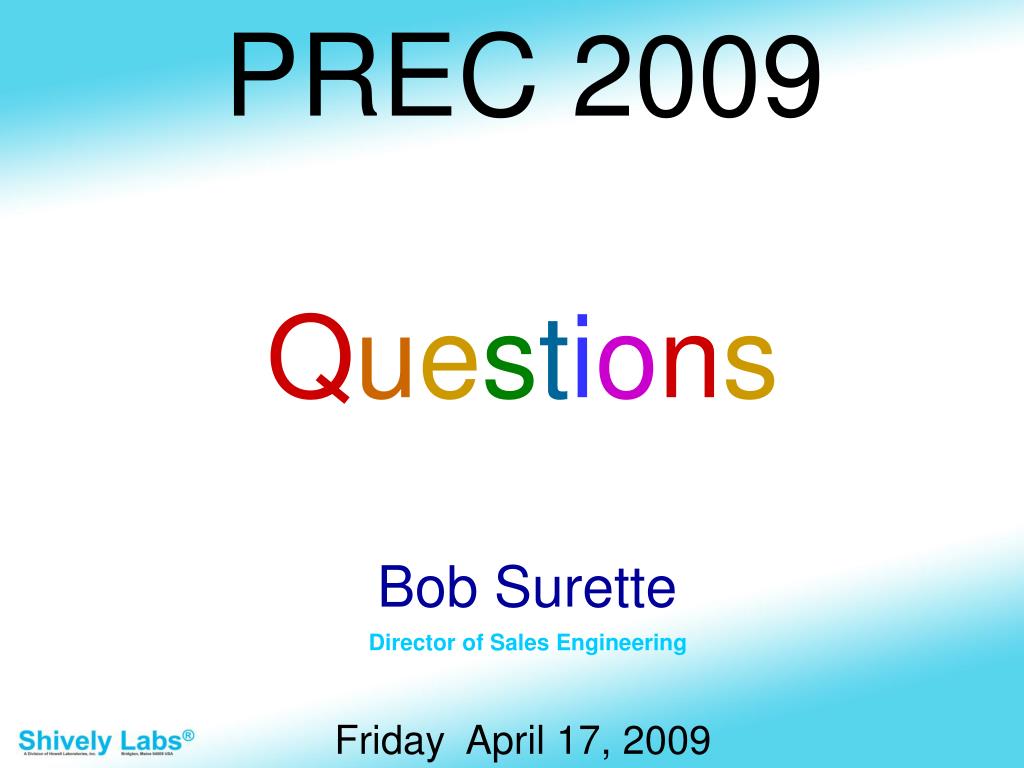

  11. PREC 2009 Questions Bob Surette Director of Sales Engineering Friday April 17, 2009
