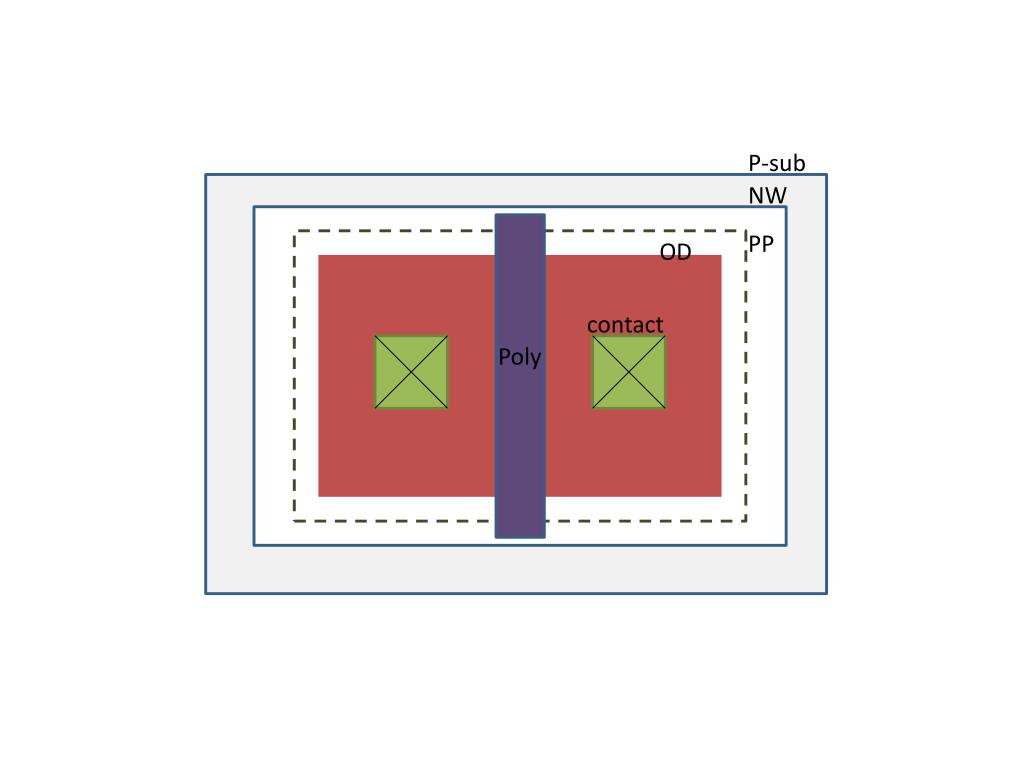

  1. P-sub NW PP OD contact Poly

  2. P-sub NW PP OD matel contact Poly

  3. N-well P-sub NW N-well PP OD contact Poly

  4. N-well As PR N-well P-sub

  5. Field Oxide P-sub NW PP OD Field Oxide contact Poly

  6. Field Oxide CF4 CF4 PR SiNx SiO2 N-well P-sub

  7. Poly Poly P-sub NW PP OD contact Poly

  8. Poly CF4 CF4 PR Poly SiO2 N-well P-sub

  9. P Pluse P-sub NW P Pluse PP OD contact Poly

  10. P Pluse B+ b b Poly SiO2 N-well P+ P+ P-sub

  11. Contact P-sub NW contact PP OD contact Poly

  12. Contact CF4 PR BPSG W W N-well P+ P+ P-sub

  13. Matel 1 P-sub NW Matel 1 PP OD matel contact Poly

  14. Matel 1 CF4 CF4 CF4 PR Matel BPSG W W N-well P+ P+ P-sub

  15. Vial CF4 CF4 PR ILD W W Matel BPSG W W N-well P+ P+ P-sub

  16. Matel 2 P-sub NW Matel2 PP OD contact Poly

  17. Matel 2 CF4 PSG W W PR ILD Matel ILD Matel BPSG W W N-well P+ P+ P-sub
