  1. Arbitrary Rotations in 3D Lecture 18 Wed, Oct 8, 2003

  2. Rotations about an Arbitrary Axis • Consider a rotation through an angle  about a line through the origin. • We must assign a positive direction to the line. • We do this by using a vector rather than a line.

  3. Rotations about an Arbitrary Axis • The function call glRotatef(angle, vx, vy, vz) will create a single matrix that represents a rotation about the vector v = (vx, vy, vz). • There are some clever ways of obtaining this matrix. • We will learn an elementary (non-clever) method.

  4. Rotations about an Arbitrary Axis • To find the matrix of an rotation through an angle  about a vector v emanating from the origin • Rotate about the y-axis so that v is in the xy-plane. Let this angle be  and call the new vector v’. • Rotate about the z-axis so that v’ is aligned with the positive x-axis. Let this angle be –.

  5. Rotations about an Arbitrary Axis • Rotate about the x-axis through angle . • Rotate about the z-axis through angle . • Rotate about the y-axis through angle –.

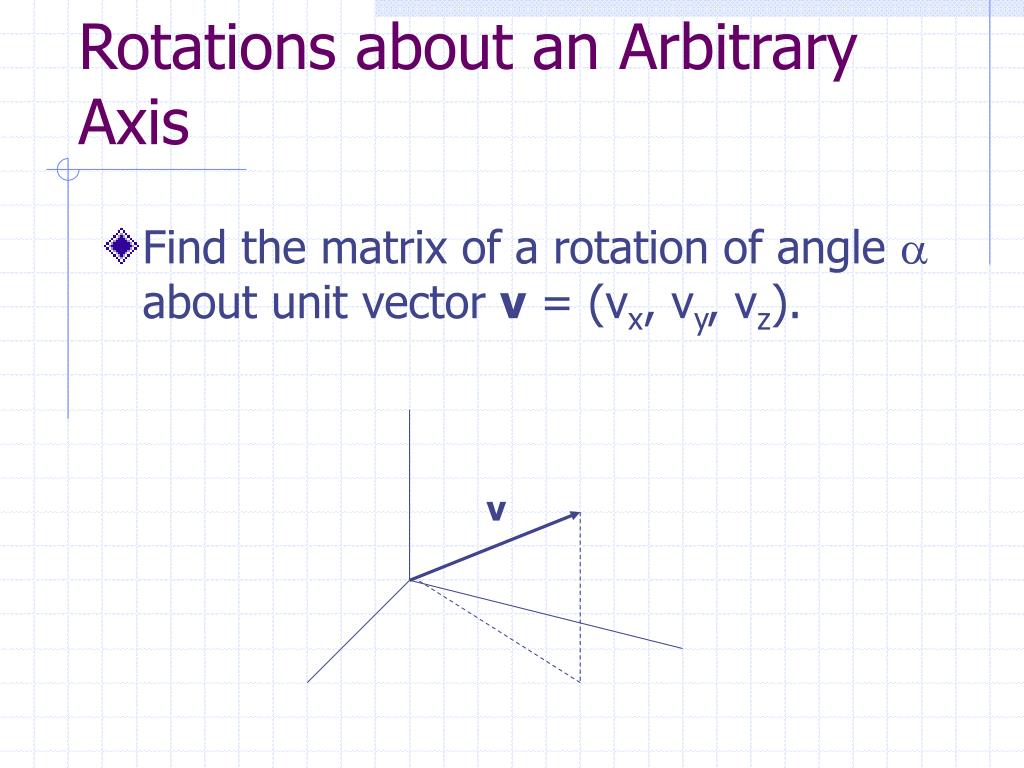

  6. v Rotations about an Arbitrary Axis • Find the matrix of a rotation of angle  about unit vector v = (vx, vy, vz).

  7. v  Rotations about an Arbitrary Axis • Rotate v about the y-axis through angle  to get vector v’. • Call this matrix Ry().

  8. v’  v’’ Rotations about an Arbitrary Axis • Rotate v’ about the z-axis through angle – to get vector v’’. • Call this matrix Rz(–).

  9. v’’ Rotations about an Arbitrary Axis • Rotate about the x-axis through angle . • Call this matrix Rx().

  10. Rotations about an Arbitrary Axis • Then apply Rz(-)–1 followed by Ry()–1. • The matrix of the rotation is the product Ry()–1Rz(-)–1Rx()Rz(-)Ry() • This is the same as Ry(-)Rz()Rx()Rz(-)Ry()

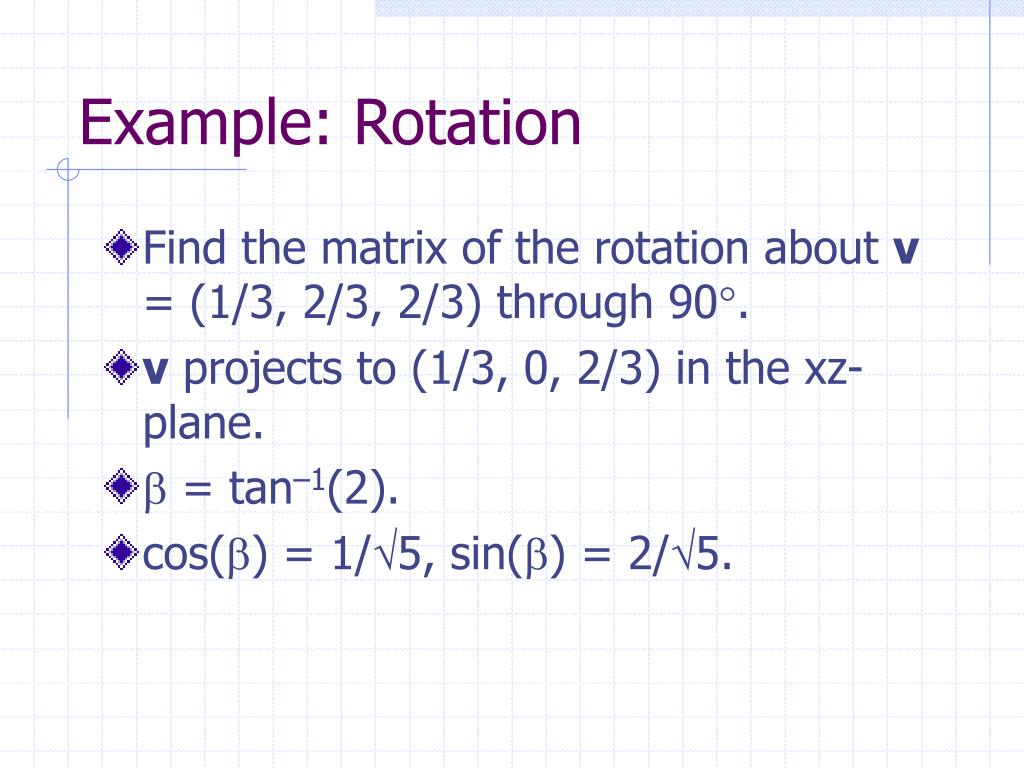

  11. Example: Rotation • Find the matrix of the rotation about v = (1/3, 2/3, 2/3) through 90. • v projects to (1/3, 0, 2/3) in the xz-plane. •  = tan–1(2). • cos() = 1/5, sin() = 2/5.

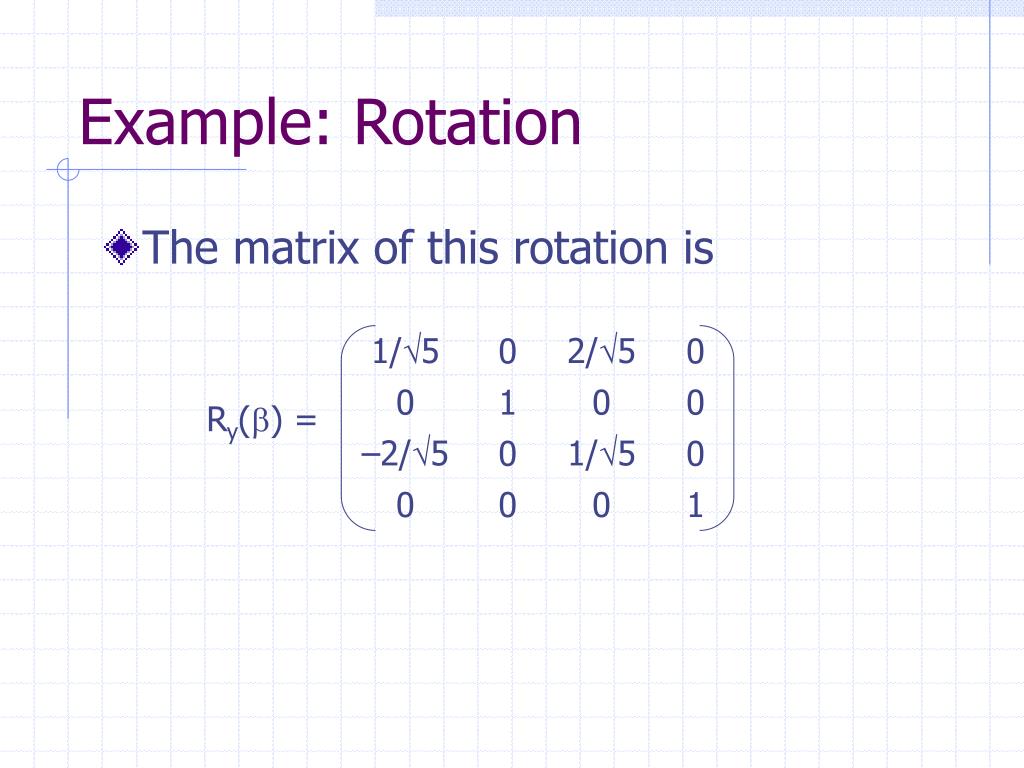

  12. Example: Rotation • The matrix of this rotation is Ry() =

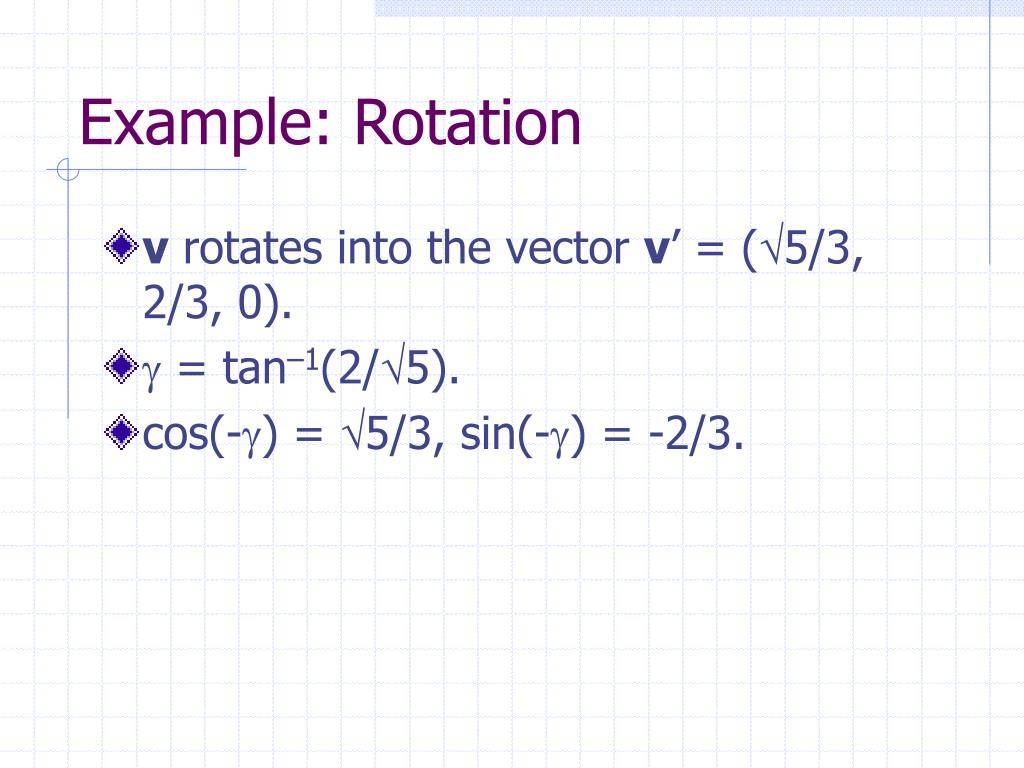

  13. Example: Rotation • v rotates into the vector v’ = (5/3, 2/3, 0). •  = tan–1(2/5). • cos(-) = 5/3, sin(-) = -2/3.

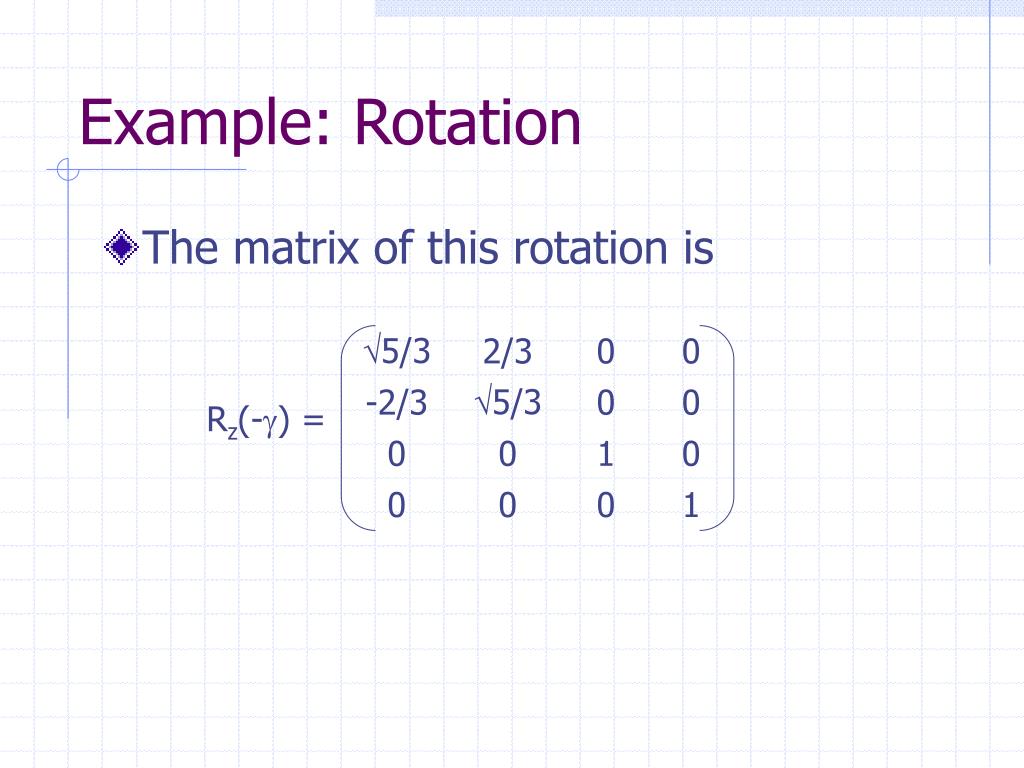

  14. Example: Rotation • The matrix of this rotation is Rz(-) =

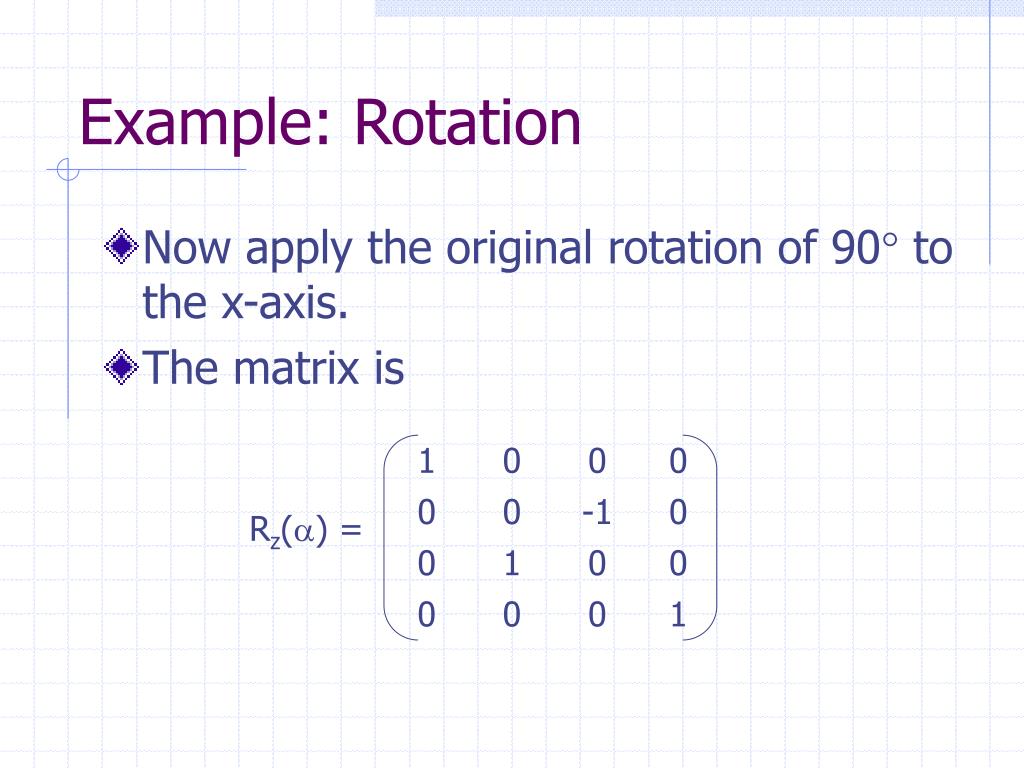

  15. Example: Rotation • Now apply the original rotation of 90 to the x-axis. • The matrix is Rz() =

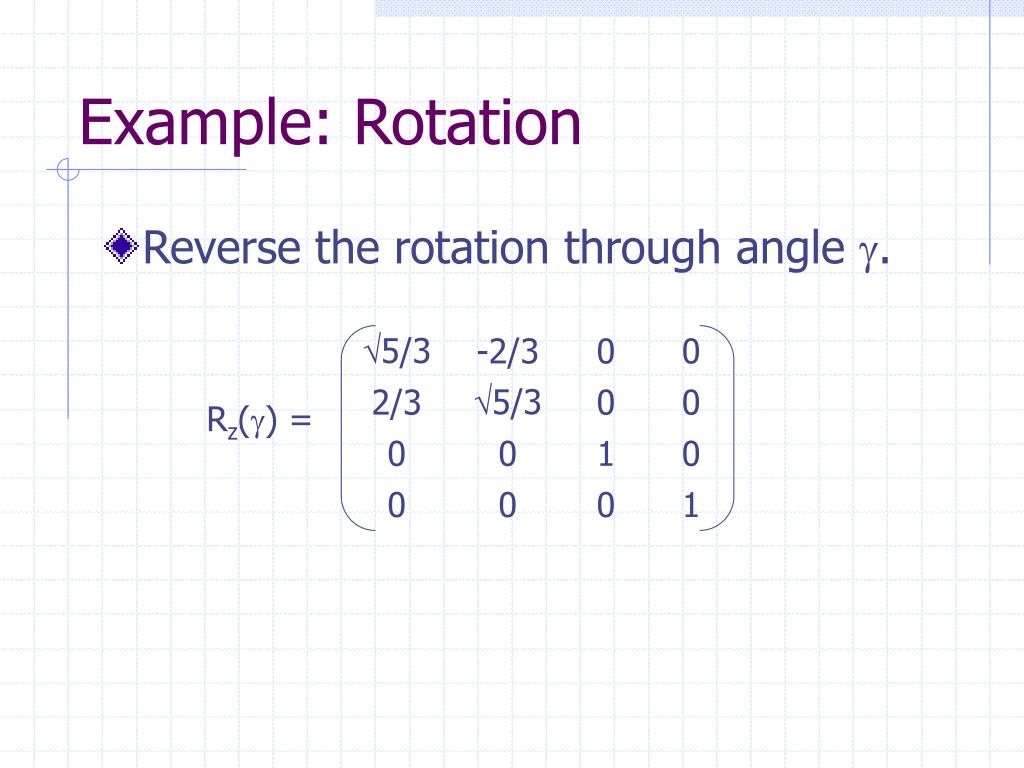

  16. Example: Rotation • Reverse the rotation through angle . Rz() =

  17. Example: Rotation • Reverse the rotation through angle . Ry(-) =

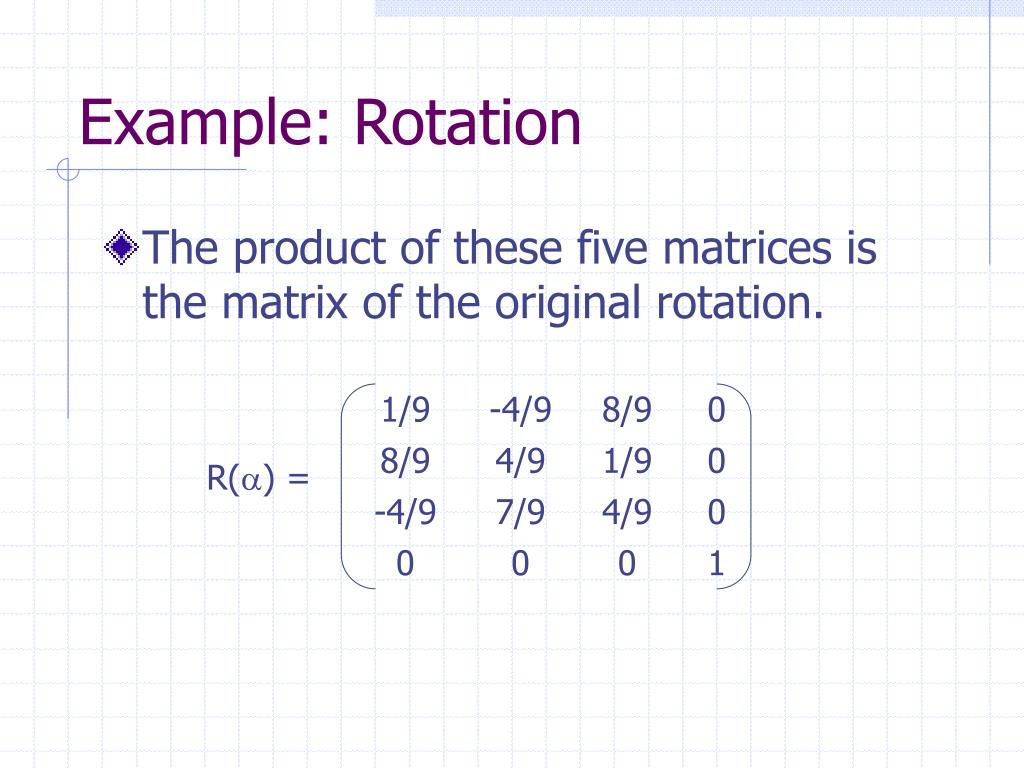

  18. Example: Rotation • The product of these five matrices is the matrix of the original rotation. R() =

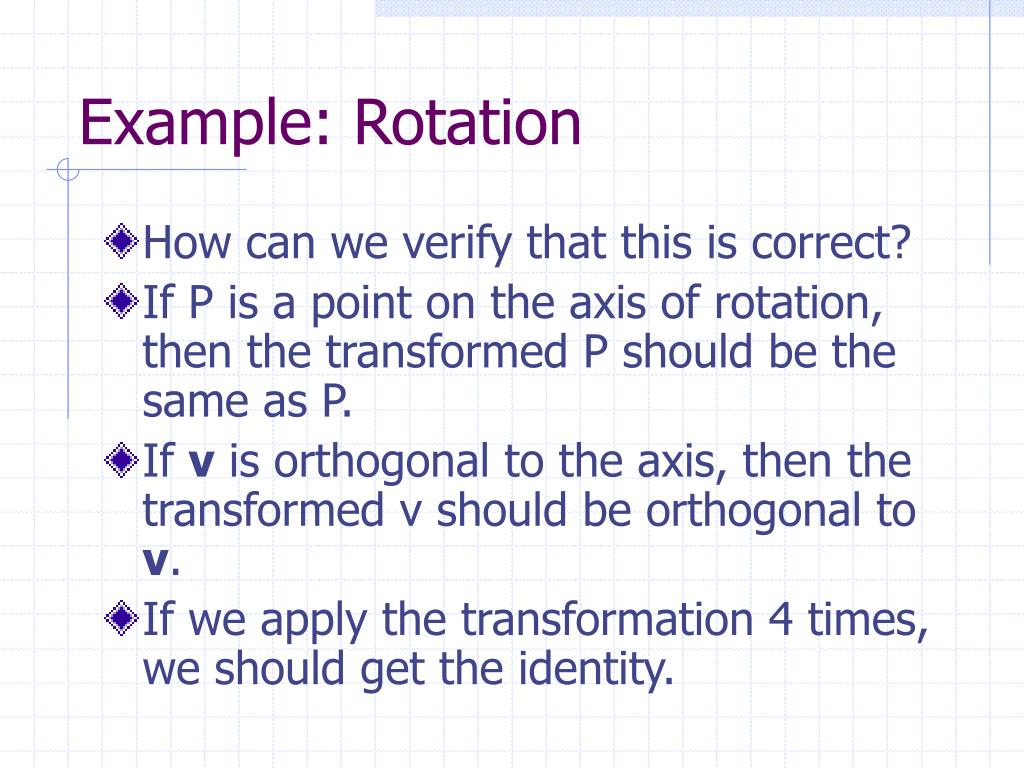

  19. Example: Rotation • How can we verify that this is correct? • If P is a point on the axis of rotation, then the transformed P should be the same as P. • If v is orthogonal to the axis, then the transformed v should be orthogonal to v. • If we apply the transformation 4 times, we should get the identity.

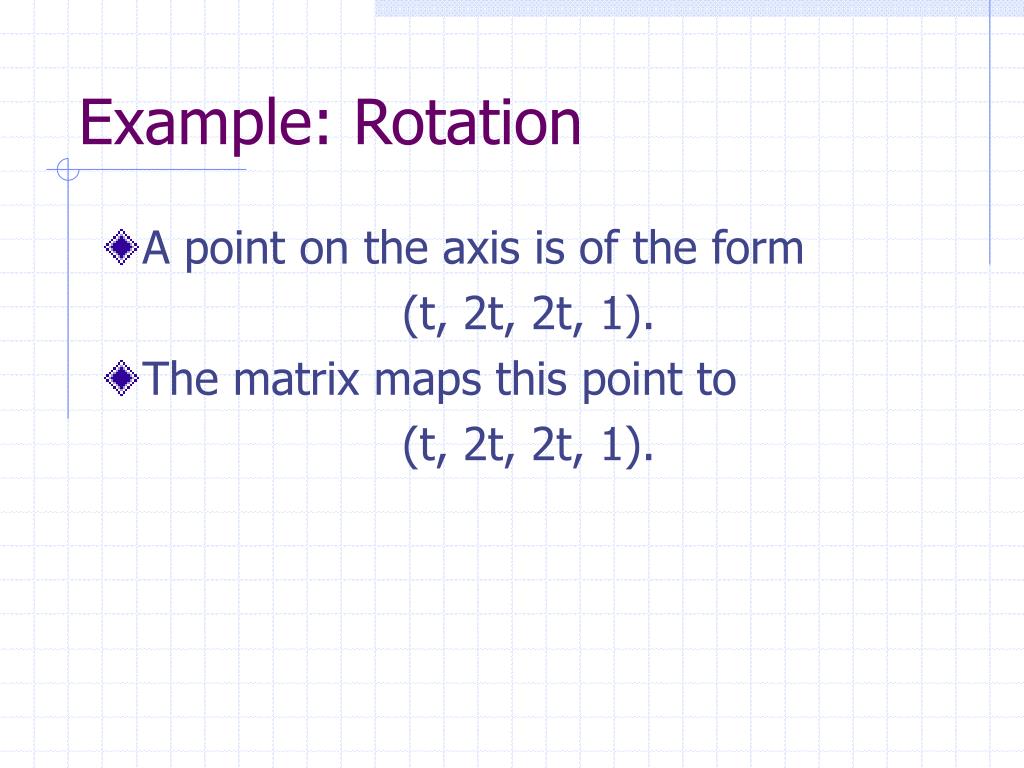

  20. Example: Rotation • A point on the axis is of the form (t, 2t, 2t, 1). • The matrix maps this point to (t, 2t, 2t, 1).

  21. Example: Rotation • Compute R()2 = R()4 =

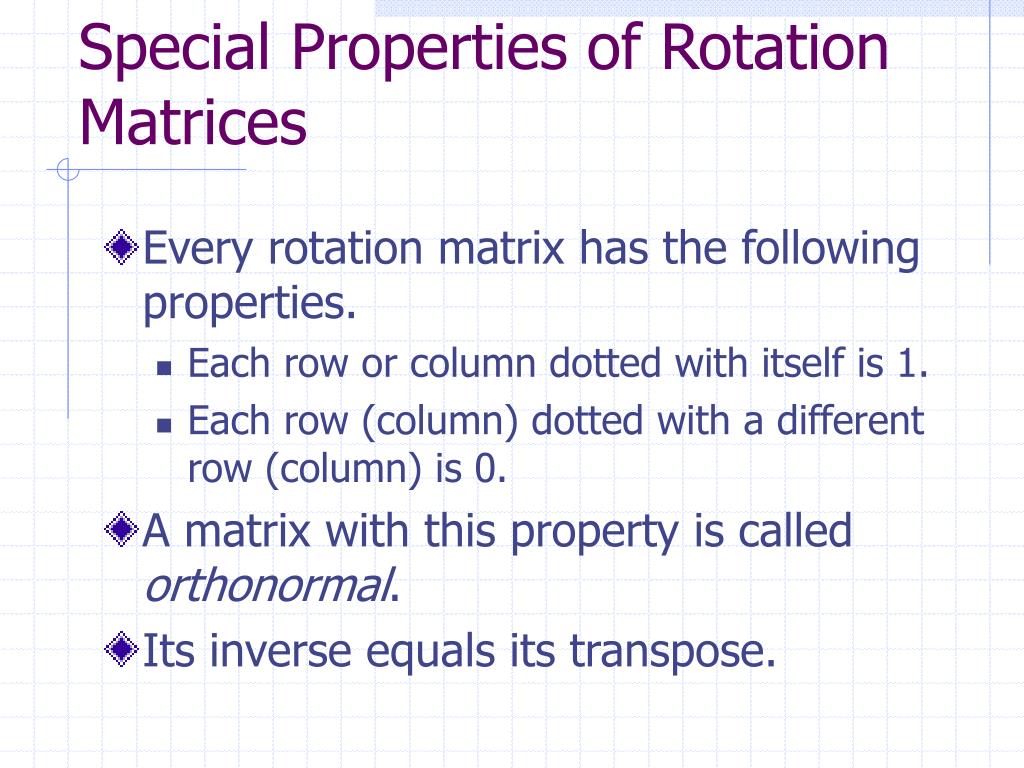

  22. Special Properties of Rotation Matrices • Every rotation matrix has the following properties. • Each row or column dotted with itself is 1. • Each row (column) dotted with a different row (column) is 0. • A matrix with this property is called orthonormal. • Its inverse equals its transpose.

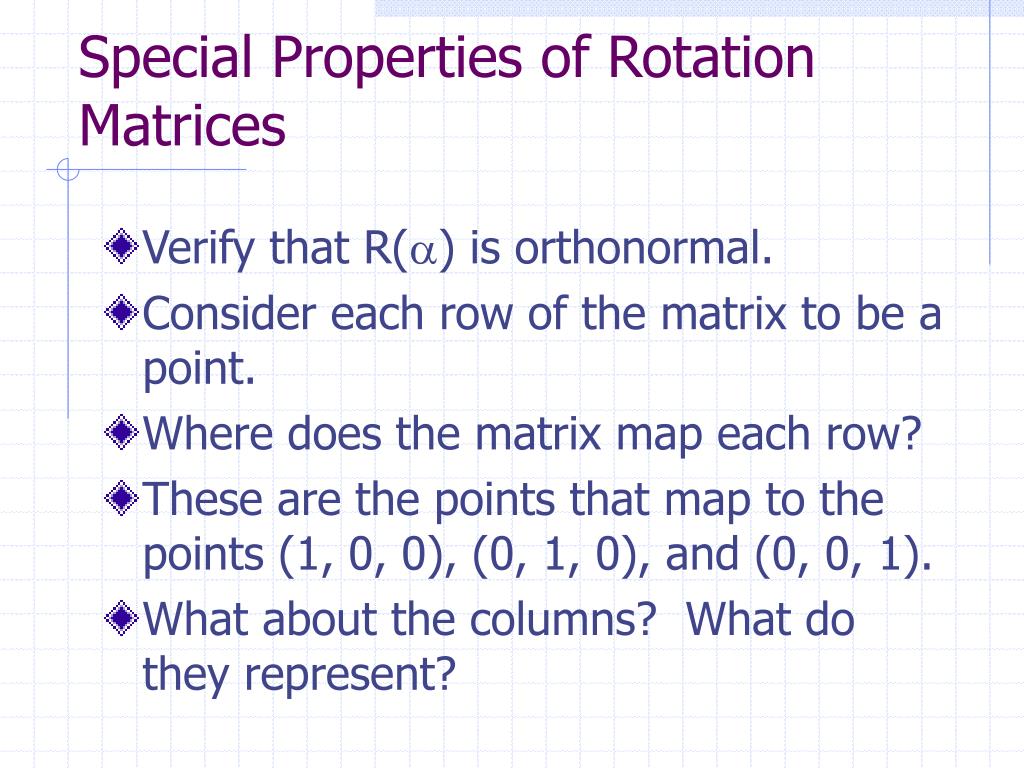

  23. Special Properties of Rotation Matrices • Verify that R() is orthonormal. • Consider each row of the matrix to be a point. • Where does the matrix map each row? • These are the points that map to the points (1, 0, 0), (0, 1, 0), and (0, 0, 1). • What about the columns? What do they represent?
