  1. MP2: Global Illumination Advanced Graphics Rendering and Appearance Modeling Chris Lattner May 5, 2003

  2. What I’ve done... • Global Illumination: • Specifically, chasing after caustics and other indirect illumination • Local illumination model is simple (phong) • Two approaches: • bi-directional raytracing • photon mapping • Built on my existing raytracer • All timings are on an 800mhz P3 laptop

  3. Implementation Details: • Bi-directional Raytracing: • Deposit energy into texture map • Requires tweaking texture resolution • Photon Mapping: • Standard model, uses kd-tree for storage • No projection map, no irradiance cache • Both: • GI only used for indirect illumination • Raytracer handles direct illumination

  4. Example Results: “Simple” Scene • 2 light sources • One “glass sphere” • One reflective sphere • One cylinder • Caustics: • Cardioid from cylinder • Two focusing caustics from glass sphere

  5. Simple: No Global Illumination • Render Time: 217 seconds (800x600)

  6. Simple: Photon Mapped Result • Render Time: 436 seconds • 20,000 photons shot, 30 samples per pixel

  7. Simple: Photon Mapped Result • Render Time: 1344 seconds • 150,000 photons shot, 75 samples per pixel

  8. Simple: Bi-directional Raytracer • Render Time: 402 seconds • 410 rays shot, 512x512 light map

  9. Glass: No Global Illumination • Render Time: 88 seconds (800x600) • Note lack of illumination in the liquid

  10. Glass: Photon Mapped Result • Render Time: 524 seconds • 200,000 photons shot, 100 samples per pixel

  11. Glass: Bi-directional Raytracer • Render Time: 124 seconds • 410 rays shot, 256x256 light map

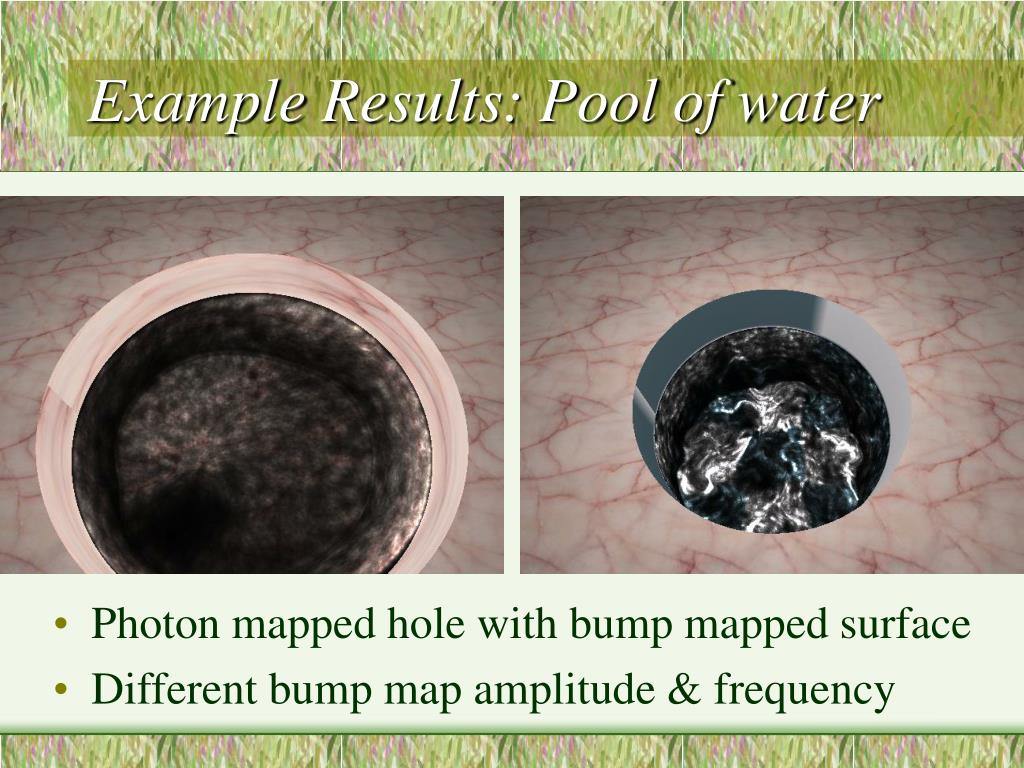

  12. Example Results: Pool of water • Photon mapped hole with bump mapped surface • Different bump map amplitude & frequency

  13. Example Results: Teapot Caustic • Bezier patch model (but no bottom) • Photon mapped, note highlights on teapot

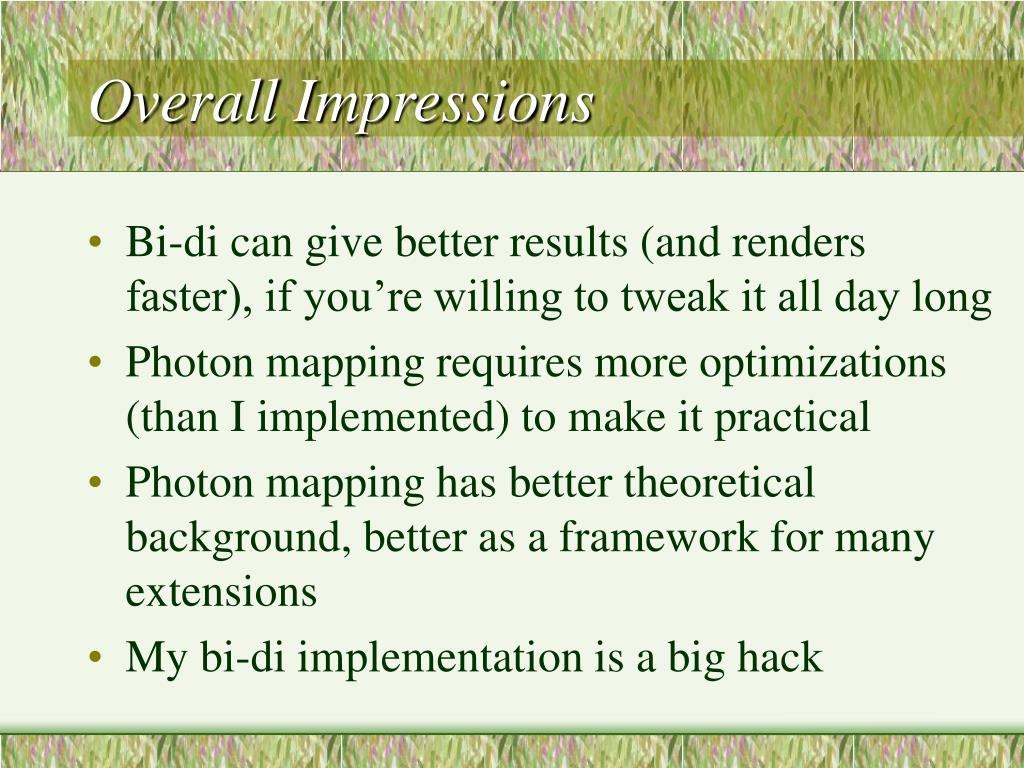

  14. Overall Impressions • Bi-di can give better results (and renders faster), if you’re willing to tweak it all day long • Photon mapping requires more optimizations (than I implemented) to make it practical • Photon mapping has better theoretical background, better as a framework for many extensions • My bi-di implementation is a big hack
