  1. Vaporization

  2. Vaporization Evaporation in an open container. Condensation rate will probably never be as high as evaporation rate.

  3. Vaporization

  4. Vaporization Evaporation in a closed container. Condensation rate will eventually equal evaporation rate.

  5. Vaporization

  6. What factors affect the rate of evaporation?

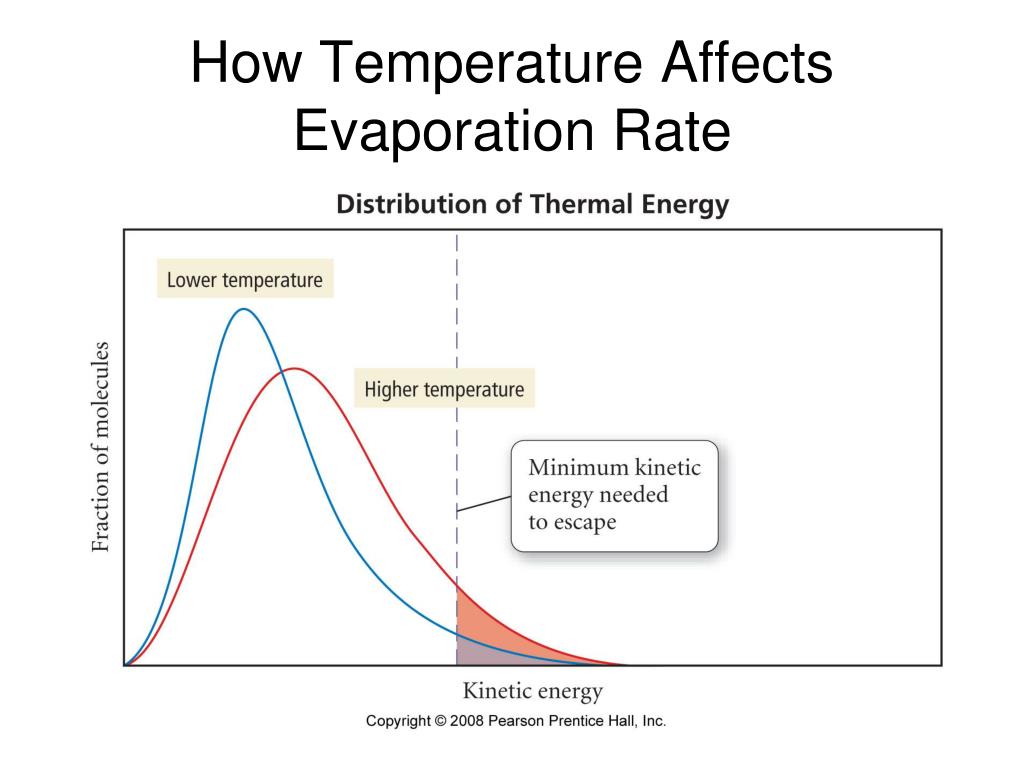

  7. How Temperature Affects Evaporation Rate

  8. What factors affect the rate of evaporation? Temperature Surface area Strength of intermolecular attractive forces

  9. What factors affect equilibrium vapor pressure?

  10. What factors affect equilibrium vapor pressure? Temperature Strength of intermolecular attractive forces

  11. Boiling

  12. Boiling

  13. An Exponential Equation for Pressure • P = β exp(-ΔHvap /RT) • ln P = ln β + ln exp(-ΔHvap / RT) • ln P = ln β - ΔHvap / RT • ln P = ln β - (ΔHvap / R) (1 / T) • Y = b + mX • Plot ln P against 1 / T. Slope = -ΔHvap/R • ΔHvap = -R . Slope where R = 8.314 J / K mol

  14. The 2-Point Clausius-Clapeyron Equation • ln P = ln β - (ΔHvap / R) (1 / T) • ln P2 = ln β - (ΔHvap / R) ( 1 / T2) • Ln P1 = ln β - (ΔHvap / R) (1 / T1) • ln P2 - ln P1 = (ΔHvap / R) (1 / T1 - 1 / T2) • Ln (P2 / P1) = (ΔHvap / R) (1 / T1 - 1 / T2)
