  1. Introducing the CP1L-E Micro-PLC featuring Integrated Ethernet and Analog Customer

  2. Contents • Omron PLC Lineup • CP1 Micro PLC Family • New CP1L-E Micro PLC • More Functionality • Same Low Cost • Better Solution • References and Resources

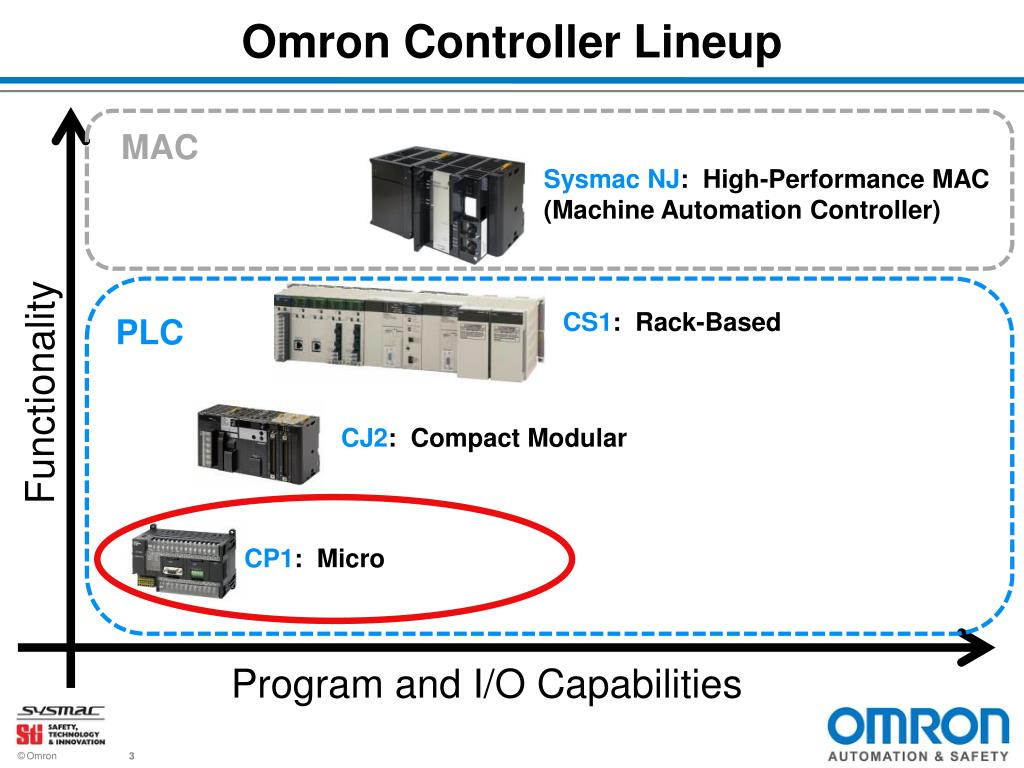

  3. Omron Controller Lineup MAC Sysmac NJ: High-Performance MAC (Machine Automation Controller) CS1: Rack-Based PLC Functionality CJ2: Compact Modular CP1: Micro Program and I/O Capabilities

  4. CP1H: High-Performance Micro PLC 20 – 320 I/O (4 axis motion, 4 High Speed Counters add CJ Special I/O) Omron CP1 Micro PLC Lineup Micro PLC Sept. 25 2012 Functionality CP1L: Mid-RangeMicro PLC 10 – 180 I/O (2 Axis motion, 2 High Speed Counters) CP1L-E: Mid-Range w/ Ethernet & Analog 20 – 160 I/O (2 Axis motion, 2 Analog In, Ethernet, 2 High Speed Counters) CP1E: Economy-ClassMicro PLC 10 – 180 I/O (N models built-in RS232,motion capable) Program and I/O Capabilities

  5. CP1 Micro PLC Options & Expansions CP1Family Expansion Modules Option Boards

  6. All New CP1L-E Micro PLC Integrated Analog Inputs NEW Low-Cost Option Boards Built-in Ethernet Expanded FB Memory CP1L-E • New Lead CP1-Series PLC

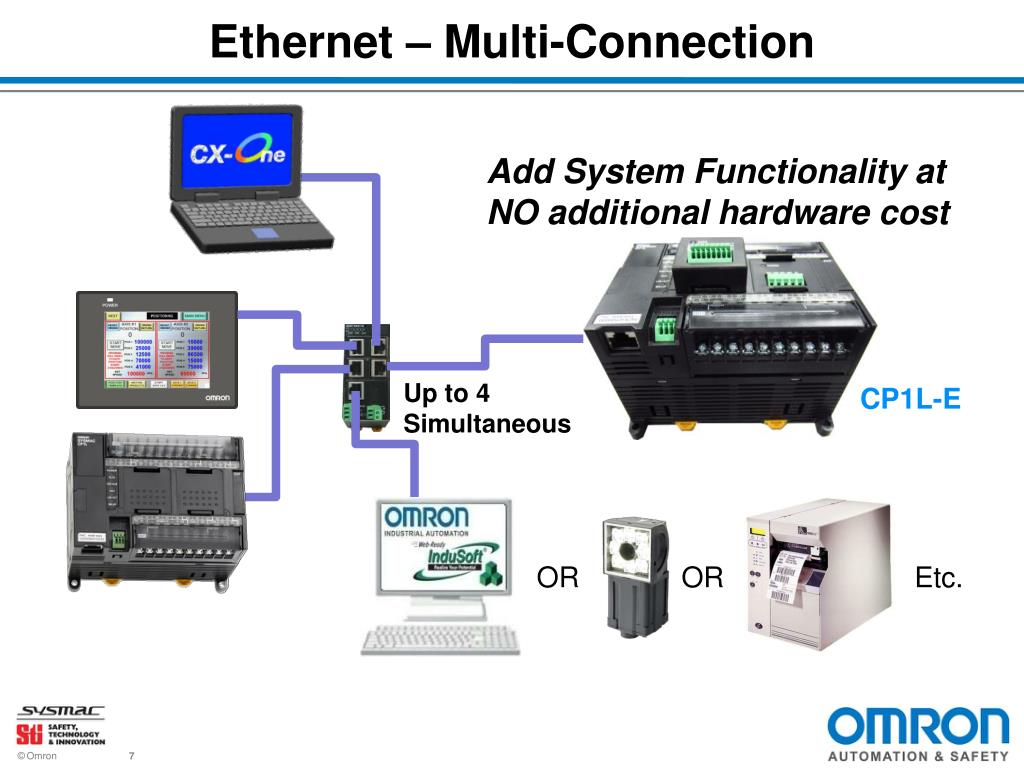

  7. Ethernet – Multi-Connection Add System Functionality at NO additional hardware cost Up to 4 Simultaneous CP1L-E OR OR Etc.

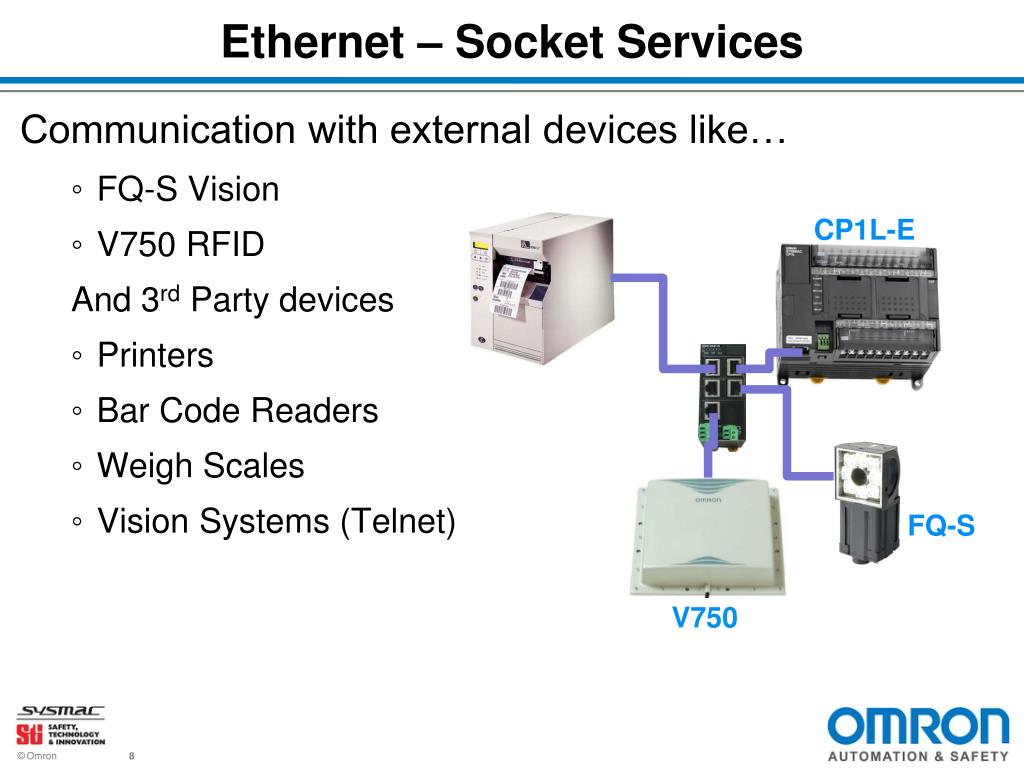

  8. Ethernet – Socket Services Communication with external devices like… • FQ-S Vision • V750 RFID And 3rd Party devices • Printers • Bar Code Readers • Weigh Scales • Vision Systems (Telnet) CP1L-E Label 2 Label 1 Label 3 FQ-S V750

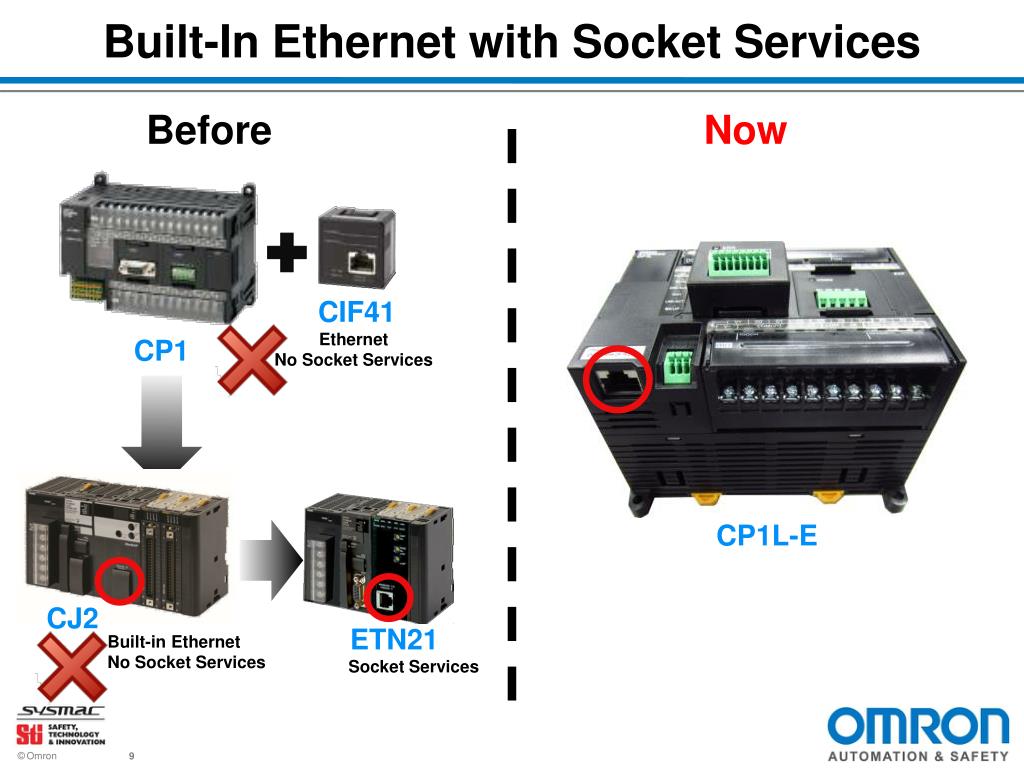

  9. Built-In Ethernet with Socket Services Before Now Ethernet No Socket Services CP1L-E CJ2 CIF41 Built-in Ethernet No Socket Services ETN21 Socket Services CP1

  10. Can You Quickly Tell The Difference? Good thing the CP1L-E Micro PLC has Auto Crossoverso you don’t have to… Straight-Thru Crossover

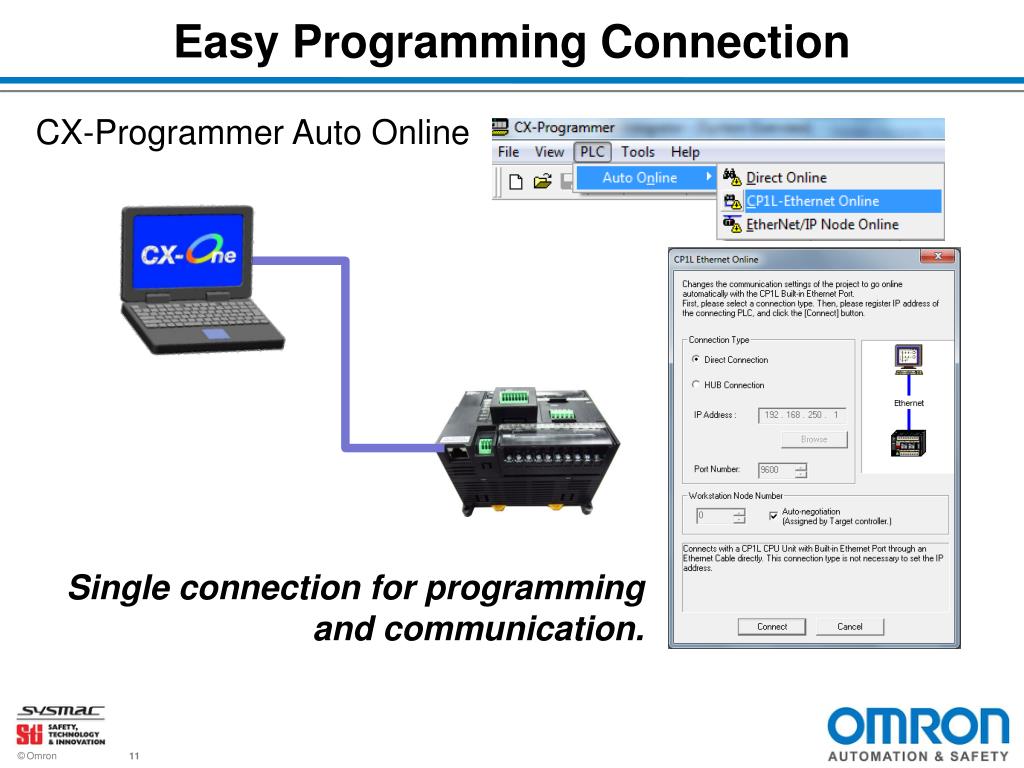

  11. Easy Programming Connection CX-Programmer Auto Online • Single connection for programming and communication.

  12. CP1L-E, NB-Series and Inverter Solutions Plug &Work Applications • MX2 Function Blocks reduce program time and minimize errors CP1L-E NB with Ethernet Switch Ethernet Modbus-RTU MX2 No Ethernet Switch needed When connecting 2 devices

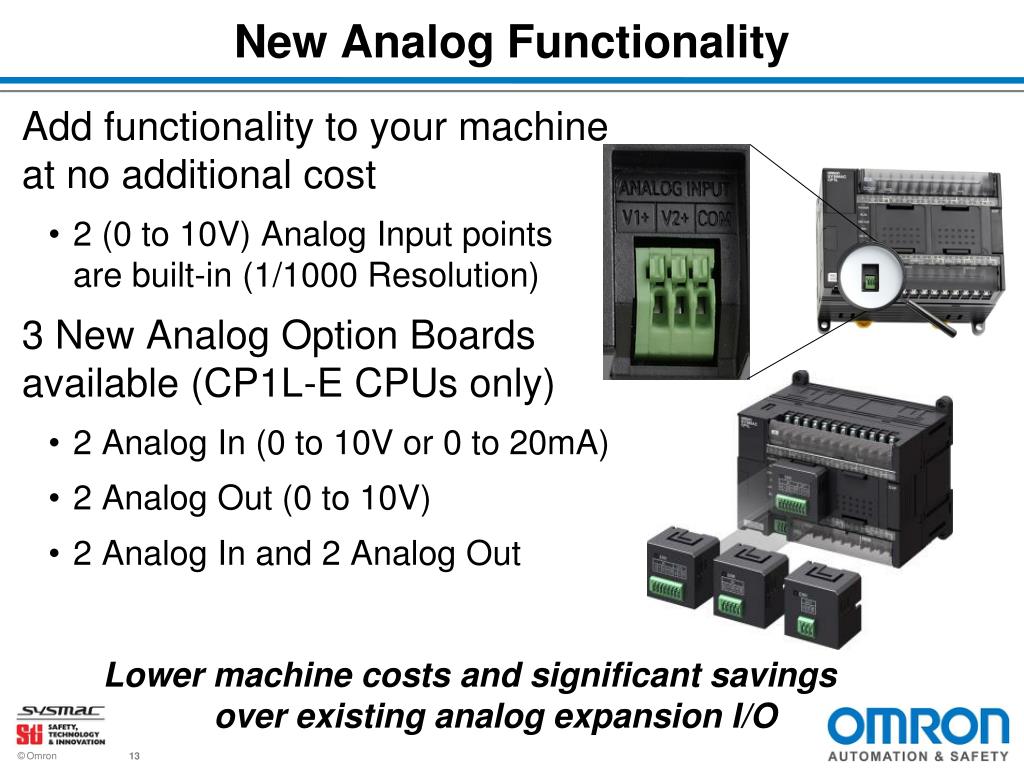

  13. New Analog Functionality Add functionality to your machine at no additional cost • 2 (0 to 10V) Analog Input points are built-in (1/1000 Resolution) 3 New Analog Option Boards available (CP1L-E CPUs only) • 2 Analog In (0 to 10V or 0 to 20mA) • 2 Analog Out (0 to 10V) • 2 Analog In and 2 Analog Out • Lower machine costs andsignificant savings over existing analog expansion I/O

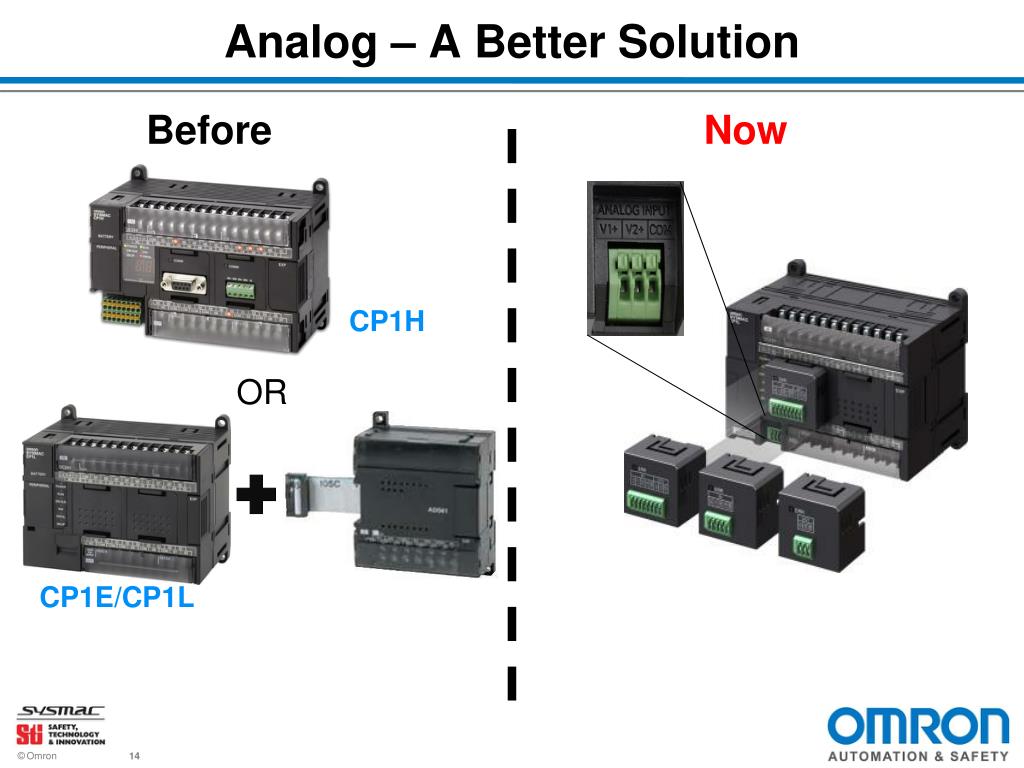

  14. Analog – A Better Solution Before Now CP1H OR CP1E/CP1L

  15. Advanced PID Control Made Easy • Use the built-in analog inputs for PID control with Auto-Tune • Single instruction setup Set Value Present Value • No need for dedicated Temperature Controllers, lowering overall machine costs

  16. Why Function Blocks? Advantages • Code Reusability • Users FBs and FB Libraries • Hundreds of FBs in CX-Programmer • Code Security and Protection Trade-off? • Memory Consumption • Compiled Code • Saves Development Time

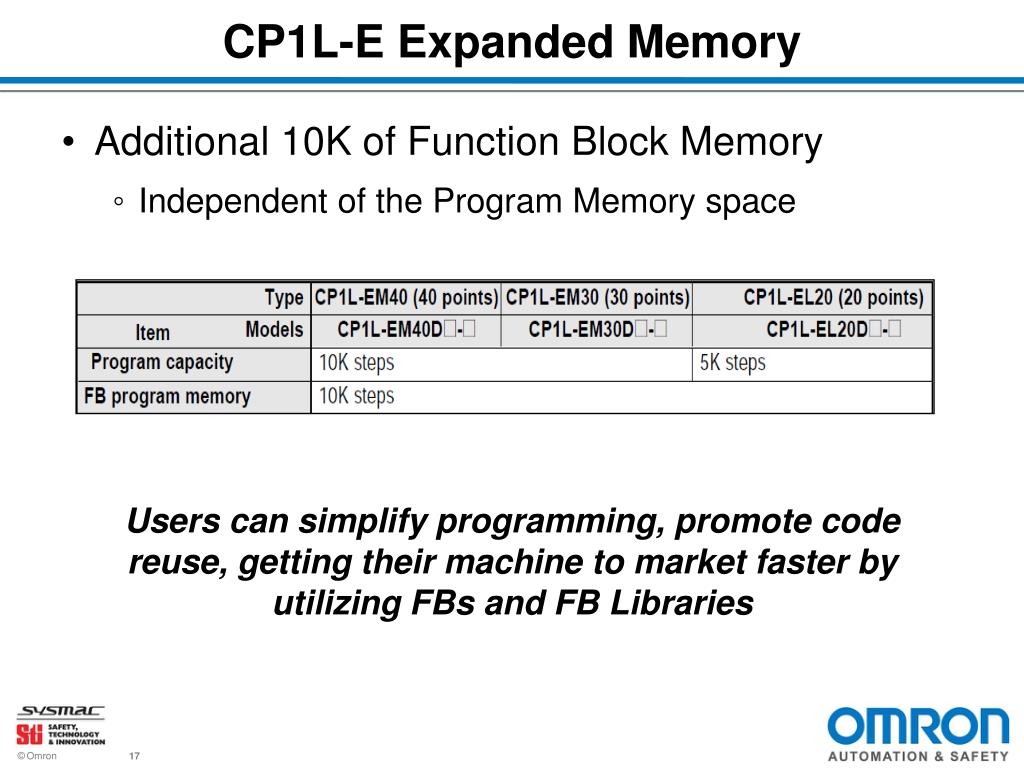

  17. CP1L-E Expanded Memory • Additional 10K of Function Block Memory • Independent of the Program Memory space • Users can simplify programming, promote code reuse, getting their machine to market faster by utilizing FBs and FB Libraries

  18. Other OEM-Focused Features • Pulse Output for 2 Axes– High-Speed Positioning (100 kHz) Transistor Models only • High Speed Counters – Single-phase for four axes (100 kHz) or Differential 2 Axes (50 kHz) • Easily Expandable– Expand CP1L-E to 160 I/O points using CP1W expansion I/O • Solve Complex Programming Issues– Floating-point math and trigonometric functions, Function Blocks and Structured Text are all available • Quick Modifications– PLC programs with online editing allows you to make changes quickly • Program Comments and Symbols – Stored locally in the PLC, documentation always stays up-to-date • One Software for the Application– CX-One / CX-One Lite

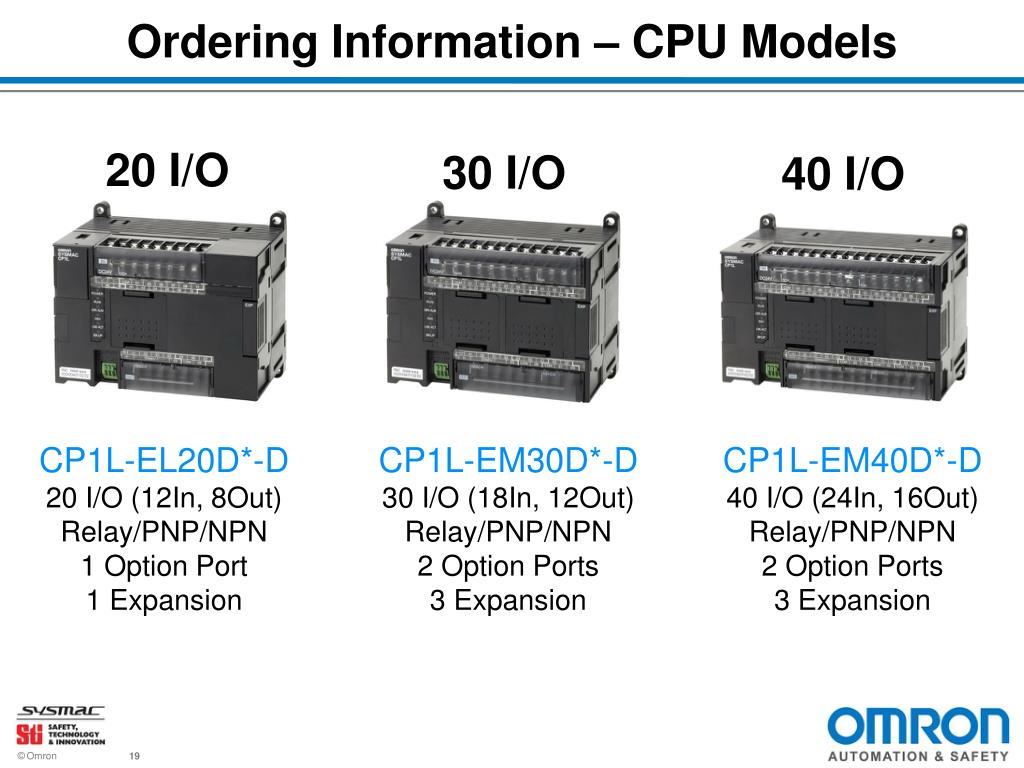

  19. Ordering Information – CPU Models 20 I/O 30 I/O 40 I/O • CP1L-EL20D*-D 20 I/O (12In, 8Out) Relay/PNP/NPN 1 Option Port • 1 Expansion • CP1L-EM30D*-D 30 I/O (18In, 12Out) • Relay/PNP/NPN • 2 Option Ports • 3 Expansion • CP1L-EM40D*-D 40 I/O (24In, 16Out) • Relay/PNP/NPN • 2 Option Ports • 3 Expansion

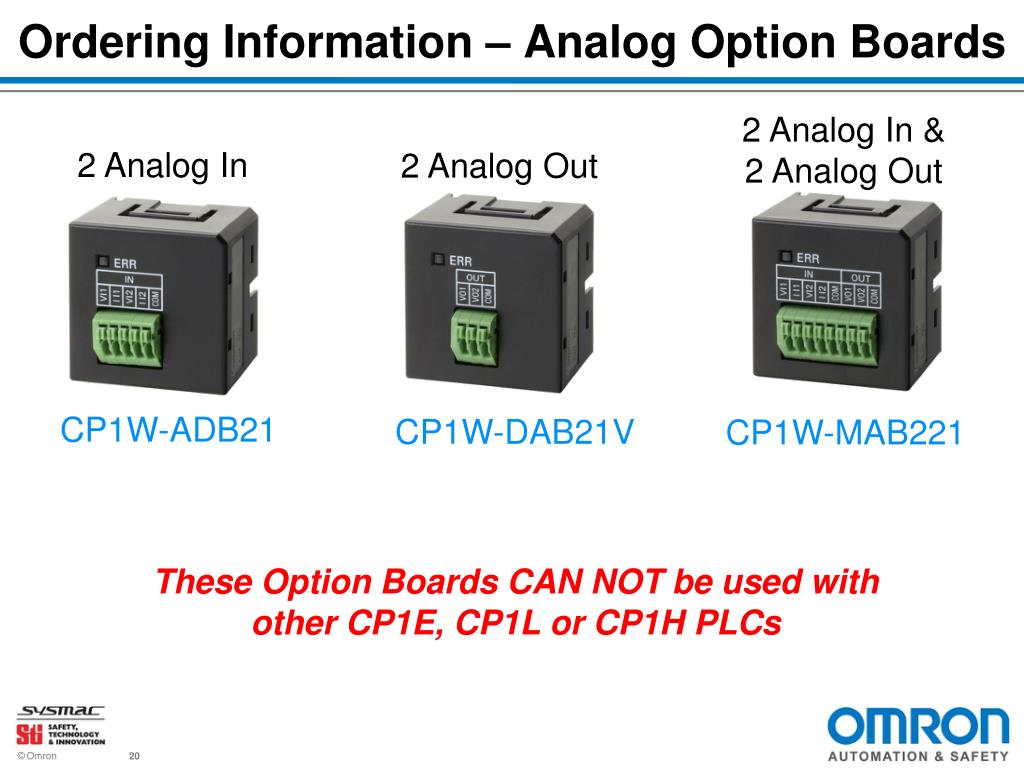

  20. Ordering Information – Analog Option Boards 2 Analog In & 2 Analog Out 2 Analog In 2 Analog Out CP1W-ADB21 CP1W-DAB21V CP1W-MAB221 • These Option Boards CAN NOT be used with other CP1E, CP1L or CP1H PLCs

  21. Supported Option Boards *1) The CP1E-E and CP1E-N14/N20 CPU units do not have Option Board slots

  22. CP1-Series Expansion Options • Analog • A/D, D/A, MAD • Thermocouple & RTD • Digital • Inputs, Outputs, In & Out • Remote • DeviceNet • CompoBus/S

  23. References and Resources www.omron247.com • Brochure • Manuals • CAD Files 30-day CX-One V4 Trial Software available on request

  24. CP1L-E and NB HMI Demo Kit Omron PLC and HMI Integration with Ethernet DEMO-NB7CP1V2 • Omron NB7W-TW01B: 7” NB HMI, Ethernet • Omron CP1L-EL20DT-D: 12In/8Out • 2 Built-In Analog Inputs • Additional 2 A/D and 2 D/A Option Board • Omron Analog Fiber Sensor • Omron Power Supply

  25. Summary New CP1L-E PLC • More Functionality • Built-in Ethernet with Socket Services • Built-in Analog and Low-Cost Option Boards • Expanded FB Memory • OEM Competitive Price • Better Complete Solutions CP1L-E and NB Demonstration Available Pan-American Launch September 25th

  26. Mike Chen Commercial Marketing Group Manager Rich Jackson Commercial Engineer PLC, HMI, Software Johnston Hall Commercial Engineer PLC, I/O, Networks
