Lunar Descent Analysis

Lunar Descent Analysis. January 29, 2009. LLO (Low Lunar Orbit) Analysis. ∆V add-on 150 m/s for increase from 100 km to 500 km orbit Optimize with LLO insertion ∆V to minimize total ∆V. Altitude of LLO important in minimizing ∆V and in ensuring stable orbit. Airbag vs. Soft L anding

mandar
Télécharger la présentation

Lunar Descent Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lunar Descent Analysis January 29, 2009 [Alex Whiteman] [Mission Ops]

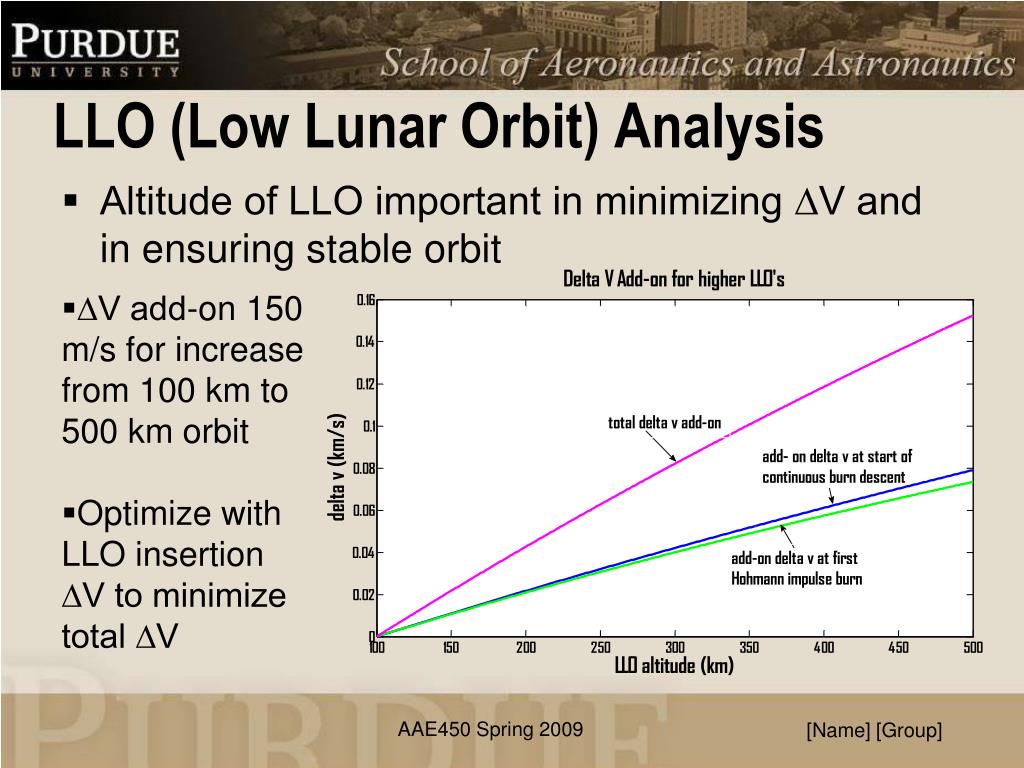

  2. LLO (Low Lunar Orbit) Analysis • ∆V add-on 150 m/s for increase from 100 km to 500 km orbit • Optimizewith LLO insertion ∆V to minimize total ∆V [Name] [Group] Altitude of LLO important in minimizing ∆V and in ensuring stable orbit

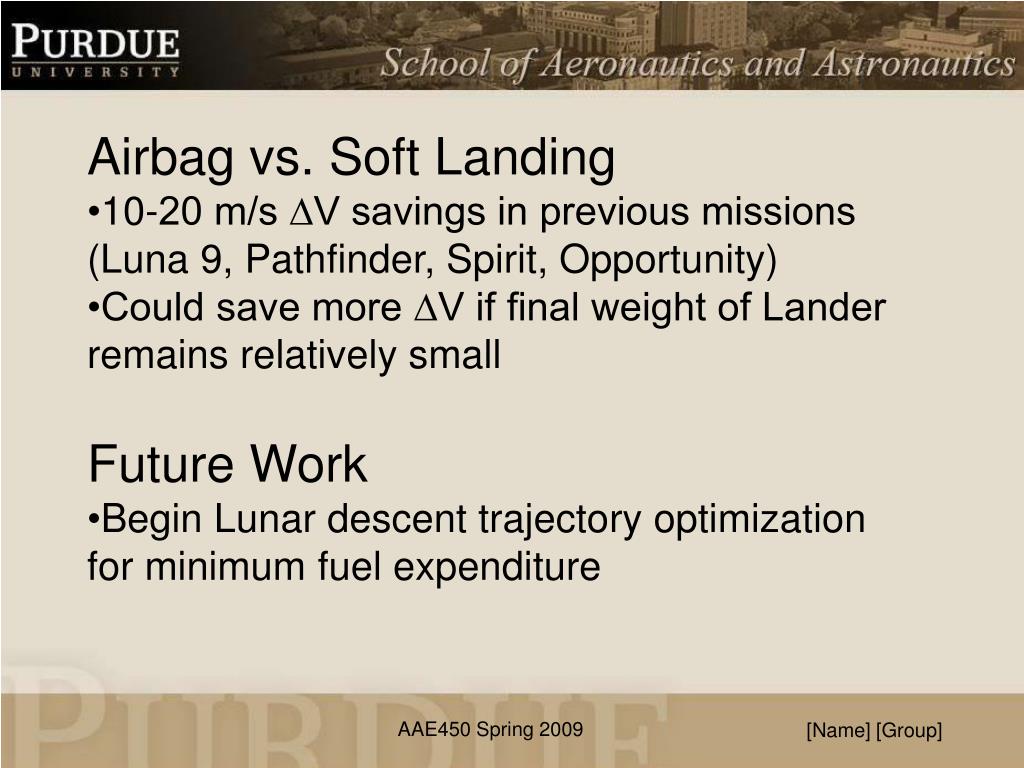

  3. Airbag vs. Soft Landing • 10-20 m/s ∆V savings in previous missions (Luna 9, Pathfinder, Spirit, Opportunity) • Could save more ∆V if final weight of Lander remains relatively small • Future Work • Begin Lunar descent trajectory optimization for minimum fuel expenditure [Name] [Group]

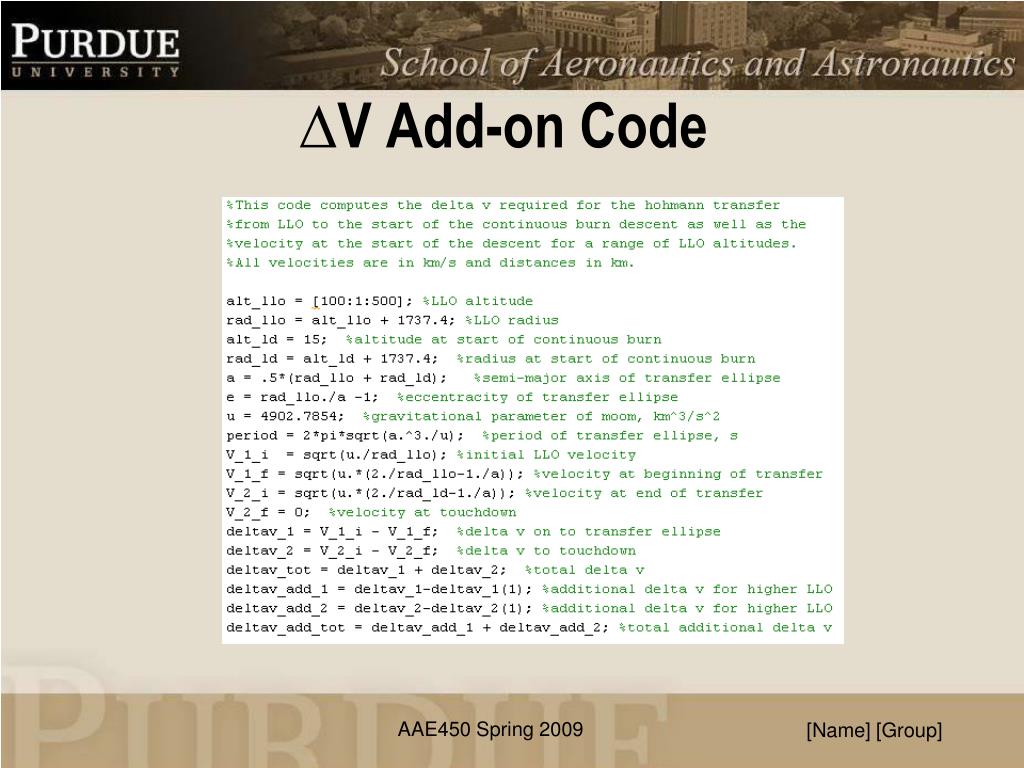

  4. ∆V Add-on Code [Name] [Group]

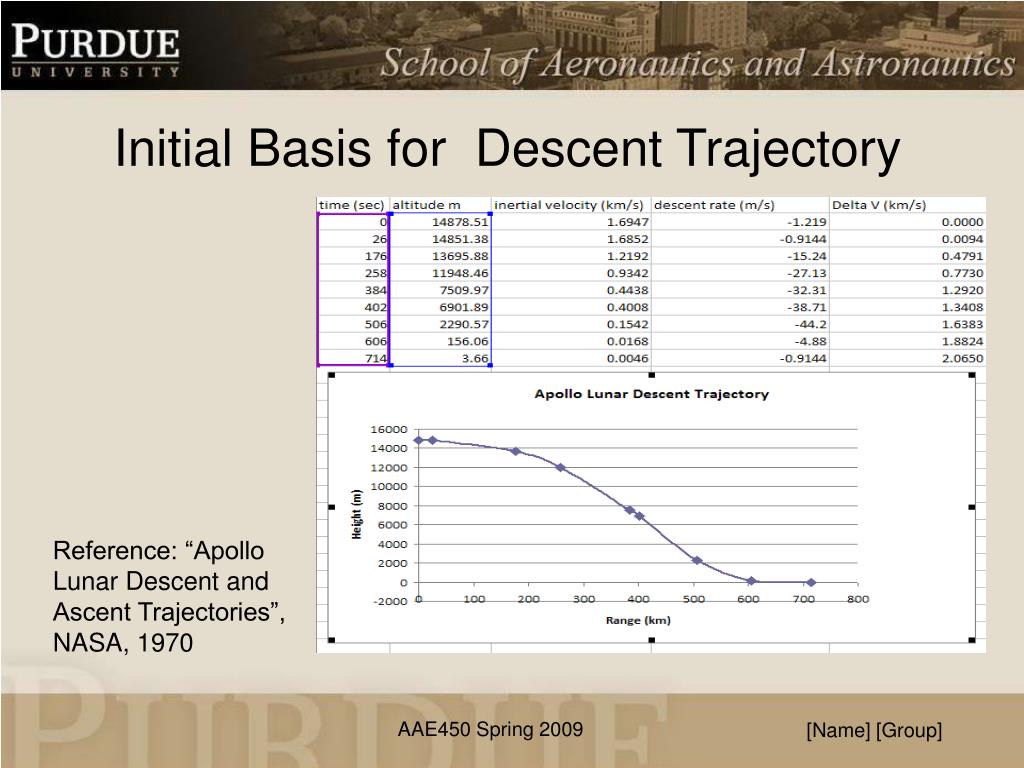

  5. Initial Basis for Descent Trajectory Reference: “Apollo Lunar Descent and Ascent Trajectories”, NASA, 1970 [Name] [Group]
