1. CS161 Computer Security Finding bugs: Analysis Techniques & Tools Symbolic Execution& Constraint Solving Cho, Chia Yuan

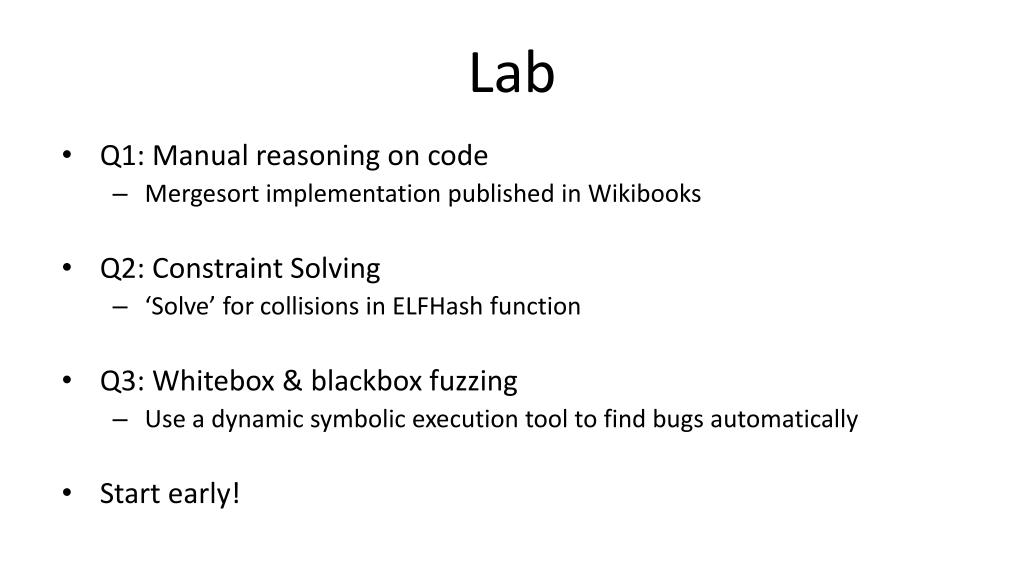

2. Lab • Q1: Manual reasoning on code • Mergesort implementation published in Wikibooks • Q2: Constraint Solving • ‘Solve’ for collisions in ELFHash function • Q3: Whitebox & blackbox fuzzing • Use a dynamic symbolic execution tool to find bugs automatically • Start early!

3. Big Picture Attacks & Defenses Mobile Security (Android) Web Security Network Security Crypto Symbolic Execution & Constraint Solving Why? Program Analysis & Verification

4. A little history … Can we build a machine that can automatically reason and prove mathematical facts about programs?

5. 1967

6. 1967

7. 1976 “From one simple view, it is an enhanced testing technique. Instead of executing a program on a set of sample inputs, a program is "symbolically" executed for a set of classes of inputs.”

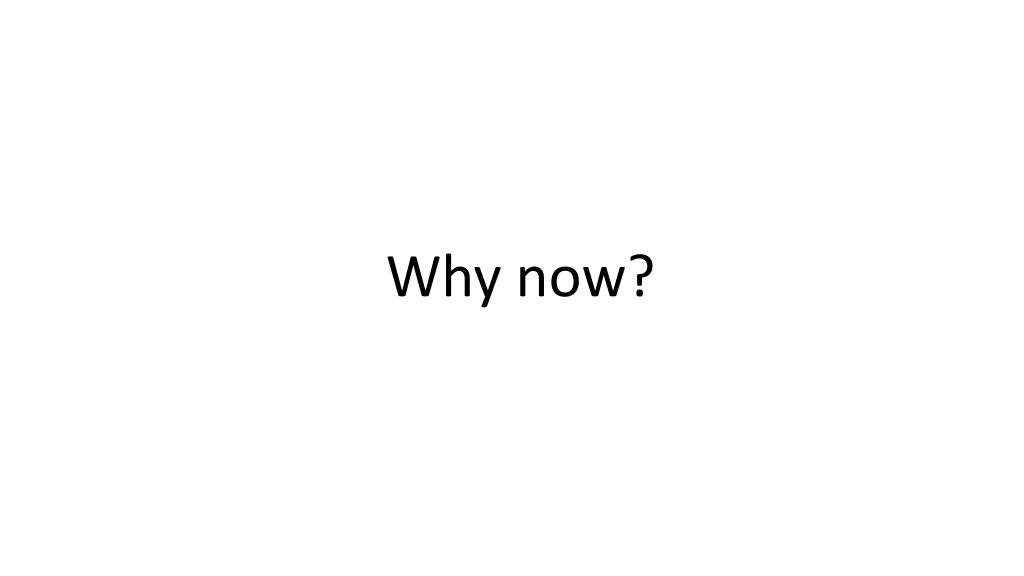

8. Why now?

10. Advances in SAT Solvers Source: SanjitSeshia

11. Advances in SAT Solvers Source: SanjitSeshia

12. Significance

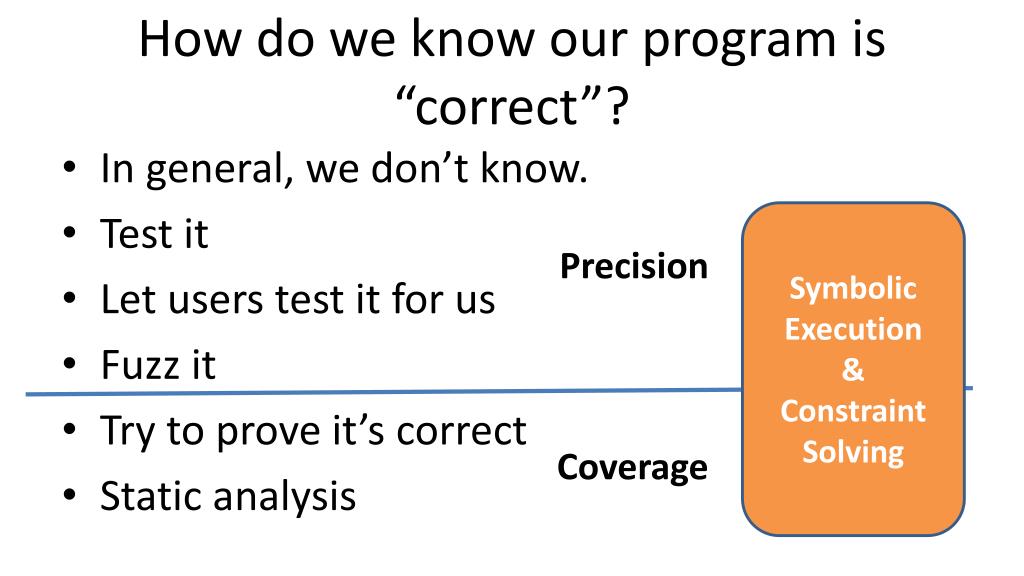

13. How do we know our program is “correct”? • In general, we don’t know. • Test it • Let users test it for us • Fuzz it • Try to prove it’s correct • Static analysis Symbolic Execution & Constraint Solving Precision Coverage

14. Dynamic Sym Exec is Directed Testing len = input + 3; if len< 10 • Path-by-path exploration F T • (len == input + 3) • && !(len < 10) • && !(len%2==0) if len % 2 == 0 s = len T F s = len + 2 s = len buf=malloc(s); read(fd, buf, len);

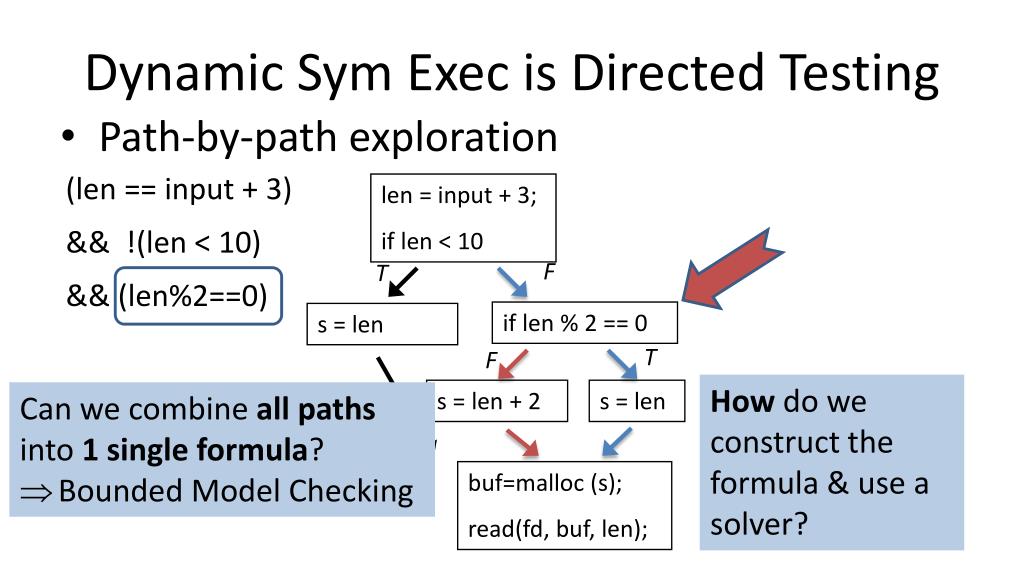

15. Dynamic Sym Exec is Directed Testing len = input + 3; if len< 10 • Path-by-path exploration F T • (len == input + 3) • && !(len < 10) • && (len%2==0) if len % 2 == 0 s = len T F s = len + 2 s = len How do we construct the formula & use a solver? • Can we combine all paths into 1 single formula? • Bounded Model Checking buf=malloc(s); read(fd, buf, len);

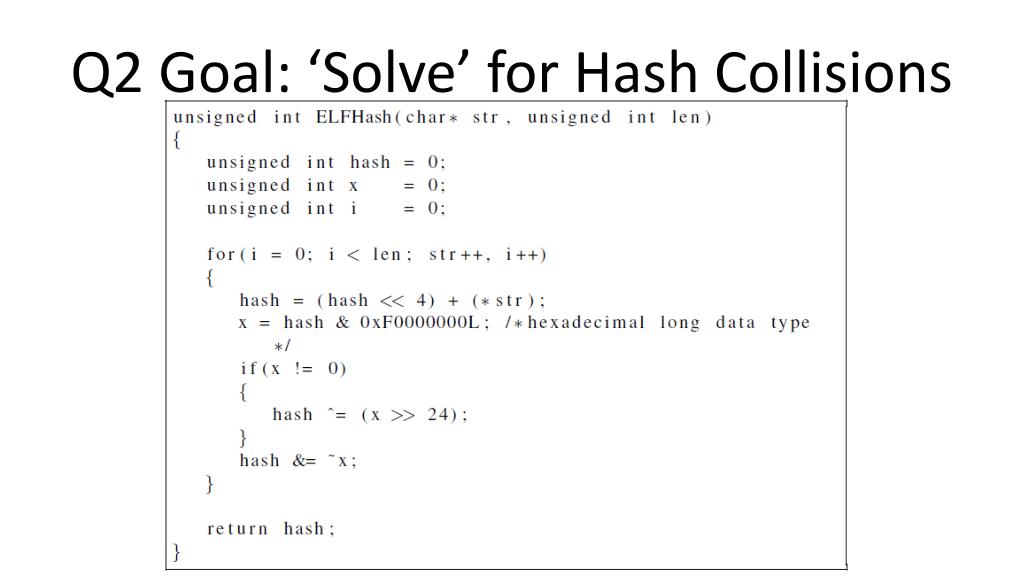

16. Q2 Goal: ‘Solve’ for Hash Collisions

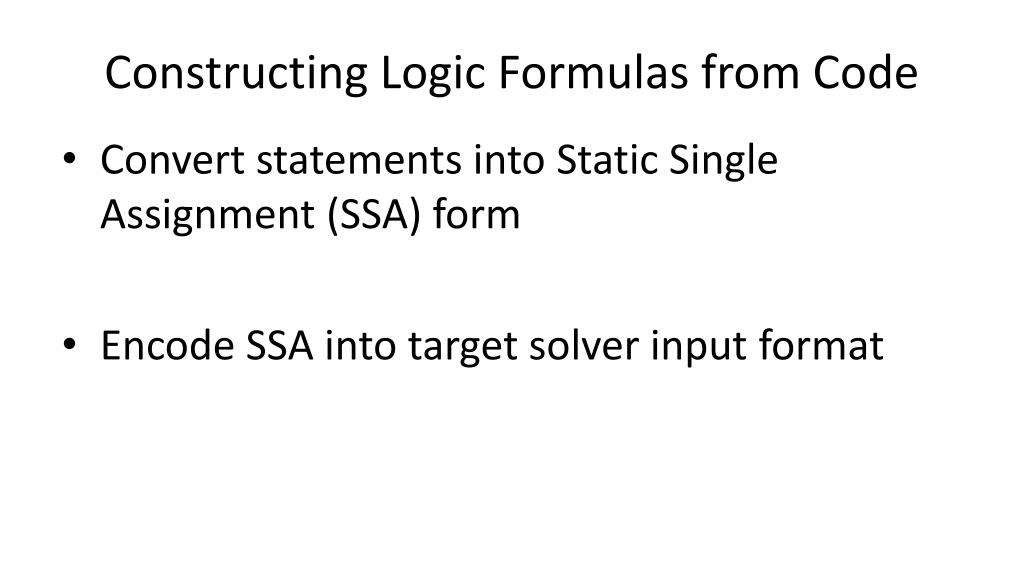

17. Constructing Logic Formulas from Code • Convert statements into Static Single Assignment (SSA) form • Encode SSA into target solver input format

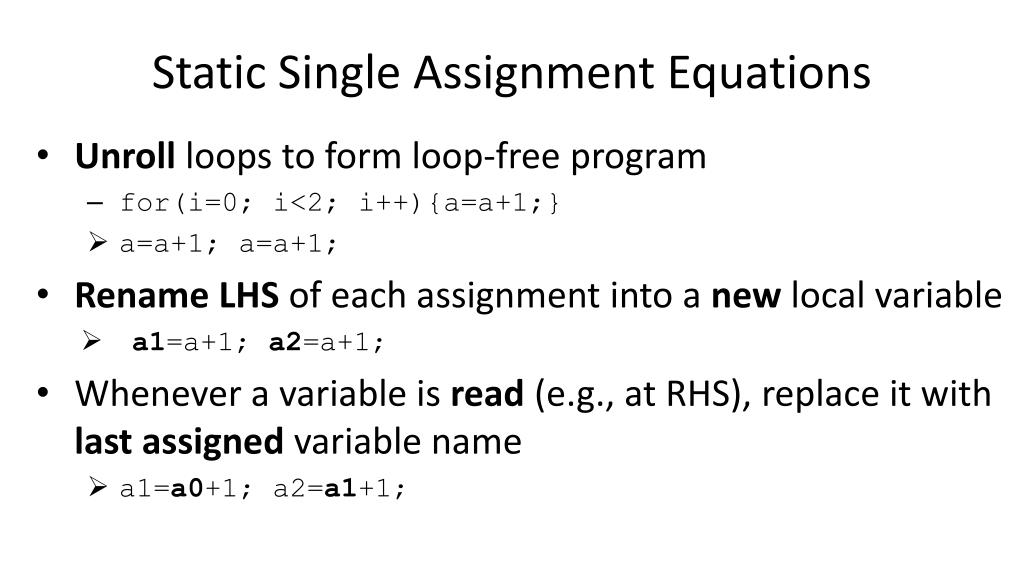

18. Static Single Assignment Equations • Unroll loops to form loop-free program • for(i=0; i<2; i++){a=a+1;} • a=a+1; a=a+1; • Rename LHS of each assignment into a new local variable • a1=a+1; a2=a+1; • Whenever a variable is read (e.g., at RHS),replace it with last assigned variable name • a1=a0+1; a2=a1+1;

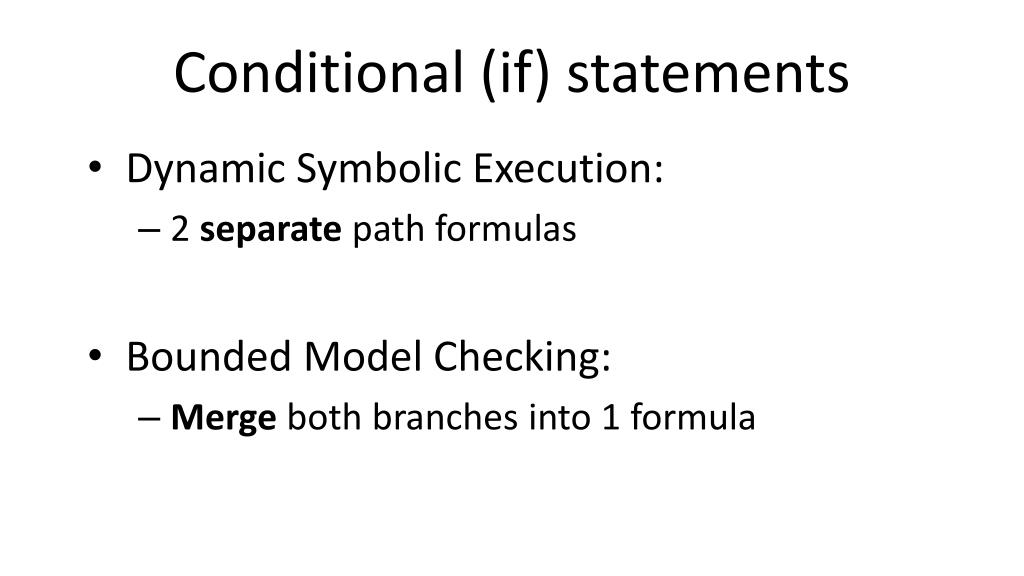

19. Conditional (if) statements • Dynamic Symbolic Execution: • 2 separate path formulas • Bounded Model Checking: • Merge bothbranches into 1 formula

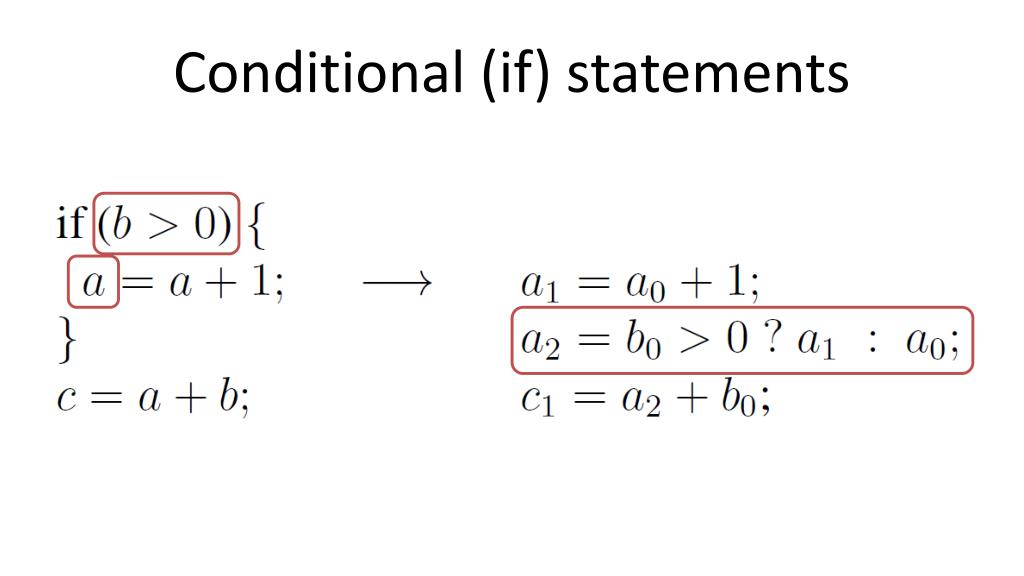

20. Conditional (if) statements

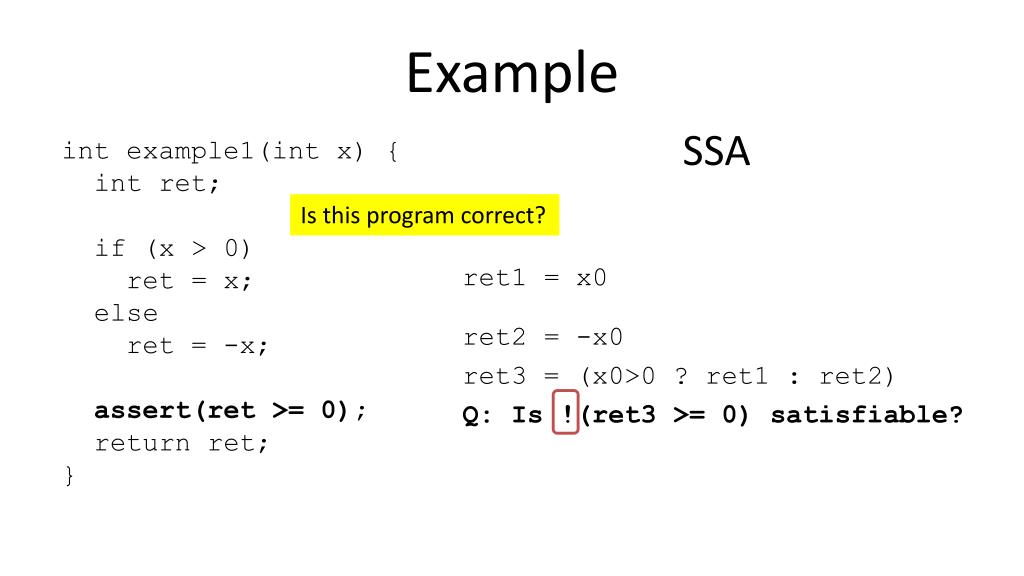

21. Example SSA ret1 = x0 ret2 = -x0 ret3 = (x0>0 ? ret1 : ret2) Q: Is !(ret3 >= 0) satisfiable? int example1(int x) { int ret; if (x > 0) ret = x; else ret = -x; assert(ret >= 0); return ret; } Is this program correct?

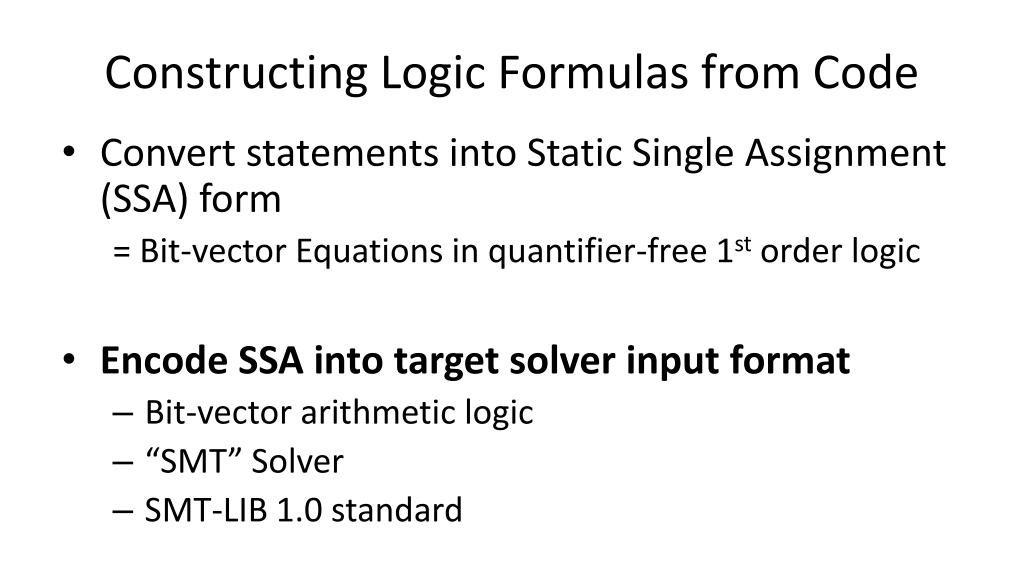

22. Constructing Logic Formulas from Code • Convert statements into Static Single Assignment (SSA) form = Bit-vector Equations in quantifier-free 1st order logic • Encode SSA into target solver input format • Bit-vector arithmetic logic • “SMT” Solver • SMT-LIB 1.0 standard

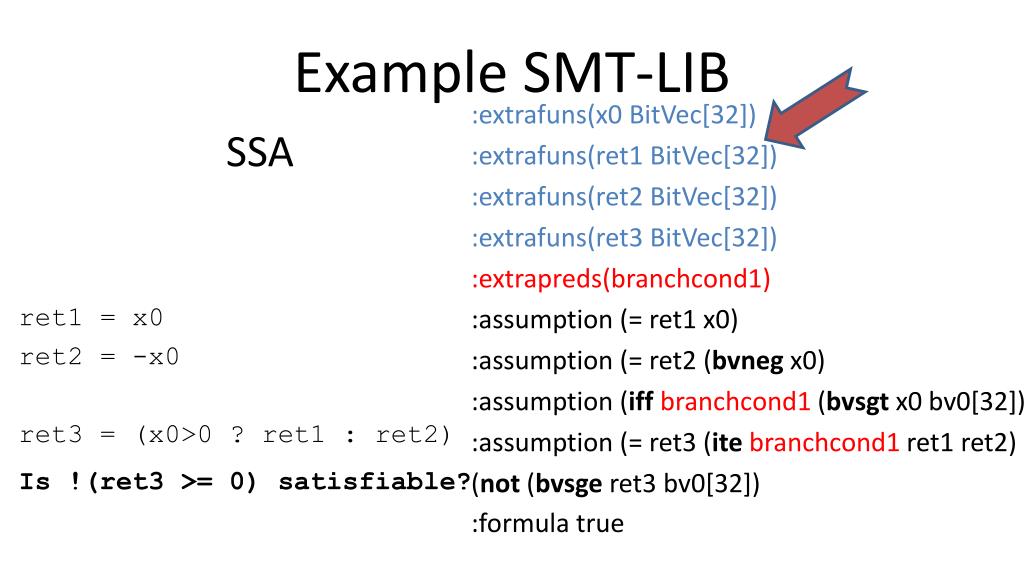

24. Example SMT-LIB SSA ret1 = x0 ret2 = -x0 ret3 = (x0>0 ? ret1 : ret2) Is !(ret3 >= 0) satisfiable? :extrafuns(x0 BitVec[32]) :extrafuns(ret1 BitVec[32]) :extrafuns(ret2 BitVec[32]) :extrafuns(ret3 BitVec[32]) :extrapreds(branchcond1) :assumption (= ret1 x0) :assumption (= ret2 (bvnegx0) :assumption (iffbranchcond1 (bvsgt x0 bv0[32]) :assumption (= ret3 (itebranchcond1 ret1 ret2) (not (bvsge ret3 bv0[32]) :formula true

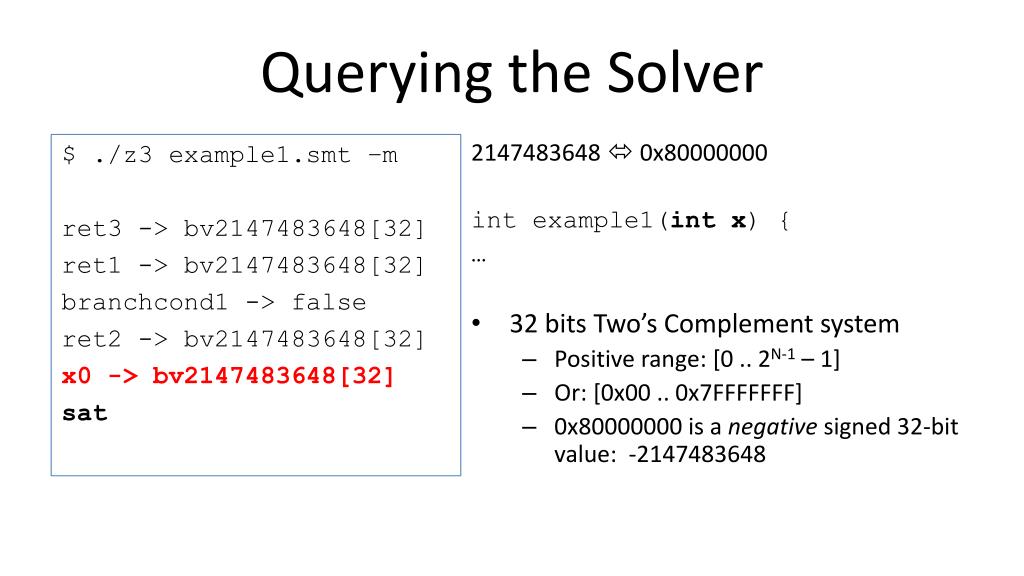

25. Querying the Solver 2147483648  0x80000000 intexample1(intx) { … • 32 bits Two’s Complement system • Positive range: [0 .. 2N-1 – 1] • Or: [0x00 .. 0x7FFFFFFF] • 0x80000000 is a negative signed 32-bit value: -2147483648 $ ./z3 example1.smt –m ret3 -> bv2147483648[32] ret1 -> bv2147483648[32] branchcond1 -> false ret2 -> bv2147483648[32] x0 -> bv2147483648[32] sat

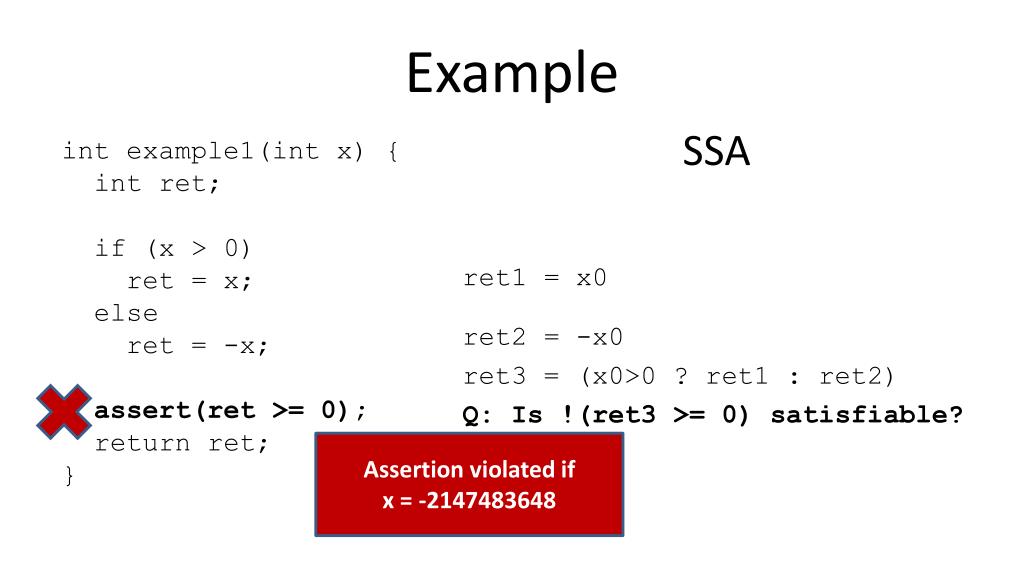

26. Example SSA ret1 = x0 ret2 = -x0 ret3 = (x0>0 ? ret1 : ret2) Q: Is !(ret3 >= 0) satisfiable? int example1(int x) { int ret; if (x > 0) ret = x; else ret = -x; assert(ret >= 0); return ret; } Assertion violated if x = -2147483648

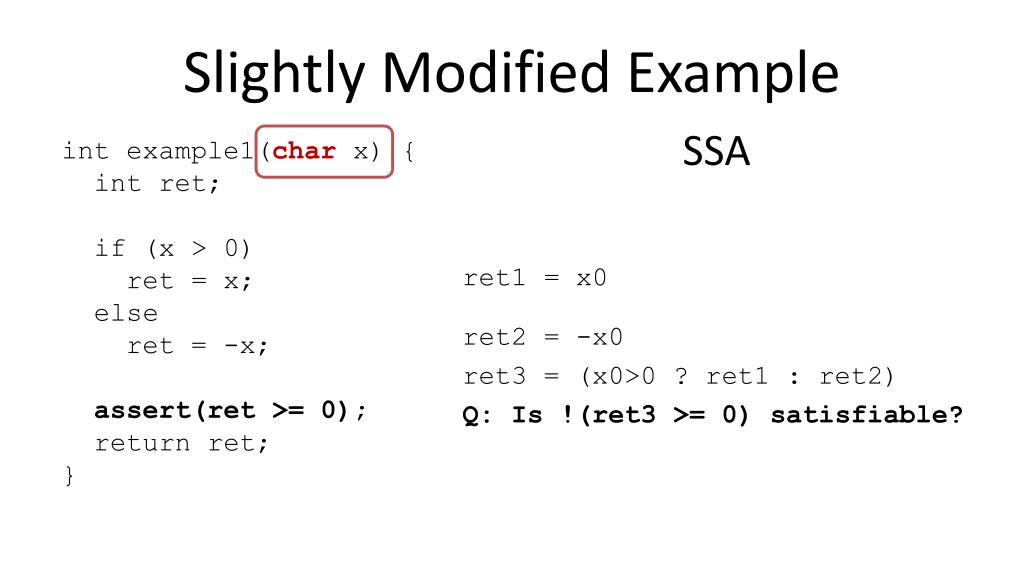

27. Slightly Modified Example SSA ret1 = x0 ret2 = -x0 ret3 = (x0>0 ? ret1 : ret2) Q: Is !(ret3 >= 0) satisfiable? intexample1(charx) { int ret; if (x > 0) ret = x; else ret = -x; assert(ret >= 0); return ret; }

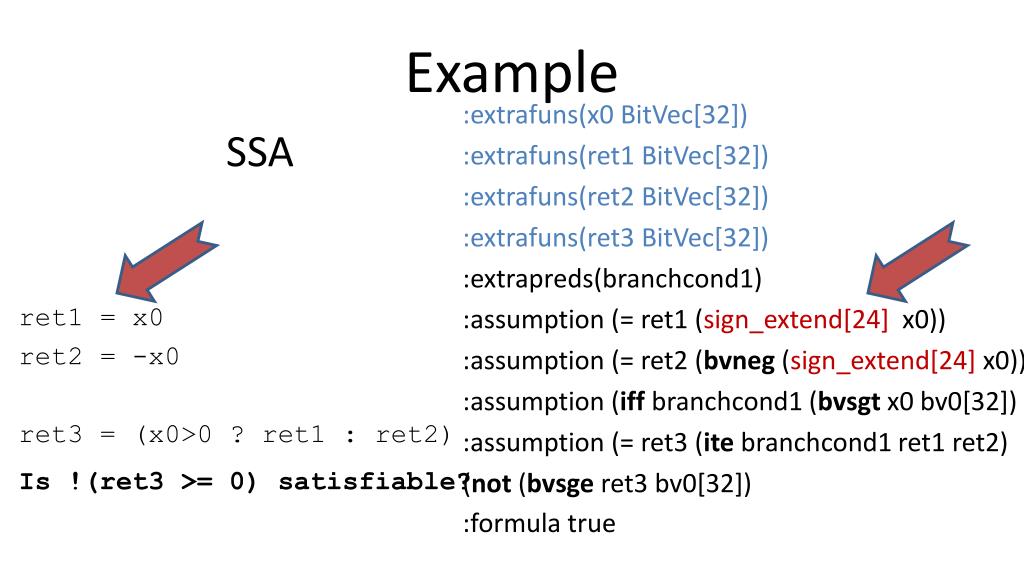

28. Example SSA ret1 = x0 ret2 = -x0 ret3 = (x0>0 ? ret1 : ret2) Is !(ret3 >= 0) satisfiable? :extrafuns(x0 BitVec[32]) :extrafuns(ret1 BitVec[32]) :extrafuns(ret2 BitVec[32]) :extrafuns(ret3 BitVec[32]) :extrapreds(branchcond1) :assumption (= ret1 (sign_extend[24] x0)) :assumption (= ret2 (bvneg(sign_extend[24]x0)) :assumption (iff branchcond1 (bvsgt x0 bv0[32]) :assumption (= ret3 (ite branchcond1 ret1 ret2) (not (bvsge ret3 bv0[32]) :formula true

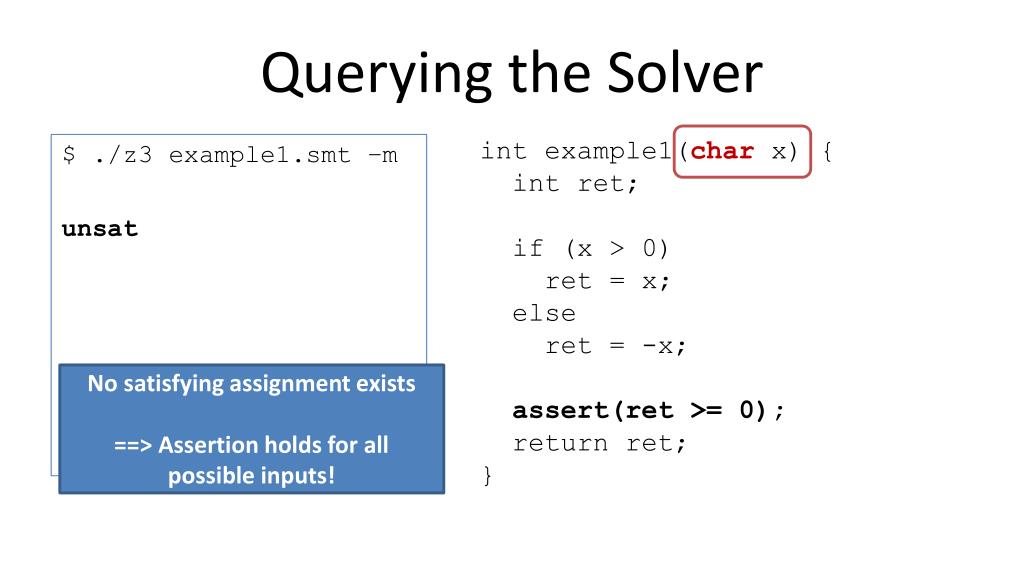

29. Querying the Solver $ ./z3 example1.smt –m unsat int example1(char x) { int ret; if (x > 0) ret = x; else ret = -x; assert(ret >= 0); return ret; } No satisfying assignment exists ==> Assertion holds for all possible inputs!

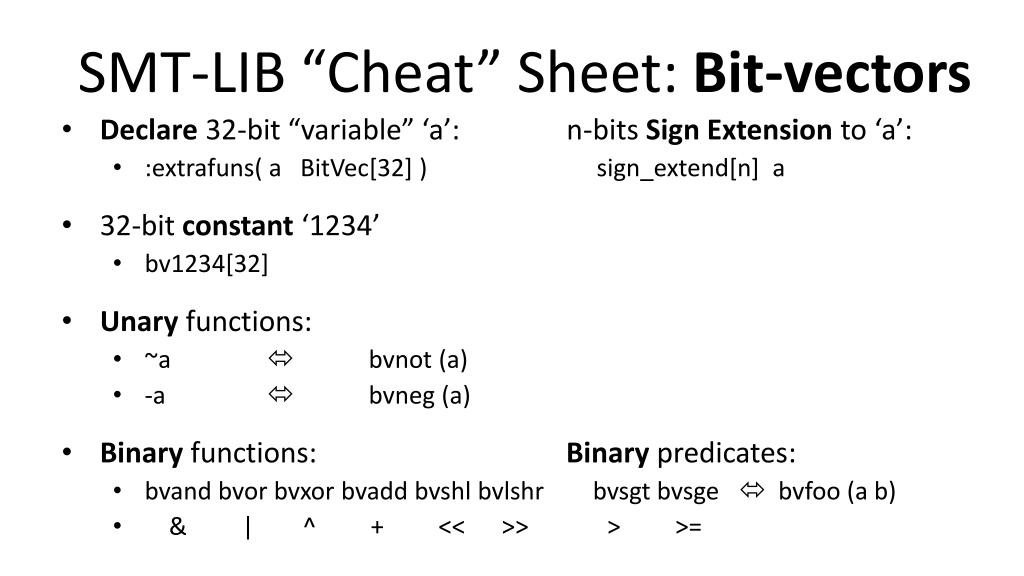

30. SMT-LIB “Cheat” Sheet: Bit-vectors • Declare 32-bit “variable” ‘a’: n-bits Sign Extension to ‘a’: • :extrafuns( a BitVec[32] ) sign_extend[n] a • 32-bit constant ‘1234’ • bv1234[32] • Unary functions: • ~a  bvnot(a) • -a  bvneg(a) • Binary functions: Binary predicates: • bvandbvorbvxorbvaddbvshlbvlshrbvsgtbvsgebvfoo(a b) • & | ^ + << >> > >=

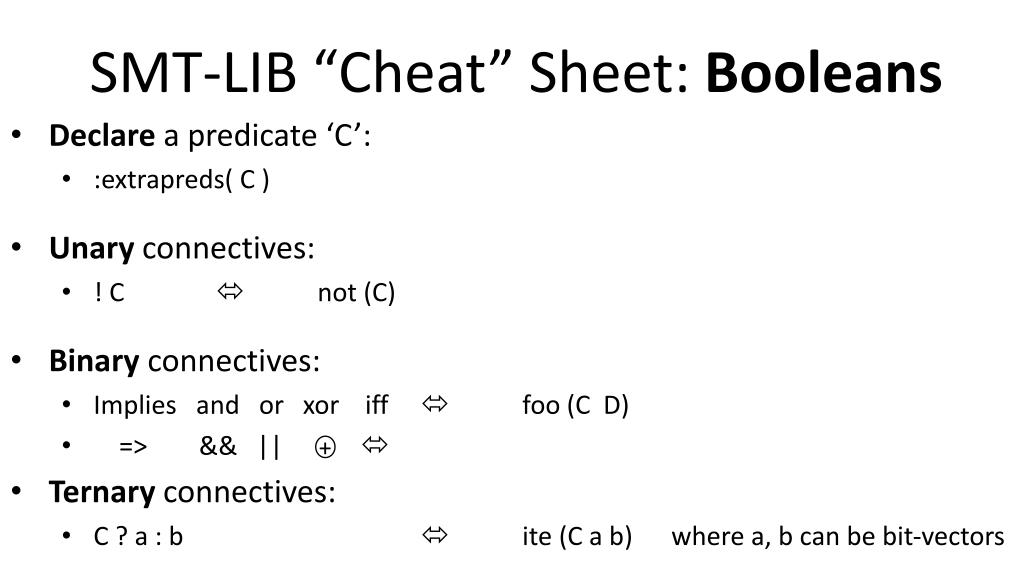

31. SMT-LIB “Cheat” Sheet: Booleans • Declare a predicate ‘C’: • :extrapreds( C ) • Unary connectives: • ! C  not (C) • Binary connectives: • Implies and or xoriff foo (C D) • => && ||  • Ternary connectives: • C ? a : b  ite (C a b) where a, b can be bit-vectors +

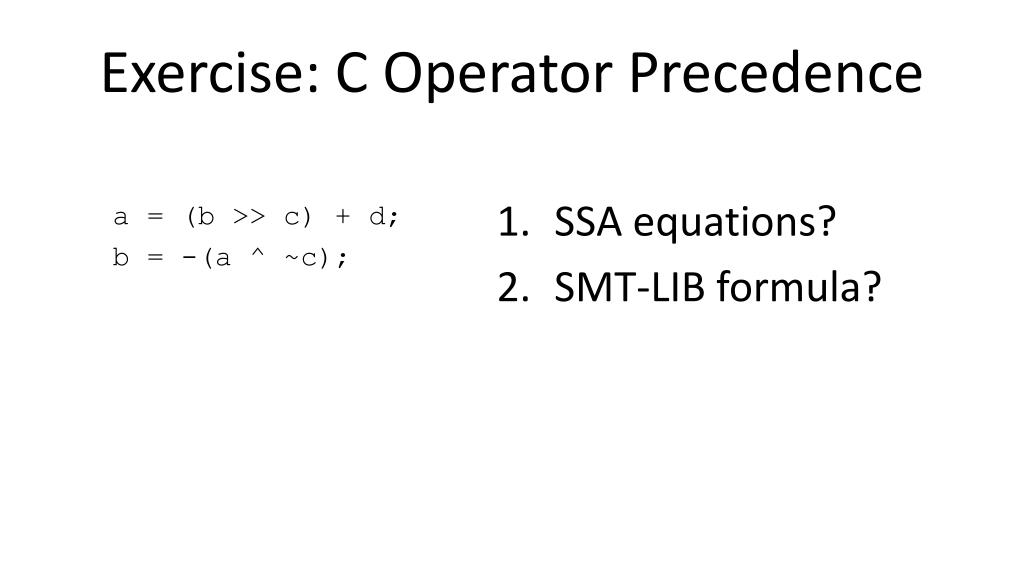

32. Exercise: C Operator Precedence • SSA equations? • SMT-LIB formula? a = (b >> c) + d; b = -(a ^ ~c);

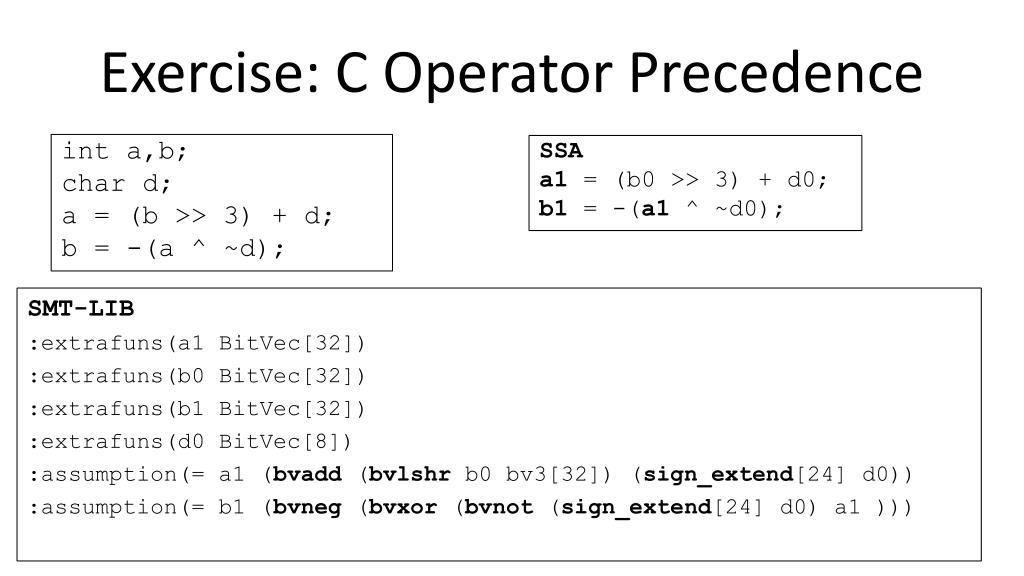

33. Exercise: C Operator Precedence inta,b; char d; a = (b >> 3) + d; b = -(a ^ ~d); SSA a1 = (b0 >> 3) + d0; b1 = -(a1 ^ ~d0); SMT-LIB :extrafuns(a1 BitVec[32]) :extrafuns(b0 BitVec[32]) :extrafuns(b1 BitVec[32]) :extrafuns(d0 BitVec[8]) :assumption(= a1 (bvadd (bvlshr b0 bv3[32]) (sign_extend[24] d0)) :assumption(= b1 (bvneg (bvxor (bvnot (sign_extend[24] d0) a1 )))

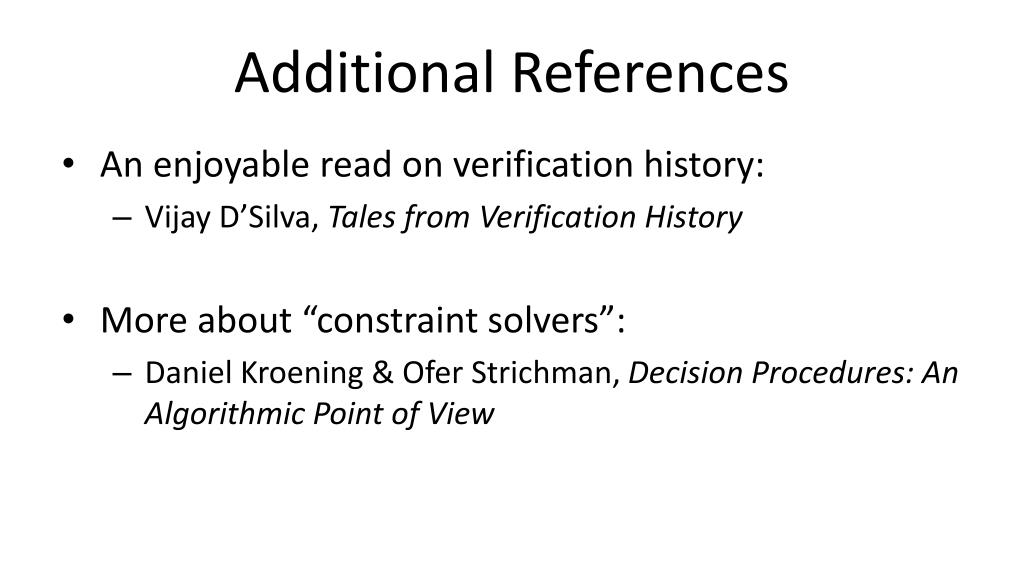

34. Additional References • An enjoyable read on verification history: • Vijay D’Silva, Tales from Verification History • More about “constraint solvers”: • Daniel Kroening& OferStrichman, Decision Procedures: An Algorithmic Point of View
