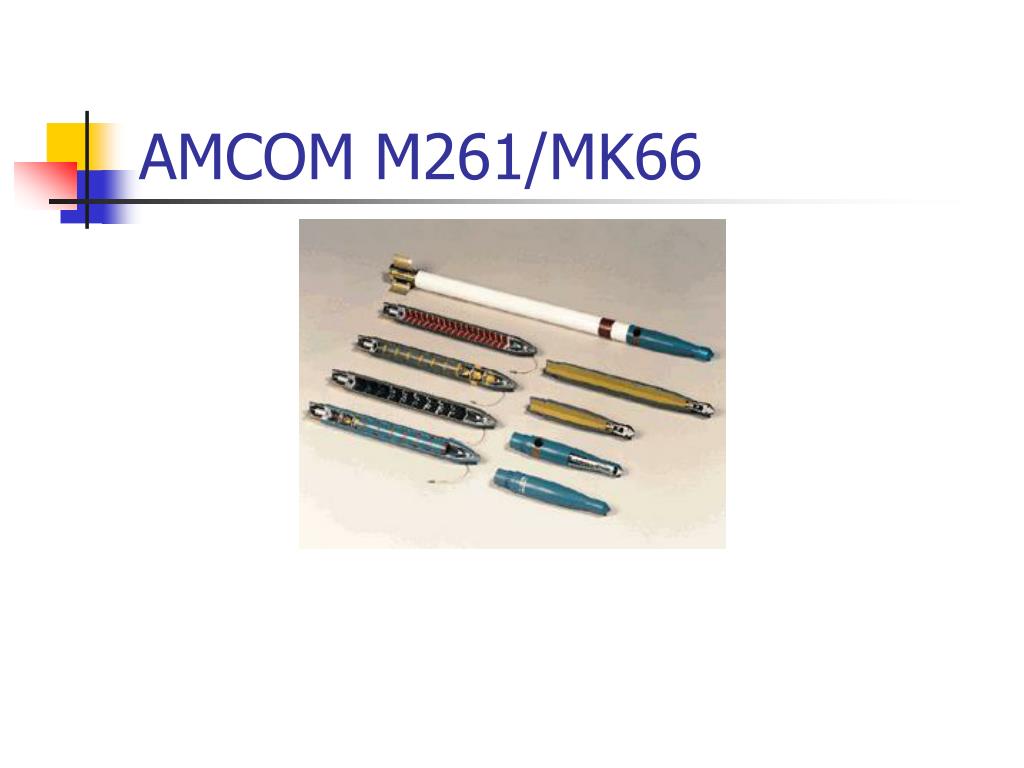

1. AMCOM M261/MK66

2. AMCOM M261/Mk66 missile:Fall Review 2 Matt Galante Adrian Lauf Ashley Devoto Shannon Stonemetz Filiz Genca Jeffery Kohlhoff Jason Newquist

3. Contact Meeting • Met with project sponsor in Huntsville • Learned more about the goals and expectations • Discussed need for preliminary review prior to hardware implementation in spring • Need to research processor options, FPGA software / hardware, possible launching motors, etc.

4. Wall-In-Space Requirement

5. Design Parameters • General • Compatible with M261 launcher • Capable of being handled with arctic clothing and mittens • System Life: 10 yrs Min., 25 yrs Objective • All components unclassified • All units in Metric with English units in parenthesis

6. Design Parameters (cont.) • Firing Envelope • Altitude: -200ft MSL to 20,000ft MSL • Platform Error: 19 milliradians • Crosswind: 15 knots • Velocity (Exit): 141 fps Max. • Velocity (Wall in Space): 1978 fps Max. • Detent Release Force: Minimum 13.5x missile weight • Acceleration: 79g Max. • Wall In Space

7. Design Parameters (cont.) • Dimensions • Weight: 34.4 lbs Max. • Length: 79.7 inches Max., 71.7 inches Objective • Outer Diameter: 2.794 inches Max. • Environmental • Temperature (Storage): -65F to165F • Temperature (Operating): -50F to 150F • Humidity: constant 100% relative humidity @ 75F

8. Weight Spec Sheet

9. M261 Characteristics • Plastic nose cone, aluminum casing, integral fuze, explosion charge, 9 M73 submunitions • Warhead fuze range settings of 500 – 7000 m • Fuzed weight of M261 is 13.6 lbs • Submunitions landing 5 degrees off-center have a 90% probability of casualties w/in 20 m radius (occurs 66% of the time)

10. 14 April – Final Progress Rept. • Previous project final status • Simulation • Implementation of ballistic algorithm • Rebuilt for 6 degrees of freedom • Prototype • Shell program and interrupt service routine (ISR) for pulse-wave modulation • Determination of I/O • Algorithmic state charts • Design review • Supply procurement, assembly, demonstration

11. Previous Design Implementations • Current Hydra-70 missile uses a screw-mount warhead design • Suggested solution as per previous AMCOM team below: Warhead Side, Male Spline Avionics Module Side, Female Spline

12. Altera Cyclone FPGA Chipset • The Cyclone device family offers the following features: • ■ 2,910 to 20,060 LEs, see Table 1–1 • ■ Up to 294,912 RAM bits (36,864 bytes) • ■ Supports configuration through low-cost serial configuration device • ■ Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards • ■ Support for 66- and 33-MHz, 64- and 32-bit PCI standard • ■ High-speed (640 Mbps) LVDS I/O support • ■ Low-speed (311 Mbps) LVDS I/O support • ■ 311-Mbps RSDS I/O support

13. Altera Cyclone FPGA Chipset (cont’d) • ■ Up to two PLLs per device provide clock multiplication and phase • shifting • ■ Up to eight global clock lines with six clock resources available per • logic array block (LAB) row • ■ Support for external memory, including DDR SDRAM (133 MHz), • FCRAM, and single data rate (SDR) SDRAM • ■ Support for multiple intellectual property (IP) cores, including • Altera® MegaCore® functions and Altera Megafunctions Partners • Program (AMPPSM) megafunctions.
