  1. CIS 725 Key Exchange Protocols

  2. Confidentiality, Integrityand Authenication Alice (PBBob(M, PRAlice(hash(M))) M, hash(M) M, PRAlice(hash(M)) PBAlice PRBob

  3. Problems: • Alice’s private key is stolen or she can claim it was stolen • Alice can change her private keys

  4. Use a trusted third party Alice Third Party (TP) PBBob:(M, Alice, t, PRTP(M, Alice, t)) PRAlice:(M, Bob, t) Bob M • Alice wants to send M to Bob • Alice sends message (M, Bob, t) encrypted with • her private key to TP, where t is a timestamp. • TP sends (M, Alice, t, Sn) encrypted using Bob’s • public key to Bob, where Sn is (M,Alice,t) • encrypted using TP’s private key.

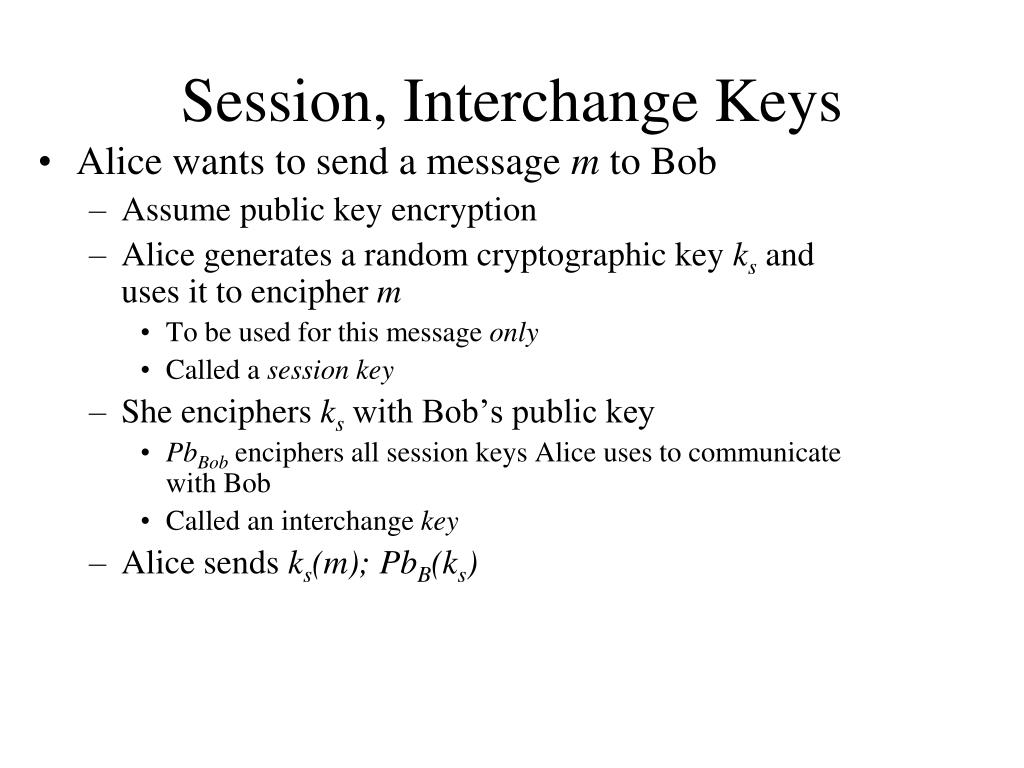

  5. Session, Interchange Keys • Alice wants to send a message m to Bob • Assume public key encryption • Alice generates a random cryptographic key ks and uses it to encipher m • To be used for this message only • Called a session key • She enciphers ks with Bob’s public key • PbBob enciphers all session keys Alice uses to communicate with Bob • Called an interchange key • Alice sends ks(m); PbB(ks)

  6. Benefits • Limits amount of traffic enciphered with single key • Standard practice, to decrease the amount of traffic an attacker can obtain • Prevents some attacks • Example: Alice will send Bob message that is either “BUY” or “SELL”. Eve computes possible ciphertexts kB{ “BUY” } and kB{ “SELL” }. Eve intercepts enciphered message, compares, and gets plaintext at once

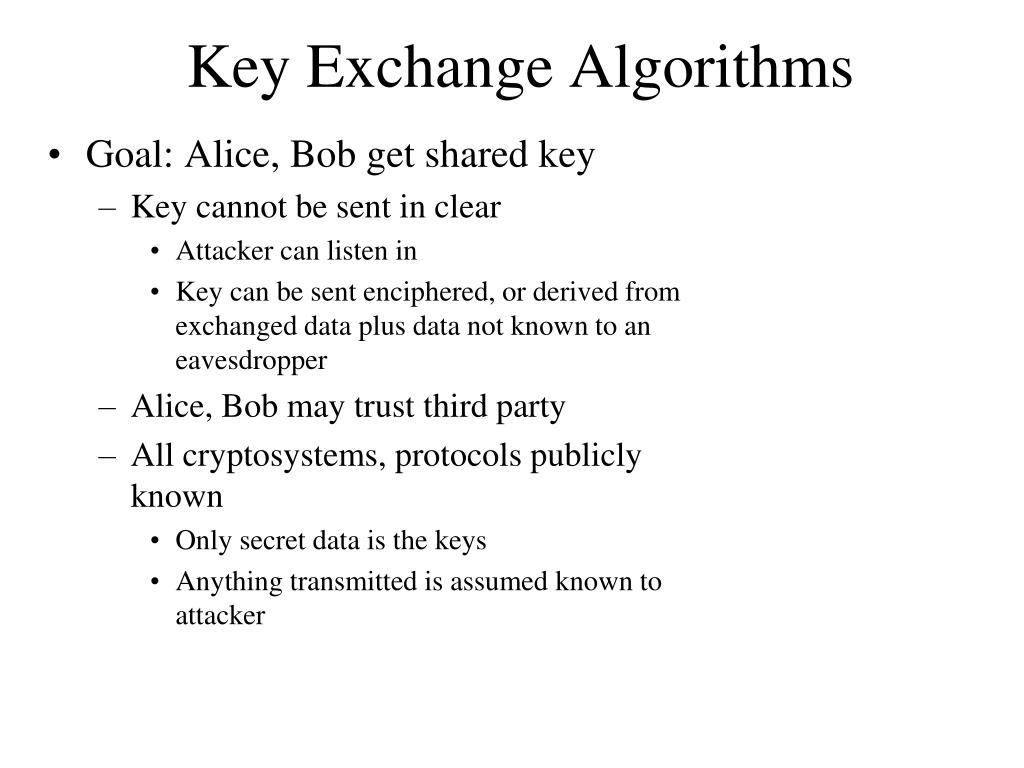

  7. Key Exchange Algorithms • Goal: Alice, Bob get shared key • Key cannot be sent in clear • Attacker can listen in • Key can be sent enciphered, or derived from exchanged data plus data not known to an eavesdropper • Alice, Bob may trust third party • All cryptosystems, protocols publicly known • Only secret data is the keys • Anything transmitted is assumed known to attacker

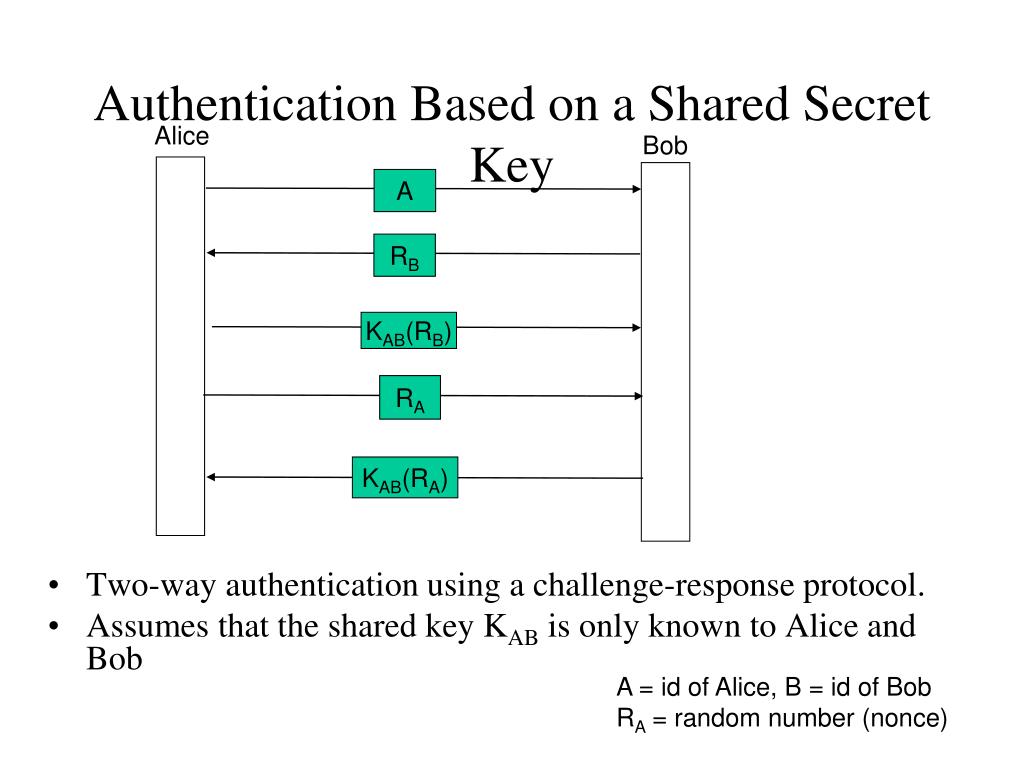

  8. RA RB A KAB(RA) KAB(RB) Authentication Based on a Shared Secret Key Alice Bob • Two-way authentication using a challenge-response protocol. • Assumes that the shared key KAB is only known to Alice and Bob A = id of Alice, B = id of Bob RA = random number (nonce)

  9. A, RA RB,KAB(RA) KAB(RB) Authentication Based on a Shared Secret Key • A shortened two-way authentication protocol.

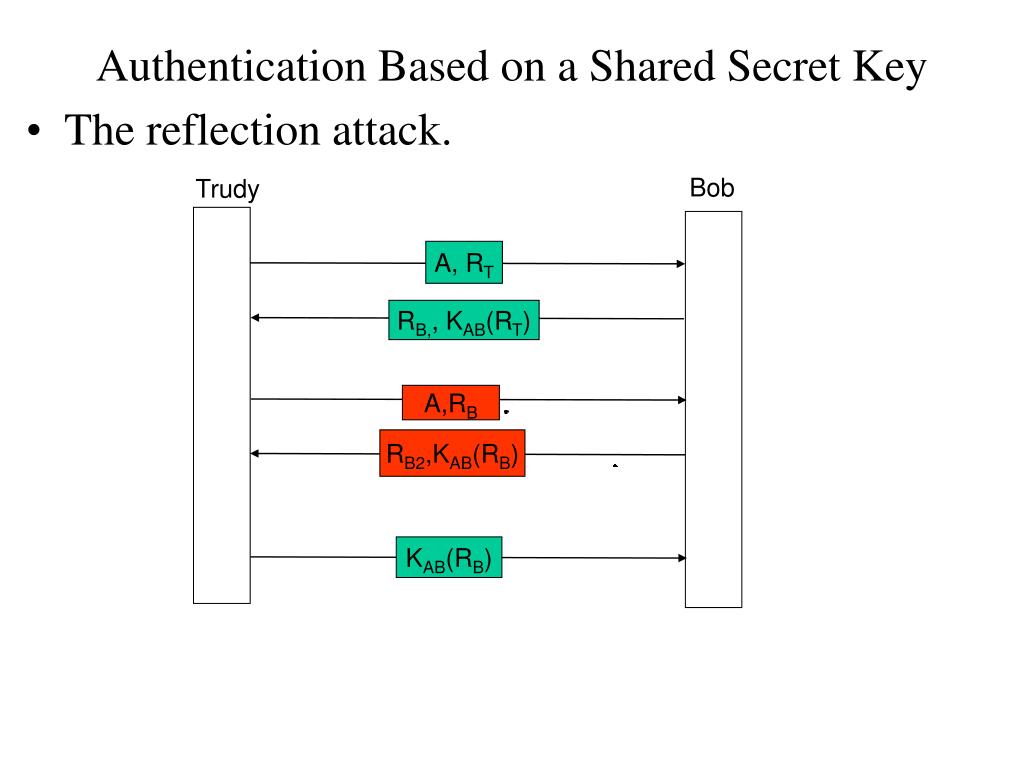

  10. A, RT RB,, KAB(RT) RB2,KAB(RB) A,RB KAB(RB) Authentication Based on a Shared Secret Key Bob Trudy • The reflection attack.

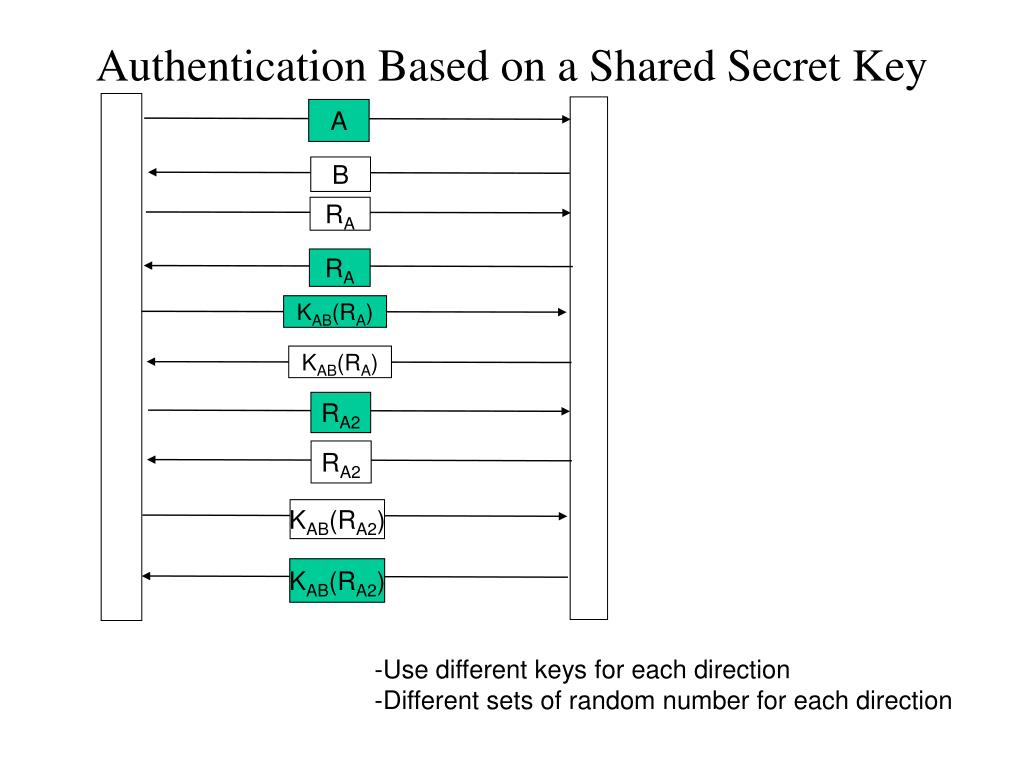

  11. B RA KAB(RA) RA2 A KAB(RA2) RA RA2 KAB(RA2) KAB(RA) Authentication Based on a Shared Secret Key • Use different keys for each direction • Different sets of random number for each direction

  12. Establishing a Shared Key:The Diffie-Hellman Key Exchange - Alice and Bob agree on two large numbers, n and g (these are public) Shared key

  13. Establishing a Shared Key:The Diffie-Hellman Key Exchange • The bucket brigade or man-in-the-middle attack.

  14. A, KA(B, KS) KB(A, KS) Using a Key Distribution Center (KDC) to establish a shared key Bob KDC Alice KA = Shared key between Alice and KDC KB = Shared key between Bob and KDC KS = session key picked by Alice

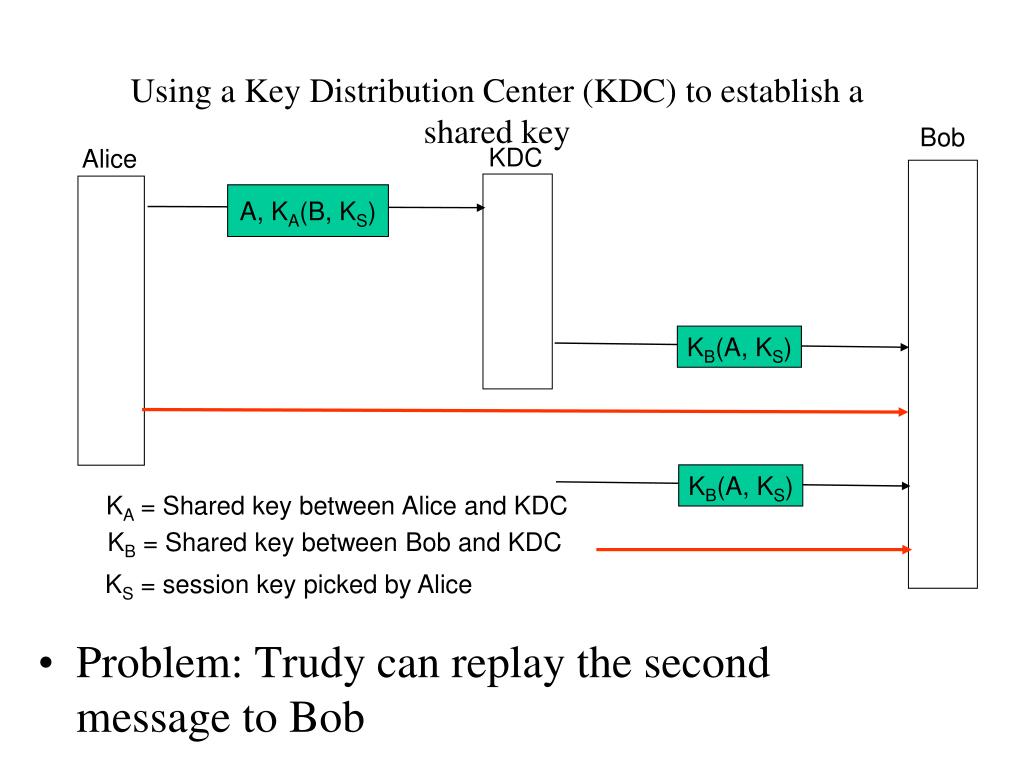

  15. A, KA(B, KS) KB(A, KS) KB(A, KS) Using a Key Distribution Center (KDC) to establish a shared key Bob KDC Alice • Problem: Trudy can replay the second message to Bob KA = Shared key between Alice and KDC KB = Shared key between Bob and KDC KS = session key picked by Alice

  16. Use timestamps • Include timestamps in messages • Requires synchronized clocks • Otherwise replay attacks are possible • Use nonces: not repeated • Requires entities to remember them • Use a combination of timestamps and nonces to bound how • long they need to be remembered

  17. RA, A, B KA(RA, B, KS, KB(A, KS) ) KB(A, KS), KS(RA2) KS(RA2-1), RB KS(RB-1) Authentication Using a Key Distribution Center Alice KDC Bob The Needham-Schroeder authentication protocol.

  18. RA, A, B KA(RA, B, KS, KB(A, KS) ) KB(A, KS), KS(RA2) KB(A, KS), KS(RA2) KS(RA2-1), RB KS(RA2-1), RB’ KS(RB-1) KS(RB’-1) Alice KDC Bob The Needham-Schroeder authentication protocol. Attacker acquires an old key

  19. Ticket; proves that the sender is Alice A KA(KS, KTGS(A, KS) ) KTGS(A, Ks), B, KS(t) Prevents replay attacks KS(B, KAB), KB(A, KAB) KB(A, KAB), KAB(t) KAB(t+1) Authentication Using Kerberos Authentication Server Alice Ticket-Granting Server Bob

  20. Here is PbBob Here is PbAlice Give me PbBob Give me PbAlice PbBob(A, RA) PbAlice(RA, RB, KS) KS(RB) Authentication Using Public-Key Cryptography Directory • Mutual authentication using public-key cryptography. Alice

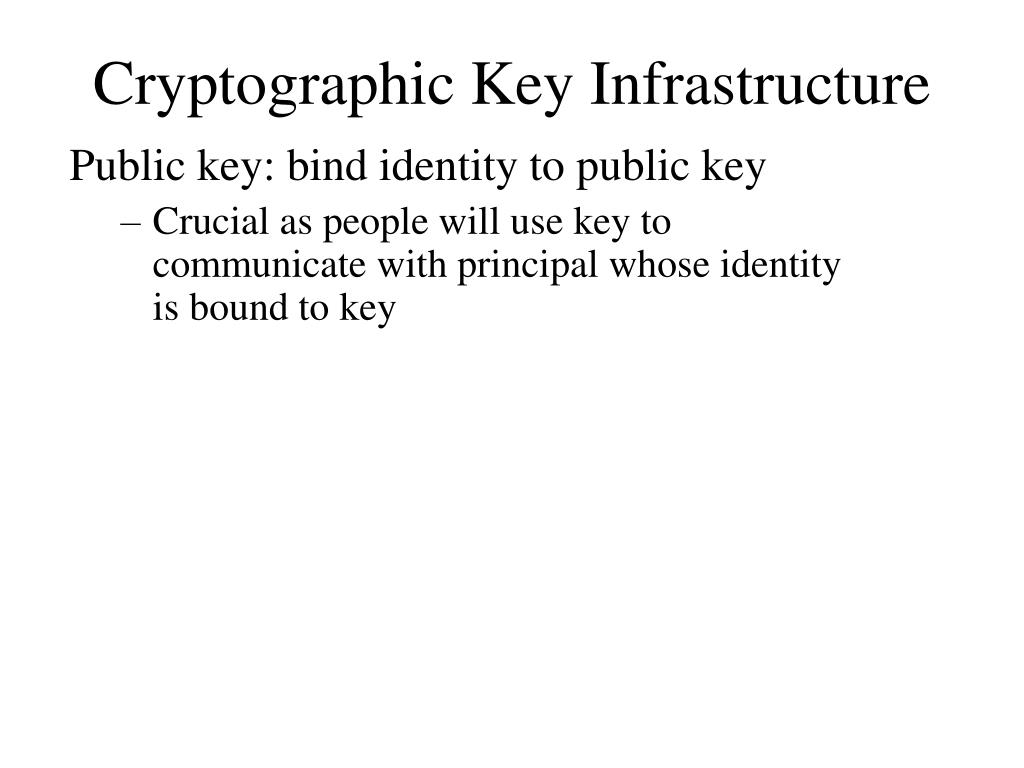

  21. Cryptographic Key Infrastructure Public key: bind identity to public key • Crucial as people will use key to communicate with principal whose identity is bound to key

  22. Certificates • Create token (message) containing • Identity of principal (here, Alice) • Corresponding public key • Timestamp (when issued) • Other information (perhaps identity of signer) • signed by trusted authority • CA = PrCA( PBA || Alice || T ) Or only sign the hash of the certificate

  23. Use • Bob gets Alice’s certificate • If he knows CA’s public key, he can decipher the certificate • When was certificate issued? • Is the principal Alice? • Now Bob has Alice’s public key • Problem: Bob needs CA’s public key to validate certificate • Problem pushed “up” a level

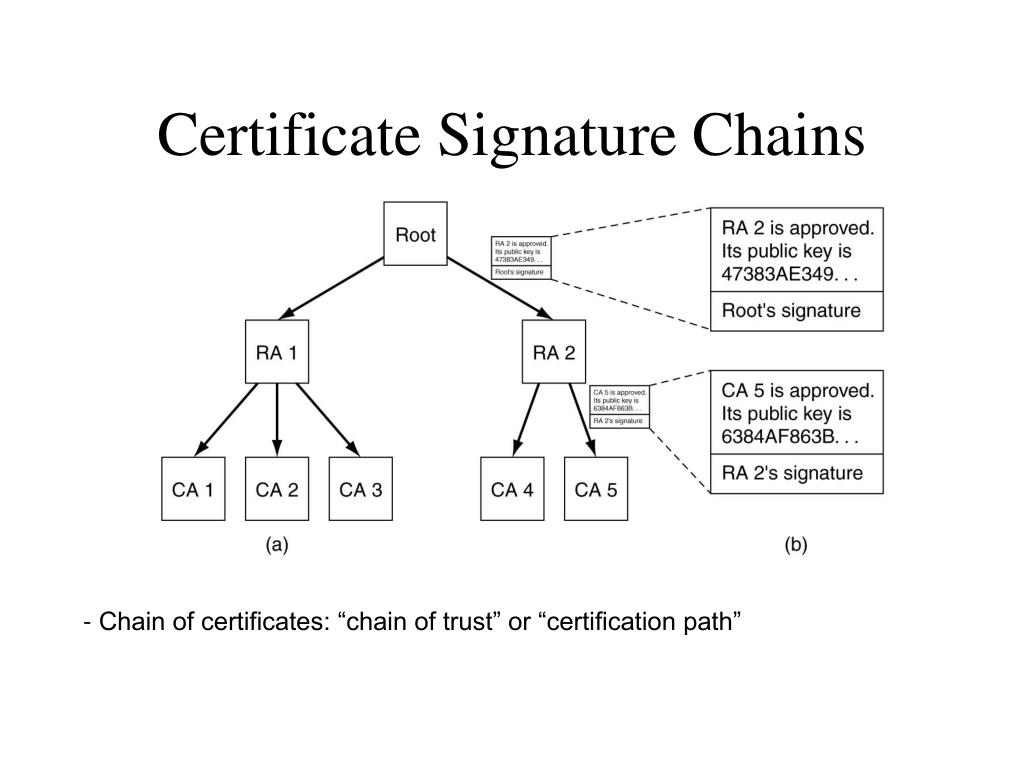

  24. Certificate Signature Chains - Chain of certificates: “chain of trust” or “certification path”
