  1. FLUORAT – 02 ANALYZERS FAMILY OF FLOUROMETERS

  2. FLUORAT – 02 ANALYZERS SERIES OF FLOUROMETERS SINCE 1991 CERTIFICATION

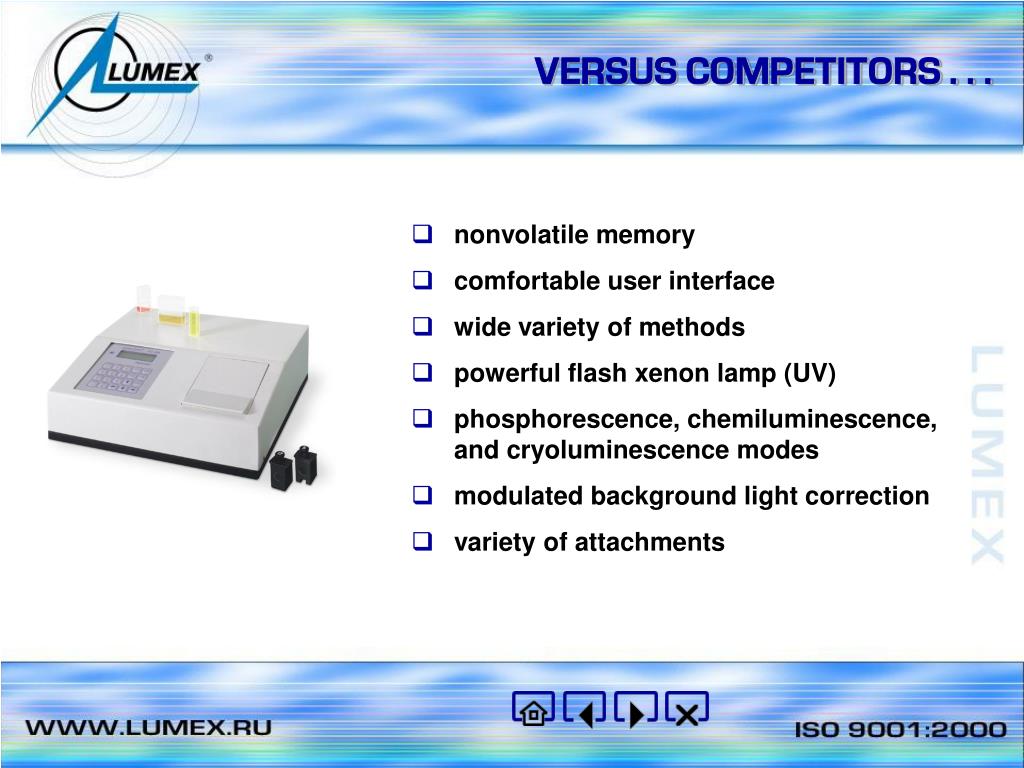

  3. VERSUS COMPETITORS . . . • nonvolatile memory • comfortable user interface • wide variety of methods • powerful flash xenon lamp (UV) • phosphorescence, chemiluminescence, and cryoluminescence modes • modulated background light correction • variety of attachments

  4. FLUOROMETRY AND PHOTOMETRY AT ONCE 1- light source 2,7 - lens 3- excitation filter КВ 4,10 - beam splitter 5,9,12 - photodetector 6 - cell 8- emission filter 11-focusing mirror

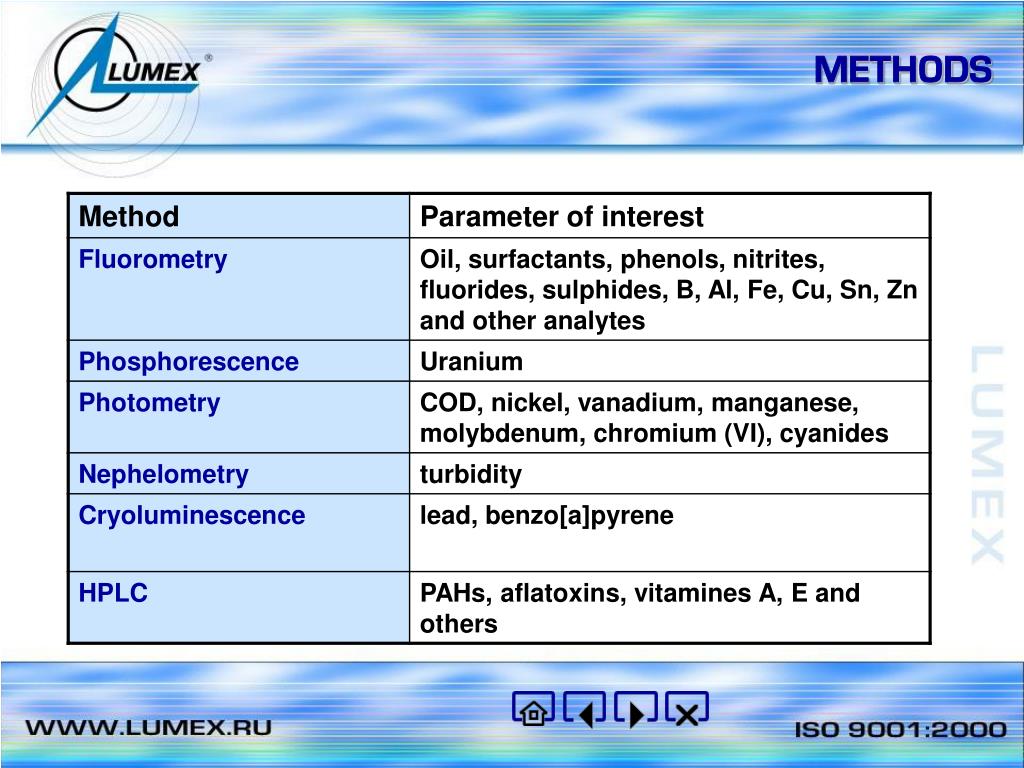

  5. METHODS

  6. FLUORAT-02 FAMILY FLUORAT-02-2М FLUORAT -02-3М FLUORAT -02-PANORAMA Spectrofluorometer FLUORAT-02-2Мwith CRYO-1 attachment

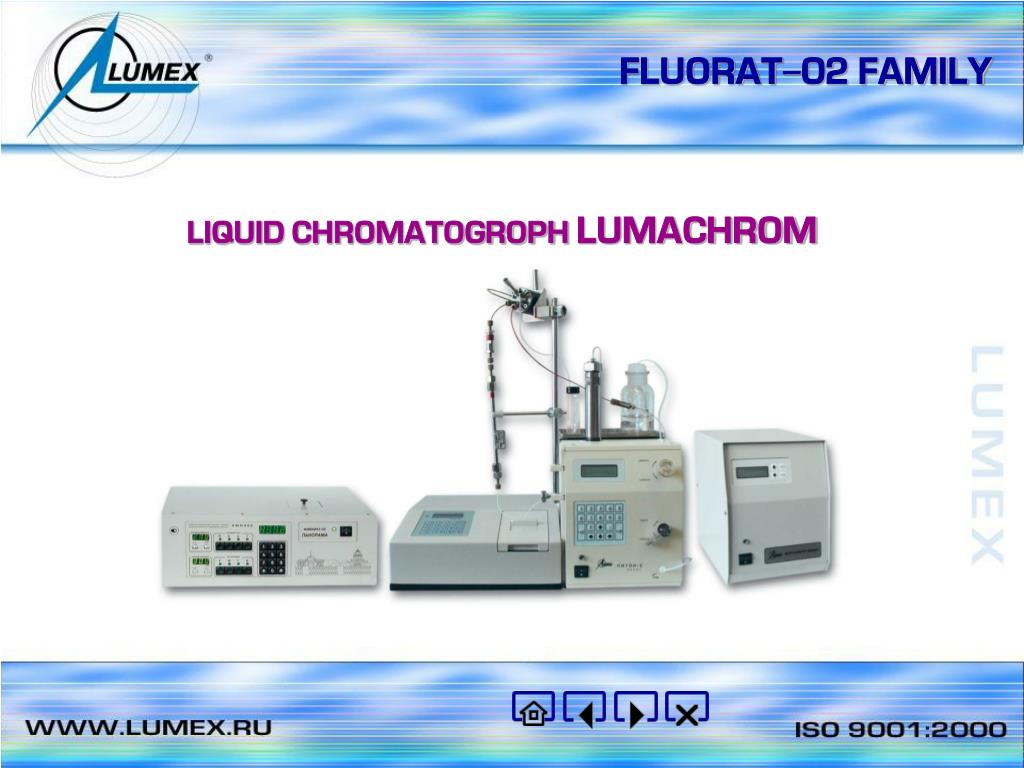

  7. FLUORAT-02 FAMILY LIQUID CHROMATOGROPH LUMACHROM

  8. FLUORAT-02 FAMILY CLINICAL DIAGNOSTICS Biochemical analyzersFLUORAT– 02 –ABFF, ABLF Medical analyzer Photometer ABF-100

  9. FLUORAT-02 FAMILY AUTOMATIC FLOW ANALYZERS FLUORAT–AE-2 (in-line automatic monitoring of the content of petrol hydrocarbons in water) FLOURAT-AA-2 (in-line automatic monitoring of the content of aluminum in water) FLOURAT-AC-2 (in-line automatic monitoring of the content of active unbonded chlorine in water)

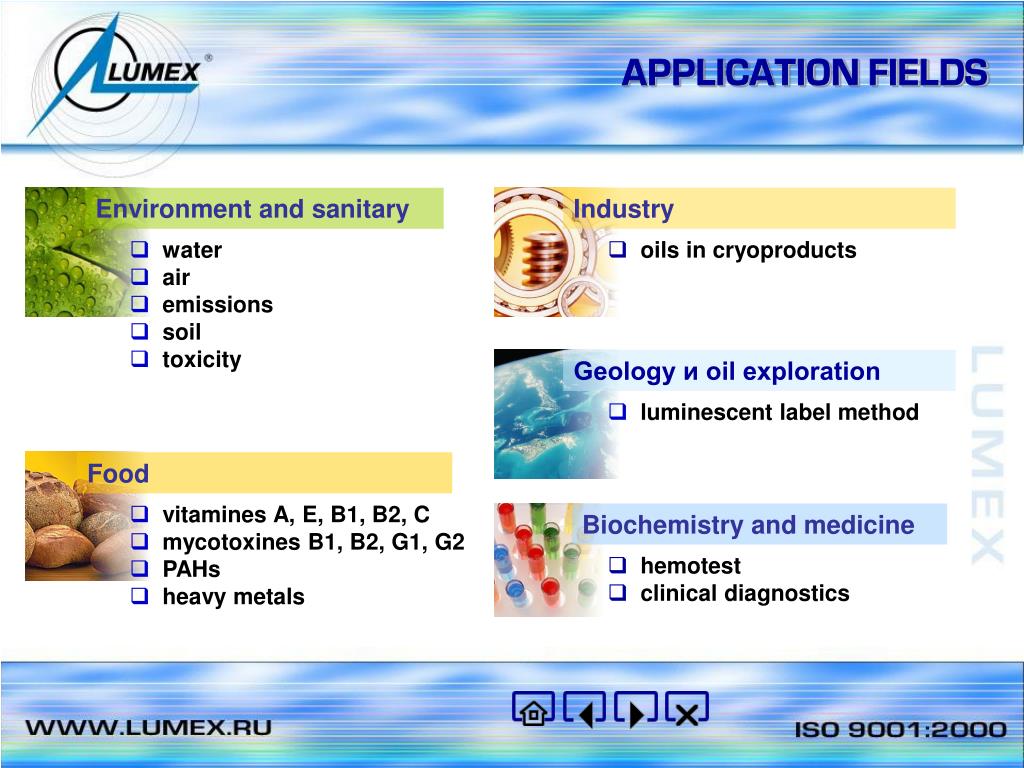

  10. APPLICATION FIELDS Environment and sanitary Industry • water • air • emissions • soil • toxicity • oils in cryoproducts Geology и oil exploration • luminescent label method Food • vitamines A, E, B1, B2, C • mycotoxines B1, B2, G1, G2 • PAHs • heavy metals Biochemistry and medicine • hemotest • clinical diagnostics

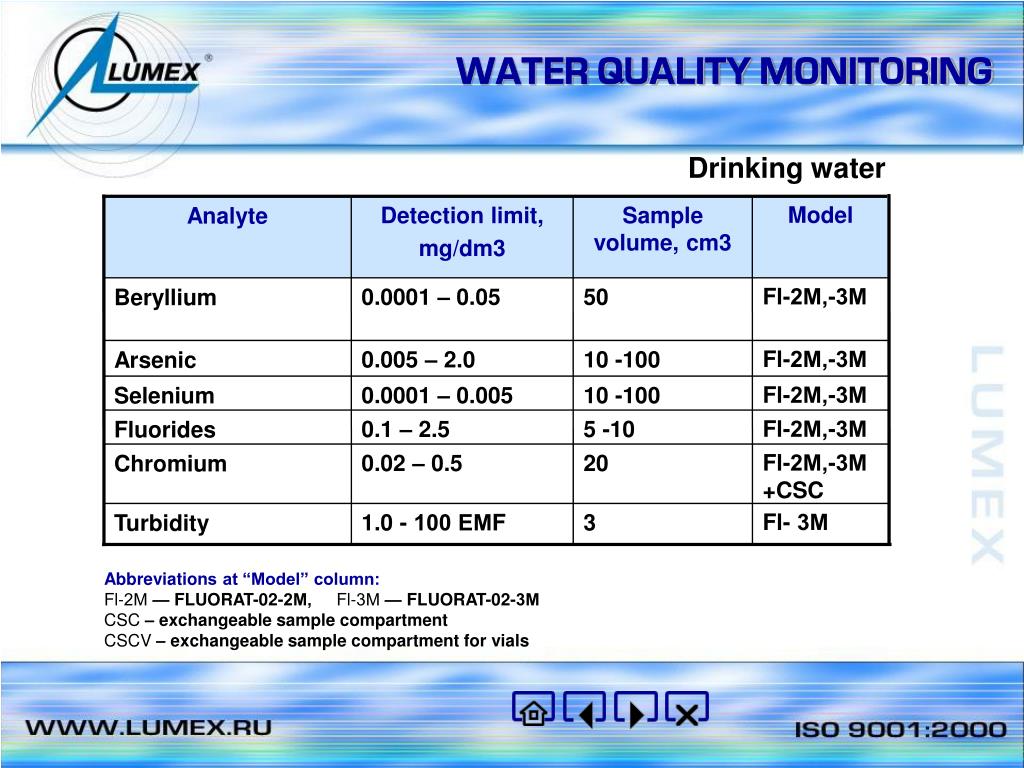

  11. WATER QUALITY MONITORING Drinking water Model Detection limit, mg/dm3 Sample volume, cm3 Analyte Fl-2М,-3М 0.0001 – 0.05 50 Beryllium Fl-2М,-3М 0.005 – 2.0 10 -100 Arsenic Fl-2М,-3М 0.0001 – 0.005 10 -100 Selenium Fl-2М,-3М 0.1 – 2.5 5 -10 Fluorides Fl-2М,-3М +CSC 0.02 – 0.5 20 Chromium Fl- 3М 1.0 - 100 ЕМF 3 Turbidity Abbreviations at “Model” column: Fl-2М—FLUORAT-02-2М, Fl-3М—FLUORAT-02-3М CSC – exchangeable sample compartment CSCV– exchangeable sample compartment for vials

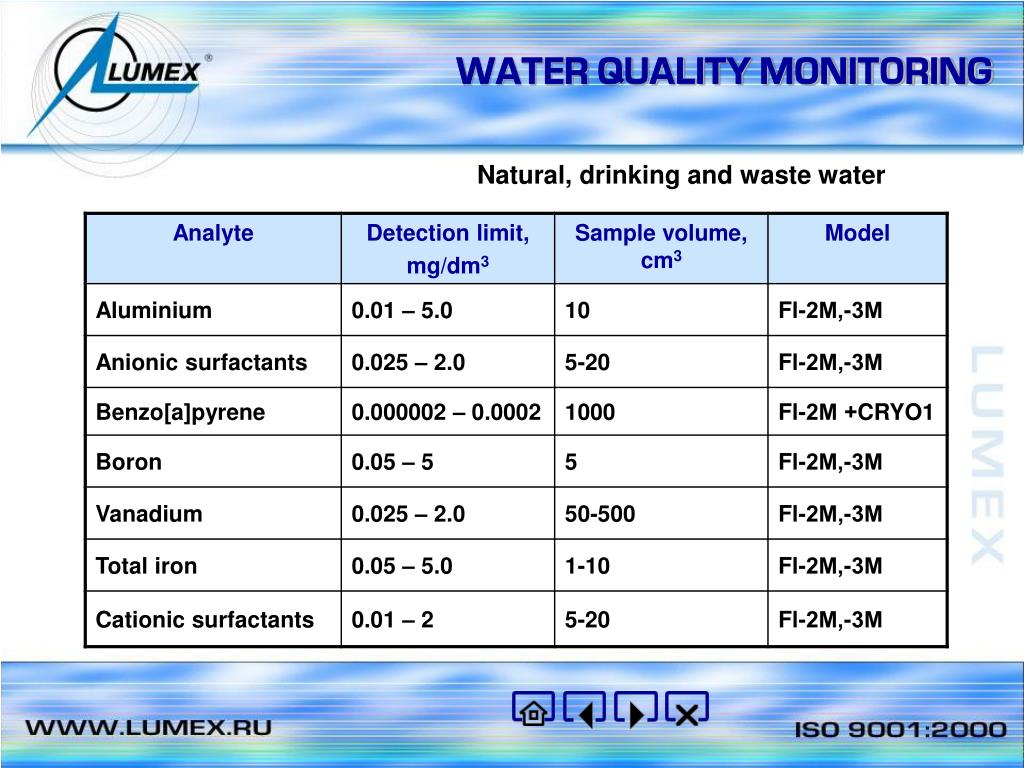

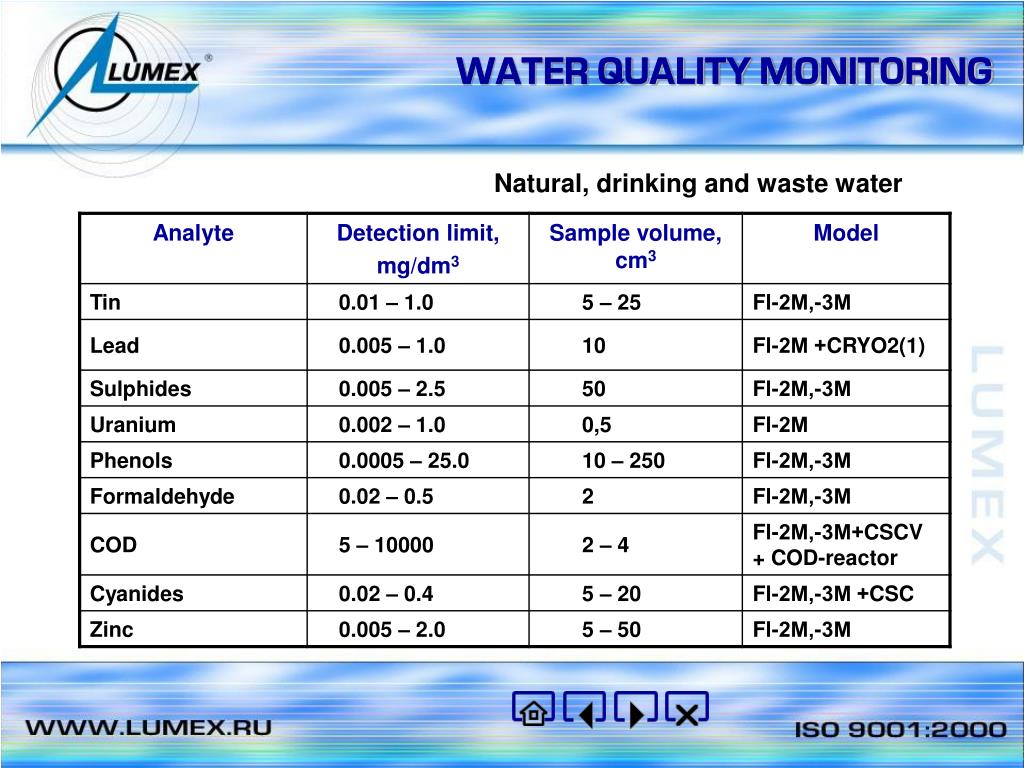

  12. WATER QUALITY MONITORING Natural, drinking and waste water

  13. WATER QUALITY MONITORING Natural, drinking and waste water

  14. WATER QUALITY MONITORING Natural, drinking and waste water

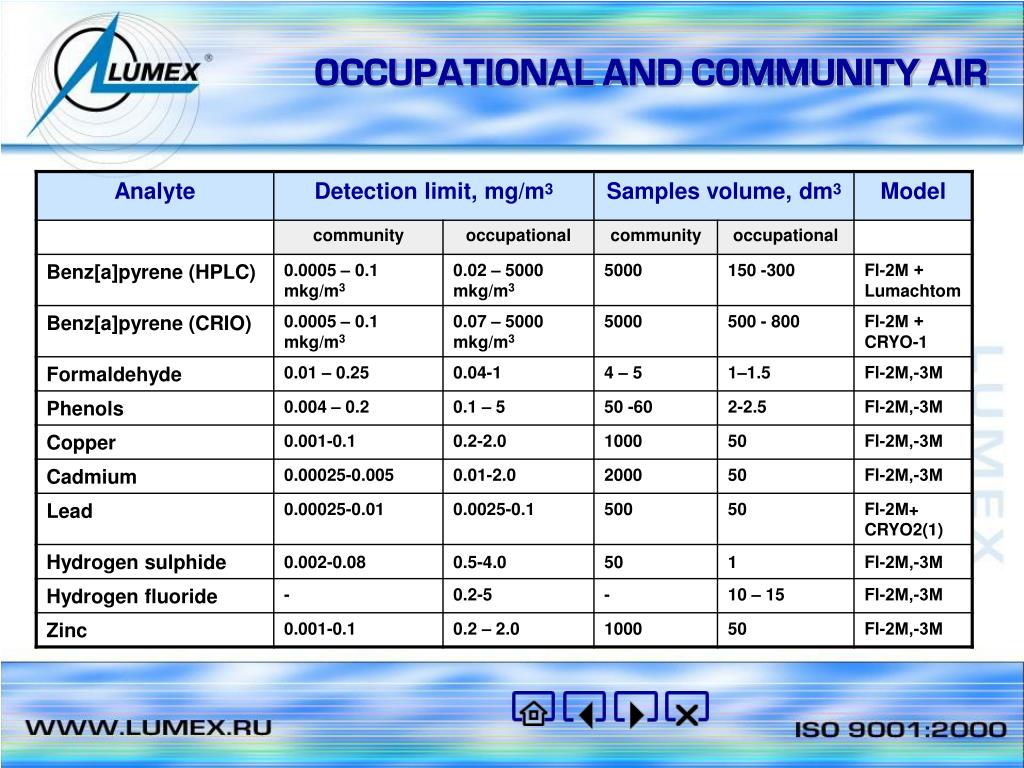

  15. OCCUPATIONAL AND COMMUNITYAIR

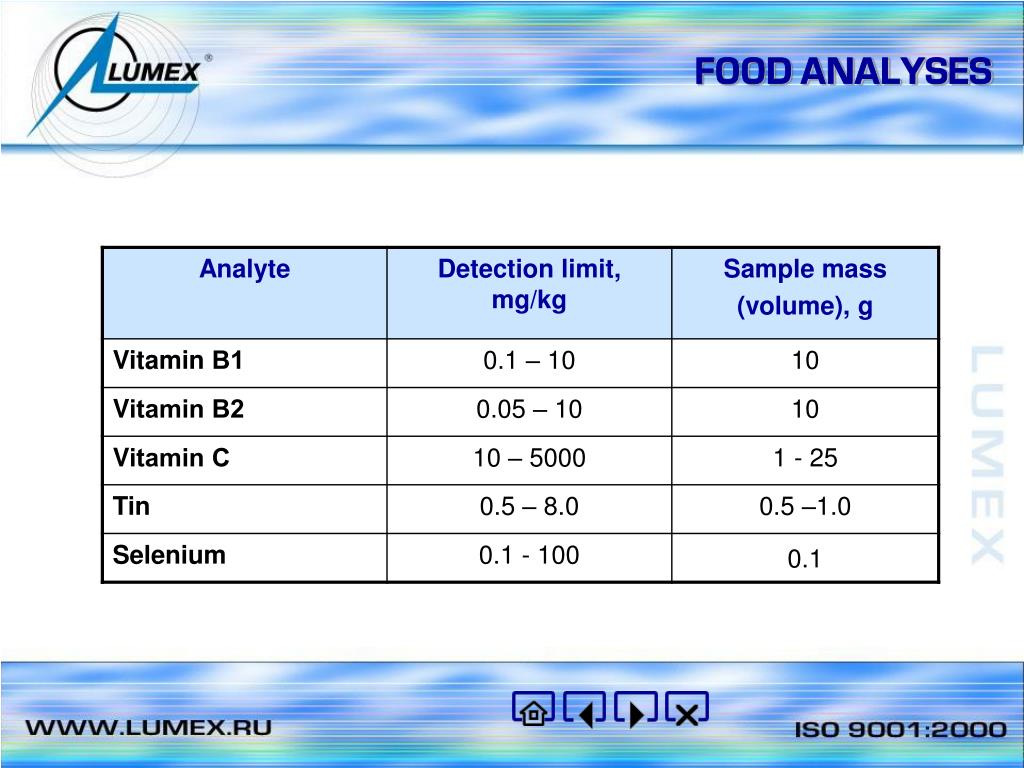

  16. FOOD ANALYSES

  17. EMISSION MEASUREMENT

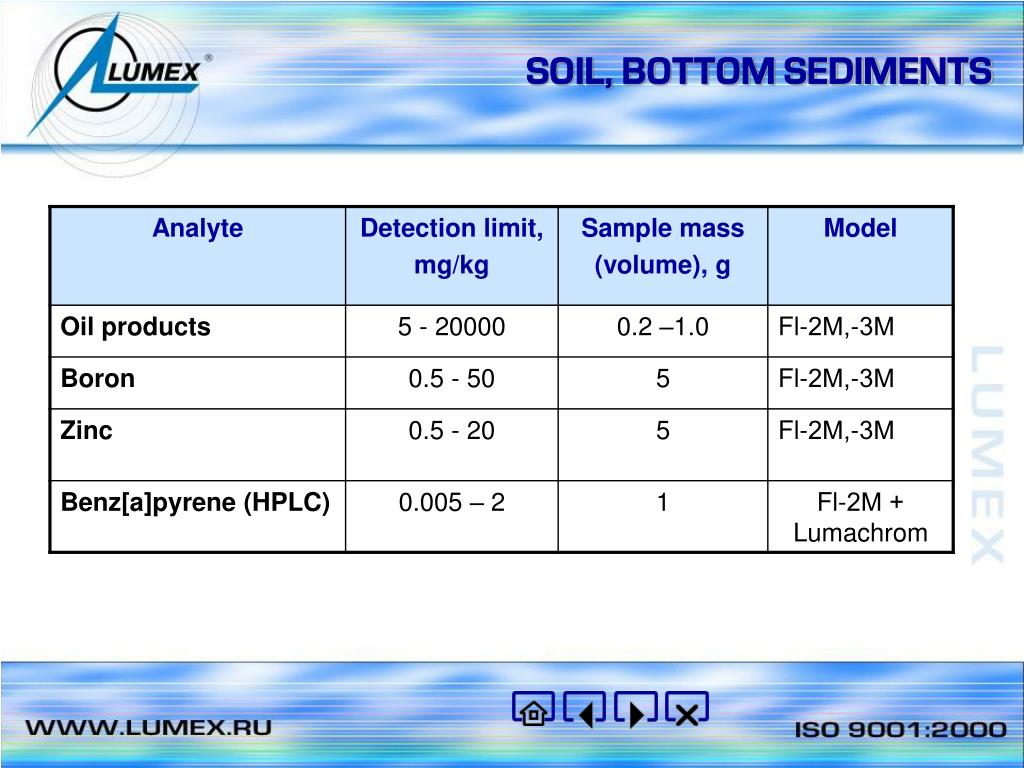

  18. SOIL, BOTTOM SEDIMENTS

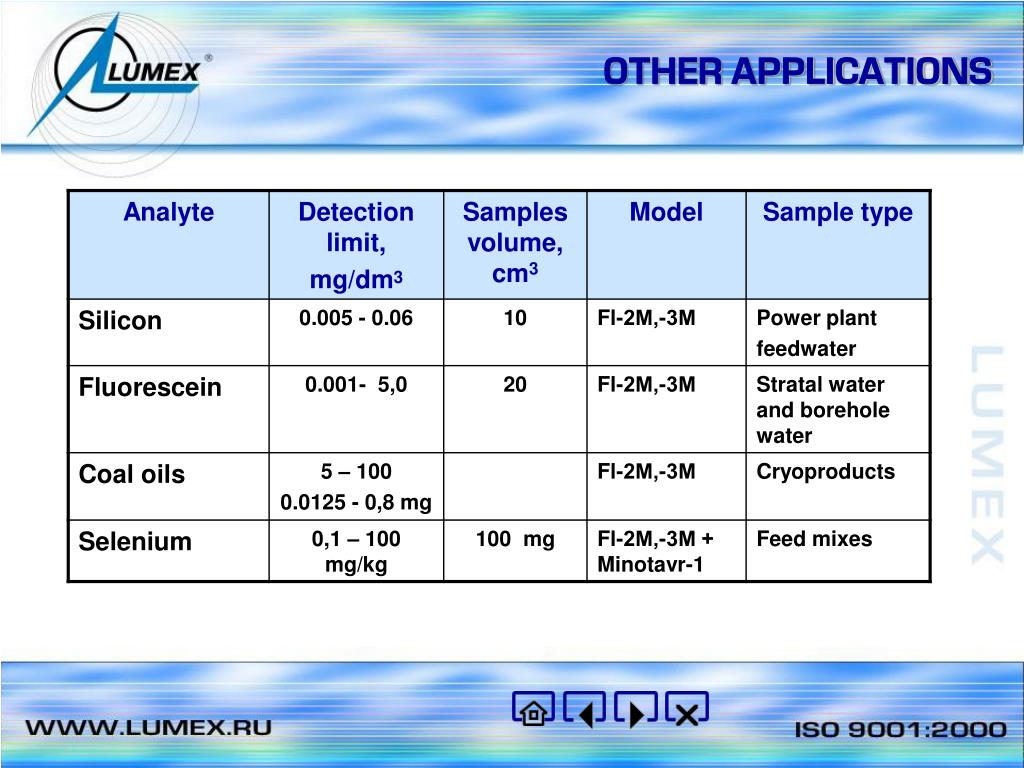

  19. OTHER APPLICATIONS

  20. SPECIFICATION

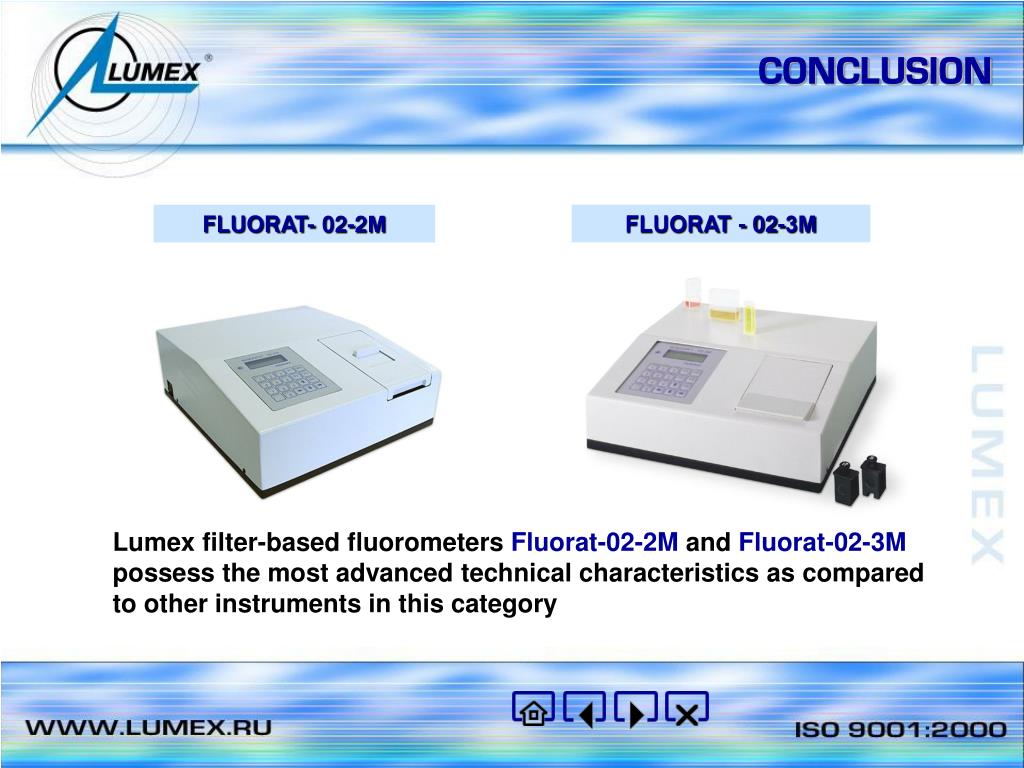

  21. CONCLUSION FLUORAT -02-3М FLUORAT-02-2М Lumex filter-based fluorometers Fluorat-02-2M and Fluorat-02-3M possess the most advanced technical characteristics as compared to other instruments in this category

  22. CONTACTS LUMEX INTERNATIONAL 4736 Lee Hwy, suite 203, Arlington VA 22207, USA Phone/Fax: +1 (703) 243-7103; E-mail: info@lumexint.com; http://www.lumexint.com OhioLumex Co. 9263, Ravenna Rd., Unit A3 Twinsburg, OH 44087 USA Phone: +1 (888) 876-2611; +1 (330) 405-0837 Fax: +1 (330) 405-0847 E-mail: Siperst@yahoo.com, mail@ohiolumex.com; http://www.ohiolumex.com LUMEX LTD. 19, Moskovskiy pr., St. Petersburg, 190005 Russia Phone: +7 (812) 718-5390, +7 (812) 718-5391 Fax: +7 (812) 316-6538 E-mail: sales@lumex.ru, is@lumex.ru; http://www.lumex.ru
