  1. LSA settings for inner triplets correctorsPart III Marek Strzelczyk Acknowledgements: Stephane Fartoukh, Per Hagen, Massimo Giovannozzi

  2. Recent developments • Correctors currents often beyond PC range • Solved • Correctors should be used only in the squeeze at low Beta* • Strength increased from 0% at 3m Beta* to 100% of calculated value at 1m Beta* • A trimable parameter added in case on wants to change this manually • A dependence between MQXs cn parameters and respective correctors’ K gave some troubles when trimming MQXs K (K-modulation) • Dependency removed on PRO; will be restored on request • Are the settings correct? • Checks ongoing with Per and Massimo

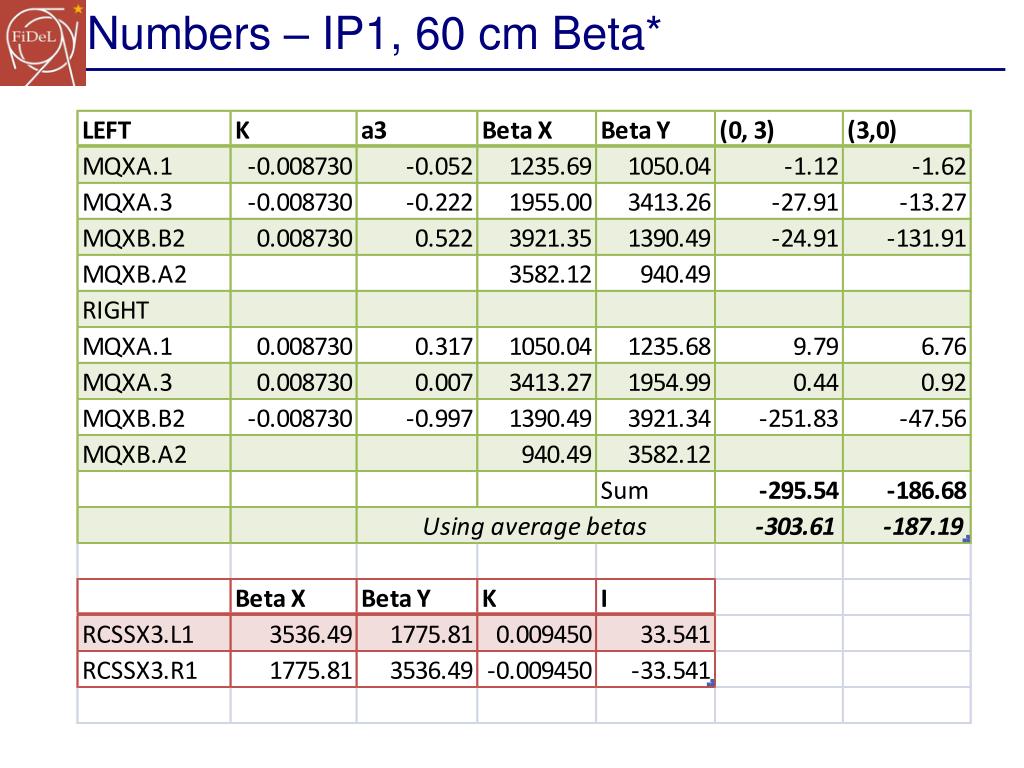

  3. Numbers – IP1, 60 cm Beta*
