  1. MVA-111 Safety System Interface 3.0

  2. Mixing Digital and Analog Technologies FSC Digital Output Transmitter Analog 2-wire digital communications Multivariable Interface Module Status Analog Input Shutdown System MVA-111 2.0

  3. What is the MVA ? Safety System Interface Power Digital Transmitter Input STAT RLY DE Analog Output HI Status Output LO Model MVA-111 Multivariable ! Validated ! Bumpless ! Safe! Accurate Rev 1.3

  4. Digital output transmitters provide status with every measurement value • Every analog output value is validated • Analog output transmitters cannot provide this synchronous measurement validation Multivariable Interface Module • Process Measurement Validation STATUS Analog Output RELAY Digital Input COMM POWER Status Output MVA-111 3.0

  5. Process Measurement Validation Unlike an analog output transmitter alone, the MVA provides true Process Measurement Validation . . . • Every digital Process Measurement Value from the transmitter has diagnostic Status • Transmitter status is passed through the MVA to the FSC • MVA analog repeat output is Synchronously Validated for: • Transmitter Diagnostic Status • Communication(DE) Integrity • MVA Diagnostic Status AND . . . • MVA Analog Repeat Output Signal integrity • The MVA analog output (into the FSC) is re-sampled by the MVA and validated for agreement with the transmitter’s digital DE value. 3.0

  6. TRANSMITTER DIAGNOSTICSTATUS PROCESS VALUE ACTION SAFE GOOD SAFE SAFE BAD BAD MAINTENANCE REQUIRED MAINTENANCE REQUIRED GOOD PROCESS ALARM TRIP UNSAFE GOOD PROCESS ALARM TRIP UNSAFE BAD MAINTENANCE REQUIRED BAD MAINTENANCE REQUIRED Process Measurement Validation • Every Process Measurement Value has Status • Differentiate Maintenance & Process Problems Analog output transmitters trip on maintenance problems also. 1.8

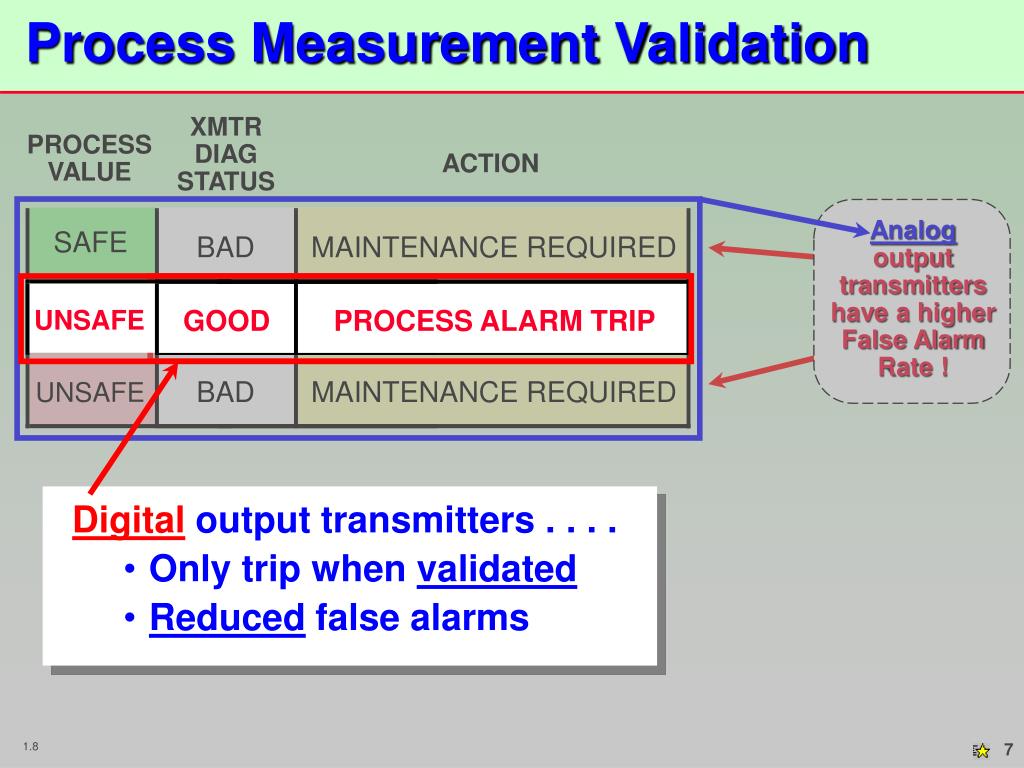

  7. SAFE BAD MAINTENANCE REQUIRED UNSAFE UNSAFE GOOD PROCESS ALARM TRIP GOOD PROCESS ALARM TRIP BAD MAINTENANCE REQUIRED • Digital output transmitters . . . . • Only trip when validated • Reduced false alarms Process Measurement Validation XMTR DIAGSTATUS PROCESS VALUE ACTION Analogoutput transmitters have a higher False Alarm Rate ! UNSAFE 1.8

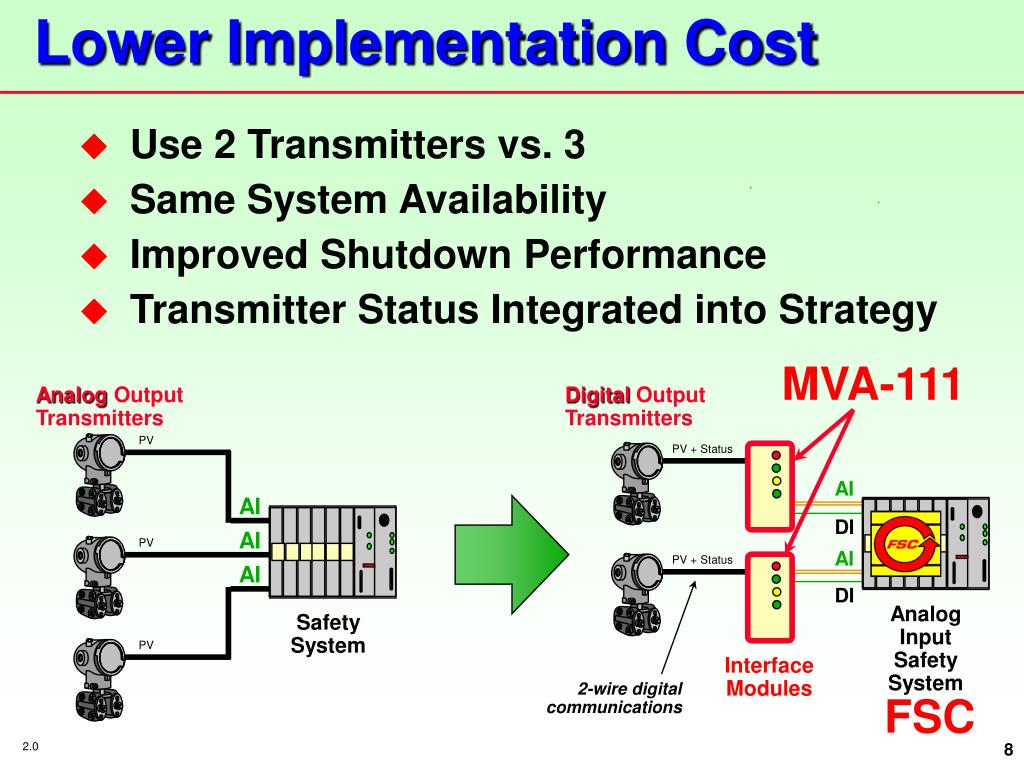

  8. Lower Implementation Cost • Use 2 Transmitters vs. 3 • Same System Availability • Improved Shutdown Performance • Transmitter Status Integrated into Strategy MVA-111 Analog Output Transmitters Digital Output Transmitters PV PV + Status AI AI DI AI PV AI PV + Status AI DI Analog Input Safety System Safety System PV Interface Modules 2-wire digital communications FSC 2.0

  9. Handheld Communicator Safety System Interfacing Control System 2-wire digital communications • Maintain All-Digital Integration • Bumpless & Secure All-Digital Communication • Test & Validate Using Handheld Communicator • Incorporate Transmitter Status into Safety Shutdown Strategy Transmitter Safety System MVA-111 Analog FSC Status

  10. Safety System Interfacing - multivariable Control System 2-wire digital communications • Multivariable Measurement Access • Process Measurement Validation • Incorporate Transmitter Status into Strategy • Integration with Control System Digital Output Multivariable Transmitter Safety System Multivariable Interface Module Analog FSC MVA-141 Status 2.0

  11. 1oo1 Honeywell Solutions 1. Analog 2. Digitally Integrated 3. Hybrid 4. Digital Stand Alone Safety System Analog Safety System Digital (PV + Status) Digital Interface Safety System SLC Digital Analog (PV + Status) Status Digital (PV + Status) Digital Trip Switch 1.9

  12. Comparing Solutions < Analog Digital > other Honeywell Moore Honeywell Honeywell Honeywell ST3000 XTC ST w/DEM ST w/MVA ST w/MTS logarithmic scale Significantly Less False Alarms 3.0

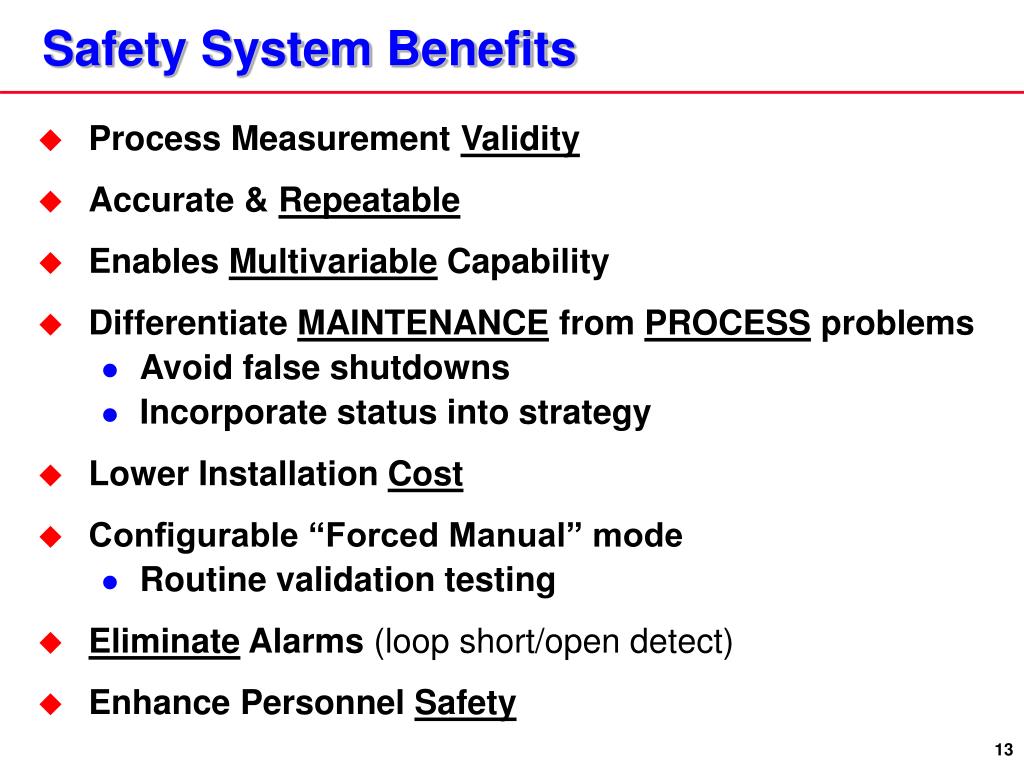

  13. Safety System Benefits • Process Measurement Validity • Accurate & Repeatable • Enables Multivariable Capability • Differentiate MAINTENANCE from PROCESS problems • Avoid false shutdowns • Incorporate status into strategy • Lower Installation Cost • Configurable “Forced Manual” mode • Routine validation testing • Eliminate Alarms (loop short/open detect) • Enhance Personnel Safety

  14. Vektron Interface Solutions • Signal Splitter • 51204932-001 =MVA-111= 1 analog output • 51204932-002 =MVA-141= 4 analog outputs • PV Alarm • 51204933-001 =MTS-102= no analog output • 51204933-002 =MTS-112= 1 analog output 3.2

  15. Approvals • CE Mark (Europe) • Industrial Classification • Emissions: Group 1, Class A, Industrial Control Equipment, EN 55011. • Immunity: Industrial,EN 50082-2, immunity • CSA (Canada) • C22.2 No. 205M – Signal Equipment • UL (USA) • UL1635 – Digital Alarm System Unit • Designed to Meet Emerging Standards • ISA S84 • IEC 16508 Rev 1.3
