  1. Modern Techniques for Evaluating HittingAlan M. NathanUniversity of Illinois • Batted ball analysis • Initial speed and angles • Landing point and hang time • Swing analysis • Bat speed • Swing plane • Timing • “squaring up”

  2. Introductory Remarks • Tradition techniques are “outcome-based” • BA, SLG, OPS, BABIP, … • Modern techniques are “process-based”, independent of outcome • What constitutes a well-hit ball? • What constitutes a good swing?

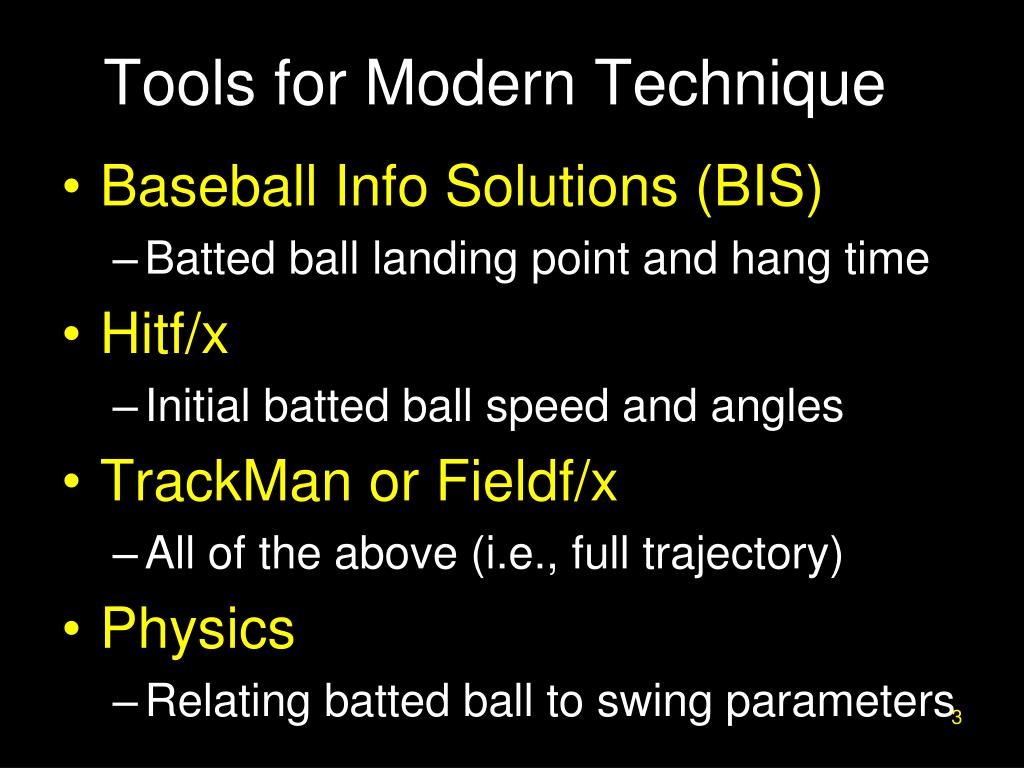

  3. Tools for Modern Technique • Baseball Info Solutions (BIS) • Batted ball landing point and hang time • Hitf/x • Initial batted ball speed and angles • TrackMan or Fieldf/x • All of the above (i.e., full trajectory) • Physics • Relating batted ball to swing parameters

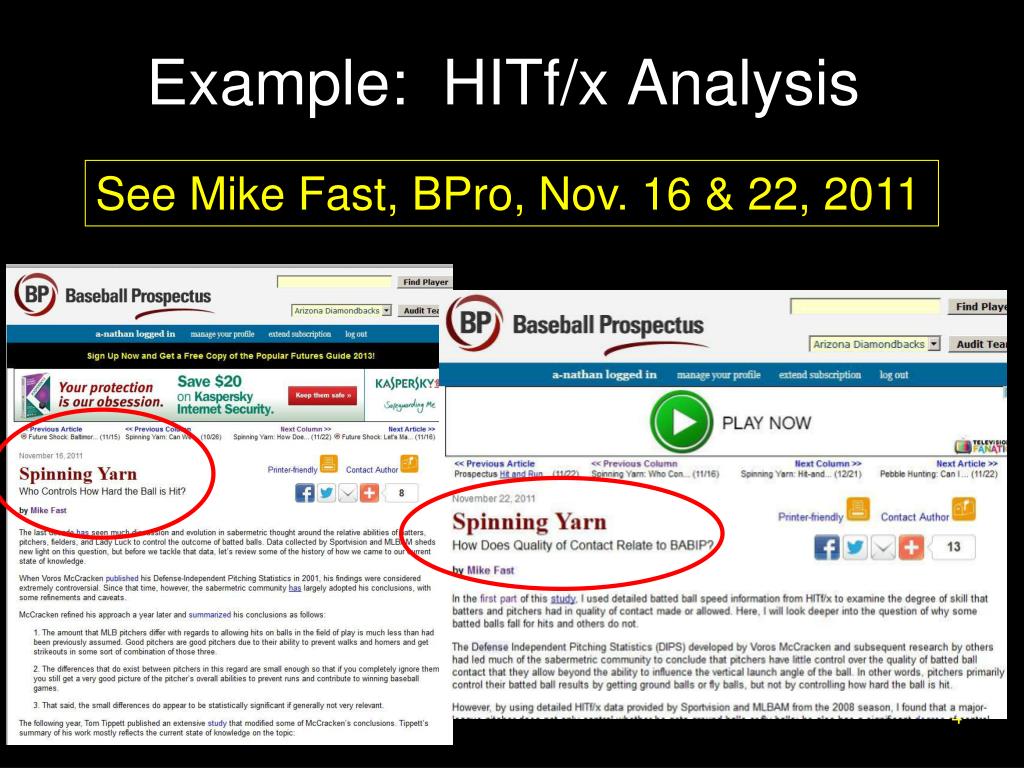

  4. Example: HITf/x Analysis See Mike Fast, BPro, Nov. 16 & 22, 2011

  5. What Constitutes “Good Contact”? Hitf/x from April 2009 BABIP • ~50% of balls hit with BBS90 mph are safe hits, regardless of VLA • ~37% of balls hit with BBS 90 mph and 250≤VLA≤350are HR HR

  6. What Constitutes “Good Contact”? Hitf/x from April 2009 BABIP • ~80% of balls hit with 100≤VLA≤150 are safe hits, regardless of BBS • ~68% of balls hit with 100≤VLA≤250 and 60≤BBS≤80 mph are safe hits HR

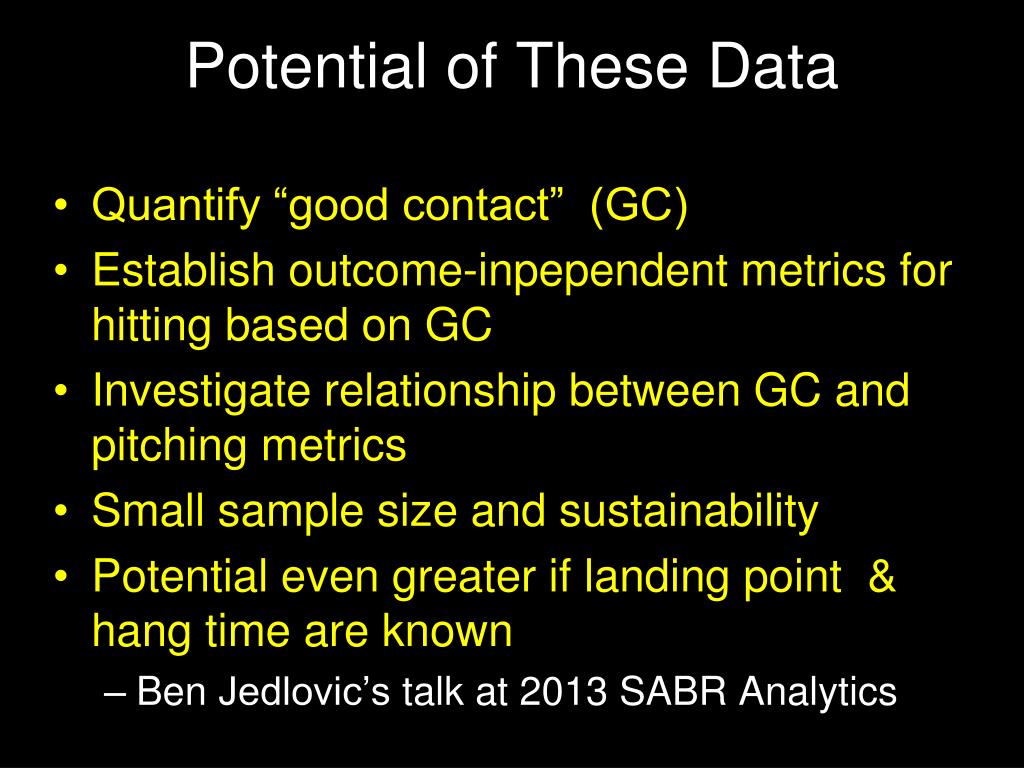

  7. Potential of These Data • Quantify “good contact” (GC) • Establish outcome-inpependent metrics for hitting based on GC • Investigate relationship between GC and pitching metrics • Small sample size and sustainability • Potential even greater if landing point & hang time are known • Ben Jedlovic’s talk at 2013 SABR Analytics

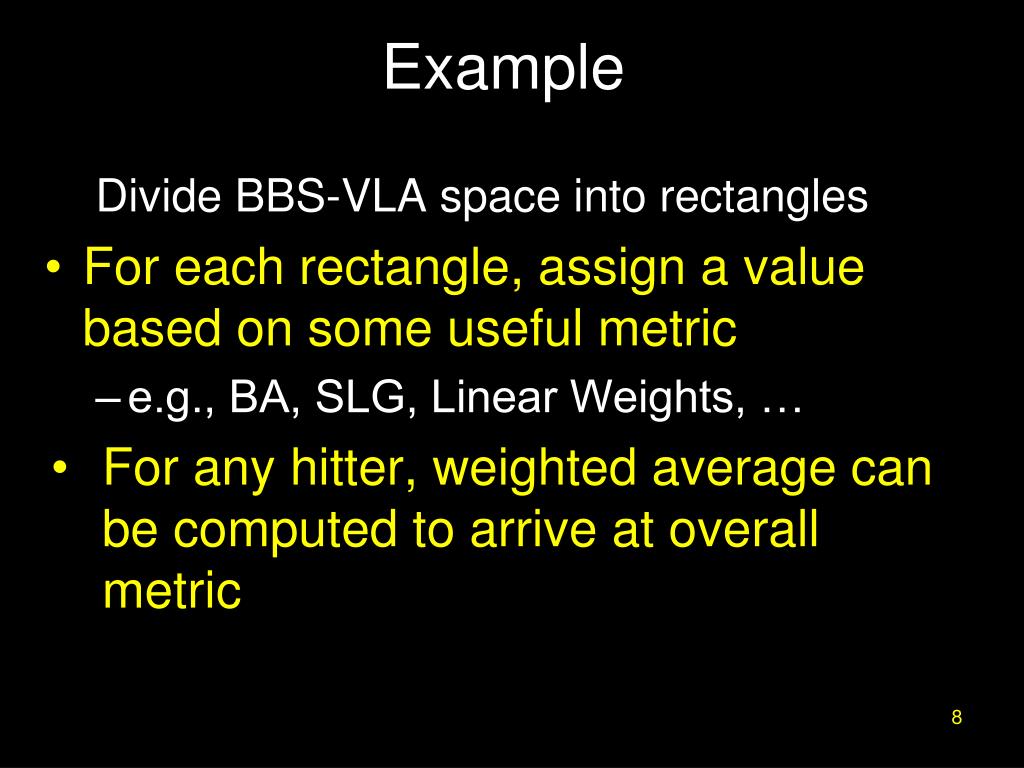

  8. Example Divide BBS-VLA space into rectangles • For each rectangle, assign a value based on some useful metric • e.g., BA, SLG, Linear Weights, … • For any hitter, weighted average can be computed to arrive at overall metric

  9. Landing Point/Hang Time(image courtesy of BIS) Small horiz speed Large horiz speed

  10. Ex: Two MLB Hitters(images courtesy of BIS) Batter #1 Batter #2

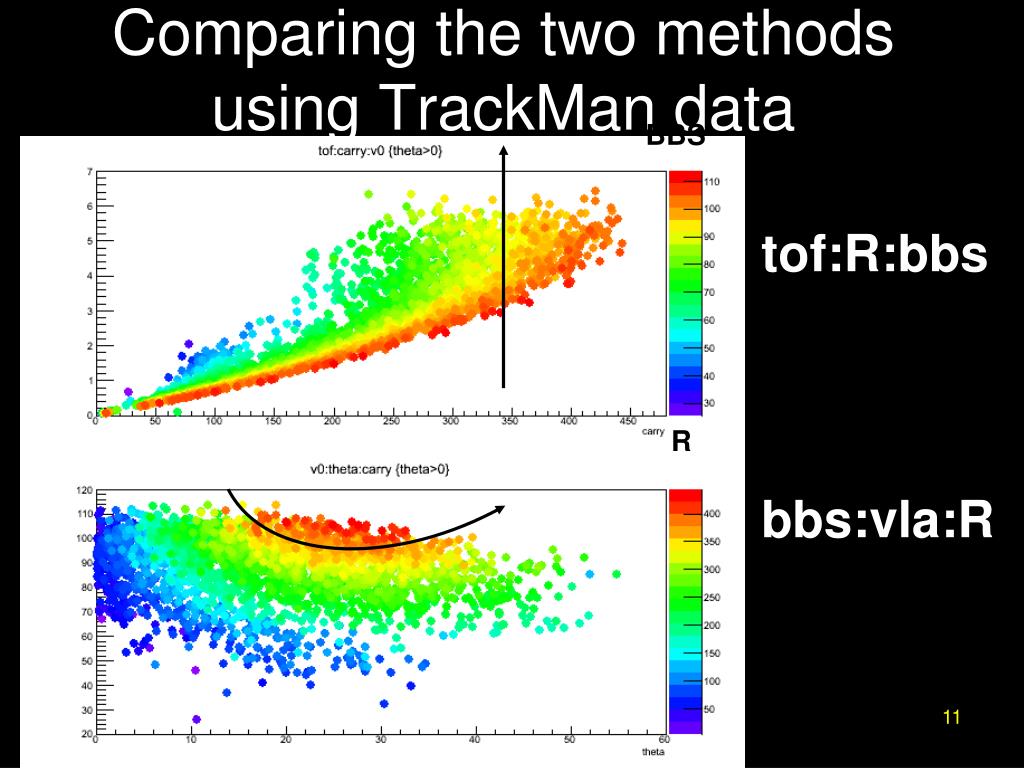

  11. Comparing the two methods using TrackMan data BBS tof:R:bbs R bbs:vla:R

  12. Comparing the two methods using TrackMan data BBS tof:R:bbs R bbs:vla:R

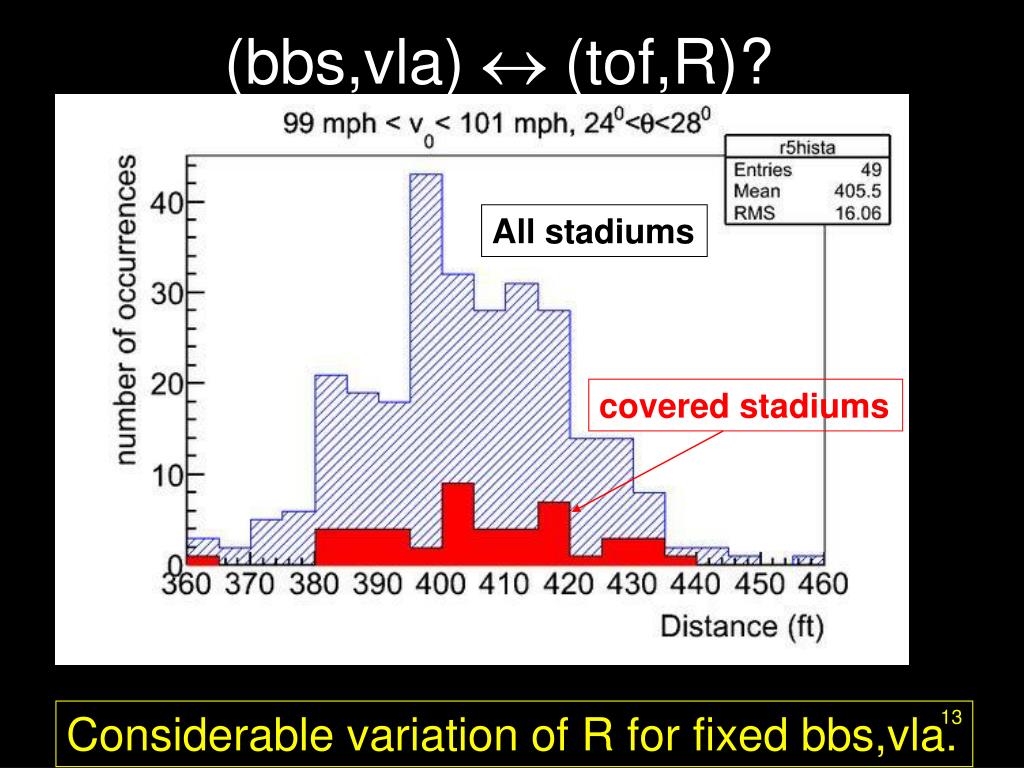

  13. (bbs,vla)  (tof,R)? All stadiums covered stadiums Considerable variation of R for fixed bbs,vla.

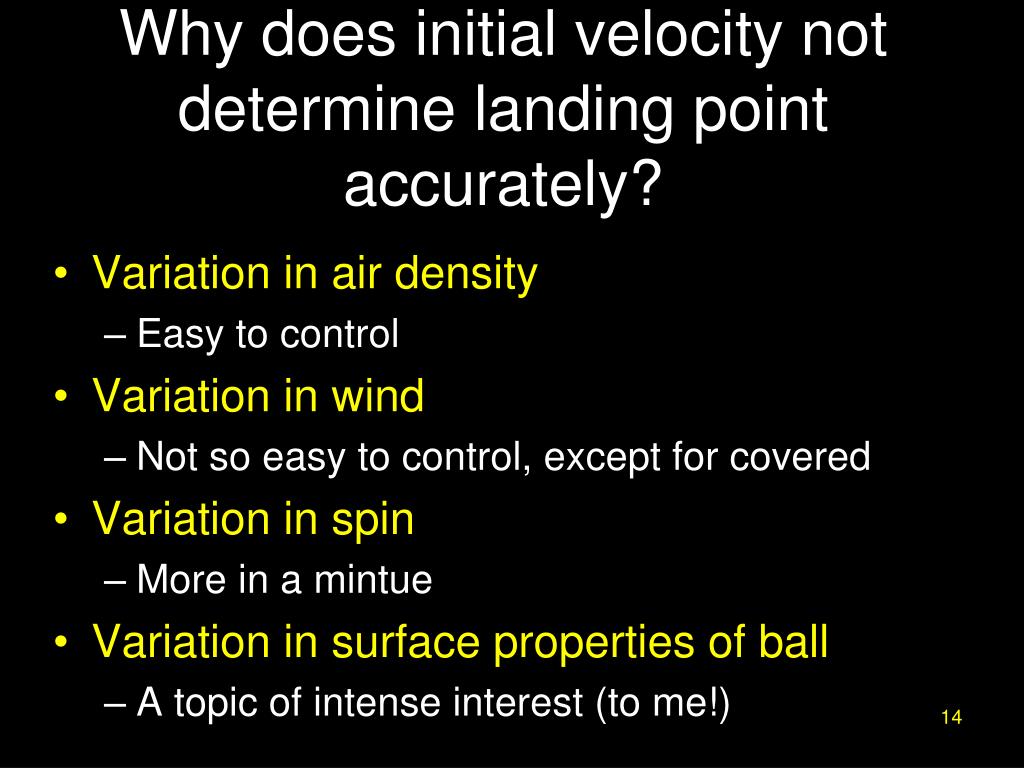

  14. Why does initial velocity not determine landing point accurately? • Variation in air density • Easy to control • Variation in wind • Not so easy to control, except for covered • Variation in spin • More in a mintue • Variation in surface properties of ball • A topic of intense interest (to me!)

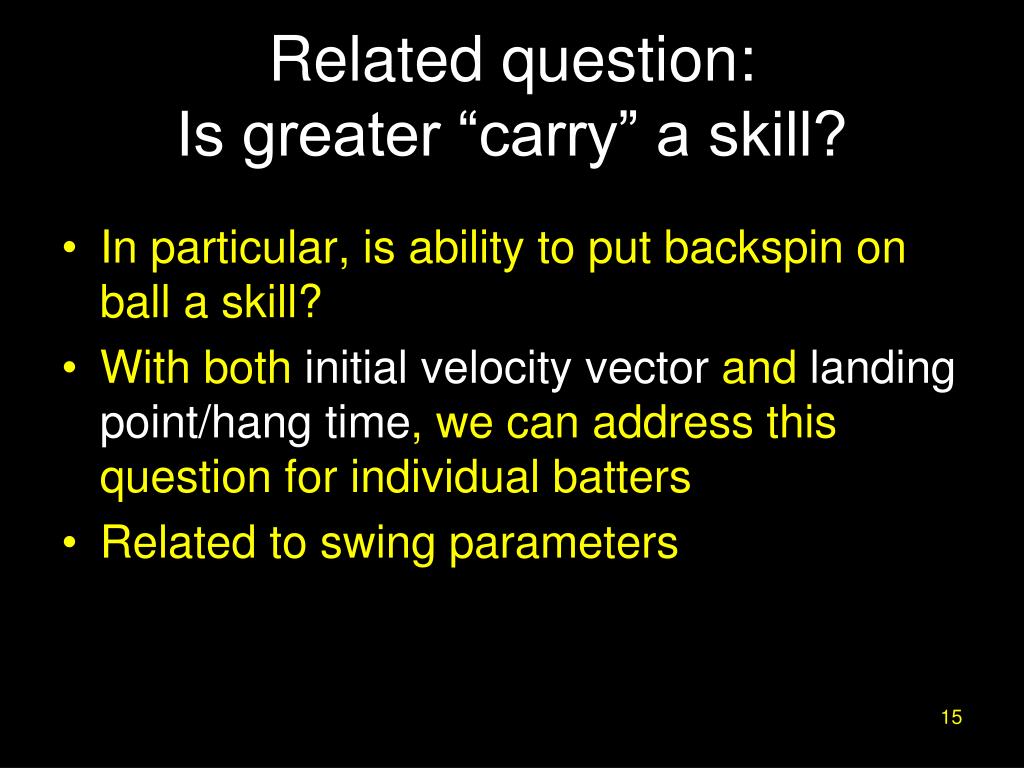

  15. Related question: Is greater “carry” a skill? • In particular, is ability to put backspin on ball a skill? • With both initial velocity vector and landing point/hang time, we can address this question for individual batters • Related to swing parameters

  16. New Research Project • Can batted ball data determine swing parameters? • A very challenging physics problem • In this talk I will • State the problem • Discuss progress in solving

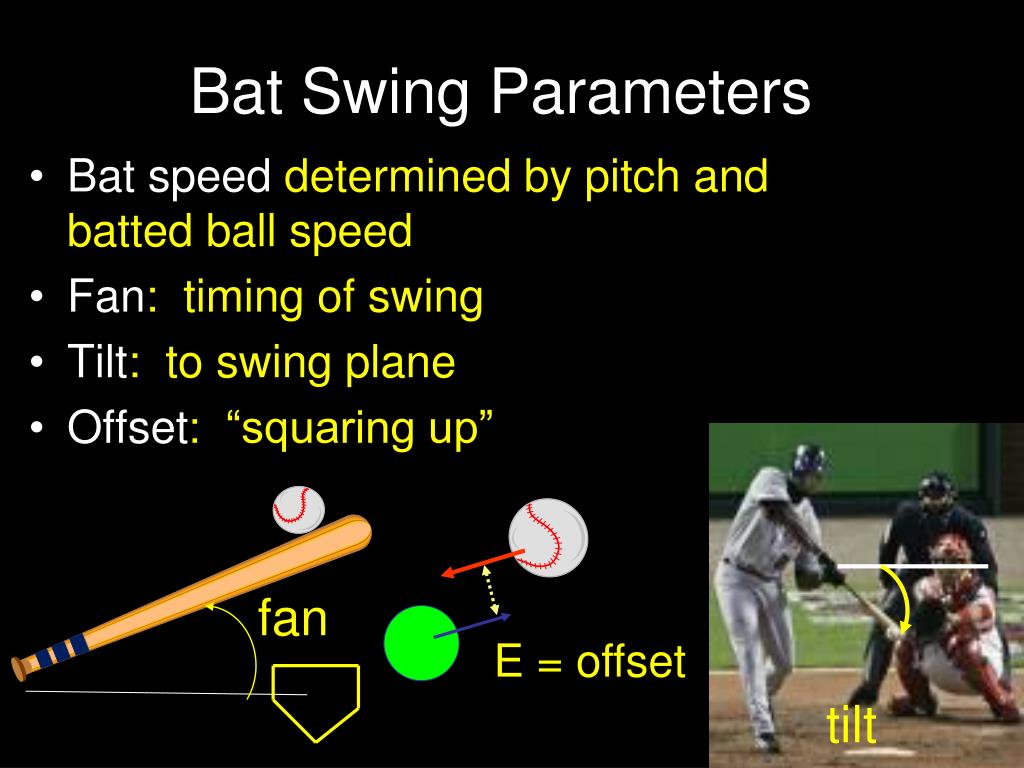

  17. fan tilt E = offset Bat Swing Parameters • Bat speed determined by pitch and batted ball speed • Fan: timing of swing • Tilt: to swing plane • Offset: “squaring up”

  18. Current State • Bat swing parameters can predict batted ball parameters. • fan+tilt+offset HLA+VLA+spin axis • Can batted ball parameters determine bat swing parameters?

  19. Simple Example:Straight Pitch, RHH, Tilt=00 Fan=150 Fan=00 Fan=-150 E=+1” E=0” E=0 E=-1” 19

  20. Simple Example:Straight Pitch, RHH, Tilt=450 Fan=150 Fan=00 Fan=-150 E=+1” E=0 E=-1” 20

  21. A Brief Aside:Spin of a Batted Baseball normal force friction 2000 fps 120 mph

  22. 00 -450 450 Fly balls break toward foul line LF RF

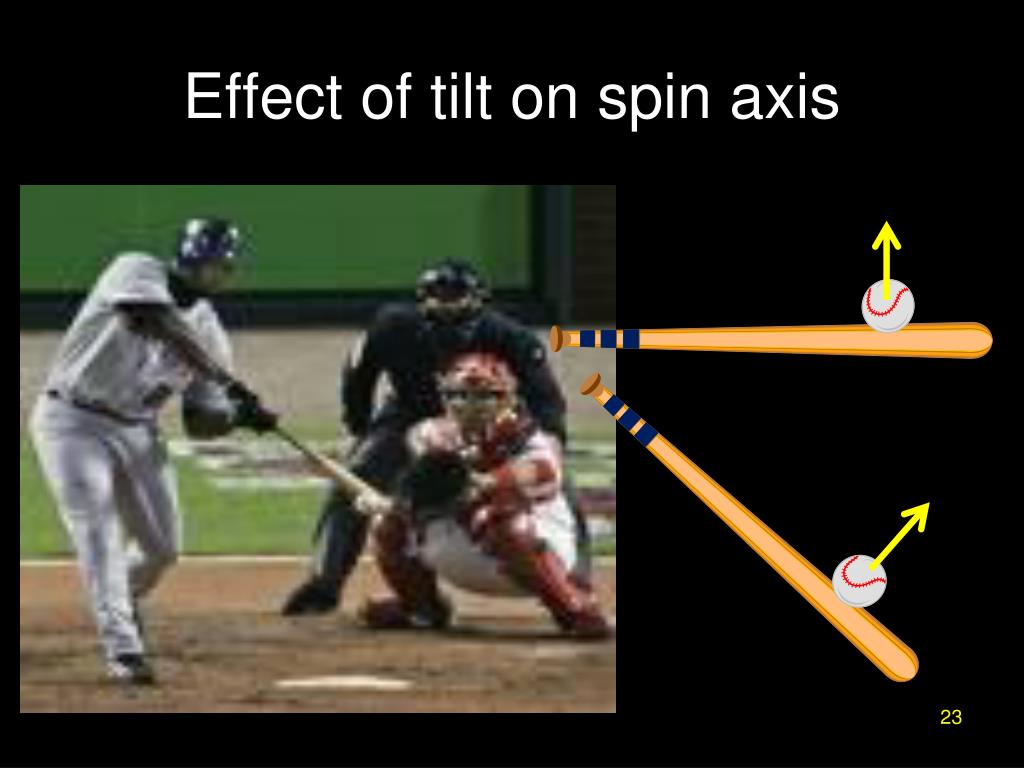

  23. Effect of tilt on spin axis

  24. Tilt  Balls hit to CF slice RHH LHH

  25. Current State of Affairs Spin axis might be able to determine tilt angle Spin axis can be determined from trajectory hang time backspin lateral deflectionsidespin spin axis ~ tan-1(sidespin/backspin) Work still in progress but It looks promising that HLA+VLA+spin axis fan+tilt+offset

  26. Summary/Outlook • We have some new tools for evaluating batting based on process rather than outcome • Determining swing parameters from batted ball data looks promising but still a work in progress • Progress on both fronts would benefit greatly from existing data that are not readily available
