1. CS 192 Lecture 12 Winter 2003 December 31, 2003 - January 1, 2004 Dr. Shafay Shamail

2. Pointer • Points to an item • Holds the memory address of the item • Has its own memory storage • Occupies space in memory • Hence can itself be accessed too • Allows C/C++ to support dynamic memory allocation • If x contains the address of y, x is said to “point to” y • Pointer variables are declared as type *var-name; e.g. int *p; pointer p contains the memory address of an int variable float *fl; points to a float variable

3. Assumptions • characters are one byte in length • integers are four bytes long • floats are four bytes long • doubles are eight bytes long

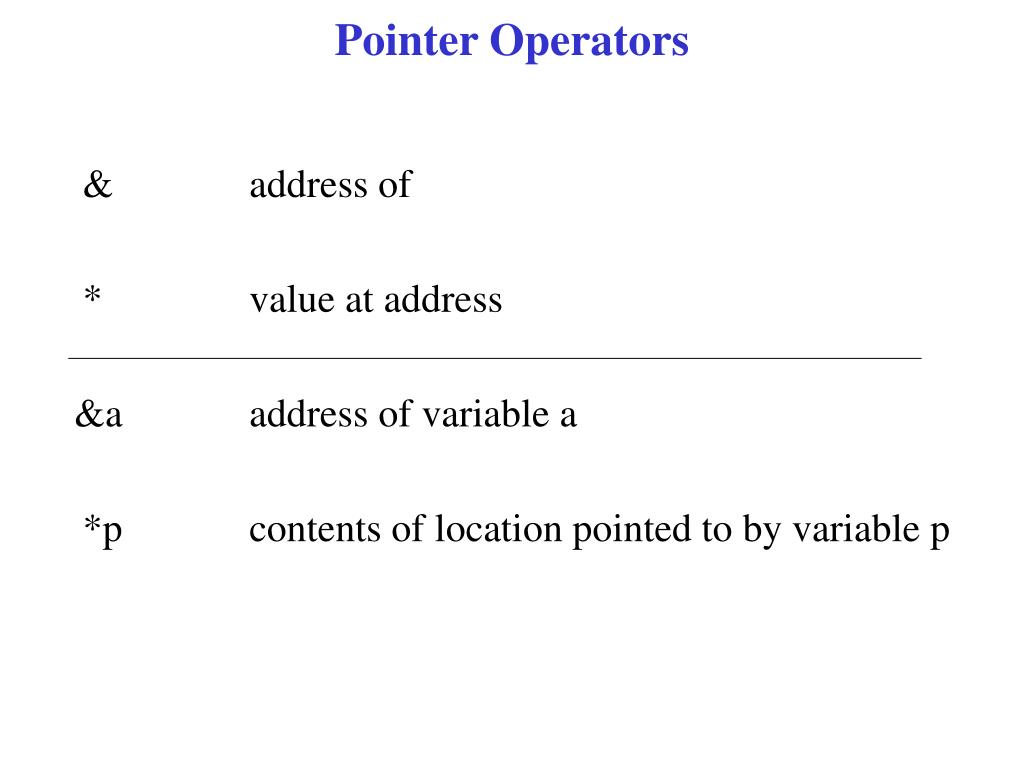

4. Pointer Operators & address of * value at address &a address of variable a *p contents of location pointed to by variable p

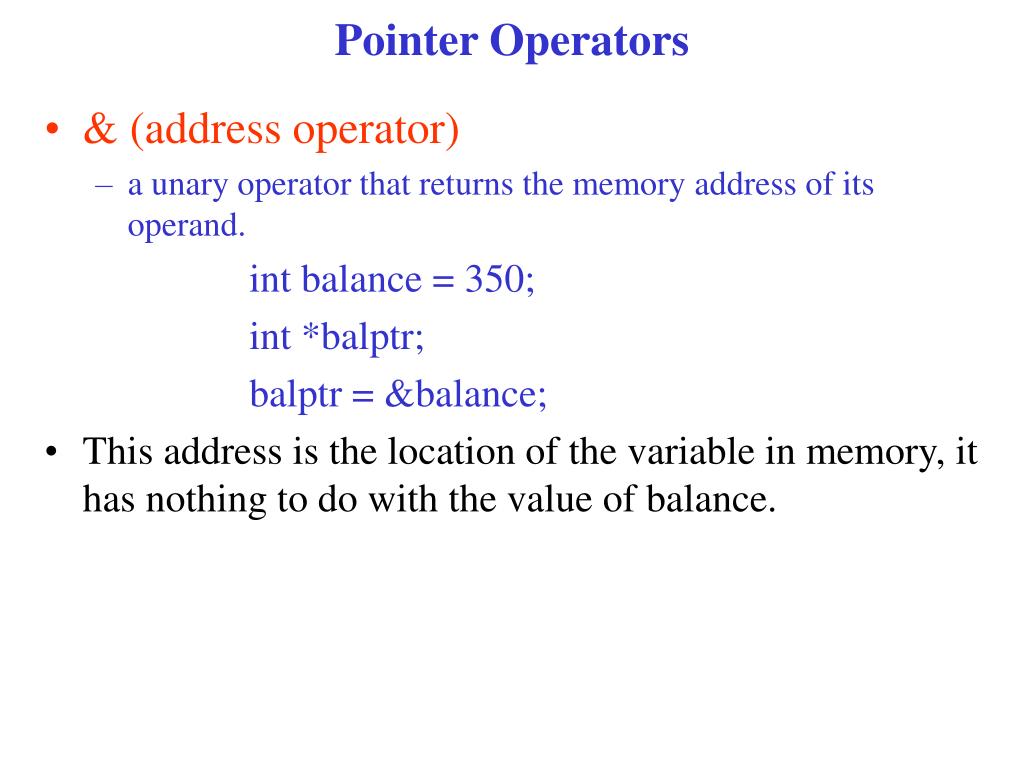

5. Pointer Operators • & (address operator) • a unary operator that returns the memory address of its operand. int balance = 350; int *balptr; balptr = &balance; • This address is the location of the variable in memory, it has nothing to do with the value of balance.

6. Pointer Operators • * (indirection operator) • Is the complement of &. • It is a unary operator that returns the value of variable located at address specified by its operand. int balance = 350; int *balptr; balptr = &balance; int value; value = *balptr; // what does value contain?

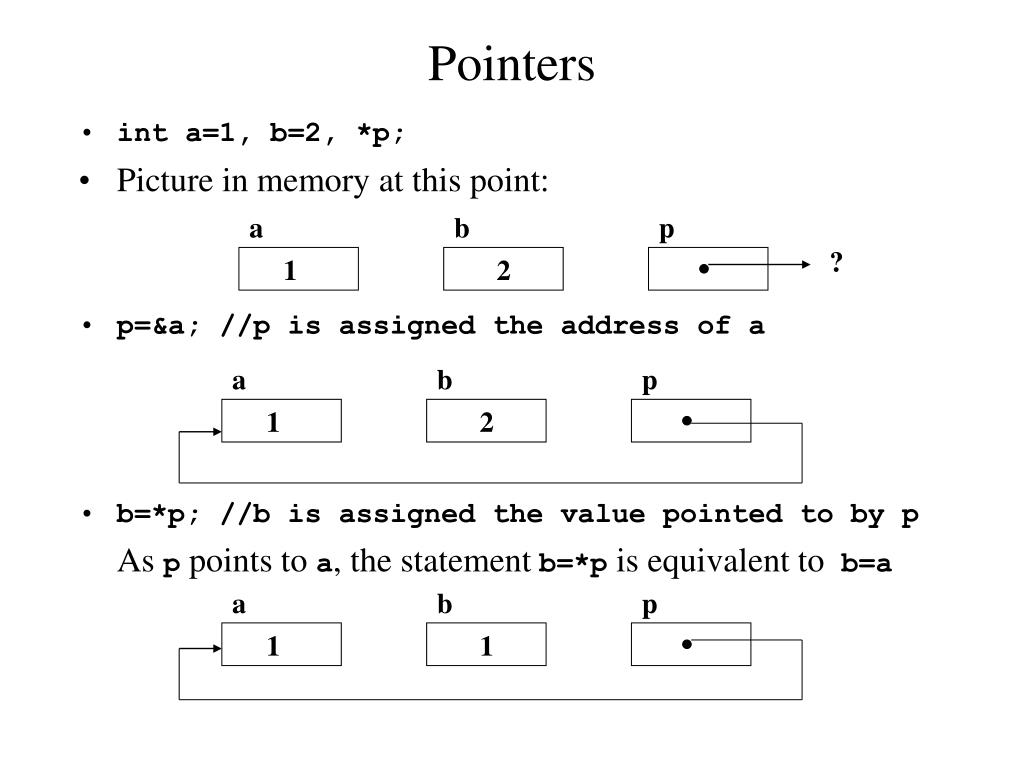

7. a b p ? 1 2 a b p 1 2 a b p 1 1 Pointers • int a=1, b=2, *p; • Picture in memory at this point: • p=&a; //p is assigned the address of a • b=*p; //b is assigned the value pointed to by p As p points to a, the statement b=*p is equivalent to b=a

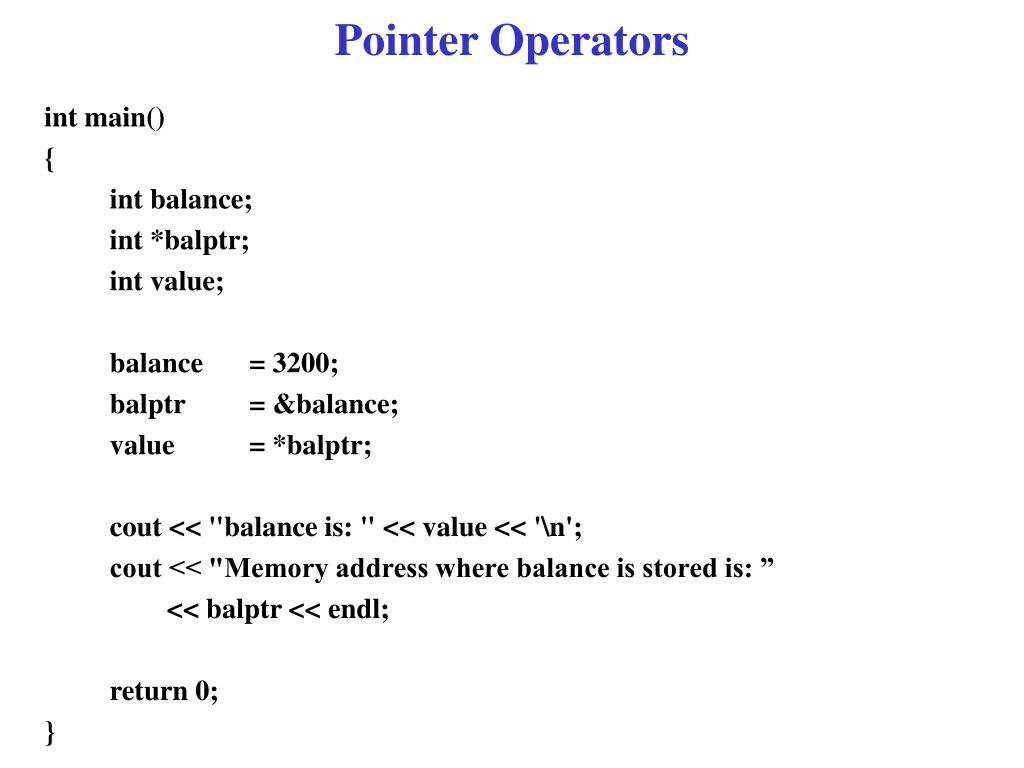

8. Pointer Operators int main() { int balance; int *balptr; int value; balance = 3200; balptr = &balance; value = *balptr; cout << "balance is: " << value << '\n'; cout << "Memory address where balance is stored is: ” << balptr << endl; return 0; }

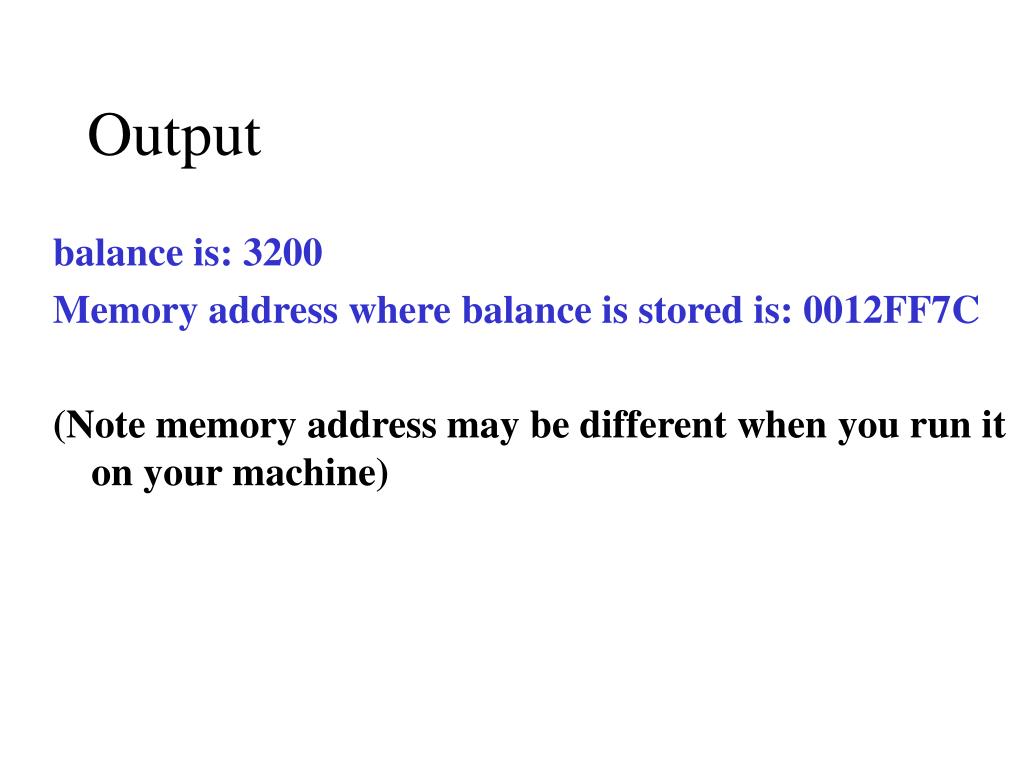

9. Output balance is: 3200 Memory address where balance is stored is: 0012FF7C (Note memory address may be different when you run it on your machine)

10. Base Type value = *balptr; • The compiler transfers the proper number of bytes according to base type. int *p; double f; // ... p = &f; // ERROR

11. Assigning Values Through a Pointer int *p; int x = 12; p=&x; cout << x << endl; //Assign a value to the location pointed to by p *p = 101; cout << x << endl; //what is value of x? cout << *p << endl; cout << p << endl; cout << &x << endl;

12. Assigning values through a pointer 12 101 101 0012FF78 0012FF78

13. Assigning Values Through a Pointer (*p)++;//increment value to the location pointed to by p int main() { int *p, num; p = &num; *p = 454; cout << num << ' '; (*p)++; /* parentheses are necessary because * operator has lower precedence than ++operator */ cout << num << ' '; (*p) - -; cout << num << '\n'; return 0; } //Output?

14. Assigning Values Through a Pointer //Output is 454 455 454

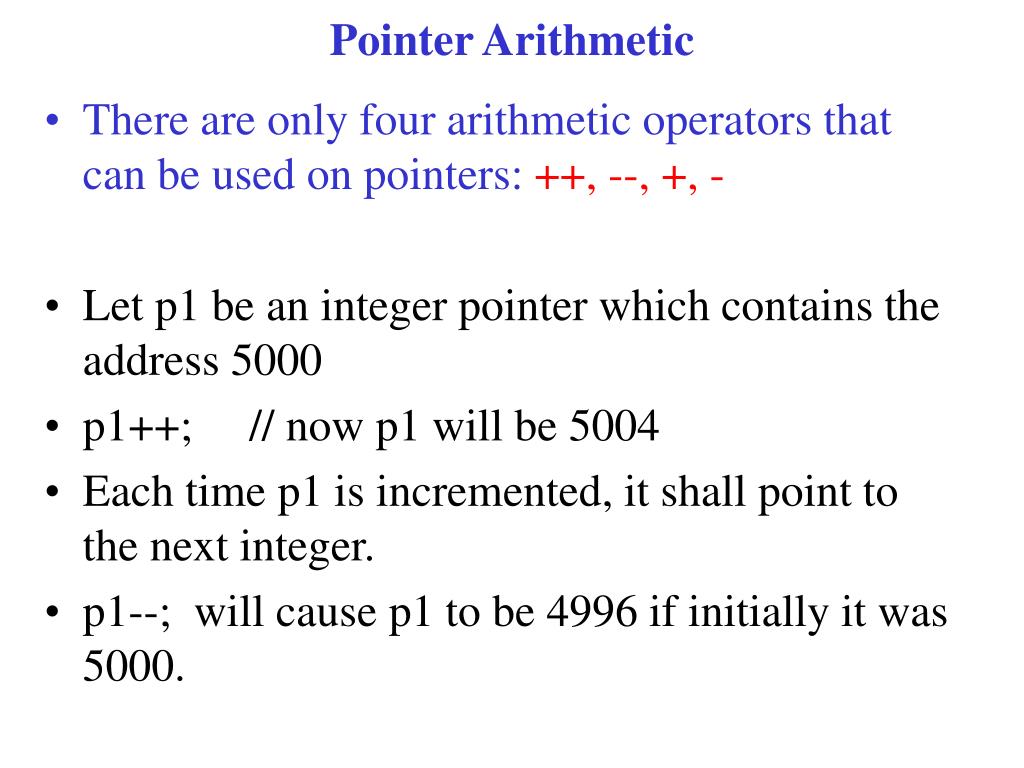

15. Pointer Arithmetic • There are only four arithmetic operators that can be used on pointers: ++, --, +, - • Let p1 be an integer pointer which contains the address 5000 • p1++; // now p1 will be 5004 • Each time p1 is incremented, it shall point to the next integer. • p1--; will cause p1 to be 4996 if initially it was 5000.

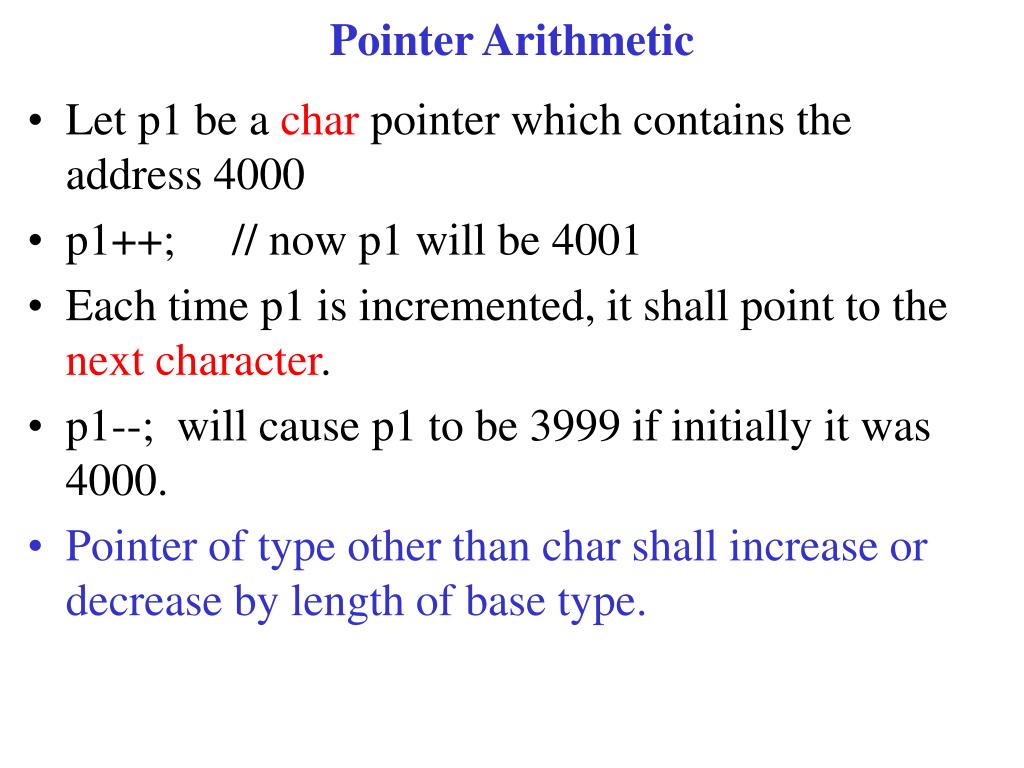

16. Pointer Arithmetic • Let p1 be a char pointer which contains the address 4000 • p1++; // now p1 will be 4001 • Each time p1 is incremented, it shall point to the next character. • p1--; will cause p1 to be 3999 if initially it was 4000. • Pointer of type other than char shall increase or decrease by length of base type.

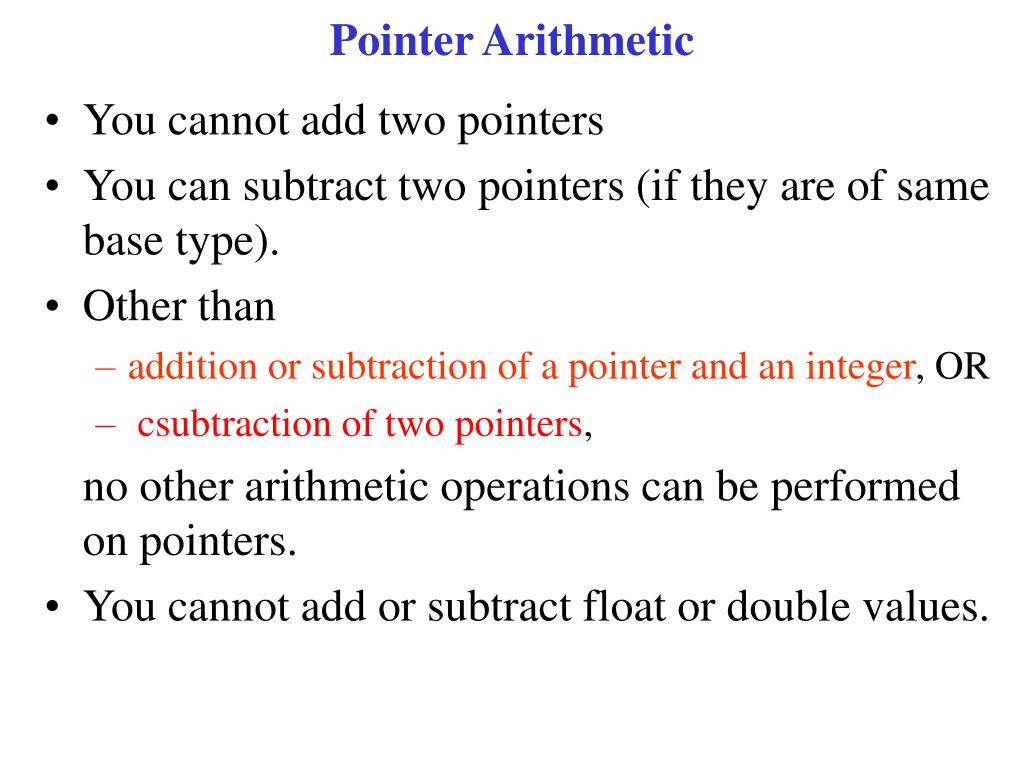

17. Pointer Arithmetic • You cannot add two pointers • You can subtract two pointers (if they are of same base type). • Other than • addition or subtraction of a pointer and an integer, OR • csubtraction of two pointers, no other arithmetic operations can be performed on pointers. • You cannot add or subtract float or double values.

18. Pointer Arithmetic int main() { int *iptr, a; //which is pointer to int? which is int? double *fptr, b; int x; a = 10; b = 20; iptr = &a; fptr = &b; for ( x = 0; x < 10; x++) cout << iptr+x << " " << fptr+x << '\n'; return 0; }

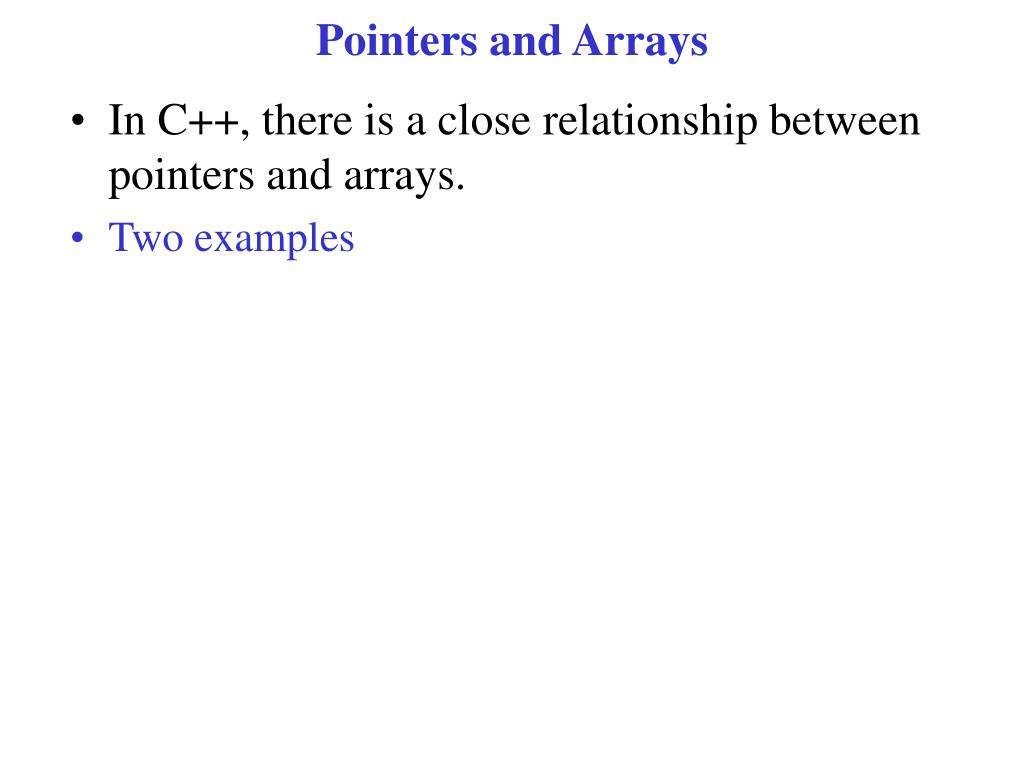

19. Pointers and Arrays • In C++, there is a close relationship between pointers and arrays. • Two examples

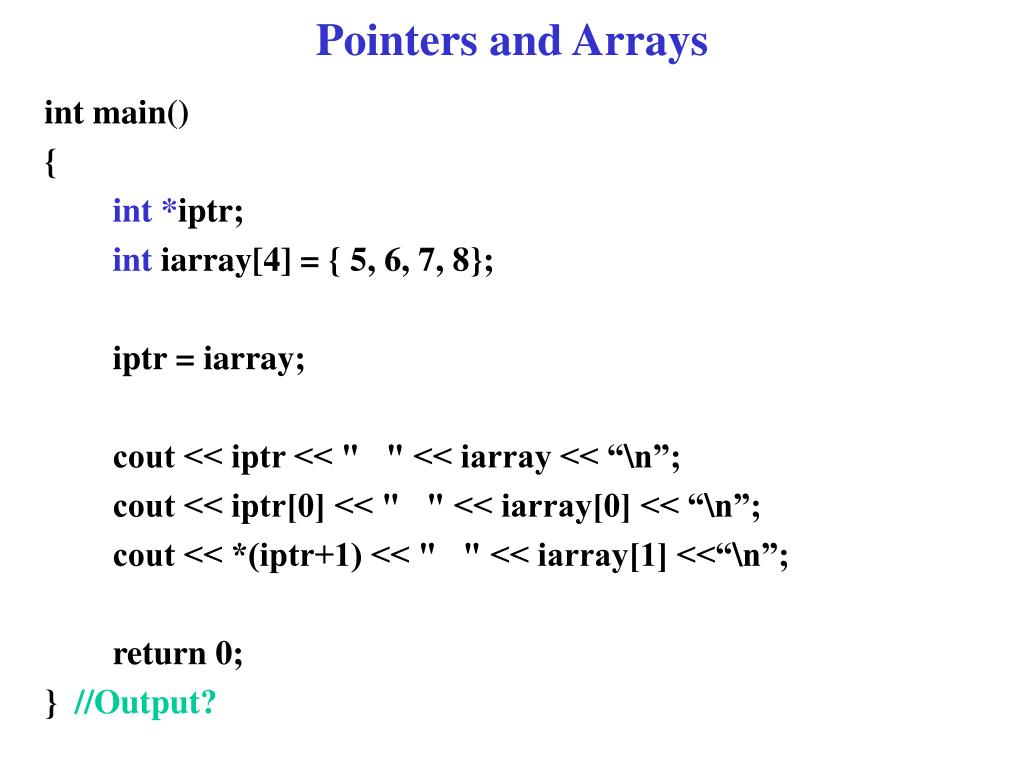

20. Pointers and Arrays int main() { int *iptr; int iarray[4] = { 5, 6, 7, 8}; iptr = iarray; cout << iptr << " " << iarray << “\n”; cout << iptr[0] << " " << iarray[0] << “\n”; cout << *(iptr+1) << " " << iarray[1] <<“\n”; return 0; } //Output?

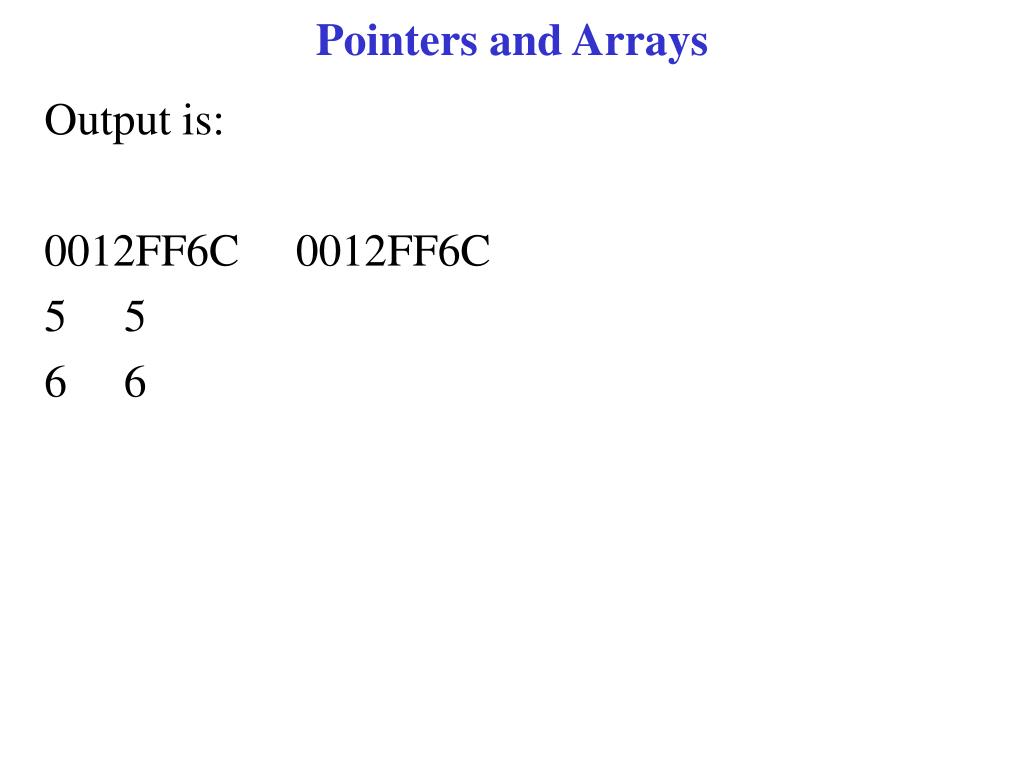

21. Pointers and Arrays Output is: 0012FF6C 0012FF6C 5 5 6 6

22. Pointers and Arrays int b[] = {10, 20, 30, 40, 50, 60, 70, 80, 90, 100}; int *bptr = b; // set bPtr to point to array b int *b2ptr = b+5; /* set b2Ptr to point to sixth element of array b */ cout << "b[" << 5 << "] = " << b[5] << endl; cout << "*b2ptr = " << *b2ptr << endl; cout << "(b2ptr - bptr) = " << (b2ptr - bptr) << endl;

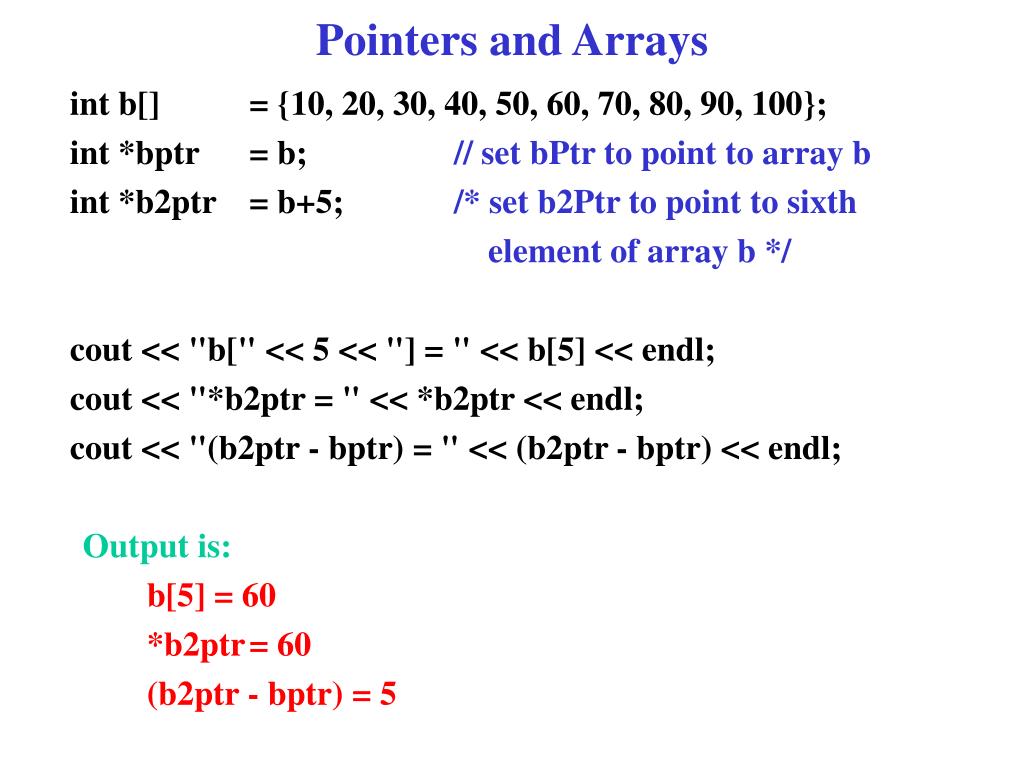

23. Pointers and Arrays int b[] = {10, 20, 30, 40, 50, 60, 70, 80, 90, 100}; int *bptr = b; // set bPtr to point to array b int *b2ptr = b+5; /* set b2Ptr to point to sixth element of array b */ cout << "b[" << 5 << "] = " << b[5] << endl; cout << "*b2ptr = " << *b2ptr << endl; cout << "(b2ptr - bptr) = " << (b2ptr - bptr) << endl; Output is: b[5] = 60 *b2ptr = 60 (b2ptr - bptr) = 5

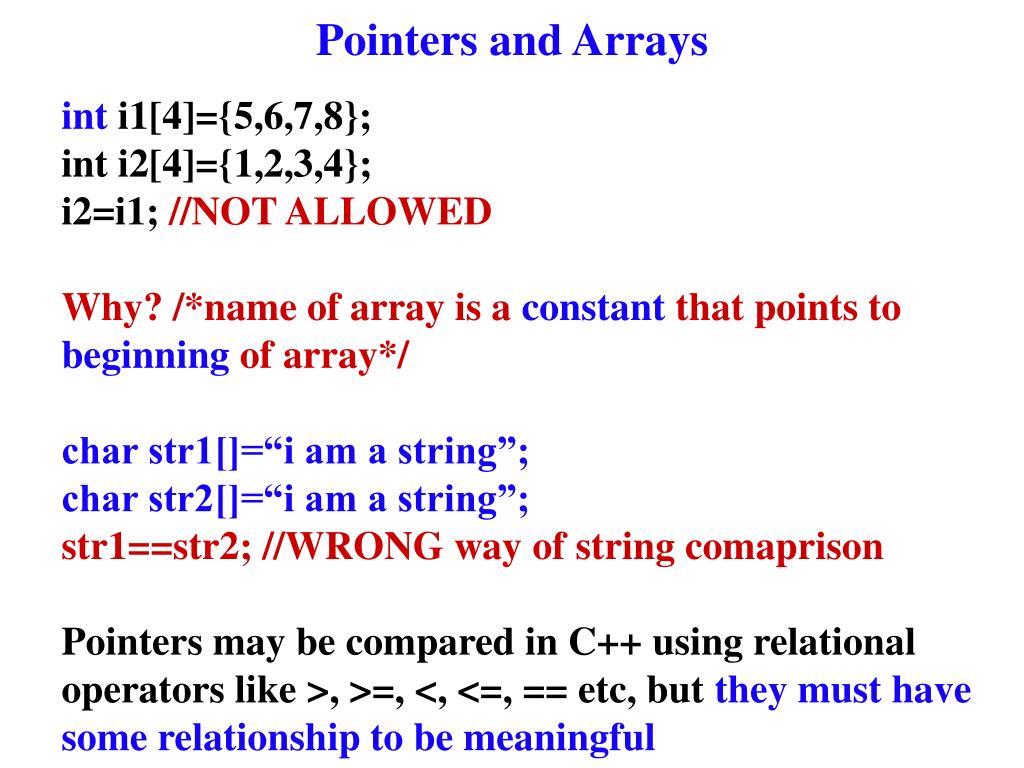

24. Pointers and Arrays int i1[4]={5,6,7,8}; int i2[4]={1,2,3,4}; i2=i1; //NOT ALLOWED Why? /*name of array is a constant that points to beginning of array*/ char str1[]=“i am a string”; char str2[]=“i am a string”; str1==str2; //WRONG way of string comaprison Pointers may be compared in C++ using relational operators like >, >=, <, <=, == etc, but they must have some relationship to be meaningful

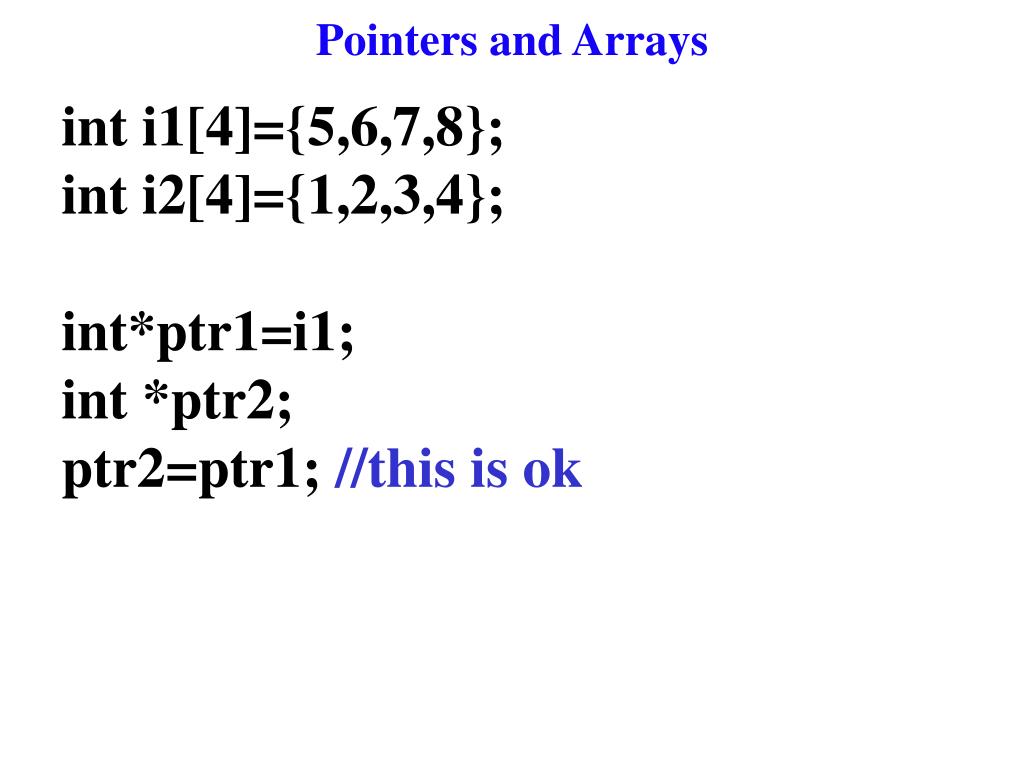

25. Pointers and Arrays inti1[4]={5,6,7,8}; int i2[4]={1,2,3,4}; int*ptr1=i1; int *ptr2; ptr2=ptr1; //this is ok

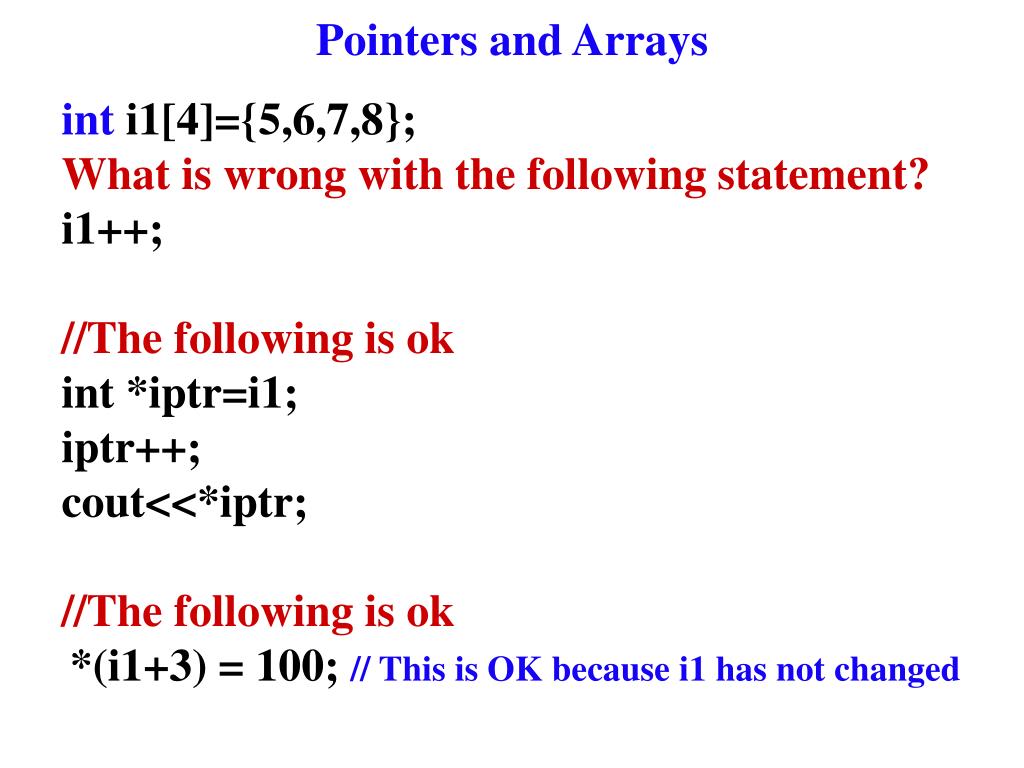

26. Pointers and Arrays int i1[4]={5,6,7,8}; What is wrong with the following statement? i1++; //The following is ok int *iptr=i1; iptr++; cout<<*iptr; //The following is ok *(i1+3) = 100; // This is OK because i1 has not changed

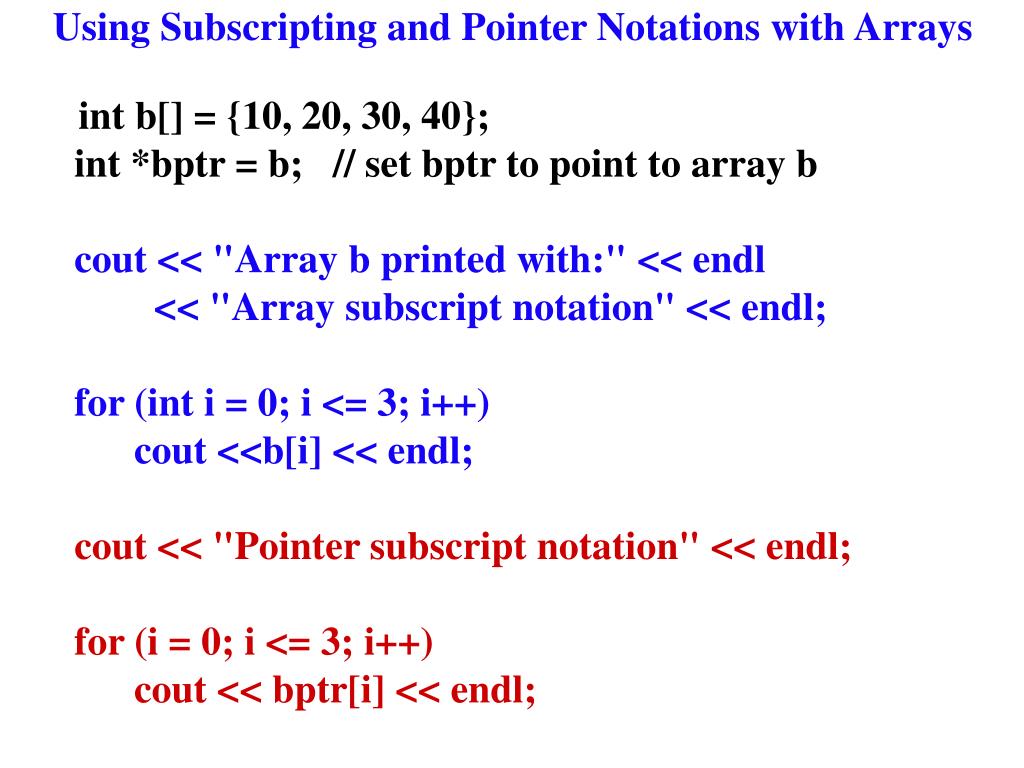

27. Using Subscripting and Pointer Notations with Arrays int b[] = {10, 20, 30, 40}; int *bptr = b; // set bptr to point to array b cout << "Array b printed with:" << endl << "Array subscript notation" << endl; for (int i = 0; i <= 3; i++) cout <<b[i] << endl; cout << "Pointer subscript notation" << endl; for (i = 0; i <= 3; i++) cout << bptr[i] << endl;

28. Using Subscripting and Pointer Notations with Arrays int offset; cout << "Pointer/offset notation where" << endl << "the pointer is the array name" << endl; for (offset = 0; offset <= 3; offset++) cout << *(b + offset) << endl; cout <<"Pointer/offset notation" << endl; for (offset = 0; offset <= 3; offset++) cout << *(bptr + offset) << endl;

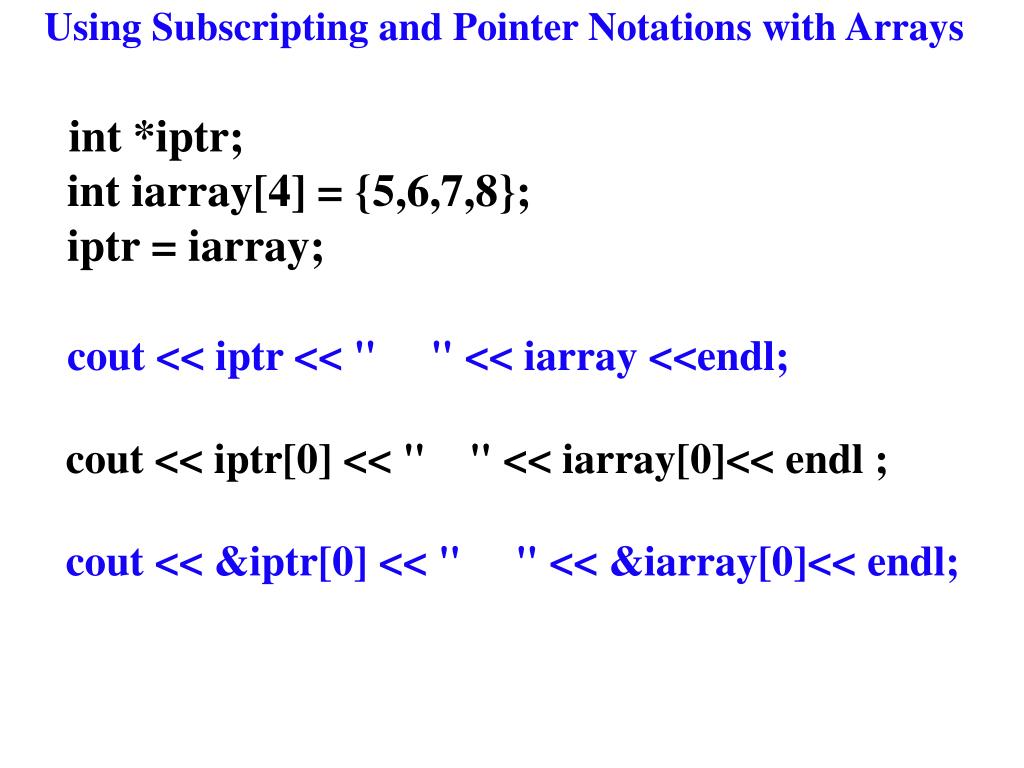

29. Using Subscripting and Pointer Notations with Arrays int *iptr; int iarray[4] = {5,6,7,8}; iptr = iarray; cout << iptr << " " << iarray <<endl; cout << iptr[0] << " " << iarray[0]<< endl ; cout << &iptr[0] << " " << &iarray[0]<< endl;

30. Pointer Arithmetic • int main() • { • int a[3] = {10, 20, 30}; • double b[3] = {10.5, 20.5, 30.5}; • int *iptr; • double *fptr; • int x, size=3; • iptr = a; //name of array is a constant that points to beginning of array • fptr = b; • for(x=0; x<size; x++) • { • cout << iptr+x << " " << fptr+x << '\n'; • cout <<*( iptr+x) << " " <<*( fptr+x) << '\n'; • cout << *iptr+x << " " << *fptr+x << '\n'; • } • return 0; • } //pointer-add example

31. Pointer Arithmetic Output: 0x0012FF74 0x0012FF5C 10 10.5 10 10.5 0x0012FF78 0x0012FF64 20 20.5 11 11.5 0x0012FF7C 0x0012FF6C 30 30.5 12 12.5

32. Pointer Arithmetic int a[3] = {1, 2, 3}; int *iptr; iptr = a; //what is the difference between *iptr++ and (*iptr)++ and *(iptr++)? cout<<*iptr++; cout<<*++iptr; cout<<(*iptr)++; cout<<++(*iptr); cout<<*(iptr++); cout<<*(++iptr);

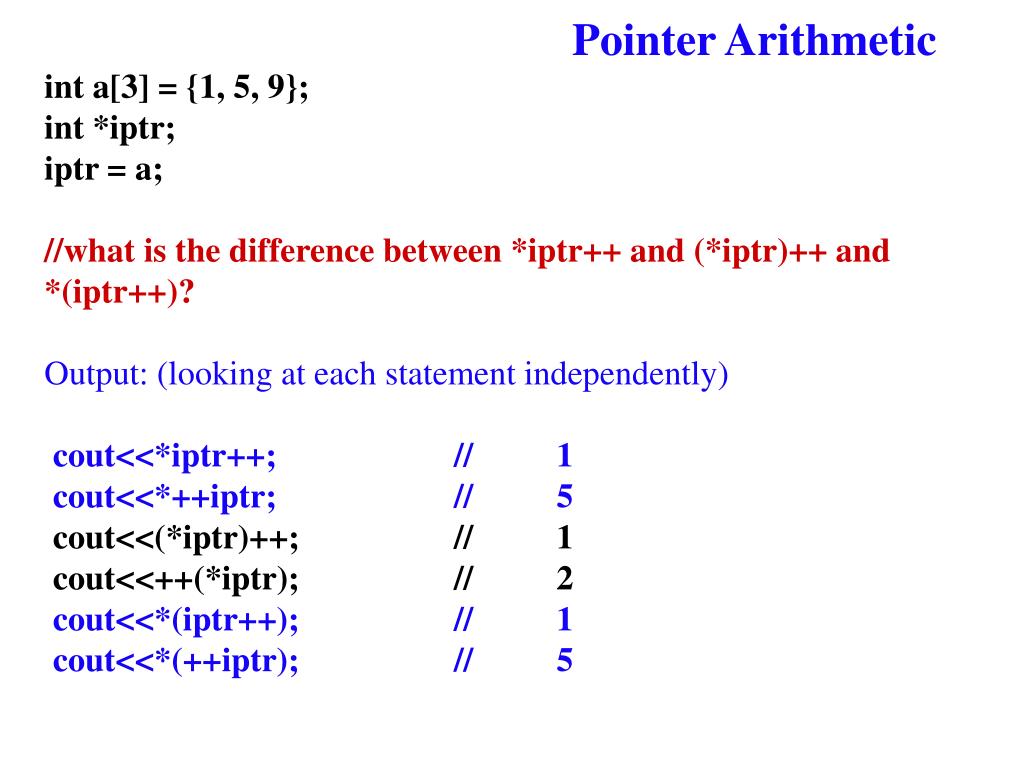

33. Pointer Arithmetic int a[3] = {1, 5, 9}; int *iptr; iptr = a; //what is the difference between *iptr++ and (*iptr)++ and *(iptr++)? Output: (looking at each statement independently) cout<<*iptr++; // 1 cout<<*++iptr; // 5 cout<<(*iptr)++; // 1 cout<<++(*iptr); // 2 cout<<*(iptr++); // 1 cout<<*(++iptr); // 5

34. Self Test: Pointer Arithmetic int a[3]={1, 5, 9}; int *iptr; iptr = a; Self Test: what is output if the statements are executed one after the other? //Be-careful is there array overrun? garbage values? cout<<*iptr++; cout<<*++iptr; cout<<(*iptr)++; cout<<++(*iptr); cout<<*(iptr++); cout<<*(++iptr);

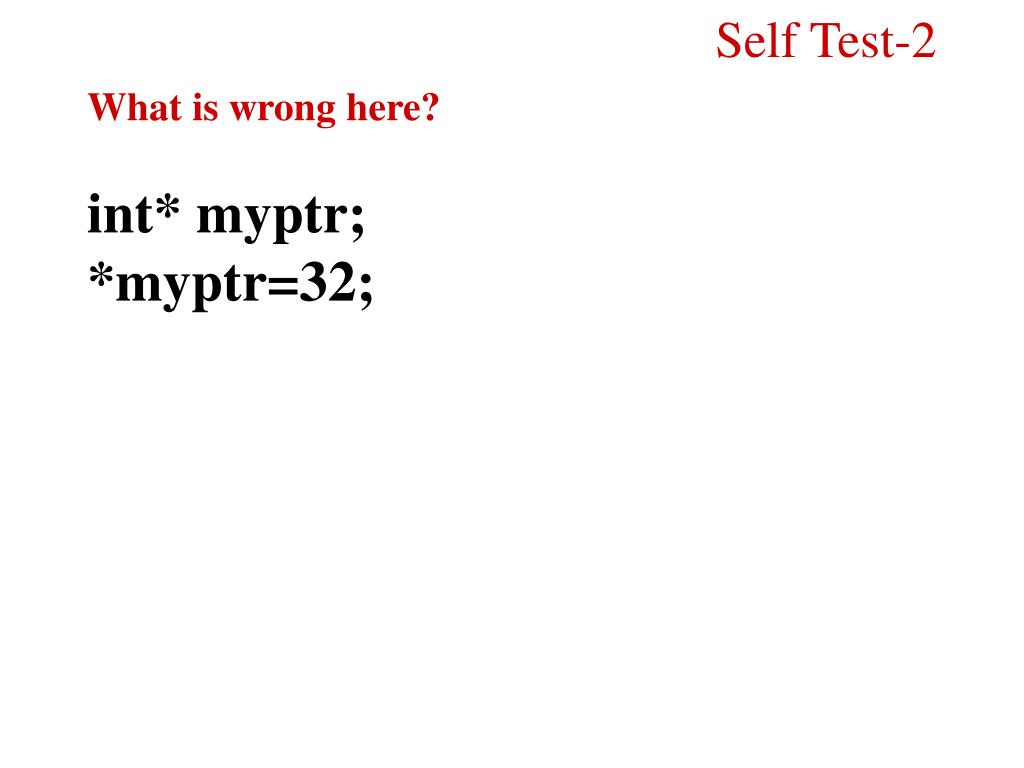

35. Self Test-2 What is wrong here? int* myptr; *myptr=32;

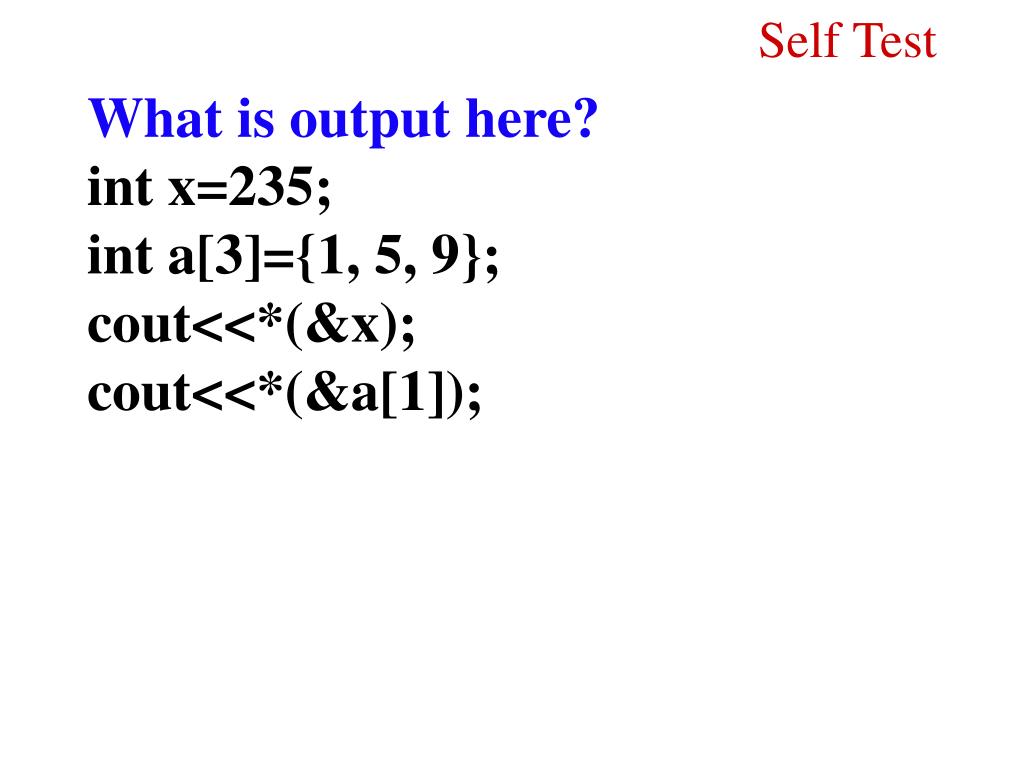

36. Self Test What is output here? int x=235; int a[3]={1, 5, 9}; cout<<*(&x); cout<<*(&a[1]);

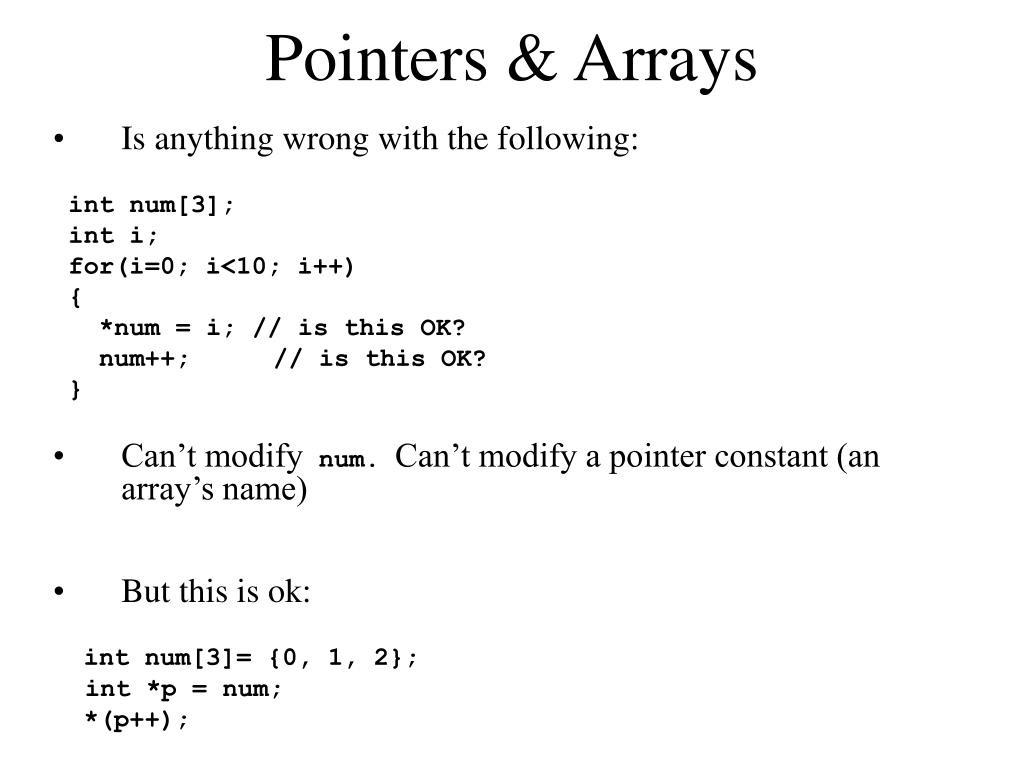

37. Pointers & Arrays • Is anything wrong with the following: int num[3]; int i; for(i=0; i<10; i++) { *num = i; // is this OK? num++; // is this OK? } • Can’t modify num. Can’t modify a pointer constant (an array’s name) • But this is ok: int num[3]= {0, 1, 2}; int *p = num; *(p++);

38. p a c b \0 Pointers & Strings • A string constant, like an array name, is treated by the compiler as a pointer char *p = “abc”; cout<<p<<endl<<p+1<<endl<<*p<<endl<<*(p+1); //output? • abc bc a b • pis assigned the base address of the character array“abc”. String printed till null character, as usual • Can we use such expressions: “abc”[1] and *(“abc” + 2) • Of course, outputis b and c respectively

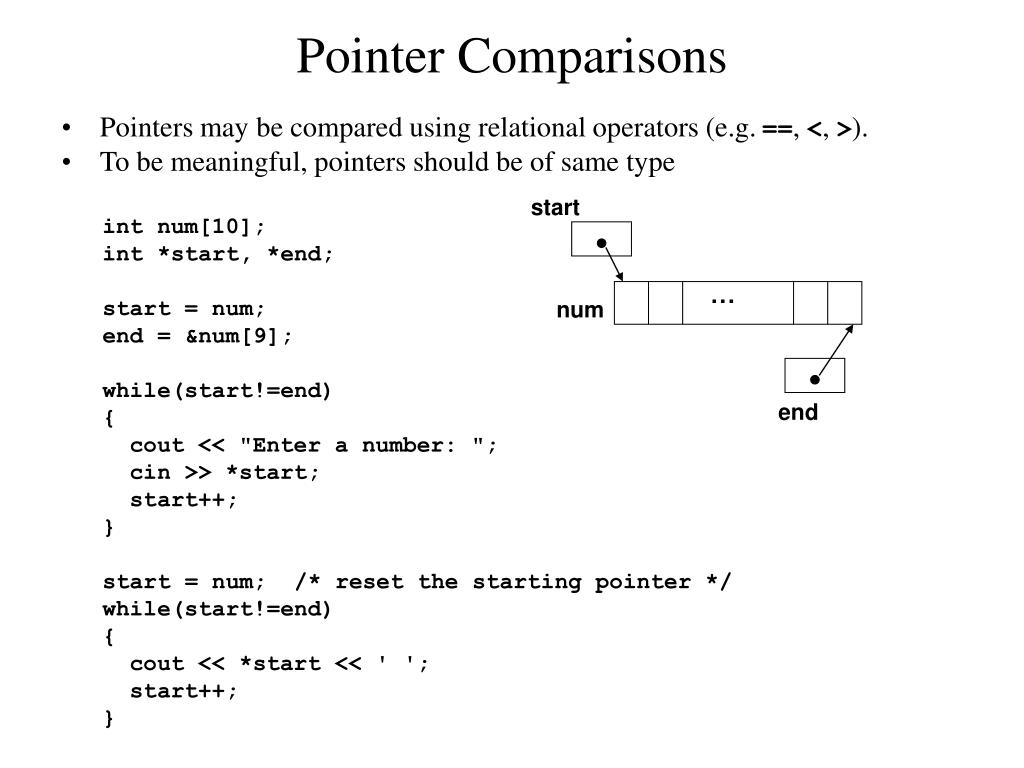

39. Pointer Comparisons start • Pointers may be compared using relational operators (e.g. ==, <, >). • To be meaningful, pointers should be of same type int num[10]; int *start, *end; start = num; end = &num[9]; while(start!=end) { cout << "Enter a number: "; cin >> *start; start++; } start = num; /* reset the starting pointer */ while(start!=end) { cout << *start << ' '; start++; } … num end

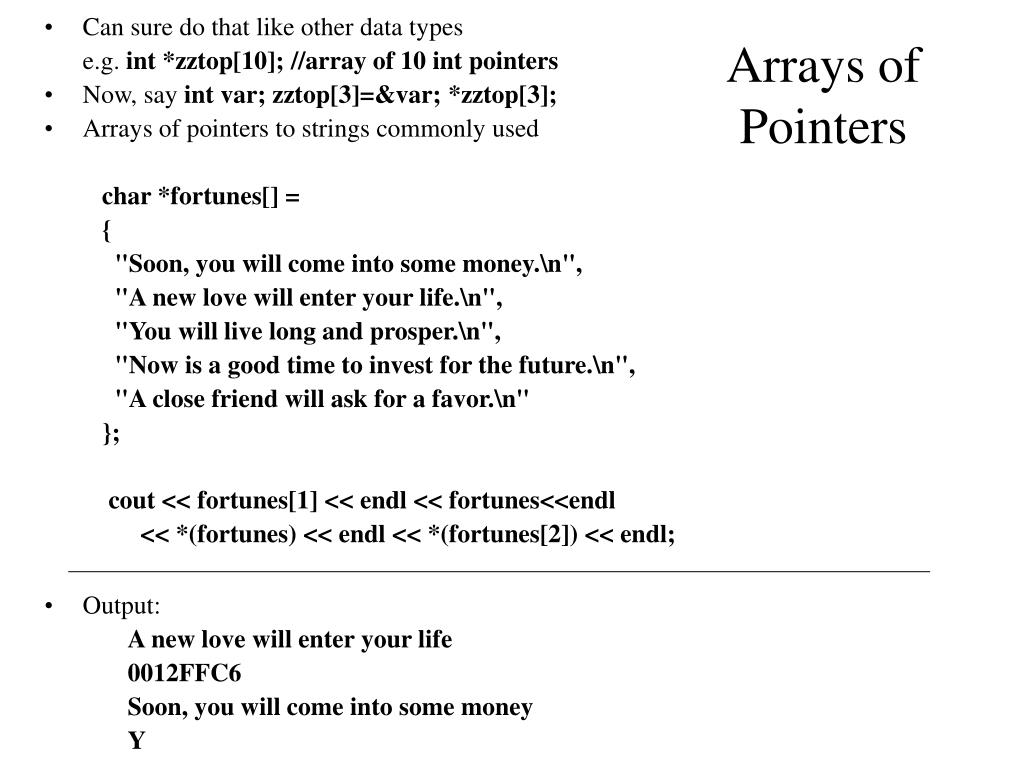

40. Arrays of Pointers • Can sure do that like other data types e.g. int *zztop[10]; //array of 10 int pointers • Now, say int var; zztop[3]=&var; *zztop[3]; • Arrays of pointers to strings commonly used char *fortunes[] = { "Soon, you will come into some money.\n", "A new love will enter your life.\n", "You will live long and prosper.\n", "Now is a good time to invest for the future.\n", "A close friend will ask for a favor.\n" }; cout << fortunes[1] << endl << fortunes<<endl << *(fortunes) << endl << *(fortunes[2]) << endl; • Output: A new love will enter your life 0012FFC6 Soon, you will come into some money Y

41. Arrays of Pointers • Two dimensional string pointers e.g. C++ dictionary char *keyword[][2] = { "for", "for(initialization; condition; increment)", "if", "if(condition) ... else ...", "switch", "switch(value) { case-list }", "while", "while(condition) ...", // add the rest of the C++ keywords here "", "" // terminate the list with nulls }; int main() { char str[80]; int i; cout << "Enter keyword: "; cin >> str; for(i=0; *keyword[i][0]; i++) if(!strcmp(keyword[i][0], str)) cout << keyword[i][1]; return 0; }

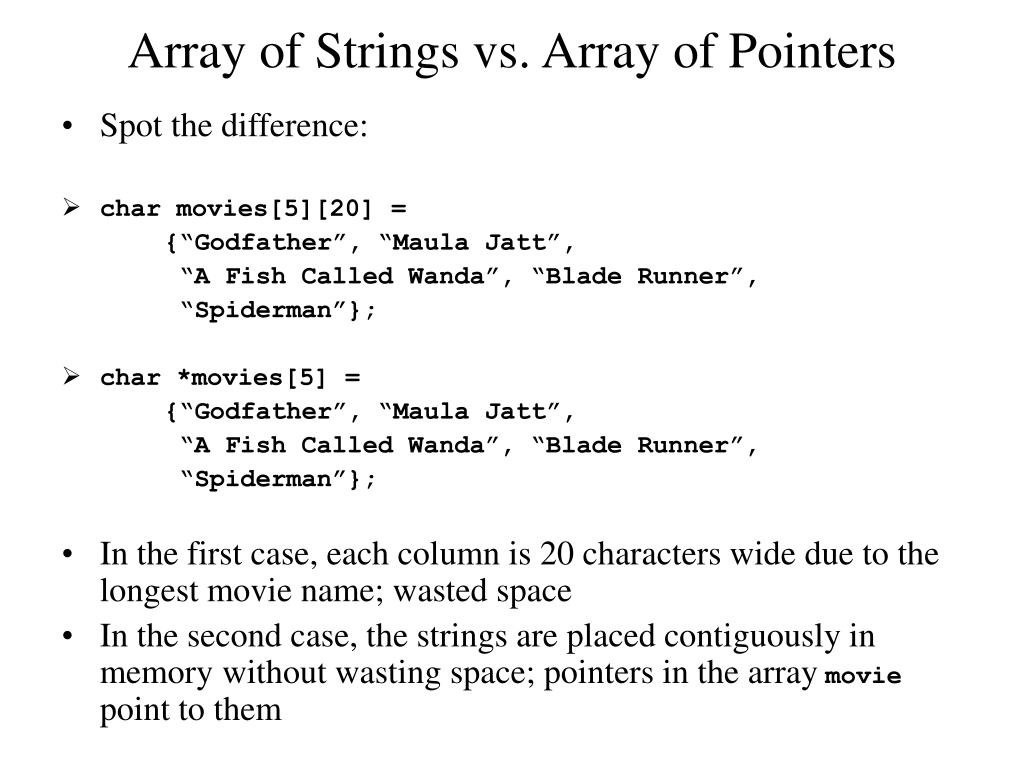

42. Array of Strings vs. Array of Pointers • Spot the difference: • char movies[5][20] = {“Godfather”, “Maula Jatt”, “A Fish Called Wanda”, “Blade Runner”, “Spiderman”}; • char *movies[5] = {“Godfather”, “Maula Jatt”, “A Fish Called Wanda”, “Blade Runner”, “Spiderman”}; • In the first case, each column is 20 characters wide due to the longest movie name; wasted space • In the second case, the strings are placed contiguously in memory without wasting space; pointers in the array movie point to them

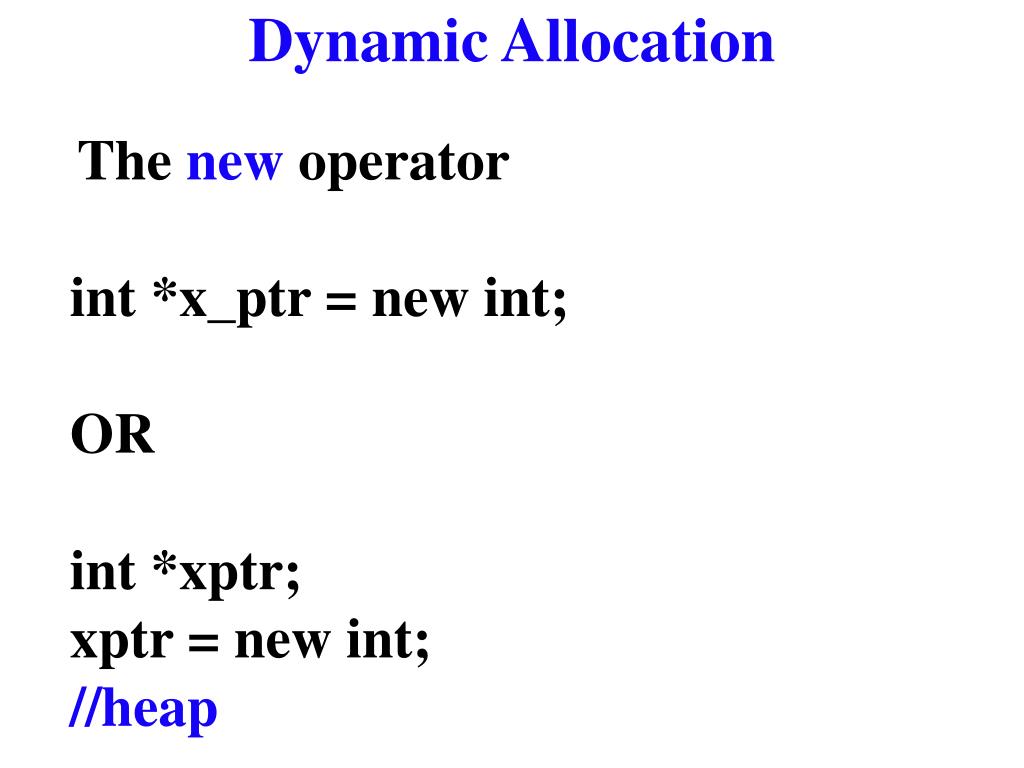

43. Dynamic Allocation The new operator int *x_ptr = new int; OR int *xptr; xptr = new int; //heap

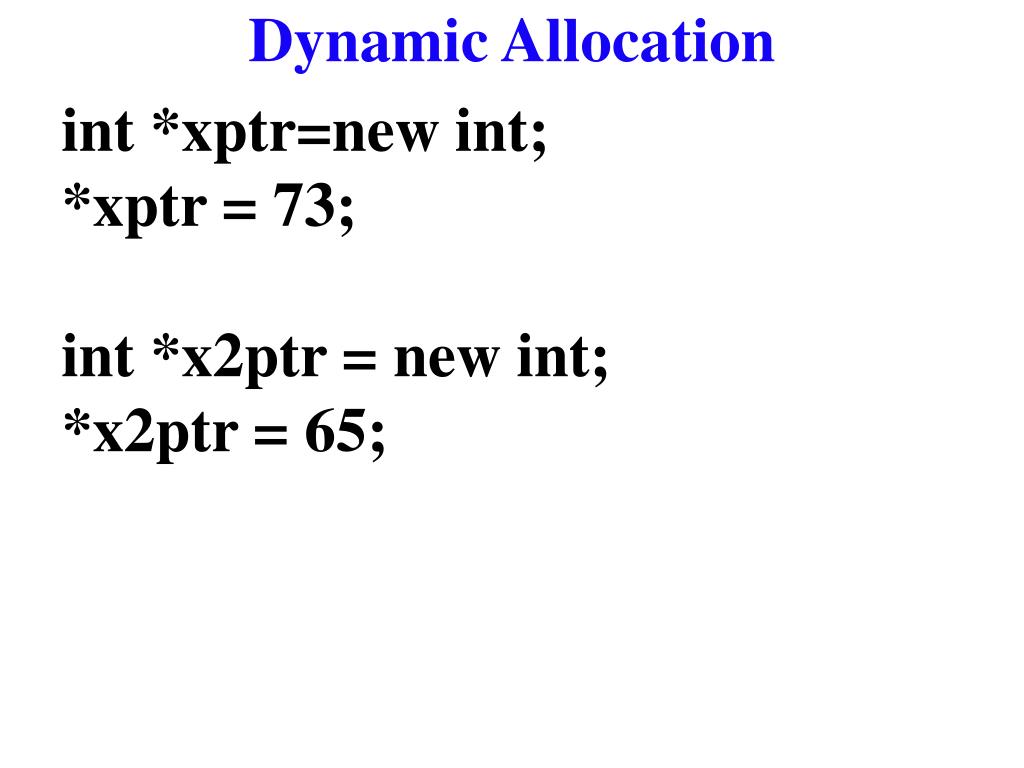

44. Dynamic Allocation int *xptr=new int; *xptr = 73; int *x2ptr = new int; *x2ptr = 65;

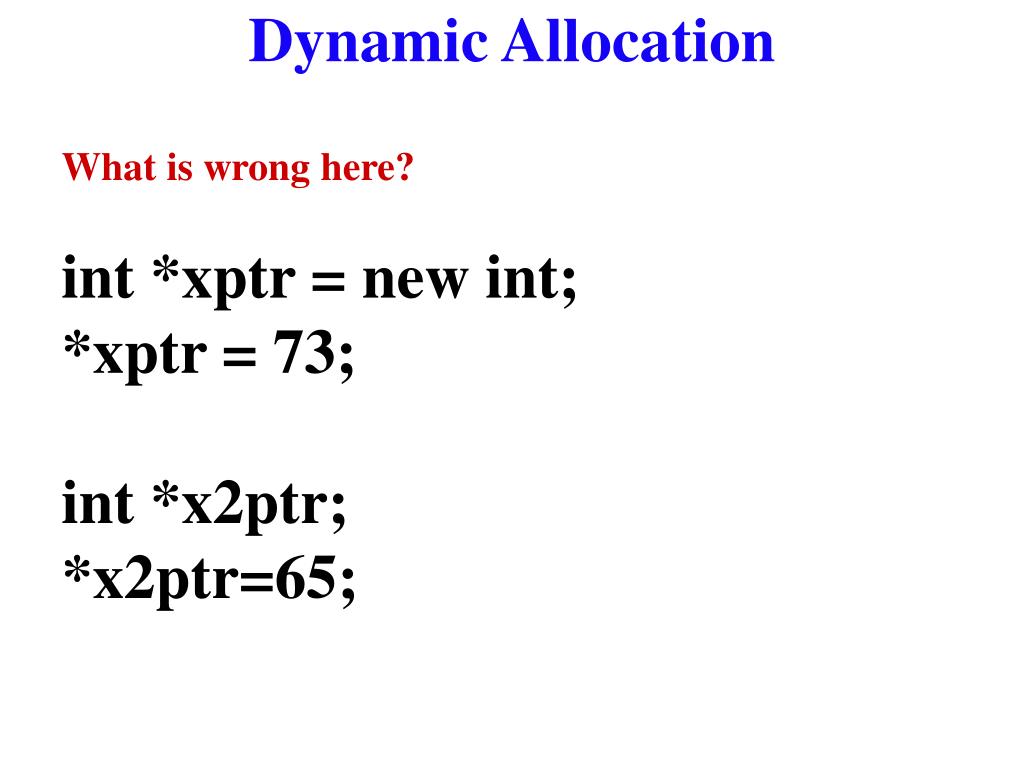

45. Dynamic Allocation What is wrong here? int *xptr = new int; *xptr = 73; int *x2ptr; *x2ptr=65;

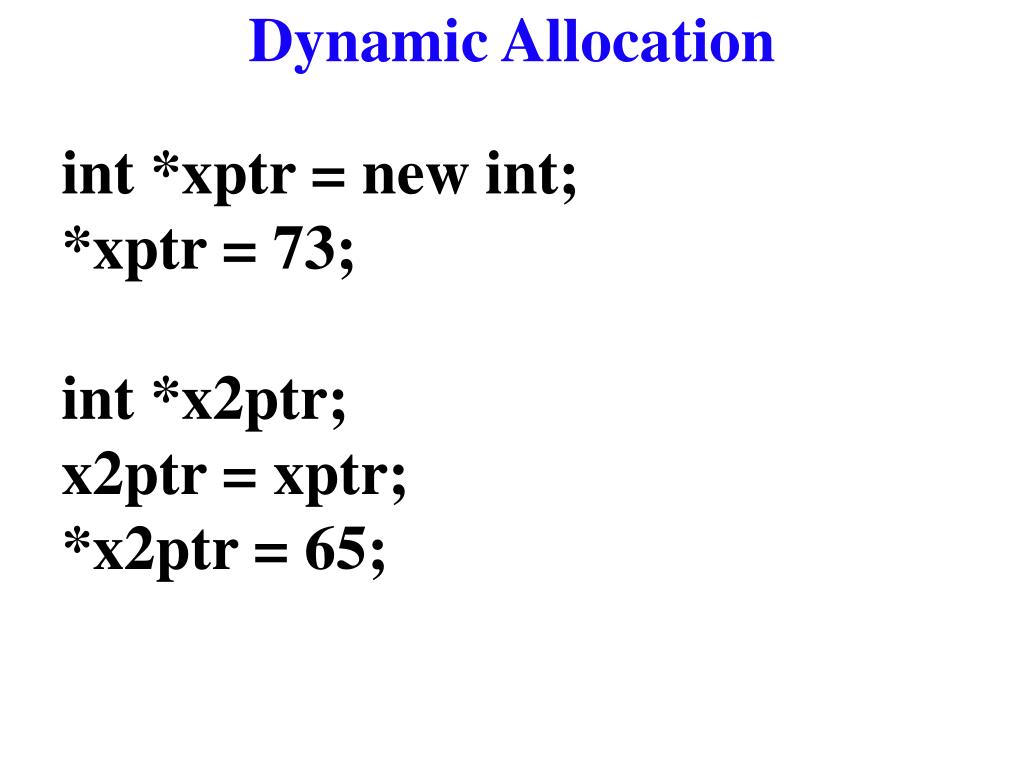

46. Dynamic Allocation int *xptr = new int; *xptr = 73; int *x2ptr; x2ptr = xptr; *x2ptr = 65;

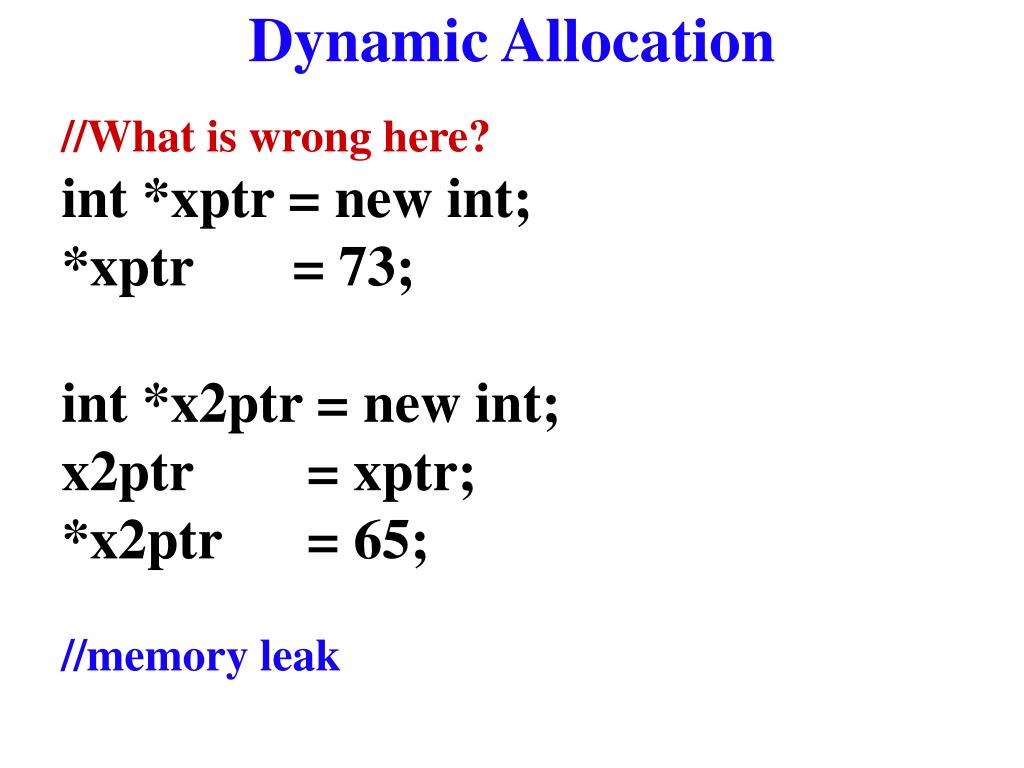

47. Dynamic Allocation //What is wrong here? int *xptr = new int; *xptr = 73; int *x2ptr = new int; x2ptr = xptr; *x2ptr = 65; //memory leak

48. Dynamic Allocation int *myptr = new int(73); cout << *myptr; delete myptr;

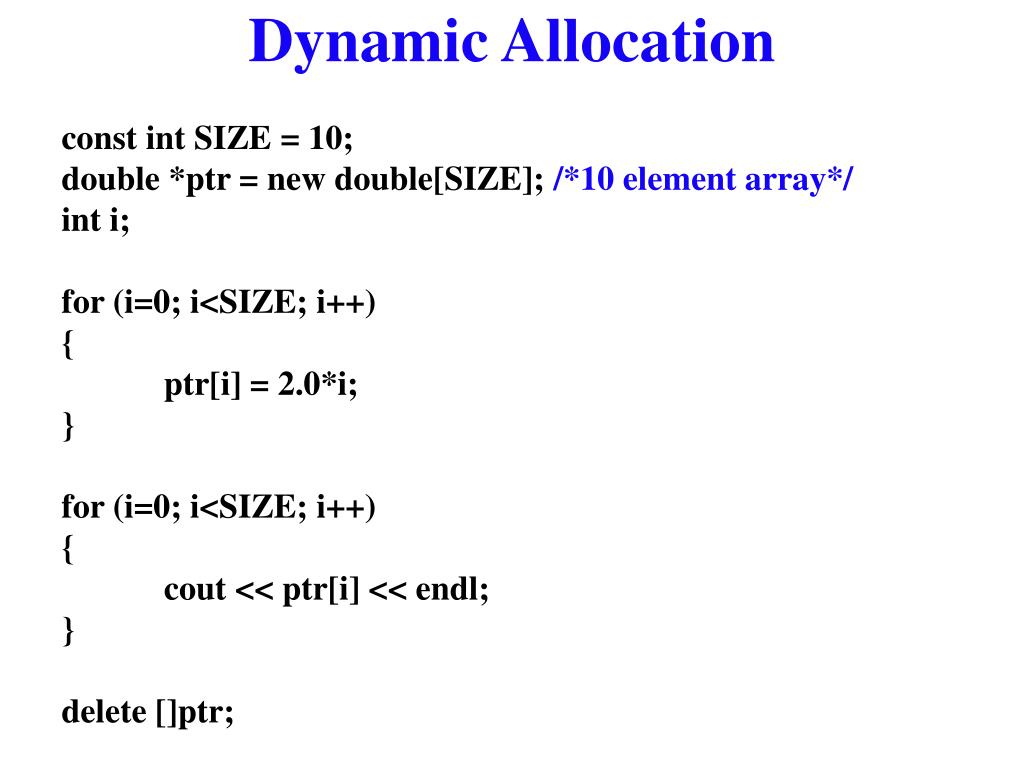

49. Dynamic Allocation const int SIZE = 10; double *ptr = new double[SIZE]; /*10 element array*/ int i; for (i=0; i<SIZE; i++) { ptr[i] = 2.0*i; } for (i=0; i<SIZE; i++) { cout << ptr[i] << endl; } delete []ptr;

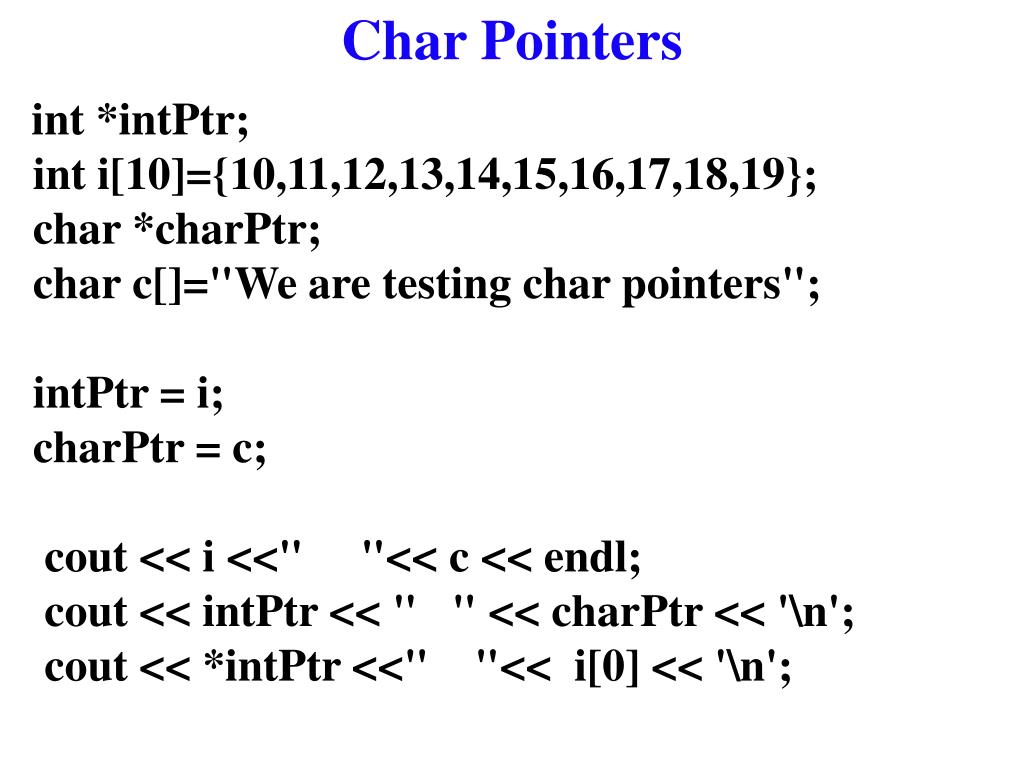

50. Char Pointers int *intPtr; int i[10]={10,11,12,13,14,15,16,17,18,19}; char *charPtr; char c[]="We are testing char pointers"; intPtr = i; charPtr = c; cout << i <<" "<< c << endl; cout << intPtr << " " << charPtr << '\n'; cout << *intPtr <<" "<< i[0] << '\n';
