  1. A “Whack-The-Balls” session: • Every Friday the manager of Whack-The-Balls arranges the playing sessions for the week beginning in 4 weeks time. At the same time, the records of playing sessions from 4 weeks ago are deleted. • Each session is booked either by a team or a member. The booking may subsequently be cancelled, in which case it will become available for re-booking. When the team or member arrives to play on the booked court the session is marked as ‘played’. • The EEM for Whack-The-Balls records the following events for the “session” entity… • - Make team booking (M) • - Make member booking (M) • - Cancel booking (M) • - Play session (M) • - Arrange sessions (C/D) • PRODUCE AN ELH FOR A WHACK-THE-BALLS SESSION.

  2. SESSION ARRANGE NEW SESSION MANAGE SESSION USESESSION DELETE OLD SESSION o o * MARK AS PLAYED ---------- BOOK SESSION CANCEL o o o o MAKE TEAM BOOKING MAKE MEMBER BOOKING CANCEL TEAM BOOKING CANCEL MEMBER BOOKING

  3. IO Structure Diagram (I/OSD) BOOK SESSION GET BOOKING DATA ISSUE RESPONSE o o o o INDIVIDUAL DATA (input) TEAM DATA (input) CONFIRMATION (output) REJECTION (output)

  4. A (disjoint) I/OSD Example Data of copies Loan status

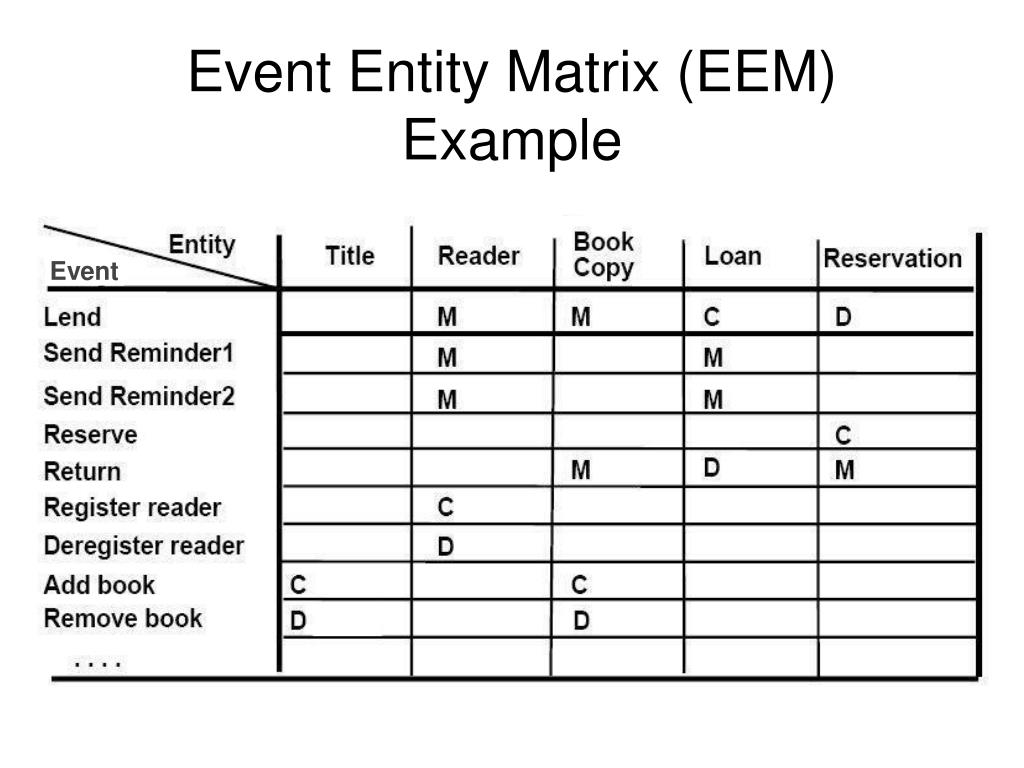

  5. Event Entity Matrix (EEM)Example Event

  6. EEM Views Event

  7. The ELH View (for entity “Reader”) Comm. with reader

  8. The ECD View (for event “Lend”)

  9. Produce an ECD for the event “ARRANGE SESSION” (could be old or new).

  10. Session Number NEW SESSION OLD SESSION SET OF EQUIPMENT BOOKING EQUIPMENT BOOKING *

  11. Produce an I/O structure diagram for the following “Whack-The-Balls” enquiry function description. • “When a playing court number is entered into the system it should return a list of all the sessions for which the court has been booked, giving details of the member or team that placed each booking”. • Assume the following attribute names are required… • Court # • Session # • Session start time • Session end time • Member # • Member name • Team # • Team name

  12. plays played in Team Sport Court played by hosts books played by used by contains made up of component of assigned to plays Price Band Member Equipment books tagged to booked for consumed on booked by booked by Session requires use of is within • LDS for “Whack-The-Balls” scenario:

  13. Produce an EAP for the “Whack-The-Balls” court number enquiry report (from a previous slide), using the LDS from the immediately previous slide.

  14. Court # COURT SET OFSESSION SESSION * o o BOOKED BY TEAM BOOKED BY MEMBER TEAM Member

  15. CONSIDER THE FOLLOWING TABLE: • Customer Order • Customer Order # • Customer # • Customer Name • Customer Address • Customer Tel. # • Depot # • Depot Name • Product # • Product Name • Product Qty • Product Price • ANY COMMENTS?...

  16. 1NF = no repeating groups. • Customer Order # • Customer # • Customer Name • Customer Address • Customer Tel. # • Depot # • Depot Name • Customer Order # • Product # • Product Name • Product Qty • Product Price

  17. 2NF = 1NF + no non-key attributes which are dependent on only part of the primary key. • Customer Order # • Customer # • Customer Name • Customer Address • Customer Tel. # • Depot # • Depot Name • Customer Order # • Product # • Product Qty • Product # • Product Name • Product Price

  18. 3NF = 2NF + no non-key attributes which are dependent on other non-key attributes. • Customer Order #Customer Order • * Customer # • * Depot # • Customer #Customer Details • Customer Name • Customer Address • Customer Tel. # • Depot #Depot ID • Depot Name • Customer Order #Customer Order Line • Product # • Product Qty • Product #Product Details • Product Name • Product Price

  19. System 1 description: • The system should manage boats taking part in a club tournaments. The system should allow boats to be registered and de-registered, as well as editing of their details. Furthermore, the system should allow the allocation and de-allocation of boats to races. Only boats registered in the system can participate in races. Registered boats can have their details and their race allocations edited any number of times. Another ELH Example (1) boat * register boat de-register boat o o edit boat details allocate boat to race

  20. System 2 description: • The system describes the movement of a lift to service a call. On receipt of a call and if the lift is idle, the lift will leave the floor at which it is located and proceed to next floor (either up or down). On arrival at a floor, the lift will either stop, if that is where the call originated from, or proceed with its movement. Once the lift stops at a floor, another call will make it leave that floor. Another ELH Example (2) lift * leave initial floor arrive at floor leave current floor o o stop at floor -

  21. Interpreting an ELH student Student permanence Student departure Student registration 1 year after student dep. Student actions * o Normal departure o Premature departure o o o Enrol in module Withdraw from module Amend student det. Course completed Student departs
