Presentation Transcript

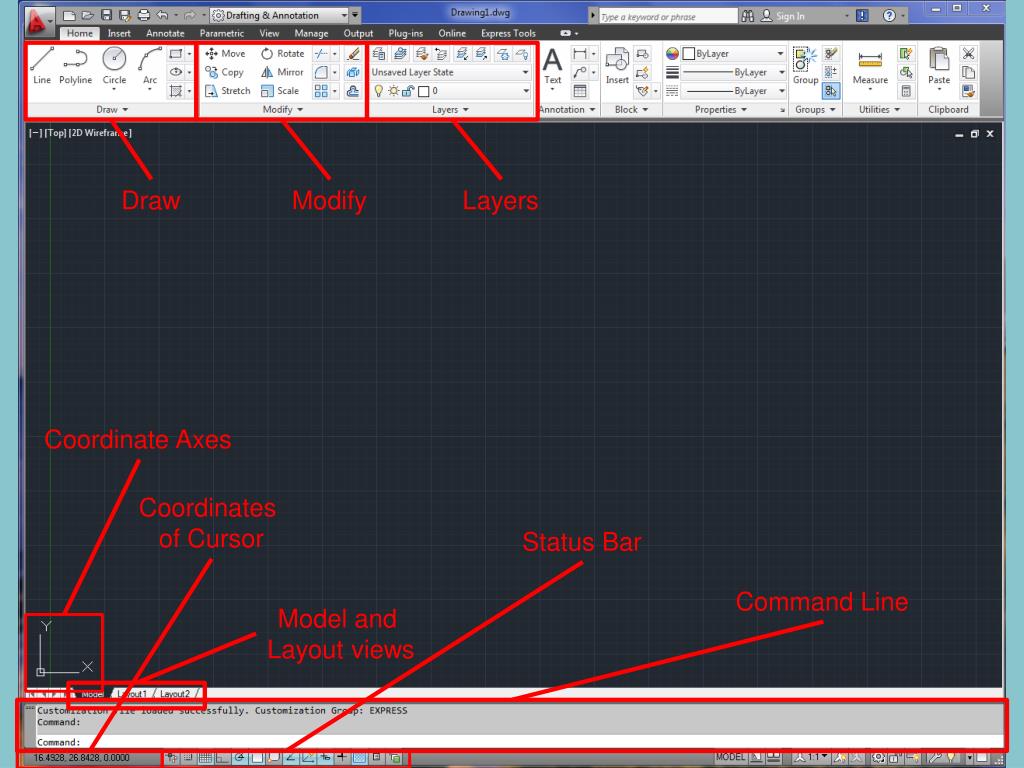

  1. Layers Draw Modify Coordinate Axes Coordinates of Cursor Status Bar Model and Layout views Command Line

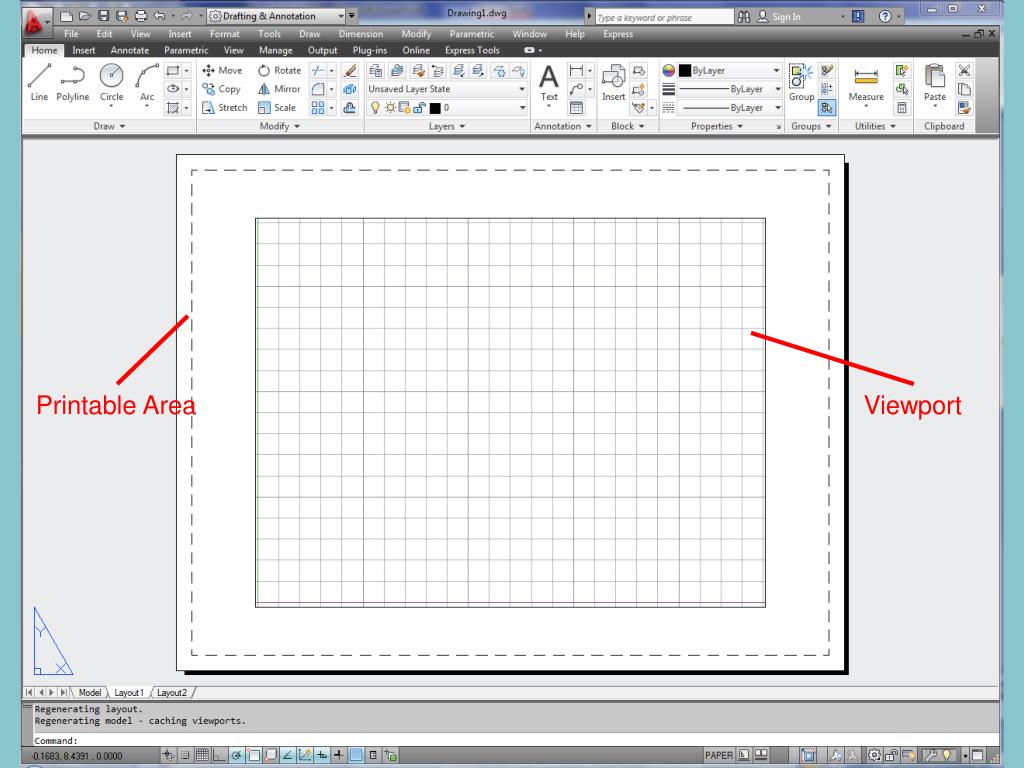

  2. Printable Area Viewport

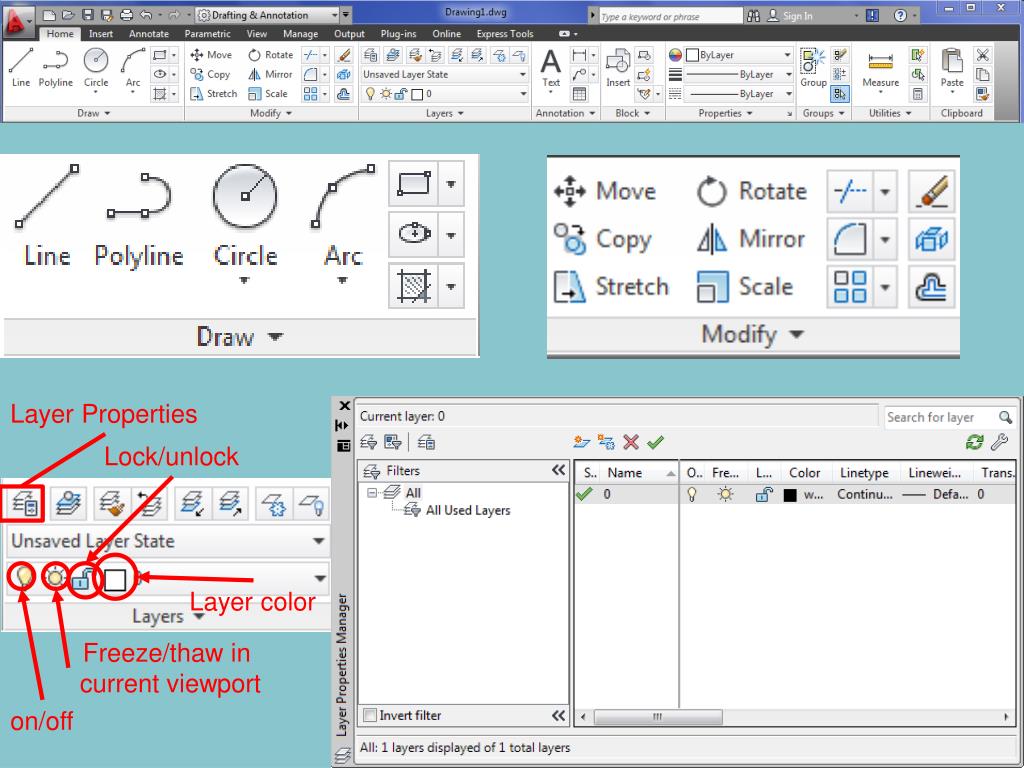

  3. Lock/unlock Layer Properties Layer color Freeze/thaw in current viewport on/off

  4. 3D Object Snap Grid on/off Polar Tracking Dynamic Input Lineweight Snap to Grid Object Snap Zoom/Pan Viewports Ortho 3D Views Object Snap Tracking
