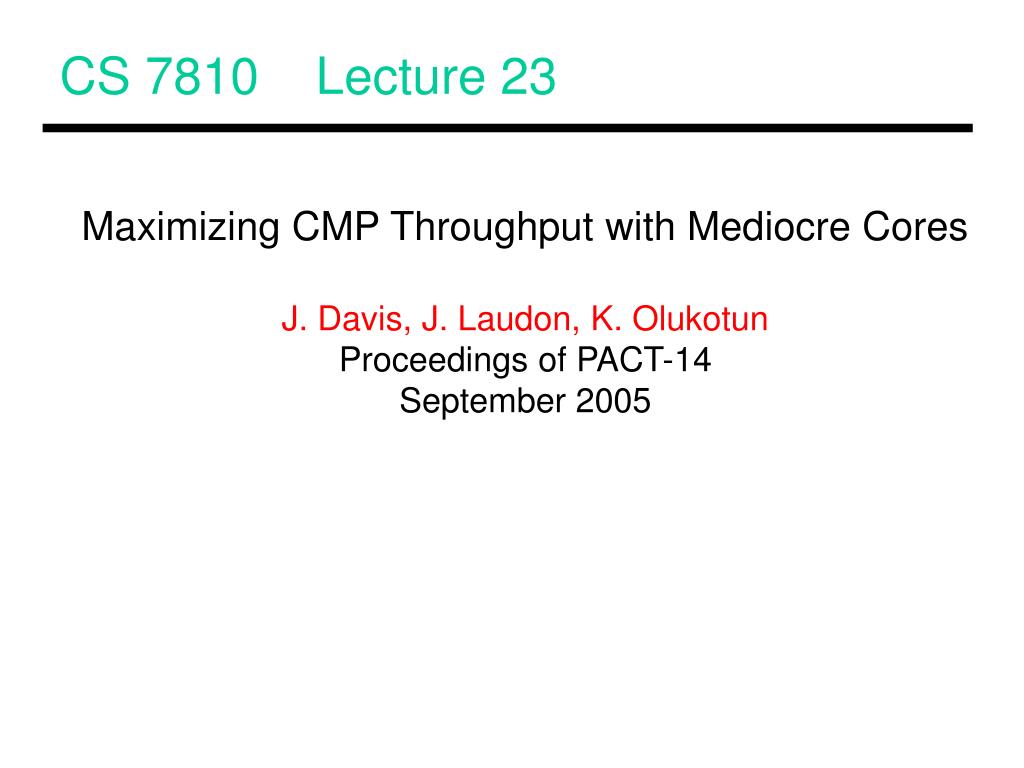

1. CS 7810 Lecture 23 Maximizing CMP Throughput with Mediocre Cores J. Davis, J. Laudon, K. Olukotun Proceedings of PACT-14 September 2005

2. Niagara • Commercial servers require high thread-level • throughput and suffer from cache misses • Sun’s Niagara focuses on: • simple cores (low power, design complexity, can accommodate more cores) • fine-grain multi-threading (to tolerate long memory latencies)

3. Niagara Overview

4. SPARC Pipe No branch predictor Low clock speed (1.2 GHz) One FP unit shared by all cores

5. Thread Selection • Round-Robin • Threads that are speculating on a load-hit receive • lower priority • Threads are unavailable if they suffer from cache • misses, long-latency ops

6. Register File • Each procedure has eight local and eight in • registers (and eight out registers that serve as • in registers for the callee) – each thread has • eight such windows • Total register file size: 640! 3 read and 2 write • ports (1 write/cycle for long and short latency ops) • Implemented as a 2-level structure: 1st level • contains the current register windows

7. Cache Hierarchy • 16KB L1I and 8KB L1D, write-thru, read-allocate, • write-no-allocate • Invalidate-based directory protocol – the shared • L2 cache (3MB, 4 banks) identifies sharers and • sends out the invalidates • Rather than store sharers per L2 line, the L1 tags • are replicated – such a structure is more efficient • to search through

8. Next Generation: Rock • 4 cores; each core has 4 pipelines; each pipeline • can execute two threads: 32 threads

9. Design Space Exploration: Methodology • Workloads: SPEC-JBB (Java middleware), • TPC-C (OLTP), TPC-W (transactional web), • XML-Test (XML parsing) – all are thread-oriented • Sun’s chip design databases were examined to • derive area overheads of various features • (primarily to evaluate the overhead of threading • and ooo execution)

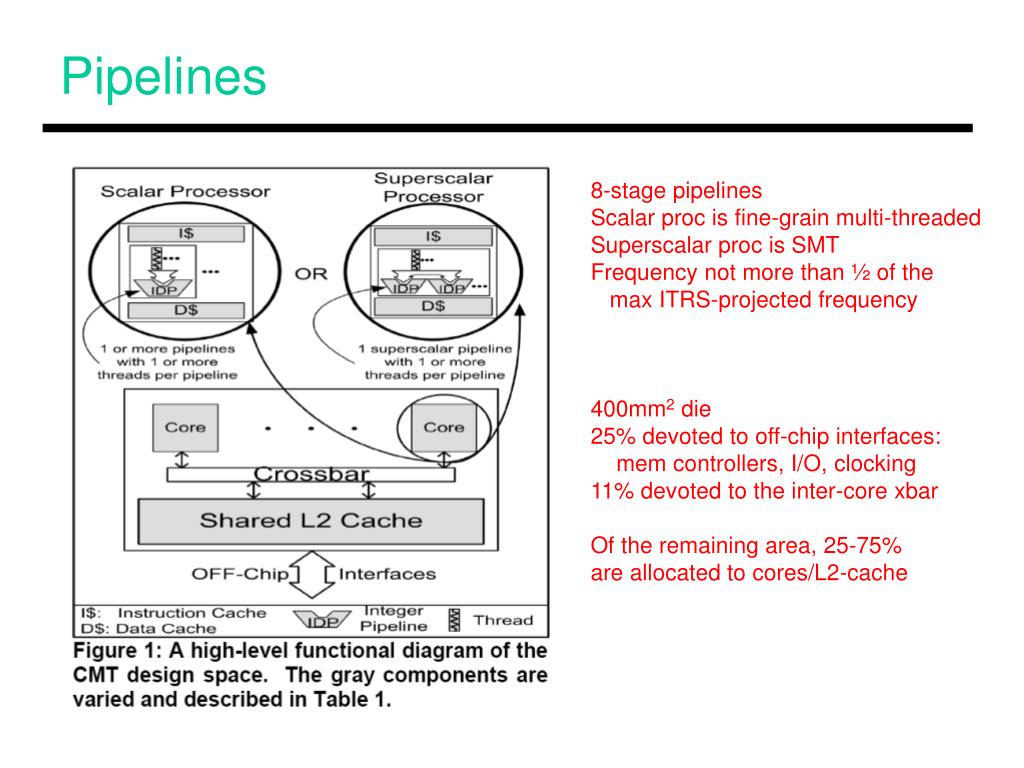

10. Pipelines 8-stage pipelines Scalar proc is fine-grain multi-threaded Superscalar proc is SMT Frequency not more than ½ of the max ITRS-projected frequency 400mm2 die 25% devoted to off-chip interfaces: mem controllers, I/O, clocking 11% devoted to the inter-core xbar Of the remaining area, 25-75% are allocated to cores/L2-cache

11. Area Effect of Multi-Threading • The curve is linear for a while – study is restricted to such designs • Multi-threading adds a 5-8% area overhead per thread (primary • caches are included in the baseline) • A thread is statically assigned to an IDP – multiple threads can share • an IDP

12. Design Space Exploration

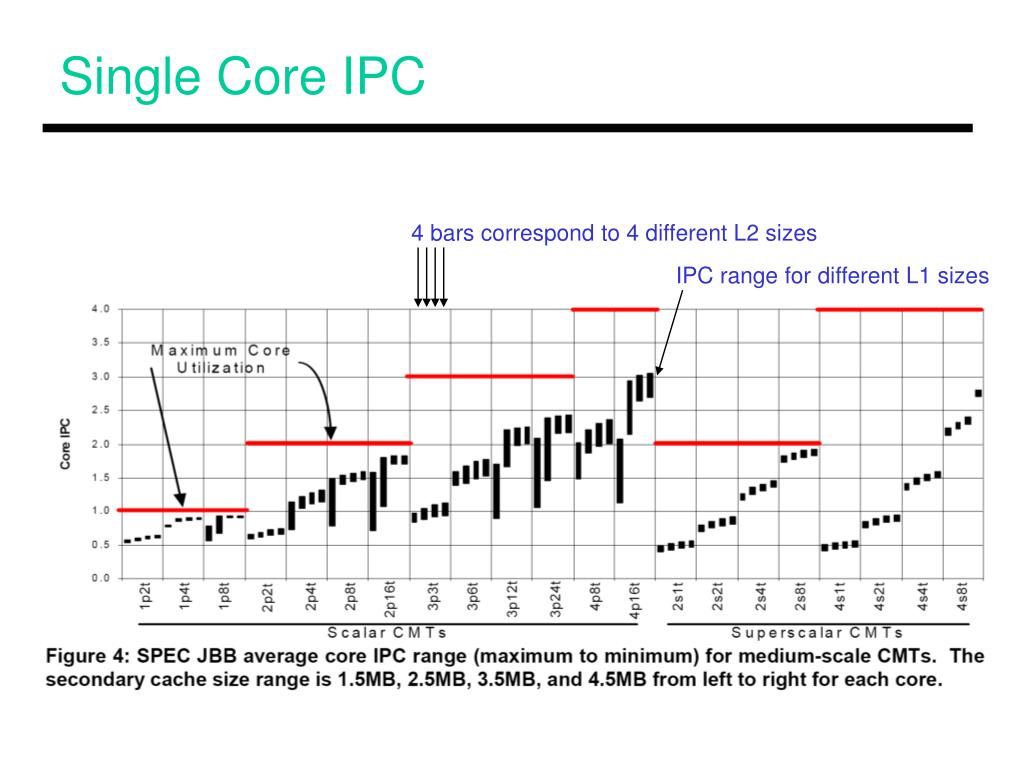

13. Single Core IPC 4 bars correspond to 4 different L2 sizes IPC range for different L1 sizes

14. Aggregate IPC C1: 2p4t with 64KB L1 caches C2: 2p4t with 32KB L1 caches *L1 latencies are always constant

15. Maximal Aggregate IPCs

16. Maximal Aggregate IPCs

17. Observations • Scalar cores are better than ooo superscalars • Too many threads (> 8) can saturate the caches • and memory buses • Processor-centric design is often better (medium • sized L2s are good enough)

18. PACT 2001 Paper on CMP Designs • Different workload: SPEC2k (multi-programmed) • Private L2 caches (no cache coherence)

19. Effect of L2 Size

20. Effect of Memory Bandwidth

21. Optimal Configurations
