TI8 STABILITY STUDY

Analysis of magnet current variations causing trajectory fluctuations in TI8 accelerator stability study, with investigations on MSE errors and X0 position errors. Further research using MIA TI2 flashback is suggested for a comprehensive understanding.

marika
Télécharger la présentation

TI8 STABILITY STUDY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

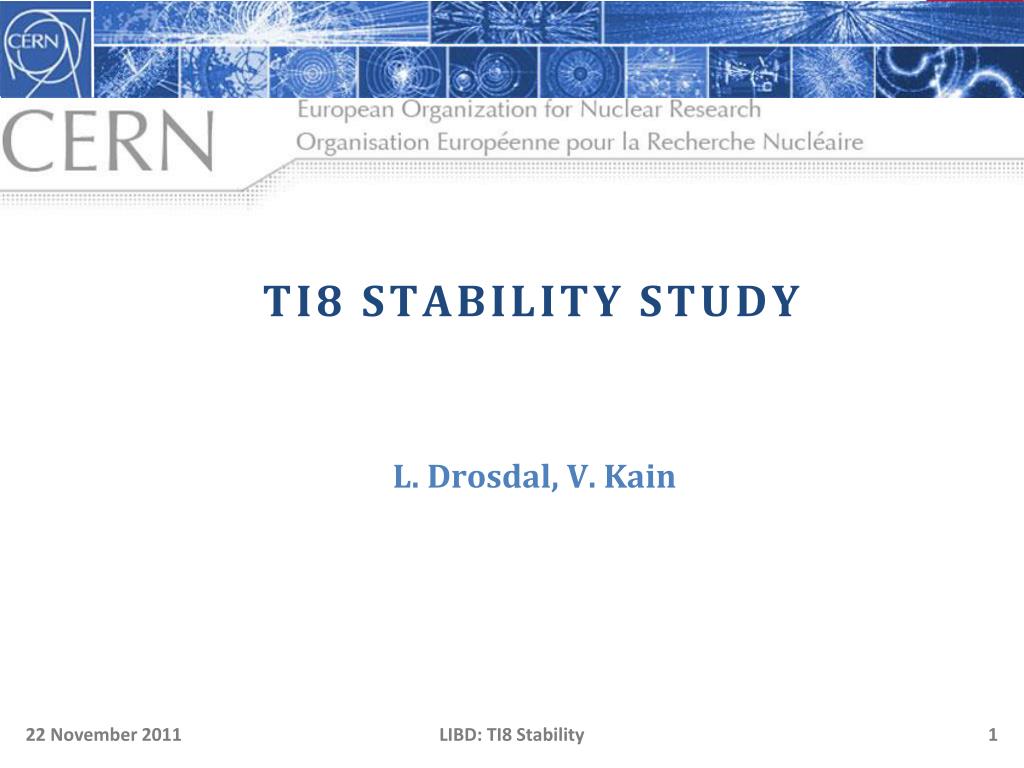

  1. TI8 STABILITY STUDY • L. Drosdal, V. Kain

  2. TI8 stability studies • 2 November 2011 (1.5h) – YASP trajectory data • Peaks up to 450 mmfrom average trajectory observed • Pattern is not symmetric!

  3. Magnet current variations • MAD-X simulations using observed variations in magnet currents at extraction/start of TI8 • as field errors: • MSE correlation •  Observed variations cause fluctuations up to ~400 mm

  4. MSE error trajectories • Comparing the MSE error simulations to the observed trajectory variations from YASP: • The observed variations are only partly explained! Distribution of MSE variations is not even around average (1):

  5. Orbit error – x0 • To explain the missing peak we investigate an orbit error at x0 • Position of peaks fit well, but is not symmetric – offset in distribution • Source unknown, needs investigation!

  6. Trajectory checks • Using selected Yasptrajectories it is clear that there is a combined effect:

  7. Summary TI8 instability • The overall result can be explained by two factors: MSE current variations X0error – Source unknown! Further investigation using MIA

  8. TI2 flashback • Good fit of MADX simulation of MSE error to yasp data:
