Arson Robot

Arson Robot. Matt Boyden, Tim Crowley, Andrew Hollyer. PROBLEM STATEMENT. Design and build a robot to assist in State Police arson investigations. The robot must be able to: navigate inside a burned building carry and protect a hydrocarbon sensor take samples of charred material.

marius
Télécharger la présentation

Arson Robot

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

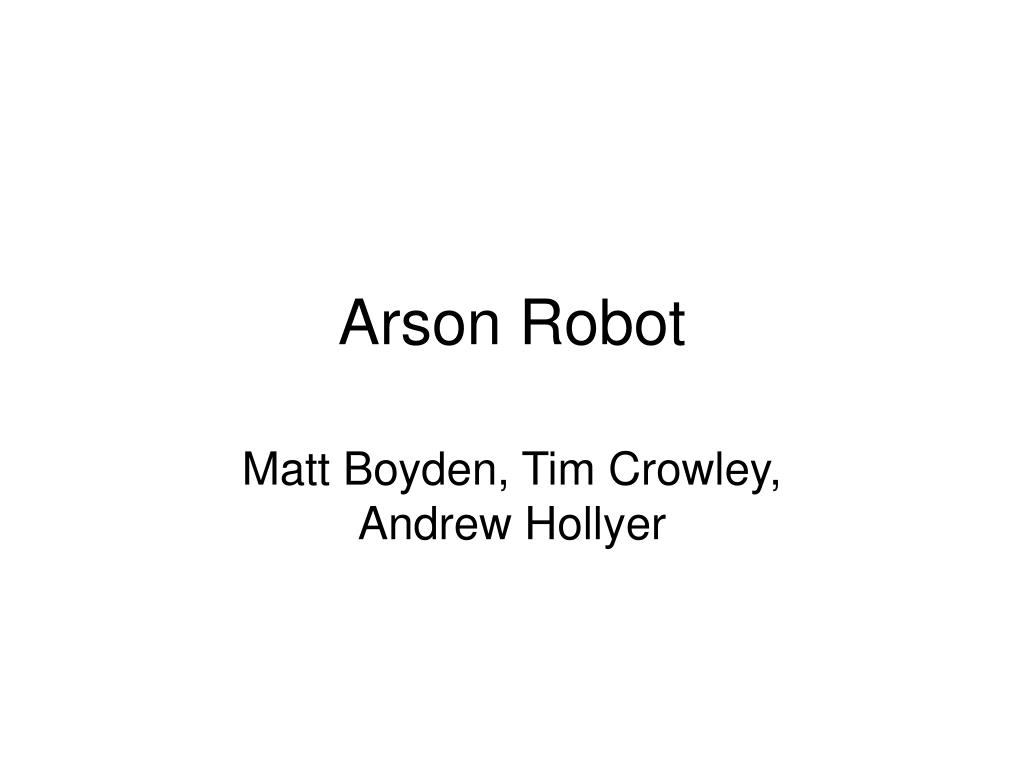

  1. Arson Robot Matt Boyden, Tim Crowley, Andrew Hollyer

  2. PROBLEM STATEMENT Design and build a robot to assist in State Police arson investigations. The robot must be able to: • navigate inside a burned building • carry and protect a hydrocarbon sensor • take samples of charred material

  3. CURRENTLY AVAILABLE MANY VEHICLES ARE AVAILABLE MOST DO NOT PROVIDE ROOM FOR ADAPTION OF THE HYDROCARBON SENSOR VEHICLES ARE HIGH PRICED

  4. KEY SPECIFICATIONS • Can travel over debris at an incline of up to 30° • Can travel under debris that is no less than 1½ ft above the driving surface • Can take samples of charred debris ranging in size from ash to small fragments of wood with a max weight of 2 lbs • Carries and protects hydrocarbon sensor • Controllable from a distance of up to 50 ft • Sample collector can be decontaminated • Under two feet wide • Light weight (under 60 lbs)

  5. POSSIBLE SOLUTIONS • TRACKED VEHICLE WITH UMBILICAL CONTROLS AND POWER AND A BUCKET FOR SAMPLING • LARGE TIRED VEHICLE WITH ONBOARD BATTERY POWER AND A GRAPPLE FOR SAMPLING

  6. MATRIX

  7. ORDER OF OPERATIONS • BUILD A VEHICLE CAPAPLE OF MEETING THE SPECIFICATIONS • PROVIDE A MOUNT FOR THE HYDROCARBON SENSOR AND PROVIDE AN AUDIO FEED TO THE OPERATOR • ENABLE THE VEHICLE TO TAKE SAMPLES

  8. EXPERIMENTS & CALCULATIONS Coefficient of friction (μ) = .8 Approximate Weight (w) = 56 lbs Hub Circumference (C) = 3π in. Hub Radius (r) = 1.5 in. Desired Maximum speed (V) = 84 ft./min. Gearing Ratio (VR) = 3:1 Axle Diameter σ = MC/I = 1210 psi use Dia = 3/8 in Force (F) required to move robot = μw = (.8)(56 lbs) = 44.8 lbs Torque (τ) required to move robot = Fr = (44.8 lbs)(1.5 in.) = 67.2 in·lbs Rotational speed (ω1) at outside of hubs = CV = (3πin.)(84 ft./min.) = 107 rad./min. Rotation speed (ω2) at motor = (ω1)/(VR) = 4.908 rad/min Rotation speed (n) at motor in rpm = (ω2)(180/π) = 281.25 rpm Power (P) = (τ)(n)/63,000 = (67.2 in·lbs)(281.25 rpm)/63,000 = .3 hp

  9. RESEARCH & DESIGN RESEARCH DONE ON TRACK SYSTEMS SHOWED THIS SYSTEM AS A POSSIBLE SOLUTION. 3 1 2 4

  10. PARTS DESIGNED FOR THE TRACKS HUBS FOR THE TRACK • MODELED IN INVENTOR • TURNED ON LATHE AND KNURLED FOR FRICTION • FOUR DRIVE HUBS, FOUR IDLERS

  11. BUILDING THE VEHICLE MOTORS DONATED • 12 VOLT • 6 RPM • 900:1 GEARBOX • 90 in-lb TORQUE • 2 AMPS

  12. BATTERY BATTERY + + - - WIRING OVERVIEW MOTOR MOTOR FUSE SWITCH SWITCH

  13. VIDEO CLIP

  14. STAIR TEST

  15. NEXT GENERATION • POSITIVE DRIVE TRACK SYSTEM • LARGER DRIVE SHAFTS • EASIER ALIGNMENT OF TRACKS • LIGHTER AND BETTER BALANCED FRAME

  16. CONCLUSION

  17. THANKS TO: • PROFESSOR SAM COLWELL • ROV TECHNOLOGIES inc. • OESCO inc • Dr. DAWN CARLETON • PROFESSOR PAUL JOHNSON • PROFESSOR MARY WALDO
