  1. Quantifying Uncertainty in Flood Inundation Mapping Younghun Jung and Venkatesh Merwade School of Civil Engineering, Purdue University AWRA Spring Specialty Conference, March 31, 2010.

  2. Uncertainty in Flood Inundation Modeling • Input Data (Flow and topography) • Modeling type (1D vs 2D) • Model set-up (Geometry) • Model parameters • Lack of model calibration data • Mapping approach.

  3. Objective Probabilistic Flood Inundation Maps

  4. Approach • HEC-RAS Modeling • Monte Carlo Simulations to study the effect of: • Flow • Topography and • Channel Roughness (Manning’n) • Generalized Likelihood Uncertainty Estimate (GLUE)

  5. GLUE O1 O2 ... … … O1000 l1 l2 ... … … l1000 R1 R2 ... … … R1000 Acceptable HEC-RAS 1000 p Unacceptable Manning’s n Input Model Output Likelihood (l) Ranked l R1 R2 ... … … R750 0.00 0.01 0.04 … … 1.00 50% gives the deterministic model output 5% and 95% give the associated uncertainty 95% 50% P 5% Output Behavioral Models Rescaled Output CDF

  6. Likelihood functions W1 W2 E1 E2 F

  7. Approach • HEC-RAS Modeling • Monte Carlo Simulations to study the effect of: • Flow • Topography and • Channel Roughness (Manning’n) • Generalized Likelihood Uncertainty Estimate (GLUE)

  8. Study Area East Fork of White River near Seymour in Jackson county, IN (100 km south of Indianapolis).

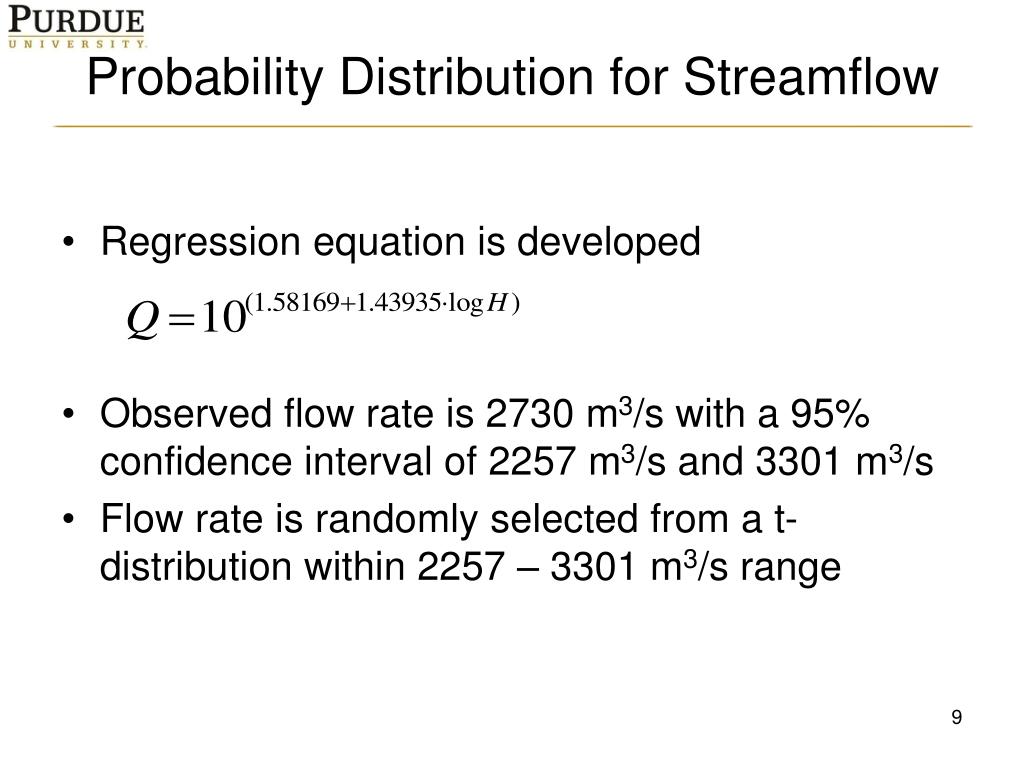

  9. Probability Distribution for Streamflow • Regression equation is developed • Observed flow rate is 2730 m3/s with a 95% confidence interval of 2257 m3/s and 3301 m3/s • Flow rate is randomly selected from a t-distribution within 2257 – 3301 m3/s range

  10. Probability Distribution for Elevation • A vertical error of ± 0.25 is assumed for topography • A uniform distribution is assumed and a random number between ± 0.25 is added to each cross-section

  11. Probability Distribution for Roughness • Uniform distribution is used by getting minimum and maximum values from literature

  12. Flow

  13. Topography

  14. Manning’s n

  15. Combined

  16. Summary and Future Work • Uncertainty from each variable in floodplain mapping can be quantifiable • Initial results show that the uncertainty from each variable propagates through the entire process • Uncertainty bound is affected by the technique used and its parameters • How does the uncertainty bound change with topography, geography and other environmental settings?

  17. New Developments: Floodplain Mapping Using Soil Data

  18. Some historical perspective • Eve: lets go for vacation • Adam: where do you want to go? • Eve: How about Orange County? • Adam: According to the soil map, orange county is in a flood zone. Lets go to Apple Town • Eve: Apple town sounds great! .. and then you know what happened…

  19. Present Scenario • Jane: lets go for vacation • Joe: where do you want to go? • Jane: How about Orange County • Joe: I just booked beach home by going to waterhomes.com. • Jane: Excellent! Did you buy flood insurance? • Joe: Oh, I forgot, let me go to FEMA.gov

  20. Flood Map for Tippecanoe County, IN FEMA SSURGO

  21. Thank you! Contacts: Venkatesh Merwade – vmerwade@purdue.edu http://web.ics.purdue.edu/~vmerwade
