  1. Urban Visualization on Mobile Devices Developing Interactive Urban Simulations on the Unity Platform Martins Innus, Center for Computational Research, University at Buffalo

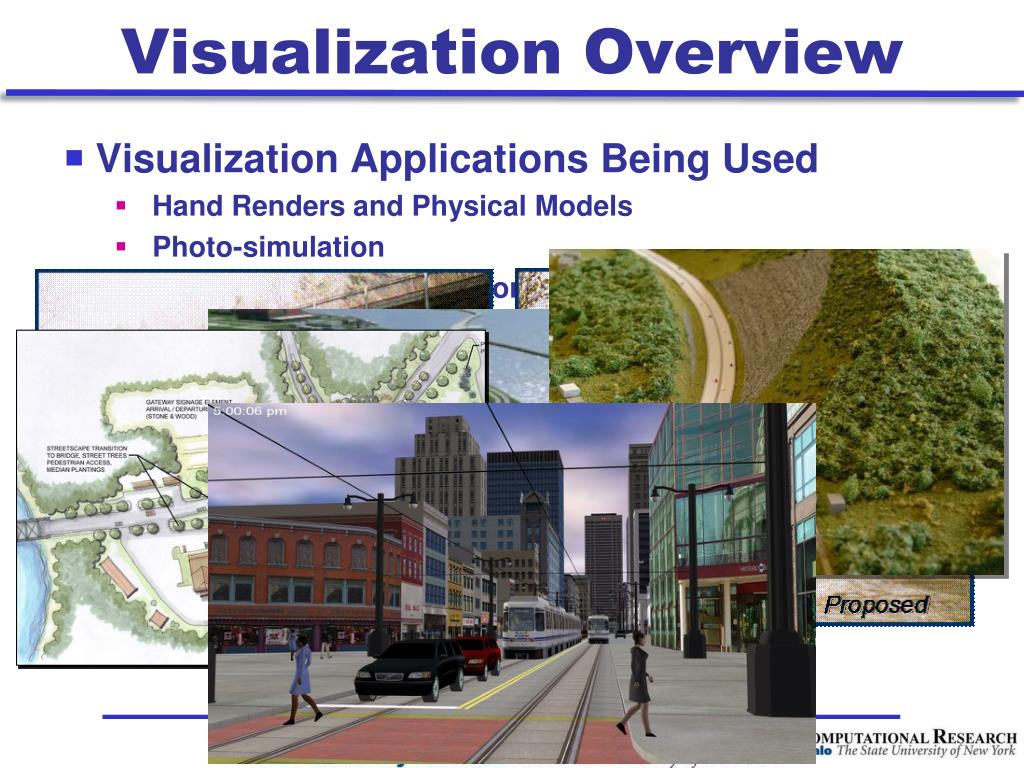

  2. Visualization Overview • Visualization Applications Being Used • Hand Renders and Physical Models • Photo-simulation • 3D Modeling and Animation • Interactive Simulation

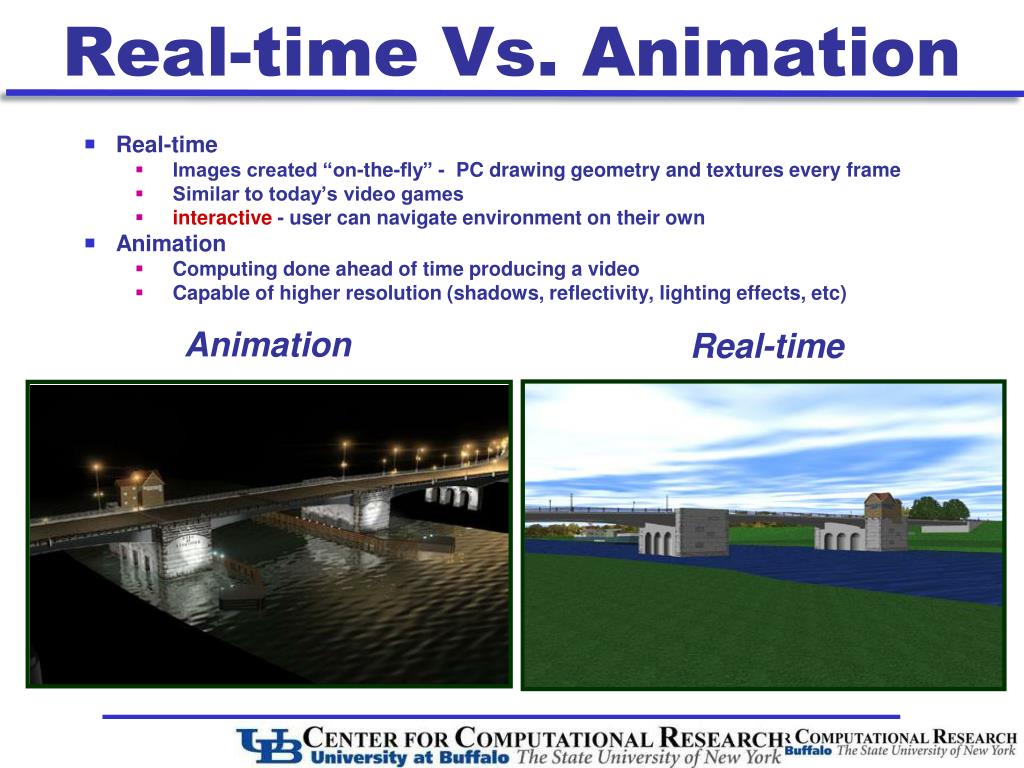

  3. Real-time Vs. Animation • Real-time • Images created “on-the-fly” - PC drawing geometry and textures every frame • Similar to today’s video games • interactive - user can navigate environment on their own • Animation • Computing done ahead of time producing a video • Capable of higher resolution (shadows, reflectivity, lighting effects, etc) Animation Real-time

  4. Current Engine • Self Built • Based on OSG • Many custom capabilities • Traffic • GIS • Large Datasets • Cross Platform • TDW, laptop, etc

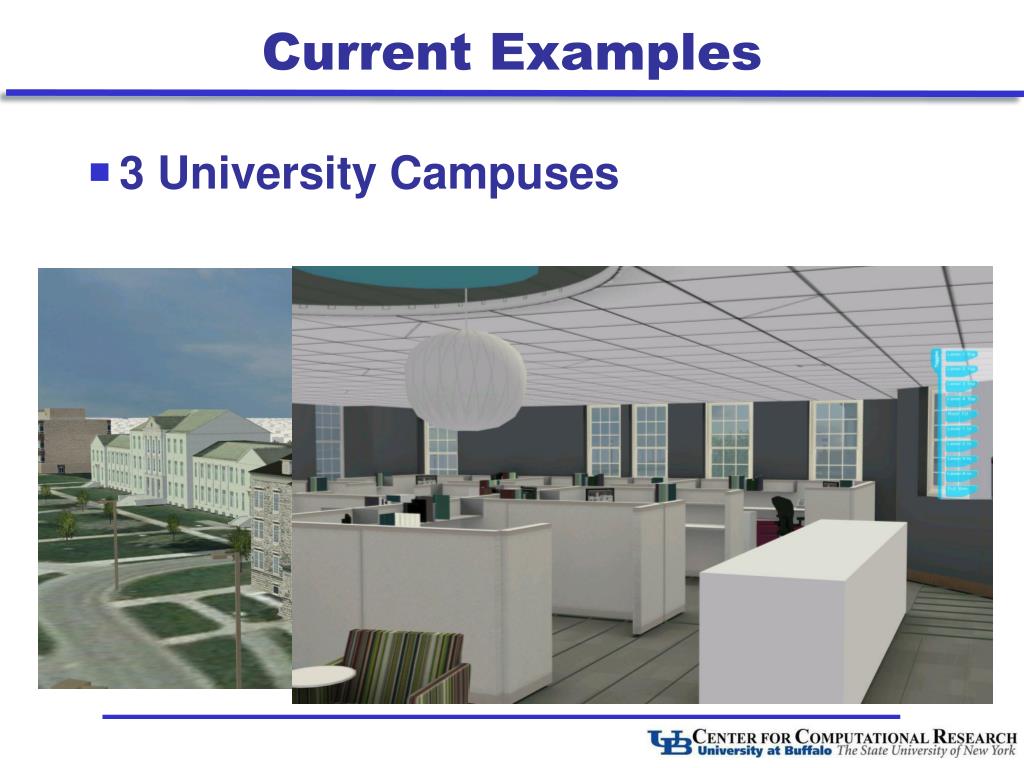

  5. Current Examples • 3 University Campuses

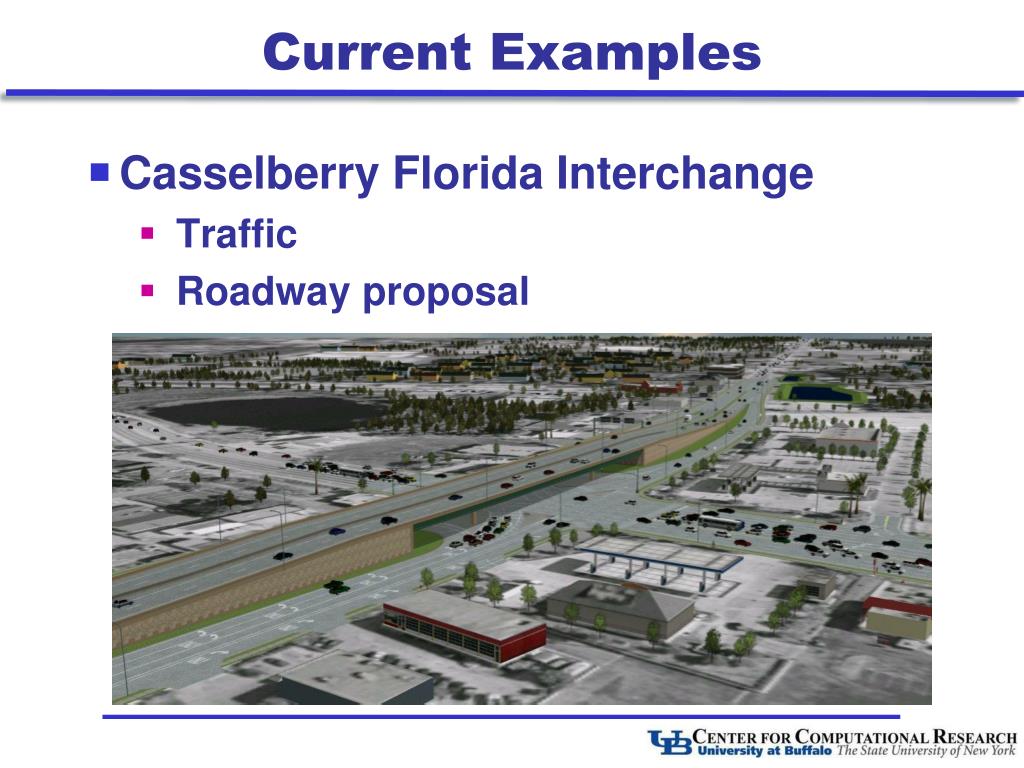

  6. Current Examples • Casselberry Florida Interchange • Traffic • Roadway proposal

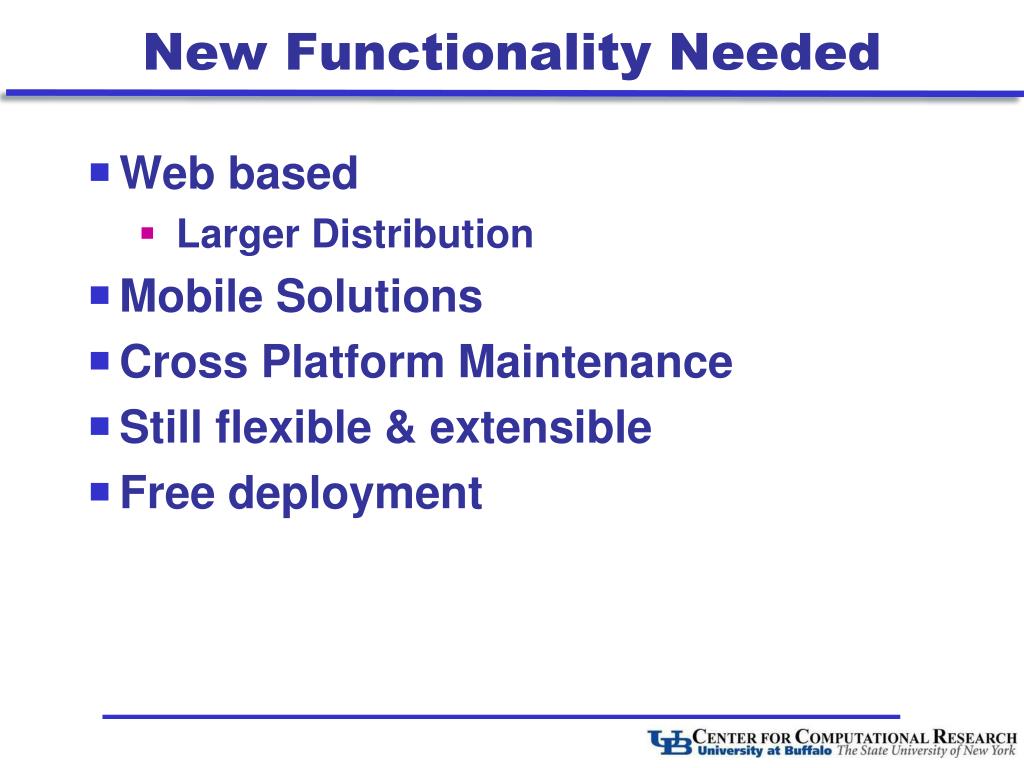

  7. New Functionality Needed • Web based • Larger Distribution • Mobile Solutions • Cross Platform Maintenance • Still flexible & extensible • Free deployment

  8. First Attempts • Home built web plugin • Cumbersome to maintain • API changes between versions • No unified browser API • Security/Authentication questions • WebGL • Incomplete solution • Still would need wrappers for high–level functionality • No Microsoft support

  9. Open Alternatives • WebGL • No Microsoft Support • 3rd party workarounds for IE • O3D • Developed by Google • Sits on top of WebGL • X3D • Successor to VRML • Minimal acceptance • OSG • Community support for mobile and web

  10. Results of Investigation • All still need some platform dependent development • No Open alternative has significant traction • Don’t see this changing anytime soon • Need a product that will support • Windows/Mac/Linux • iOS/Android

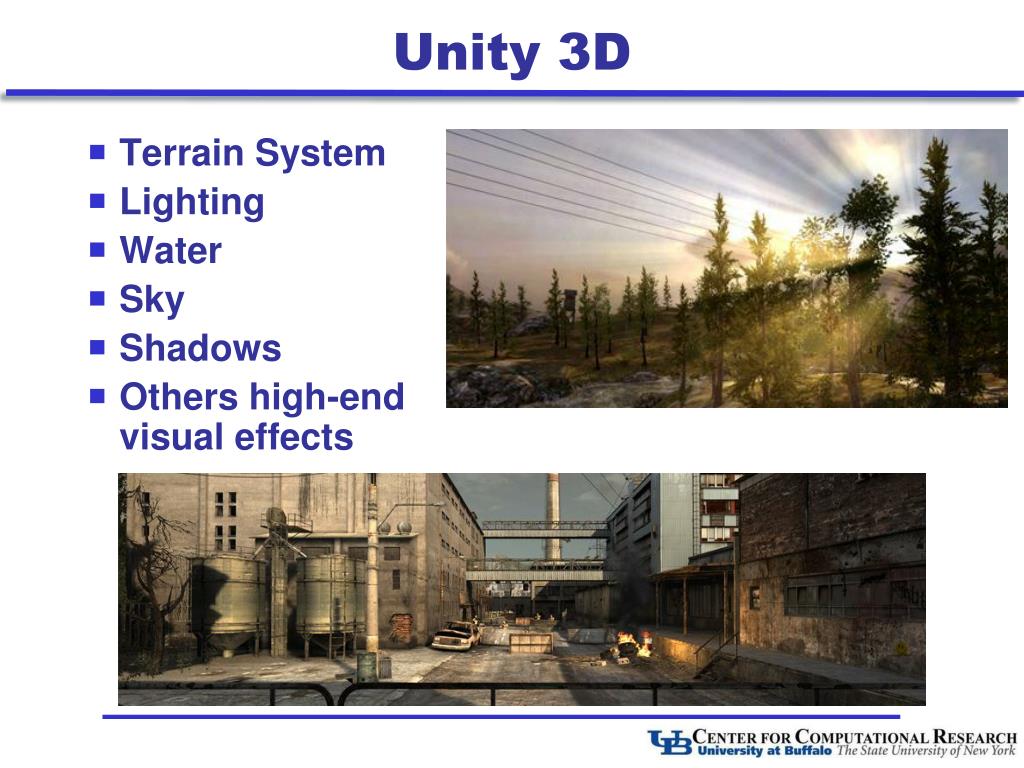

  11. Unity 3D • Terrain System • Lighting • Water • Sky • Shadows • Others high-end visual effects

  12. Why we chose Unity • Large Use base • Market penetration in the game market • Flexible licensing • Drag and Drop interface • One click cross platform Deployment • Mac,PC, Web, Mobile • Unity handles platform specifics transparently • Selectable fidelity • Visual effects • Extensible with scripting

  13. UB Explorer

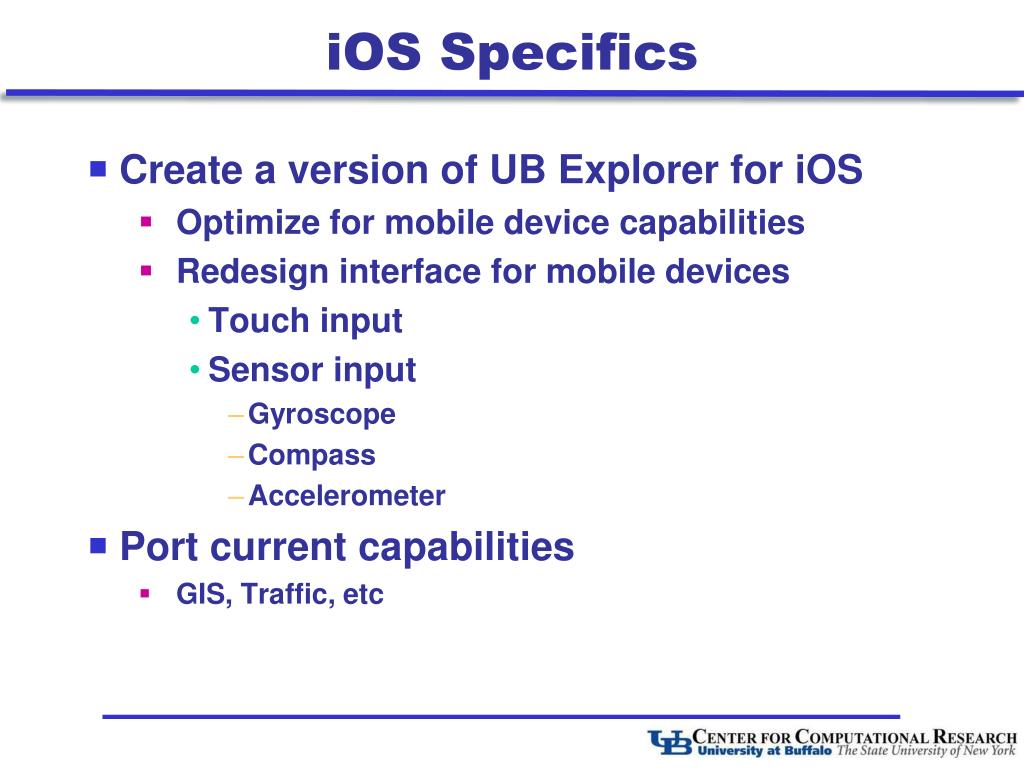

  14. iOS Specifics • Create a version of UB Explorer for iOS • Optimize for mobile device capabilities • Redesign interface for mobile devices • Touch input • Sensor input • Gyroscope • Compass • Accelerometer • Port current capabilities • GIS, Traffic, etc

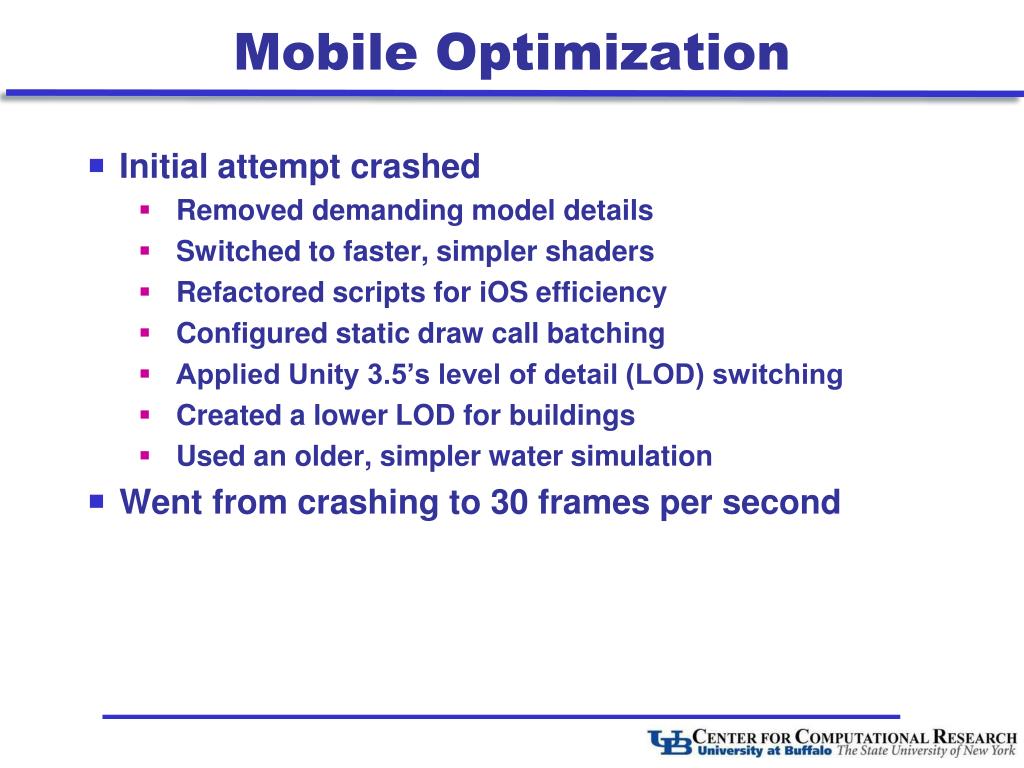

  15. Mobile Optimization • Initial attempt crashed • Removed demanding model details • Switched to faster, simpler shaders • Refactored scripts for iOS efficiency • Configured static draw call batching • Applied Unity 3.5’s level of detail (LOD) switching • Created a lower LOD for buildings • Used an older, simpler water simulation • Went from crashing to 30 frames per second

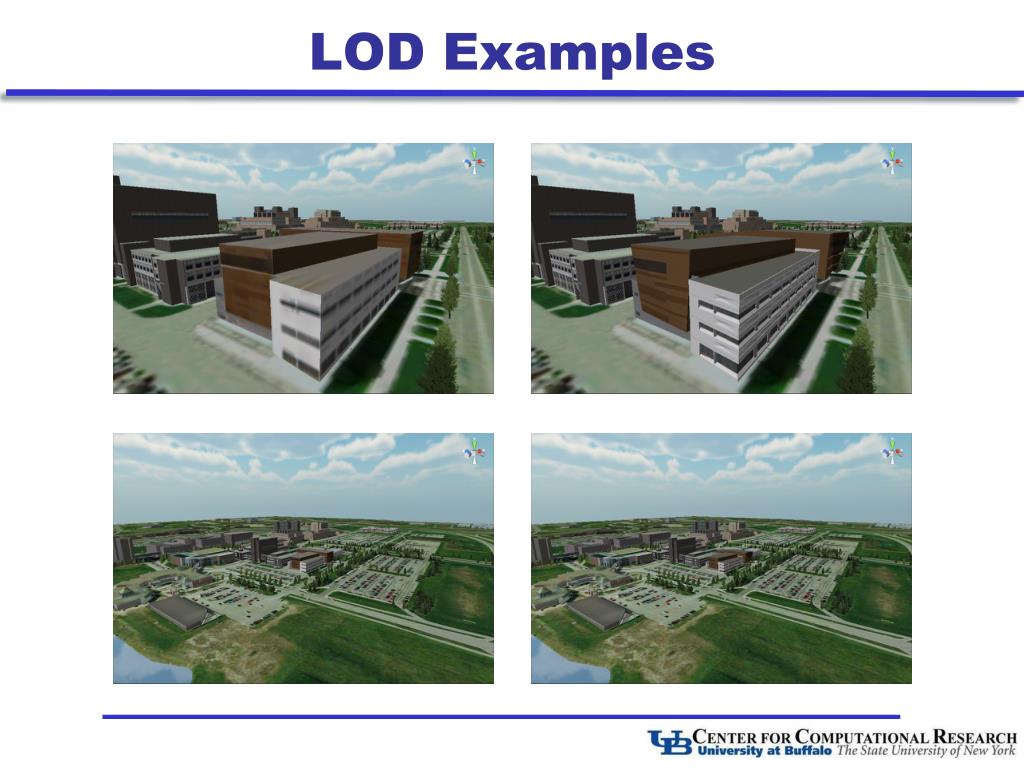

  16. LOD Examples

  17. Interface Redesign • Originally designed for keyboard and mouse • Mobile devices use touch and other sensors • User tasks: • Navigation • Building Selection

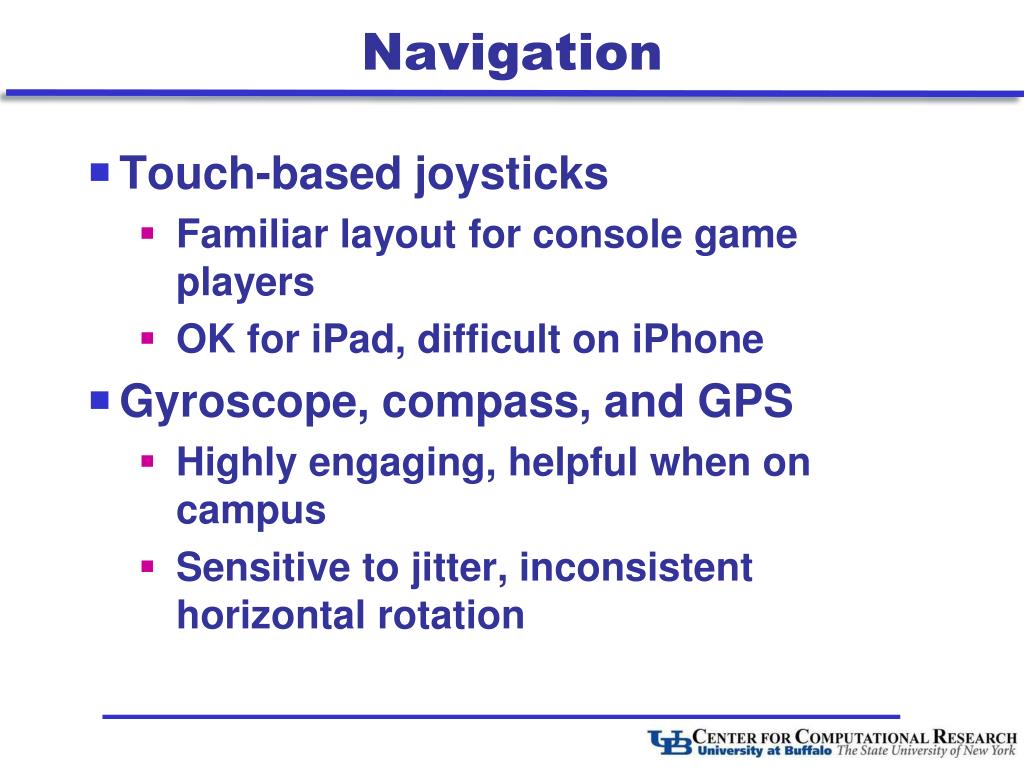

  18. Navigation • Touch-based joysticks • Familiar layout for console game players • OK for iPad, difficult on iPhone • Gyroscope, compass, and GPS • Highly engaging, helpful when on campus • Sensitive to jitter, inconsistent horizontal rotation

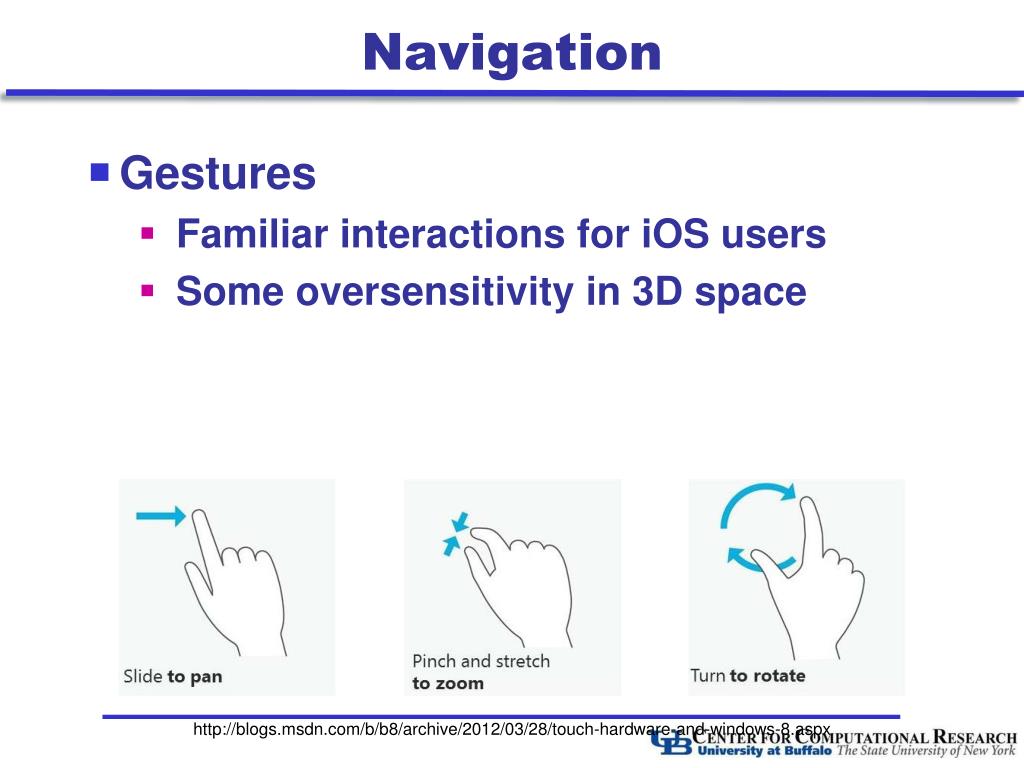

  19. Navigation • Gestures • Familiar interactions for iOS users • Some oversensitivity in 3D space http://blogs.msdn.com/b/b8/archive/2012/03/28/touch-hardware-and-windows-8.aspx

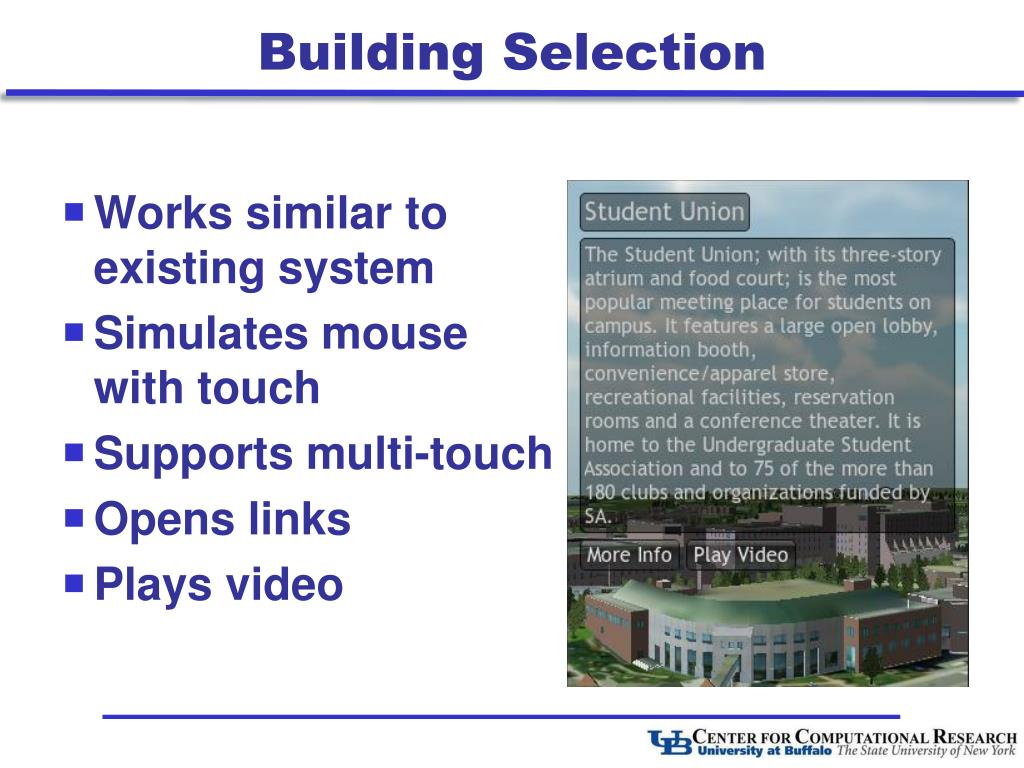

  20. Building Selection • Works similar to existing system • Simulates mouse with touch • Supports multi-touch • Opens links • Plays video

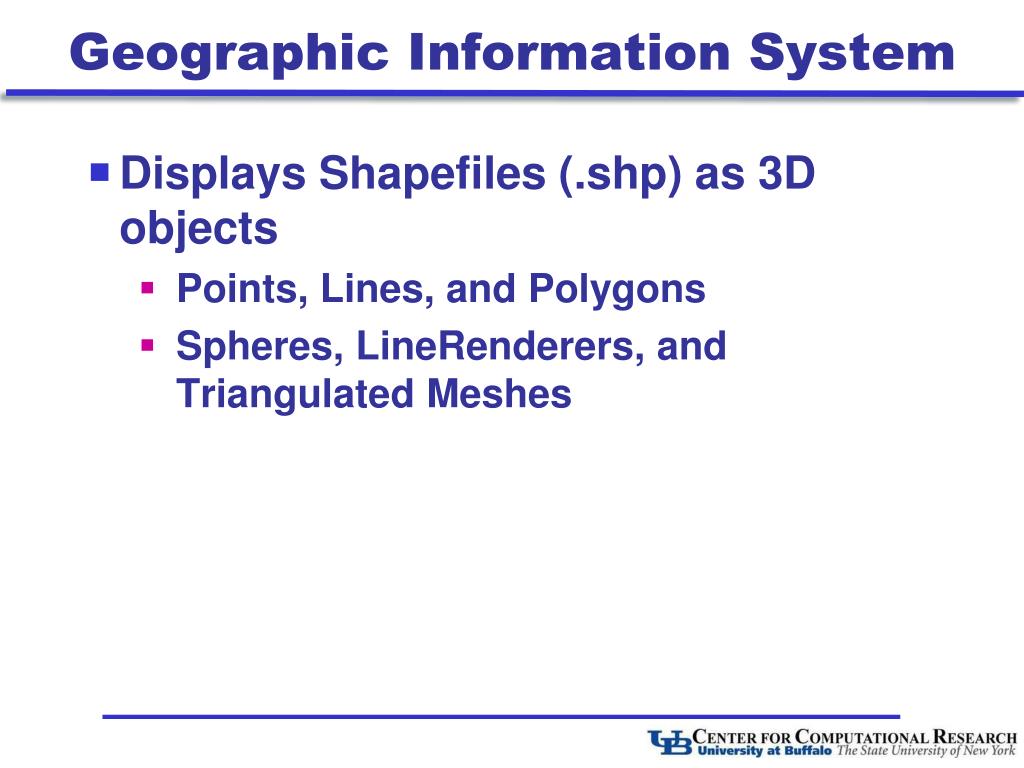

  21. Geographic Information System • Displays Shapefiles (.shp) as 3D objects • Points, Lines, and Polygons • Spheres, LineRenderers, and Triangulated Meshes

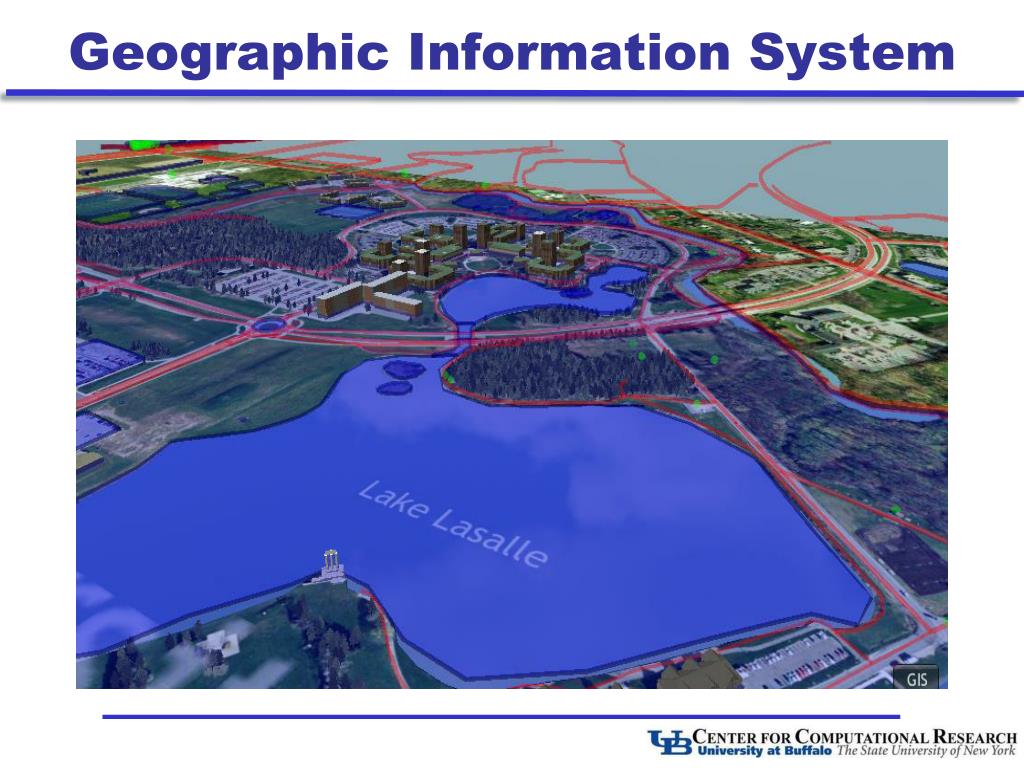

  22. Geographic Information System

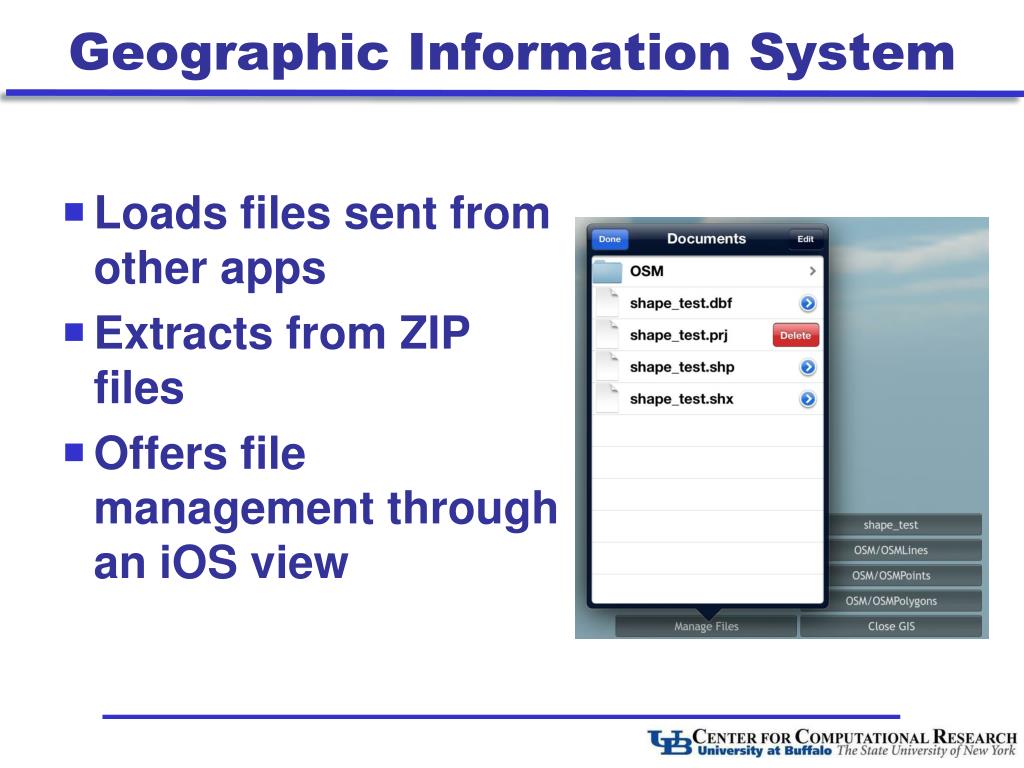

  23. Geographic Information System • Loads files sent from other apps • Extracts from ZIP files • Offers file management through an iOS view

  24. Concerns/Limitations • Licensing changes • Company Longevity/Support • WTK, SGI (Performer) • Incompatible updates • Vega/Vega Prime • Controlled by an outside organization • Plug-in update problem • Linux support is evolving

  25. Future Work • Test, test, test! • Enhance interactivity • Implement GPS/Augmented Reality features for enhanced on-campus viewing • Port to more platforms • Android • Windows Phone 8

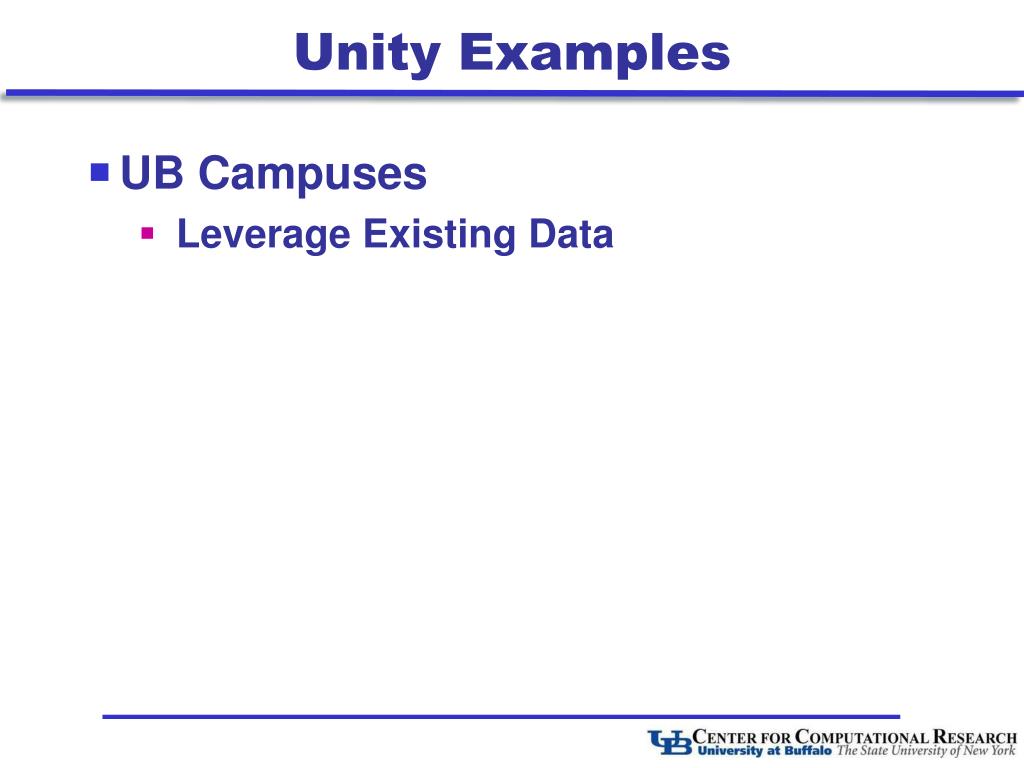

  26. Unity Examples • UB Campuses • Leverage Existing Data

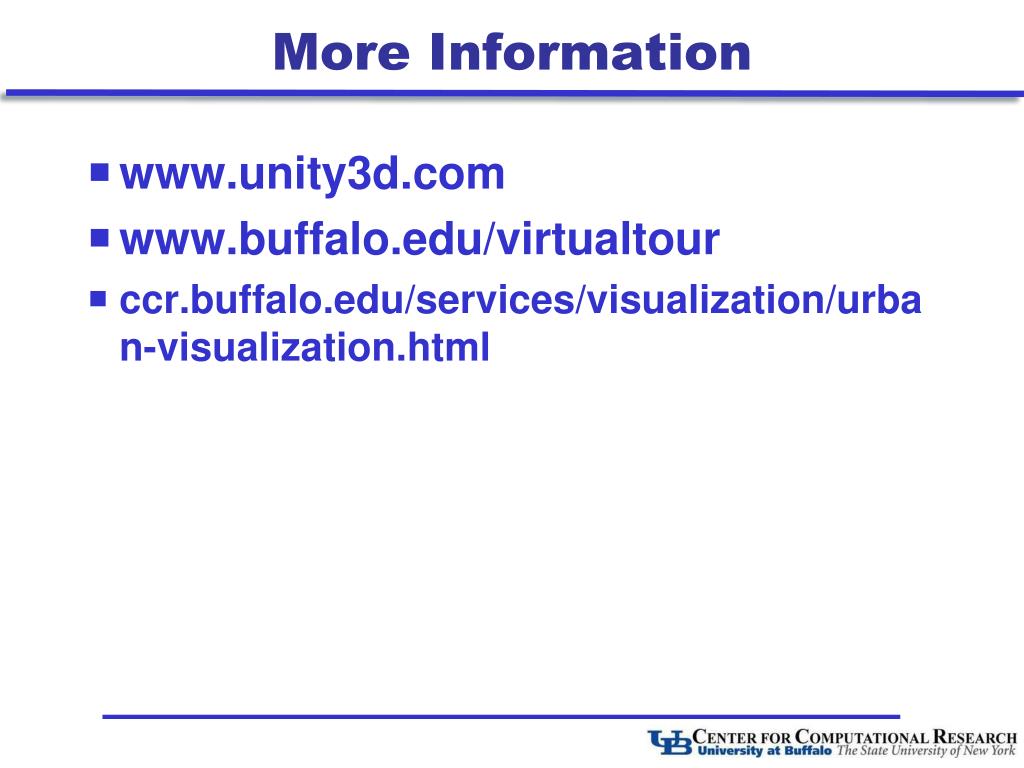

  27. More Information • www.unity3d.com • www.buffalo.edu/virtualtour • ccr.buffalo.edu/services/visualization/urban-visualization.html

  28. Acknowledgments • Dr. Thomas Furlani, Director, CCR • Adrian Levesque, CCR • Thomas Yearke, Summer Intern • Samantha Haney, Summer Intern
