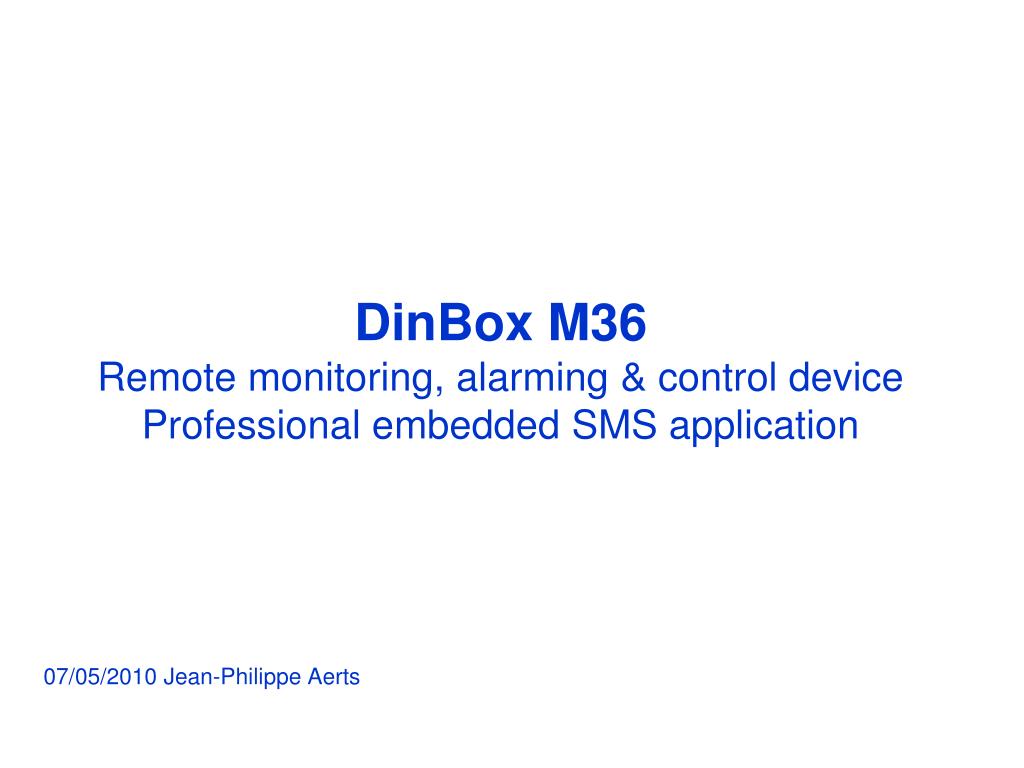

  1. DinBox M36 Remote monitoring, alarming & control deviceProfessional embedded SMS application 07/05/2010 Jean-Philippe Aerts

  2. DinBox M36 DINrail SMS-Box Dinbox M36: Start-up notification SMS SMS DB65 Start-up notification (23) Email SMS 80 - 260 Vac MAINS

  3. Dinbox M36: Inputs (Closing Contact) SMS SMS Push INPUT1 CLOSED Email SMS DinBox M36 DINrail SMS-Box

  4. Dinbox M36: Inputs (Opening Contact) SMS SMS Pull INPUT1 OPENED Email SMS DinBox M36 DINrail SMS-Box

  5. Dinbox M36: Inputs (Power Driven Input) SMS SMS + - 9Vdc INPUT1 CLOSED Email SMS DinBox M36 DINrail SMS-Box

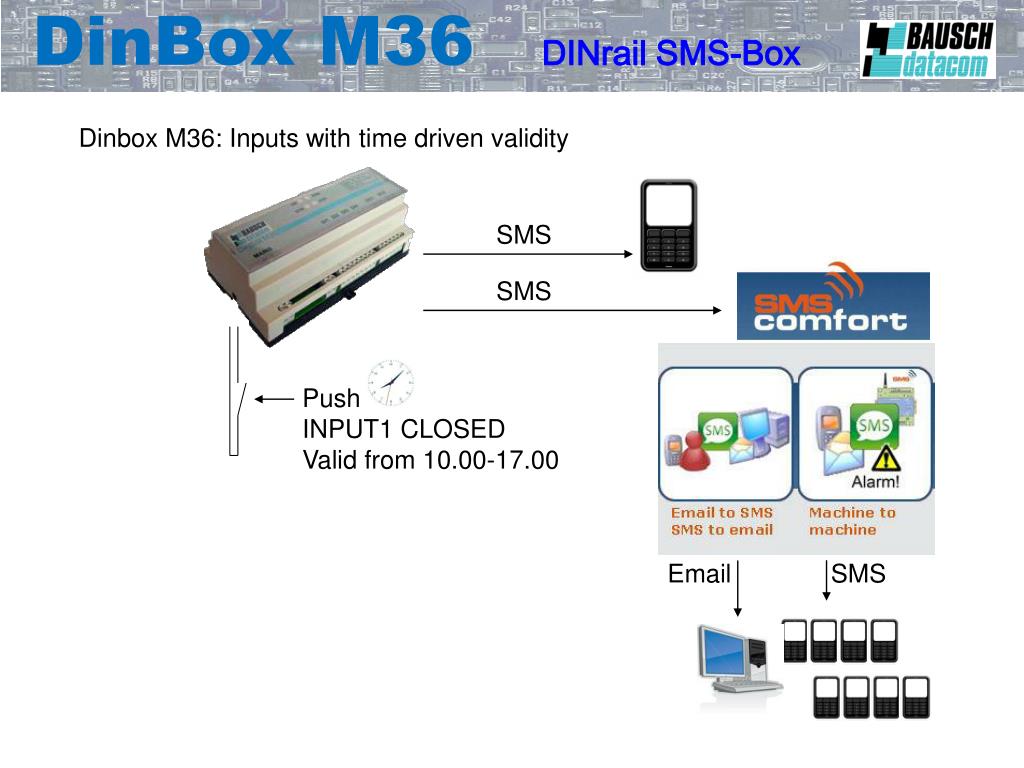

  6. DinBox M36 DINrail SMS-Box Dinbox M36: Inputs with time driven validity SMS SMS Push INPUT1 CLOSED Valid from 10.00-17.00 Email SMS

  7. DinBox M36 DINrail SMS-Box Dinbox M36: Inputs (Alarm Confirmation) SMS SMS ALARM1 Email SMS Confirm ALARM1

  8. DinBox M36 DINrail SMS-Box Dinbox M36: Input (Status reports) SMS SMS Input1 High Input2 Low Input3 Low Input4 High Email SMS

  9. DinBox M36 DINrail SMS-Box Dinbox M36: Inputs (Usage report) SMS SMS Send SMS when Input is 1000 min active Email SMS

  10. DinBox M36 DINrail SMS-Box Dinbox M36: Outputs (Closing & Opening Contact) SMS SMS Close Output 1 Email SMS

  11. DinBox M36 DINrail SMS-Box Dinbox M36: Outputs (Closing & Opening Contact for specific duration) SMS SMS Close Output 1 5s Email SMS s = seconds m = minutes h = hours d = days

  12. DinBox M36 DINrail SMS-Box Dinbox M36: Outputs with time driven validity SMS SMS Close Output 1 Email SMS Output only valid between 10.00 – 17.00 h

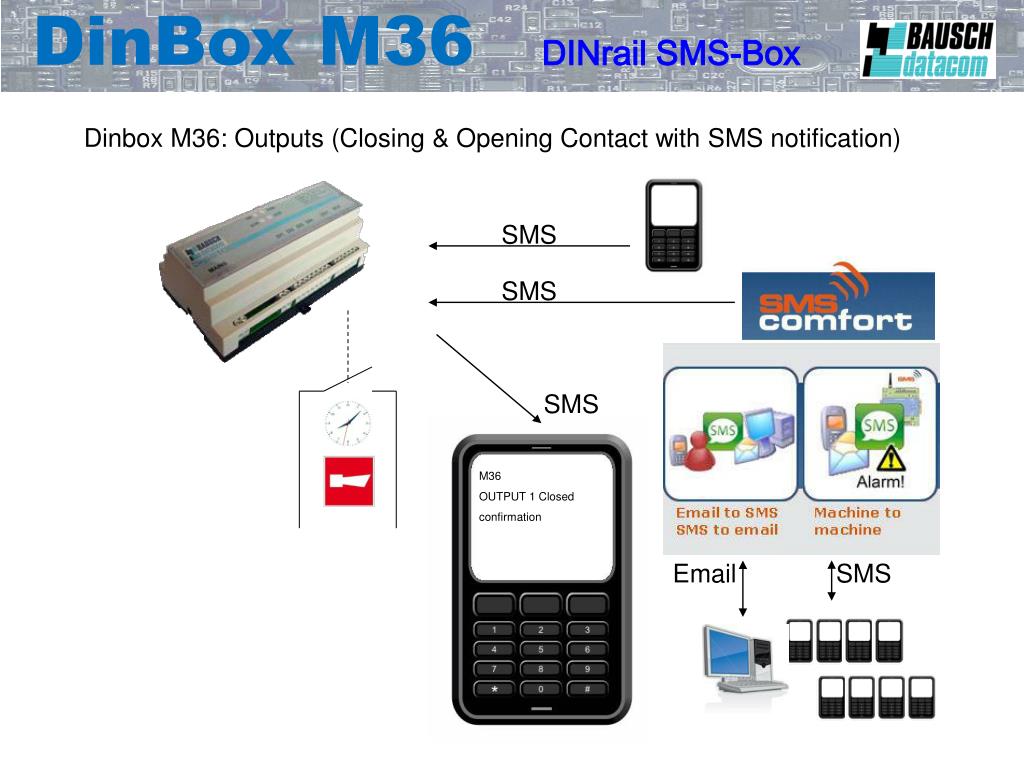

  13. DinBox M36 DINrail SMS-Box Dinbox M36: Outputs (Closing & Opening Contact with SMS notification) SMS SMS SMS M36 OUTPUT 1 Closed confirmation Email SMS

  14. DinBox M36 DINrail SMS-Box Dinbox M36: Outputs (Status report) SMS SMS M36 OUTPUT 1 High OUTPUT 2 Low Email SMS

  15. DinBox M36 DINrail SMS-Box Dinbox M36: Outputs (Usage report) SMS SMS M36 OUTPUT 1 1000 min. Email SMS Send SMS when output is closed for 1000 min

  16. DinBox M36 DINrail SMS-Box Dinbox M36: Keep Alive SMS SMS M36 Loc. Brussels Installation 04498 Every week SMS I’m still alive Email SMS

  17. DinBox M36 DINrail SMS-Box Dinbox M36: Battery Alarm when Power Fails SMS BATT Level SMS M36 Main power fails Battery level 80 % Email SMS 80 - 260 Vac MAINS

  18. DinBox M36 DINrail SMS-Box Dinbox M36: Movement Detection SMS SMS BATT M36 Alarm Illigal movement detected. Email SMS
