  1. Midea A/W Heat Pump Product Midea HPWH Sales Division

  2. WHY HEAT PUMP?

  3. 1.Global warming issue, which we are facing now… Maldives cabinet meeting underwater A pole bear standing on a melting ice CO2 concentration affects global temperature

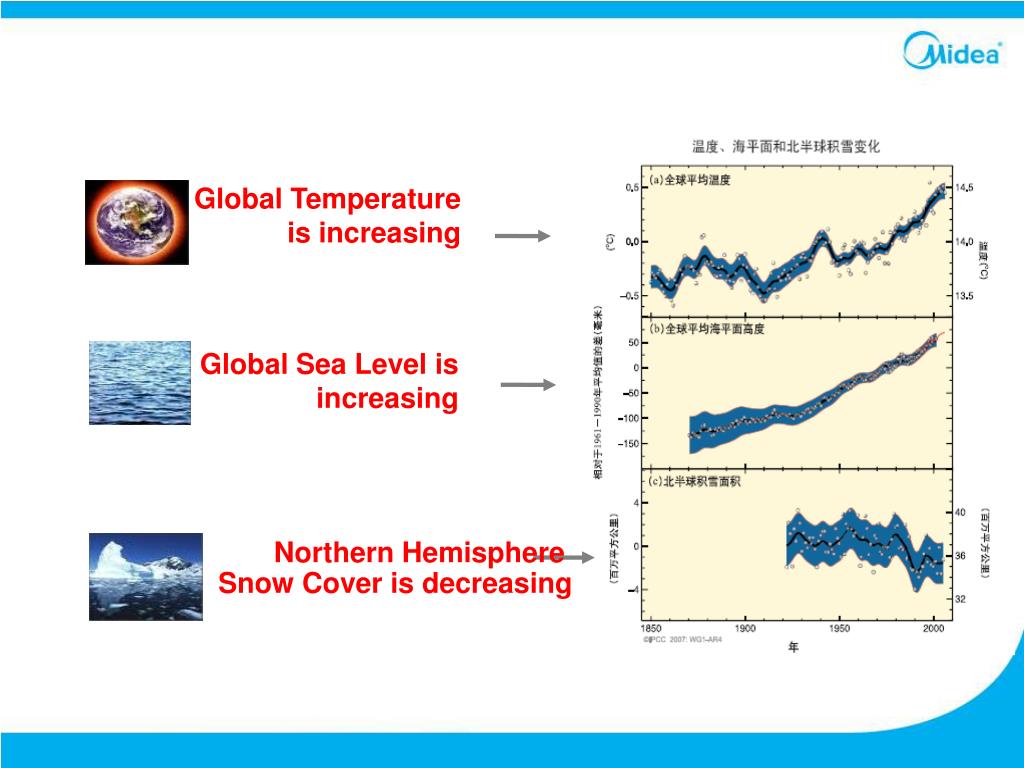

  4. Global Temperature is increasing Global Sea Level is increasing Northern Hemisphere Snow Cover is decreasing

  5. The European Parliament have covered air heat pump into the scope of renewable energy on 2008 After 2013, gas water heater, gas heating stove, electric water heaters will not allow purchased individually 2.European Union Green Energy Policy

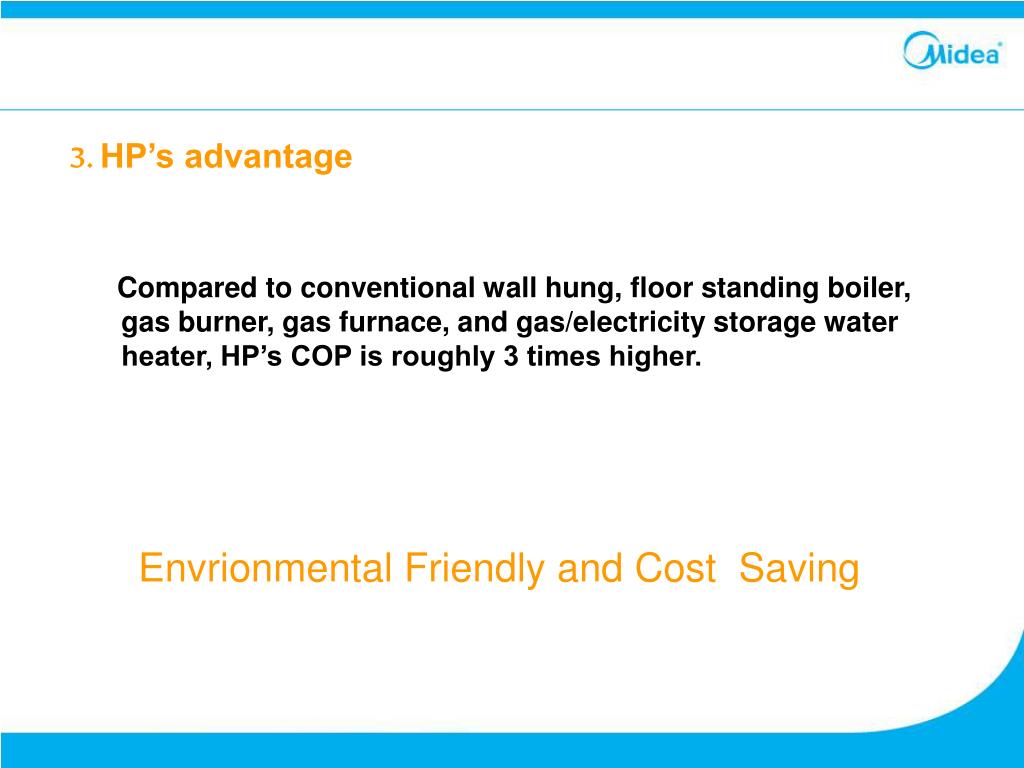

  6. 3. HP’s advantage • Compared to conventional wall hung, floor standing boiler, gas burner, gas furnace, and gas/electricity storage water heater, HP’s COP is roughly 3 times higher. Envrionmental Friendly and Cost Saving

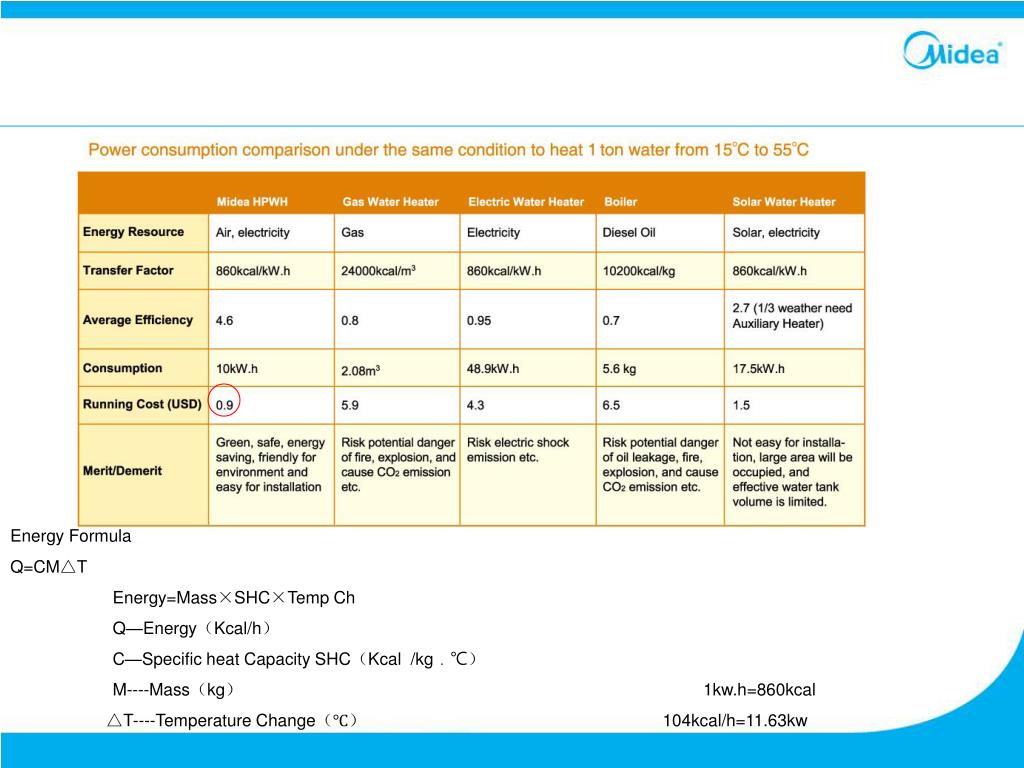

  7. Energy Formula Q=CM△T Energy=Mass×SHC×Temp Ch Q—Energy（Kcal/h） C—Specific heat Capacity SHC（Kcal /kg﹒℃） M----Mass（kg） 1kw.h=860kcal △T----Temperature Change（℃） 104kcal/h=11.63kw

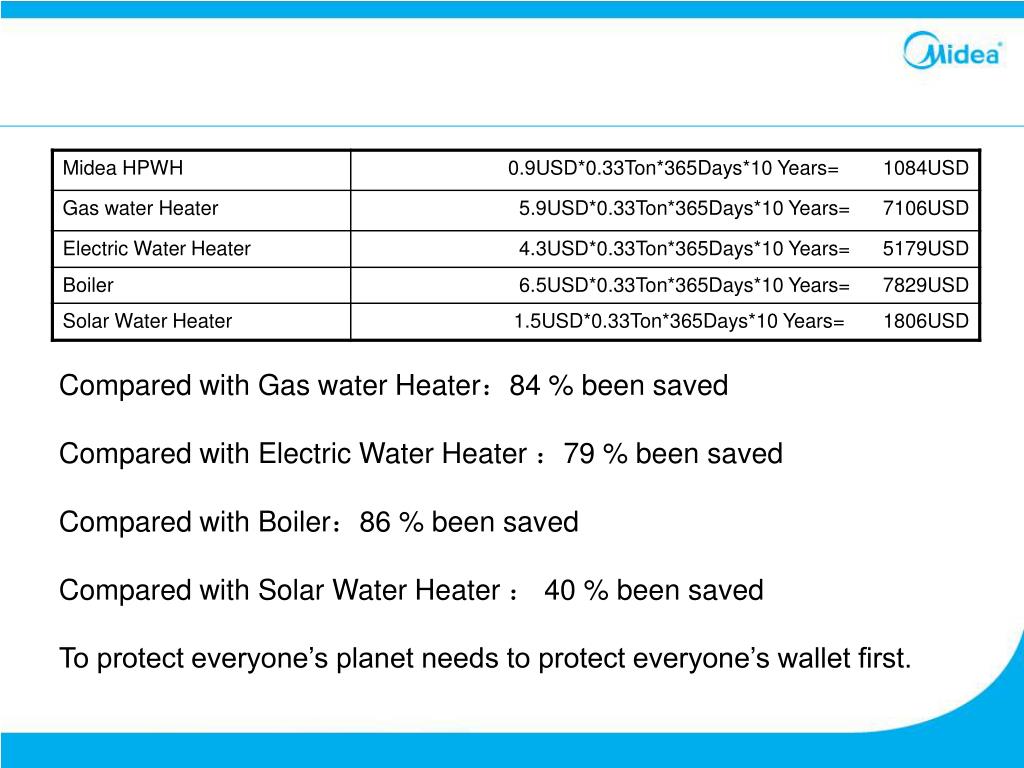

  8. Compared with Gas water Heater：84 % been saved Compared with Electric Water Heater ：79 % been saved Compared with Boiler：86 % been saved Compared with Solar Water Heater ： 40 % been saved To protect everyone’s planet needs to protect everyone’s wallet first.

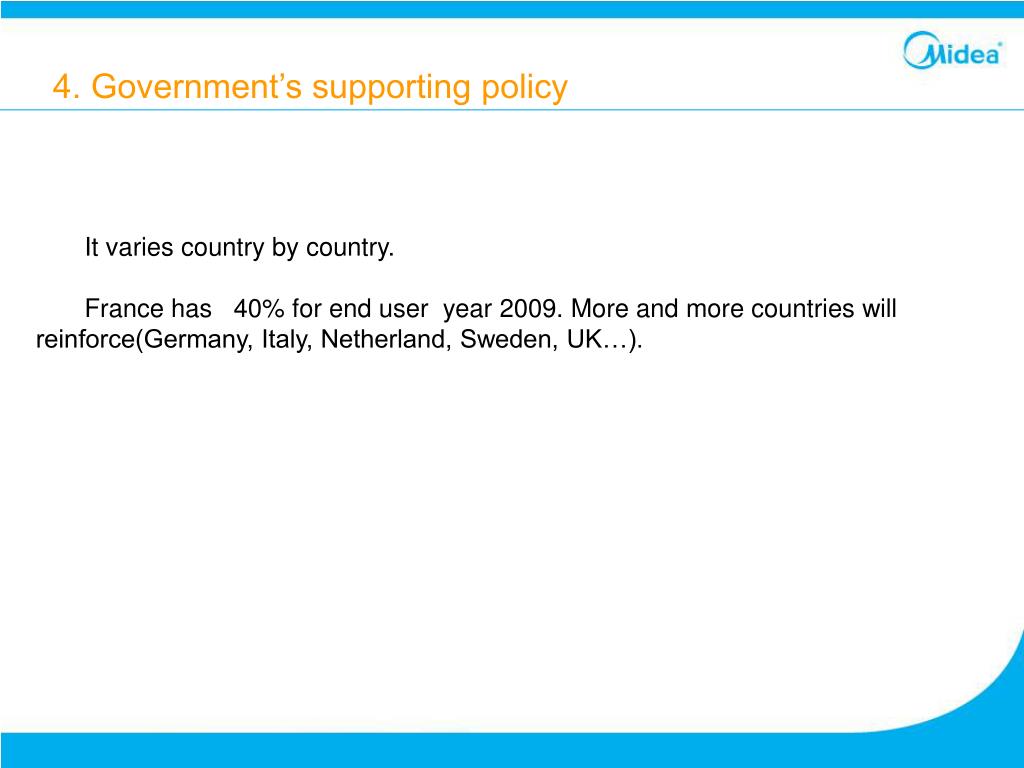

  9. 4. Government’s supporting policy It varies country by country. France has 40% for end user year 2009. More and more countries will reinforce(Germany, Italy, Netherland, Sweden, UK…).

  10. 5. Sales Trend Data from JARN 2011,12,13 growing forecast is averagely 35%.

  11. WHAT HEAT PUMP?

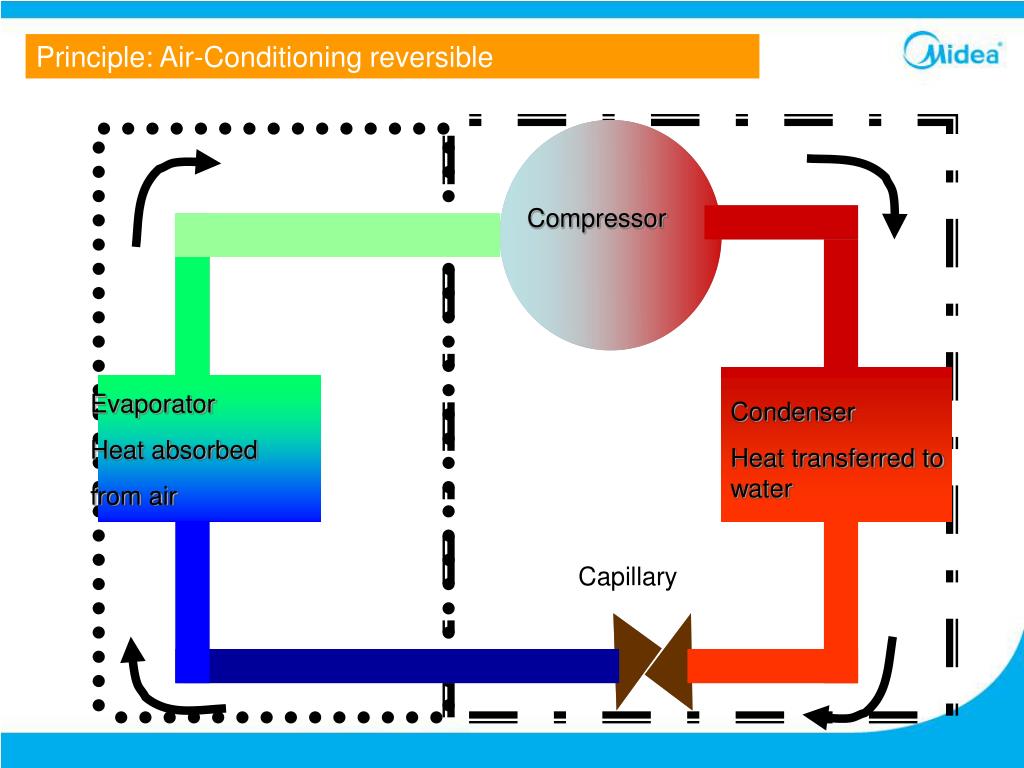

  12. Principle: Air-Conditioning reversible Compressor Evaporator Heat absorbed from air Condenser Heat transferred to water 提供冷量 Capillary

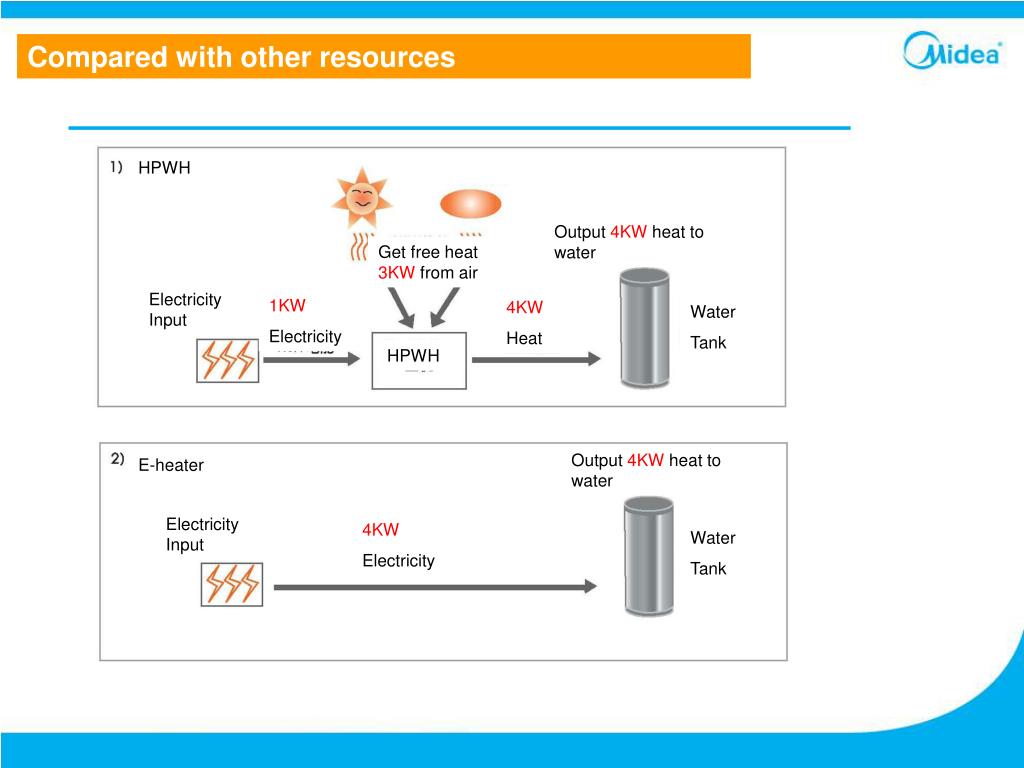

  13. Compared with other resources HPWH Output 4KW heat to water Get free heat 3KW from air Electricity Input 1KW Electricity 4KW Heat Water Tank HPWH Output 4KW heat to water E-heater Electricity Input 4KW Electricity Water Tank

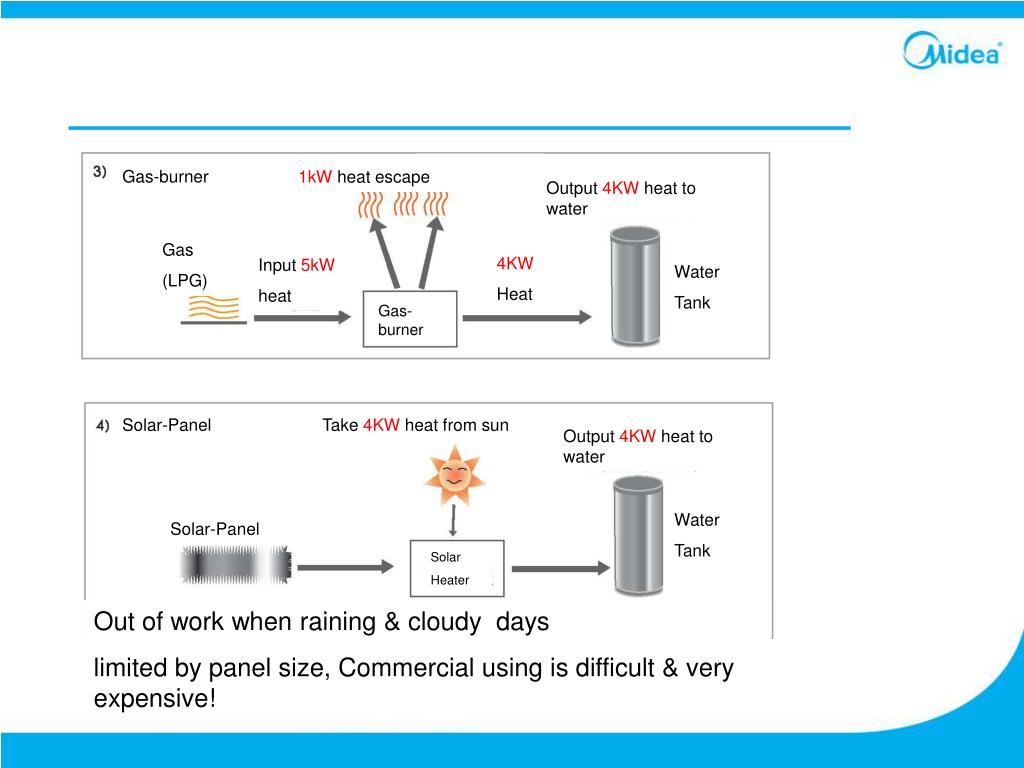

  14. Gas-burner 1kW heat escape Output 4KW heat to water Gas (LPG) 4KW Heat Input 5kW heat Water Tank Gas-burner Solar-Panel Take 4KW heat from sun Output 4KW heat to water Water Tank Solar-Panel Solar Heater Out of work when raining & cloudy days limited by panel size, Commercial using is difficult & very expensive!

  15. WHY MIDEA?

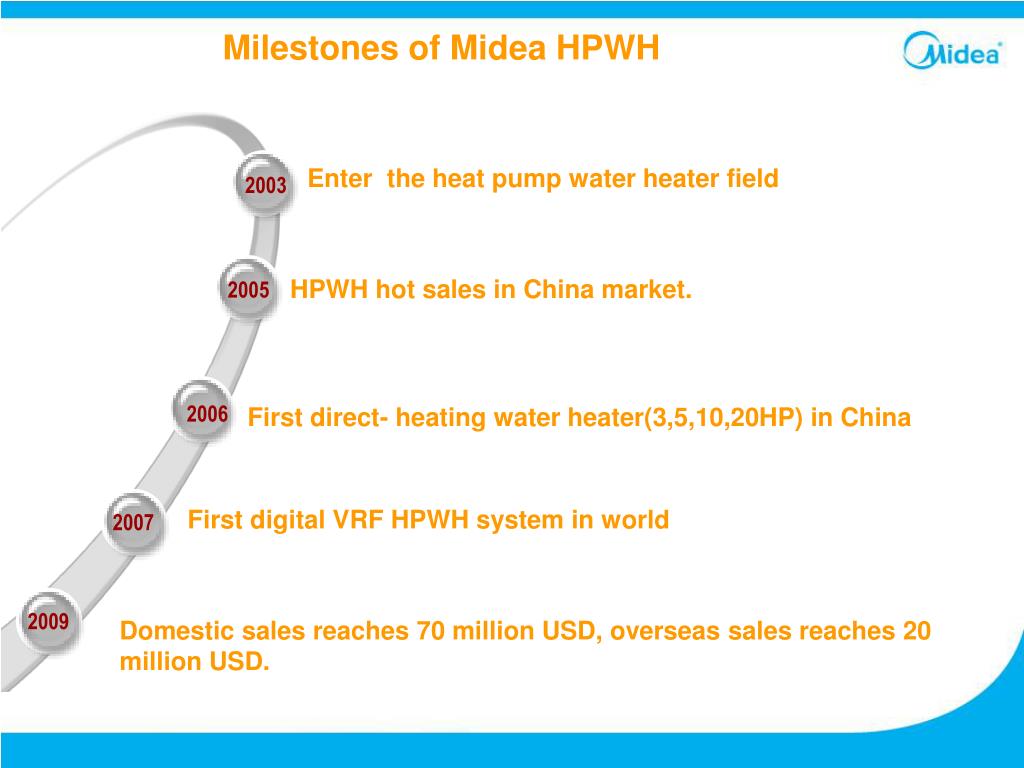

  16. 2007 2009 Milestones of Midea HPWH Enter the heat pump water heater field 2003 HPWH hot sales in China market. 2005 2006 First direct- heating water heater(3,5,10,20HP) in China First digital VRF HPWH system in world Domestic sales reaches 70 million USD, overseas sales reaches 20 million USD.

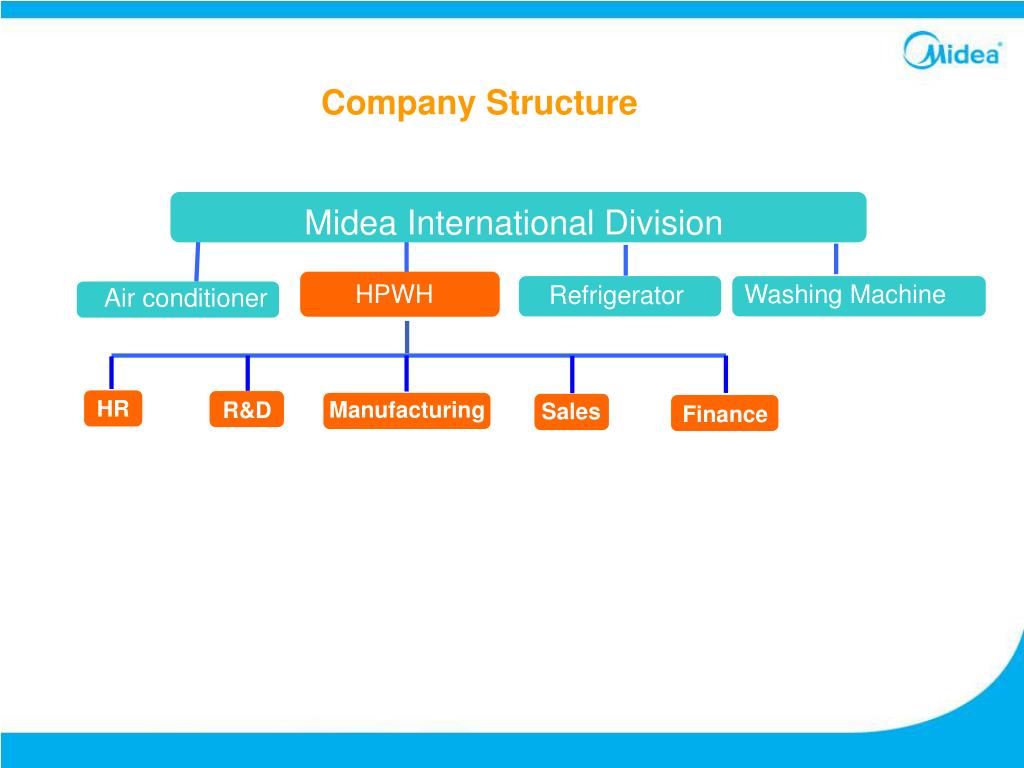

  17. Company Structure Midea International Division HPWH Washing Machine Refrigerator Air conditioner HR Manufacturing R&D Sales Finance

  18. CORE ADVANTAGES 1. 25 years of experience in manufacturing heat pumps. 2. Offering 16 million heat pump units to homes and commercial applications each year globally. HPWH’s sales in domestic market ranks No.1. 3. Full lines of sanitary water, space heating, central heating system, and pool heating equipment 4. Professional R&D team

  19. First-Class and multinational HR • 6 Engineering PhDs head a centre with over 300 professional Engineers • State Council Experts on Staff • Japanese HVAC Expert on Staff • National Post-doctoral station • Worldwide Technical Cooperation • Toshiba-Carrier on Multi Inverter technology • Copeland US on Digital Scroll Technology • GE –Midea cooperation on Heat pump technology • NEC, Mitsubishi, and Texas Instruments on Controller cooperation Research & Development

  20. Shunde (HQ) 300,000 units/year Production System Production base

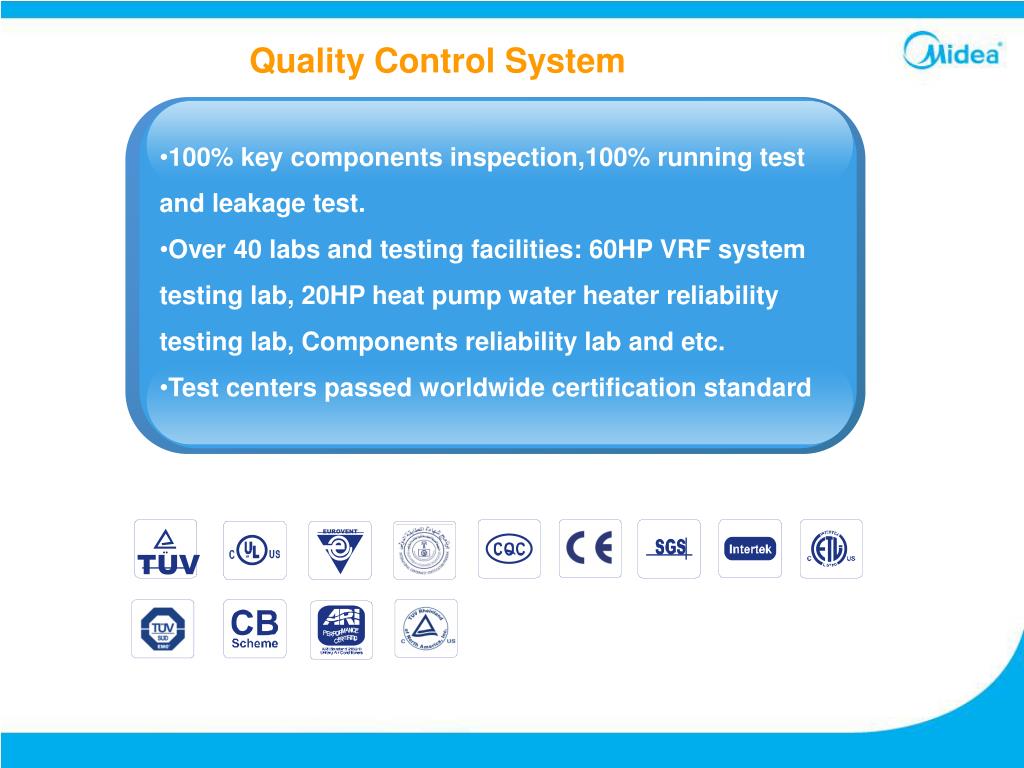

  21. EUROVENT TUV Quality Control System • 100% key components inspection,100% running test and leakage test. • Over 40 labs and testing facilities: 60HP VRF system testing lab, 20HP heat pump water heater reliability testing lab, Components reliability lab and etc. • Test centers passed worldwide certification standard

  22. WHAT MIDEA HAVE?

  23. Line Up 1. Sanitary HPHW (Range: 1.5～7.2 KW) 2. Space Heating (Range: 12 KW) 3. Commercial HPWH (Range: 10～90 KW) 4. Swimming Pool / Spa HPWH (Range: 6～14 KW) 5. Heat Recovery System (Range: 2.5～16 KW)

  24. Sanitary HPWH Combo Type Split Type 3.2 / 4.5 / 7.2 KW 260～500L 3.5 / 5.0 KW 100～260L 1.5 / 3.0 KW 150 / 190 / 300L R410a Water Circle R22/R407C Refrigerant Circle 60Hz R134a

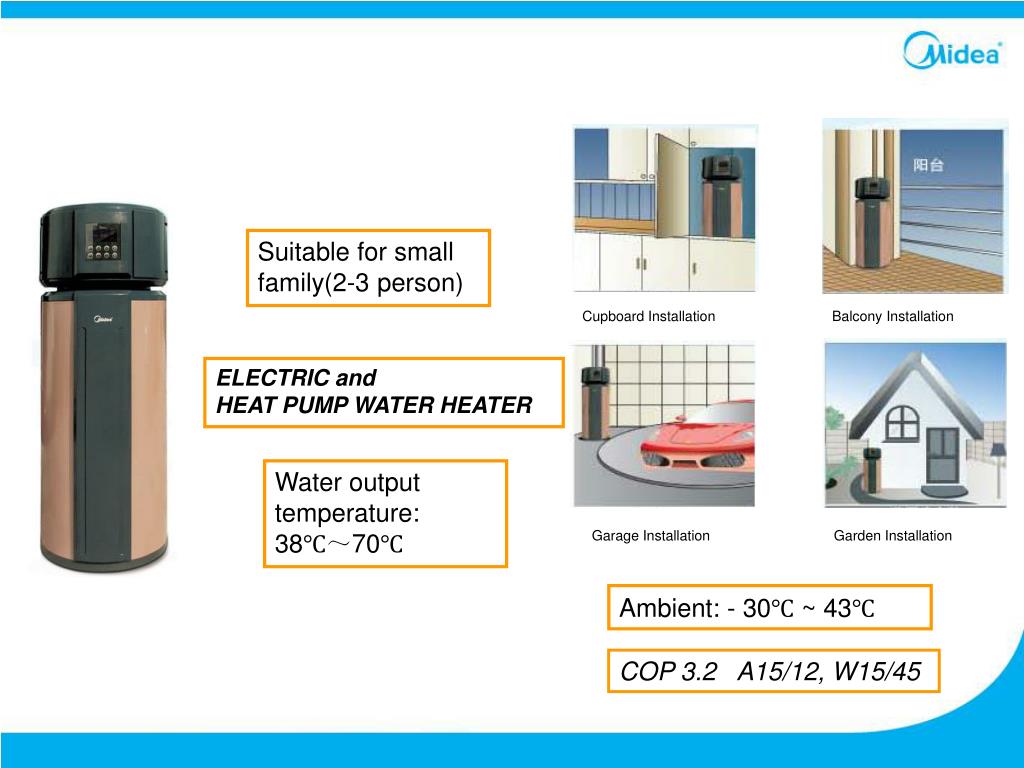

  25. Cupboard Installation Balcony Installation Garage Installation Garden Installation Suitable for small family(2-3 person) ELECTRIC and HEAT PUMP WATER HEATER Water output temperature: 38℃～70℃ Ambient: - 30℃ ~ 43℃ COP 3.2 A15/12, W15/45

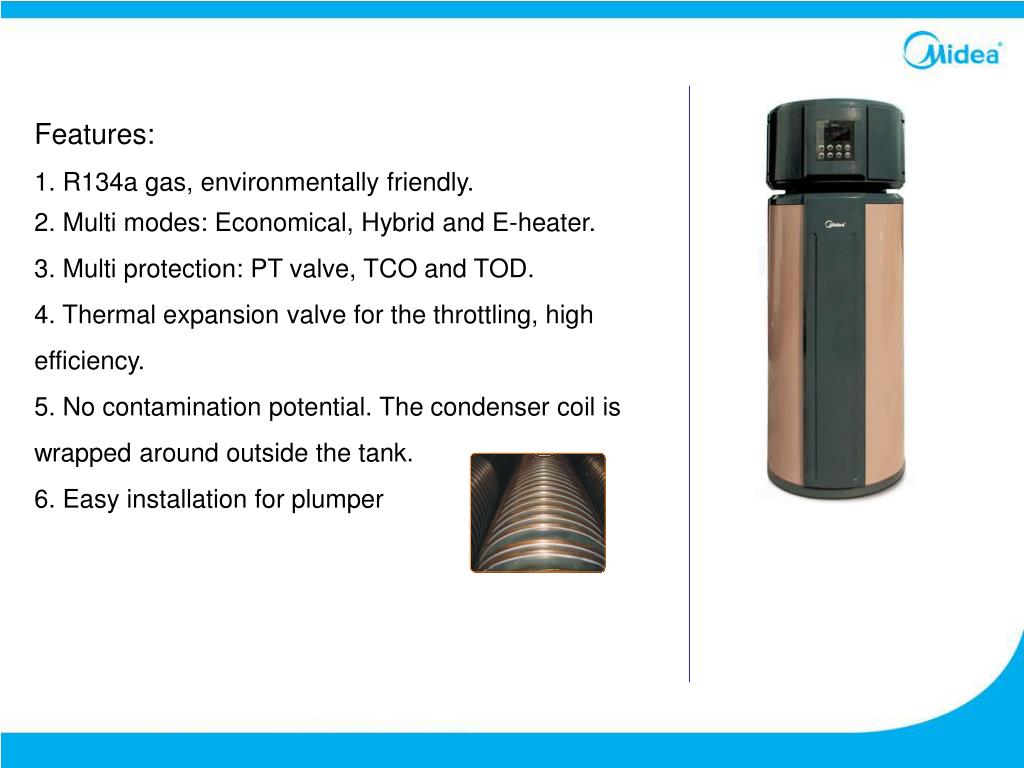

  26. Features: 1. R134a gas, environmentally friendly. 2. Multi modes: Economical, Hybrid and E-heater. 3. Multi protection: PT valve, TCO and TOD. 4. Thermal expansion valve for the throttling, high efficiency. 5. No contamination potential. The condenser coil is wrapped around outside the tank. 6. Easy installation for plumper

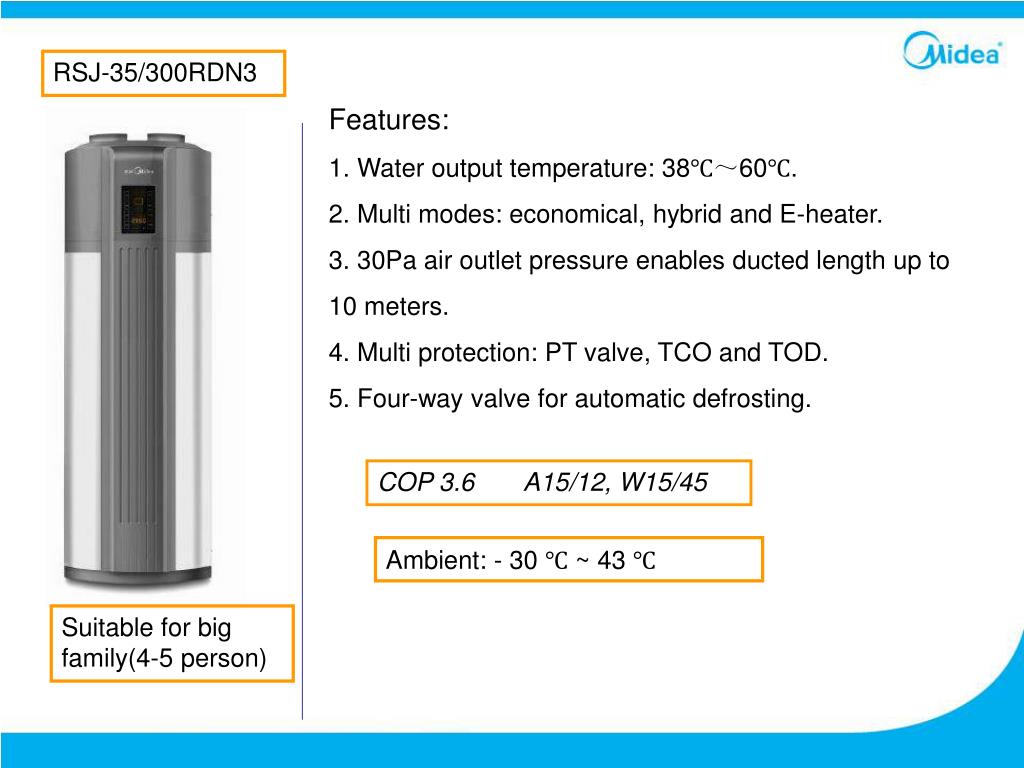

  27. RSJ-35/300RDN3 Features: 1. Water output temperature: 38℃～60℃. 2. Multi modes: economical, hybrid and E-heater. 3. 30Pa air outlet pressure enables ducted length up to 10 meters. 4. Multi protection: PT valve, TCO and TOD. 5. Four-way valve for automatic defrosting. COP 3.6 A15/12, W15/45 Ambient: - 30 ℃ ~ 43 ℃ Suitable for big family(4-5 person)

  28. 7. Built-in independent water-water tube heat exchanger for the integration of other heat source, such as solar collectors or gas boiler(Optional).

  29. Combo Type R134a (190L 60Hz) ELECTRIC& HEAT PUMP UL approval E.F.>2.2 （DOE Standard) FHD>56 （DOE Standard)

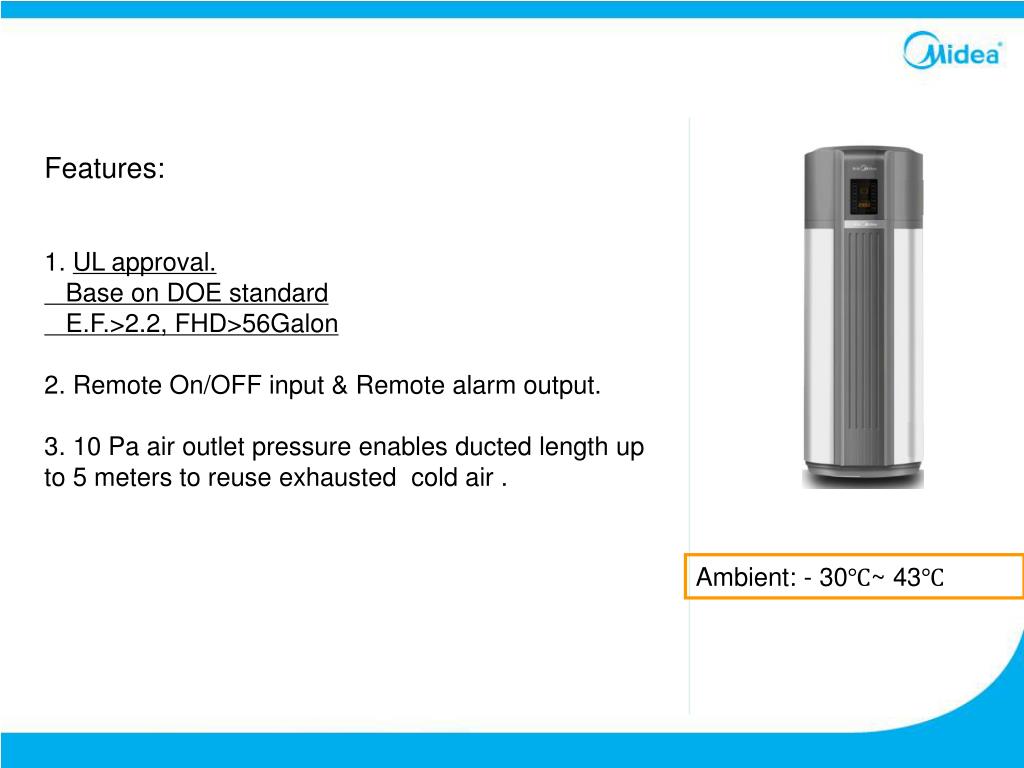

  30. Features: 1. UL approval. Base on DOE standard E.F.>2.2, FHD>56Galon 2. Remote On/OFF input & Remote alarm output. 3. 10 Pa air outlet pressure enables ducted length up to 5 meters to reuse exhausted cold air . Ambient: - 30℃~ 43℃

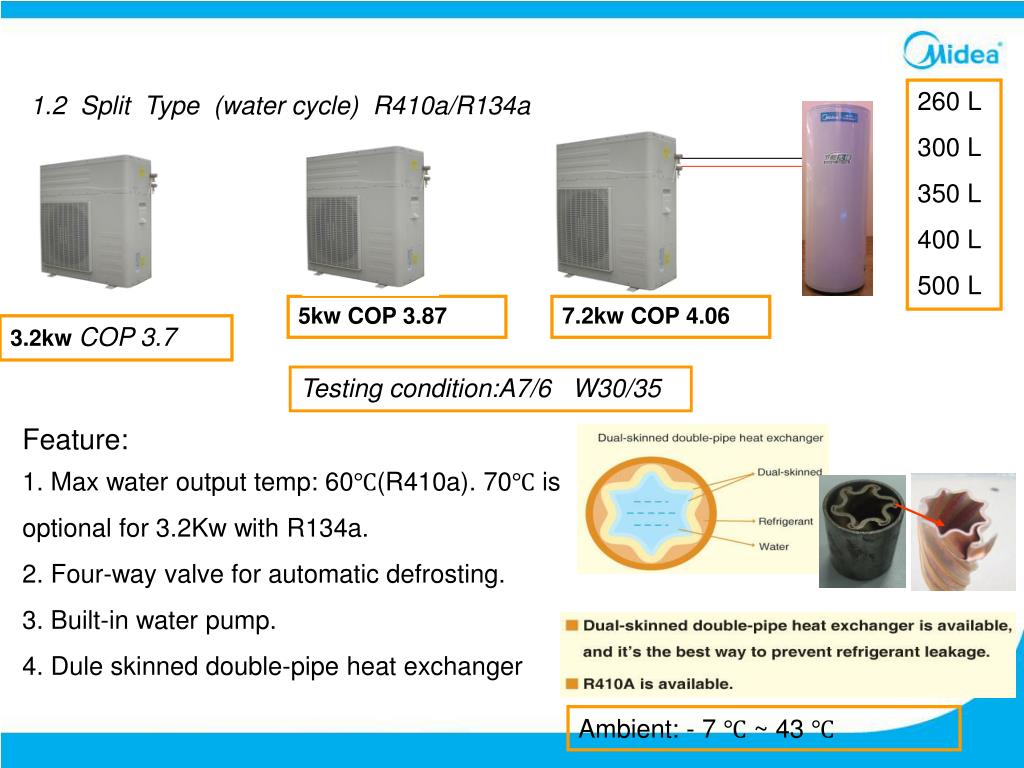

  31. 260 L 300 L 350 L 400 L 500 L 1.2 Split Type (water cycle) R410a/R134a 5kw COP 3.87 7.2kw COP 4.06 3.2kw COP 3.7 Testing condition:A7/6 W30/35 Feature: 1. Max water output temp: 60℃(R410a). 70℃ is optional for 3.2Kw with R134a. 2. Four-way valve for automatic defrosting. 3. Built-in water pump. 4. Dule skinned double-pipe heat exchanger Ambient: - 7 ℃ ~ 43 ℃

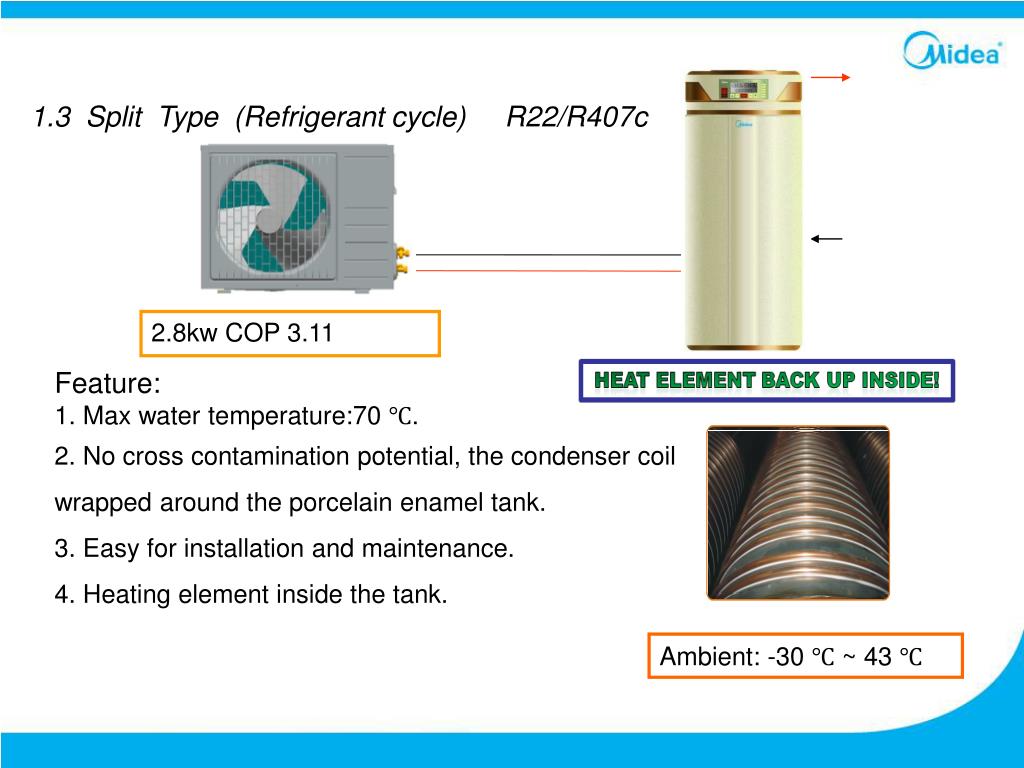

  32. 1.3 Split Type (Refrigerant cycle) R22/R407c 2.8kw COP 3.11 Feature: 1. Max water temperature:70 ℃. 2. No cross contamination potential, the condenser coil wrapped around the porcelain enamel tank. 3. Easy for installation and maintenance. 4. Heating element inside the tank. Ambient: -30 ℃ ~ 43 ℃

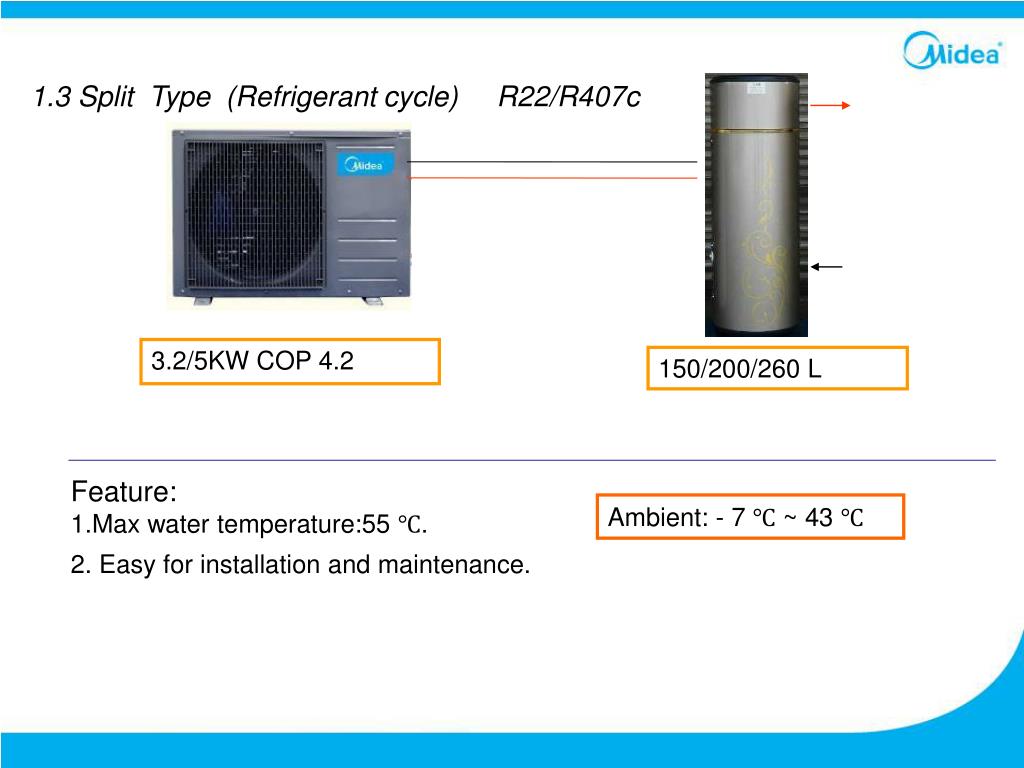

  33. 1.3 Split Type (Refrigerant cycle) R22/R407c 3.2/5KW COP 4.2 150/200/260 L Feature: 1.Max water temperature:55 ℃. 2. Easy for installation and maintenance. Ambient: - 7 ℃ ~ 43 ℃

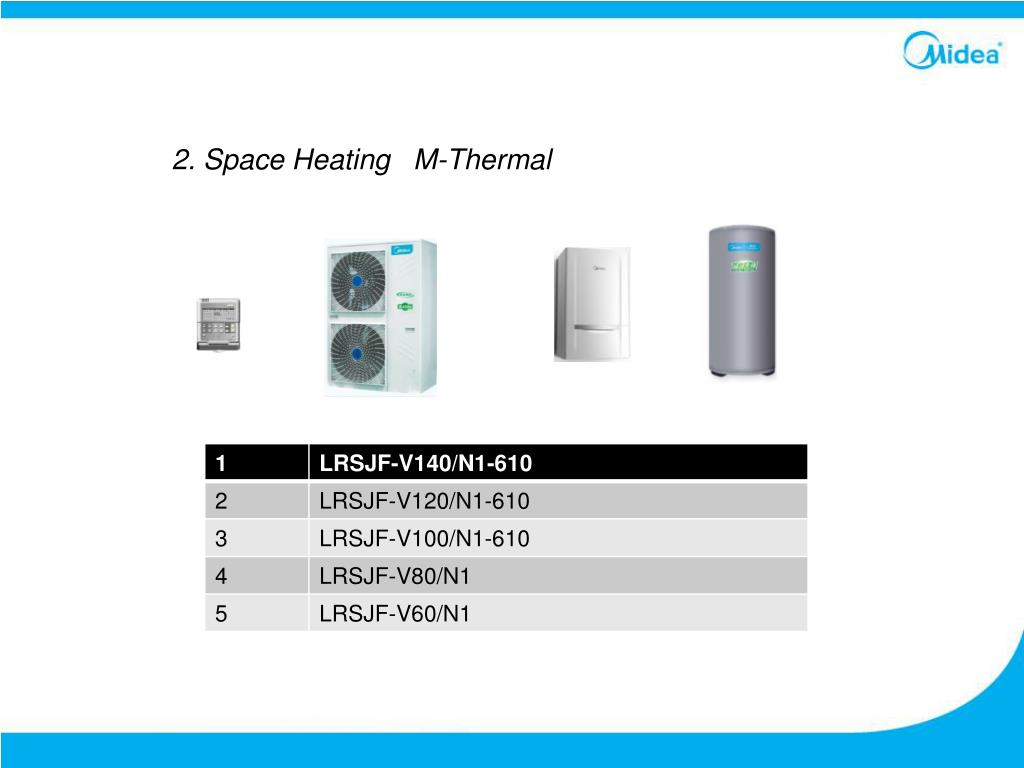

  34. 2. Space Heating M-Thermal

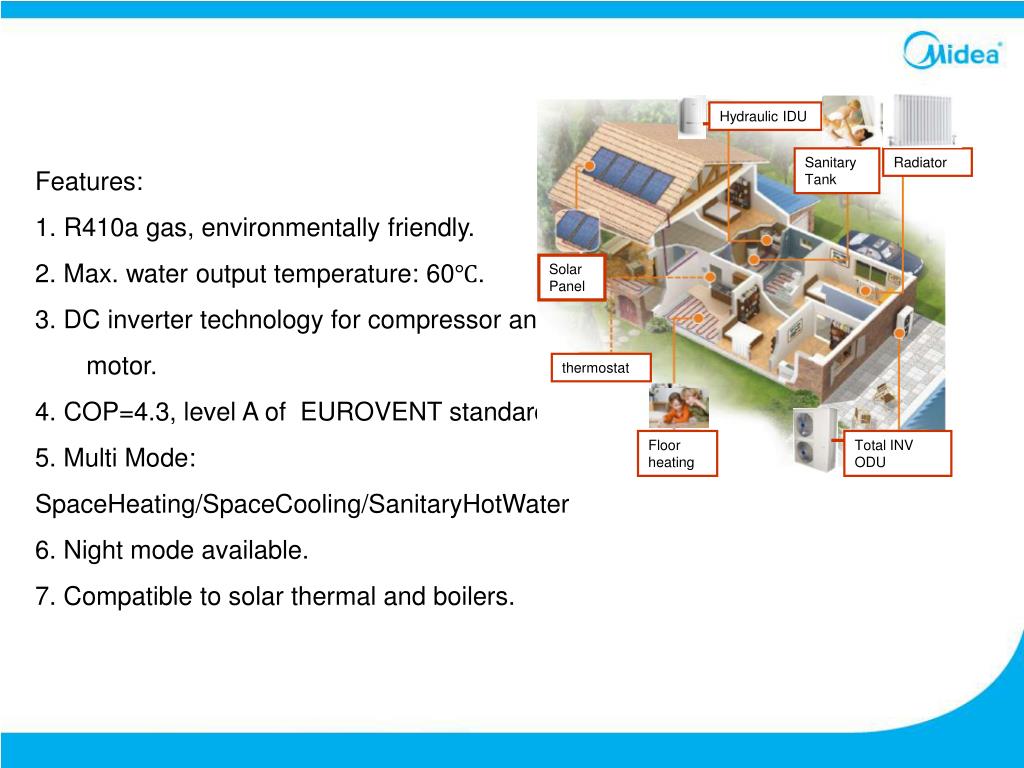

  35. Hydraulic IDU Sanitary Tank Radiator Solar Panel thermostat Floor heating Total INV ODU Features: 1. R410a gas, environmentally friendly. 2. Max. water output temperature: 60℃. 3. DC inverter technology for compressor and motor. 4. COP=4.3, level A of EUROVENT standard. 5. Multi Mode: SpaceHeating/SpaceCooling/SanitaryHotWater 6. Night mode available. 7. Compatible to solar thermal and boilers.

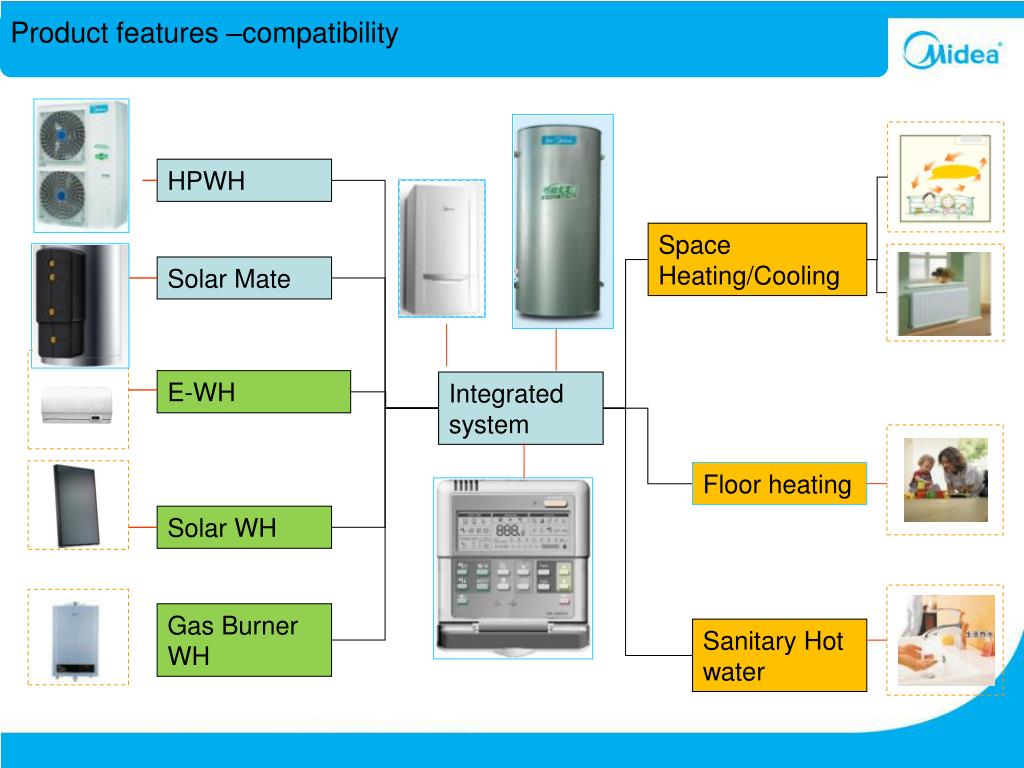

  36. Product features –compatibility HPWH Space Heating/Cooling Solar Mate E-WH Integrated system Floor heating Solar WH Gas Burner WH Sanitary Hot water

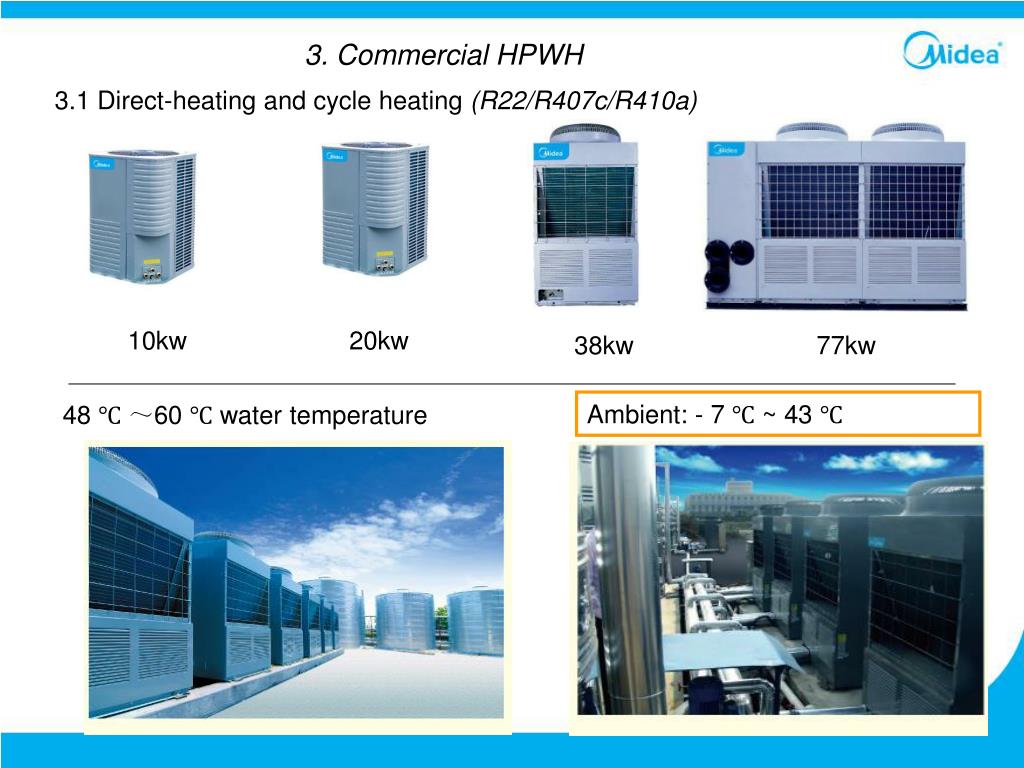

  37. 3. Commercial HPWH 3.1 Direct-heating and cycle heating (R22/R407c/R410a) 10kw 20kw 38kw 77kw 48 ℃ ～60 ℃ water temperature Ambient: - 7 ℃ ~ 43 ℃

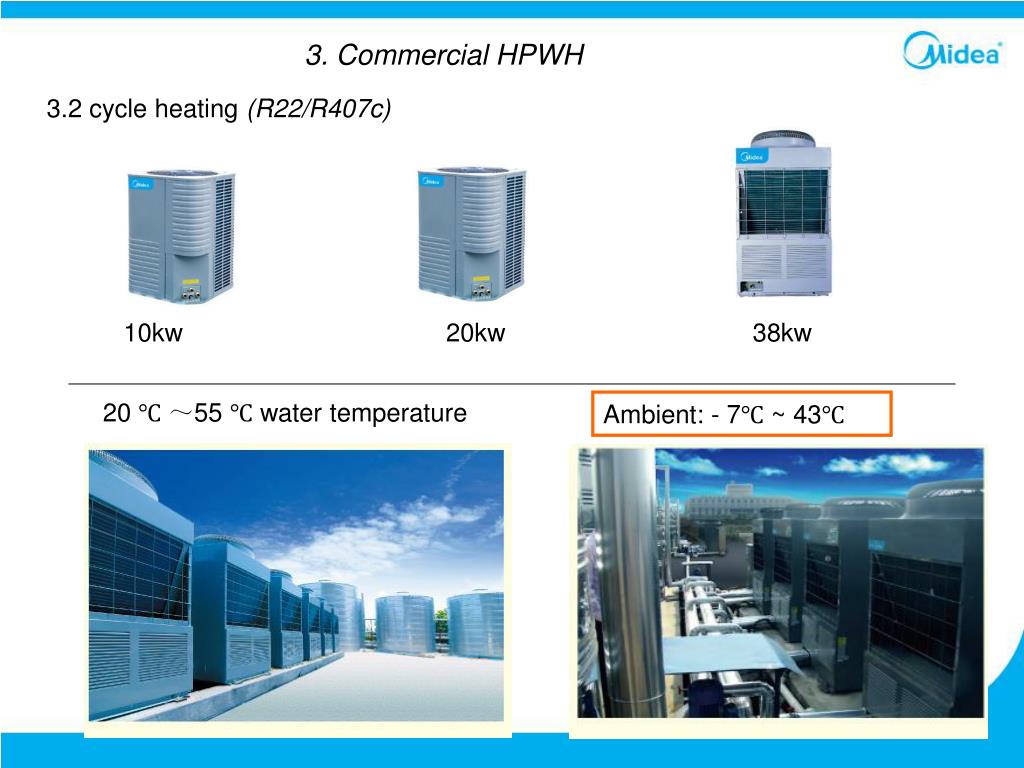

  38. 3. Commercial HPWH 3.2 cycle heating (R22/R407c) 10kw 20kw 38kw 20 ℃ ～55 ℃ water temperature Ambient: - 7℃ ~ 43℃

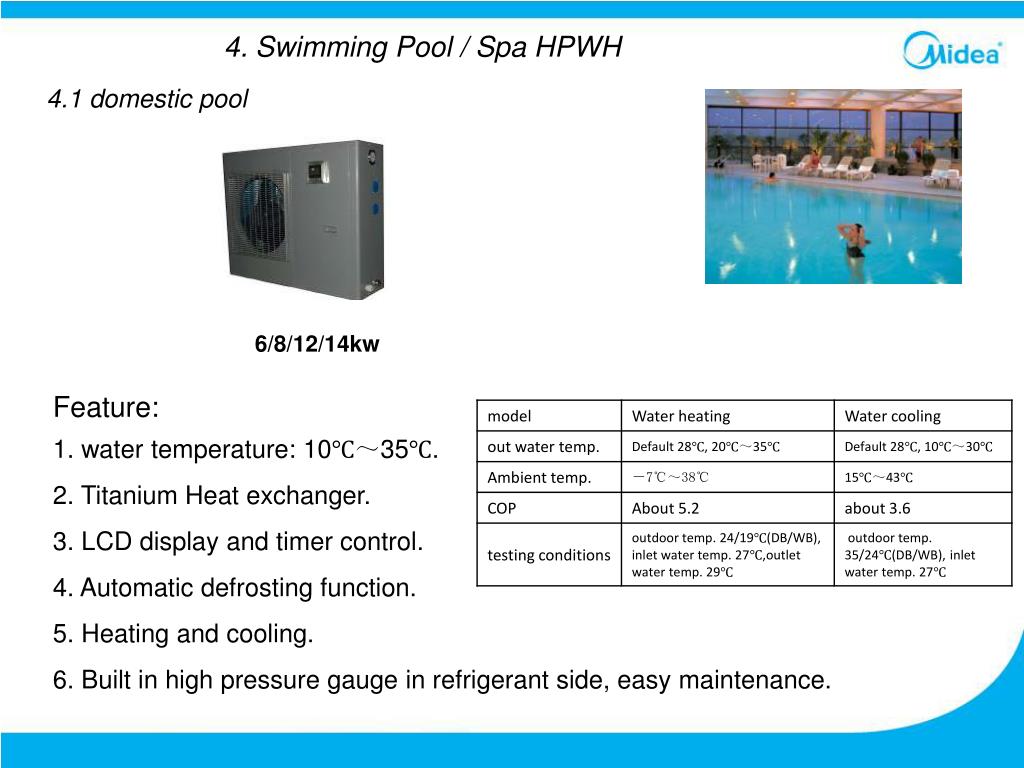

  39. 4. Swimming Pool / Spa HPWH 4.1 domestic pool 6/8/12/14kw Feature: 1. water temperature: 10℃～35℃. 2. Titanium Heat exchanger. 3. LCD display and timer control. 4. Automatic defrosting function. 5. Heating and cooling. 6. Built in high pressure gauge in refrigerant side, easy maintenance.

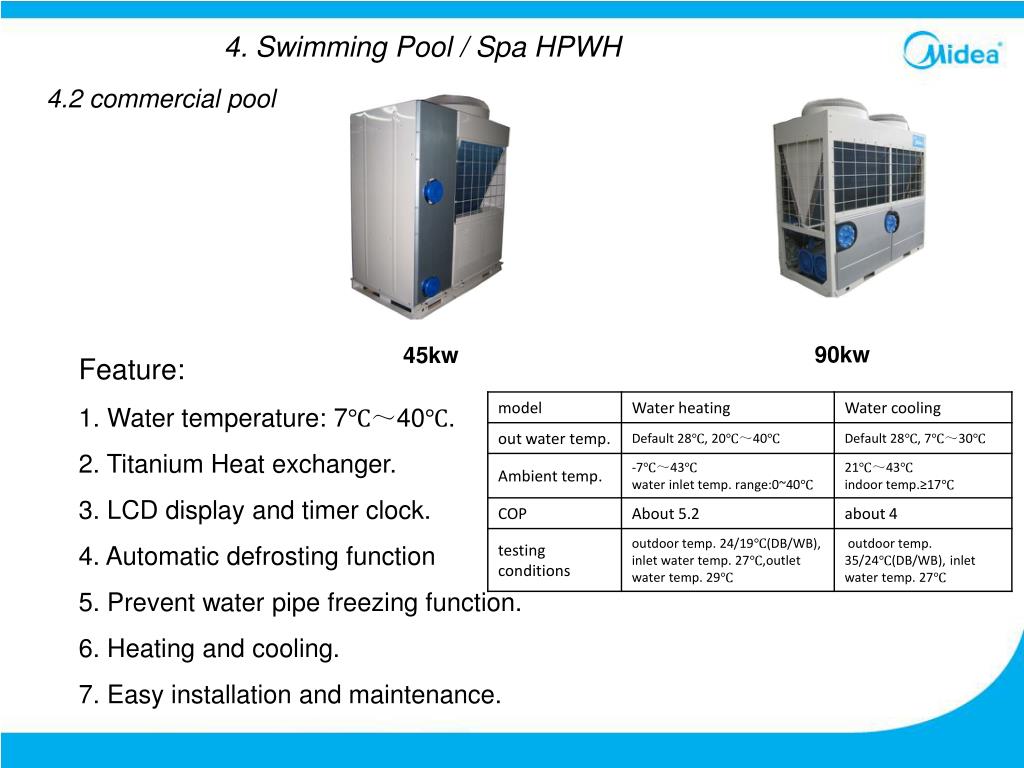

  40. 4. Swimming Pool / Spa HPWH 4.2 commercial pool 90kw Feature: 1. Water temperature: 7℃～40℃. 2. Titanium Heat exchanger. 3. LCD display and timer clock. 4. Automatic defrosting function 5. Prevent water pipe freezing function. 6. Heating and cooling. 7. Easy installation and maintenance. 45kw

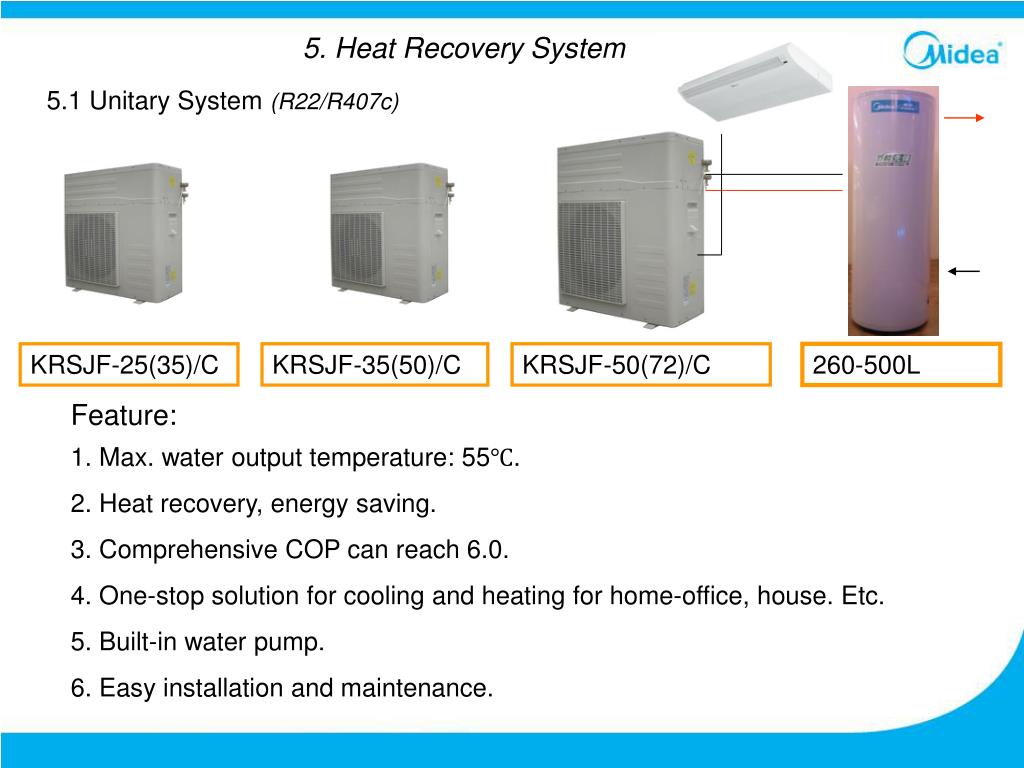

  41. 5. Heat Recovery System 5.1 Unitary System (R22/R407c) KRSJF-25(35)/C KRSJF-35(50)/C KRSJF-50(72)/C 260-500L Feature: 1. Max. water output temperature: 55℃. 2. Heat recovery, energy saving. 3. Comprehensive COP can reach 6.0. 4. One-stop solution for cooling and heating for home-office, house. Etc. 5. Built-in water pump. 6. Easy installation and maintenance.

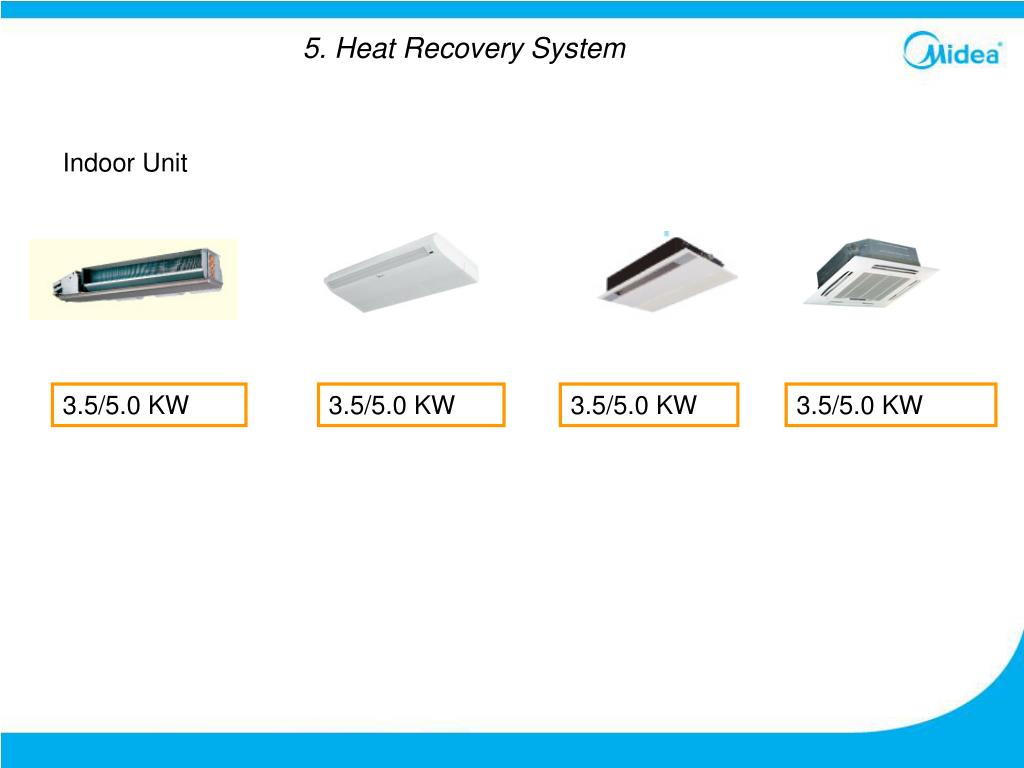

  42. 5. Heat Recovery System Indoor Unit 3.5/5.0 KW 3.5/5.0 KW 3.5/5.0 KW 3.5/5.0 KW

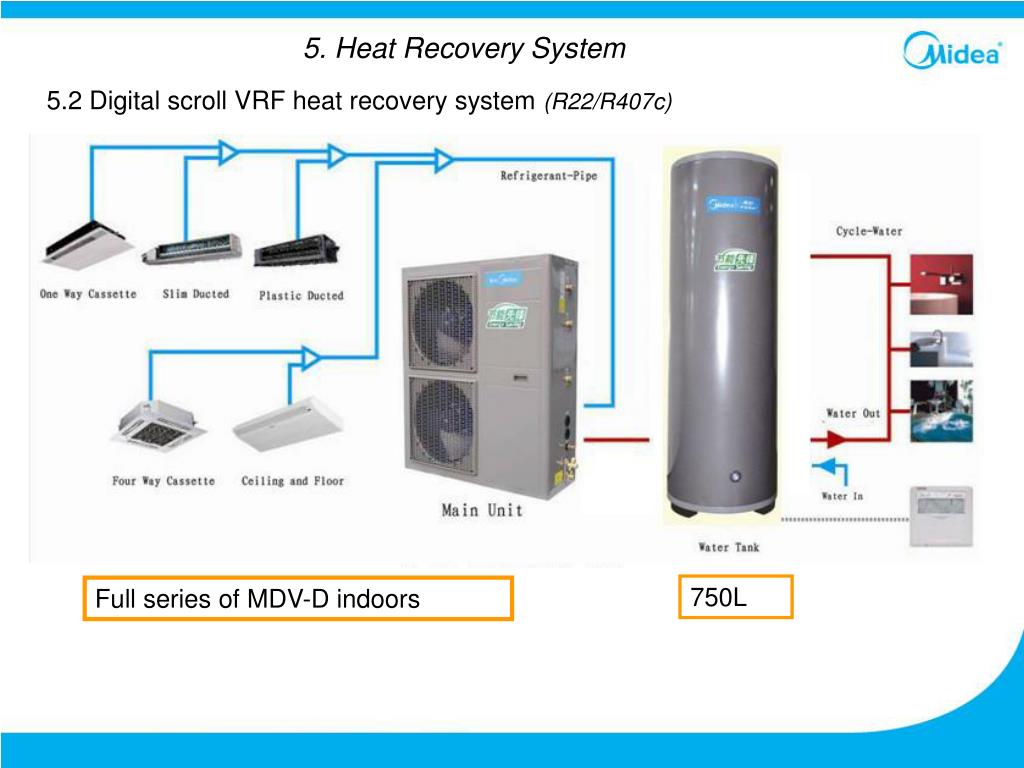

  43. 5. Heat Recovery System 5.2 Digital scroll VRF heat recovery system (R22/R407c) 750L Full series of MDV-D indoors

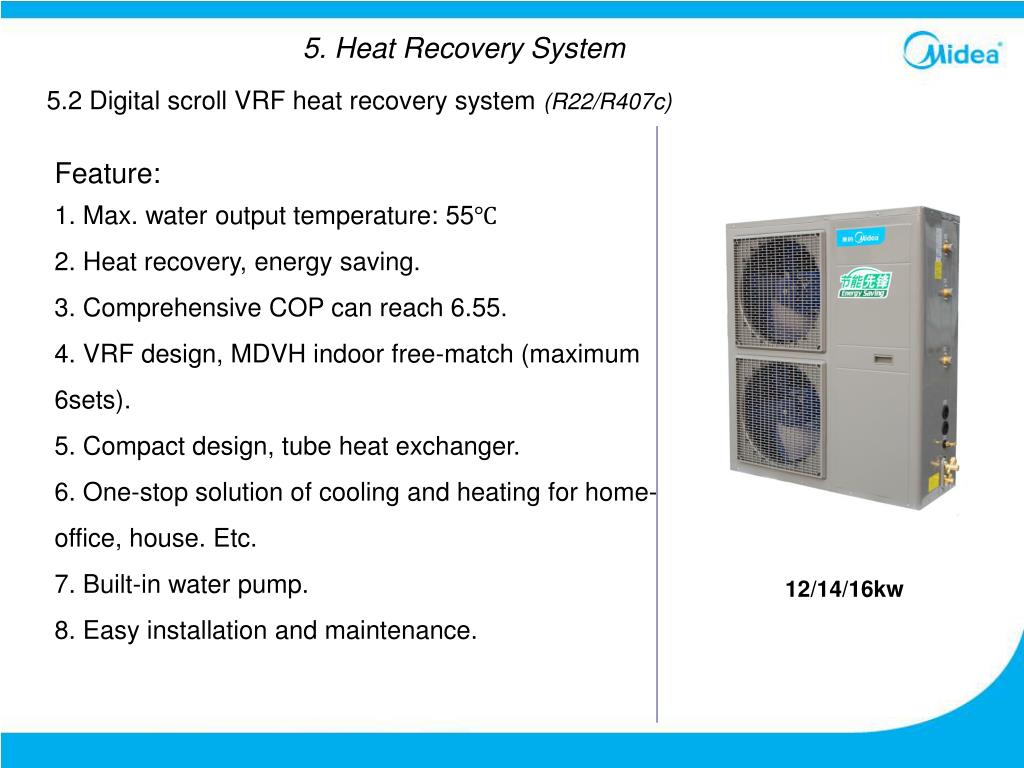

  44. 5. Heat Recovery System 5.2 Digital scroll VRF heat recovery system (R22/R407c) Feature: 1. Max. water output temperature: 55℃ 2. Heat recovery, energy saving. 3. Comprehensive COP can reach 6.55. 4. VRF design, MDVH indoor free-match (maximum 6sets). 5. Compact design, tube heat exchanger. 6. One-stop solution of cooling and heating for home-office, house. Etc. 7. Built-in water pump. 8. Easy installation and maintenance. 12/14/16kw

  45. WHAT OUR CUSTOMERS CAN BENIFIT?

  46. Long term partnership 1. Competive price 2. Technical support, training 3. Updated products line up 4. Heating solution inquiry, before and after sale support
