Open Implication

1. Open Implication

2. Outline • Context • Introduction • LTL specifications, systems • example • Formal Definition, Complexity • Algorithms • with optimal complexity • Safraless • GR(1) • Experimental Results • Summary

3. Big Picture • What do HW and SW designers do? • Write a specification • Implement system • Check if sys. realizes spec. • Debug • Our idea of HW/SW design: • Write specification • Automatically construct • Relax

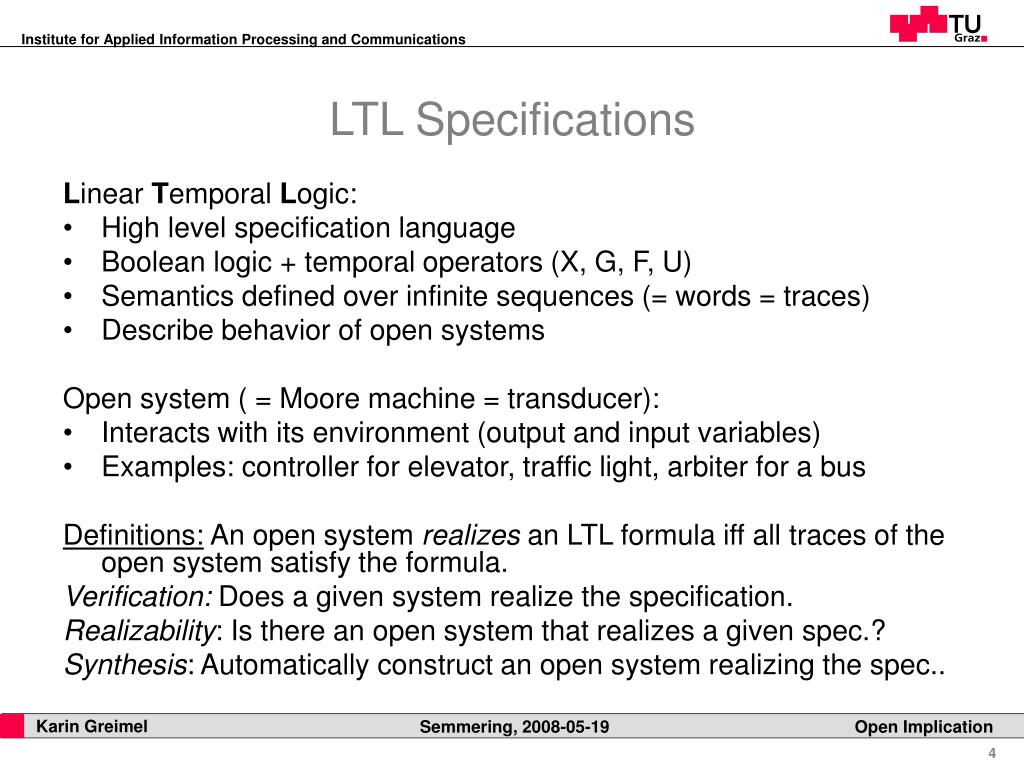

4. LTL Specifications • Linear Temporal Logic: • High level specification language • Boolean logic + temporal operators (X, G, F, U) • Semantics defined over infinite sequences (= words = traces) • Describe behavior of open systems • Open system ( = Moore machine = transducer): • Interacts with its environment (output and input variables) • Examples: controller for elevator, traffic light, arbiter for a bus • Definitions: An open system realizes an LTL formula iff all traces of the open system satisfy the formula. • Verification: Does a given system realize the specification. • Realizability: Is there an open system that realizes a given spec.? • Synthesis: Automatically construct an open system realizing the spec..

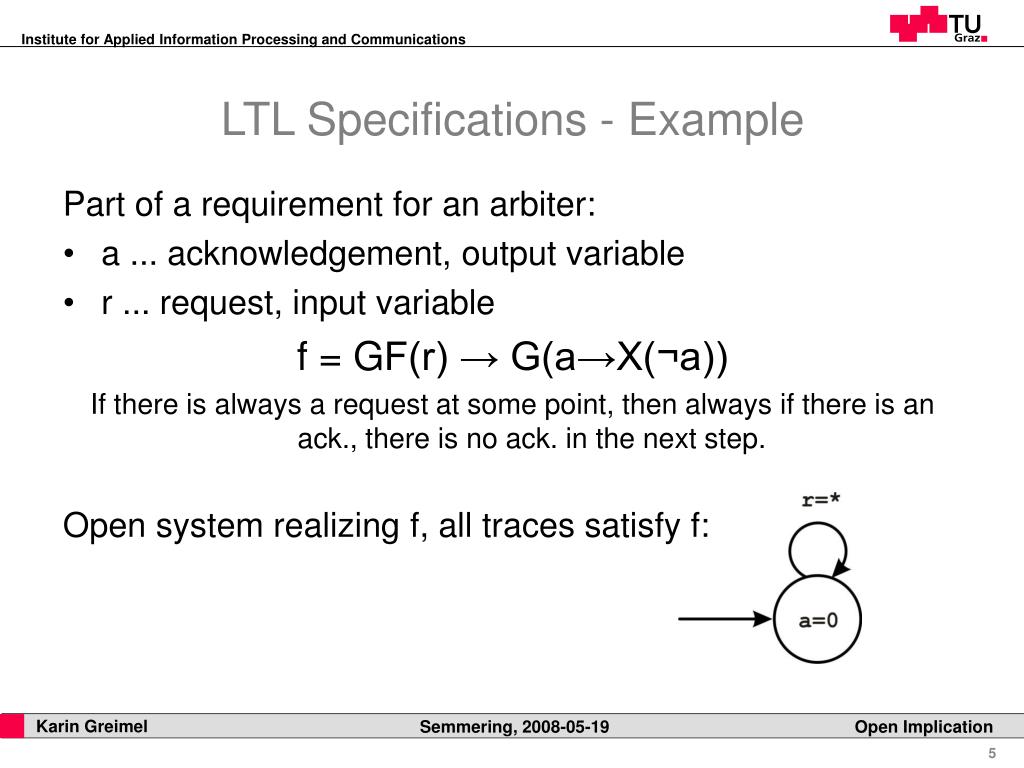

5. LTL Specifications - Example • Part of a requirement for an arbiter: • a ... acknowledgement, output variable • r ... request, input variable • f = GF(r) → G(a→X(¬a)) • If there is always a request at some point, then always if there is an ack., there is no ack. in the next step. • Open system realizing f, all traces satisfy f:

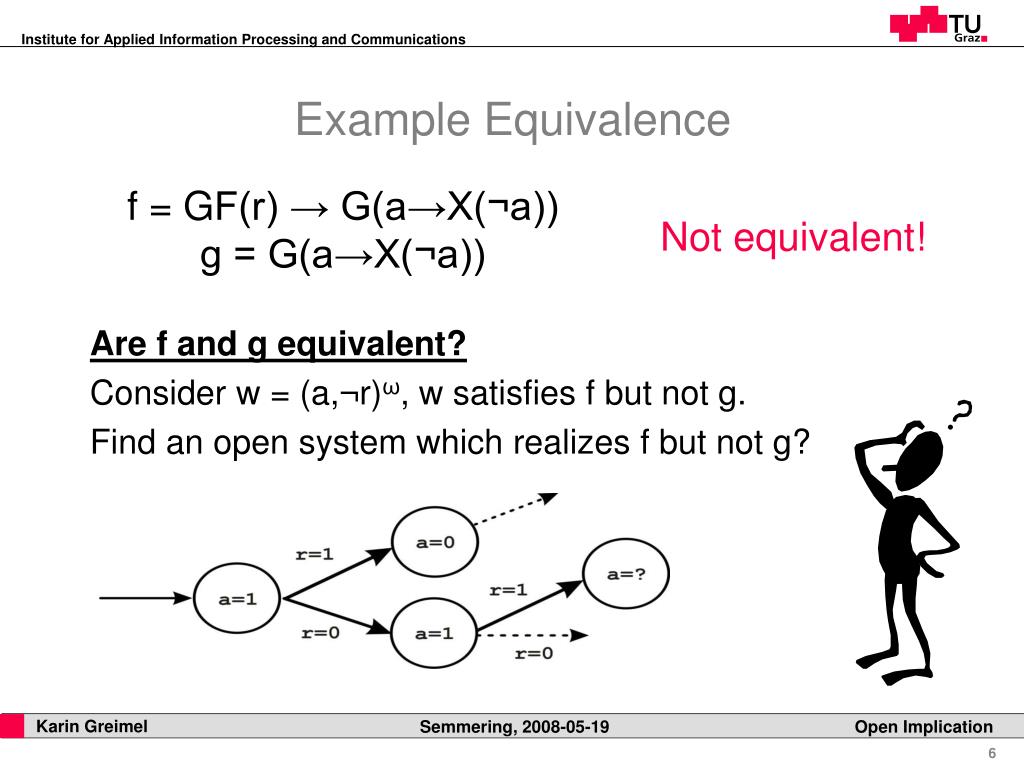

6. Example Equivalence f = GF(r) → G(a→X(¬a)) g = G(a→X(¬a)) • Are f and g equivalent? • Consider w = (a,¬r)ω, w satisfies f but not g. Find an open system which realizes f but not g? Not equivalent!

7. Definitions • Motivation: • Synthesis of g: find a smaller specification f such that • f→o g and synthesise f. • Verification of g: find a smaller specification f such that • f→o g and f→o g and verify f. Definition: Given two LTL formulas f and g, ftrace-implies g if all traces satisfying f also satisfy g. Definition: Given two LTL formulas f and g, f open-implies g (f→o g) if all open systems realizing f also realize g.

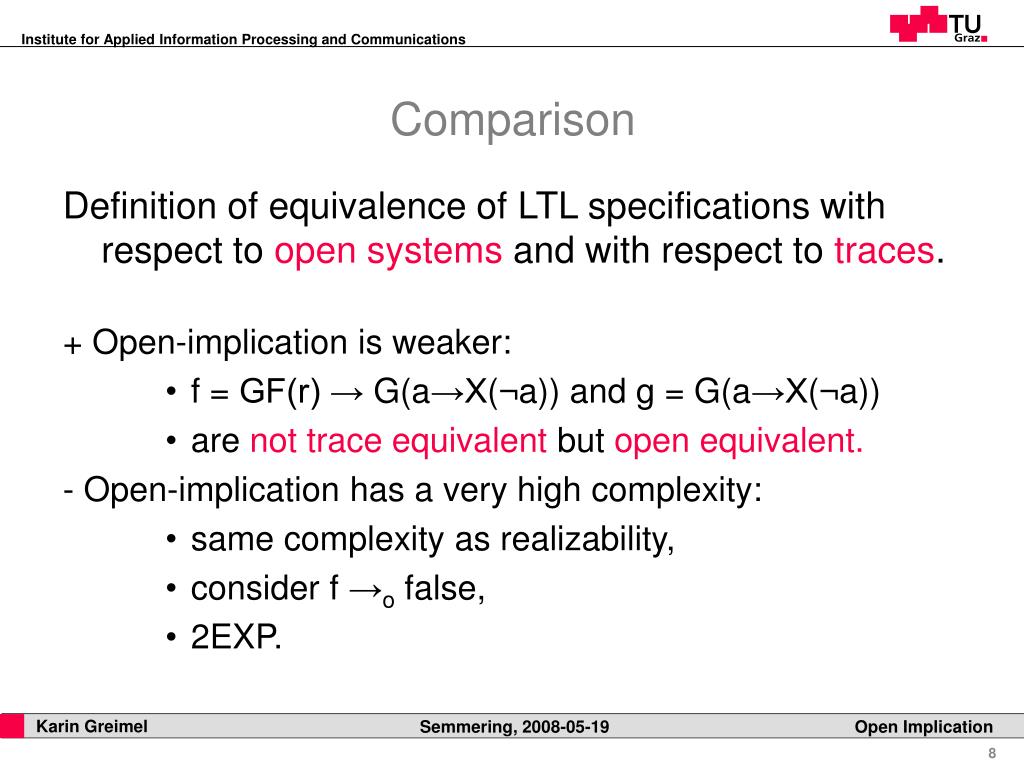

8. Comparison • Definition of equivalence of LTL specifications with respect to open systems and with respect to traces. • + Open-implication is weaker: • f = GF(r) → G(a→X(¬a)) and g = G(a→X(¬a)) • are not trace equivalent but open equivalent. • - Open-implication has a very high complexity: • same complexity as realizability, • consider f →o false, • 2EXP.

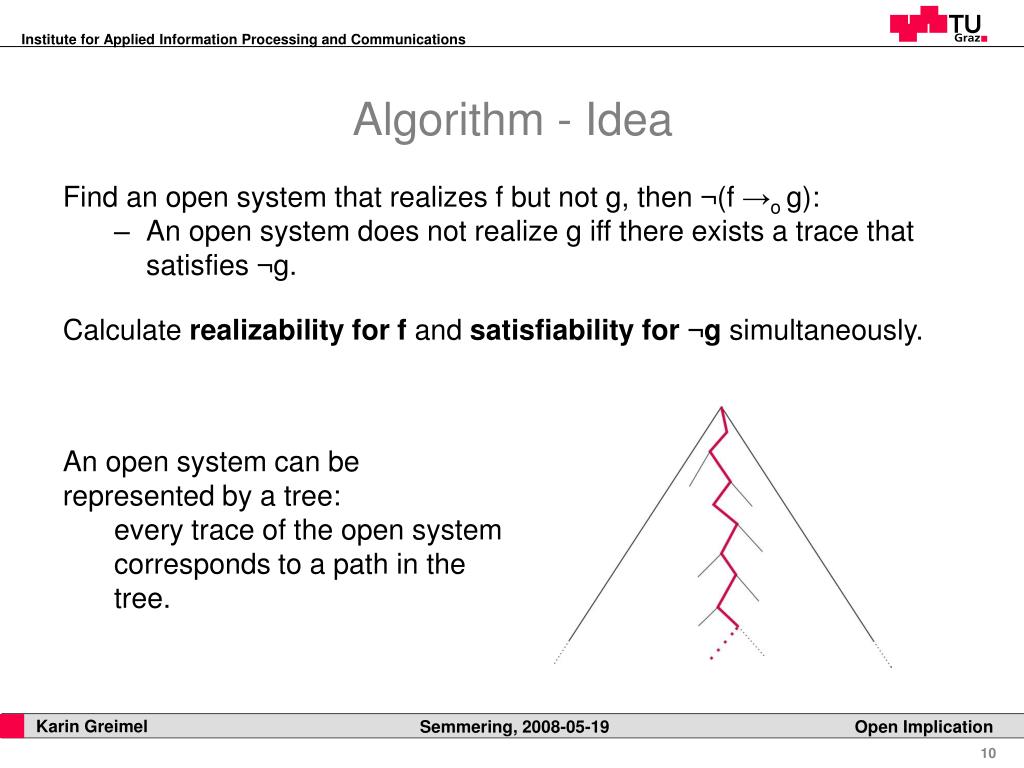

9. Algorithm - Idea • Find an open system that realizes f but not g, then ¬(f→o g): • An open system does not realize g iff there exists a trace that satisfies ¬g. • Calculate realizability for f and satisfiability for ¬g simultaneously. • An open system can be represented by a tree: • every trace of the open system corresponds to a path in the tree.

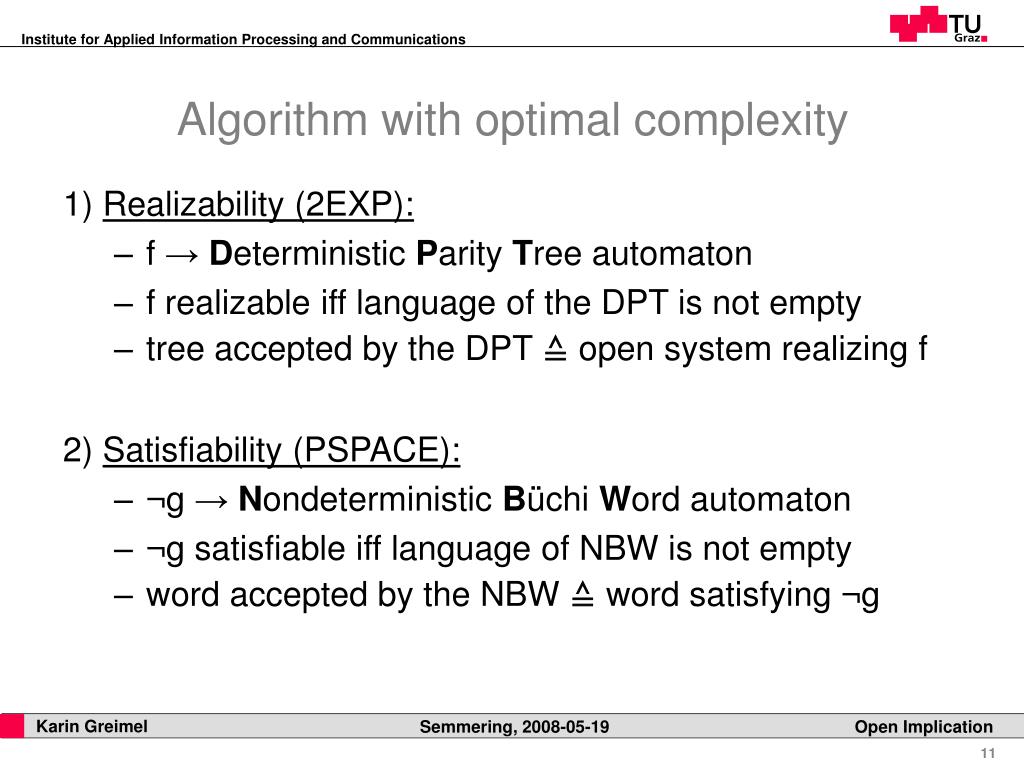

10. Algorithm with optimal complexity • 1) Realizability (2EXP): • f →Deterministic Parity Tree automaton • f realizable iff language of the DPT is not empty • tree accepted by the DPT ≙ open system realizing f • 2) Satisfiability (PSPACE): • ¬g→Nondeterministic Büchi Word automaton • ¬g satisfiable iff language of NBW is not empty • word accepted by the NBW ≙ word satisfying ¬g

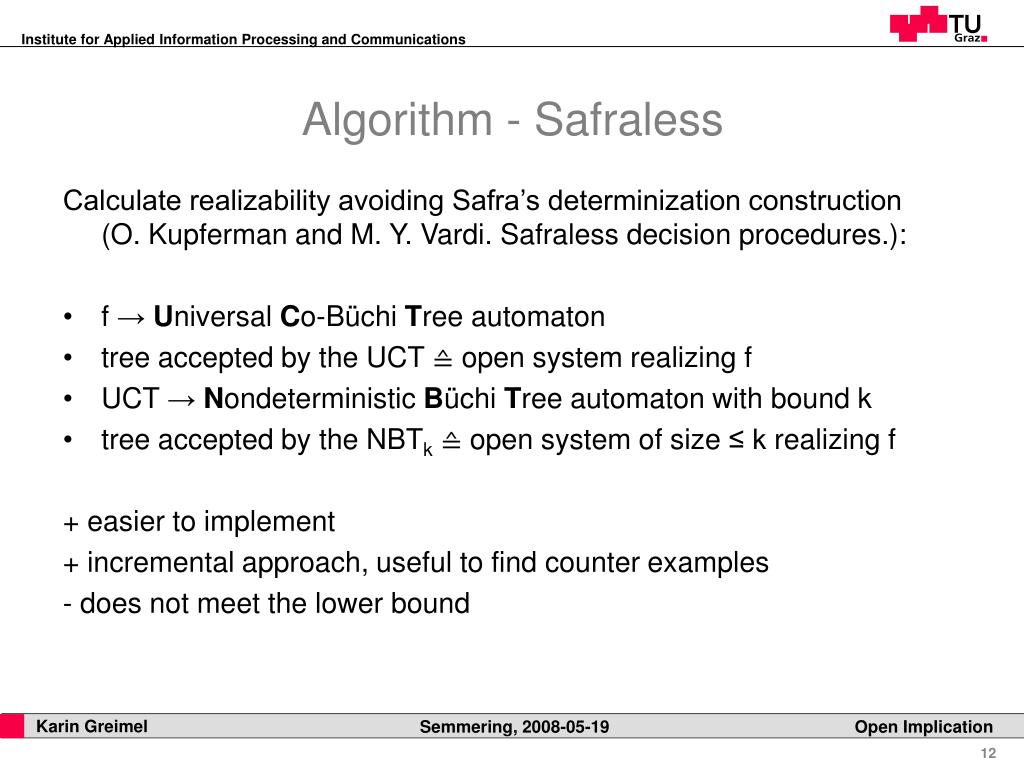

11. Algorithm - Safraless • Calculate realizability avoiding Safra’s determinization construction (O. Kupferman and M. Y. Vardi. Safraless decision procedures.): • f →Universal Co-Büchi Tree automaton • tree accepted by the UCT ≙ open system realizing f • UCT →Nondeterministic Büchi Tree automaton with bound k • tree accepted by the NBTk≙ open system of size ≤ k realizing f • + easier to implement • + incremental approach, useful to find counter examples • - does not meet the lower bound

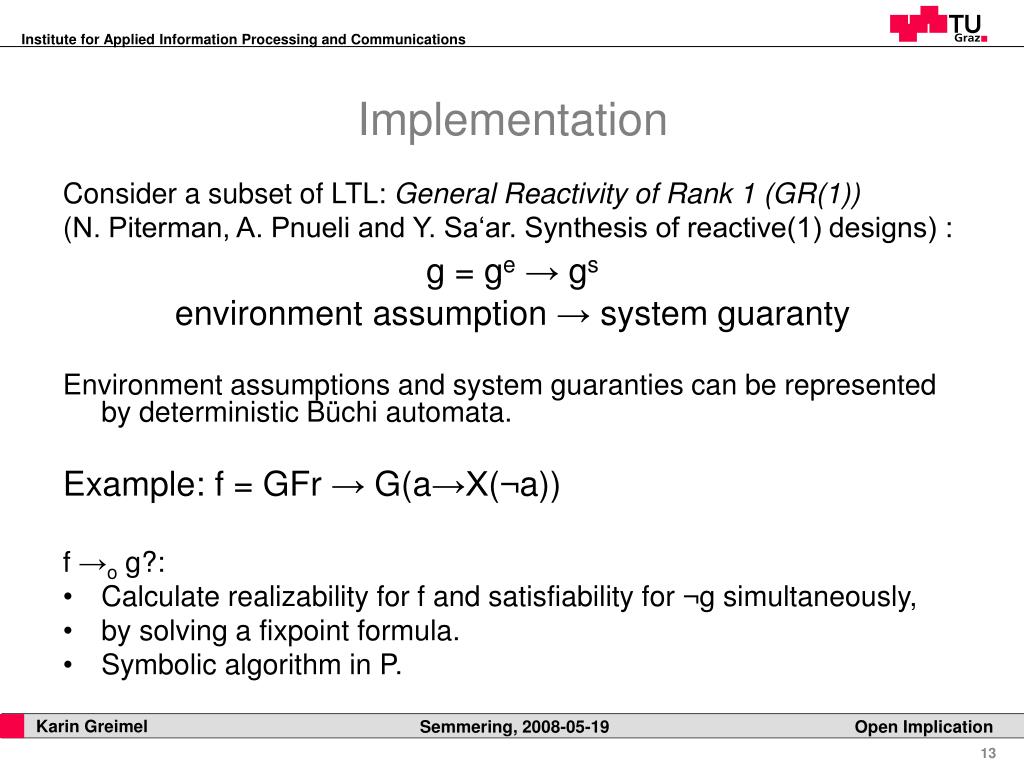

12. Implementation • Consider a subset of LTL: General Reactivity of Rank 1 (GR(1)) • (N. Piterman, A. Pnueli and Y. Sa‘ar. Synthesis of reactive(1) designs): • g = ge→ gs • environment assumption → system guaranty • Environment assumptions and system guaranties can be represented by deterministic Büchi automata. • Example: f = GFr → G(a→X(¬a)) • f→o g?: • Calculate realizability for f and satisfiability for ¬g simultaneously, • by solving a fixpoint formula. • Symbolic algorithm in P.

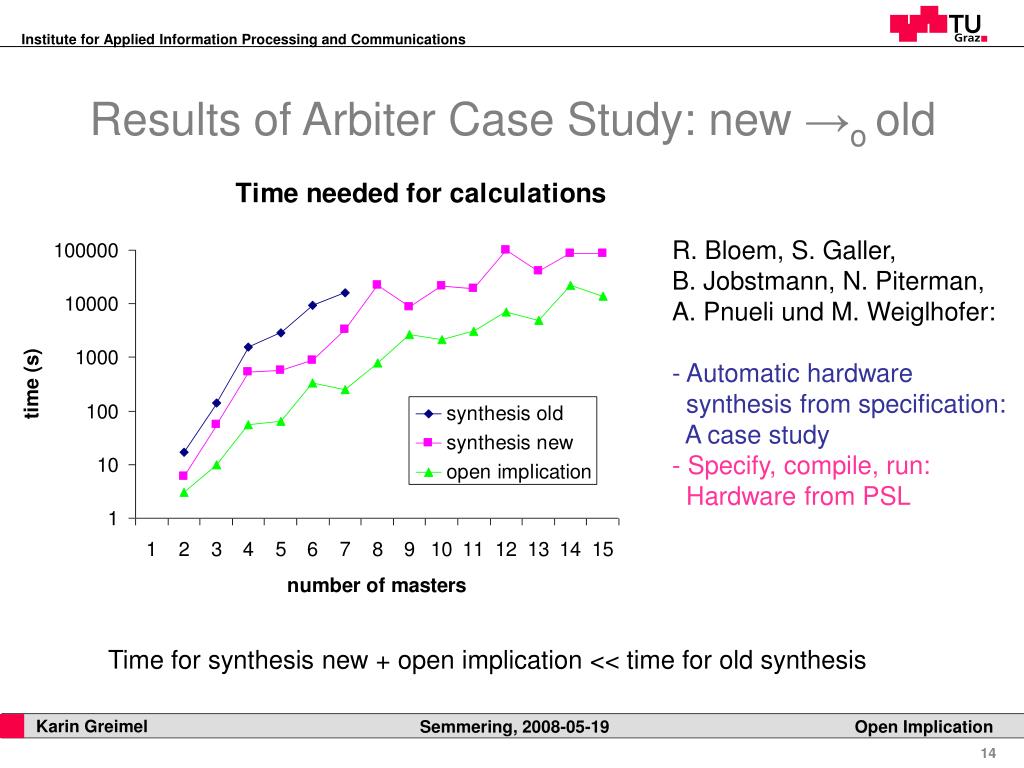

13. Results of Arbiter Case Study: new →o old • R. Bloem, S. Galler, • B. Jobstmann, N. Piterman, A. Pnueli und M. Weiglhofer: • Automatic hardware • synthesis from specification: • A case study • Specify, compile, run: • Hardware from PSL Time for synthesis new + open implication << time for old synthesis

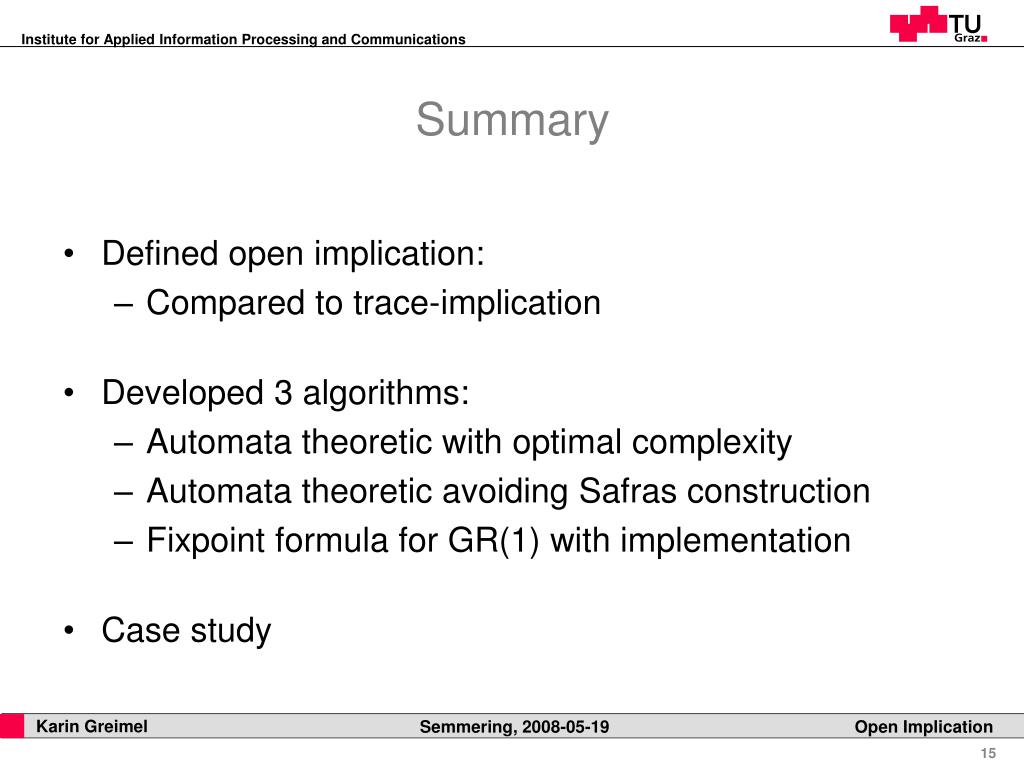

14. Summary • Defined open implication: • Compared to trace-implication • Developed 3 algorithms: • Automata theoretic with optimal complexity • Automata theoretic avoiding Safras construction • Fixpoint formula for GR(1) with implementation • Case study

15. Thank you for your attention • References: • O. Kupferman and M. Y. Vardi. Safraless decision procedures. In Symposium on Foundations of Computer Science (FOCS’05), pages 531-542, 2005. • N. Piterman, A. Pnueli and Y. Sa‘ar. Synthesis of reactive(1) designs. In Proc. Verification, Model Checking and Abstract Interpretation, pages 364-380, 2006 • R. Bloem, S. Galler, B. Jobstmann, N. Piterman, A. Pnueli und M. Weiglhofer. Automatic hardware synthesis from specifications: A case study. In DATE, 2007. • R. Bloem, S. Galler, B. Jobstmann, N. Piterman, A. Pnueli und M. Weiglhofer. Specify, compile, run: Hardware from PSL. In 6th International Workshop on Compiler Optimization Meets Compiler Verification, pages 3-16, 2007.
