  1. Selected Differential System Examples from Lectures

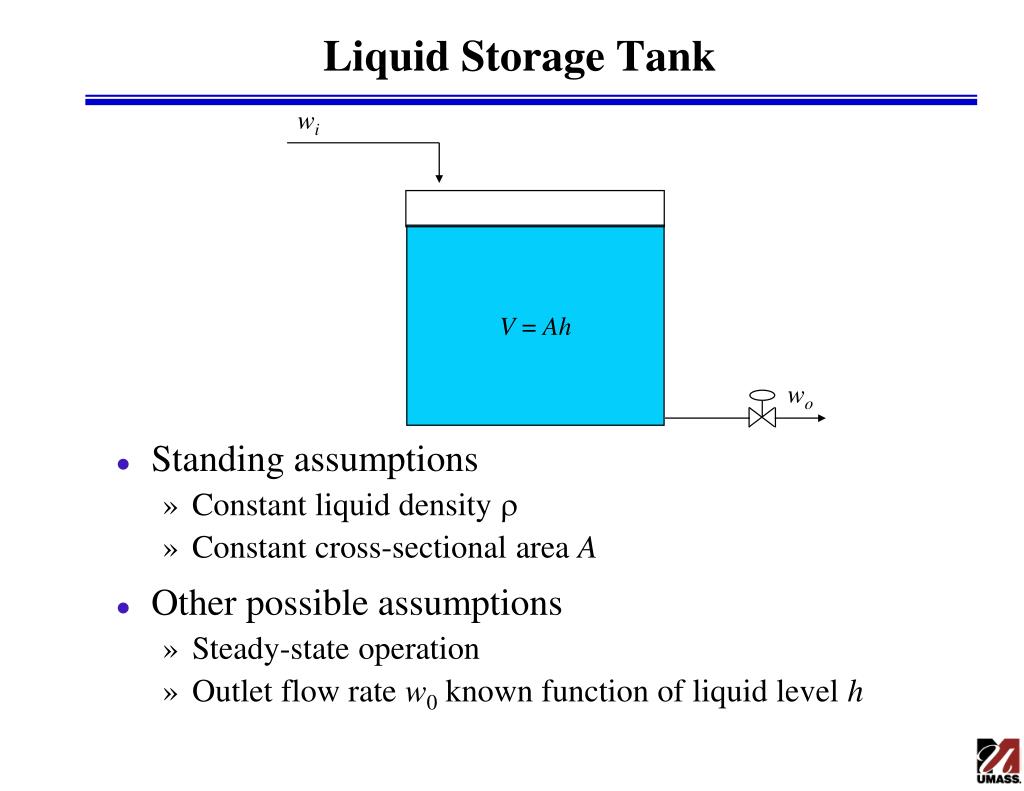

  2. wi V = Ah wo Liquid Storage Tank • Standing assumptions • Constant liquid density r • Constant cross-sectional area A • Other possible assumptions • Steady-state operation • Outlet flow rate w0 known function of liquid level h

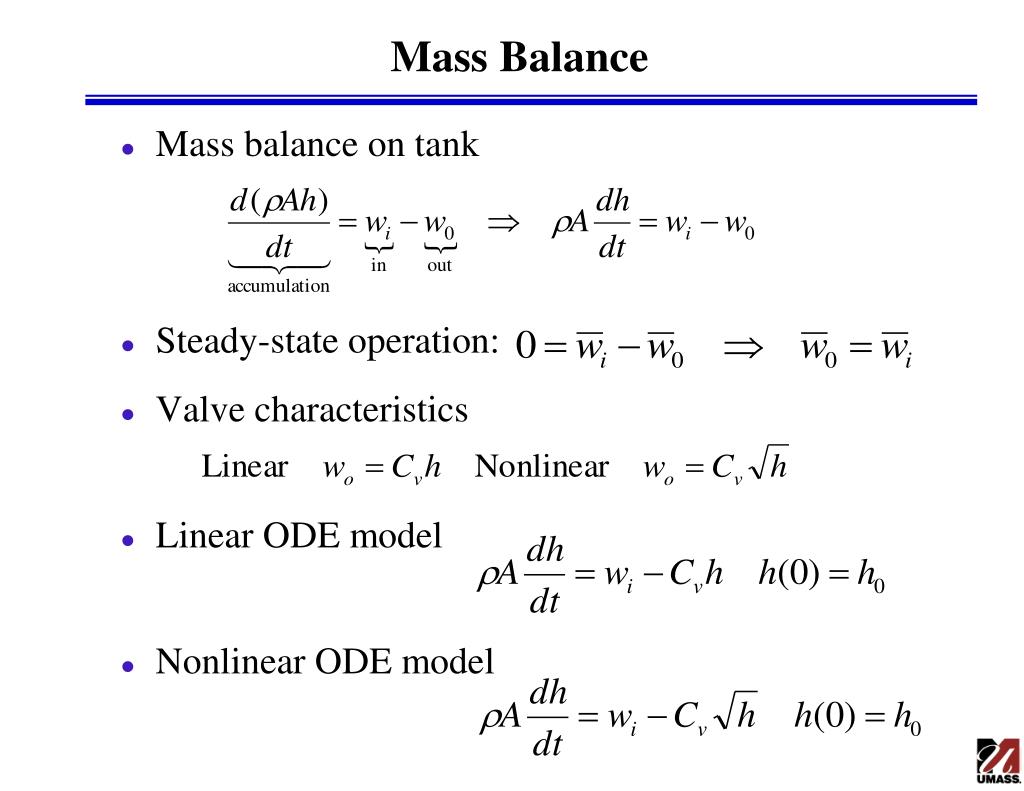

  3. MassBalance • Mass balance on tank • Steady-state operation: • Valve characteristics • Linear ODE model • Nonlinear ODE model

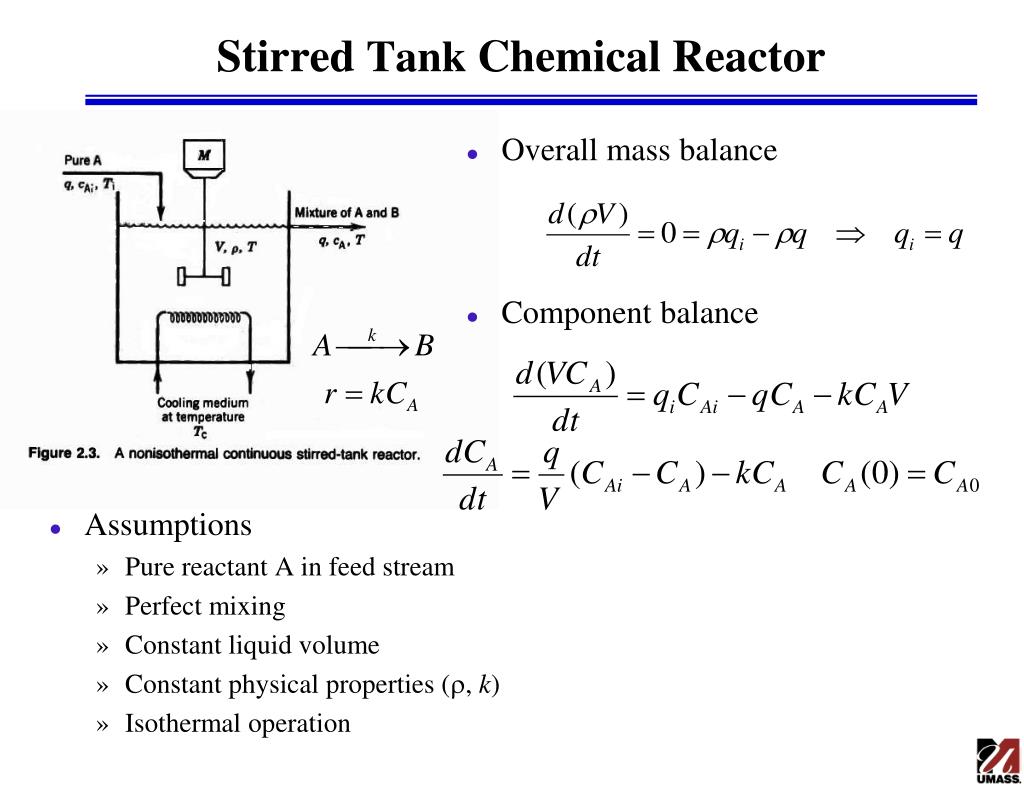

  4. Stirred Tank Chemical Reactor • Overall mass balance • Component balance • Assumptions • Pure reactant A in feed stream • Perfect mixing • Constant liquid volume • Constant physical properties (r, k) • Isothermal operation

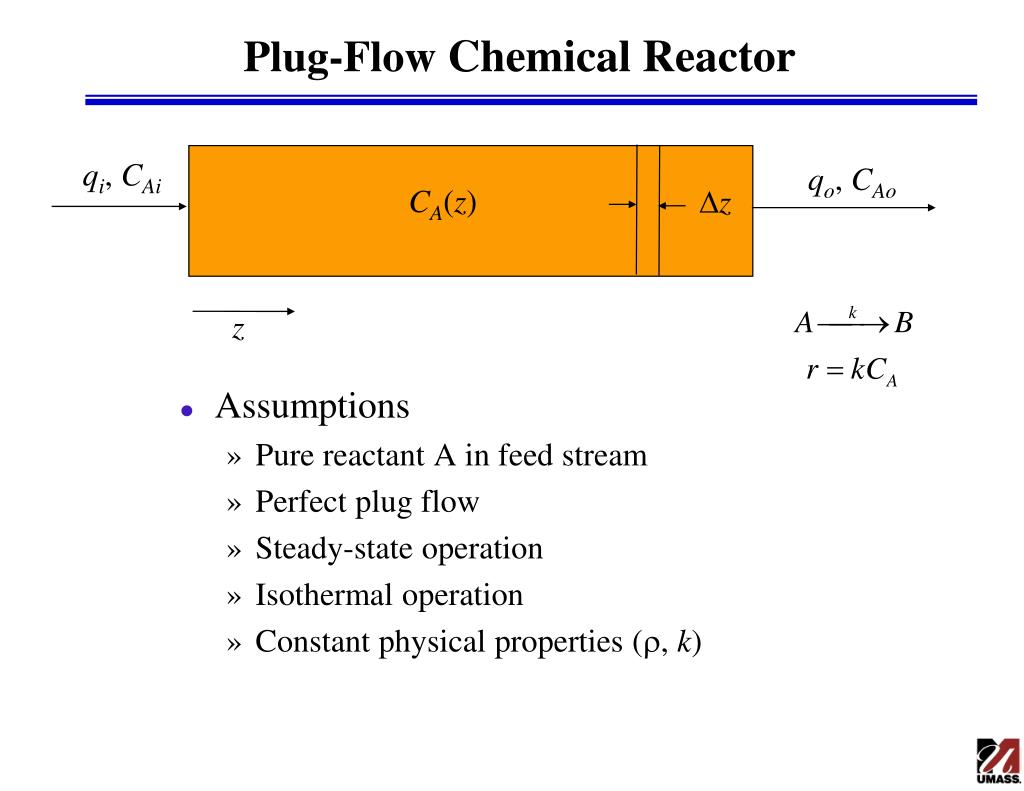

  5. qi, CAi qo, CAo CA(z) Dz z Plug-Flow Chemical Reactor • Assumptions • Pure reactant A in feed stream • Perfect plug flow • Steady-state operation • Isothermal operation • Constant physical properties (r, k)

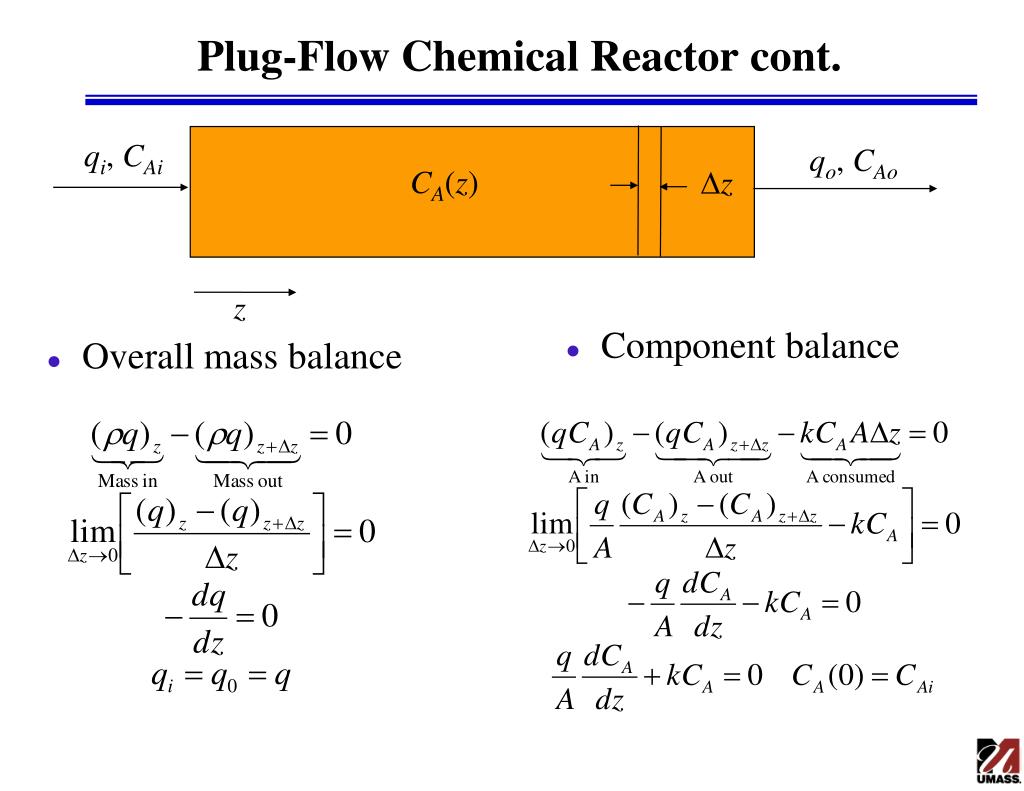

  6. qi, CAi qo, CAo CA(z) Dz z Plug-Flow Chemical Reactor cont. • Overall mass balance • Component balance

  7. Exit Gas Flow Fresh Media Feed (substrates) Agitator Exit Liquid Flow (cells & products) Continuous Biochemical Reactor

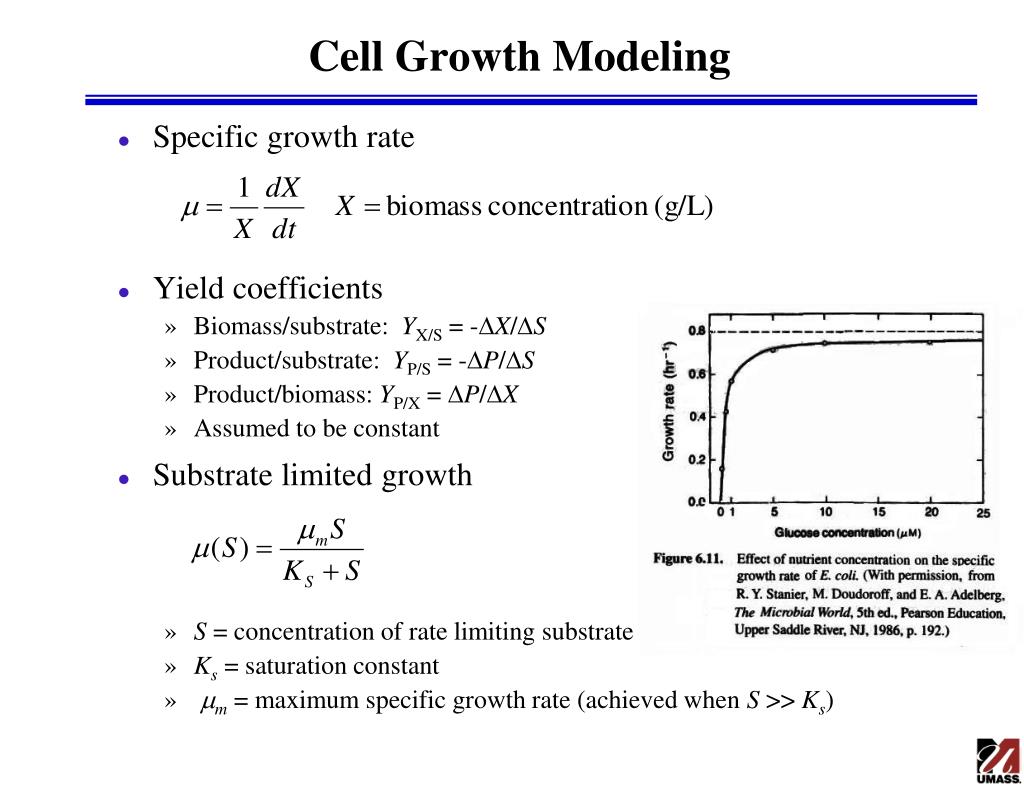

  8. Cell Growth Modeling • Specific growth rate • Yield coefficients • Biomass/substrate: YX/S = -DX/DS • Product/substrate: YP/S = -DP/DS • Product/biomass: YP/X = DP/DX • Assumed to be constant • Substrate limited growth • S = concentration of rate limiting substrate • Ks = saturation constant • mm = maximum specific growth rate (achieved when S >> Ks)

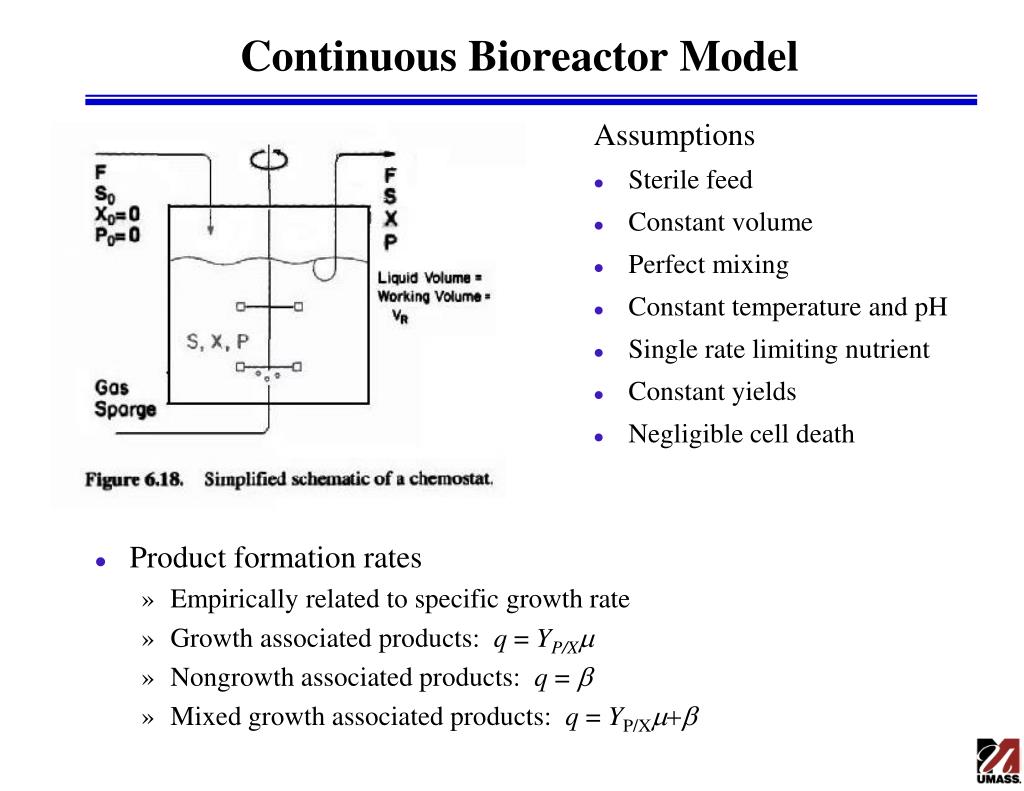

  9. Assumptions Sterile feed Constant volume Perfect mixing Constant temperature and pH Single rate limiting nutrient Constant yields Negligible cell death Continuous Bioreactor Model • Product formation rates • Empirically related to specific growth rate • Growth associated products: q = YP/Xm • Nongrowth associated products: q = b • Mixed growth associated products: q = YP/Xm+b

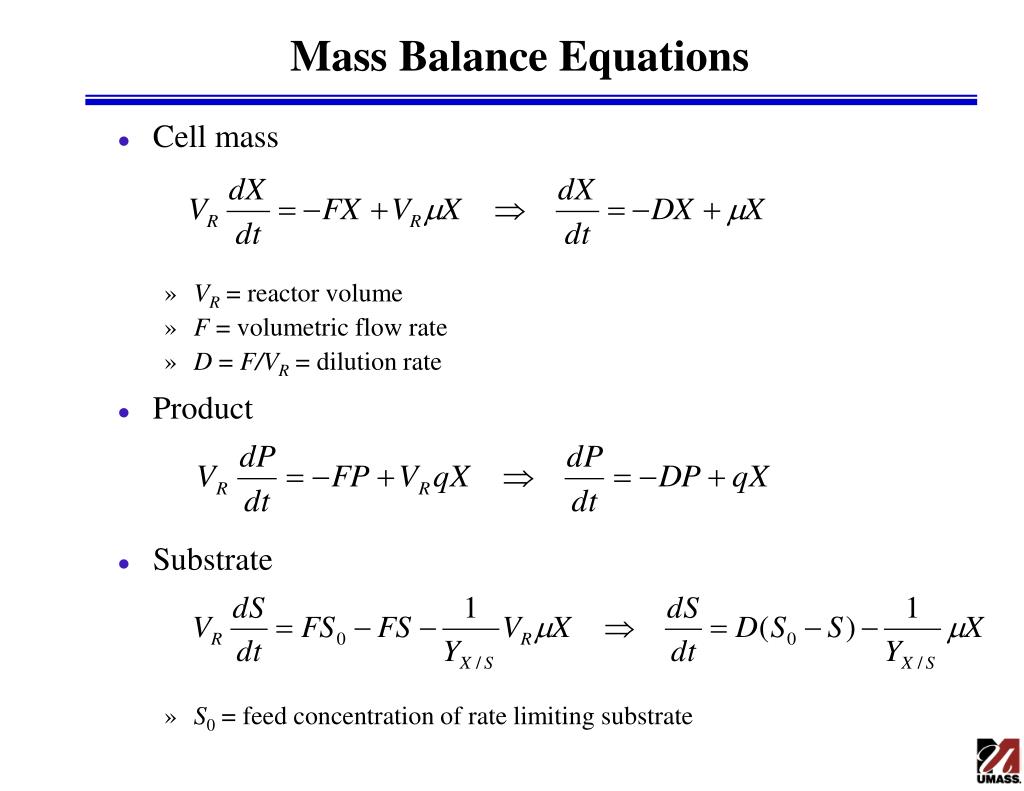

  10. Mass Balance Equations • Cell mass • VR = reactor volume • F = volumetric flow rate • D = F/VR = dilution rate • Product • Substrate • S0 = feed concentration of rate limiting substrate

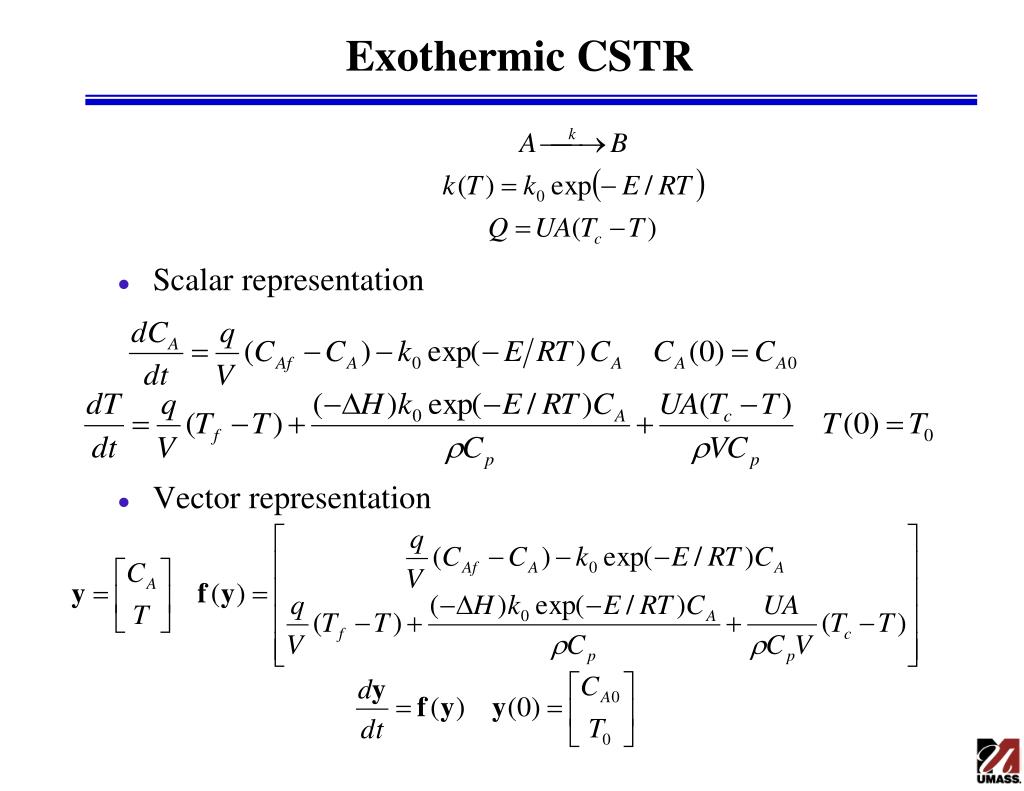

  11. Exothermic CSTR • Scalar representation • Vector representation

  12. Isothermal Batch Reactor • CSTR model: A  B  C • Eigenvalue analysis: k1 = 1, k2 = 2 • Linear ODE solution:

  13. Isothermal Batch Reactor cont. • Linear ODE solution: • Apply initial conditions: • Formulate matrix problem: • Solution:

  14. Isothermal CSTR • Nonlinear ODE model • Find steady-state point (q = 2, V = 2, Caf = 2, k = 0.5)

  15. Isothermal CSTR cont. • Linearize about steady-state point: • This linear ODE is an approximation to the original nonlinear ODE

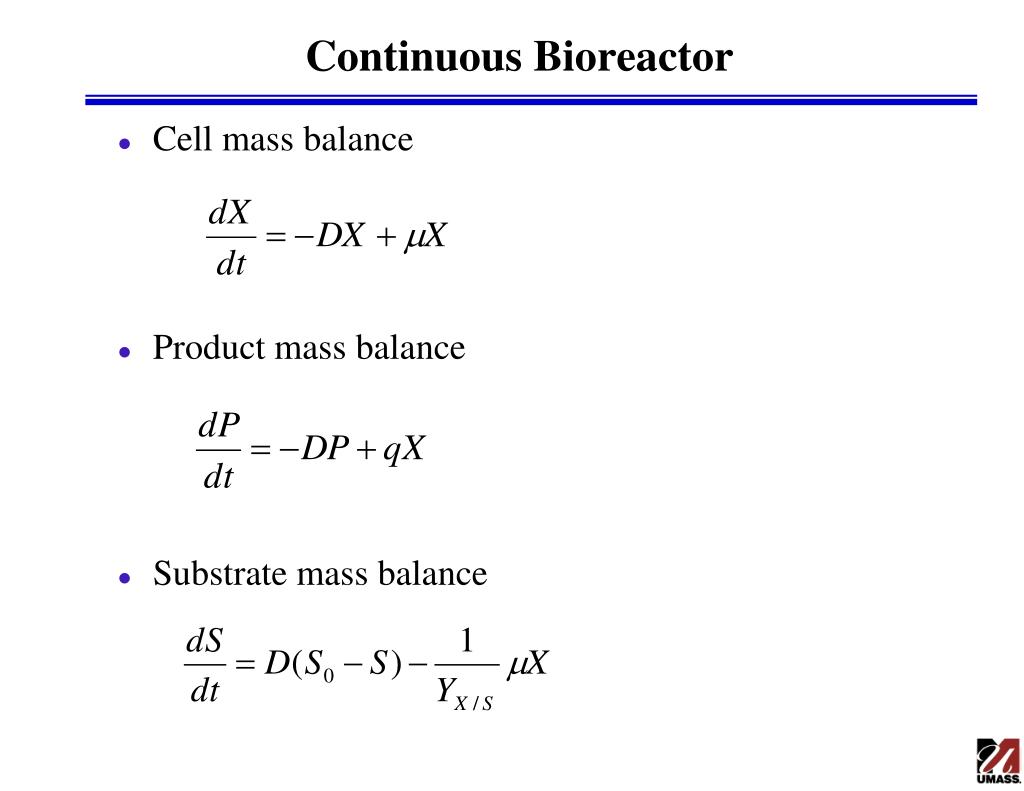

  16. Continuous Bioreactor • Cell mass balance • Product mass balance • Substrate mass balance

  17. Steady-State Solutions • Simplified model equations • Steady-state equations • Two steady-state points

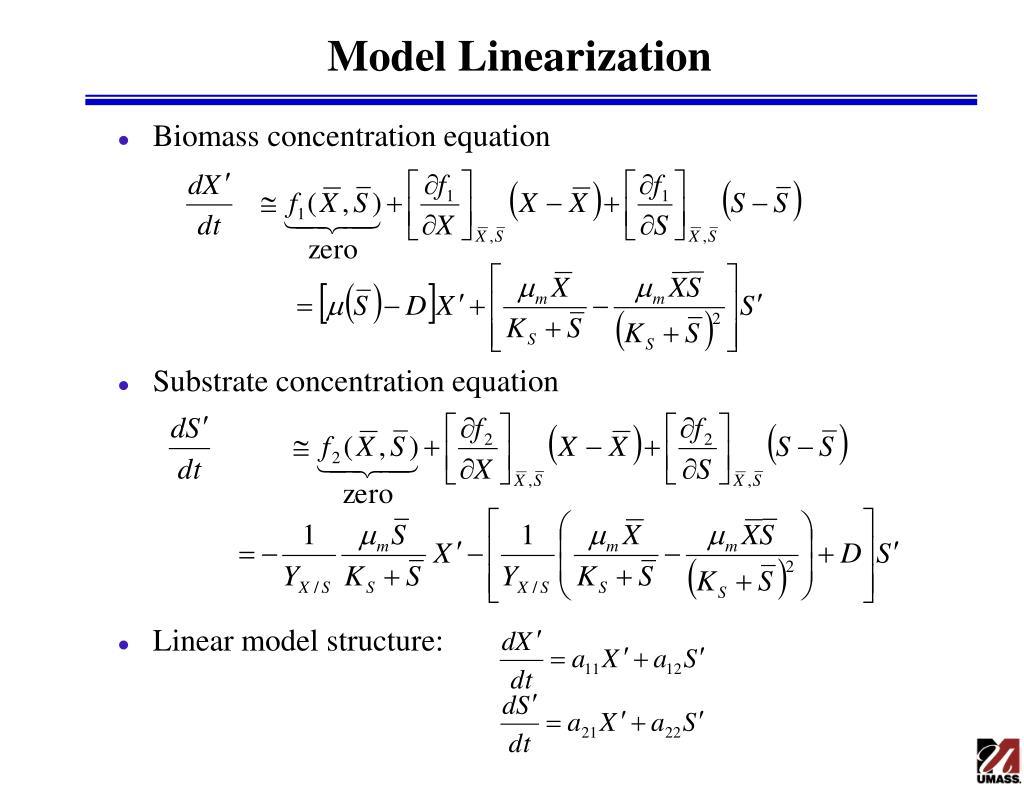

  18. Model Linearization • Biomass concentration equation • Substrate concentration equation • Linear model structure:

  19. Non-Trivial Steady State • Parameter values • KS = 1.2 g/L, mm= 0.48 h-1, YX/S = 0.4 g/g • D = 0.15 h-1, S0 = 20 g/L • Steady-state concentrations • Linear model coefficients (units h-1)

  20. Stability Analysis • Matrix representation • Eigenvalues (units h-1) • Conclusion • Non-trivial steady state is asymptotically stable • Result holds locally near the steady state

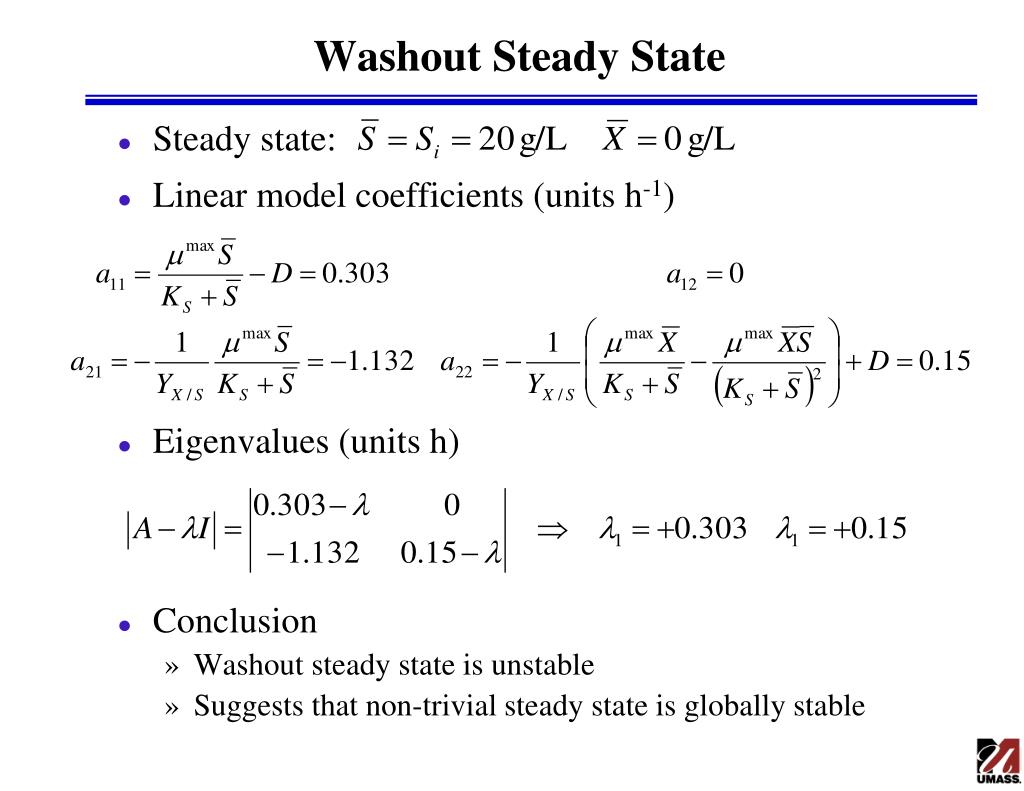

  21. Washout Steady State • Steady state: • Linear model coefficients (units h-1) • Eigenvalues (units h) • Conclusion • Washout steady state is unstable • Suggests that non-trivial steady state is globally stable

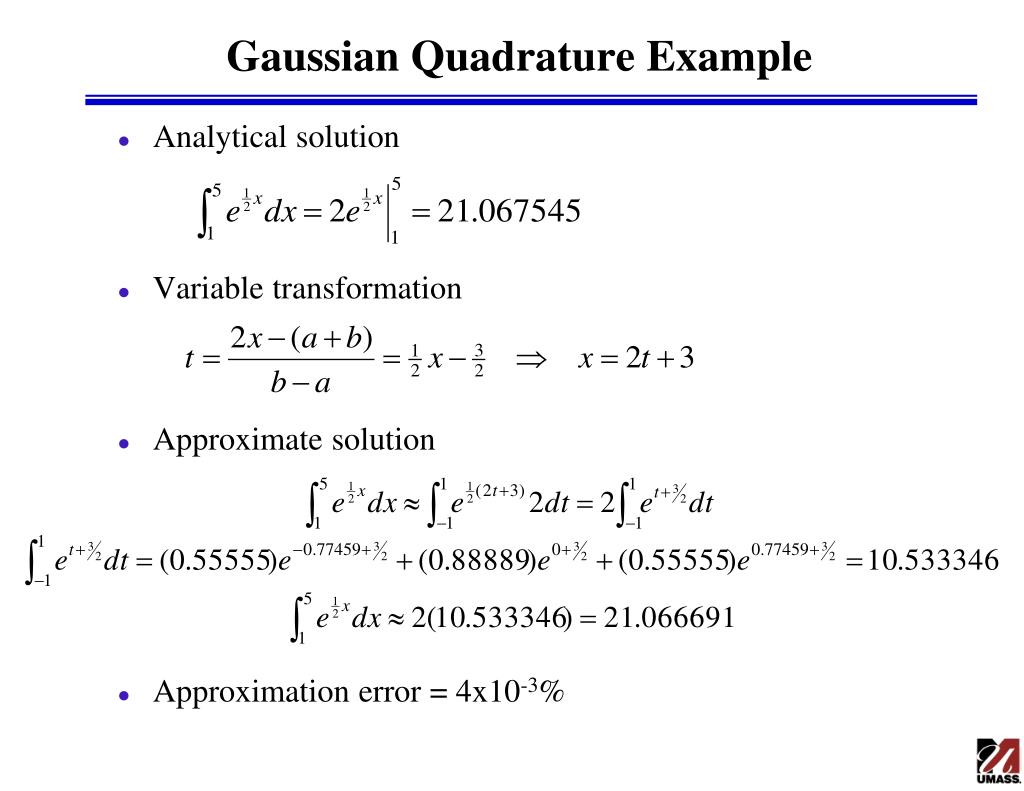

  22. Gaussian Quadrature Example • Analytical solution • Variable transformation • Approximate solution • Approximation error = 4x10-3%

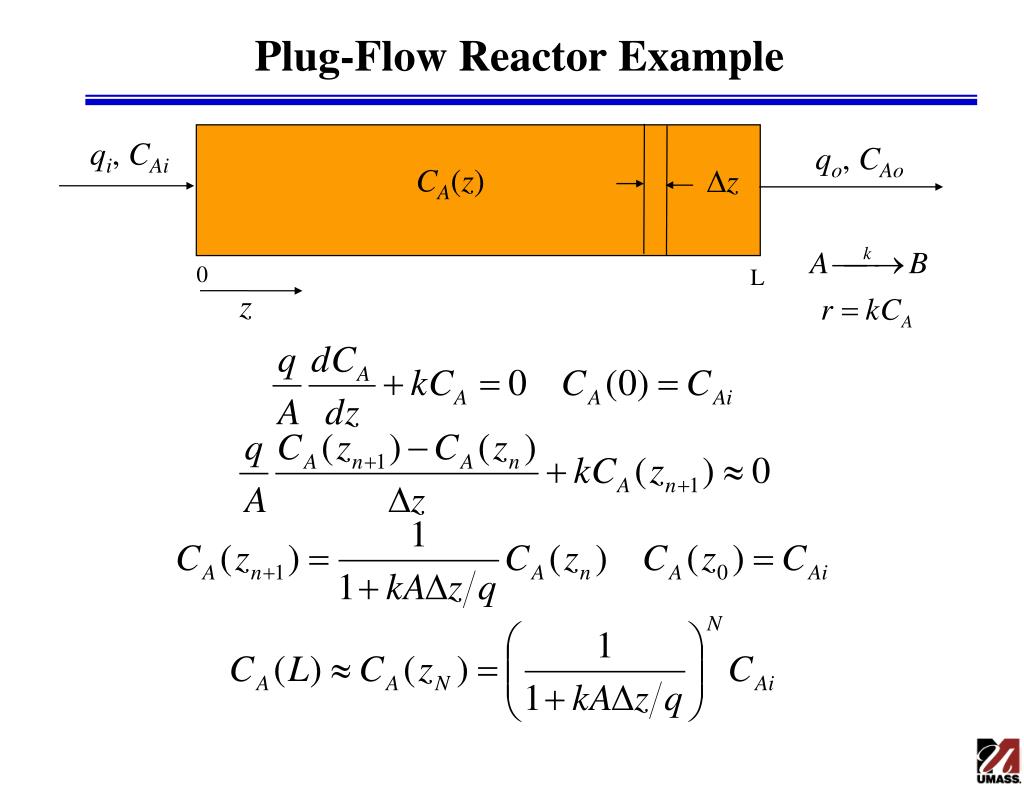

  23. qi, CAi qo, CAo CA(z) Dz z Plug-Flow Reactor Example 0 L

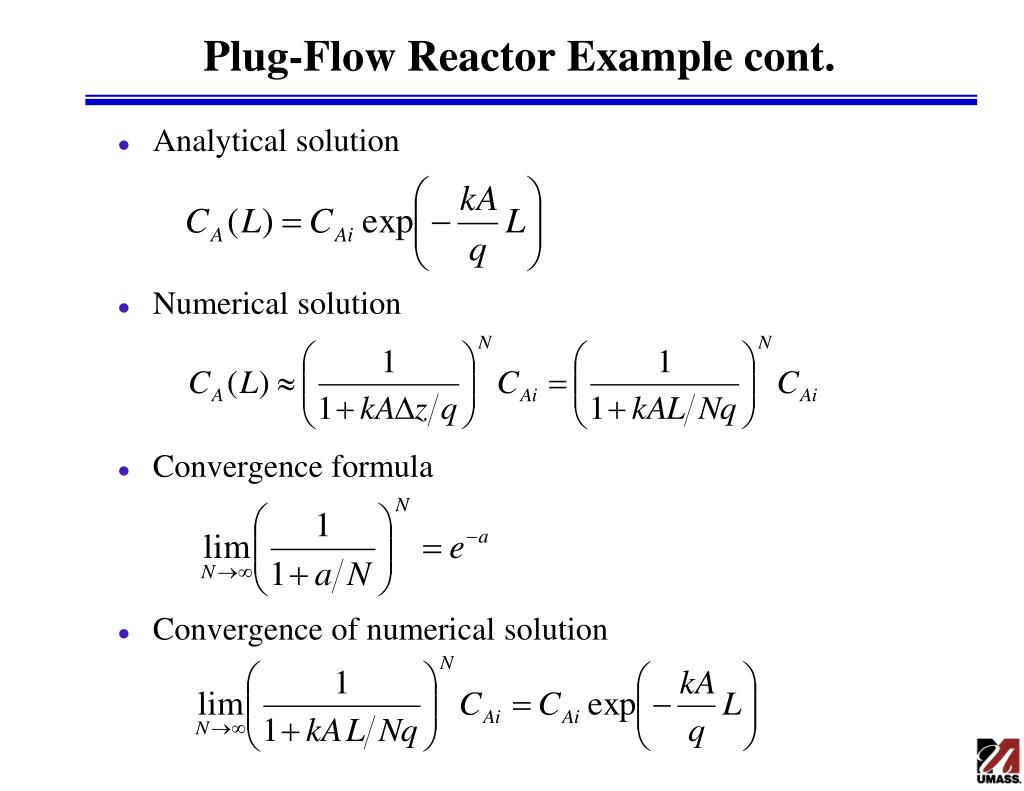

  24. Plug-Flow Reactor Example cont. • Analytical solution • Numerical solution • Convergence formula • Convergence of numerical solution

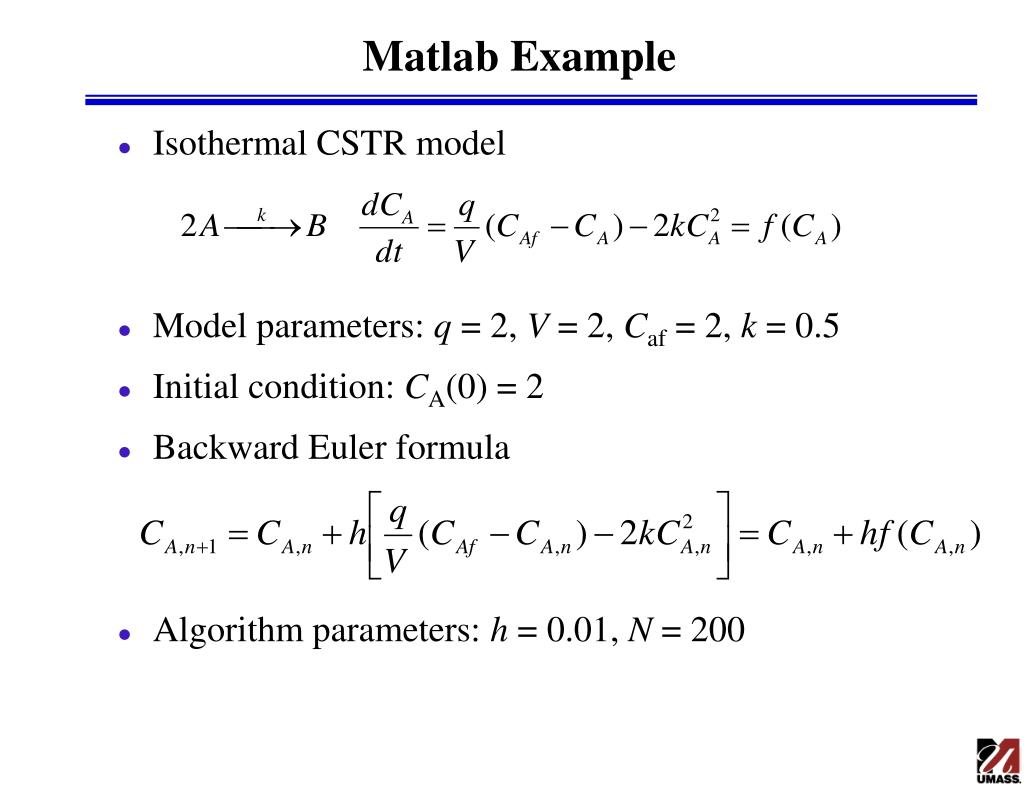

  25. Matlab Example • Isothermal CSTR model • Model parameters: q = 2, V = 2, Caf = 2, k = 0.5 • Initial condition: CA(0) = 2 • Backward Euler formula • Algorithm parameters: h = 0.01, N = 200

  26. Matlab Implementation: iso_cstr_euler.m h = 0.01; N = 200; Cao = 2; q = 2; V = 2; Caf = 2; k = 0.5; t(1) = 0; Ca(1) = Cao; for i=1:N t(i+1) = t(i)+h; f = q/V*(Caf-Ca(i))-2*k*Ca(i)^2; Ca(i+1)= Ca(i)+h*f; end plot(t,Ca) ylabel('Ca (g/L)') xlabel('Time (min)') axis([0,2,0.75,2.25])

  27. Euler Solution >> iso_cstr_euler

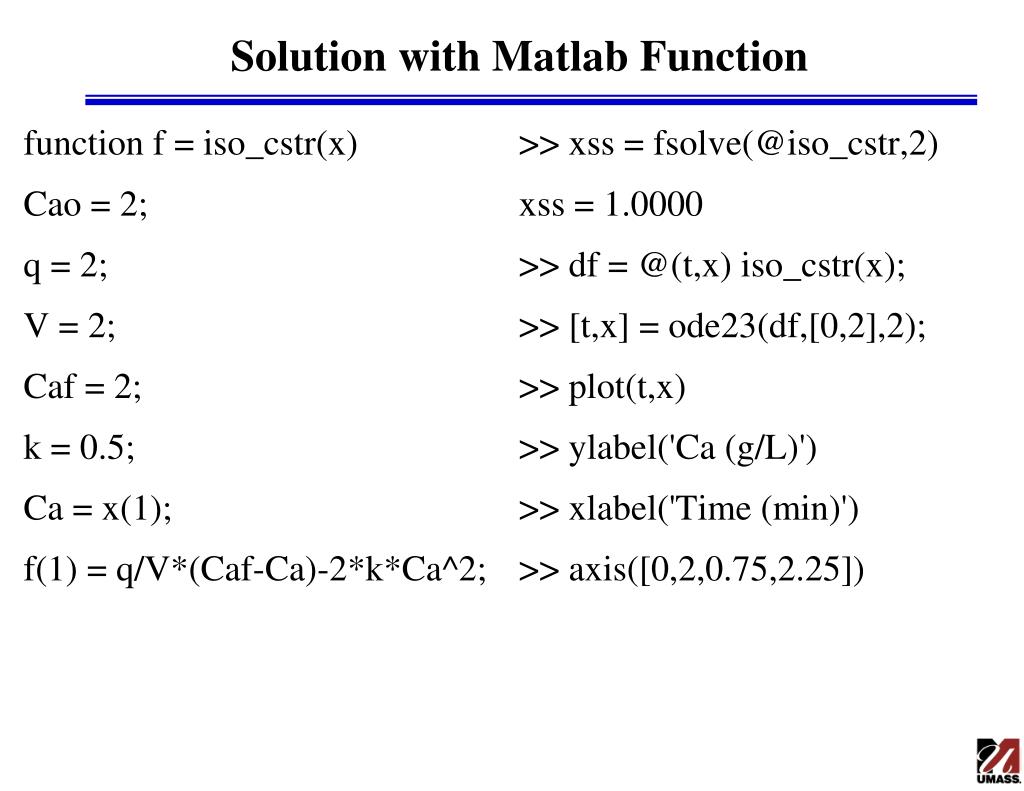

  28. Solution with Matlab Function function f = iso_cstr(x) Cao = 2; q = 2; V = 2; Caf = 2; k = 0.5; Ca = x(1); f(1) = q/V*(Caf-Ca)-2*k*Ca^2; >> xss = fsolve(@iso_cstr,2) xss = 1.0000 >> df = @(t,x) iso_cstr(x); >> [t,x] = ode23(df,[0,2],2); >> plot(t,x) >> ylabel('Ca (g/L)') >> xlabel('Time (min)') >> axis([0,2,0.75,2.25])

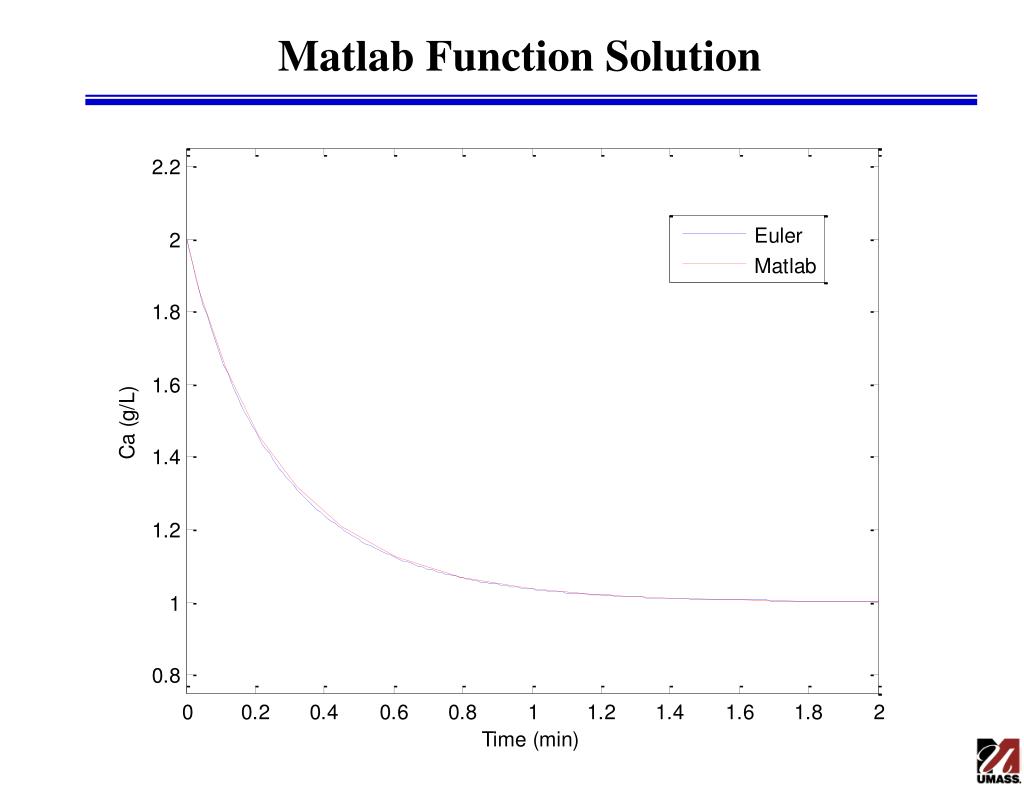

  29. Matlab Function Solution

  30. CSTR Example • Van de Vusse reaction • CSTR model • Forward Euler

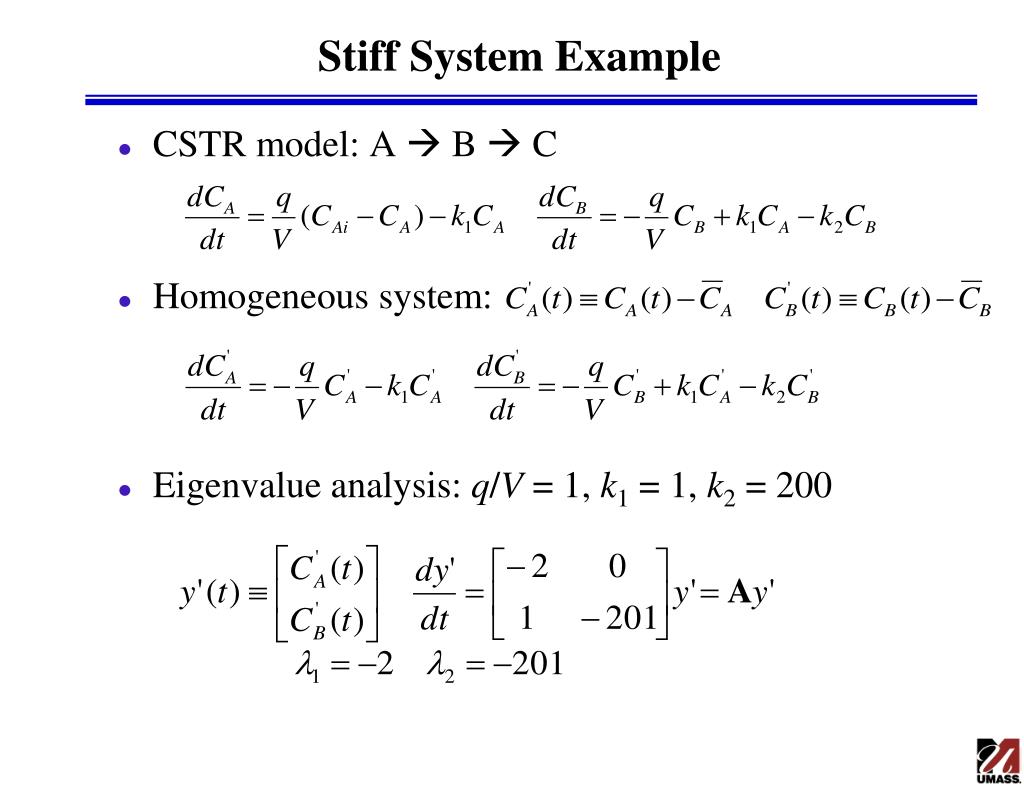

  31. Stiff System Example • CSTR model: A  B  C • Homogeneous system: • Eigenvalue analysis: q/V = 1, k1 = 1, k2 = 200

  32. Explicit Solution • Forward Euler • First iterative equation • Second iterative equation

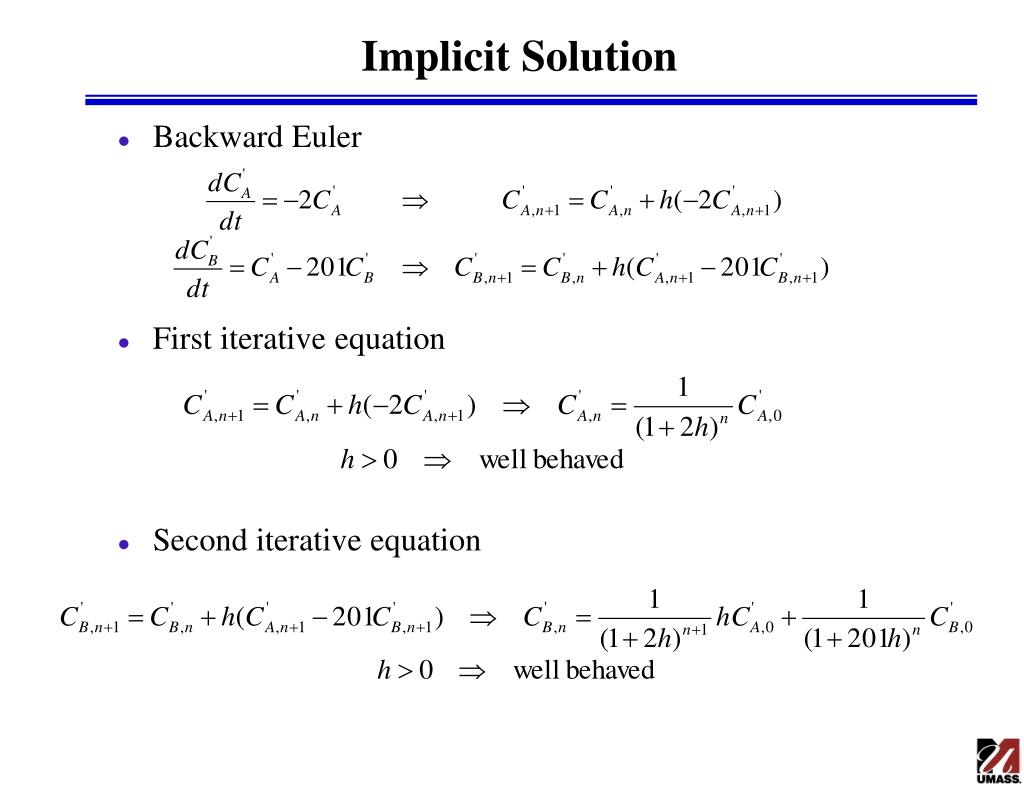

  33. Implicit Solution • Backward Euler • First iterative equation • Second iterative equation

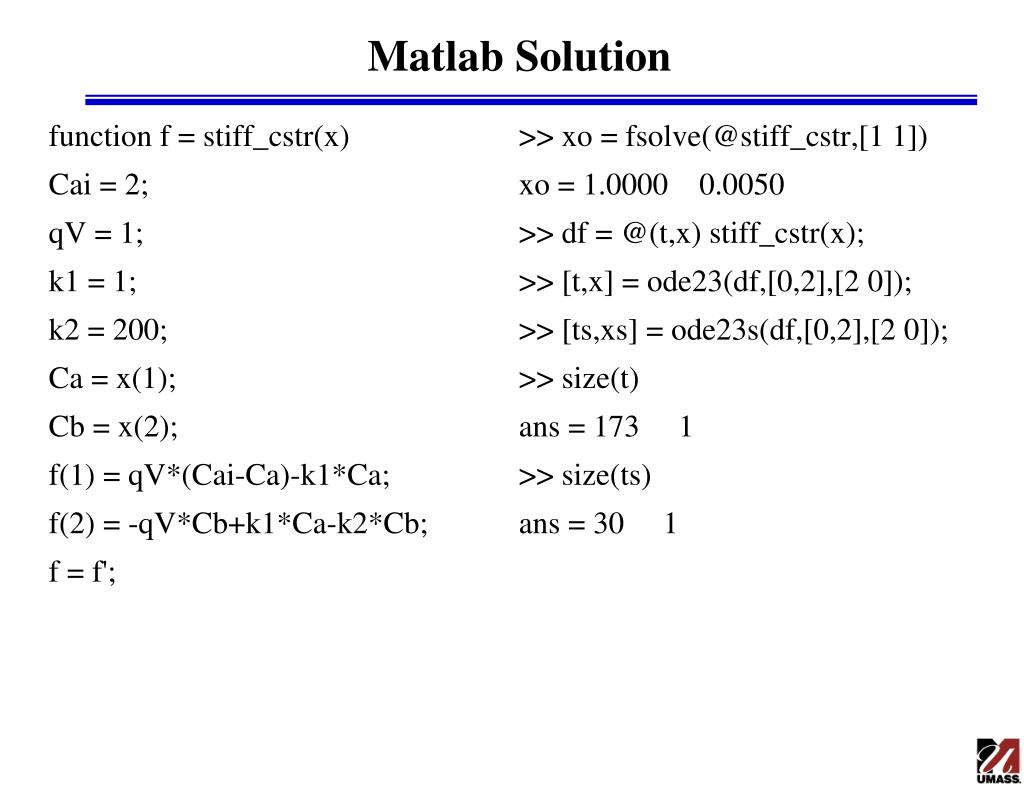

  34. Matlab Solution function f = stiff_cstr(x) Cai = 2; qV = 1; k1 = 1; k2 = 200; Ca = x(1); Cb = x(2); f(1) = qV*(Cai-Ca)-k1*Ca; f(2) = -qV*Cb+k1*Ca-k2*Cb; f = f'; >> xo = fsolve(@stiff_cstr,[1 1]) xo = 1.0000 0.0050 >> df = @(t,x) stiff_cstr(x); >> [t,x] = ode23(df,[0,2],[2 0]); >> [ts,xs] = ode23s(df,[0,2],[2 0]); >> size(t) ans = 173 1 >> size(ts) ans = 30 1

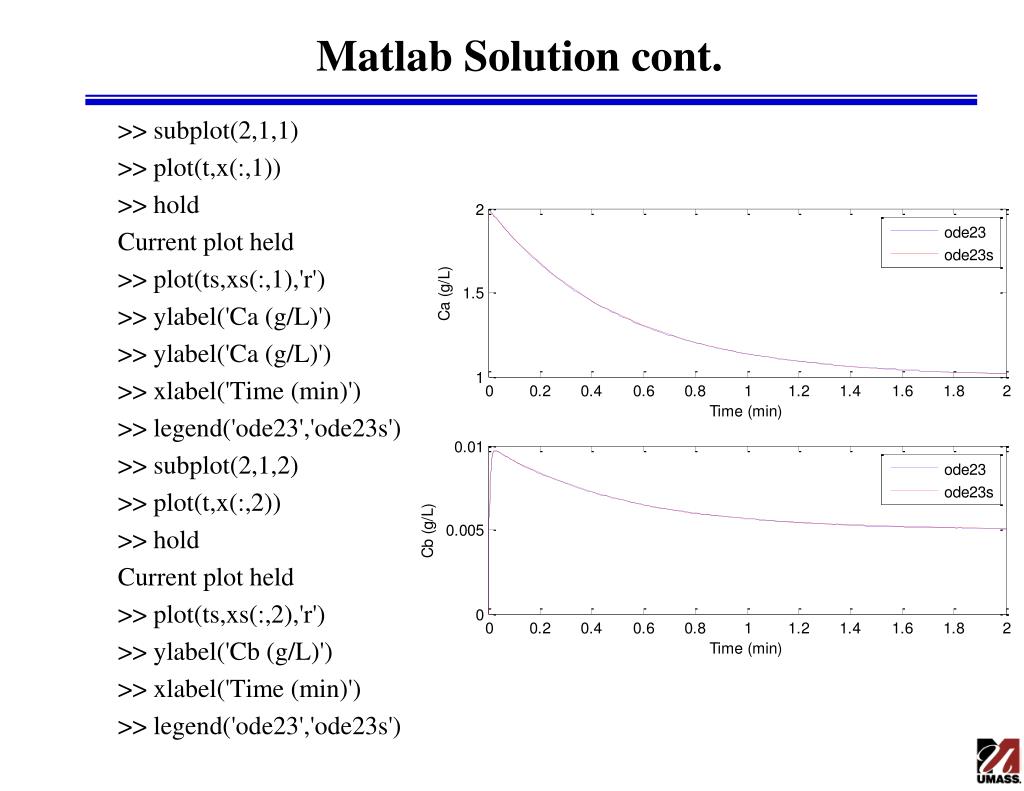

  35. Matlab Solution cont. >> subplot(2,1,1) >> plot(t,x(:,1)) >> hold Current plot held >> plot(ts,xs(:,1),'r') >> ylabel('Ca (g/L)') >> ylabel('Ca (g/L)') >> xlabel('Time (min)') >> legend('ode23','ode23s') >> subplot(2,1,2) >> plot(t,x(:,2)) >> hold Current plot held >> plot(ts,xs(:,2),'r') >> ylabel('Cb (g/L)') >> xlabel('Time (min)') >> legend('ode23','ode23s')
