  1. 5.4 Phase diagrams of binary systems Predict by phase law: C=2, F=2-Φ+2=4-Φ Φmin=1, Fmax=3 T, P, x Three dimentional diagram Intercepting plane graph---two dimentional diagrams T, P, x ----- (T, x)p , (P, x)T or (T, P)x

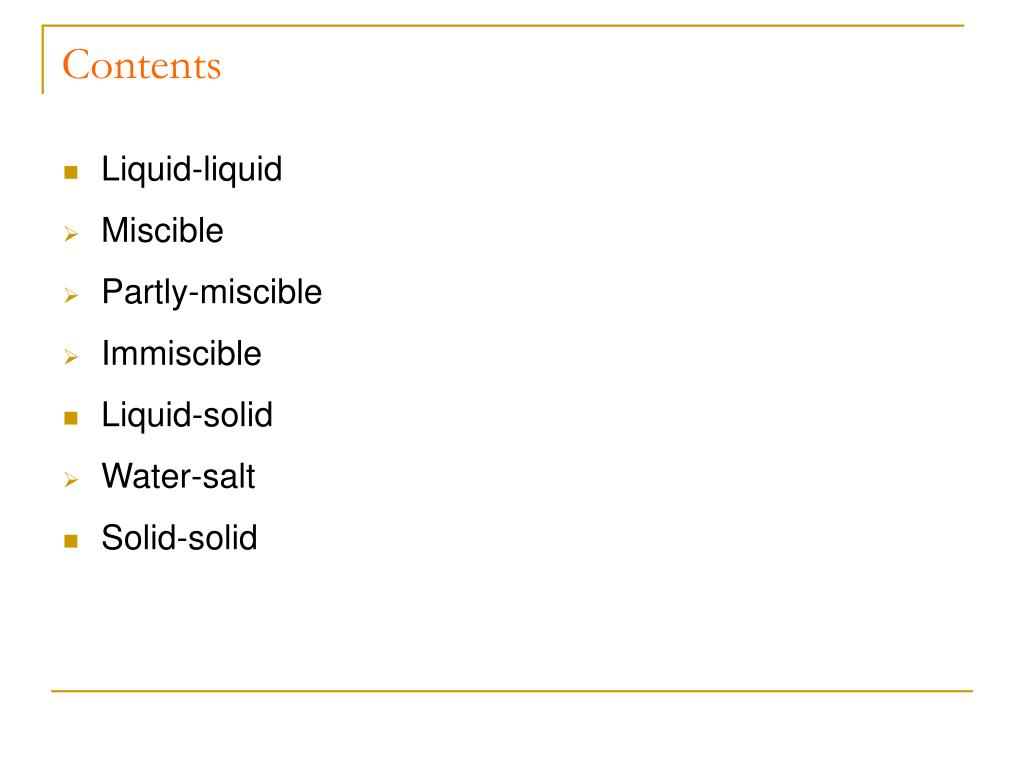

  2. Contents • Liquid-liquid • Miscible • Partly-miscible • Immiscible • Liquid-solid • Water-salt • Solid-solid

  3. 5.4.1 Phase diagram of miscible binary systems 5.4.1.1 Ideal mixed systems: Two components both follow Raoult’s Law. ( )T, P-x, A+B

  4. ( )T, P-y, A+B

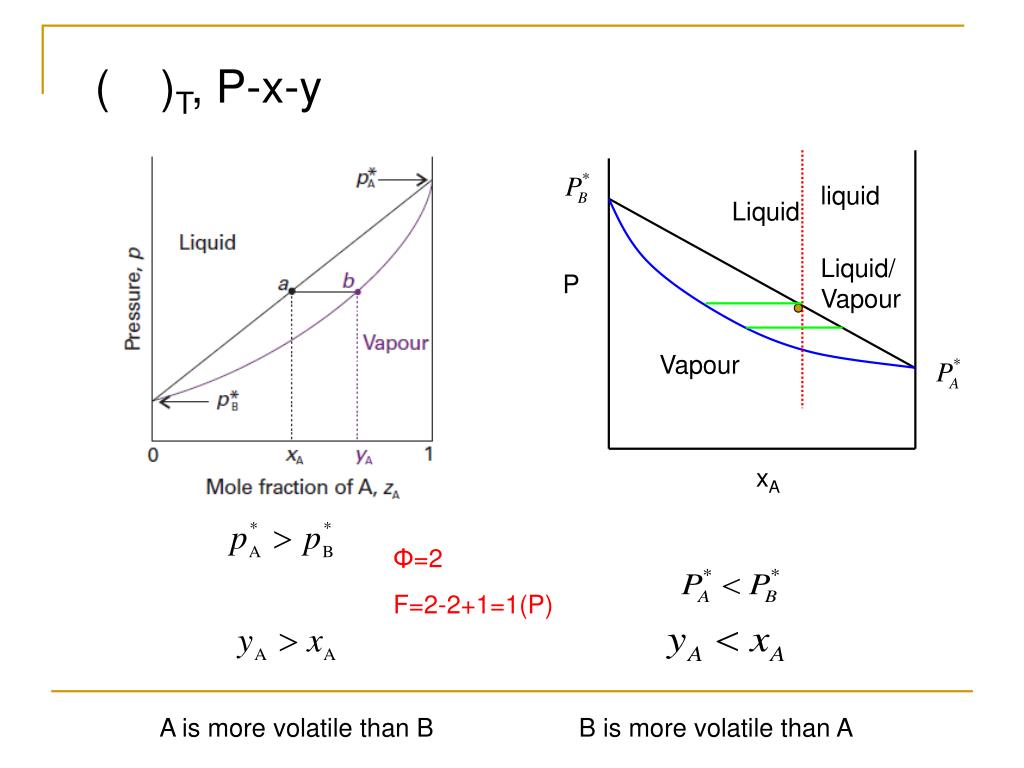

  5. Liquid P Vapour xA ( )T, P-x-y liquid Liquid/ Vapour Φ=2 F=2-2+1=1(P) A is more volatile than B B is more volatile than A

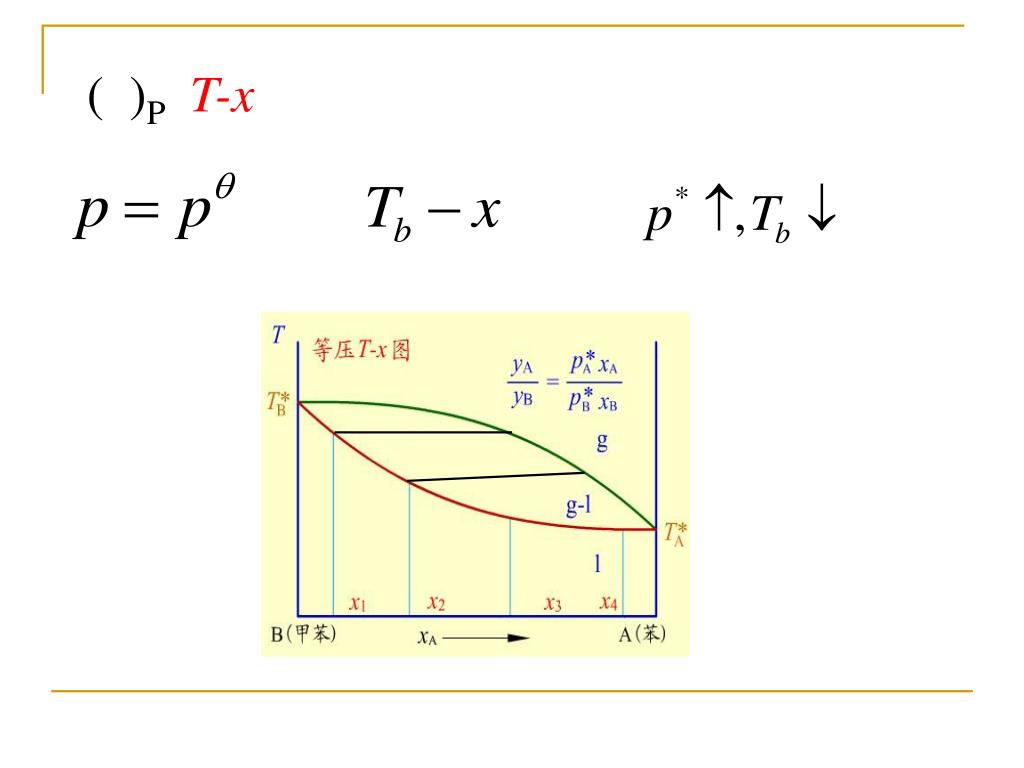

  6. ( )PT-x

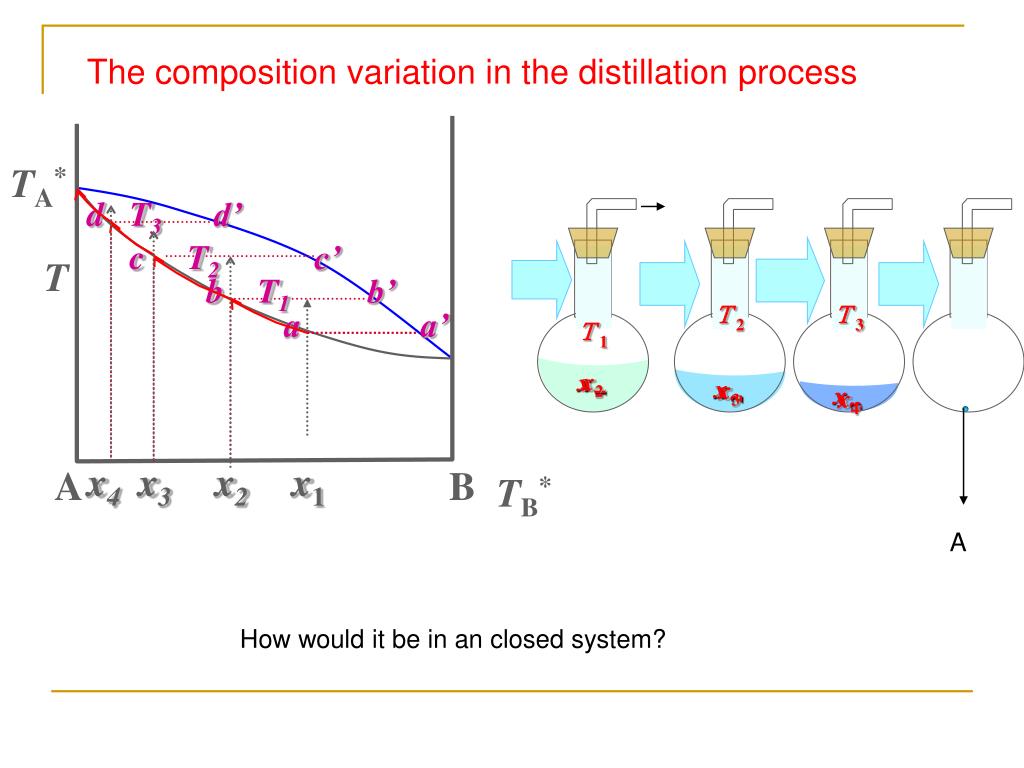

  7. Ｔ2 Ｔ3 x1 Ｔ1 x2 x3 x2 x3 x4 TB* The composition variation in the distillation process TA* d T3 d’ c T2c’ T b T1 b’ a a’ x4 x3 x2 x1 A B A How would it be in an closed system?

  8. Relating P-x and T-x phase diagram Getting T-x phase diagram from P-x P-x，liquid(upper line)- gas(lower line) T-x，gas(upper line)-liquid(lower line)

  9. 5.4.1.2 The Lever rule C, total amount of the systems DE（tie line） isothermal

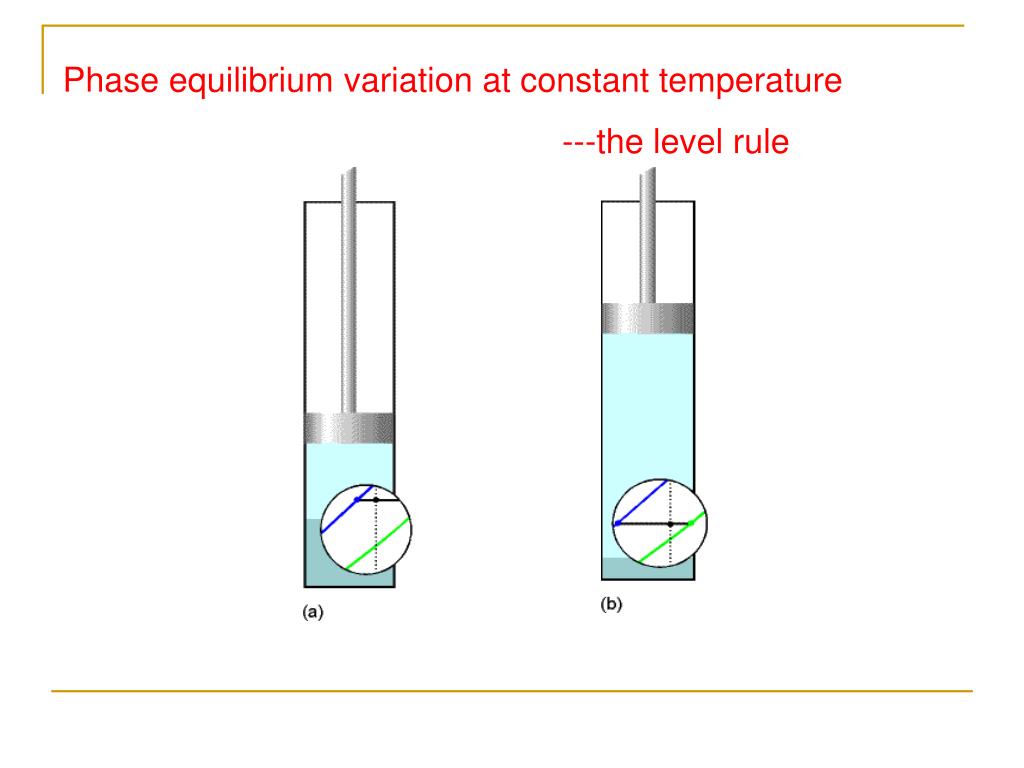

  10. Phase equilibrium variation at constant temperature ---the level rule

  11. T T1 T T2 5.4.1.3 The principle of distillation Simple distillation Separate a volatile liquid from a non-volatile solute or solid

  12. Fractional distillation Theoretical plates: the number of effective vaporization and condensation steps that are required to achieve a condensate of given composition from a given distillate

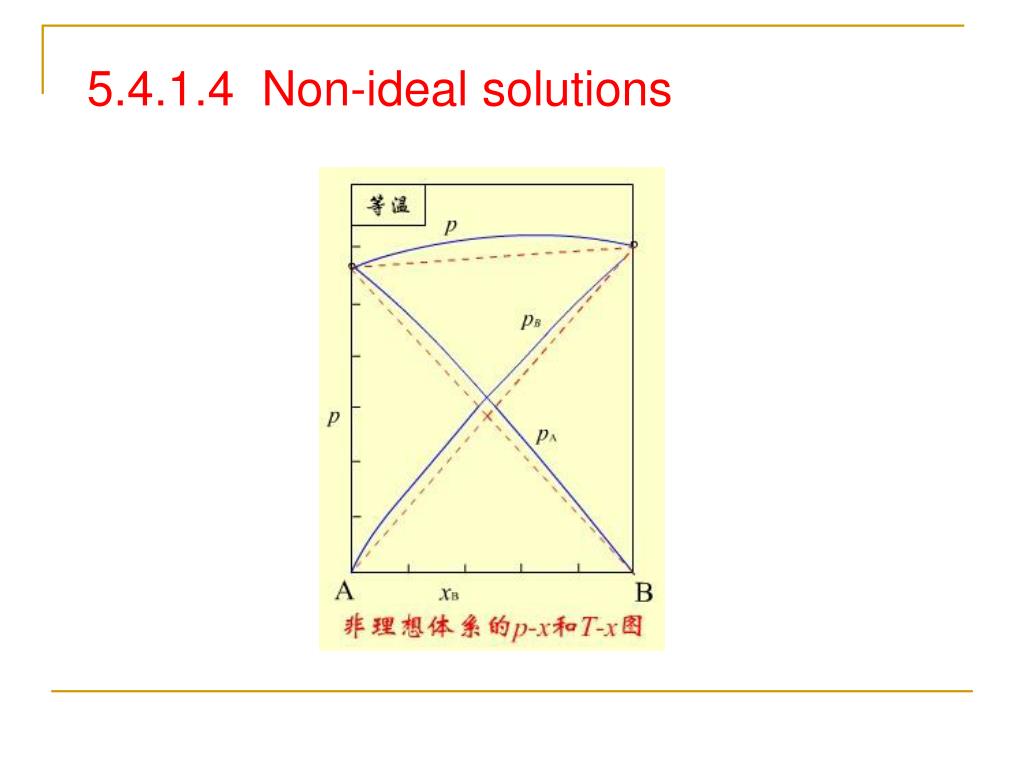

  13. 5.4.1.4 Non-ideal solutions

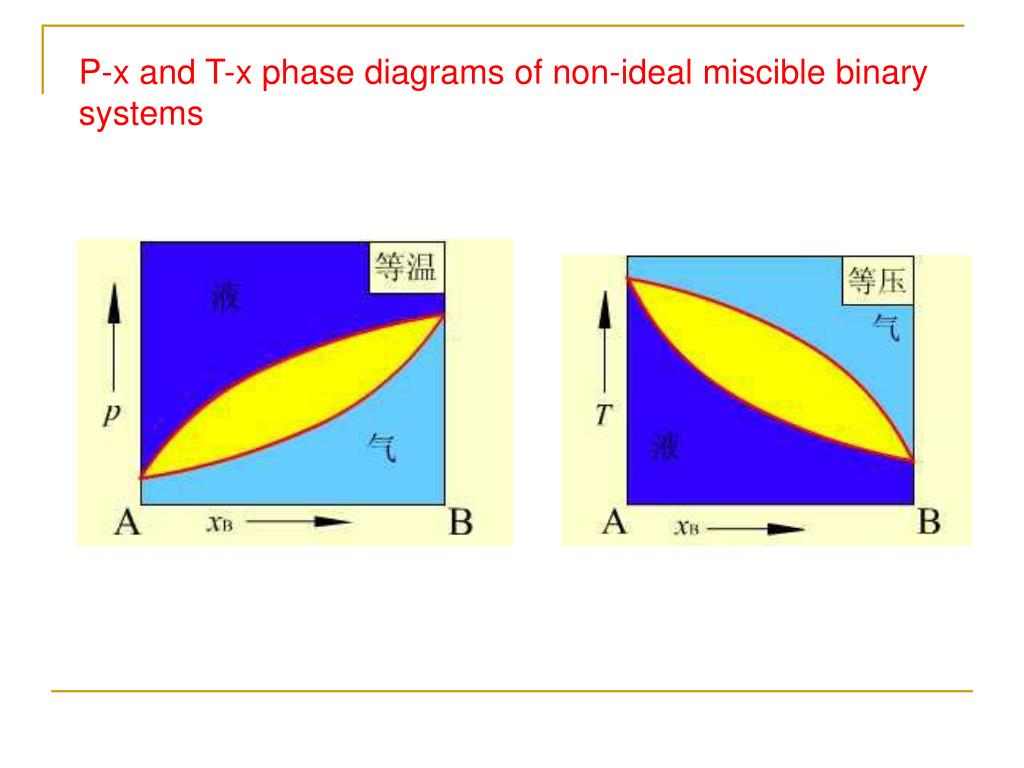

  14. P-x and T-x phase diagrams of non-ideal miscible binary systems

  15. Azeotropes Low-boiling azeotrope

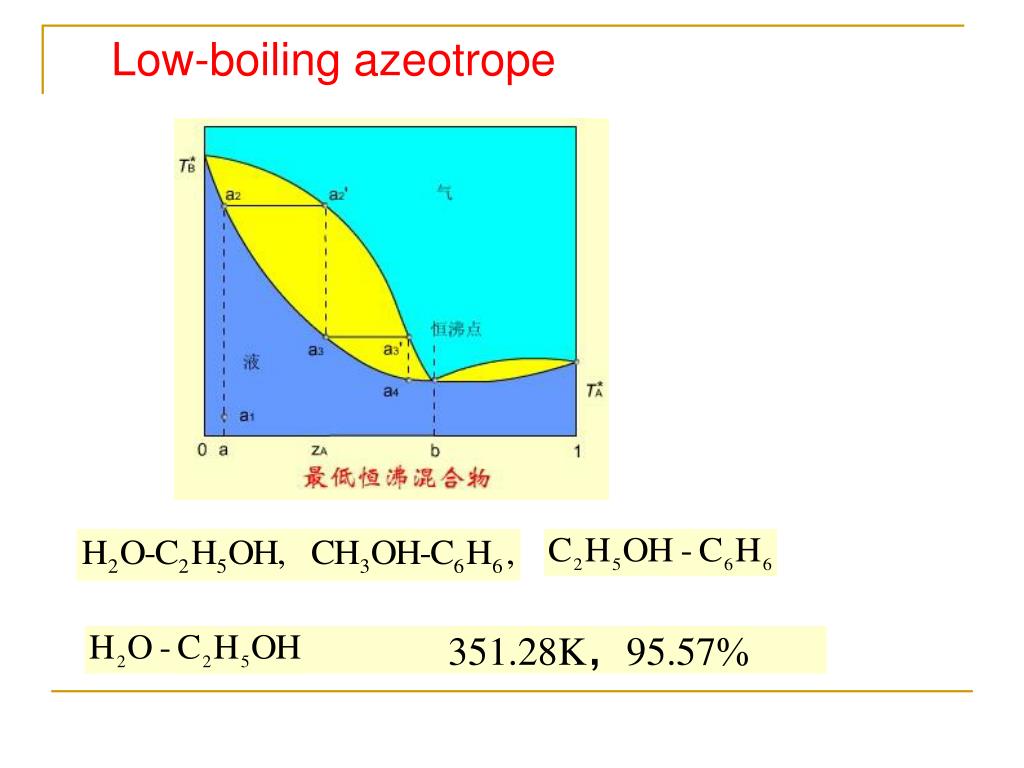

  16. Low-boiling azeotrope 351.28K，95.57

  17. High boiling azeotropes 381.65 K HCl 20.24 The maximum azeotropic point

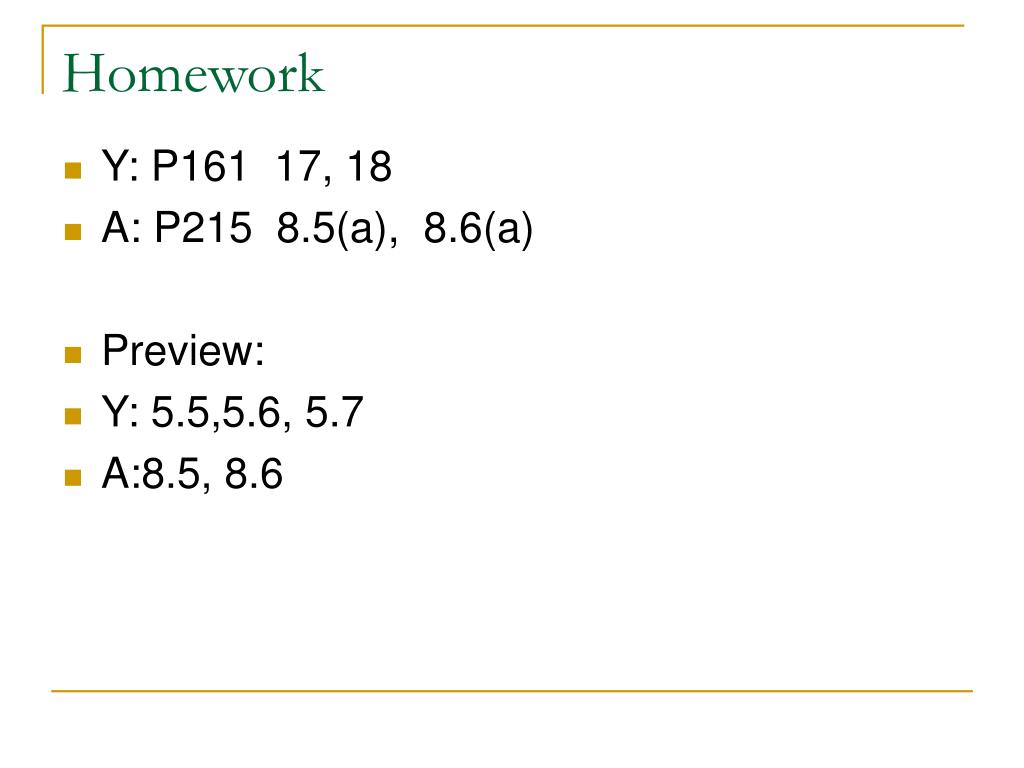

  18. Homework • Y: P161 17, 18 • A: P215 8.5(a), 8.6(a) • Preview: • Y: 5.5,5.6, 5.7 • A:8.5, 8.6
