  1. Computer Organization Arithmetic and Memory Building Blocks

  2. Si = (A  B)C + (A  B)C Recall x y + x y = x  y Cout = CAB + CAB + CAB + CAB = AB(C + C) + C(AB+AB) = AB + C(A  B) = AB + C(A  B) = AB  C(A  B) Adder • Recall truth table for binary addition Cin Ai Bi Si Cout 0 0 0 0 0 0 0 1 1 0 0 1 0 1 0 0 1 1 0 1 1 0 0 1 0 1 0 1 0 1 1 1 0 0 1 1 1 1 1 1 So Si = (A  B)  C

  3. Basic Ripple Carry Adder • An n-bit unsigned integer ripple carry adder can be build from n Full Adders Full Adder

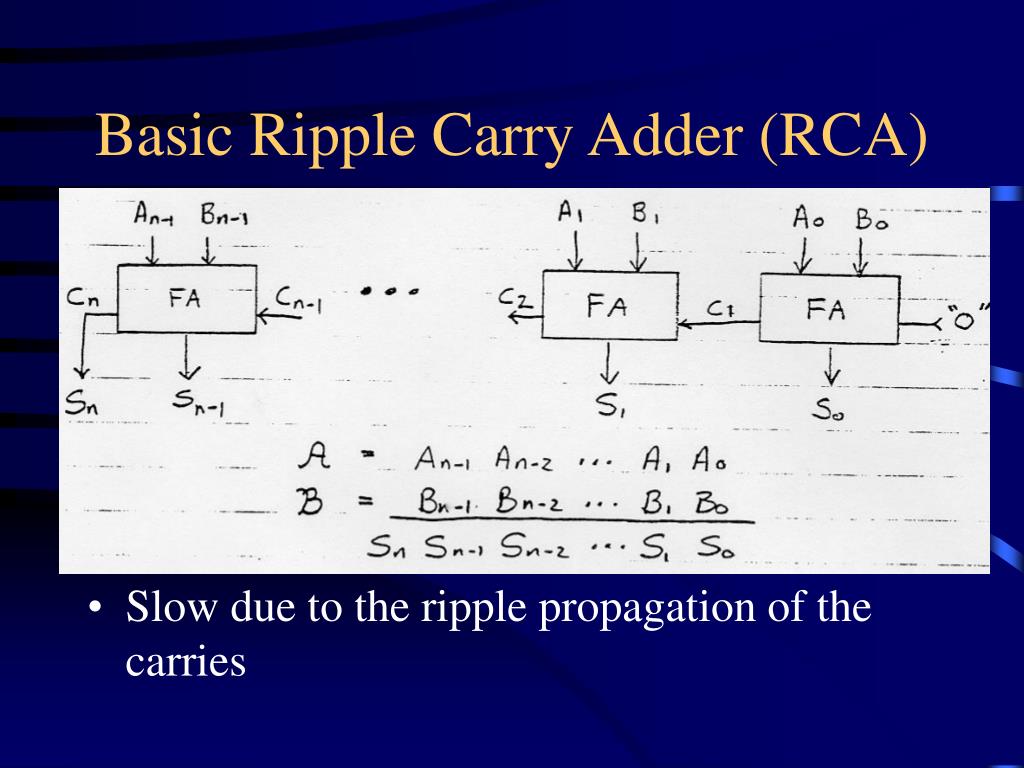

  4. Basic Ripple Carry Adder (RCA) • Slow due to the ripple propagation of the carries

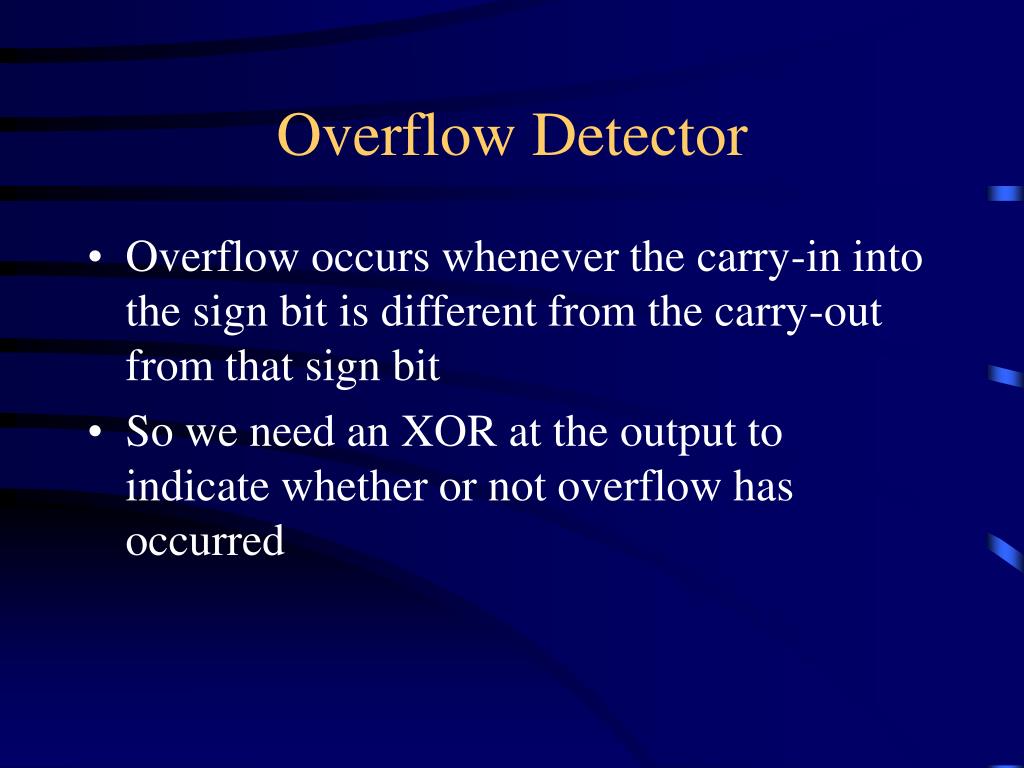

  5. Overflow Detector • Overflow occurs whenever the carry-in into the sign bit is different from the carry-out from that sign bit • So we need an XOR at the output to indicate whether or not overflow has occurred

  6. Ripple Carry Subtractor • We can subtract using addition • Form the 2’s comp of the subtrahend then add • So by adding hardware, we can do both addition and subtraction • We need a “mode” bit to tell us whether we are adding or subtracting

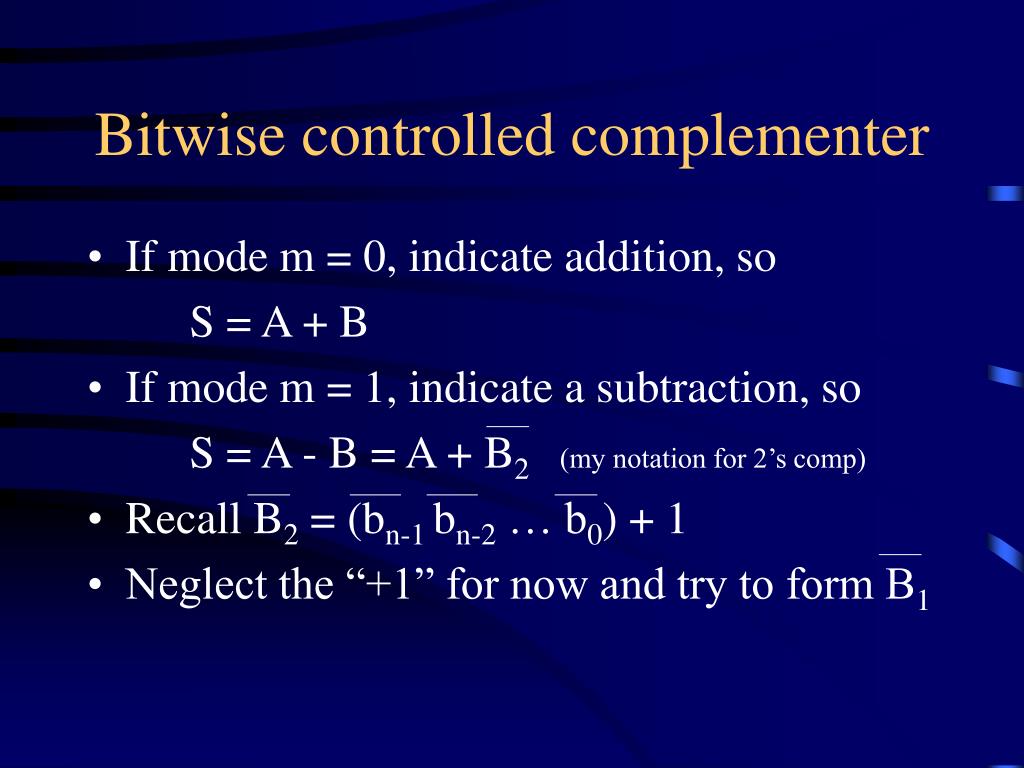

  7. Bitwise controlled complementer • If mode m = 0, indicate addition, so S = A + B • If mode m = 1, indicate a subtraction, so S = A - B = A + B2 (my notation for 2’s comp) • Recall B2 = (bn-1 bn-2 … b0) + 1 • Neglect the “+1” for now and try to form B1

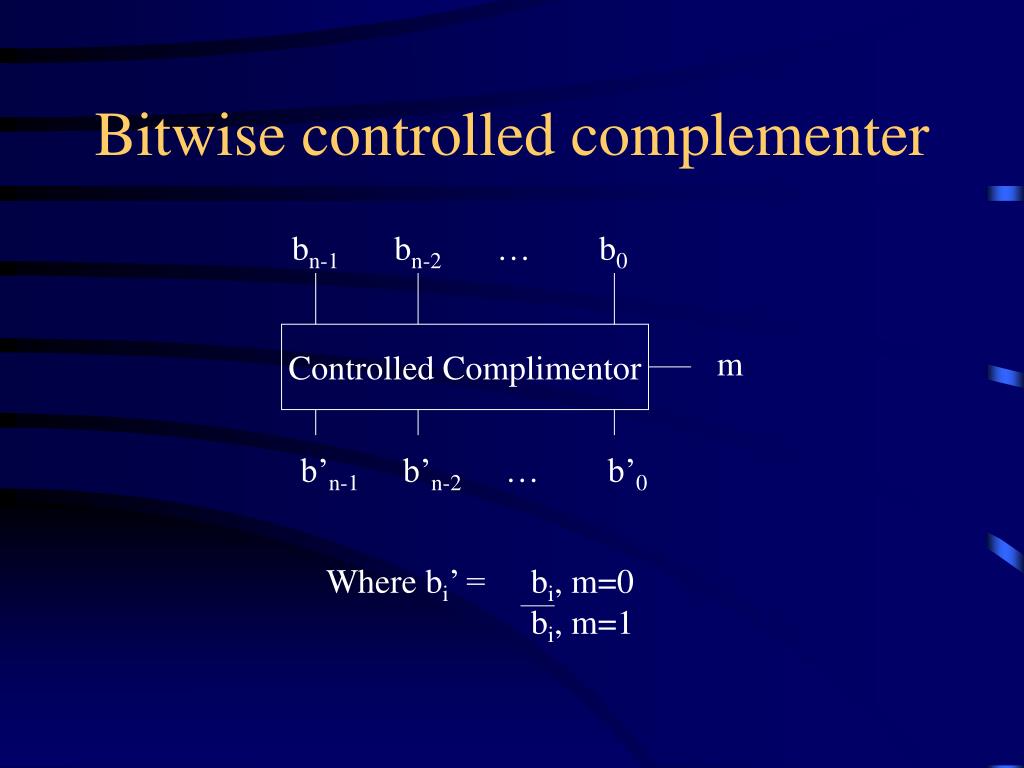

  8. Bitwise controlled complementer bn-1 bn-2 … b0 Controlled Complimentor m b’n-1 b’n-2 … b’0 Where bi’ = bi, m=0 bi, m=1

  9. m bi b’i 0 0 0 0 1 1 1 0 1 1 1 0 Bitwise controlled complementer • This can be done with XOR • For the “+1”, consider the following: • if m=0, we are adding • no complement • no “+1” • if m=1, we are subtracting • compliment • “+1” • Why not just add m? • Moreover, we can add m at the LSB carry-in!

  10. Recall RCA:

  11. RCA/S with Overflow

  12. RCA • The RCS’s are slow • very long “worst case” path • assumes a carry may have to propagate from the LSB FA all the way to the MSB FA • Why not compute each carry directly instead of having it propagate along? • Time more important than gate space • Gate space still important

  13. Parallel adder • Recall a 4-bit sum: C4C3C2C1C0 A3A2A1A0 + B3B2B1B0 C4S3S2S1S0 Recall Si = (Ai Bi)  Ci Ci = Ai-1Bi-1  Ci-1(Ai-1  Bi-1)

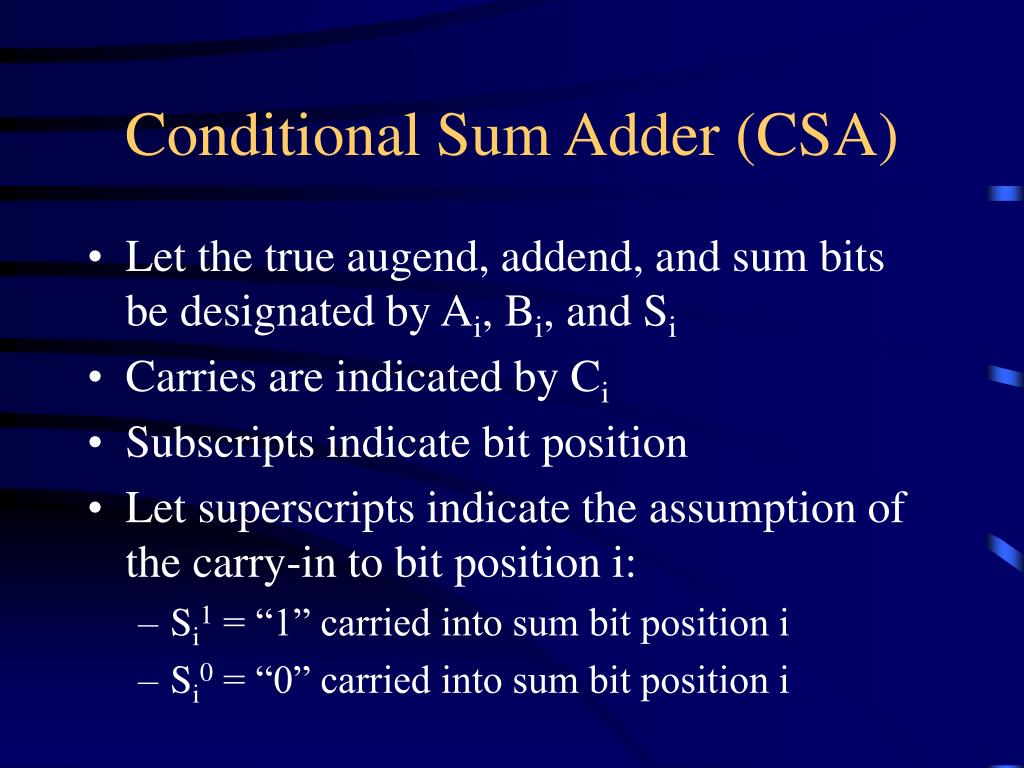

  14. Conditional Sum Adder (CSA) • Let the true augend, addend, and sum bits be designated by Ai, Bi, and Si • Carries are indicated by Ci • Subscripts indicate bit position • Let superscripts indicate the assumption of the carry-in to bit position i: • Si1 = “1” carried into sum bit position i • Si0 = “0” carried into sum bit position i

  15. CSA • S0(k) and S1(k) denote 2 provisional sums • each consists of multiple sections • k addend/augend bits per section • Then there are (n/k) sections for an n-bit addition • C0(k) and C1(k) are provisional carry sequences formed by carries out of all the sections in S0(k) and S1(k), respectively

  16. CSA • Simultaneous addition are performed on all sections independently • Compute all of the S0, C0, S1, and C1 for each section independently • Select whether to use (Si0, Ci0) by the actual Ci-1 • Let k = 2j-1 for the jth step • Take log2n steps

  17. CSA

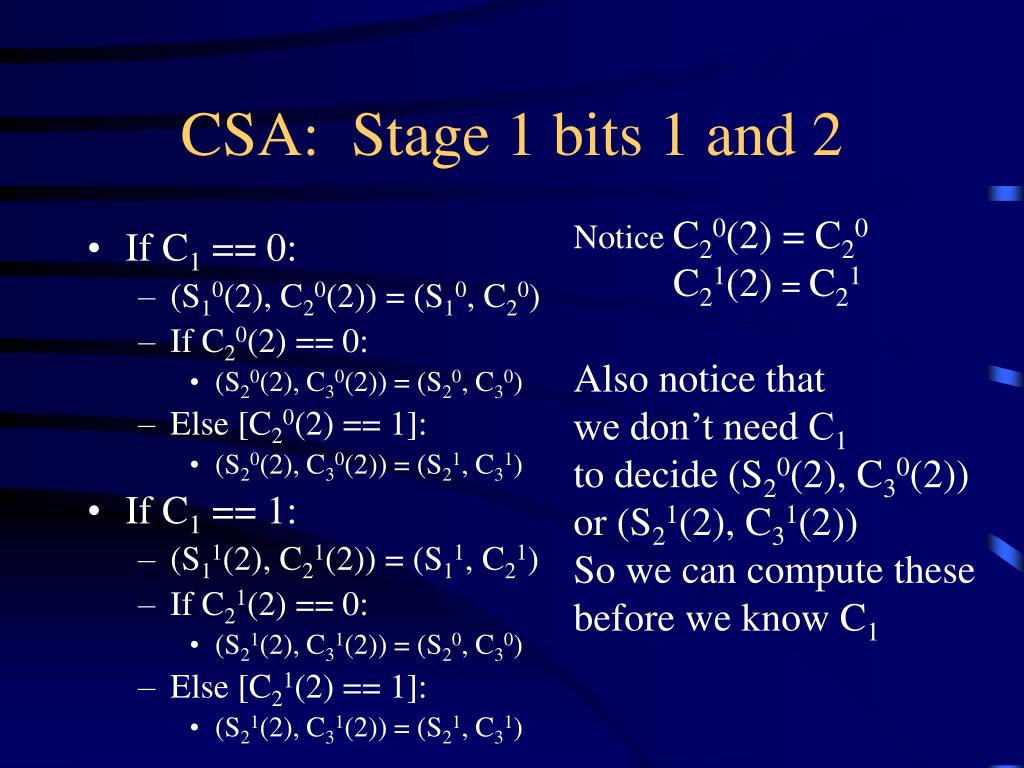

  18. CSA: Stage 1 bits 1 and 2 Notice C20(2) = C20 C21(2) = C21 Also notice that we don’t need C1 to decide (S20(2), C30(2)) or (S21(2), C31(2)) So we can compute these before we know C1 • If C1 == 0: • (S10(2), C20(2)) = (S10, C20) • If C20(2) == 0: • (S20(2), C30(2)) = (S20, C30) • Else [C20(2) == 1]: • (S20(2), C30(2)) = (S21, C31) • If C1 == 1: • (S11(2), C21(2)) = (S11, C21) • If C21(2) == 0: • (S21(2), C31(2)) = (S20, C30) • Else [C21(2) == 1]: • (S21(2), C31(2)) = (S21, C31)

  19. CSA: Stage 1 bits 3 and 4 Notice C40(2) = C40 C41(2) = C41 Also notice that we don’t need C3 to decide (S40(2), C50(2)) or (S41(2), C51(2)) So we can compute these before we know C1 • If C3 == 0: • (S30(2), C40(2)) = (S30, C40) • If C40(2) == 0: • (S40(2), C50(2)) = (S40, C50) • Else [C40(2) == 1]: • (S40(2), C50(2)) = (S41, C51) • If C3 == 1: • (S31(2), C41(2)) = (S31, C41) • If C41(2) == 0: • (S41(2), C51(2)) = (S40, C50) • Else [C41(2) == 1]: • (S41(2), C51(2)) = (S41, C51)

  20. CSA: Stage 1 bits 2 and 3 (simultaneously with bits 0, 1) • C20 and C21 both select new possibilities for (S20(2), C30(2)) and (S21(2), C31(2)) • If C20=0, we will select (S20(2), C30(2)) = (S20(1), C30(1)) • If C20=1, we will select (S20(2), C30(2)) = (S21(1), C31(1)) • If C21=0, we will select (S21(2), C31(2)) = (S20(1), C30(1)) • If C21=1, we will select (S21(2), C31(2)) = (S21(1), C31(1))

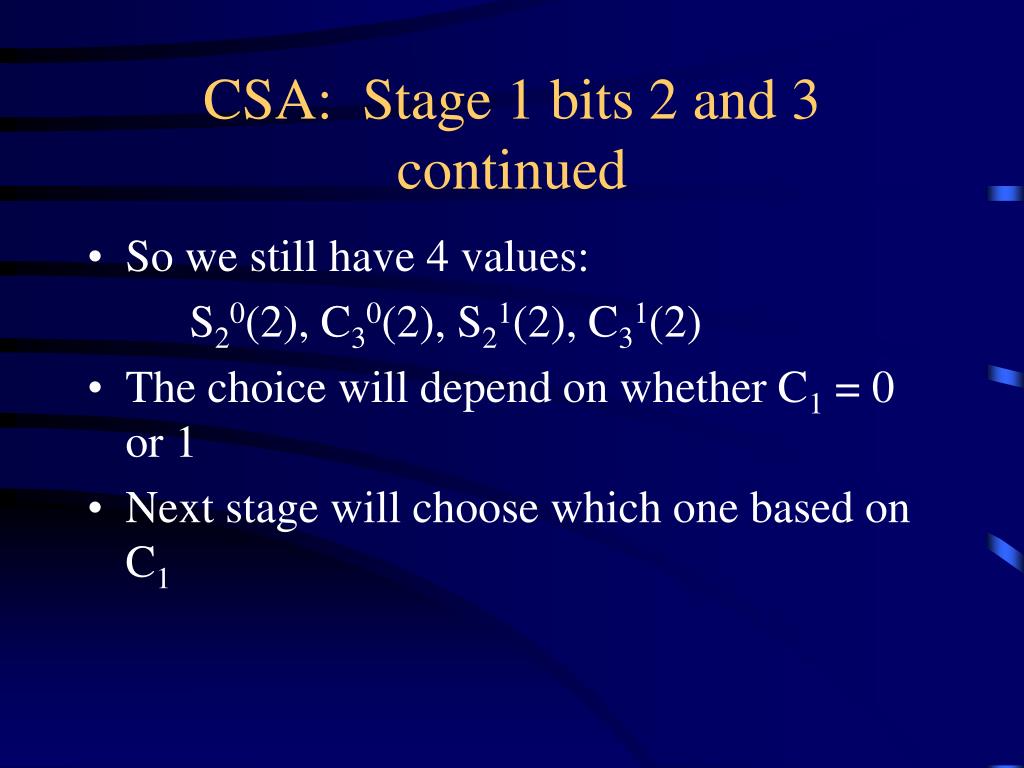

  21. CSA: Stage 1 bits 2 and 3 continued • So we still have 4 values: S20(2), C30(2), S21(2), C31(2) • The choice will depend on whether C1 = 0 or 1 • Next stage will choose which one based on C1

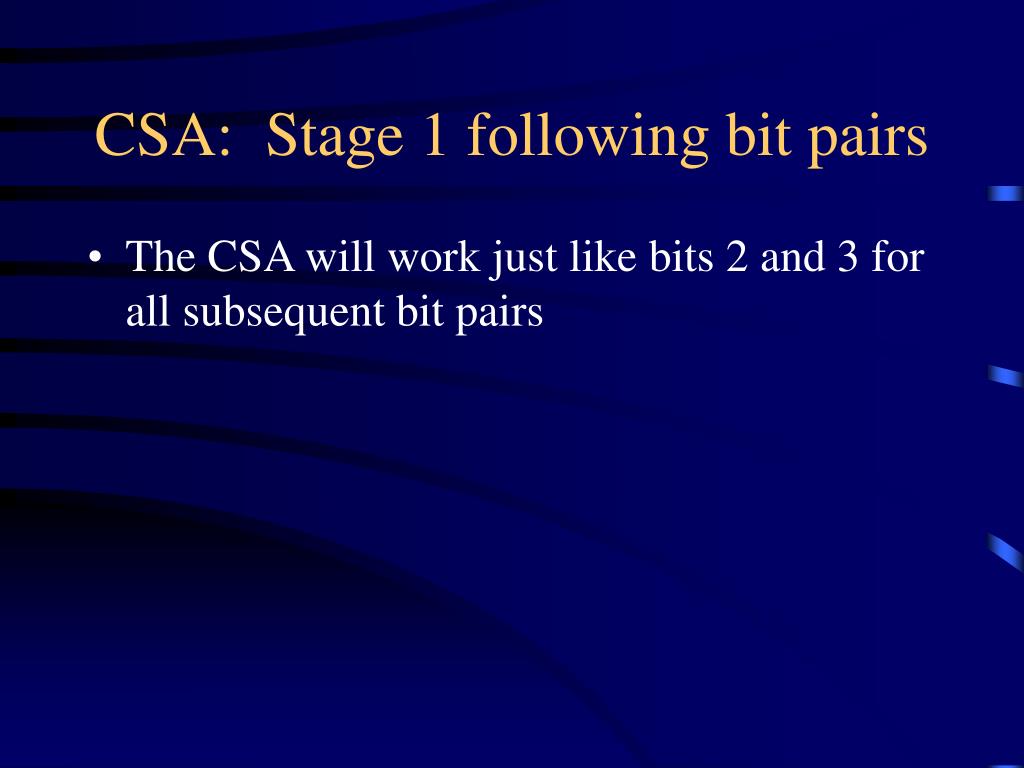

  22. CSA: Stage 1 following bit pairs • The CSA will work just like bits 2 and 3 for all subsequent bit pairs

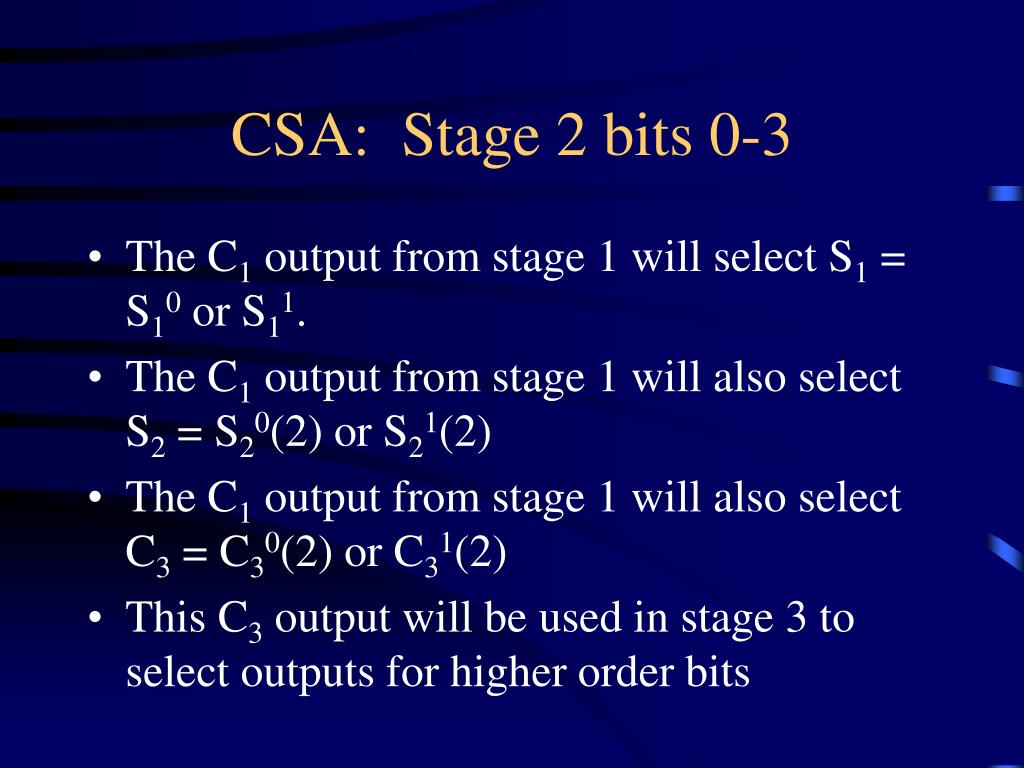

  23. CSA: Stage 2 bits 0-3 • The C1 output from stage 1 will select S1 = S10 or S11. • The C1 output from stage 1 will also select S2 = S20(2) or S21(2) • The C1 output from stage 1 will also select C3 = C30(2) or C31(2) • This C3 output will be used in stage 3 to select outputs for higher order bits

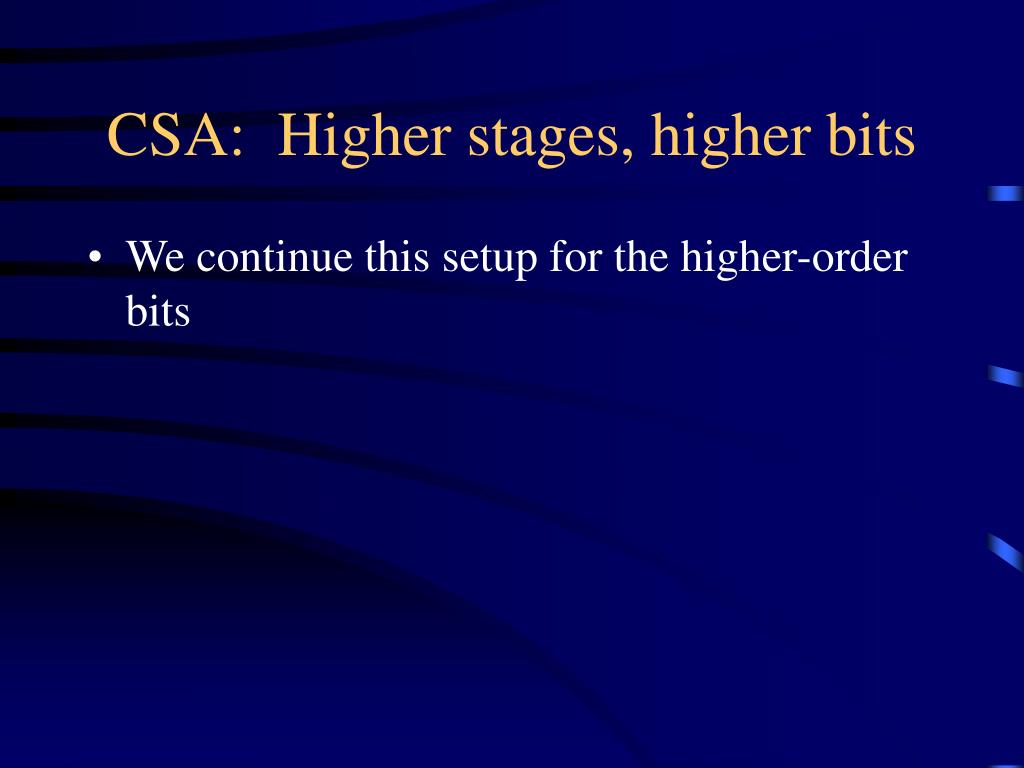

  24. CSA: Higher stages, higher bits • We continue this setup for the higher-order bits

  25. Ai Bi Ci Ci+10 Si0 Ci+11 Si1 0 0 0 0 0 0 1 0 0 1 1 0 0 0 1 1 1 0 1 0 0 0 1 0 1 0 1 1 1 0 1 0 1 1 0 1 1 1 1 1 CSA: Conditional Cell • We want to produce the conditional sums • Output does not depend on Ci

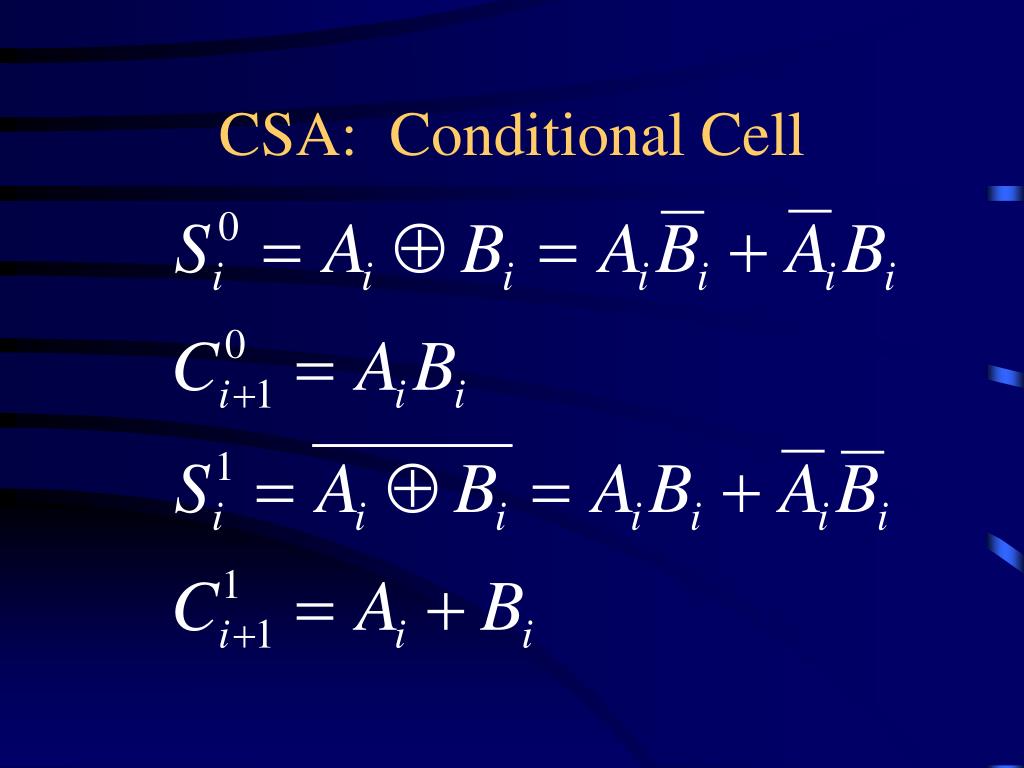

  26. CSA: Conditional Cell

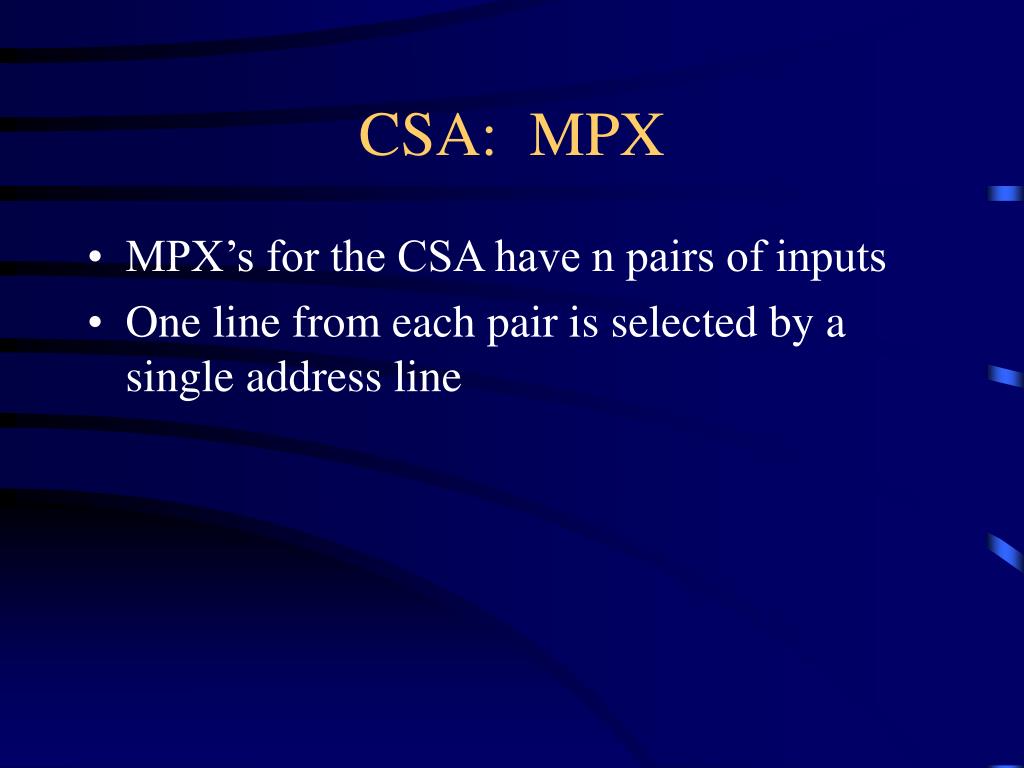

  27. CSA: MPX • MPX’s for the CSA have n pairs of inputs • One line from each pair is selected by a single address line
