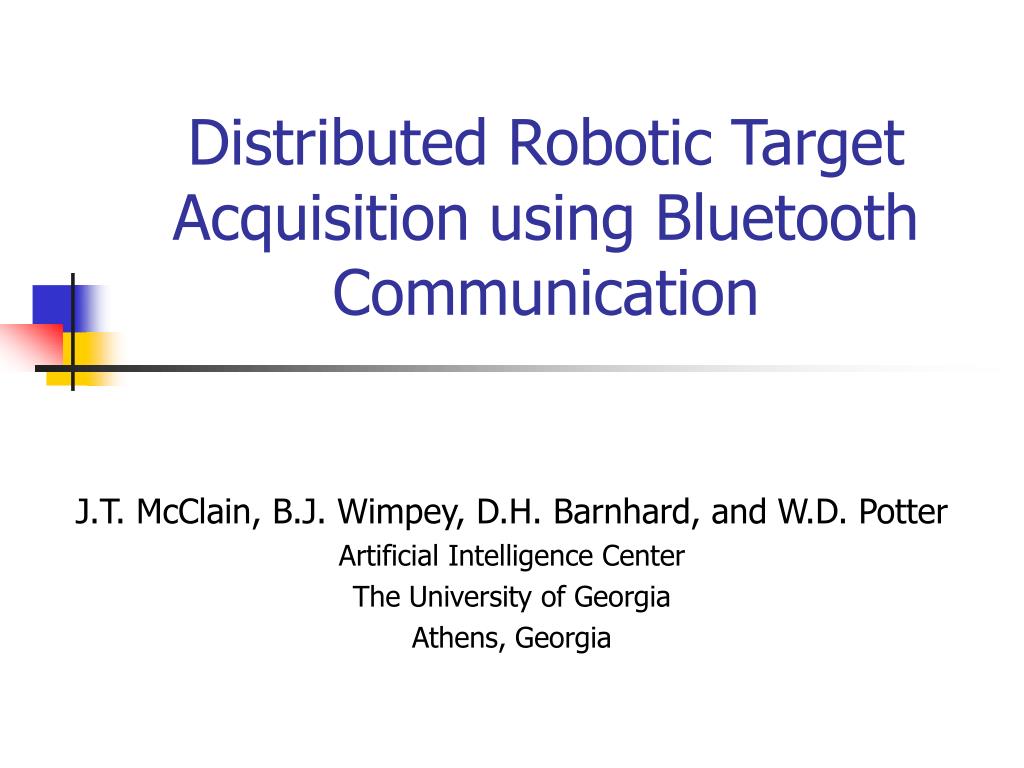

  1. Distributed Robotic Target Acquisition using Bluetooth Communication J.T. McClain, B.J. Wimpey, D.H. Barnhard, and W.D. Potter Artificial Intelligence Center The University of Georgia Athens, Georgia

  2. Introduction • Goals • Solve a team-based “search and destroy” task • Develop a robust chassis for multi-robot teams • Create a method for distributed message passing within a robotic network

  3. Odin and Hodur • Preliminary project • Primary goal was to develop the communication system • Honeybee Task • Localization • Architecture prototyping

  4. Current Phase

  5. Hardware • The Collective multi-robot system • A team of modified Motorworks radio-controlled tanks • Sensory facilities include four sonar rangers, magnetic compass, and four light intensity sensors • Actuators include two independently driven treads and a firing mechanism

  6. Robot Controller Network The primary controller on each robot is a Bluetooth enabled Compaq iPAQ 3970 (Pocket PC 2002) Primitive sensor and actuator functions are handled by a network of two microcontrollers, an Acroname Brainstem GP 1.0 and a Brainstem Moto 1.0 Hardware

  7. GP (Router) Brainstem Moto Brainstem Hardware iPAQ/Brainstem Control Network

  8. Hardware Overview

  9. Sensor Overview

  10. Hardware • The Bluetooth Wireless Protocol • A proprietary wireless protocol that is intended to create a short-range radio link between electronic devices • Primarily used as a wireless desktop solution due to its relatively short range of approximately 30 feet • Characterized by robustness, low complexity, low power, high data transmission speed, security, and low cost

  11. Communications • Previous Version • In the Odin and Hodur model, a loss of one robot would result in mission failure • Current Version • Use of Routing Information Protocol (RIP) prevents this problem • Sends a “heartbeat” at regular intervals • Keeps all robots informed of the status of the others

  12. Behavior • Distributed Search • As the process begins, all robots are searching for the target • Discovery • Once the target has been found, localization begins • After localization, the coordinates of the target are passed to the other robots

  13. Behavior • Formation • Once the target is found, the robot that first acquired the target is considered a leader • It is the leader’s responsibility to determine the placement of the other tanks • Based upon the number of robots that are still “alive” in the status table • Dependent on the location in the environment

  14. Conclusion and Future Directions • Preliminary results indicate that cooperating tanks are a viable option for a distributed search • Future Work • Dynamically tracking moving targets • Improved strategic planning • Better localization scheme
