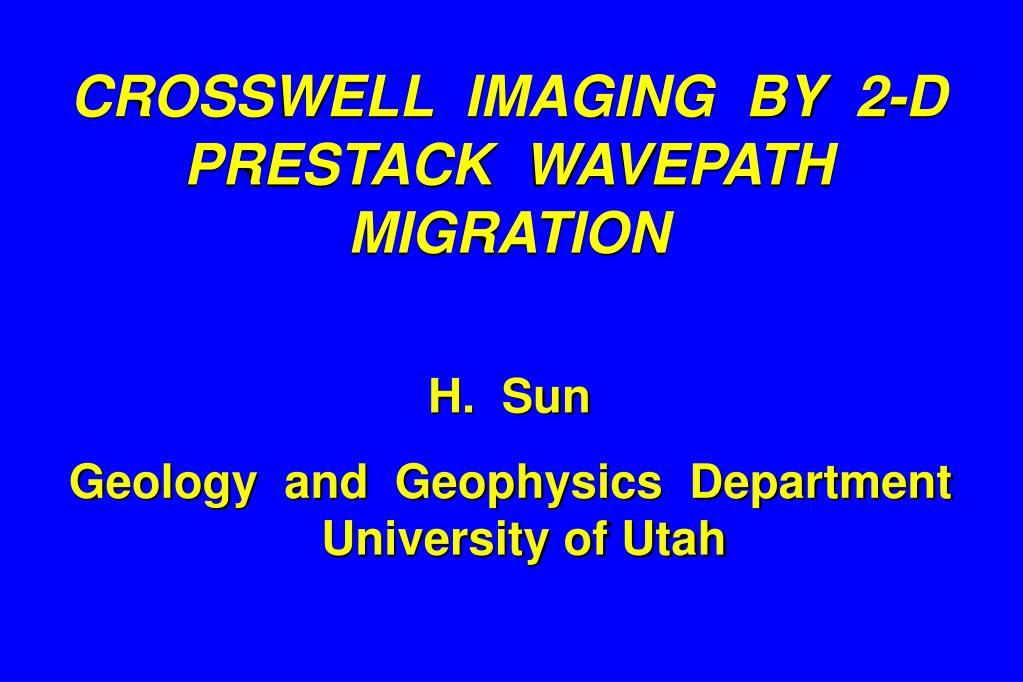

  1. CROSSWELL IMAGING BY 2-D PRESTACK WAVEPATH MIGRATION H. Sun Geology and Geophysics Department University of Utah

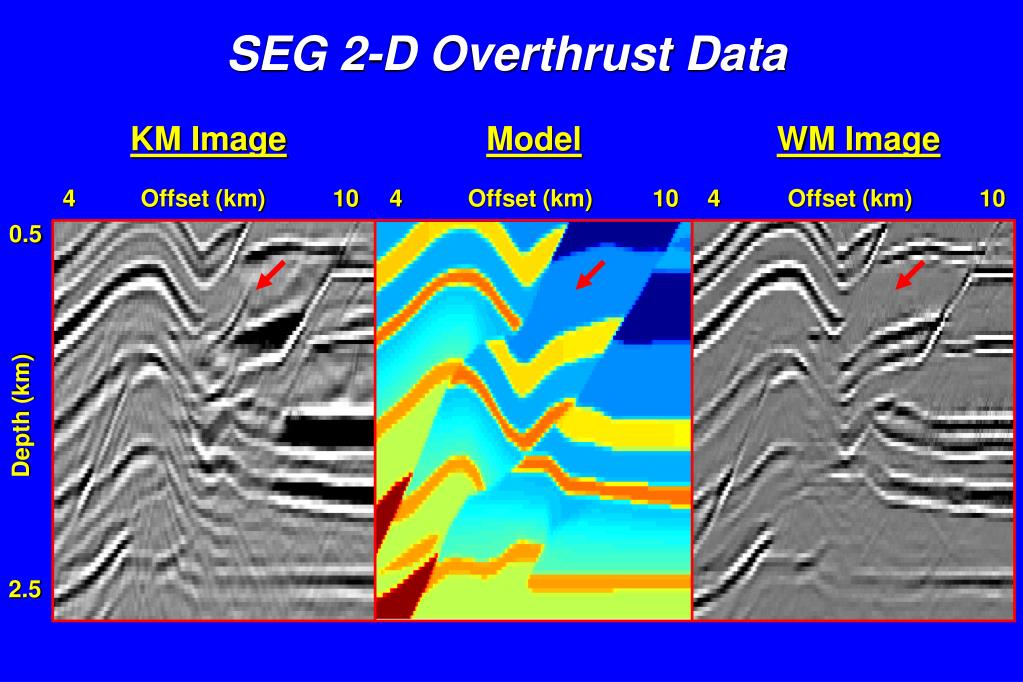

  2. SEG 2-D Overthrust Data KM Image Model WM Image 4 Offset (km) 10 4 Offset (km) 10 4 Offset (km) 10 0.5 Depth (km) 2.5

  3. KM Image (Zoom A) WM Image (Zoom A) 2-D Husky Field Data 2.5 Offset (km) 5.5 2.5 Offset (km) 5.5 2.5 2.5 Depth (km) Depth (km) 5.0 5.0

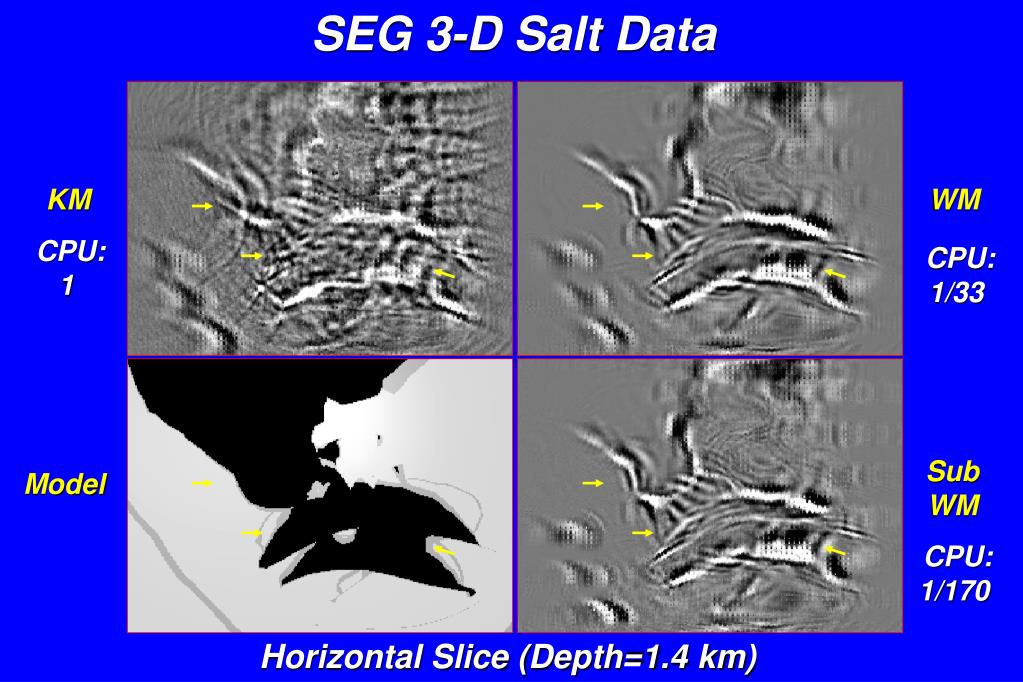

  4. SEG 3-D Salt Data KM WM CPU: 1 CPU: 1/33 Sub WM Model CPU: 1/170 Horizontal Slice (Depth=1.4 km)

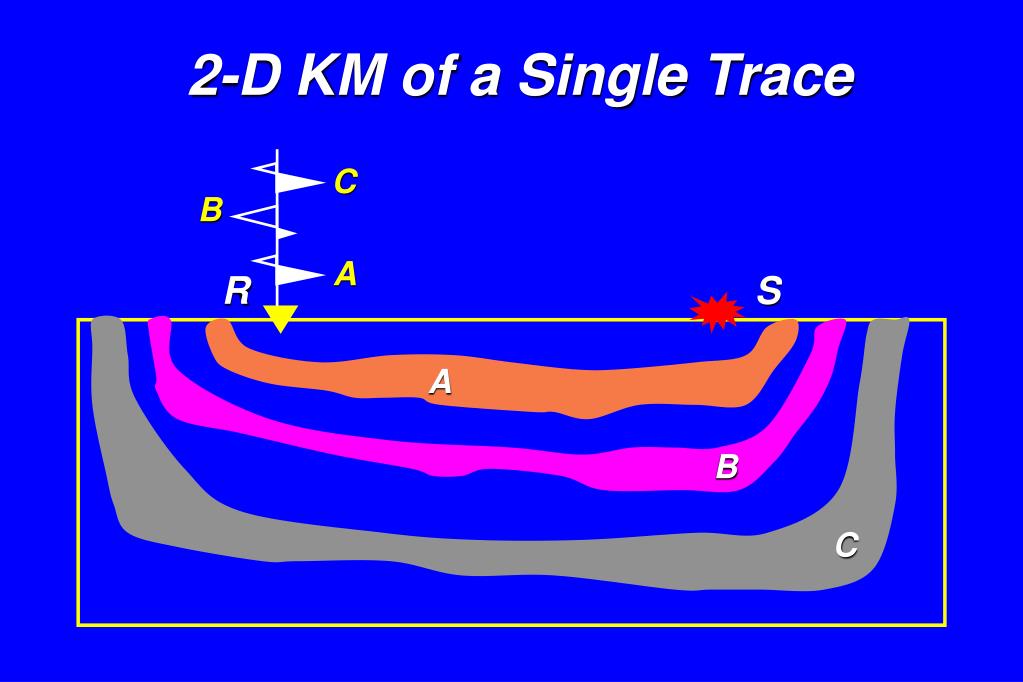

  5. A B C 2-D KM of a Single Trace C B A R S

  6. A B C 2-D WM of a Single Trace C B A R S

  7. True Reflection point Small Migration Aperture Fewer Artifacts Less Expensive Wavepath Migration Traveltime + Ray Direction

  8. Outline • WM Crosswell Imaging • Synthetic Crosswell Data • McElroy Crosswell Data • Synthetic Single Well Data • Conclusions

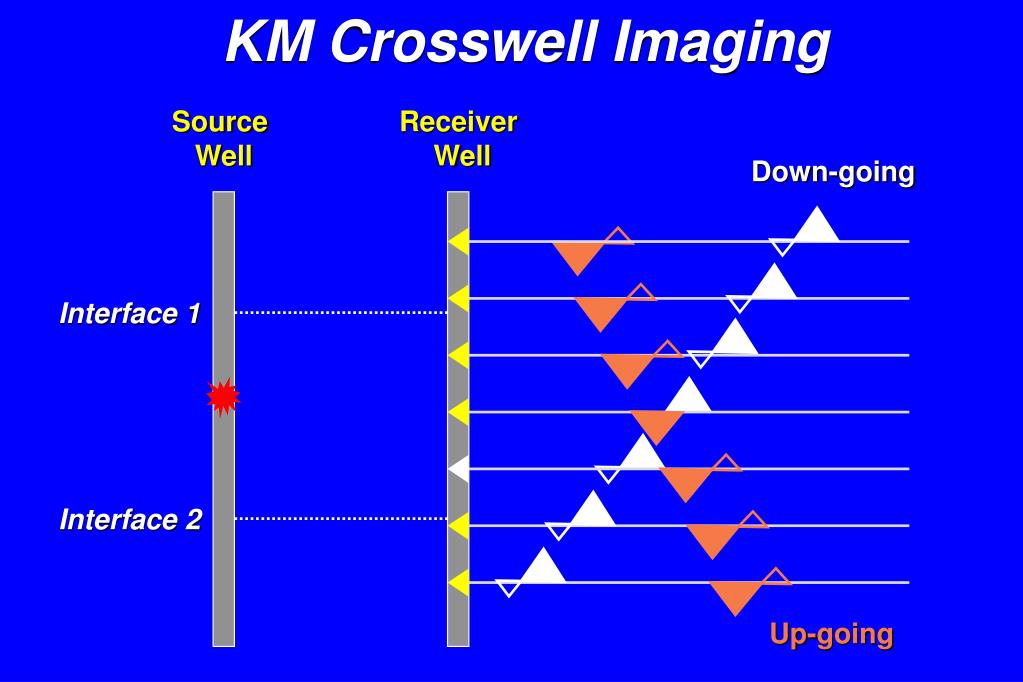

  9. Interface 2 KM Crosswell Imaging Source Well Receiver Well Down-going Interface 1 Up-going

  10. Interface 2 KM Crosswell Imaging Source Well Receiver Well Interface 1 Up-going

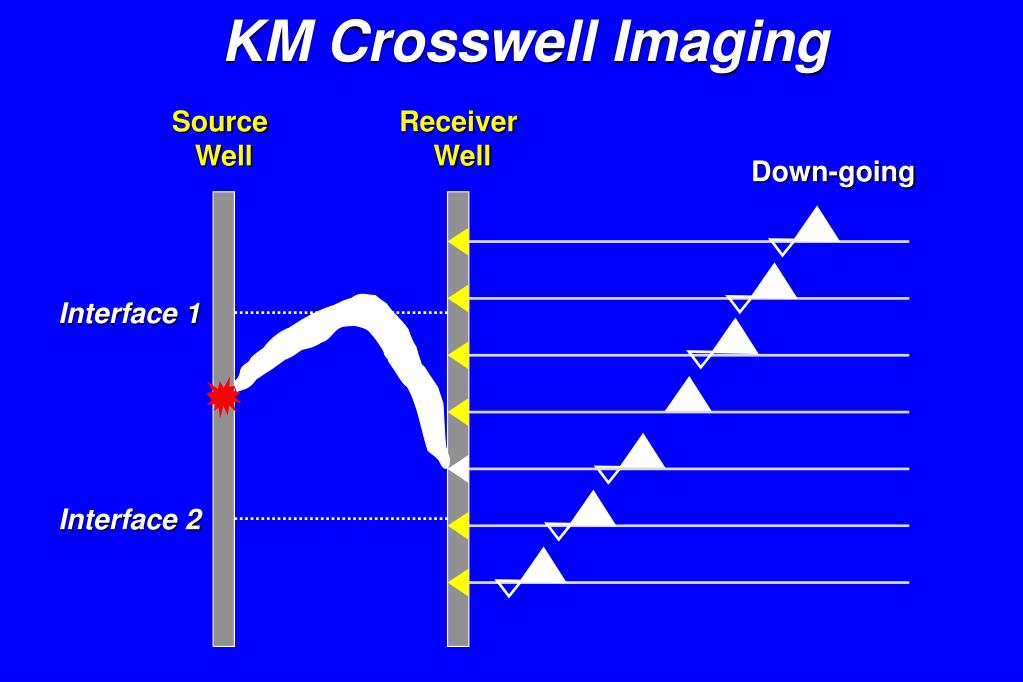

  11. Interface 2 KM Crosswell Imaging Source Well Receiver Well Down-going Interface 1

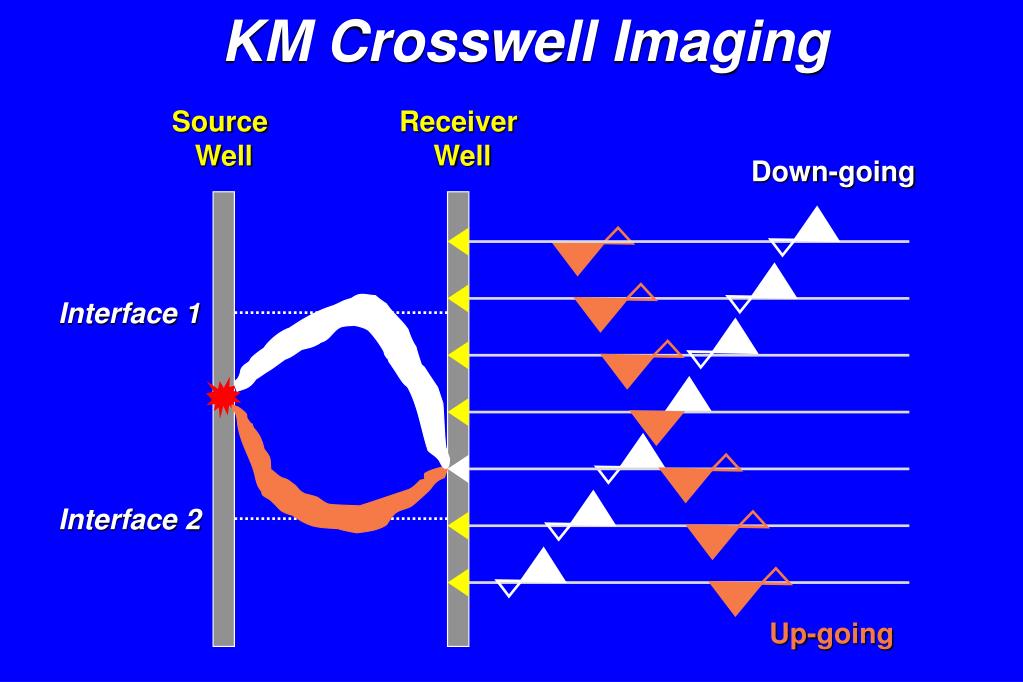

  12. Interface 2 KM Crosswell Imaging Source Well Receiver Well Down-going Interface 1 Up-going

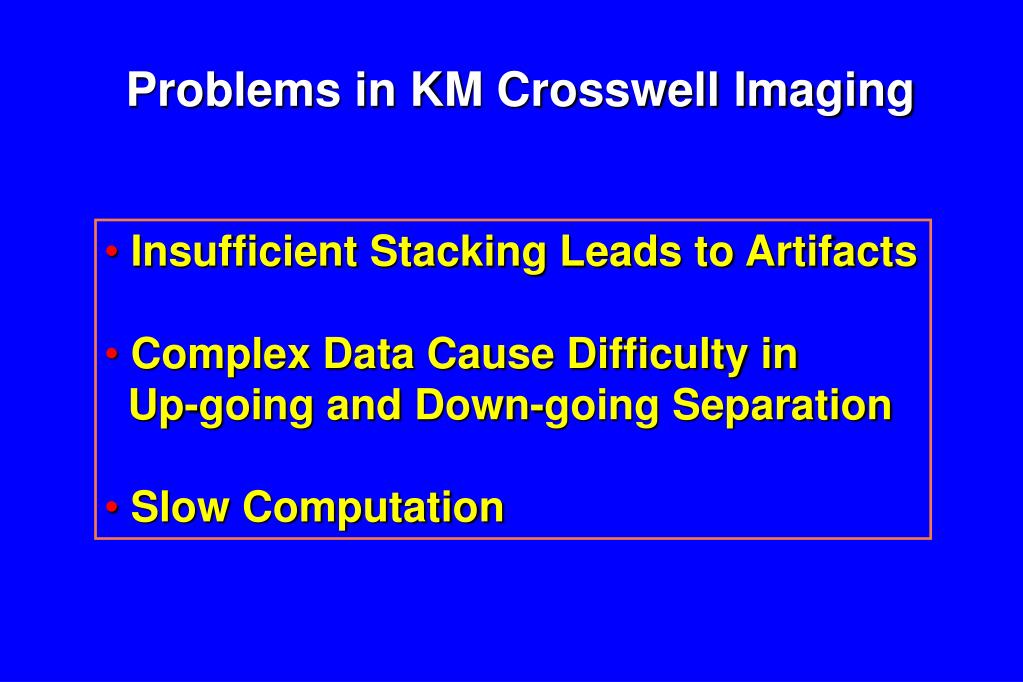

  13. Problems in KM Crosswell Imaging • Insufficient Stacking Leads to Artifacts • Complex Data Cause Difficulty in • Up-going and Down-going Separation • Slow Computation

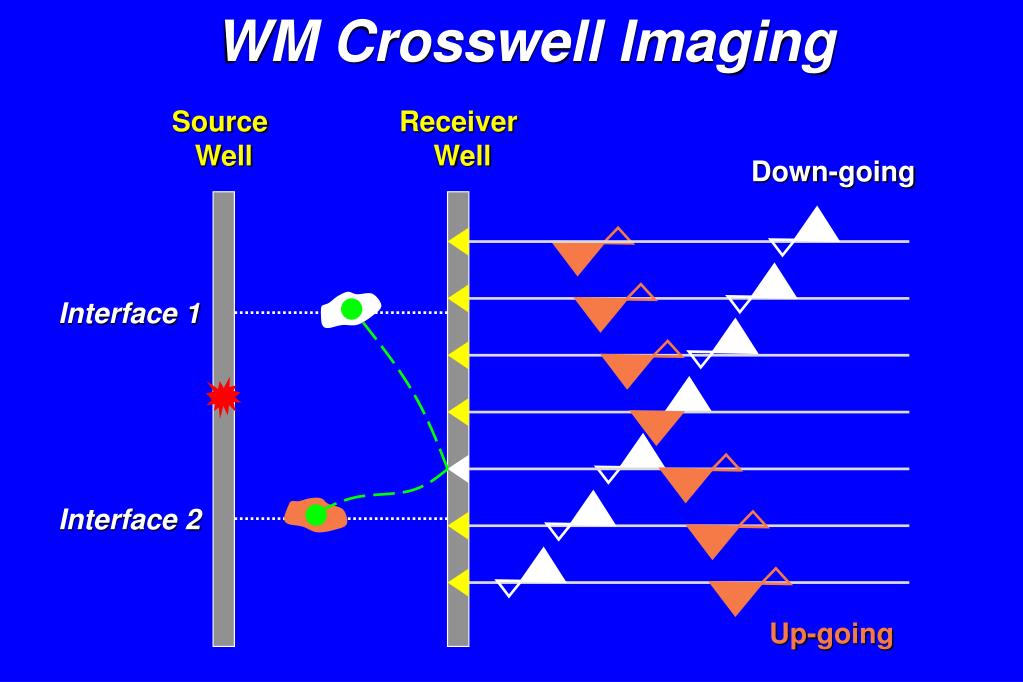

  14. Interface 2 WM Crosswell Imaging Source Well Receiver Well Down-going Interface 1 Up-going

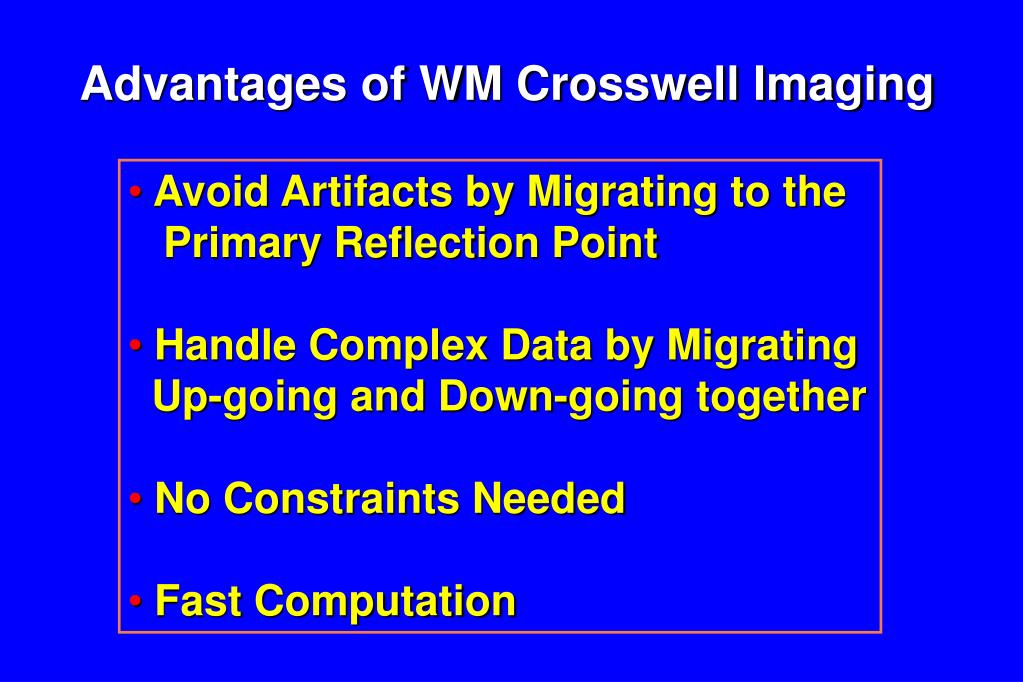

  15. Advantages of WM Crosswell Imaging • Avoid Artifacts by Migrating to the • Primary Reflection Point • Handle Complex Data by Migrating • Up-going and Down-going together • No Constraints Needed • Fast Computation

  16. Shortcomings of WM • Weaker Events • Worse Interface Continuity

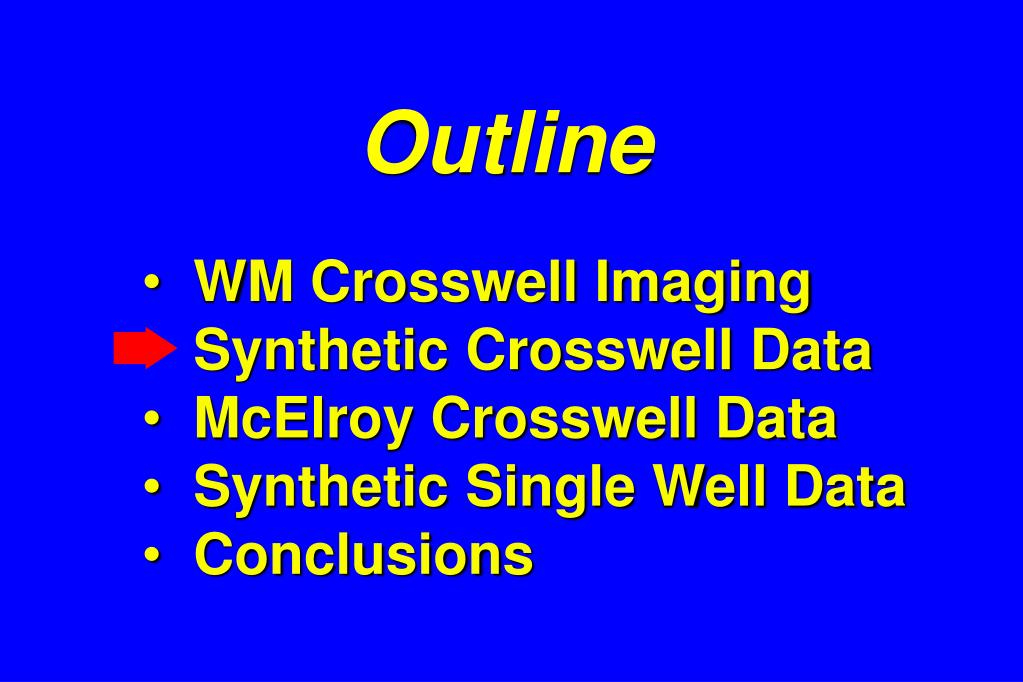

  17. Outline • WM Crosswell Imaging • Synthetic Crosswell Data • McElroy Crosswell Data • Synthetic Single Well Data • Conclusions

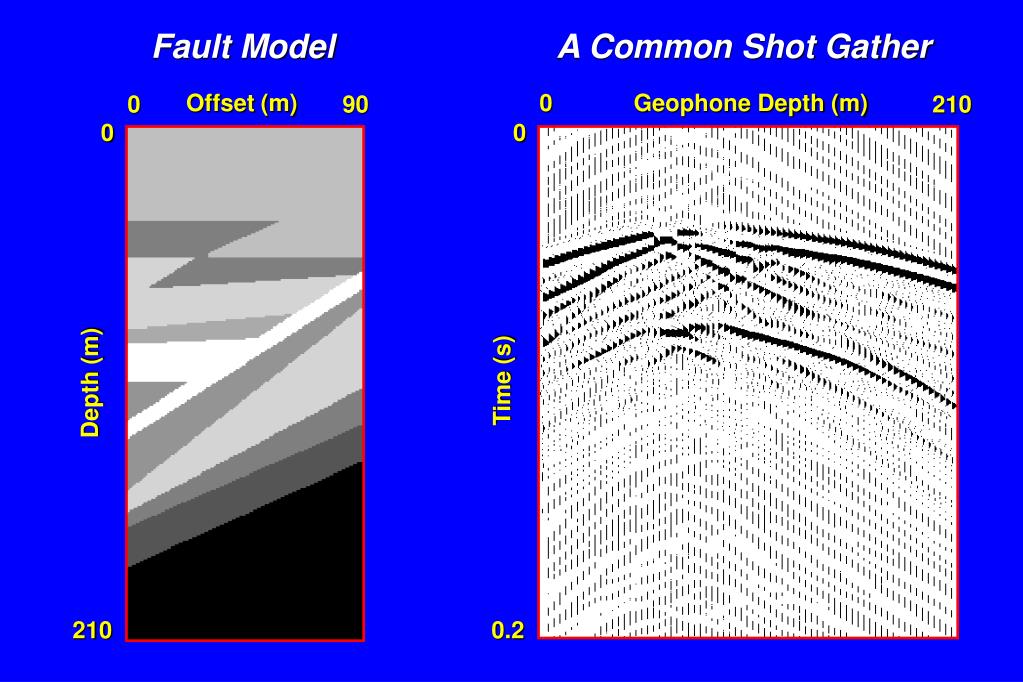

  18. Fault Model A Common Shot Gather Offset (m) 0 Geophone Depth (m) 0 90 210 0 0 Time (s) Depth (m) 210 0.2

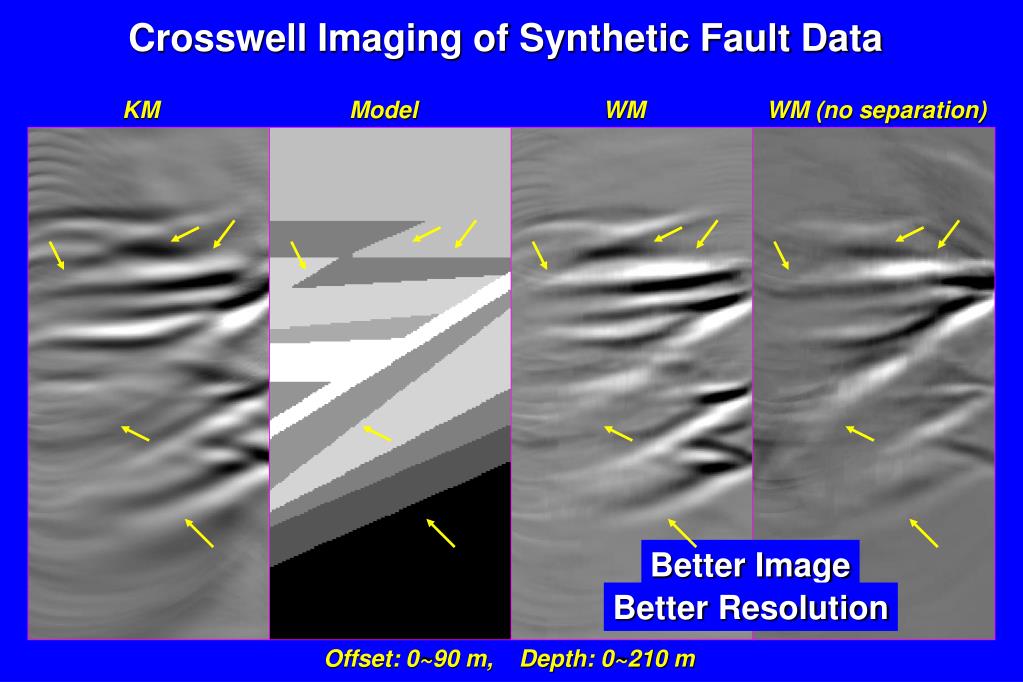

  19. Better Image Better Resolution Crosswell Imaging of Synthetic Fault Data KM Model WM WM (no separation) Offset: 0~90 m, Depth: 0~210 m

  20. Outline • WM Crosswell Imaging • Synthetic Crosswell Data • McElroy Crosswell Data • Synthetic Single Well Data • Conclusions

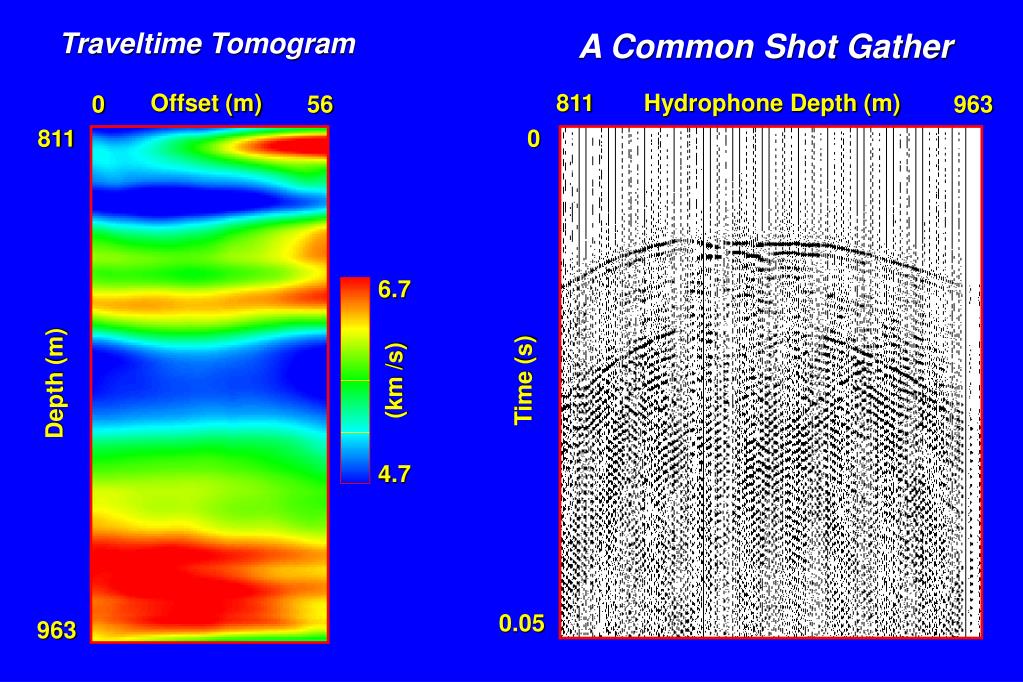

  21. Traveltime Tomogram A Common Shot Gather Offset (m) 811 Hydrophone Depth (m) 0 56 963 811 0 6.7 Time (s) Depth (m) (km /s) 4.7 0.05 963

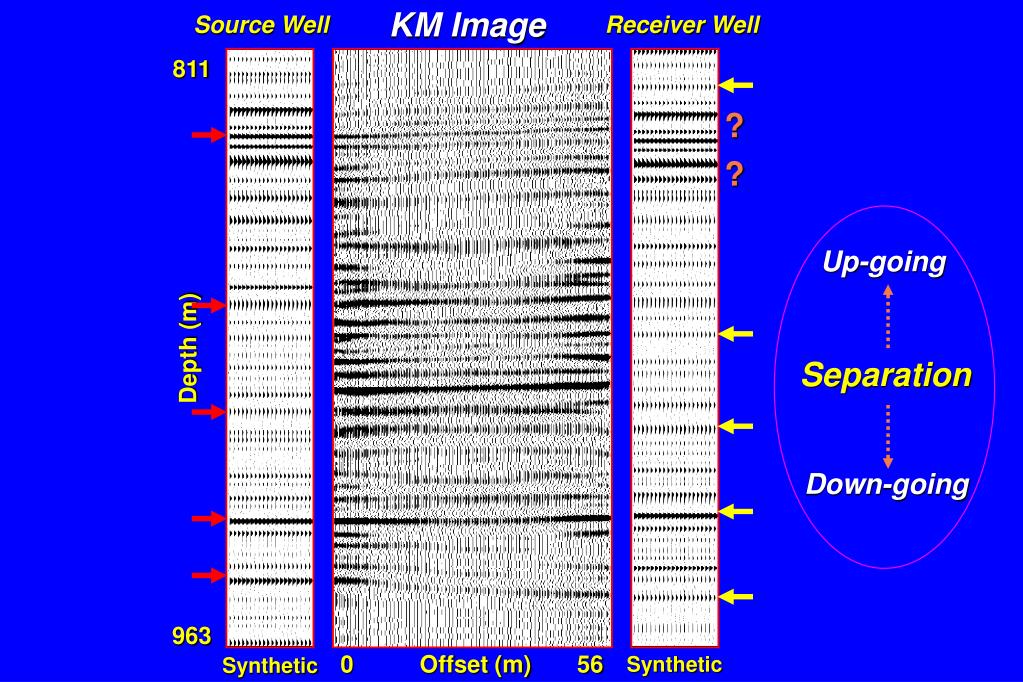

  22. KM Image ? ? 0 Offset (m) 56 Source Well Receiver Well 811 Up-going Depth (m) Separation Down-going 963 Synthetic Synthetic

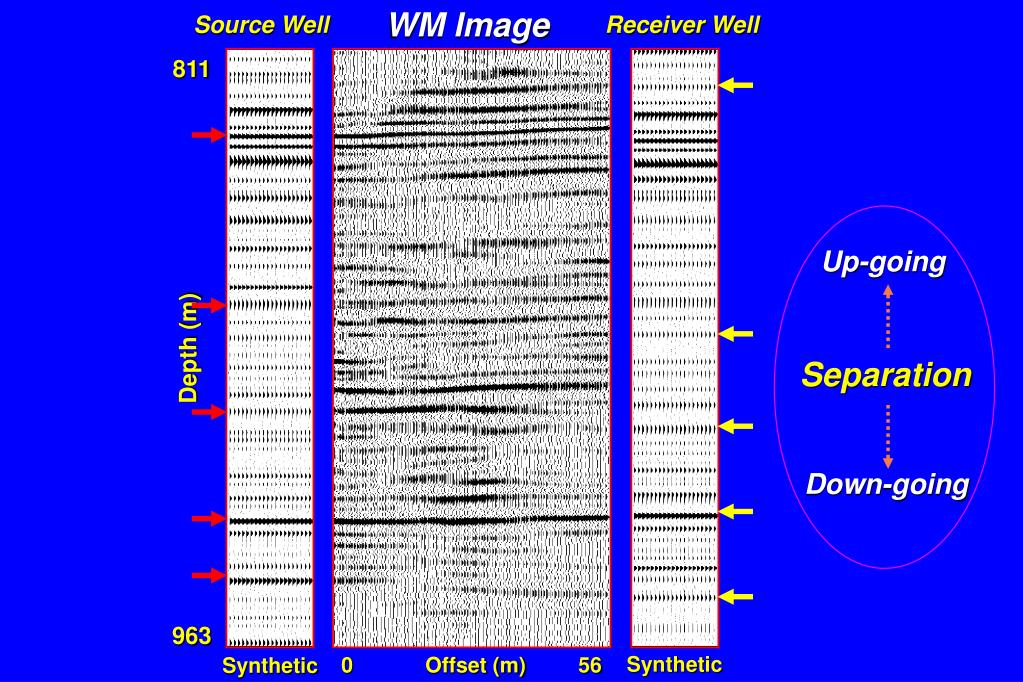

  23. WM Image 0 Offset (m) 56 Source Well Receiver Well 811 Up-going Depth (m) Separation Down-going 963 Synthetic Synthetic

  24. WM Image Source Well Receiver Well 811 Up-going Depth (m) NO Separation Down-going 963 Synthetic 0 Offset (m) 56 Synthetic

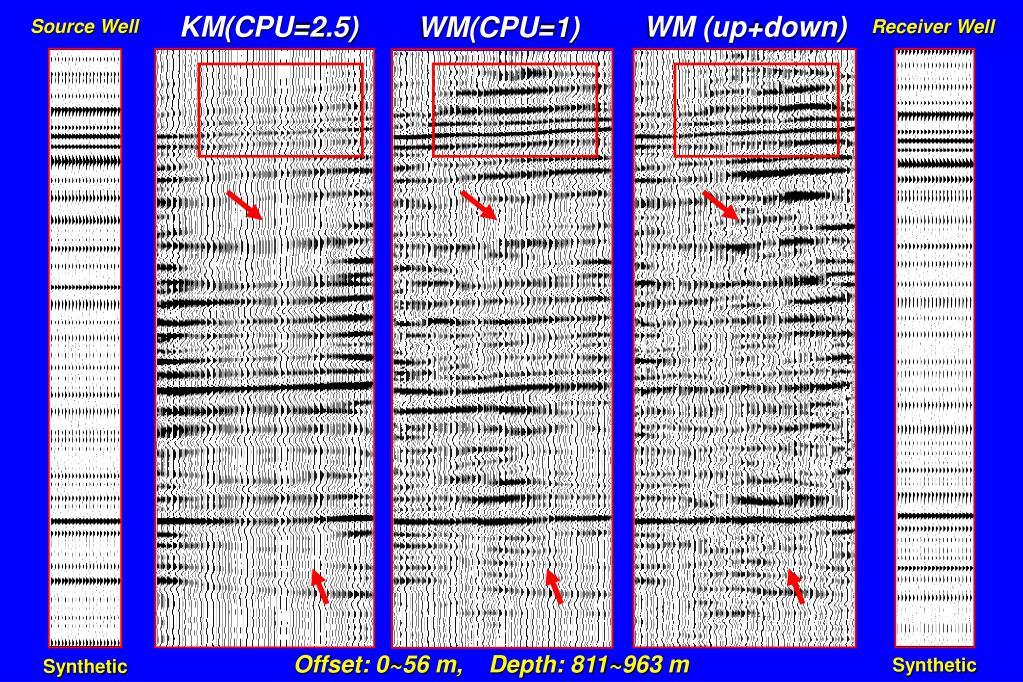

  25. Receiver Well Source Well Synthetic Synthetic KM(CPU=2.5) WM (up+down) WM(CPU=1) Offset: 0~56 m, Depth: 811~963 m

  26. Outline • WM Crosswell Imaging • Synthetic Crosswell Data • McElroy Crosswell Data • Synthetic Single Well Data • Conclusions

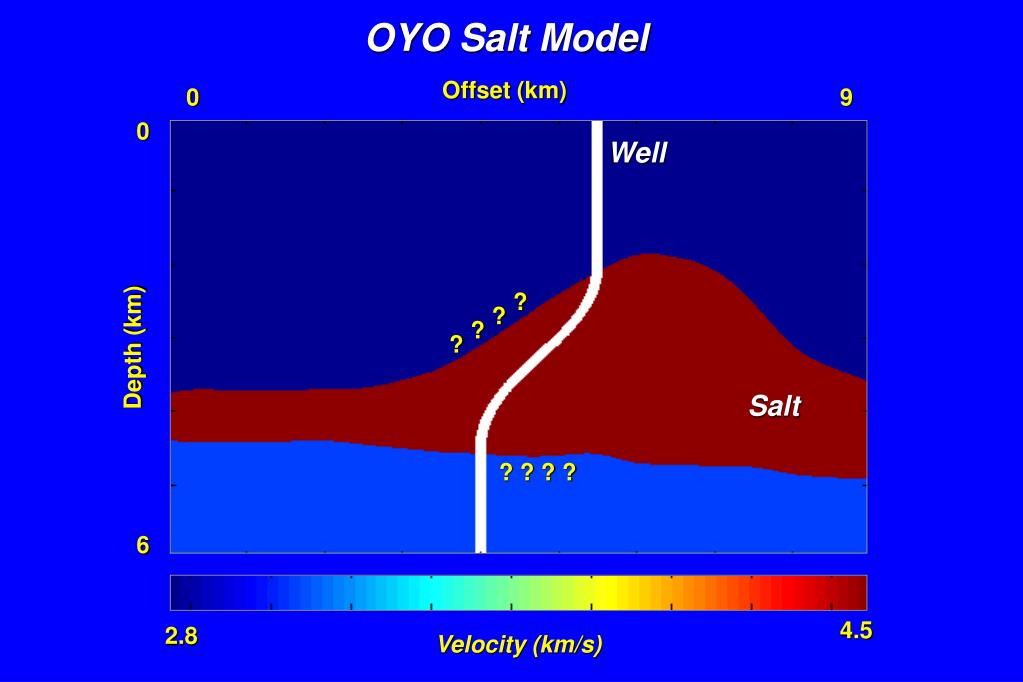

  27. OYO Salt Model Offset (km) 0 9 0 Well ? ? ? ? Depth (km) Salt ? ? ? ? 6 4.5 2.8 Velocity (km/s)

  28. ? ? ? ? OYO Salt Model Velocity Model WM image KM image 2 Depth (km) Well ????? 5 Offset (km) Offset (km) Offset (km) 2.5 6.5 2.5 6.5 2.5 6.5

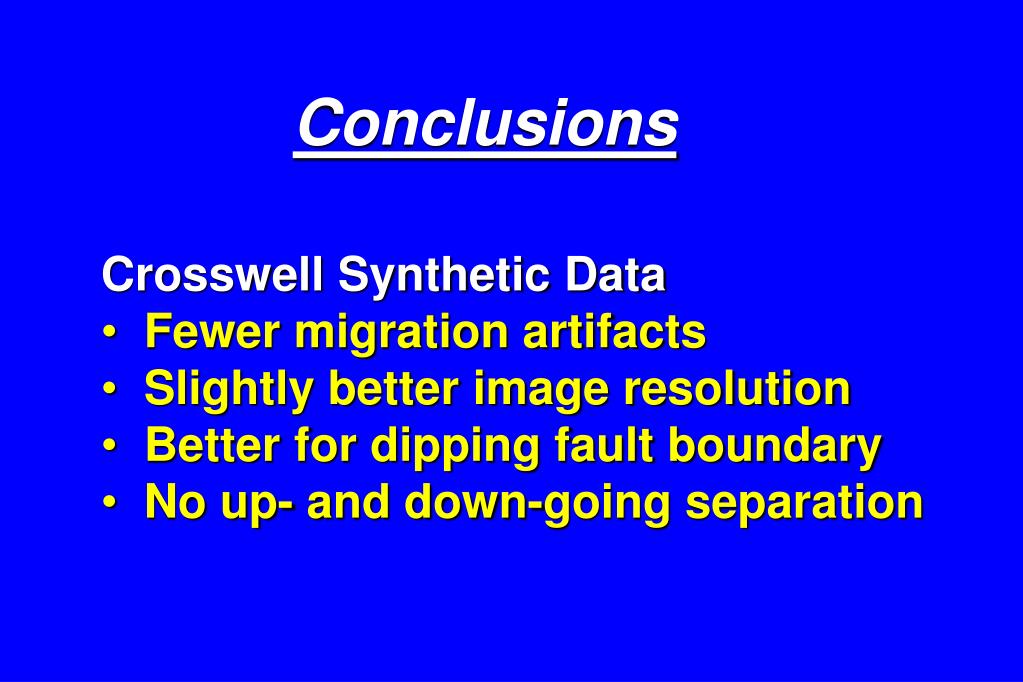

  29. Conclusions • Crosswell Synthetic Data • Fewer migration artifacts • Slightly better image resolution • Better for dipping fault boundary • No up- and down-going separation

  30. Conclusions • Crosswell McElroy Data • Similar image quality • No up- and down-going separation • 2.5 times faster than KM • Worse image continuity • Structure details? Artificial events?

  31. Conclusions • Single Well Synthetic Data • Similar image quality • Fewer migration artifacts

  32. Acknowledgements I thank UTAM sponsors for their financial support
